How to remove cup holder from Tranny tunnel?

I just got a 2002 Ranger XLT. There is a black plastic box with two cup holders mounted on top of the Tranny tunnel. I want to remove the unit. I cannot find any screws to remove. The unit seems to be attached by a bolt in the middle of it. I can swivel the unit a little clockwise or counterclockwise around this mount. Maybe I need to simply raise the plastic unit and it will 'pop off' of a stud. Can anyone offer me some advice?
Reply With Quote
  #2
Old 09-14-2010
Casper98's Avatar
Member
iTrader: (1)

Join Date: Jun 2007
Location: Gresham OR
Posts: 1,789

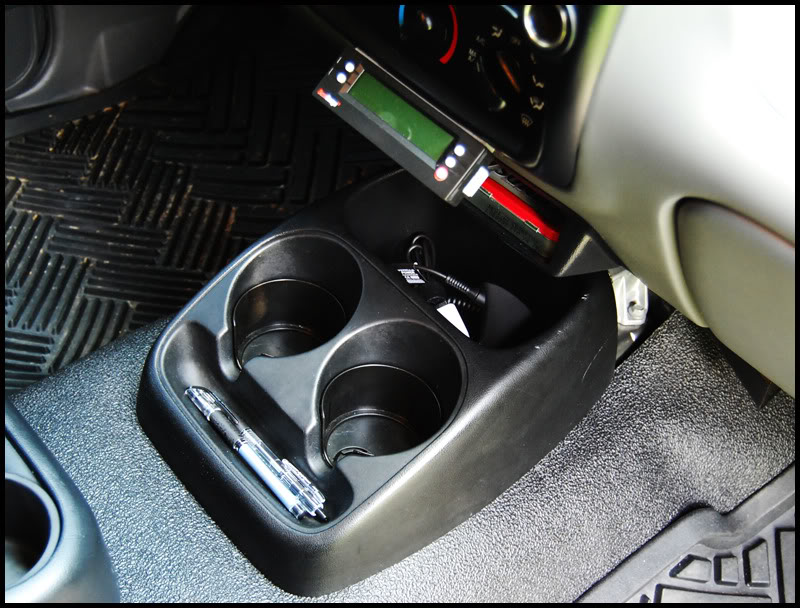

If it looks like this
Name:  console2.jpg
Views: 578
Size:  117.4 KB

you need to take the little rubber mats out or the cup parts, then you'll see to ***** (you can see them in this pic) to twist then it should come out.
Reply With Quote
  #3
Old 09-14-2010
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Some have screws under the rubber mat too.
Reply With Quote
  #4
Old 09-15-2010
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,778
What are you going to do to cover the Electronic Module the Cup Holder is blocking ?
Reply With Quote
  #5
Old 09-15-2010
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
why are you pulling it out?
Reply With Quote
  #6
Old 09-15-2010
Member
Thread Starter

Join Date: Sep 2010
Location: Saratoga, CA
Posts: 18
"Casper98" --Thanks for the info. I removed it today. The reason I wanted to remove it was to get access to the Powertrain Control Module (PCM).
Reply With Quote
  #7
Old 09-16-2010
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,778
chuck d,
Where is the Power Train Control Module ?
The one on the floor that the Cup Holder covers is the Air Bag Safety Restraint Module !
At least that is what I have been told.
Reply With Quote
  #8
Old 09-16-2010
Redrocket's Avatar
Member
iTrader: (6)

Join Date: Jan 2007
Location: Waynesville n.c
Posts: 1,993
yep your pcm is under the hood top pass side in the fire wall. the one with the big grey plug going into it lol
Reply With Quote
  #9
Old 09-29-2010
mtlove91's Avatar
Member

Join Date: Sep 2010
Location: Lake Elsinore CA
Posts: 62
Quote:
Originally Posted by Casper98 View Post
If it looks like this


you need to take the little rubber mats out or the cup parts, then you'll see to ***** (you can see them in this pic) to twist then it should come out.
I want those floor mats, where did you get them?
