Installing OHC: Does this look right? Regular Cab..
I took off my headliner and this is what I see:


is there suppose to be a gap? or do I have it in the wrong spot?


I got my ohc for $15

Reply Like
  #2
Old 07-14-2009
OVERtheEDGE's Avatar
Member
Join Date: Mar 2008
Location: locust grove georgia
Posts: 1,441
Likes: 0
Received 0 Likes on 0 Posts
looks like it. im gonna do mine soon.

Reply Like
  #3
Old 07-14-2009
FX2.3's Avatar
Member
Thread Starter
Join Date: Jul 2005
Location: College Station
Posts: 2,781
Likes: 0
Received 0 Likes on 0 Posts
All the threads I can find are extended cabs like:

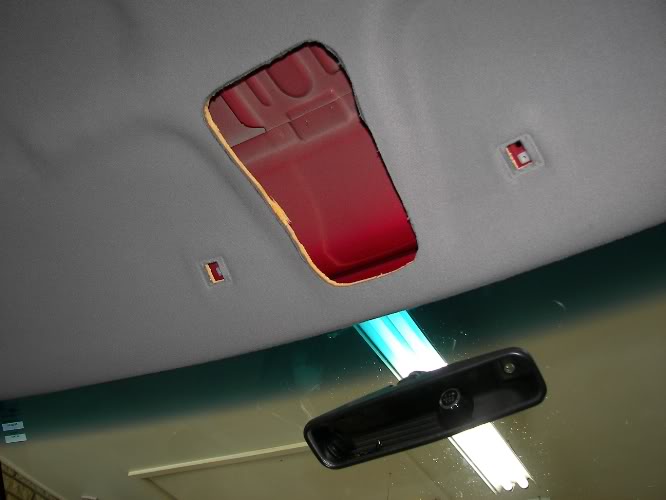

Name: 100_3640.jpg Views: 66 Size: 28.8 KB
and

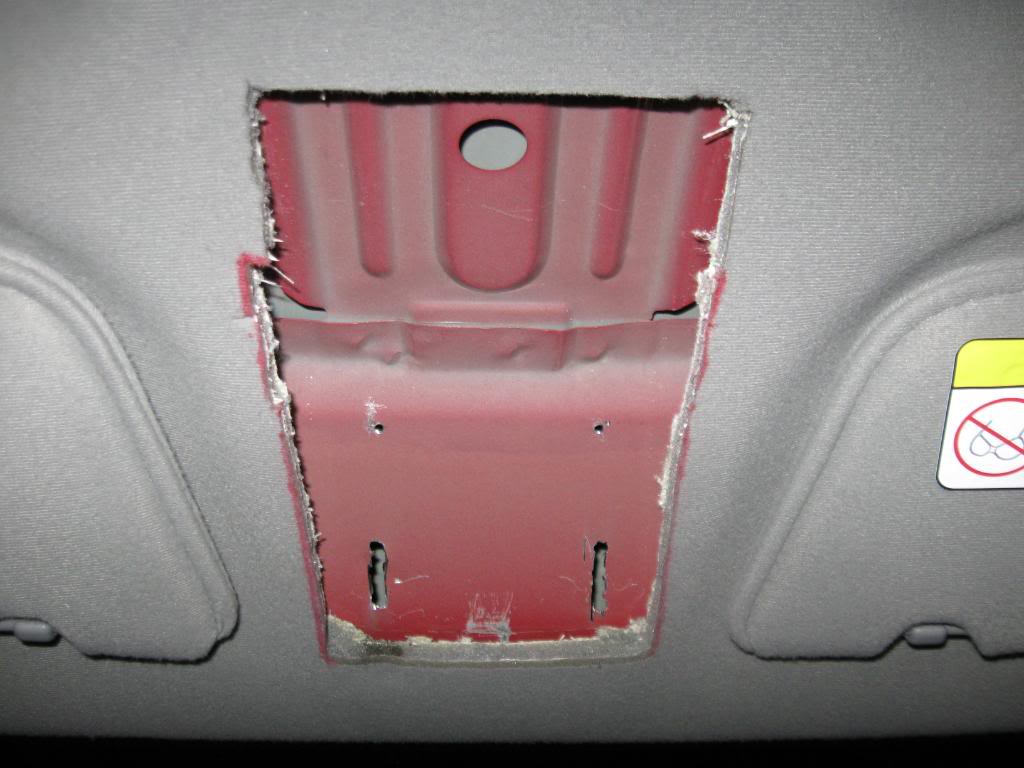

Name: IMG_0190.jpg Views: 47 Size: 81.5 KB

notice the lack of those 2 bumps with slits?

Reply Like
  #4
Old 07-14-2009
SVT01RANGER's Avatar
Member
iTrader: (2)
Join Date: Jun 2004
Location: West Eugene, OR
Posts: 3,635
Likes: 0
Received 2 Likes on 2 Posts
that looks about right james, thats the way it looked in my 01 reg cab

Reply Like
  #5
Old 07-14-2009
OVERtheEDGE's Avatar
Member
Join Date: Mar 2008
Location: locust grove georgia
Posts: 1,441
Likes: 0
Received 0 Likes on 0 Posts
theres not a difference is there? rangercrazy07 is gonna help me with mine. he did his and his is a single cab.

Reply Like
  #6
Old 07-14-2009
FX2.3's Avatar
Member
Thread Starter
Join Date: Jul 2005
Location: College Station
Posts: 2,781
Likes: 0
Received 0 Likes on 0 Posts
edited pic in first post with white arrows.. just looks odd..

Reply Like
  #7
Old 07-14-2009
mossyoak03's Avatar
Member
iTrader: (1)
Join Date: Oct 2006
Location: Virginia Beach, VA
Posts: 193
Likes: 0
Received 0 Likes on 0 Posts
see if the tabs on the OHC will line up where those slots are that you are pointing out.

Reply Like
  #8
Old 07-14-2009
j99ranger4x4's Avatar
Member
iTrader: (5)
Join Date: Sep 2008
Location: Delaware, OH
Posts: 1,381
Likes: 0
Received 1 Like on 1 Post
no they do not line up. I just did my OHC install tonight. I used a self tapping screw on the back because the way mine sat it was too low in the back.

Reply Like
  #9
Old 07-14-2009
FX2.3's Avatar
Member
Thread Starter
Join Date: Jul 2005
Location: College Station
Posts: 2,781
Likes: 0
Received 0 Likes on 0 Posts
Had a good idea.. just got lazy on the execution of it..


looks like my ohc is giving birth to lil one!

that is the detector half hanging out.. one piece system board ftl..

Reply Like
  #10
Old 07-14-2009
bigdog's Avatar
Member
Join Date: May 2009
Location: Wichita, Kansas
Posts: 38
Likes: 0
Received 0 Likes on 0 Posts
Go to this thread and print a copy of the OHC mounting template. Use it to verify hole locations and fit before you cut anything.

https://www.ranger-forums.com/forum2...-template.html

Reply Like
  #11
Old 07-15-2009
FX2.3's Avatar
Member
Thread Starter
Join Date: Jul 2005
Location: College Station
Posts: 2,781
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by bigdog
Go to this thread and print a copy of the OHC mounting template. Use it to verify hole locations and fit before you cut anything.

https://www.ranger-forums.com/forum2...-template.html
The picture above is the ohc installed!

now I gotta make the detector fit better..

Reply Like
  #12
Old 07-15-2009
Crackerstein's Avatar
Member
Join Date: Jan 2008
Location: Basically hanging out, sm
Posts: 604
Likes: 0
Received 0 Likes on 0 Posts
Man... now i wanna do it!

Reply Like
  #13
Old 07-15-2009
gts007's Avatar
Member
iTrader: (3)
Join Date: Mar 2009
Location: 559, CA
Posts: 1,174
Likes: 0
Received 0 Likes on 0 Posts
looks good. what color paint did you use for that?

Reply Like
  #14
Old 07-15-2009
08XLT4x4's Avatar
Member
iTrader: (7)
Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
Likes: 0
Received 2 Likes on 2 Posts
wow, i really like the paint you did! that looks sweet!

Reply Like
  #15
Old 07-15-2009
elanalvey's Avatar
Member
iTrader: (2)
Join Date: Sep 2008
Location: Sumter, SC
Posts: 633
Likes: 0
Received 0 Likes on 0 Posts
i love how that turned out James. those color matched fantastically.

Reply Like
  #16
Old 07-15-2009
Downey's Avatar
RF Veteran
iTrader: (1)
Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
Likes: 0
Received 6 Likes on 6 Posts
looks good i love mine

Reply Like
  #17
Old 07-15-2009
Redrocket's Avatar
Member
iTrader: (6)
Join Date: Jan 2007
Location: Waynesville n.c
Posts: 1,993
Likes: 0
Received 0 Likes on 0 Posts
[QUOTE=OVERtheEDGE;1402095]theres not a difference is there? rangercrazy07 is gonna help me with mine. he did his and his is a single cab.[QUOTE

i put his ohc in at the knox meet for him. his never looked like that they changed some stuff on the newer trucks thats why its different

Reply Like
  #18
Old 07-15-2009
FX2.3's Avatar
Member
Thread Starter
Join Date: Jul 2005
Location: College Station
Posts: 2,781
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Crackerstein
Man... now i wanna do it!
do it.. I went to the pick n pull off of loop 12.. $2 to enter.. same explorer had tan leather seats..

Originally Posted by gts007
looks good. what color paint did you use for that?
Originally Posted by 08XLT4x4
wow, i really like the paint you did! that looks sweet!
Originally Posted by elanalvey
i love how that turned out James. those color matched fantastically.
Thanks, the paint is Krylon Fusion Hammered Finish

Originally Posted by Redrocket
i put his ohc in at the knox meet for him. his never looked like that they changed some stuff on the newer trucks thats why its different
Good to know Im not crazy

Reply Like
  #19
Old 07-15-2009
Johnbaum13's Avatar
Member
iTrader: (1)
Join Date: Jan 2008
Location: Dallas, TX
Posts: 2,343
Likes: 0
Received 2 Likes on 2 Posts
My '05 reg cab didn't look like that, so ya ain't crazy!

Reply Like
  #20
Old 07-15-2009
seed60's Avatar
RF Veteran
iTrader: (15)
Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Likes: 0
Received 0 Likes on 0 Posts
Looks awesome, love the paint choice!

Reply Like
