Junkyard OHC Removal

What tools do I need to remove the OHC console if I happen to find one in an explorer on my trip?

How do I uninstall it also? I know this is very general, I have looked around and I will keep trying to read up but I'm not finding much. Also how would I remove the temperature sensor?

Thanks everyone.
Reply With Quote
  #2
Old 06-17-2008
Biz's Avatar
Biz Biz is offline
Member

Join Date: Sep 2006
Location: los angeles,California
Posts: 2,120
depends..some use a phillips head..some use a torque..some use a square drive and some use a hex head...i would just bring them all..and some wire strippers or something to cut the wire harness..your basicly going to push the garage door button and the there will be a few screws to take down the OHC.Then there are some that hold the bracket in place...make sure u cut the harness all the way down the Pillar so ur wire harness will be Long..making it easier to wire up...While ur there..Pocket some extra wiring.To remove the Temp sensor is easy..just look under the front bumper and you will see it near the radiator..Just snip the wires going to it..
Reply With Quote
  #3
Old 06-17-2008
english15x's Avatar
Member
Thread Starter

Join Date: Jun 2008
Location: Butler, PA
Posts: 108
alright thanks a lot
Reply With Quote
  #4
Old 06-17-2008
malydeen's Avatar
Member
iTrader: (12)

Join Date: Jul 2007
Location: Minneapolis, MN
Posts: 632
if its a model with the sun roof, just grab the front of it and pull down. It will pull right out. Then you can unscrew the bracket. If its a model with out the sun roof, unscrew the 2 bolts in the garage door opener compartment, then grab the front and pull down. Then unscrew the bracket.

As for the temp sensor. EVERY EXPLORER HAS ONE, whether it has an OHC/HVAC. it is under the drivers side head light. It has a blue/white and a blue/yellow wire comming out of it. If you can find one, hit me up i have a couple spares.
Reply With Quote
  #5
Old 06-17-2008
malydeen's Avatar
Member
iTrader: (12)

Join Date: Jul 2007
Location: Minneapolis, MN
Posts: 632
oh and theres 2 different types, they are the same thing though

some look like this

------
|
<
|
------

And some look like this

_______
(
--------
Reply With Quote
  #6
Old 07-08-2008
rangercrazy07's Avatar
Member
iTrader: (2)

Join Date: Oct 2005
Location: Marietta, GA
Posts: 758
does anyone have a pic of the temp sensor?
Reply With Quote
  #7
Old 07-08-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426

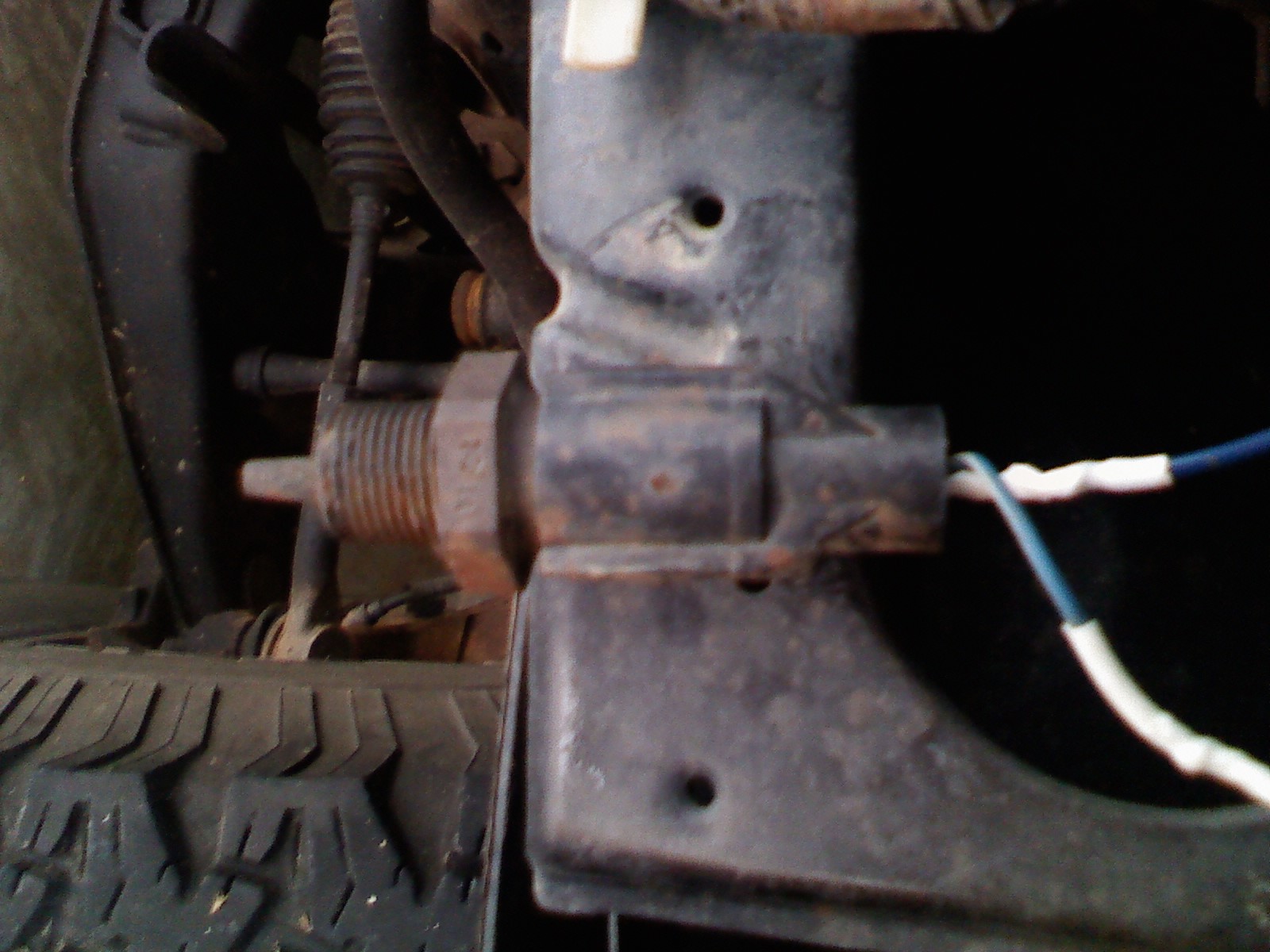

Yeah let me go take one for you real quick.
Attached Thumbnails
Junkyard OHC Removal-0708081340a.jpg
Reply With Quote
  #8
Old 07-08-2008
RangerJustin's Avatar
Member
iTrader: (1)

Join Date: Feb 2005
Location: SoCal
Posts: 4,428
Trent, what do you have that mounted to?
Reply With Quote
  #9
Old 07-08-2008
taknotes's Avatar
Member
iTrader: (4)

Join Date: Aug 2006
Location: nc
Posts: 2,104
Quote:
Originally Posted by RangerJustin View Post
Trent, what do you have that mounted to?
thats what i was wondering...trent, maybe thats why yours is off so much, i think its in the wrong spot!
Reply With Quote
  #10
Old 07-08-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Quote:
Originally Posted by taknotes View Post
thats what i was wondering...trent, maybe thats why yours is off so much, i think its in the wrong spot!
Its right below the headlight in a hole in the header panel. Its off cause of my crappy wiring connections, which I fixed the other day thank you very much.
Reply With Quote
  #11
Old 07-08-2008
taknotes's Avatar
Member
iTrader: (4)

Join Date: Aug 2006
Location: nc
Posts: 2,104
haha sweet deal
Reply With Quote
  #12
Old 07-09-2008
Rangerguy's Avatar
Member

Join Date: Feb 2008
Location: California
Posts: 1,120
Thats about where I mounted mine too. Nicely done.
