Icon9 lv2 armrest issues

has anybody had a problem with the armrest in the lv2's breaking? like the plastic part the screws to the bottom of the armrest cracked bad and i've tried to fix it once and it didn't work. its the part the mounts it to the console so the plastic supports any weight put on it. i'm gonna try to epoxy it back today i just wondered if anyone had a similiar problem and how they fixed it. ford wants 144.80 for a new one. it blows...thanks
Reply With Quote
  #2
Old 07-01-2009
chainfire's Avatar
Member
iTrader: (1)

Join Date: Oct 2007
Location: Mission B.C.
Posts: 3,126
Not just level II's. All rangers and expo's have this problem.
Reply With Quote
  #3
Old 07-01-2009
NVRDONE's Avatar
Member
iTrader: (2)

Join Date: Feb 2009
Location: Union, NJ
Posts: 114
I have a Level 2 interior and mine are fine. Epoxy should work.
Reply With Quote
  #4
Old 07-01-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
VERY VERY VERY VERY VERY common problem on these ranger shorty or long floor consoles. It starts WAY back in near the hinge and gets progressively worse. The parents putting all their weight on the rest destroyed mine...it had already began to crack.

Slide both seats forward, pull the oval plastic caps, then take a 8mm and unbolt the arm rest assy from the console. Pull out all the screws, and the vinyl/cloth rest upholstery will come off the 'frame/base'. Find some plastic epoxy and go to town on it. Should help it ALOT. I need to do this to my new armrest. If it doesn't help, your only option is new armrest hinge assy or get a junkyard rest.

TONS of rangers have this problem...alot of trucks I see on craigslist and autotrader dont even have the armrest still.
Reply With Quote
  #5
Old 07-01-2009
camodown's Avatar
Lost in Nowhere
iTrader: (3)

Join Date: Feb 2007
Location: Midland, TX
Posts: 5,029
mine has been gone for over a year and was cracked for years
Reply With Quote
  #6
Old 07-01-2009
levelIIrdneck's Avatar
Member
Thread Starter

Join Date: Mar 2007
Location: shelbyville,tn
Posts: 196
i din't have to take all that apart. i just popped it off the hinge.thats how i did it before. i riveted two pieces of aluminum in the centers were it drops in and it worked until my fiance's dog jumped in the drivers seat then across and knocked it half sideways. pissed me off real good.
Reply With Quote
  #7
Old 07-01-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Here's what my old rest base looks like...

Reply With Quote
  #8
Old 07-01-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by levelIIrdneck View Post
i din't have to take all that apart. i just popped it off the hinge.thats how i did it before. i riveted two pieces of aluminum in the centers were it drops in and it worked until my fiance's dog jumped in the drivers seat then across and knocked it half sideways. pissed me off real good.
You really should get something ontop of the crack..epoxy or fiberglass it...something to save it you know?

Show us some pics man.
Reply With Quote
  #9
Old 07-01-2009
camodown's Avatar
Lost in Nowhere
iTrader: (3)

Join Date: Feb 2007
Location: Midland, TX
Posts: 5,029
haha same **** but mine busted up more at the back and just fell apart one day when I lifted it up
Reply With Quote
  #10
Old 07-01-2009
levelIIrdneck's Avatar
Member
Thread Starter

Join Date: Mar 2007
Location: shelbyville,tn
Posts: 196
thats how mine looked except smaller. thats when i put aluminum in it. now it cracked inbetween the two insets and across to were theback part is separate. in two pieces.
Reply With Quote
  #11
Old 07-01-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
It's funny....I've seen 4 trucks with the crack in the SAME EXACT PLACE as my old one. My new one has a small one forming that I never saw until I saw how my old one started. *i may be typing confusing things....I used to run a light grey console, then a dark grey console, now a black console. I stole the hinge and 'base' off the dark grey console and reused my black vinyl.
Reply With Quote
  #12
Old 07-01-2009
levelIIrdneck's Avatar
Member
Thread Starter

Join Date: Mar 2007
Location: shelbyville,tn
Posts: 196
i'm not confused. i assumed you had changed it. you know anyone that has one that isn't too bad jacked up? i'm getting pics now
Reply With Quote
  #13
Old 07-01-2009
Tys 4x4 FTW's Avatar
RF Veteran
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575
thats why when i got my full length console i didnt get that one lol
Reply With Quote
  #14
Old 07-01-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by levelIIrdneck View Post
i'm not confused. i assumed you had changed it. you know anyone that has one that isn't too bad jacked up? i'm getting pics now
LOL. Actually, I dont. If I did, I'd be holding onto it for myself. It's good to have spares. lol.
Reply With Quote
  #15
Old 07-01-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by Tys 4x4 FTW View Post
thats why when i got my full length console i didnt get that one lol
Ty...what you forgot was that one little detail: isn't there like a $300 difference in price and a HUGE difference in avaliability? lol.
Reply With Quote
  #16
Old 07-01-2009
chainfire's Avatar
Member
iTrader: (1)

Join Date: Oct 2007
Location: Mission B.C.
Posts: 3,126
Time to hit the junk yard, or epoxy it. Considering how rare those black interiors are, I'd consider epoxy.
Reply With Quote
  #17
Old 07-01-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
I believe all 04+ shorty ranger consoles are black... XLT, Edge/Sport, Fx4, blah.
Reply With Quote
  #18
Old 07-01-2009
chainfire's Avatar
Member
iTrader: (1)

Join Date: Oct 2007
Location: Mission B.C.
Posts: 3,126
Not to high jack, but really? Hmmm I need to go hunting then. Mine is tan and its ugle as hell, and broken like this too.
Reply With Quote
  #19
Old 07-01-2009
Tys 4x4 FTW's Avatar
RF Veteran
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575
Quote:
Originally Posted by Fx4wannabe01 View Post
Ty...what you forgot was that one little detail: isn't there like a $300 difference in price and a HUGE difference in avaliability? lol.
hey i paid a total of 20 bucks for mine. and it looks great lol
Reply With Quote
  #20
Old 07-01-2009
levelIIrdneck's Avatar
Member
Thread Starter

Join Date: Mar 2007
Location: shelbyville,tn
Posts: 196
http://i682.photobucket.com/albums/vv186/level2rdneck/armrest4.jpg[/IMG]
nice right?
http://i682.photobucket.com/albums/v...k/armrest5.jpg
Reply With Quote
  #21
Old 07-01-2009
levelIIrdneck's Avatar
Member
Thread Starter

Join Date: Mar 2007
Location: shelbyville,tn
Posts: 196
one pic = fail ...hold on
Reply With Quote
  #22
Old 07-01-2009
levelIIrdneck's Avatar
Member
Thread Starter

Join Date: Mar 2007
Location: shelbyville,tn
Posts: 196
Reply With Quote
  #23
Old 07-01-2009
chainfire's Avatar
Member
iTrader: (1)

Join Date: Oct 2007
Location: Mission B.C.
Posts: 3,126

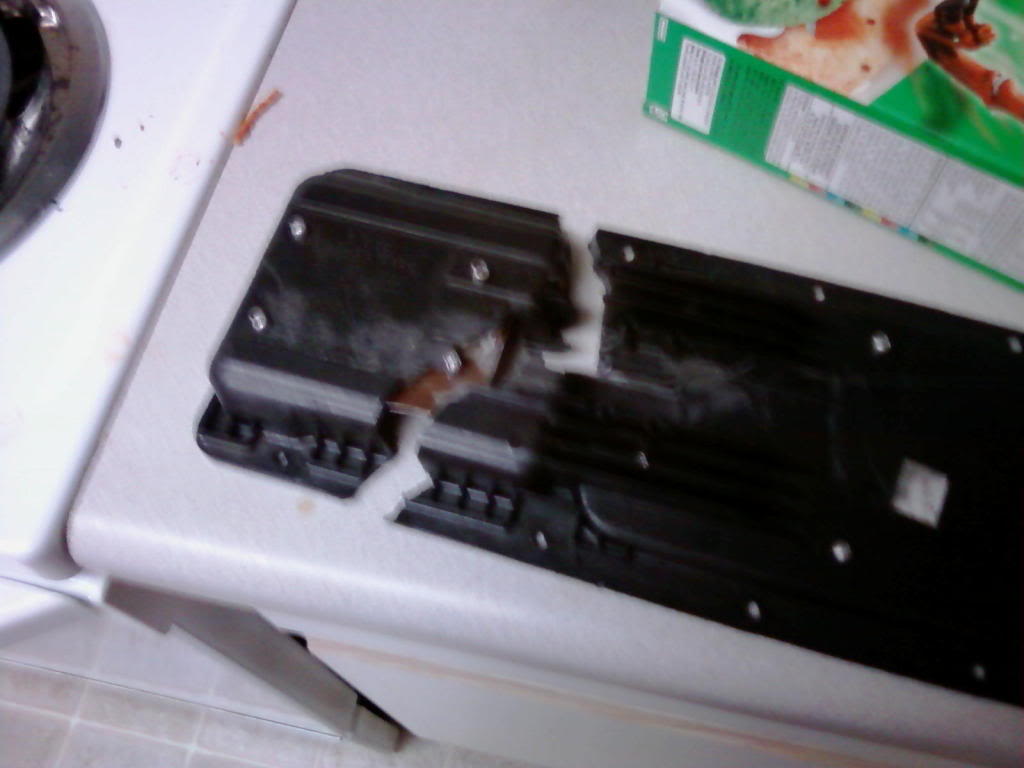

There ya go,
But that think looks fawked lol.

Name:  armrest4-1.jpg
Views: 2
Size:  59.9 KB
Reply With Quote
  #24
Old 07-01-2009
levelIIrdneck's Avatar
Member
Thread Starter

Join Date: Mar 2007
Location: shelbyville,tn
Posts: 196
i just have to re do the one piece of aluminum and epoxy the shat out of it and hopefully it will be ok
Reply With Quote
  #25
Old 07-01-2009
Member
iTrader: (3)

Join Date: Mar 2009
Location: 559, CA
Posts: 1,174
I don't understand why ford never put any kind of support under the armrest. Instead they just left a huge gap under the entire thing which is pathetic. it looks like they WANT everyone to break it. I added my own support.
