mounting up the cb/ham radio

well it was time for a cb in the truc, and mount my ham radio in there too. i built a steel plate out of 1/8" steel. for 2 reasons i used 1/8" steel. one i had it so freebie. and two i could remount my factory aux in jack for the radio.

used the factory plastic piece and used it for a template. trimmed it all out with my 4 1/2" grinder with a cut off wheel. as for the small bend i needed, i could of cut the part off and re welded it. but i chose to score a line in the steel and clamp it in the vice and bent it over a few deg*. drilled 3 holes and was able to use factory screws and mounting points.

held the cb and backet up to it in the truck and tack welded it on and then finished welded it to my plate. then cut out a mounting tab for my ham radio control head to be stuck to. welded it on also. took and drilled 4 holes and hogged out the extra steel with a die grinder. was able to make the stock aux input jack fit into the plate.

so all i have left to do is drill a large hole for coax and power cables to pass through into the dash and put a gromet in the hole. and a coat of paint. fixin to paint it glss black to match the other black parts in the cab.

lol ok nuff rambeling heres some pics. BTW all i have is crappy cell phone pics.

removed the trans console, theres the seat belt restraint module under it. (klein Tools FTMFW!!)


plate screwed to the dash,and cb mounted on.


all finished welded


mounted up on the dash.


and heres the ham radio control head held up next to the cb.
Name:  0214091557a.jpg
Views: 247
Size:  65.7 KB


and on a side project happening the same time. built a battery tray to mount on the side of my 30yr old miller AEAD-200LE engine welder.


Reply With Quote
  #2
Old 02-14-2009
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Dude, love the cb. I got the same one.
Reply With Quote
  #3
Old 02-14-2009
Member
Thread Starter

Join Date: Apr 2007
Location: Mission Hills, California
Posts: 798
its ok, just a cheep one to get me on the air. might upgrade up to the next model built in the same case with a rf gain control.

http://www.walcottcb.com/cobra-19dxi...th=340_377_379

mines identical cept no rf gain:(
Reply With Quote
  #4
Old 02-14-2009
Goodysgotacuda's Avatar
Member
iTrader: (1)

Join Date: Jul 2008
Location: Las Vegas, NV
Posts: 1,496
Looks good, i have the same radio, yet I'm having issues with it. Believe it's in my Coax. Hardly recieve/talk worth a crap.
Reply With Quote
  #5
Old 02-15-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Quote:
Originally Posted by Goodysgotacuda View Post
Looks good, i have the same radio, yet I'm having issues with it. Believe it's in my Coax. Hardly recieve/talk worth a crap.
Have you gotten it tuned?
Reply With Quote
  #6
Old 02-15-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Looks really good, I had my 29 mounted there for a long time. I want to pick up one of the smaller 19s though now. In due time I guess
Reply With Quote
  #7
Old 02-15-2009
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
If you havent had it tuned I highly suggest it. When I had my cb mounted on my 69 it worked terrible. I got it tuned and it kicks *** now. Also got the cb peaked and I went from 4 to 25 watts.
Reply With Quote
  #8
Old 02-15-2009
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
nice set up for sure
Reply With Quote
  #9
Old 02-15-2009
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Ya, it looks good dude. I really need to mount mine but dont really know where i want it and also the gear shift makes it harder.
Reply With Quote
  #10
Old 02-15-2009
Member
Thread Starter

Join Date: Apr 2007
Location: Mission Hills, California
Posts: 798
Quote:
Originally Posted by Redneckstone View Post
nice set up for sure
yeaa that is my plan b from the other thread.

just need a large hole to pass through the wires and a coat of black paint.

and then the next fun part running and mounting antennas
Reply With Quote
  #11
Old 02-15-2009
Goodysgotacuda's Avatar
Member
iTrader: (1)

Join Date: Jul 2008
Location: Las Vegas, NV
Posts: 1,496
Quote:
Originally Posted by 04blackedge View Post
Have you gotten it tuned?
yes
Reply With Quote
  #12
Old 02-15-2009
dirtybird819's Avatar
Member
iTrader: (1)

Join Date: Jun 2008
Location: newark, oh
Posts: 448
that CB is an cobra Ultra 19 or something along those right? ones you can get for $40 from walmart? i did not know that they can be peeked and tuned, i could be wrong though..
Reply With Quote
  #13
Old 02-15-2009
Member
Thread Starter

Join Date: Apr 2007
Location: Mission Hills, California
Posts: 798
the one in my pics is a walmart special cobra, good nuff to get ya on the air. its bare bones.
Reply With Quote
  #14
Old 02-16-2009
SparkYZ's Avatar
Member

Join Date: Nov 2007
Location: Granada Hills, CA
Posts: 679
Klein Tools FTMFW!!!!!!!!!!!
Reply With Quote
  #15
Old 02-19-2009
Member
Thread Starter

Join Date: Apr 2007
Location: Mission Hills, California
Posts: 798
primer and gloss black painted.....

pass through hole drilled and grommet installed.

going to start on the fun part running power, coax, and control wires for the 2 radios.
Reply With Quote
  #16
Old 02-19-2009
RangerJustin's Avatar
Member
iTrader: (1)

Join Date: Feb 2005
Location: SoCal
Posts: 4,428
Looks good J!

(PS my truck is up and running again...no more mud for me)
Reply With Quote
  #17
Old 02-19-2009
Member
Thread Starter

Join Date: Apr 2007
Location: Mission Hills, California
Posts: 798
Quote:
Originally Posted by RangerJustin View Post
Looks good J!

(PS my truck is up and running again...no more mud for me)
least the soupy stuff.... chunky mud isnt so bad.
Reply With Quote
  #18
Old 03-01-2009
Member
Thread Starter

Join Date: Apr 2007
Location: Mission Hills, California
Posts: 798
well up date.

finished running my power cable for the ham radio and cb radio. had to re run the control wire for the ham radio because it got caught in the E brake pedal and cut. i dident find this out till after i powered the radio up and fryed it. (damn) 280 dollar radio.

screwed my mounting plate to the dash and poked the new control wire and power cord for the cb through. pluged in the aux jack for the radio. then i went and started checking out how i was mounting the ham radio body to the truck. figgured it out and put some paint on the new bracket. now i wait for the paint to dry.

all i have left to do i swap in my spare Icom ic-208h radio and sticky tape the control head to my mount and bolt the body of the radio down.

as for the cb all i need is the coax and mount i ordered from walcott cb. and it all should be done.

ok now to the pics.

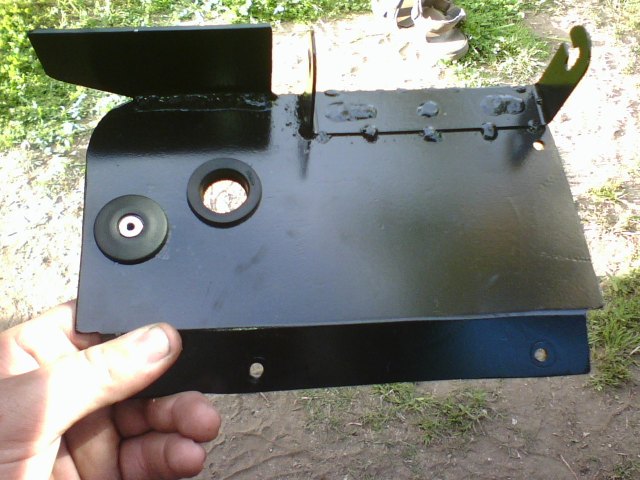

heres the mount all finished painted in gloss black. and you can see i was able to re install the stock radio aux in jack to it also.
Name:  0301091636.jpg
Views: 36
Size:  69.6 KB

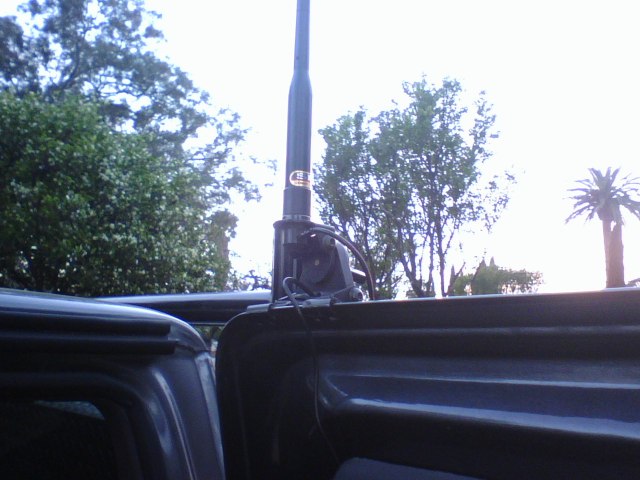

heres the lip mount by comet for the ham radio dual band antenna. the coax snakes down in the jump door and passes through the small rubber hose thingy for the spaeaker wires and down into the cab ending up under the drivers seat.
Name:  0301091749.jpg
Views: 29
Size:  61.2 KB

crappy pic but heres the mount and antenna with the jump door closed.

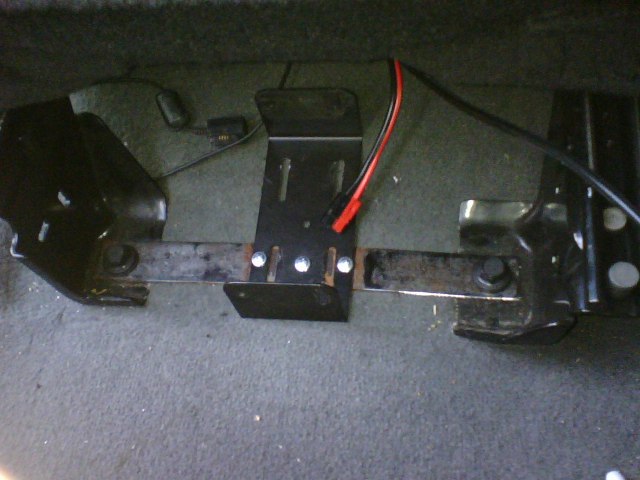

heres the mount for the ham radio. i used a peice of flat steel i had in my scrap pile and went between the two seat bolts and tek screwed the stock radio mount to it. it also got a coat of gloss black paint. sits low enough to keep out of the way of the slider yet high enough to have good air flow. the radio has a small fan on it stock.
Name:  0301091740.jpg
Views: 32
Size:  55.2 KB

all the pics for now. more to come.
Reply With Quote
  #19
Old 03-01-2009
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
Looks good.
Reply With Quote
  #20
Old 03-07-2009
crawly1025's Avatar
Member

Join Date: Jul 2005
Location: Steubenville Ohio
Posts: 1,361
Nice setup. Can that Comet mount be used for a CB antenna instead of a HAM?

What type of HAM do you run? I'd like to get into that but I wanted to do a mobile setup instead of a home base station. You're getting me thinking about it again now lol.
Reply With Quote
  #21
Old 03-07-2009
Member
Thread Starter

Join Date: Apr 2007
Location: Mission Hills, California
Posts: 798
i think comet makes a mount like that with the 3/8-24 thread of cb antennas.

far as ham goes im just a technician license. there is 3 levels tech, general, and extra. far as radios i have a small home setup and ofcourse u seen my mobile set up.

www.hamradio.com
www.aesham.com
www.gigaparts.com

those 3 are good retail sites of ham radio equipment.

far as more info on ham radio i can just link you to a web page or two with how to get started info.

http://www.wedothat-radio.org/
http://www.eham.net/newham/
Reply With Quote
  #22
Old 03-08-2009
Member
Thread Starter

Join Date: Apr 2007
Location: Mission Hills, California
Posts: 798
so yea finished my install tonight. mounted up the bracket to the bed, made my last coax hookups, and tuned the antenna.

running a wilson 2' white fiberglass whip with a spring. was able to get it tuned down to a 1.3.1 swr ratio. seems to work ok was lissing to the druggies on ch.12 here after midnight they get on and blab away.

heres the crappy cell pics....



Reply With Quote
  #23
Old 03-08-2009
dirtybird819's Avatar
Member
iTrader: (1)

Join Date: Jun 2008
Location: newark, oh
Posts: 448
got any pics of the HAM base mounted?
Reply With Quote
  #24
Old 03-08-2009
Member
Thread Starter

Join Date: Apr 2007
Location: Mission Hills, California
Posts: 798
no pics. its just sitting on top of my power supply on my desk.
Reply With Quote
  #25
Old 03-09-2009
crawly1025's Avatar
Member

Join Date: Jul 2005
Location: Steubenville Ohio
Posts: 1,361
Very nice. and thanks for the links!
