OHC Mod's - Sw's but No Temp/Compass...

here is what I have done to my OHC so far.
I did not buy it for the electronics, I wanted a place for switches and to mount my Amateur Radio.

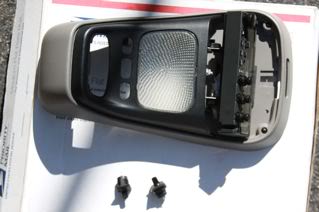

The beginning of the project showing the location of the Amateur Radio Head Unit.
Name:  IMG_0899.jpg
Views: 4
Size:  21.6 KB

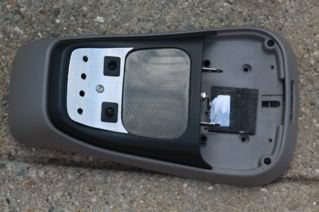

The OHC w/switch panel installed.
Name:  IMG_0901.jpg
Views: 5
Size:  22.4 KB

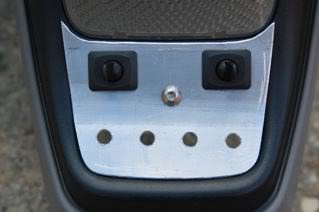

Closer look at the Sw Panel.
Name:  IMG_0902.jpg
Views: 5
Size:  19.0 KB

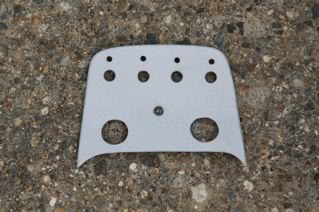

Sw Panel sandblasted waiting for paint w/holes for mini LED indicator lights.
Name:  IMG_0905.jpg
Views: 3
Size:  27.1 KB

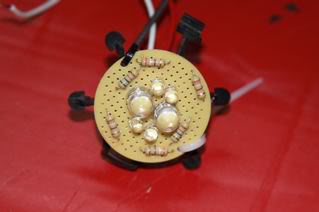

The LED Conversion; I used two larger center LEDs that are more directional but what are Map Lights for but to light up the lap of the passenager.
Name:  IMG_0915.jpg
Views: 3
Size:  18.0 KB

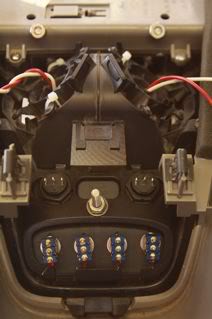

LED PCBs in place getting ready to wire.
Name:  IMG_0916.jpg
Views: 3
Size:  14.3 KB

That's it so far this is a work in progress and I won't be around for a week or two so nothing will be done.
