OHC on my 2010

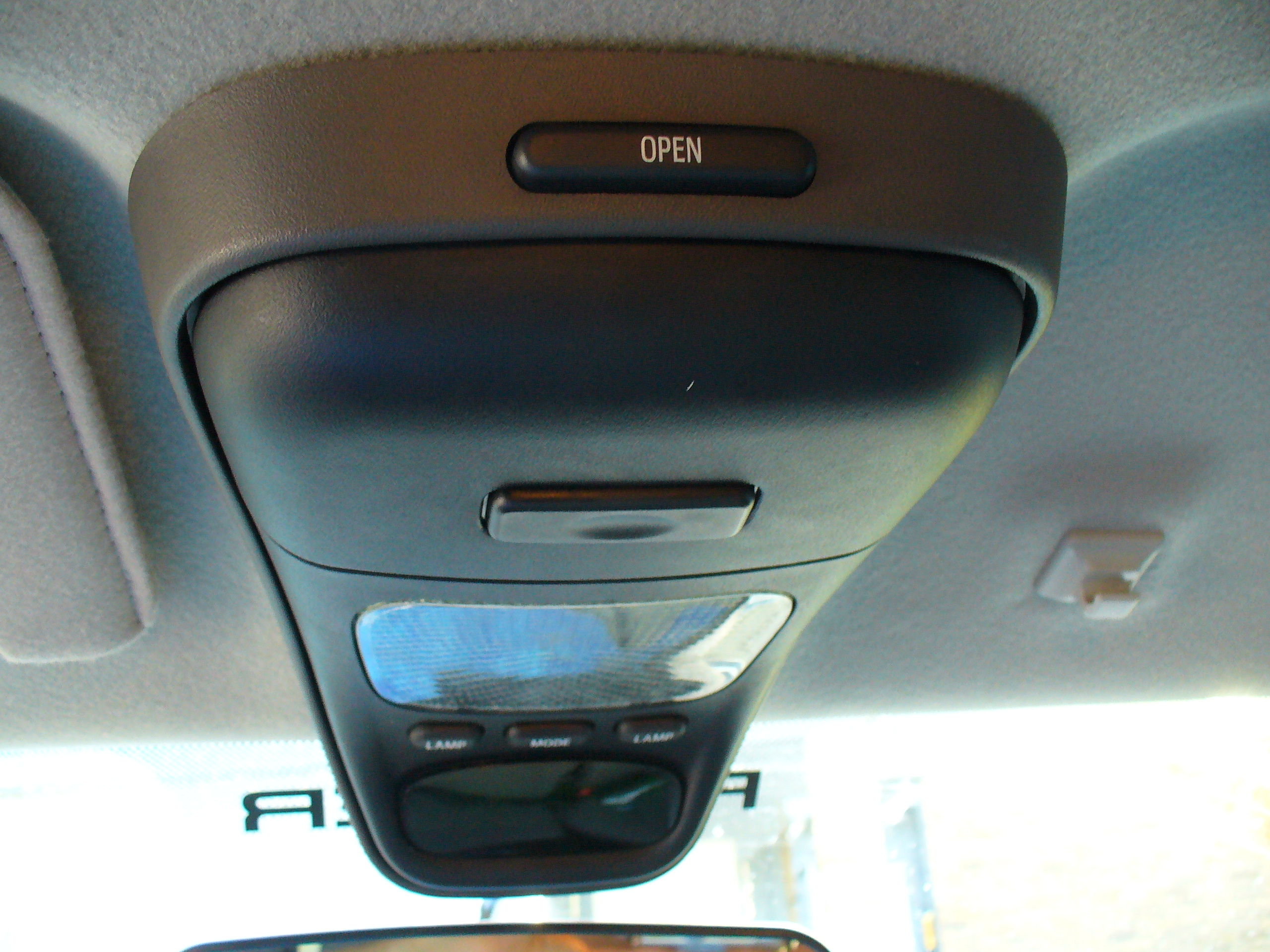

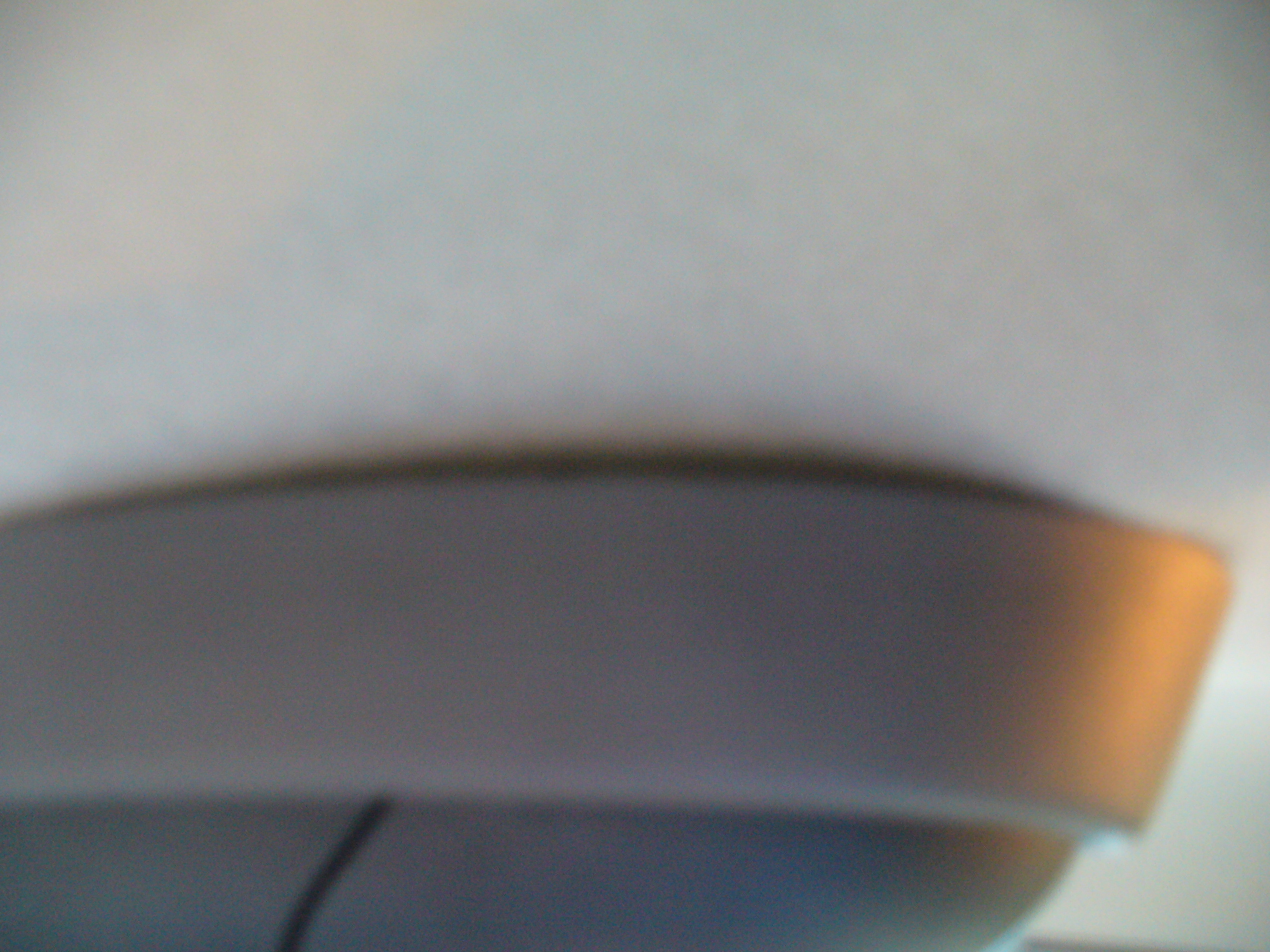

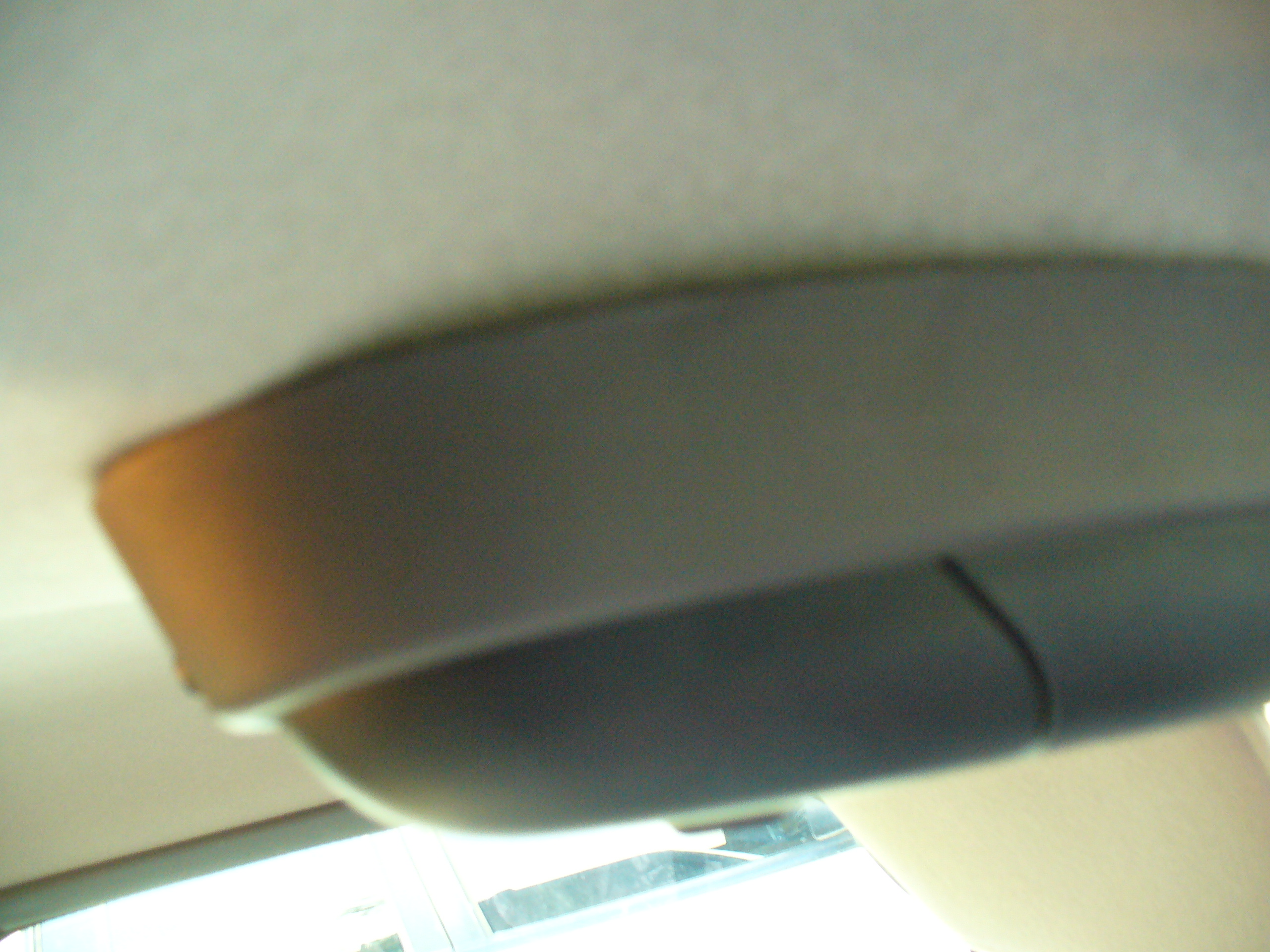

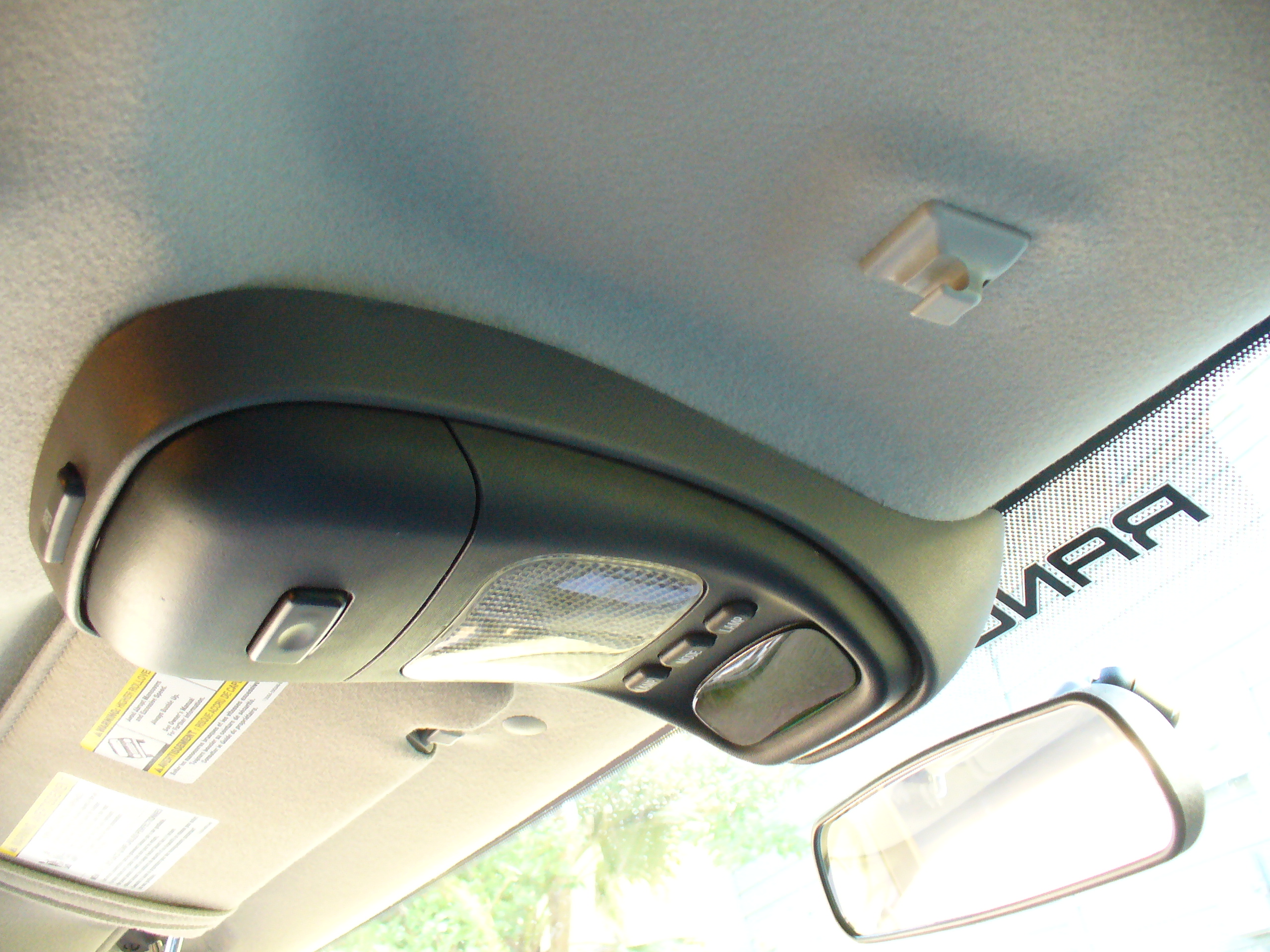

Some gaps in spots but maybe because its a 2010. Wiring next week and does anyone know the size of the bolts on th oh s handles?
Attached Thumbnails
OHC on my 2010-p1010613.jpg   OHC on my 2010-p1010616.jpg   OHC on my 2010-p1010617.jpg   OHC on my 2010-p1010615.jpg
Reply With Quote
  #2
Old 05-09-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Looks pretty good up there. Sorry I don't know the bolt sizes
Reply With Quote
  #3
Old 05-09-2010
bonez's Avatar
Member

Join Date: Nov 2008
Location: Toronto, Ontario
Posts: 433
clean install man, looks good. I wanna say the size is 10mm..or 12mm? not sure tho?
Reply With Quote
  #4
Old 05-10-2010
vista4.0's Avatar
Member
iTrader: (3)

Join Date: Jan 2009
Location: Beaver Falls, PA
Posts: 2,824
the bolt size were something like 7/32.
Reply With Quote
  #5
Old 05-10-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
I wanna say they're a 5 or a 5.5....some weird *** size. Take those screws with you to a hardware store and replace 'em with phillips head machine screws!!! I did this when I did the pill grab handle conversion. EFF those weird sized hex head bs'ers!
Reply With Quote
  #6
Old 05-10-2010
Member
iTrader: (1)

Join Date: Nov 2009
Posts: 111
I'm pretty sure it is a 5.5mm bolt head. Do yourself a favor and buy a high quality socket. They will turn up more often than you would think and nothing beats having the right tool for the job.
Reply With Quote
  #7
Old 05-10-2010
Member
Thread Starter

Join Date: Apr 2010
Location: laredo, tx
Posts: 6
200 + socket set and no 5.5mm. Did know if I was going crazy or just drank to many that I could not find the socket. I was thinking 5.5 since 5 was to small and 6 was to big just did not know if it was standard. Thanks
Reply With Quote
  #8
Old 05-11-2010
vista4.0's Avatar
Member
iTrader: (3)

Join Date: Jan 2009
Location: Beaver Falls, PA
Posts: 2,824
seriously im pretty sure you can make a 7/32 fit. i didnt have any metric when i did mine

EDIT. more i think about it its either 7/32 or 9/32. but a standard size will work.

Last edited by vista4.0; 05-11-2010 at 09:28 AM.
Reply With Quote
  #9
Old 08-11-2010
Member

Join Date: Feb 2009
Location: Kelowna, BC
Posts: 4
Did you ever get the wiring done?

I can't figure the VSS wire for my 2010....?
Reply With Quote
  #10
Old 08-11-2010
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Quote:
Originally Posted by Chris.s. View Post
Did you ever get the wiring done?

I can't figure the VSS wire for my 2010....?
It's under the hood on one of the big connectors on the firewall. I can't remember the colour at the moment... I'm at work but if you don't get an answer I can check tonight!
Reply With Quote
  #11
Old 08-11-2010
Member

Join Date: Feb 2009
Location: Kelowna, BC
Posts: 4
I think I've got it sorted out now. Went to the dealer and it's the vi/wh going into the brown connector in the sjb.

Now to give it a try...
Reply With Quote
  #12
Old 08-13-2010
Member
Thread Starter

Join Date: Apr 2010
Location: laredo, tx
Posts: 6
do you have pic. just wondering if you had gaps too.
Reply With Quote
  #13
Old 08-13-2010
vista4.0's Avatar
Member
iTrader: (3)

Join Date: Jan 2009
Location: Beaver Falls, PA
Posts: 2,824
i have a couple gaps in my 07. They changed the headliner just a tad over the years.
Reply With Quote
  #14
Old 08-13-2010
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
i have a gap at the back edge by the little door the i cant get to close
Reply With Quote
  #15
Old 08-13-2010
ShadowRanger08's Avatar
Member
iTrader: (3)

Join Date: Jan 2008
Location: Ontario, Canada
Posts: 1,694
yeah the gaps are cos of the years...i think in 06 the headliner was changed. i used an orange/white (i think) wire inside my cab, and it worked, the wiring is also different in 08+ than 06-07
Reply With Quote
  #16
Old 08-13-2010
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
You can use scrap pieces of material to push the headliner down and fill in the gaps some
Reply With Quote
  #17
Old 08-13-2010
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Quote:
Originally Posted by 04blackedge View Post
You can use scrap pieces of material to push the headliner down and fill in the gaps some
I've got a slight gap on the driver's side too.... going to have to try that!
Reply With Quote
  #18
Old 08-17-2010
Member

Join Date: Feb 2009
Location: Kelowna, BC
Posts: 4
Quote:
Originally Posted by bcfzx2 View Post
do you have pic. just wondering if you had gaps too.
I did end up with a gap at the back edge of it. I'm going to try repositioning the mounting bracket and see if that take s some of it out. I probably won't get to that right away but I'll post results and pics after I do...
Reply With Quote
  #19
Old 08-17-2010
VH5150's Avatar
Level III Supporter
iTrader: (9)

Join Date: Dec 2009
Location: Rutland VT
Posts: 834
I filed the sides down a little bit to close-up the gaps-the area about where the dome light is. I just kind of flattened the curve where it meets the headliner out with a rasp-probably removed 1/8"-3/16" at the widest point. Tightened gaps up nicely.
MikeR
