OHC Wire Color Question

okay i already looked through the how-to's and i noticed my colors of the harness were different. heres what i got on the harness


black
lightblue/red
purple/orange
grey/black
black/light blue
lightgreen/orange
blue/yellow
lightblue/orange

need help please
Reply With Quote
  #2
Old 10-20-2009
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831
Most of the Ranger how-to's are written for overhead consoles from 2nd generation Explorers. It sounds like you have a console from something else.
Reply With Quote
  #3
Old 10-20-2009
evilclown312's Avatar
Member
iTrader: (3)

Join Date: Dec 2008
Location: Logan ohio
Posts: 2,772
Pics of console please? I believe you may not have the same on most people use as stated above.
Reply With Quote
  #4
Old 10-20-2009
turbonegro32's Avatar
Member
Thread Starter

Join Date: Jul 2009
Location: Glendora, CA
Posts: 220

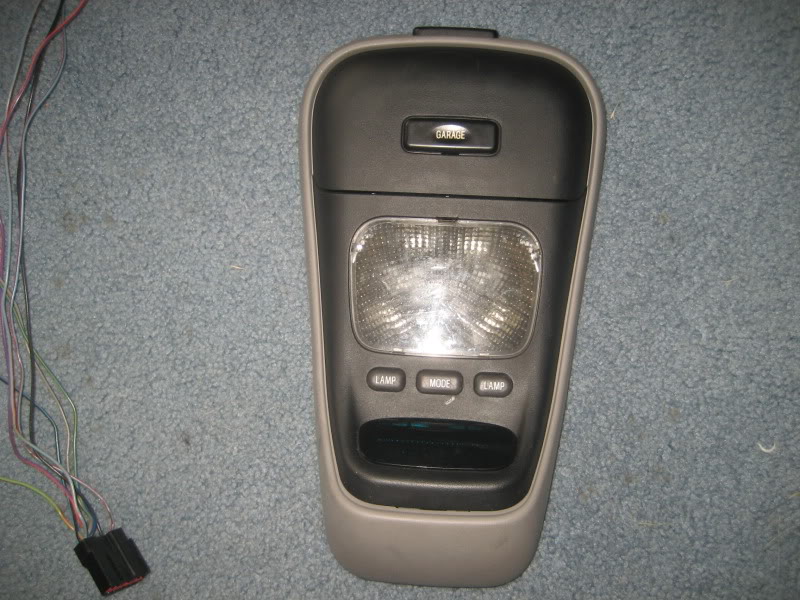

Name:  OHCMatt001.jpg
Views: 1
Size:  108.9 KB

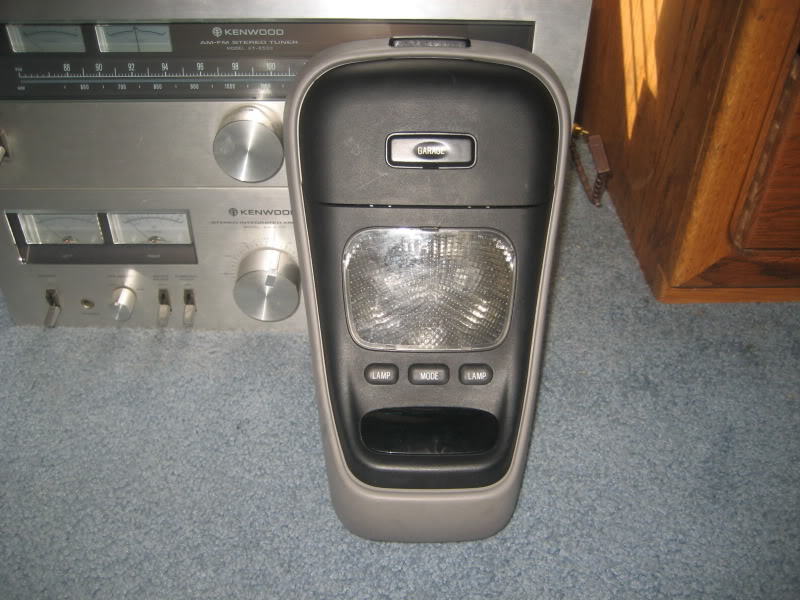

Name:  OHCMatt002.jpg
Views: 2
Size:  90.8 KB

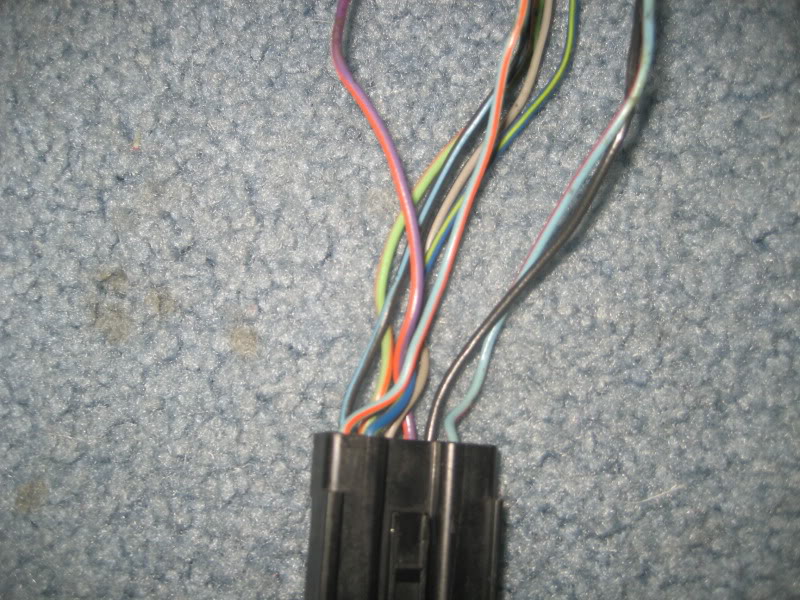

Name:  OHCMatt003.jpg
Views: 2
Size:  131.1 KB

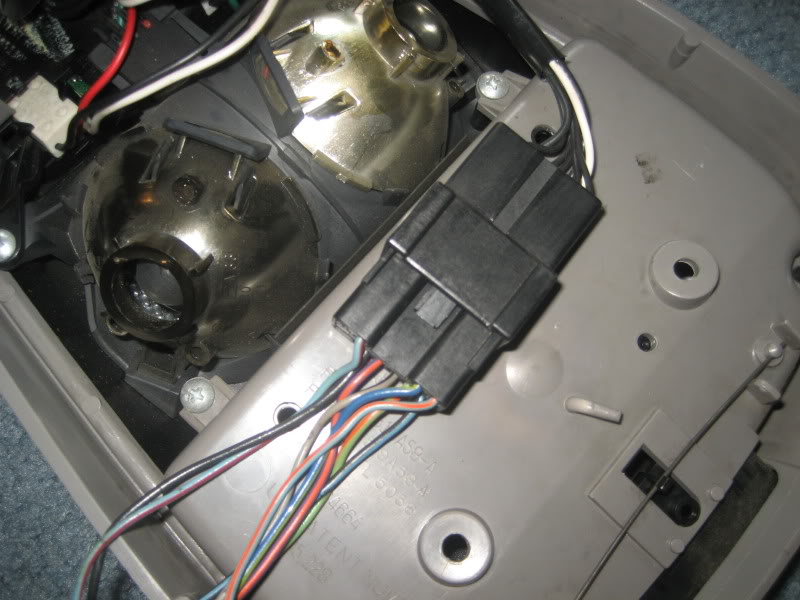

Name:  OHCMatt004.jpg
Views: 1
Size:  75.3 KB
Reply With Quote
  #5
Old 10-20-2009
turbonegro32's Avatar
Member
Thread Starter

Join Date: Jul 2009
Location: Glendora, CA
Posts: 220
it looks like the exact one everyone uses.......
Reply With Quote
  #6
Old 10-20-2009
groyal1's Avatar
Member

Join Date: Jul 2009
Location: Acworth, Ga
Posts: 14
dude got the same problem have not figured it out yet but i did get one lamp to work haha
Reply With Quote
  #7
Old 10-20-2009
turbonegro32's Avatar
Member
Thread Starter

Join Date: Jul 2009
Location: Glendora, CA
Posts: 220
Reply With Quote
  #8
Old 10-20-2009
Member
iTrader: (5)

Join Date: Jun 2009
Location: Beaumont, CA
Posts: 632
from TRS



Link

Last edited by eddiefromcali; 10-20-2009 at 03:03 PM.
Reply With Quote
  #9
Old 10-20-2009
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831
Quote:
Originally Posted by turbonegro32 View Post

black
lightblue/red
purple/orange
grey/black
black/light blue
lightgreen/orange
blue/yellow
lightblue/orange

need help please
OK, I looked at the schematics for several years and models and here's my best SWAG (Scientific Wild *** GUESS):

Pin 1 - not used
Pin 2 - black (ground)
Pin 3 - violet/orange (hot in run)
Pin 4 - gray/black (VSS)
Pin 5 - light green/orange (map lights)
Pin 6 - black/light blue (dome lights)
Pin 7 - not used
Pin 8 - light blue/red (dimmable night illumination)
Pin 9 - dark blue/yellow (ambient temp sensor feed)
Pin 10 - light blue/orange (ambient temp sensor return)
Reply With Quote
  #10
Old 10-20-2009
Woods-Rider's Avatar
Member
iTrader: (2)

Join Date: Apr 2008
Location: Hillsboro, OR
Posts: 1,108
you mean from TRS lol
Reply With Quote
  #11
Old 10-20-2009
Member
iTrader: (5)

Join Date: Jun 2009
Location: Beaumont, CA
Posts: 632
Quote:
Originally Posted by Woods-Rider View Post
you mean from TRS lol
LOL...oops
Reply With Quote
  #12
Old 10-20-2009
turbonegro32's Avatar
Member
Thread Starter

Join Date: Jul 2009
Location: Glendora, CA
Posts: 220
thanks guys!!
now i just need the guts to cut my headliner ahhh
Reply With Quote
  #13
Old 10-20-2009
turbonegro32's Avatar
Member
Thread Starter

Join Date: Jul 2009
Location: Glendora, CA
Posts: 220
anyone wanna comeover later and help with the install??
Reply With Quote
  #14
Old 10-20-2009
Member
iTrader: (5)

Join Date: Jun 2009
Location: Beaumont, CA
Posts: 632
ur kinda far from me or else Id help out! I did mine and cut little by little until it fit snug. Keep sharp blades with you btw...the headliner dulls blades FAST!
Reply With Quote
  #15
Old 10-20-2009
turbonegro32's Avatar
Member
Thread Starter

Join Date: Jul 2009
Location: Glendora, CA
Posts: 220
thanks for the tips... anyone? lol
Reply With Quote
  #16
Old 10-20-2009
malydeen's Avatar
Member
iTrader: (12)

Join Date: Jul 2007
Location: Minneapolis, MN
Posts: 632
Quote:
Originally Posted by turbonegro32 View Post
thanks for the tips... anyone? lol
Get a bottle of Captain and I will be onver in 20 minutes.
Reply With Quote
  #17
Old 10-20-2009
turbonegro32's Avatar
Member
Thread Starter

Join Date: Jul 2009
Location: Glendora, CA
Posts: 220
hahaha i dont need to get one
