Over head console mounting?

Hi, I've been thinking about doing the overhead console mod. But, my truck is a 1997 and I'm not sure if one would fit. All the people here with the mod that i have seen have 98+ trucks. I don't know if i have the metal part in my roof to mount the bracket to. I did a search and didn't find anything about what years it will work for. So does anybody know if my year has the metal part to mount the bracket to. I just don't want to get started, find out it wont work and have a big hole in my interior

Thanks
Reply With Quote
  #2
Old 07-31-2006
bwester04's Avatar
Member

Join Date: Mar 2006
Location: Round Rock, Tx
Posts: 2,641
the general ranger design has been pretty much the same since 93.. and since you have a 97, it's got the 'newer' interior which is basically the same as the explorers 95-01. Thus I see no problem why it wouldnt work
Reply With Quote
  #3
Old 07-31-2006
_97_4X4_'s Avatar
Member

Join Date: Jul 2005
Location: Columbus, GA
Posts: 289
it fits. i have one. mine is a 97. end of story.

lol
Reply With Quote
  #4
Old 07-31-2006
CAW's Avatar
CAW CAW is offline
Member
Thread Starter

Join Date: Apr 2005
Location: southern indiana
Posts: 137
I took a needle and poked it into where i think the bracket would mount. There is a metal part a ways back from the wind shield. I'm not sure if this is it or not but i will figure out a way to mount it somehow.

Hey, also where is the best place to look for the temperature sensor on an explorer. I'm probably going to make a trip to the salvage yard tomorrow.

Thanks
Reply With Quote
  #5
Old 07-31-2006
mudranger96's Avatar
Member

Join Date: Oct 2005
Location: Lehigh Acres, FL
Posts: 2,549
I believe its located in on the drives side of the radiator.
Reply With Quote
  #6
Old 07-31-2006
heed316's Avatar
Member

Join Date: Jun 2006
Location: Brooklyn, MI
Posts: 193
I did the OHC installin my 98 not too long ago. Took some pictures along the way if they help. Thread is here
Reply With Quote
  #7
Old 08-01-2006
CAW's Avatar
CAW CAW is offline
Member
Thread Starter

Join Date: Apr 2005
Location: southern indiana
Posts: 137
Well, i just got back from the salvage yard. They do have a ohc but it isn't the color i need. The guy told me to check back after while and they might get something new. so this project might be put on hold for a while. Thanks guys.
Reply With Quote
  #8
Old 08-01-2006
Blhde's Avatar
Member

Join Date: Oct 2005
Location: Northern IL
Posts: 2,804
The color is changed thru the filter. I beleive all displays are blue/green and the filter on the display gives you the final color (also the same for EATC). If you feel upto it you can make a new filter with green tinted plexi/lexan whatever. I bought some smoked plexi from Mcarr master (sp?). I may buy some blue so i can try and match the color of my guages.

Anyway if the yard is going to charge say 40 bux for all needed parts id get it and change the color later. If they want more you maybe better off with the correct color for your year.
Reply With Quote
  #9
Old 08-02-2006
sniper_101's Avatar
Member

Join Date: Jul 2005
Location: Sask, Canada
Posts: 1,902
Quote:
Originally Posted by CAW
Well, i just got back from the salvage yard. They do have a ohc but it isn't the color i need. The guy told me to check back after while and they might get something new. so this project might be put on hold for a while. Thanks guys.
I hate to post for no reason but here is how I did it on my 94', a couple things THIS doesn't show you (no offense, GREAT guide).

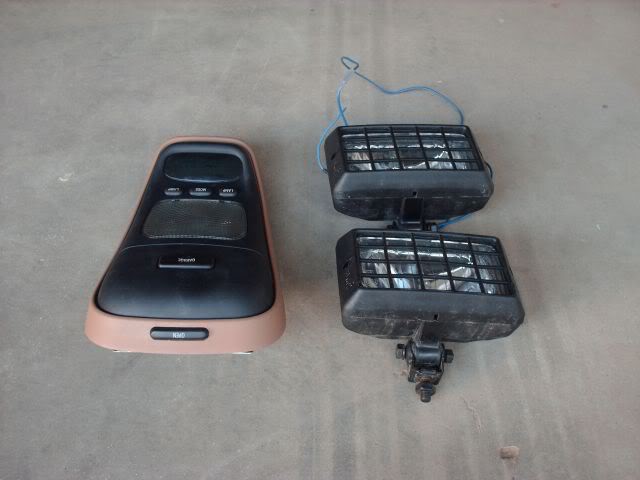

Here is what it looked like when I scooped it for $50:
Name:  HPIM1263-1.jpg
Views: 6
Size:  39.1 KB

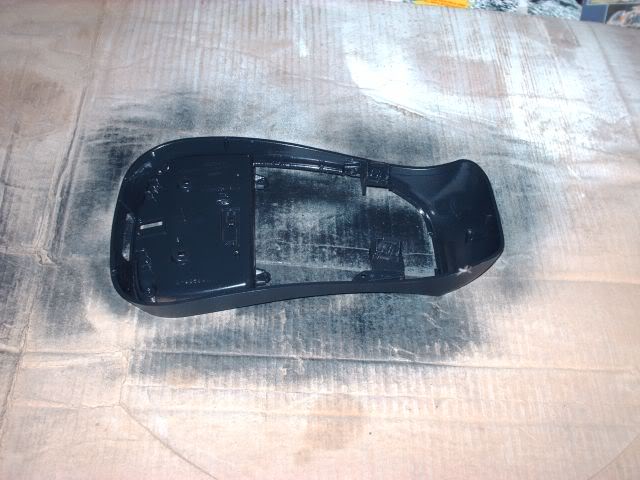

After 5 layers of Krylon Fusion, For PLastic, Gloss Black (amazing stuff, used it to paint hitch, not a SINGLE scratch!)
Name:  HPIM1273.jpg
Views: 3
Size:  57.2 KB

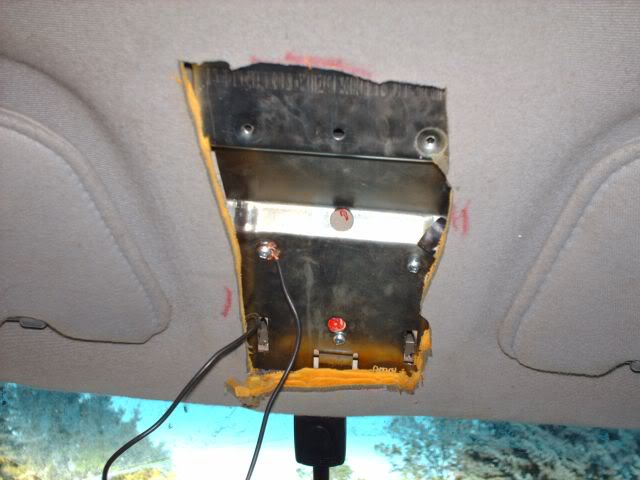

Cut the nessasery holes out and added an extra screw for stability.
Name:  HPIM1278.jpg
Views: 3
Size:  47.1 KB
Wired and mounted Temp. Sensor, in small hole on drivers side infront of the rad, pushed into pre-existing hole.
Name:  HPIM1283.jpg
Views: 5
Size:  38.4 KB

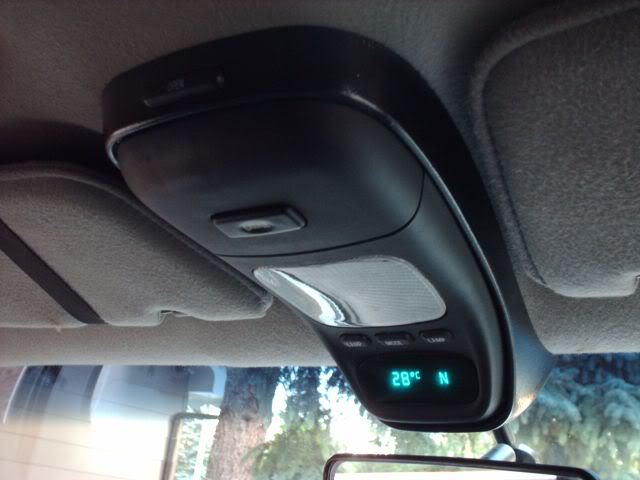

The finished product, one of the best looking finished products you can do to the Ranger IMO.
Name:  HPIM1308.jpg
Views: 3
Size:  43.1 KB
Name:  HPIM1296.jpg
Views: 4
Size:  30.5 KB

Sorry to do all this, just some of this help I couldn't find when I did mine last week.
Reply With Quote
  #10
Old 08-02-2006
CAW's Avatar
CAW CAW is offline
Member
Thread Starter

Join Date: Apr 2005
Location: southern indiana
Posts: 137
I had no idea you could get paint to stick to it that well. What i meant by it was the wrong color was it is tan and i need black or grey. They want about $30 for it. After finding out that i can paint it, i think i will go and get it. Thank you all very much!!!
Reply With Quote
  #11
Old 08-02-2006
CAW's Avatar
CAW CAW is offline
Member
Thread Starter

Join Date: Apr 2005
Location: southern indiana
Posts: 137
just got back from the salvage yard. i got the console and temperature sensor. Can't wait to get it in.
Reply With Quote
  #12
Old 08-02-2006
sniper_101's Avatar
Member

Join Date: Jul 2005
Location: Sask, Canada
Posts: 1,902
Remember if you can get Krylon Fusion For Plastic, the stuff is awsome, I used it on metal and PVC piping and not a scratch, for the plastic let it sit for about 1.5-2.5 hours to dry orelse the paint is more proned to scratching. I let it sit for 5 hours (4 layers, 2 every 30seconds, then 2 more layers another 2 hours later, then dry for 3 hours). I have dropped that thing about 4 tires, didn't even mark the paint. Tell me how it goes, and ask if you have any questions.

And for the record if I sounded like a smart-***, know it all ***** I truley didn't mean to.
Reply With Quote
  #13
Old 08-02-2006
CAW's Avatar
CAW CAW is offline
Member
Thread Starter

Join Date: Apr 2005
Location: southern indiana
Posts: 137
I've got the hole cut out. It's late so i'll call it a day. tomorrow i will get it mounted and hopefully wired too.

Reply With Quote
  #14
Old 08-02-2006
bwester04's Avatar
Member

Join Date: Mar 2006
Location: Round Rock, Tx
Posts: 2,641
Name:  HPIM1296.jpg
Views: 3
Size:  30.5 KB

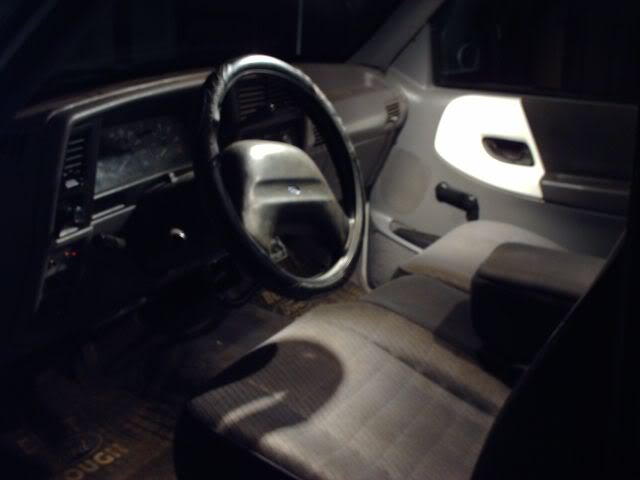

the light looks so white! dammit why does mine shine like a yellow-white, same with my mustang domelight..?
Reply With Quote
  #15
Old 08-03-2006
sniper_101's Avatar
Member

Join Date: Jul 2005
Location: Sask, Canada
Posts: 1,902
Mine do in pictures and that but on dark pics and in real it's pretty white:
Name:  HPIM1287.jpg
Views: 3
Size:  41.5 KB
Reply With Quote
  #16
Old 08-03-2006
CAW's Avatar
CAW CAW is offline
Member
Thread Starter

Join Date: Apr 2005
Location: southern indiana
Posts: 137
I got it mounted this morning. It was pretty easy to do. Now i just need to wire it in and then paint it. The open spot on the console will make a good place for me to mount some switches.

Reply With Quote
  #17
Old 08-03-2006
crawly1025's Avatar
Member

Join Date: Jul 2005
Location: Steubenville Ohio
Posts: 1,361
I second the Krylon fusion paint....that's what I used on my interior pieces and it holds up really well.
Reply With Quote
  #18
Old 08-03-2006
crawly1025's Avatar
Member

Join Date: Jul 2005
Location: Steubenville Ohio
Posts: 1,361
looks good.....i have the bracket and the temp sensor laying here.....i really need to do this mod at some point lol

speakers first...then OHC. Priorities :)
Reply With Quote
  #19
Old 08-04-2006
CAW's Avatar
CAW CAW is offline
Member
Thread Starter

Join Date: Apr 2005
Location: southern indiana
Posts: 137
ok, it's all wired in!! Now i need to paint it. I've got some of that krylon fusion paint. I'll probably paint it today. The wiring was easier to do than i expected. I have one of those ford dvds with wiring diagrams for all ford vehicles 96-99
Reply With Quote
  #20
Old 08-04-2006
crawly1025's Avatar
Member

Join Date: Jul 2005
Location: Steubenville Ohio
Posts: 1,361
ooo that helps.

be sure to post pics when yer done!!
Reply With Quote
  #21
Old 08-04-2006
CAW's Avatar
CAW CAW is offline
Member
Thread Starter

Join Date: Apr 2005
Location: southern indiana
Posts: 137
I got it painted and that krylon paint is good stuff!!!! It has been drying for a few hours. I tried to scratch the back of the console with my finger nail and i couldn't even get it to leave a mark in the paint. Thank you very very much for telling me about it. Now i just need to mount it and put on some finishing touches. pics are soon to come!!!
Reply With Quote
  #22
Old 08-04-2006
_97_4X4_'s Avatar
Member

Join Date: Jul 2005
Location: Columbus, GA
Posts: 289
hurry up and get pics!!! lol...
Reply With Quote
  #23
Old 08-04-2006
CAW's Avatar
CAW CAW is offline
Member
Thread Starter

Join Date: Apr 2005
Location: southern indiana
Posts: 137
Mod complete. Finished pics.





I've got the temp sensor inside the cab right now but i might run it outside later. It's been really hot /humid where i live, not the best time to do work in the cab. But despite that, it is done.
Reply With Quote
  #24
Old 08-04-2006
sniper_101's Avatar
Member

Join Date: Jul 2005
Location: Sask, Canada
Posts: 1,902
Lookin good, I really like the added light as well as the compass and outside temp display. I wonder why that Krylon Fusion For Plastic isn't talked about or advertised more? Seems like amazing stuff to me
Reply With Quote
  #25
Old 08-04-2006
HRoc's Avatar
Member

Join Date: Jun 2006
Location: Southern NH
Posts: 144
Hmm, now that I've seen it done it looks so easy thats going to be my next mod.

Only 50 bucks at a local salvage yard, the seats were my first option as a mod but they'll have to wait awhile
Reply With Quote
