Painted my Radio Bezel

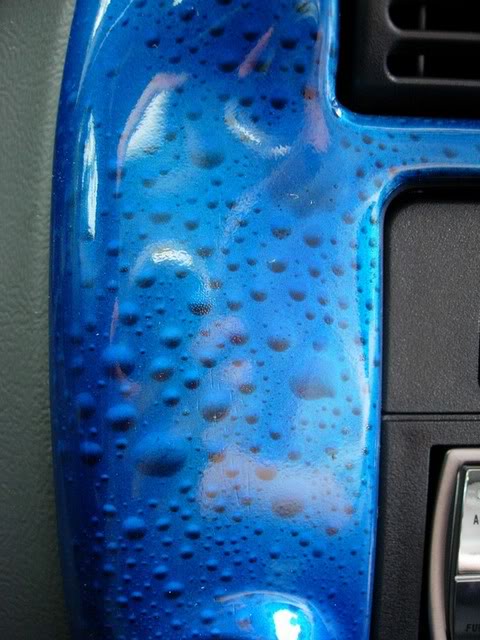

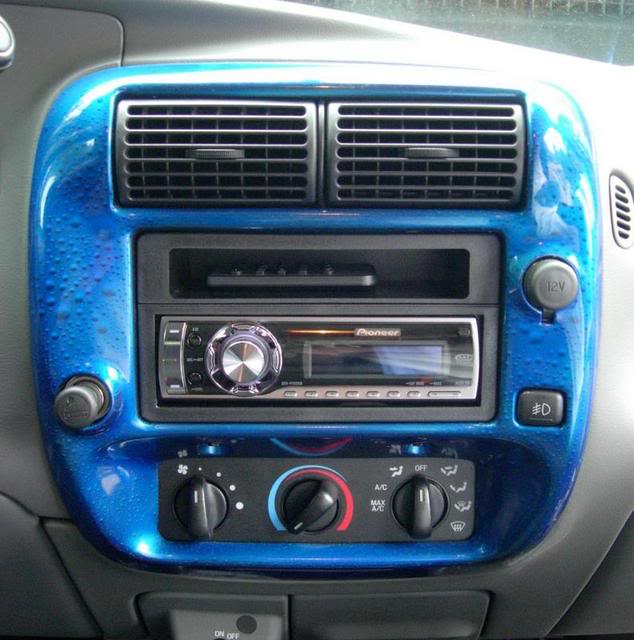

But I can't seem to get the water drops off of it. I was planning on going silver but I decided to add some colour and go Kandy Kobalt Blue. Let me know what you think.
Name:  DSCN2079.jpg
Views: 3
Size:  60.9 KB
Name:  DSCN2080.jpg
Views: 3
Size:  59.6 KB
Reply With Quote
  #2
Old 08-22-2007
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
looks good

definitely different
Reply With Quote
  #3
Old 08-22-2007
SteveOh's Avatar
Member

Join Date: Mar 2005
Location: Ft. Campbell Kentucky
Posts: 4,585
**** looks good man...come paint mine..please!!
Reply With Quote
  #4
Old 08-22-2007
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
looks good!

i would assume that you sprayed water on it before you sprayed the paint correct then let the paint dry, then wipe the water off, and then clear?
Reply With Quote
  #5
Old 08-22-2007
Silver's Avatar
Member

Join Date: Jun 2006
Location: edenton,nc
Posts: 2,708
looks great
Reply With Quote
  #6
Old 08-22-2007
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by lifted97ranger
looks good!

i would assume that you sprayed water on it before you sprayed the paint correct then let the paint dry, then wipe the water off, and then clear?

is that how you do it? lol
i may need to go do it, that doesn't show the scratches where you didn't sand it fine enough as well as the red i have does...

thats badass

Last edited by 99ranger4x4; 08-22-2007 at 03:25 PM.
Reply With Quote
  #7
Old 08-22-2007
i_luv_strats's Avatar
Member

Join Date: Nov 2006
Location: bremerton wa
Posts: 338
that looks good, i painted mine a dark flat blue two days ago, looks good, and painted the console cupholder below it.

did you have any issue witht he coating that was on it? soon as i hit it with paint it shrivelled up so i spent an hour peeling it off with paint thinner, then painted it.
Reply With Quote
  #8
Old 08-22-2007
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
theres like a rubberish coating you need to sand off, unless theres another way to get it off..
Reply With Quote
  #9
Old 08-22-2007
enraged_hunter's Avatar
Member

Join Date: Mar 2007
Location: Pittsburgh, Pa
Posts: 728
i used lighter fluid to get the rubber coating off, no sanding envolved
Reply With Quote
  #10
Old 08-22-2007
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
i should have done that, it felt smooth but as soon as you paint it you can tell its not lol
Reply With Quote
  #11
Old 08-22-2007
titanbball2345's Avatar
Member

Join Date: Jul 2007
Location: Toledo, Ohio
Posts: 309
wow, that is all i can say, nice touch!!
Reply With Quote
  #12
Old 08-22-2007
Farwar's Avatar
Member
Thread Starter

Join Date: Jul 2007
Location: Ottawa, Canada
Posts: 217
The way I did the waterdroplets was I started with a silver base. I then use a spray bottle and spray water on it to form the droplets. I then used my aibrush to add the highlights and shadows. I spray white going in one direction at a low psi and then black on the other side. The water holds the paint and acts like a mask. I then use a heat gun to let the water evaporate and then lay some kandy blue over top that. It a simple technique that I picked up from airbrushing. It does cover up scratches dips, etc to make them less noticable.

I removed the rubber coating that was on the bezel before I painted it. I found nail polish remover worked good to lift it without harming the plastic. It was a pain in the *** though. Lots of sanding.
Reply With Quote
  #13
Old 08-22-2007
mudranger96's Avatar
Member

Join Date: Oct 2005
Location: Lehigh Acres, FL
Posts: 2,549
That is sweet man nice job
Reply With Quote
  #14
Old 09-23-2007
USMCWHITENER's Avatar
Member
iTrader: (1)

Join Date: Nov 2006
Location: Sharpsburg, GA
Posts: 241
how much yall charge to paint mine to come close to matching the paint on my truck???lol
Reply With Quote
  #15
Old 09-23-2007
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Looks great dude!
Reply With Quote
  #16
Old 09-23-2007
Black Dragon's Avatar
Member

Join Date: Dec 2004
Location: MO
Posts: 155
That is just plain awesome!
