Removing Center Cupholder Thing

I'm trying to fit in a CB for the truck and there not really any place to put it except where those cupholders are under the radio. Does anyone know hot to remove them?
Name:  cid__0720081157.jpg
Views: 21
Size:  39.8 KB
Reply With Quote
  #2
Old 07-20-2008
madman4049's Avatar
Member

Join Date: May 2007
Location: Surprise AZ
Posts: 351
under the inserts in the cupholders I believe Don't quote me that there are some screws. Here is what I did. Just make sure you bolt it in good. Those screws that come with the mounts aren't enough.

Reply With Quote
  #3
Old 07-20-2008
Member
Thread Starter

Join Date: Oct 2007
Location: ..
Posts: 29
i can't find what your talkin about
Reply With Quote
  #4
Old 07-20-2008
PowerRanger70's Avatar
Member

Join Date: Jun 2008
Location: Creston, Iowa
Posts: 36
dont take it out i did and there is a metal, thing not completely sure what it is but its under there....we believe its somtheing for the 4 wheel drive but it looks bad being able to see it
Reply With Quote
  #5
Old 07-20-2008
taknotes's Avatar
Member
iTrader: (4)

Join Date: Aug 2006
Location: nc
Posts: 2,104
inside the cupholder part, take out the little rubber insert parts, under those will be two things that you will need to insert a flathead screwdriver in and twist, the pull it out, under that will be a bracket
Reply With Quote
  #6
Old 07-20-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Quote:
Originally Posted by taknotes View Post
inside the cupholder part, take out the little rubber insert parts, under those will be two things that you will need to insert a flathead screwdriver in and twist, the pull it out, under that will be a bracket
Yep, Ryan learned how to do this yesterday! haha
Reply With Quote
  #7
Old 07-20-2008
taknotes's Avatar
Member
iTrader: (4)

Join Date: Aug 2006
Location: nc
Posts: 2,104
probably the easiest part of the day
Reply With Quote
  #8
Old 07-20-2008
Member
Thread Starter

Join Date: Oct 2007
Location: ..
Posts: 29
yeh i got it. one of the rubber inserts was missing so that through me off i didnt even know that was down there, thought there was only one of screw things

thanks for the help
Reply With Quote
  #9
Old 07-20-2008
malydeen's Avatar
Member
iTrader: (12)

Join Date: Jul 2007
Location: Minneapolis, MN
Posts: 632
Quote:
Originally Posted by PowerRanger70 View Post
dont take it out i did and there is a metal, thing not completely sure what it is but its under there....we believe its somtheing for the 4 wheel drive but it looks bad being able to see it
The metal plate thats under the cupholders is a cover for the hole where the shifter in a manual transmission would be. You could probably pull it out and hit it with black or grey spray paint depending on your carpeting color. I dont think it would look to bad and it would make a very sturdy mount for your CB.
Reply With Quote
  #10
Old 07-20-2008
PowerRanger70's Avatar
Member

Join Date: Jun 2008
Location: Creston, Iowa
Posts: 36
its not a metal plate its like a box with wires coming off of it
Reply With Quote
  #11
Old 07-20-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
What cb are you putting in? i see you have a shorty console, some have installed in under the armrest.
Reply With Quote
  #12
Old 07-20-2008
malydeen's Avatar
Member
iTrader: (12)

Join Date: Jul 2007
Location: Minneapolis, MN
Posts: 632
Quote:
Originally Posted by PowerRanger70 View Post
its not a metal plate its like a box with wires coming off of it
oh thats towards the back of the cup holder, the front part is a 8"x8"ish metal cover plate. When I put in my full console I used that plate to run wires through it.
Reply With Quote
  #13
Old 07-21-2008
dakota772's Avatar
Member

Join Date: May 2008
Location: Tucson
Posts: 230
The metal plat on mine is for the ABS, but mine is 2WD so I am sure it is different in your trucks. Post pics of the new install.
Reply With Quote
  #14
Old 08-12-2008
lone2K5ranger's Avatar
Member

Join Date: Feb 2008
Location: ontario, canada
Posts: 18
Quote:
Originally Posted by madman4049 View Post
what car did you get the hvac from and was it a direct plug in?
Reply With Quote
  #15
Old 08-12-2008
Mykhael's Avatar
Member
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
Quote:
Originally Posted by lone2K5ranger View Post
what car did you get the hvac from and was it a direct plug in?
1995 Ford Explorer and up
Not a direct swap

How to
http://www.cardomain.com/ride/296394/14
Reply With Quote
  #16
Old 08-12-2008
jrmp's Avatar
Member

Join Date: Jul 2008
Location: f* dessert aka Imperial Valley, CA
Posts: 20
Quote:
Originally Posted by EliteMarine View Post
I'm trying to fit in a CB for the truck and there not really any place to put it except where those cupholders are under the radio. Does anyone know hot to remove them?
if u want to sell it......im here

the ones i have suck...theyre attached to the middle seat

Last edited by jrmp; 08-12-2008 at 08:12 PM.
Reply With Quote
  #17
Old 08-21-2008
Member
Thread Starter

Join Date: Oct 2007
Location: ..
Posts: 29
After a while of doin' nothing, just got it installed

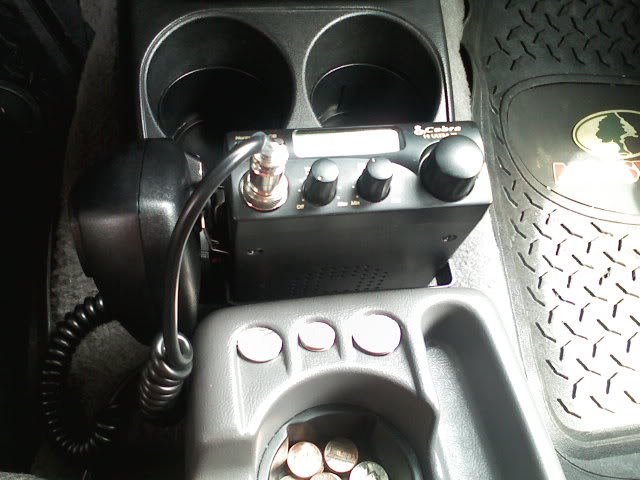

Name:  cid__0821081416.jpg
Views: 18
Size:  50.3 KB

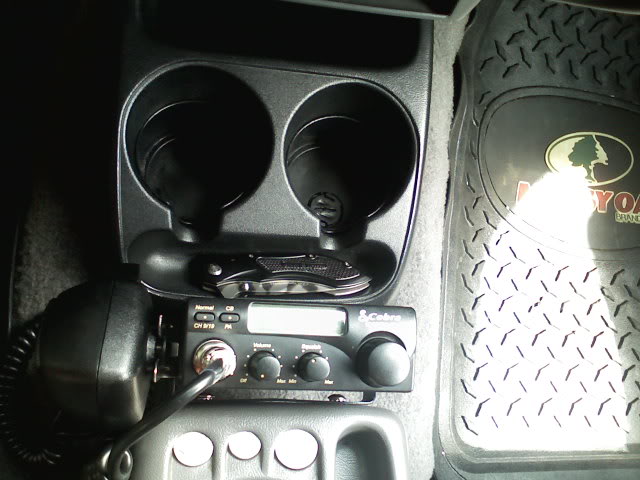

Name:  cid__0821081416a.jpg
Views: 20
Size:  53.1 KB
Reply With Quote
  #18
Old 08-21-2008
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
nice S&W knife i have the same one
Reply With Quote
  #19
Old 08-21-2008
2WD_Ranger's Avatar
Member

Join Date: Aug 2006
Location: richmond hill ga
Posts: 133
i put mine under the driver seat and put the mic holder on my radio besel and called it good
Reply With Quote
  #20
Old 08-21-2008
dirtybird819's Avatar
Member
iTrader: (1)

Join Date: Jun 2008
Location: newark, oh
Posts: 448
Quote:
Originally Posted by madman4049 View Post
under the inserts in the cupholders I believe Don't quote me that there are some screws. Here is what I did. Just make sure you bolt it in good. Those screws that come with the mounts aren't enough.

what did you do with the airbag switch?
Reply With Quote
