Removing Interior Door Panel 2008

Anyone know how the interior door panels on a 2008 come off? There is one screw at the bottom at the edge on the striker side. Are there pop out clips or are there buttons you need to slide the panel up to release.

Thanks

George
Reply With Quote
  #2
Old 05-10-2008
bwester04's Avatar
Member

Join Date: Mar 2006
Location: Round Rock, Tx
Posts: 2,641
There is one on the bottom, as well as two holding the black door handle bezel on, after removing those it pops off, revealing one more under there. Then just lift up and pull away the panel.
Reply With Quote
  #3
Old 05-10-2008
Member
Thread Starter

Join Date: Apr 2008
Location: Streetsboro, Ohio
Posts: 202
There are no other screws other than the one at lower outer corner. None by the door handle or the power window buttons. The 2008 must be different than the earlier models.

Thanks for you help though

George
Reply With Quote
  #4
Old 05-10-2008
bwester04's Avatar
Member

Join Date: Mar 2006
Location: Round Rock, Tx
Posts: 2,641
Your profile says "2008 Ranger XLT" so that is why I am assuming you have the XLT door panels (the ones with a map pocket at the bottom). Also, you have power accessories, so you should have the better door panels.

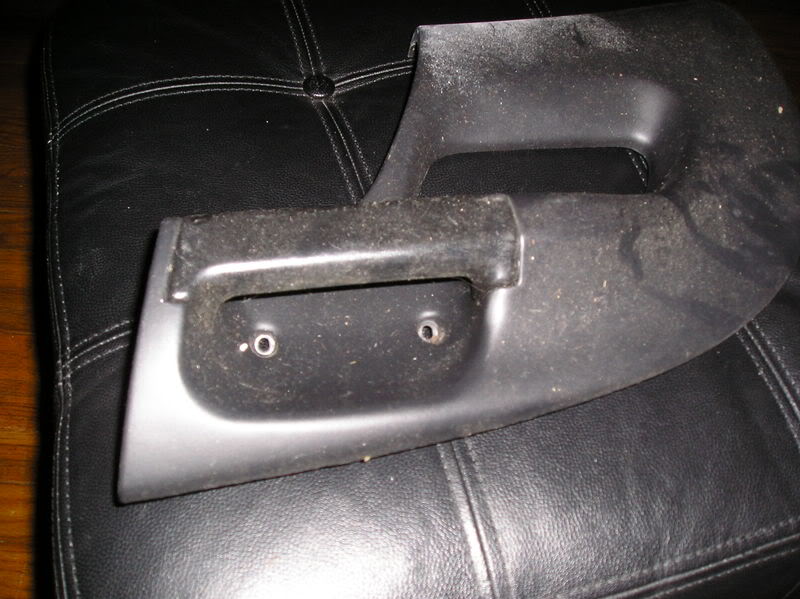

this door handle bezel is from a non-powered XLT door panel, virtually the same as a power optioned door panel, Note the screw locations behind the grab handle:
Name:  P1010050.jpg
Views: 60
Size:  77.1 KB

Last edited by bwester04; 05-10-2008 at 07:30 PM.
Reply With Quote
  #5
Old 05-11-2008
Member
Thread Starter

Join Date: Apr 2008
Location: Streetsboro, Ohio
Posts: 202
Thanks for your help bwester04. I found the screws. I don't know why I didn't look in the grab cup before.


George
Reply With Quote
  #6
Old 05-11-2008
Member
Thread Starter

Join Date: Apr 2008
Location: Streetsboro, Ohio
Posts: 202
Do you know how you remove the exterior mirror glass without breaking it? I want access to the inside of the mirror housing so I can drill some holes and pass wiring for mirror signals.

Thanks

George
Reply With Quote
  #7
Old 05-11-2008
bwester04's Avatar
Member

Join Date: Mar 2006
Location: Round Rock, Tx
Posts: 2,641
Not sure on an '08.. but on an '02-05, there are areas where you would stick a flathead screwdriver and gently pry up/twist motion and the glass 'pops' off. You could check and see if there is something similar on your '08, just play around with the position of the mirror and look around the base where the glass mounts.
Reply With Quote
  #8
Old 05-11-2008
Zs02Edge's Avatar
Member
iTrader: (1)

Join Date: Dec 2007
Location: Ocala, Fl & Woodland, WA
Posts: 253
If you haven't figured out how to get the mirror off yet, click below.
http://www.pdfdownload.org/pdf2html/...pdf&images=yes
Reply With Quote
  #9
Old 05-13-2008
jaysinpa's Avatar
Member

Join Date: Mar 2008
Location: New Brighton, PA
Posts: 648
Quote:
Originally Posted by Zs02Edge View Post
If you haven't figured out how to get the mirror off yet, click below.
http://www.pdfdownload.org/pdf2html/...pdf&images=yes
Those would be good instructions if the text wasn't on top of the photos. You can't read hardly any of it.
Reply With Quote
  #10
Old 05-13-2008
Johnbaum13's Avatar
Member
iTrader: (1)

Join Date: Jan 2008
Location: Dallas, TX
Posts: 2,343
btw, on mine there is one other srew hoding the panel on underneath the door bezel. don't forget that one if yours has it.
Reply With Quote
  #11
Old 05-15-2008
Briggslite's Avatar
Member
iTrader: (1)

Join Date: Mar 2008
Location: St. Paul, MN
Posts: 70
Reply With Quote
