Rewrapping a shorty armrest?

So does anyone know how to disassemble the armrest for a shorty expo console? i want to paint and rewrap it black but i cant figure out how to get it apart to do that lol. any help or pics or even a how to would be great.

This is the only pic i have of it at the moment to get an idea what i got.
Attached Thumbnails
Rewrapping a shorty armrest?-img00127-20110407-1700.jpg
Reply With Quote
  #2
Old 03-11-2012
djfllmn's Avatar
Moderator

Join Date: Mar 2009
Location: York, PA
Posts: 5,796
troy is the guy you need to talk to
https://www.ranger-forums.com/members/drppdyllwrngr-8294/
Reply With Quote
  #3
Old 03-11-2012
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,780
ON the sides of the Console, towards the rear are some plastic plugs, remove tehm and there are four bolts.
That will remove it from the Console.
Then there are a bunch of screws holding the padded part to the support.

The support portion is made of plastic from the factory and almost always cracks and with in time will bend closer to the console itself.
So while you are at it you should go on-line to Rock Auto and pick up a new metal support and get it done… there are directions in the Support Kit that will help you disassemble the unit too.

the Arm Rest feels more solid with the kit.
Reply With Quote
  #4
Old 03-11-2012
drppdyllwrngr's Avatar
Member
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
that arm rest won't have the plate on the bottom of it. it's a cover over the foam, not the vinyl coated ones that the plate works on.

i've recovered a few of those. you have to cut apart the old cover, use it as a pattern, and sew it back together. that's the easy part. the hard part is getting it back in around the hinge area.
Reply With Quote
  #5
Old 03-12-2012
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,780
Quote:
Originally Posted by drppdyllwrngr View Post
that arm rest won't have the plate on the bottom of it. it's a cover over the foam, not the vinyl coated ones that the plate works on.

i've recovered a few of those. you have to cut apart the old cover, use it as a pattern, and sew it back together. that's the easy part. the hard part is getting it back in around the hinge area.
It looks like the one with the plastic plate on the bottom.

Bobo,
What console do you have ?
Reply With Quote
  #6
Old 03-12-2012
BOBO's Avatar
Member
Thread Starter

Join Date: May 2007
Location: Mundelein, ill
Posts: 416
Quote:
Originally Posted by Scrambler82 View Post
It looks like the one with the plastic plate on the bottom.

Bobo,
What console do you have ?
i think i have the one you were talking about earlyer. i have the 2 plastic covers and 4 bolts on the side to remove it and thats no problem i just dont know how to get it apart once i remove it from the console lol. if you could post a link to that support that would be great. i just looked a little on rockauto but i couldnt find it. maybe ill have better luck tonight when i have some more time.

thanks alot for all your help guys!!!
Reply With Quote
  #7
Old 03-12-2012
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,780
Here is what I have, should have put it up earlier.

Rock Auto… : http://www.rockauto.com/catalog/raframecatalog.php
P/N: ARM100

Here is a Thread: https://www.ranger-forums.com/showth...t=Arm+Rest+Fix

Let us know if this is what you were after, good stuff, best $40 spent and my arm rest never felt more solid.
Reply With Quote
  #8
Old 03-12-2012
BOBO's Avatar
Member
Thread Starter

Join Date: May 2007
Location: Mundelein, ill
Posts: 416
Ok here are some pictures of my arm rest idk is that part you posted will work or not. Im thinking i might have to go to the junk yard and sacrifice one to see how they are put together lol.


Attached Thumbnails
Rewrapping a shorty armrest?-imag0310.jpg   Rewrapping a shorty armrest?-imag0309.jpg   Rewrapping a shorty armrest?-imag0308.jpg
Reply With Quote
  #9
Old 03-12-2012
BOBO's Avatar
Member
Thread Starter

Join Date: May 2007
Location: Mundelein, ill
Posts: 416
alright well i just pulled it out and googled the patent number and came up with this http://www.ptodirect.com/Results/Pat...ery=PN/4867500 so i then proceded to mess with it and after looking at it a little more im thinking that the fabric is glues to the foam so i think im just going to try and make a cover for it and hope i can find a clean way to attach it. Ill let you guys know what i come up with.
Reply With Quote
  #10
Old 03-12-2012
jharley79's Avatar
Member
iTrader: (1)

Join Date: Apr 2009
Location: Newnan, GA
Posts: 99
Go to rockauto.com select a 2000 ford explorer with a 4.0 sohc and go to "body interior" then "armrest cover" they have a black cover for $8.79
Or buy a black armrest here. You would need the back plate they mentioned above to use this. http://www.ebay.com/itm/Center-Arm-R...358677&vxp=mtr
Good luck
Reply With Quote
  #11
Old 03-12-2012
drppdyllwrngr's Avatar
Member
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
Quote:
Originally Posted by BOBO View Post
Ok here are some pictures of my arm rest idk is that part you posted will work or not. Im thinking i might have to go to the junk yard and sacrifice one to see how they are put together lol.


Quote:
Originally Posted by Scrambler82 View Post
It looks like the one with the plastic plate on the bottom.

Bobo,
What console do you have ?
Quote:
Originally Posted by drppdyllwrngr View Post
that arm rest won't have the plate on the bottom of it. it's a cover over the foam, not the vinyl coated ones that the plate works on.

i've recovered a few of those. you have to cut apart the old cover, use it as a pattern, and sew it back together. that's the easy part. the hard part is getting it back in around the hinge area.
read my post again. they are a PITA to do.
Reply With Quote
  #12
Old 03-12-2012
BOBO's Avatar
Member
Thread Starter

Join Date: May 2007
Location: Mundelein, ill
Posts: 416
well here is the final update on this for the night lol. I grabbed a t-shirt and wrapped that around the arm rest and pinned it to the old fabric as a sort of test to see if i will like the black or not and here is how it came out :)



I'll try and get some better pics tomorrow in the day light but so far im pretty pleased for a t-shirt and a bunch of saftey pins lol
Attached Thumbnails
Rewrapping a shorty armrest?-imag0313.jpg   Rewrapping a shorty armrest?-imag0311.jpg
Reply With Quote
  #13
Old 03-12-2012
BOBO's Avatar
Member
Thread Starter

Join Date: May 2007
Location: Mundelein, ill
Posts: 416
Quote:
Originally Posted by jharley79 View Post
Go to rockauto.com select a 2000 ford explorer with a 4.0 sohc and go to "body interior" then "armrest cover" they have a black cover for $8.79
Or buy a black armrest here. You would need the back plate they mentioned above to use this. http://www.ebay.com/itm/Center-Arm-R...358677&vxp=mtr
Good luck
Hey man thanks a tone for that!!!!!

Quote:
Originally Posted by drppdyllwrngr View Post
read my post again. they are a PITA to do.
Yeah thanks man i started realizing that after i took it back off the truck i think i might order one of those covers from rock auto and see if i can make that work kinda like i did with the t-shirt only a little more professionally done lol

once again thank you to everyone for all your help!!!!!
Reply With Quote
  #14
Old 03-14-2012
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,780
The blk leatherette material will have a little shine to it.

Blk looks too dark with the grey leather seats, how about a gray color, something to match the seats.

What seats are they anyway ?
Look like SportTrac Leather Buckets ?

To anyone… what is under the material on the bottom of the Arm Rest ?

Can the Rock Auto Plate fit ?

Also, looking at the Console, it looks just like a std Arm Rest except the material all the way around ?

Just thinking out loud.
Reply With Quote
  #15
Old 03-14-2012
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
its a different arm rest than the edge/fx4 ones with the plastic bracket on the bottom. rock auto bracket doesn't fit this.
Reply With Quote
  #16
Old 03-15-2012
drppdyllwrngr's Avatar
Member
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096

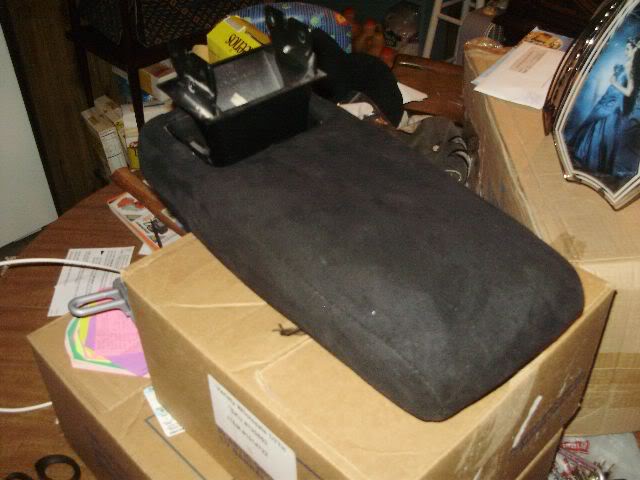

here are are pics of a couple i have redone.






Attached Thumbnails
Rewrapping a shorty armrest?-p2110375.jpg   Rewrapping a shorty armrest?-p2110374.jpg   Rewrapping a shorty armrest?-p2110373.jpg   Rewrapping a shorty armrest?-pa010189.jpg   Rewrapping a shorty armrest?-pa010183.jpg

Rewrapping a shorty armrest?-pa010188.jpg
Reply With Quote
  #17
Old 03-15-2012
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,780
Quote:
Originally Posted by 99offroadrngr View Post
its a different arm rest than the edge/fx4 ones with the plastic bracket on the bottom. rock auto bracket doesn't fit this.
So if the material is removed there is no bottom plate ?

I would have thought it was the same just with material...

Thks
Reply With Quote
  #18
Old 03-15-2012
drppdyllwrngr's Avatar
Member
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
nope, not the same. they have foam all the way around. it's probably an inch or so thick on the bottom, and a couple inches thick on top.
Reply With Quote
  #19
Old 03-16-2012
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,780
Quote:
Originally Posted by drppdyllwrngr View Post
nope, not the same. they have foam all the way around. it's probably an inch or so thick on the bottom, and a couple inches thick on top.
OK next question

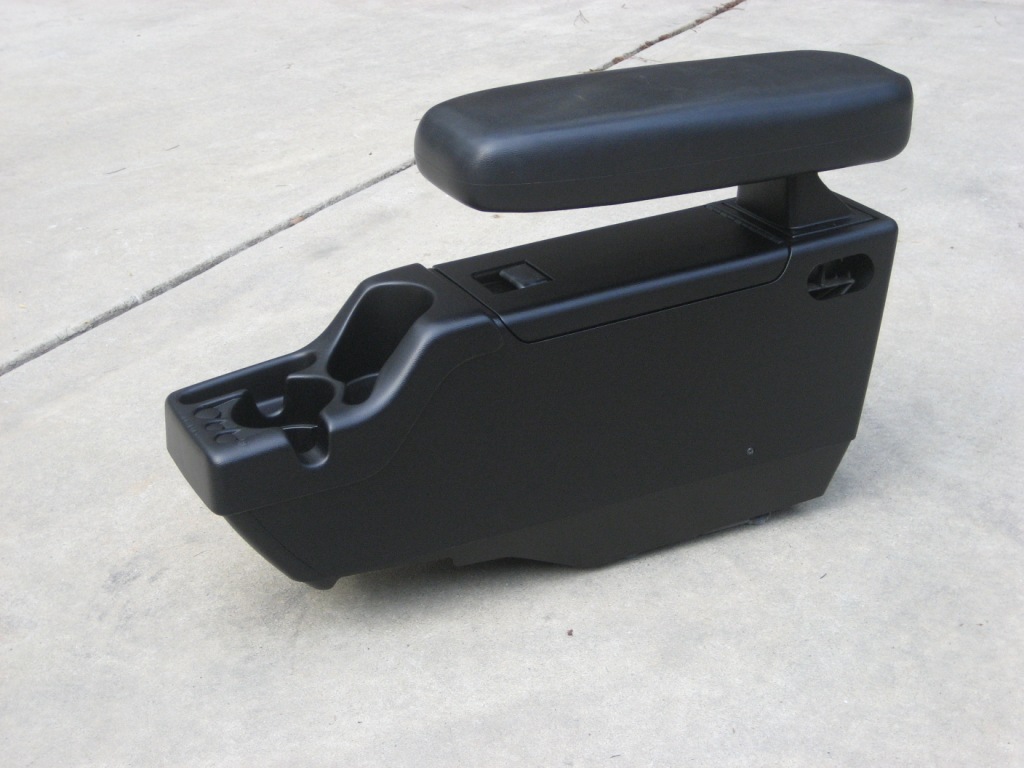

The base looks like a std shorty ranger console... SO, if you buy one of the arm rest that is vinyl, as suggested before, can you replace what you have with the vinyl one ?
Reply With Quote
  #20
Old 03-16-2012
jharley79's Avatar
Member
iTrader: (1)

Join Date: Apr 2009
Location: Newnan, GA
Posts: 99
Yes you can. I did this swap yesterday. The console is out of an early to mid 90's ranger. I painted it black with trim paint, and put on '04 fx4 vinyl armrest onto the old style hinge using the rockauto plate mentioned earlier. It's just not cheap.....$130 for the armrest and plate.Rewrapping a shorty armrest?-shorty-armrest.jpg
Reply With Quote
  #21
Old 03-16-2012
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
you can get the arm rests for 80 from tasca
Reply With Quote
  #22
Old 03-16-2012
jharley79's Avatar
Member
iTrader: (1)

Join Date: Apr 2009
Location: Newnan, GA
Posts: 99
correct....and the steel bottom plate is $50 from rock auto. If you are converting from a cloth armrest to vinyl, you have to by the plate. I also posted an ebay link for the black vinyl armrest. $68 plus $14 shipping. http://www.ebay.com/itm/Center-Arm-R...358677&vxp=mtr
Reply With Quote
  #23
Old 03-16-2012
drppdyllwrngr's Avatar
Member
iTrader: (4)

Join Date: Sep 2007
Location: wilmington, nc
Posts: 2,096
Quote:
Originally Posted by Scrambler82 View Post
OK next question
The base looks like a std shorty ranger console... SO, if you buy one of the arm rest that is vinyl, as suggested before, can you replace what you have with the vinyl one ?
as the others stated....yep.
Reply With Quote
  #24
Old 03-23-2012
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,780
I just got the blk FX4 that was FS on this site and it has the bottom plate.

What vehicle did the all cloth one come out of ?
Reply With Quote
  #25
Old 03-23-2012
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
some rangers had them. ≤ 95 explorers had them too. ive seen a few around
Reply With Quote
