Scan Guage Mounting

I'll be getting a Scan Guage this weekend and I've been trying to think of some mounting places. So, post up where you've mounted yours and some ideas of where I could mount mine. I'm not looking to do anything to complicated to mount it though but I'm still open to your ideas.
Reply With Quote
  #2
Old 04-22-2010
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Don't have one, but I'd mount it above the mirror.
Reply With Quote
  #3
Old 04-22-2010
03whtEDGE's Avatar
Member

Join Date: Apr 2007
Location: Newberg/Corvallis, OR
Posts: 178

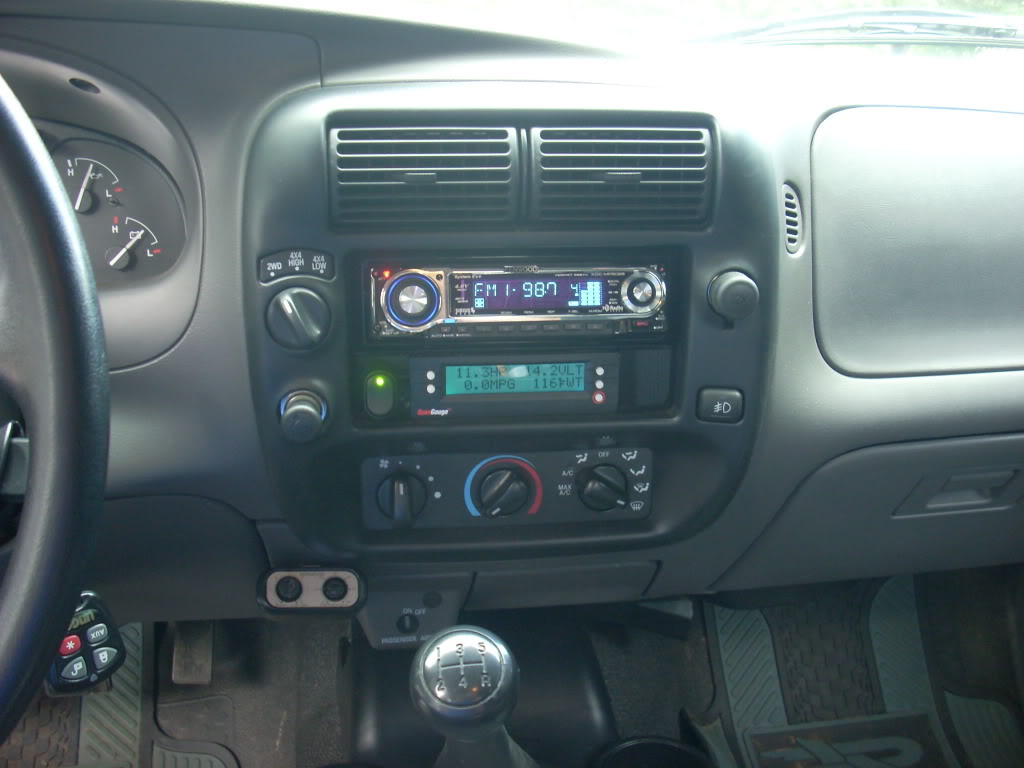

I vote below your head unit. Pretty easy install, easy to read too.

Name:  DSCN1173.jpg
Views: 0
Size:  115.8 KB
Reply With Quote
  #4
Old 04-22-2010
Ruff09's Avatar
Member
iTrader: (1)

Join Date: Sep 2009
Location: Brossard , Quebec
Posts: 132
i had mine on the top of the mirror. perfect spot. i loved it.
Reply With Quote
  #5
Old 04-22-2010
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
I've had mine on the steering column, right under a single din radio and on top of the mirror. On top of the mirror was easily my favorite.
Reply With Quote
  #6
Old 04-22-2010
SVT01RANGER's Avatar
Member
iTrader: (2)

Join Date: Jun 2004
Location: West Eugene, OR
Posts: 3,634
Reply With Quote
  #7
Old 04-22-2010
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
I don't have any pics at the moment, but mine is mounted to the farthest left vent using the mount from my Garmin GPS.
Reply With Quote
  #8
Old 04-23-2010
rangerboy101's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
I've been thinking of making a thin metal mount that I would epoxy to the top of my radio bezel. It would go behind the bezel and come out and the SG would sit right on top of the bezel.
Reply With Quote
  #9
Old 04-23-2010
Member
iTrader: (3)

Join Date: Mar 2009
Location: 559, CA
Posts: 1,174
Quote:
Originally Posted by 03whtEDGE View Post
I vote below your head unit. Pretty easy install, easy to read too.

that is clean. thats how id do it if i didnt have a doubledin unit
Reply With Quote
  #10
Old 04-23-2010
rangerboy101's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
Quote:
Originally Posted by gts007 View Post
that is clean. thats how id do it if i didnt have a doubledin unit
That's why I can't do mine like that. Double din kinda takes up all the space.
Reply With Quote
  #11
Old 04-23-2010
elementsenjoi's Avatar
Member
iTrader: (2)

Join Date: Aug 2007
Location: 352 Florida
Posts: 1,301

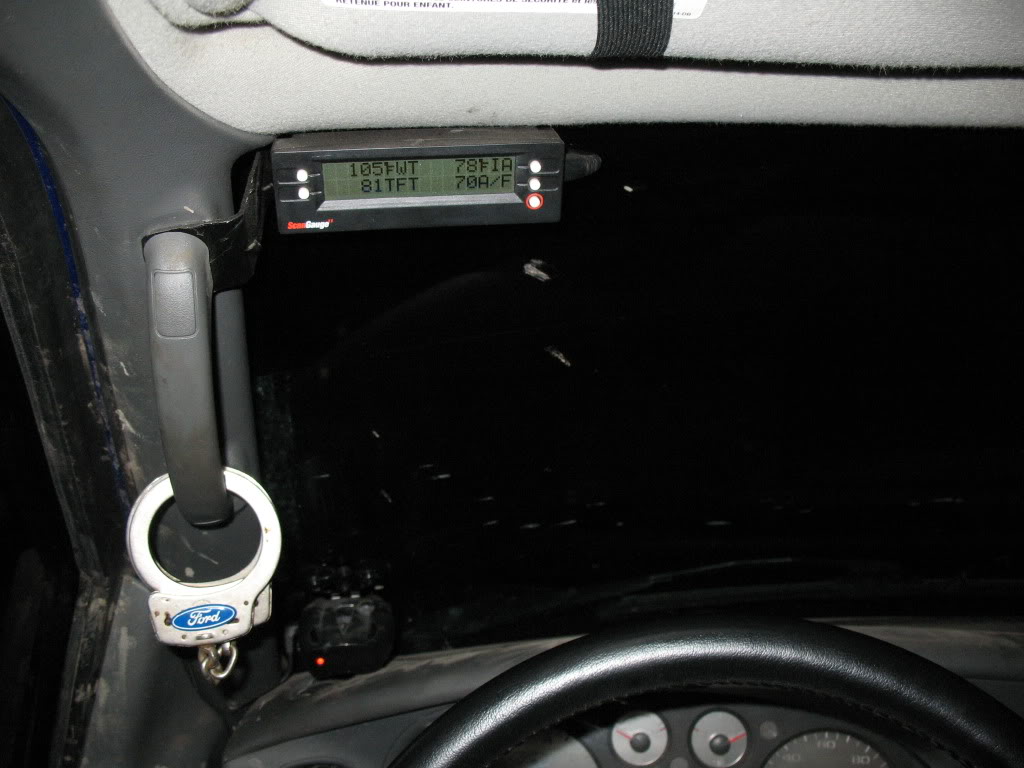

Name:  IMG_0081.jpg
Views: 1
Size:  98.5 KB
Reply With Quote
  #12
Old 04-24-2010
crawly1025's Avatar
Member

Join Date: Jul 2005
Location: Steubenville Ohio
Posts: 1,361
I mounted mine right under the heat/air controls with some double sided tape.
Reply With Quote
  #13
Old 04-24-2010
Bigwill41's Avatar
Member

Join Date: Jun 2004
Location: Navasota, Texas
Posts: 4,659

Reply With Quote
  #14
Old 06-07-2010
Member
iTrader: (2)

Join Date: Mar 2010
Location: C
Posts: 661
How would i install it under the radio, that looks real clean.
Reply With Quote
  #15
Old 06-07-2010
01_ranger_4x4's Avatar
Member
iTrader: (4)

Join Date: Mar 2009
Location: Muskegon, Michigan
Posts: 3,585

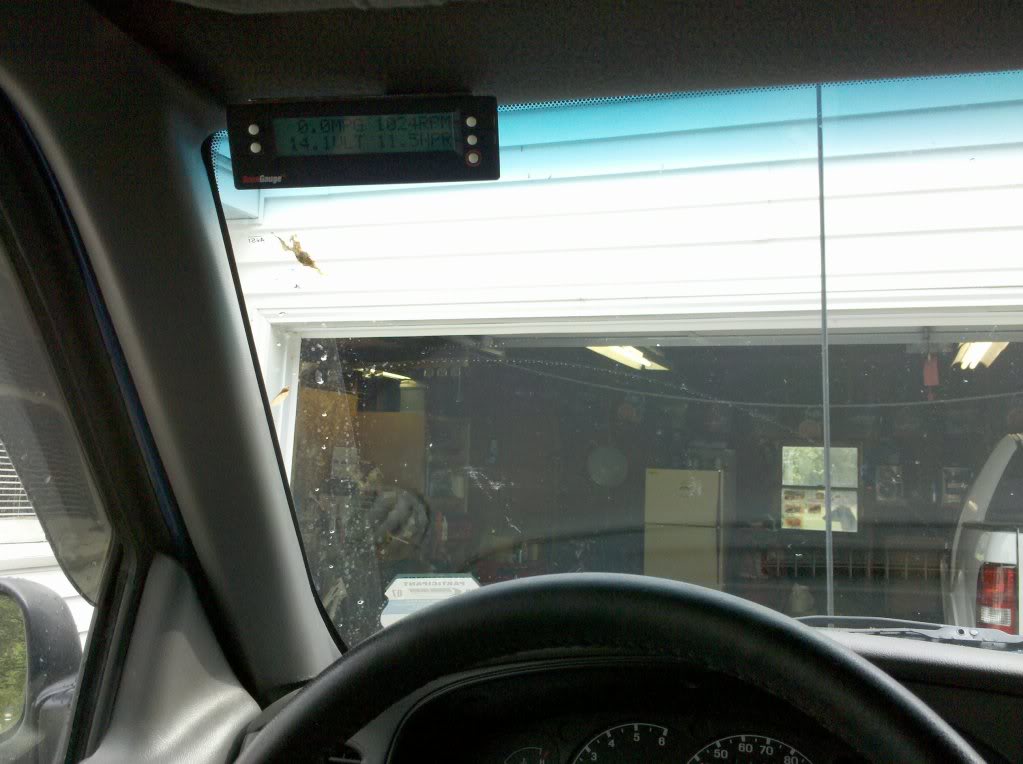

heres how i mounted mine. fabbed up a sheet metal clip and it clips to the headliner
Name:  447d554e.jpg
Views: 1
Size:  102.0 KB
Reply With Quote
  #16
Old 06-07-2010
Member
iTrader: (2)

Join Date: Mar 2010
Location: C
Posts: 661
Thats a good spot to, do you guys have them setup to read trans temp? I just irdered onfrom jc whitney and cant wait to get it.
Reply With Quote
  #17
Old 06-07-2010
01_ranger_4x4's Avatar
Member
iTrader: (4)

Join Date: Mar 2009
Location: Muskegon, Michigan
Posts: 3,585
Quote:
Originally Posted by 05Level2 View Post
Thats a good spot to, do you guys have them setup to read trans temp? I just irdered onfrom jc whitney and cant wait to get it.
yeah mines set up to read trans temp, thats the main reason i got it. its a nice tool to have for sure.
Reply With Quote
  #18
Old 06-07-2010
Member
iTrader: (2)

Join Date: Mar 2010
Location: C
Posts: 661
Yea same reaon i bought it so i can read that and so i dont have gauges and stuff all over looking tacky having to drill holes into stuff. Pretty neat little device.
Reply With Quote
  #19
Old 06-07-2010
rangerboy101's Avatar
RF Veteran
Thread Starter
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
How do you get it to read trans temps?
Reply With Quote
  #20
Old 06-07-2010
03whtEDGE's Avatar
Member

Join Date: Apr 2007
Location: Newberg/Corvallis, OR
Posts: 178
If you go to Scangauge's website and click on the 'X-Gauge' tab at the top, then click the first link for XGauge commands, scroll down to 'Enhanced Data' and under the Ford PWM is the codes to enter into the Scangauge for trans temp. To enter the codes into the Scangauge press more>more>more>xgauge>edit from the home screen.
Reply With Quote
  #21
Old 06-07-2010
Member
iTrader: (2)

Join Date: Mar 2010
Location: C
Posts: 661
Above my radio is a small slot to maybe fit a cd case or something? How does the radio mount up higher so i could put the scan gauge below it like in the picture?
Reply With Quote
  #22
Old 06-07-2010
korey89's Avatar
Member
iTrader: (2)

Join Date: Mar 2008
Location: South, FL
Posts: 4,672
Quote:
Originally Posted by 01_ranger_4x4 View Post
heres how i mounted mine. fabbed up a sheet metal clip and it clips to the headliner
Very clean, nice job!
Reply With Quote
  #23
Old 06-07-2010
03whtEDGE's Avatar
Member

Join Date: Apr 2007
Location: Newberg/Corvallis, OR
Posts: 178

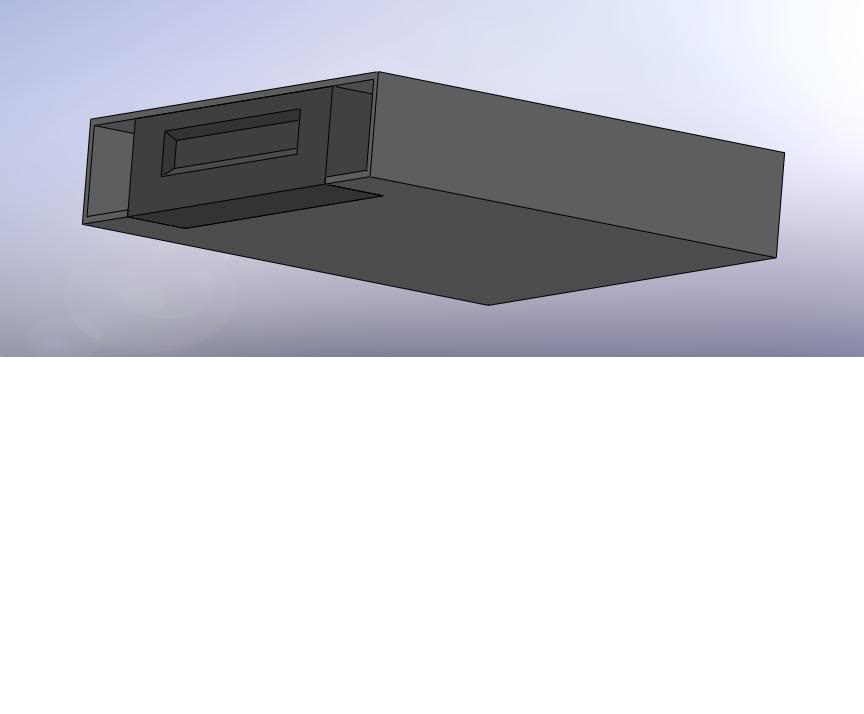

The radio can be mounted in either position, it runs on little rails that can be unscrewed and mounted in the upper position. If you remove the screws holding the radio bezel, just above the heat and ac controls, the bezel/radio will slide out and you will see how the radio is mounted.

To mount the Scangauge I trimmed the plastic tray that you can put a cd case or whatever into so that the Scangauge would fit inside. I just trimmed the bottom of the tray though and left the top to apply double sided tape to stick the Scangauge to.

Hopefully this helps:

Name:  Scangauge.jpg
Views: 0
Size:  16.9 KB
Reply With Quote
  #24
Old 06-07-2010
Member
iTrader: (2)

Join Date: Mar 2010
Location: C
Posts: 661
Thanks for the info, what is the switch you have by your sg?
Reply With Quote
  #25
Old 06-08-2010
03whtEDGE's Avatar
Member

Join Date: Apr 2007
Location: Newberg/Corvallis, OR
Posts: 178
No problem. The switch is for my offroad lights.
