Silver Expo HVAC install pictures

Got a couple of requests to see how I had my Silver Explorer HVAC installed so I snapped a few pictures for everybody.

First start by removing the radio bezel and unbolting the HVAC control and removing the control *****, then use a small screw driver the loosen the clips holding the stock black gauge overlay onto the white control unit. Also remove the silver overlay from the expo controls in the same fashion.

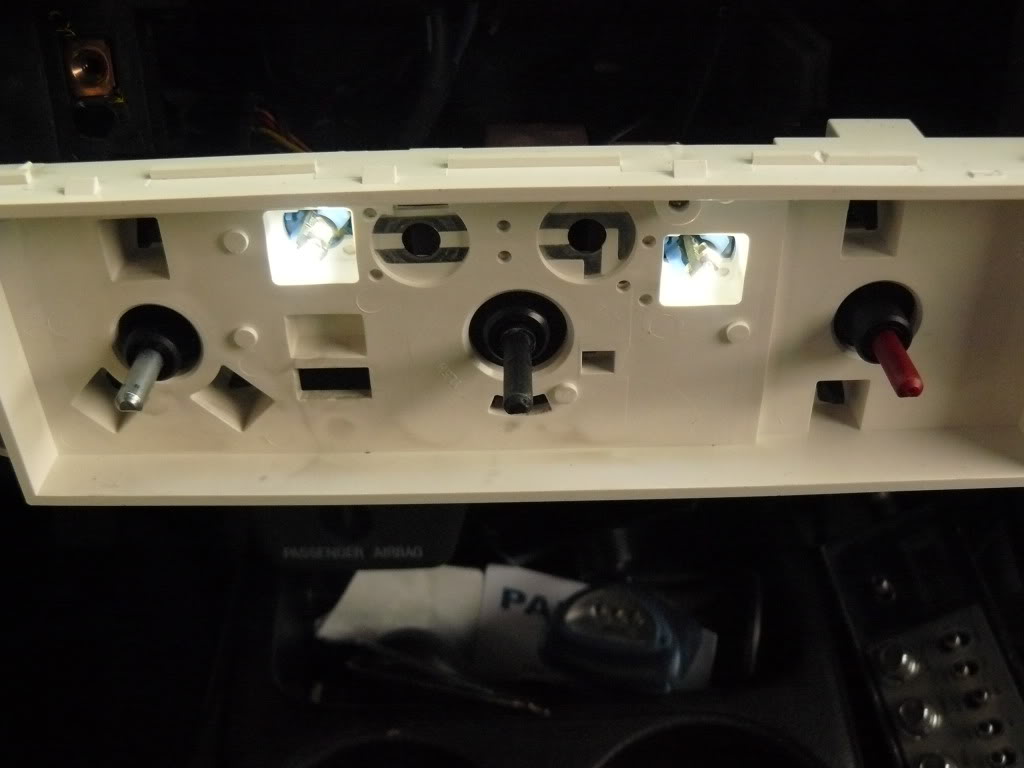

When your done it should look like this

Name:  P1050241.jpg
Views: 5
Size:  82.1 KB

Now press the silver overlay into the stock ranger controls.

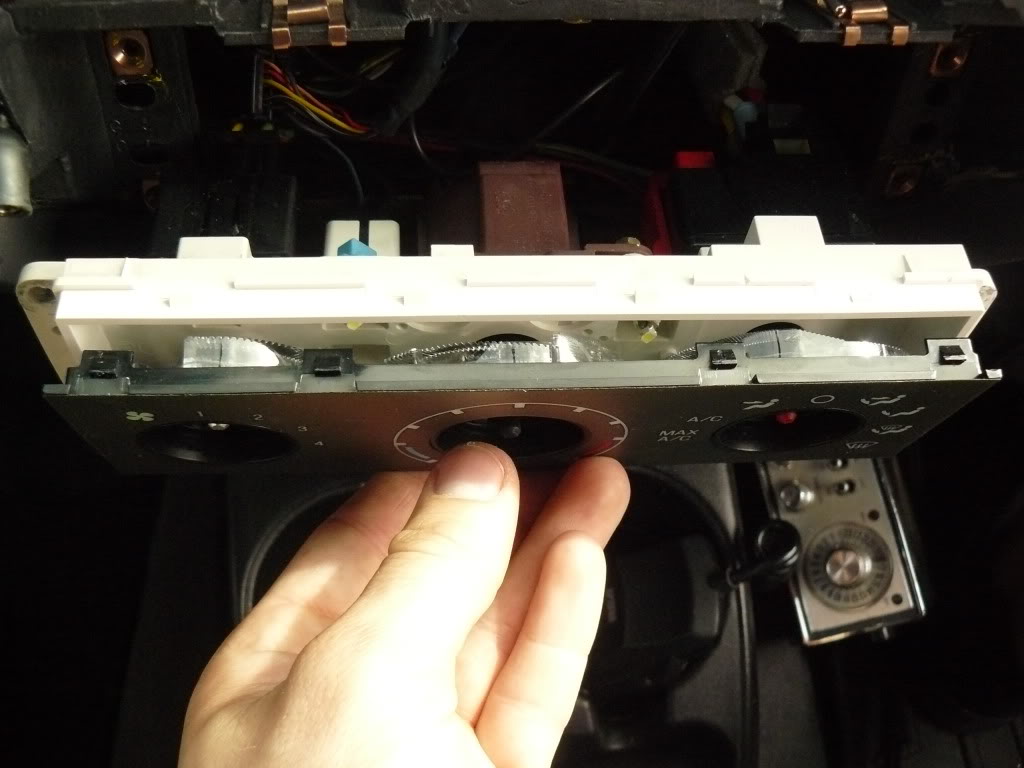

Name:  P1050242.jpg
Views: 5
Size:  104.9 KB

Nice snug fit

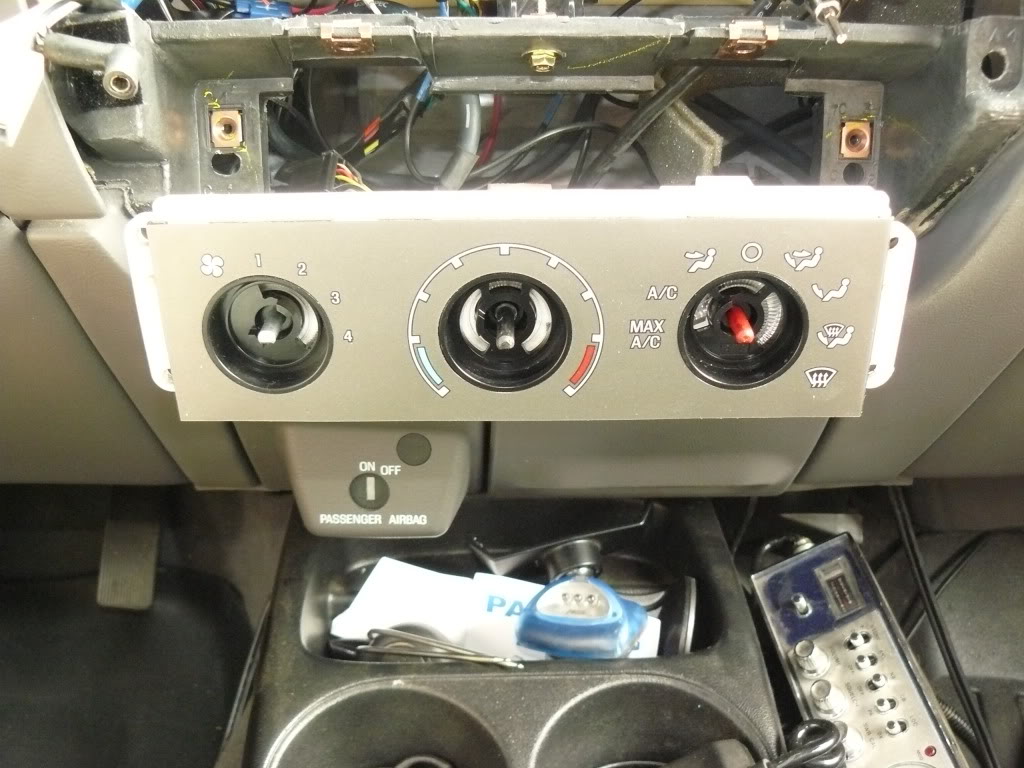

Name:  P1050237.jpg
Views: 7
Size:  150.0 KB

Reinstall the *****

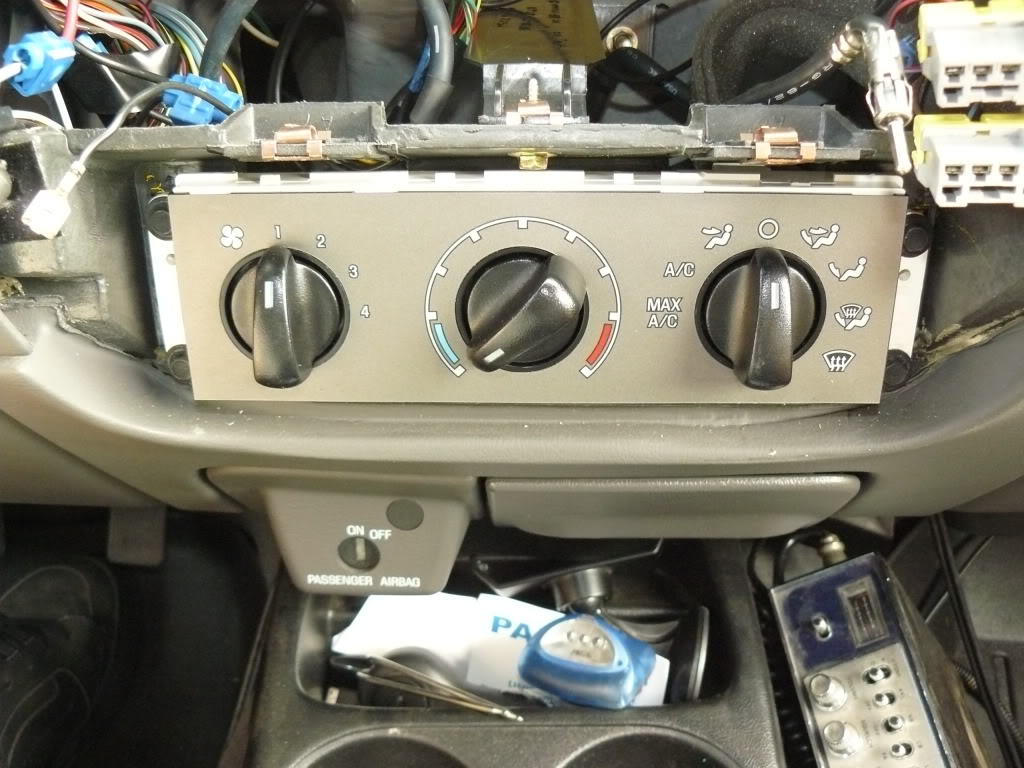

Name:  P1050236.jpg
Views: 6
Size:  162.4 KB

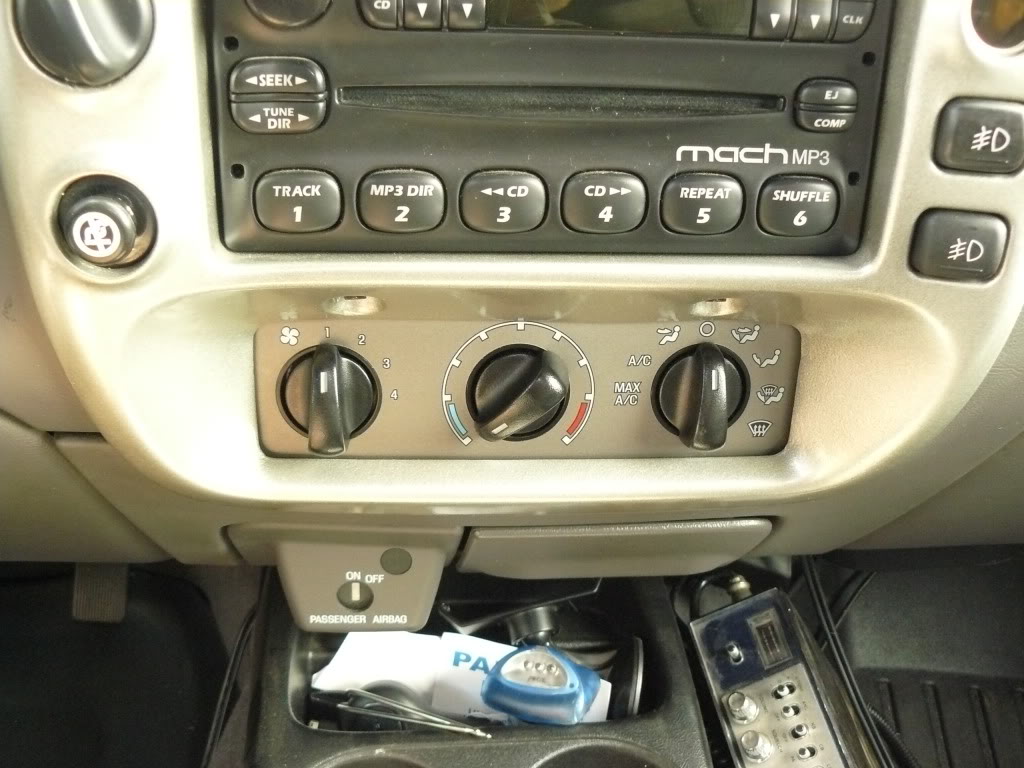

Put everything back together and this is what you end up with.

Name:  P1050235.jpg
Views: 6
Size:  144.5 KB

I also installed a set of T5 led to replace the stock bulbs at the same time.

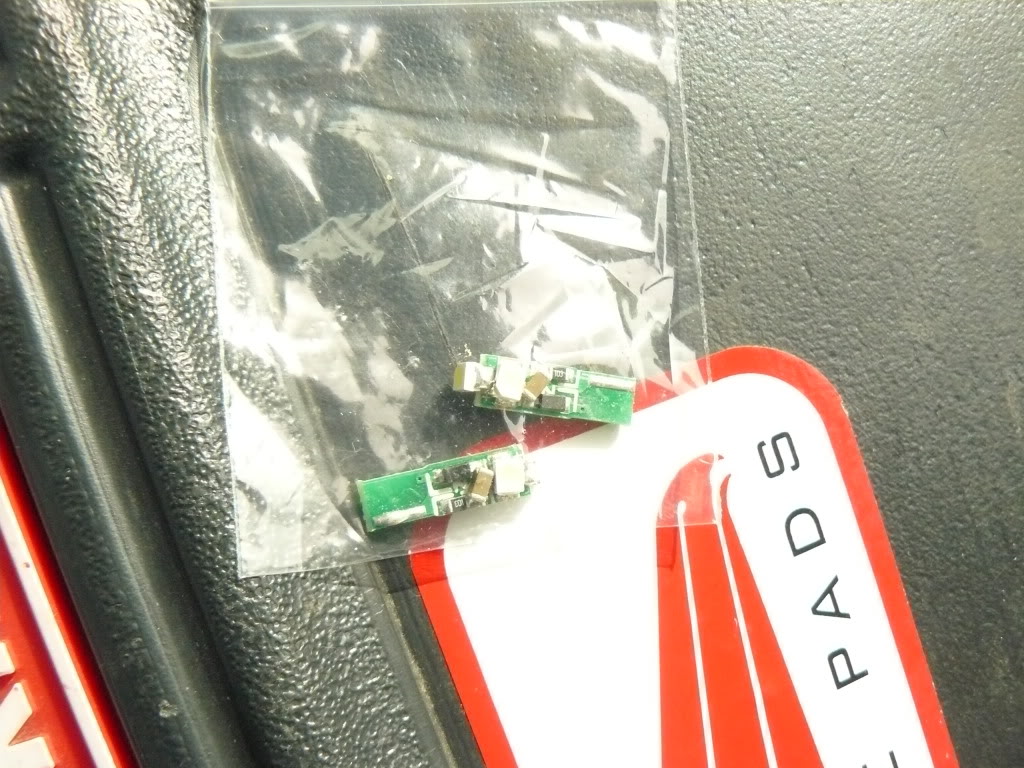

Name:  P1050239.jpg
Views: 5
Size:  202.1 KB

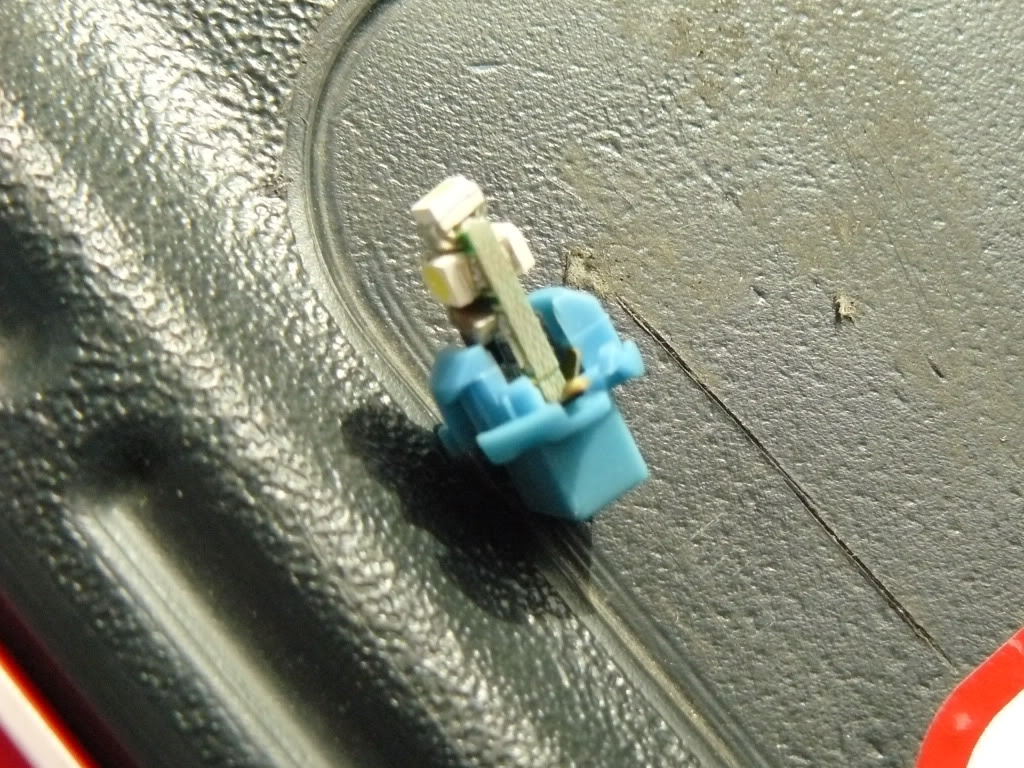

Name:  P1050240.jpg
Views: 5
Size:  239.6 KB

Tiny little suckers.

Hope this helps
Reply With Quote
  #2
Old 09-18-2010
fourliter dan's Avatar
Member

Join Date: Dec 2007
Location: Lebanon, OR
Posts: 2,229
can you get some iluminated shots of the leds?
Reply With Quote
  #3
Old 09-18-2010
mikerider's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
Quote:
Originally Posted by fourliter dan View Post
can you get some iluminated shots of the leds?
As soon as its dark...
Reply With Quote
  #4
Old 09-18-2010
djfllmn's Avatar
Moderator

Join Date: Mar 2009
Location: York, PA
Posts: 5,796
that looks really sharp!...did you just get that from a jy
Reply With Quote
  #5
Old 09-18-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
What the heck. I had one of those and none of plugs even matched.
Reply With Quote
  #6
Old 09-18-2010
mikerider's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
Quote:
Originally Posted by djfllmn View Post
that looks really sharp!...did you just get that from a jy
Thanks man, it was a cheap one off ebay it was like 18 shipped.

Quote:
Originally Posted by 01RangerEdge View Post
What the heck. I had one of those and none of plugs even matched.
The controls themselves are from the ranger the only thing I used from the set of explorer controls was the silver face plate.
Reply With Quote
  #7
Old 09-18-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Even if I would have thought of that, the green paint on the plate wasn't coming off very well
Reply With Quote
  #8
Old 09-18-2010
mikerider's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
Quote:
Originally Posted by 01RangerEdge View Post
Even if I would have thought of that, the green paint on the plate wasn't coming off very well
gotcha, I'm keeping my dash green so it works great for me.
Reply With Quote
  #9
Old 09-18-2010
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
looks good. do you have matching gauges?
Reply With Quote
  #10
Old 09-18-2010
djfllmn's Avatar
Moderator

Join Date: Mar 2009
Location: York, PA
Posts: 5,796
i think thatll look really sharp with my silver radio/HVAC bezel
Reply With Quote
  #11
Old 09-18-2010
mikerider's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
Quote:
Originally Posted by ranger4.0 View Post
looks good. do you have matching gauges?
Yep, sure do.

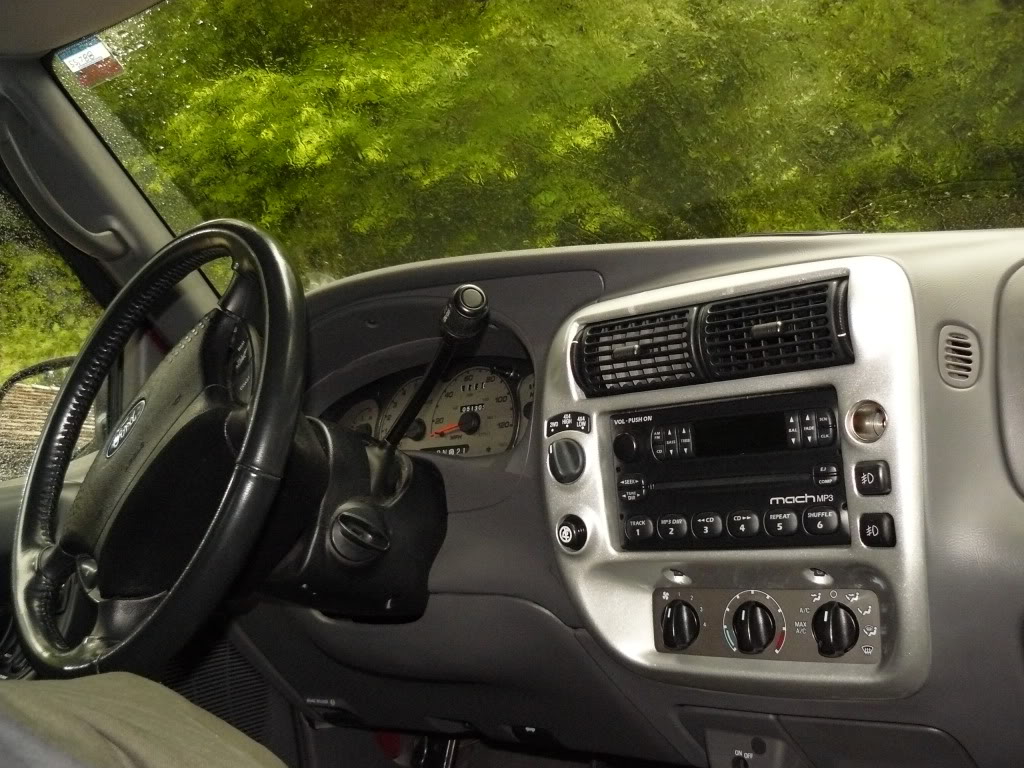

Name:  P1040836.jpg
Views: 5
Size:  186.7 KB
Reply With Quote
  #12
Old 09-19-2010
mikerider's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504

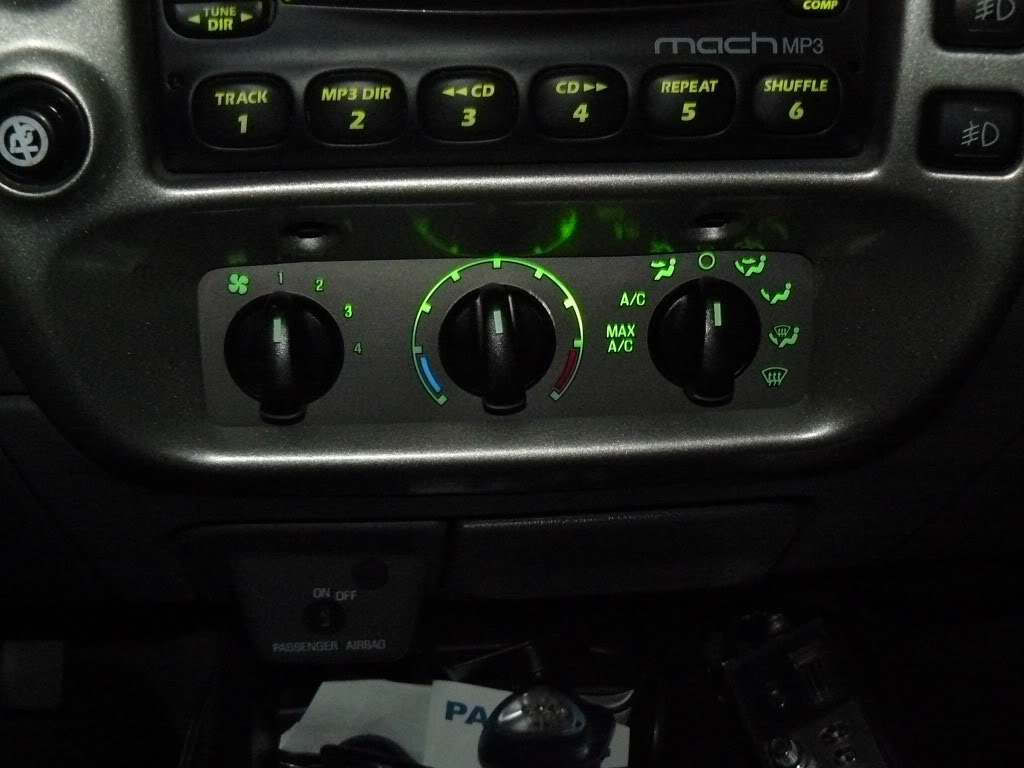

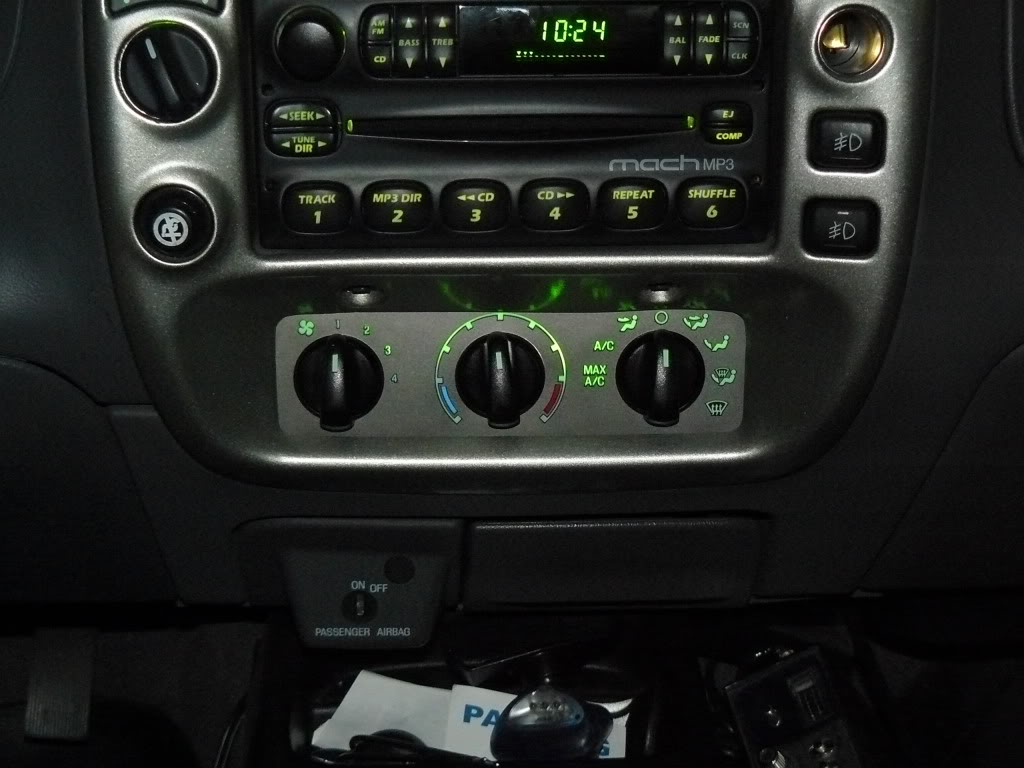

Night pics as promised

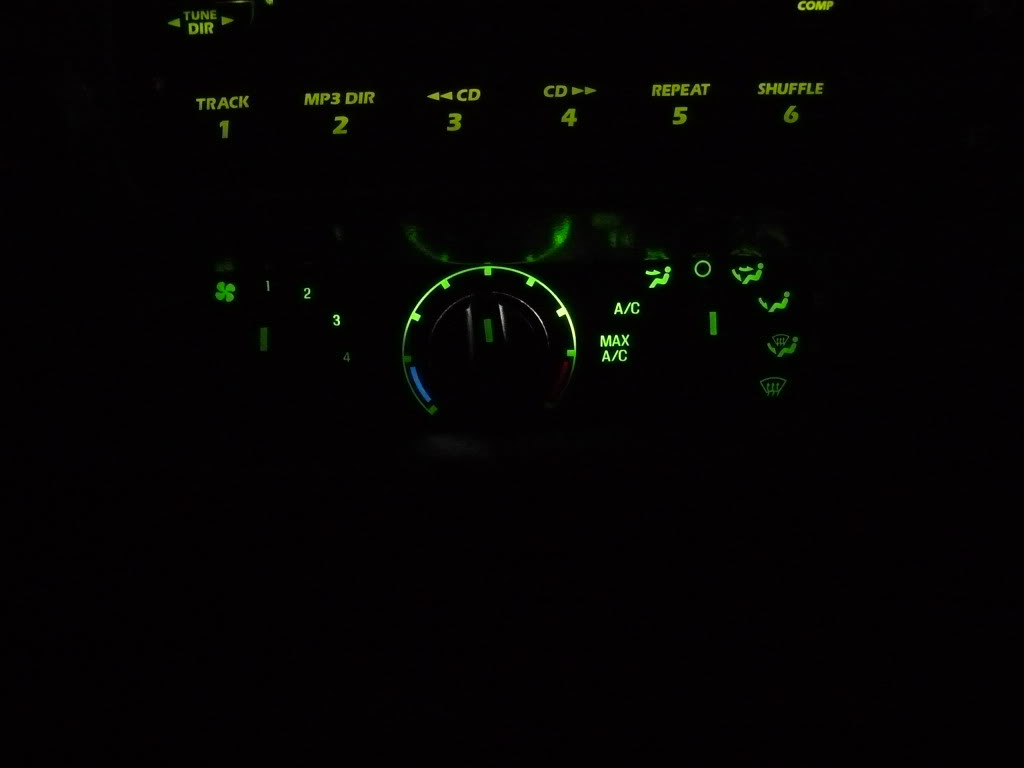

Name:  P1050250.jpg
Views: 6
Size:  106.8 KB

Name:  P1050251.jpg
Views: 5
Size:  125.9 KB

Name:  P1050249.jpg
Views: 6
Size:  54.5 KB
Reply With Quote
  #13
Old 09-19-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721

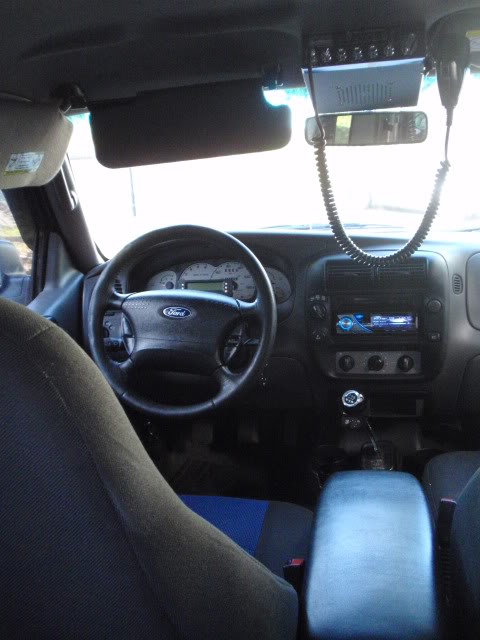

Unevenly lit like mine too, though I'm running stock incandescants. I've got those tiny bastard bulbs and not 194's like yours too Along with having the cable blend door. I ended up shaving the "triangle clips" that are on the Expo face, slid in the face, and it's fit snug enough where the ***** actually hold it in. I plan on adding strip led's to it and those nifty plug-in 194's in the cluster to make everything match. Thanks for the info Mikey....I'm jealous of your radio bezel.


Name:  P3190214.jpg
Views: 5
Size:  53.8 KB
Reply With Quote
  #14
Old 09-19-2010
mikerider's Avatar
Member
Thread Starter
iTrader: (8)

Join Date: Oct 2006
Location: Renton WA
Posts: 2,504
Quote:
Originally Posted by Fx4wannabe01 View Post
Unevenly lit like mine too, though I'm running stock incandescants. I've got those tiny bastard bulbs and not 194's like yours too Along with having the cable blend door. I ended up shaving the "triangle clips" that are on the Expo face, slid in the face, and it's fit snug enough where the ***** actually hold it in. I plan on adding strip led's to it and those nifty plug-in 194's in the cluster to make everything match. Thanks for the info Mikey....I'm jealous of your radio bezel.


Ya its a little uneven the pics make it look worse then it is but it was worse with the stock incandescents. darn little bulbs... I am gonna do another LED or 2 in the bottom of the HVAC and that will fix it but works well for now.

The plug in SMD 194's in the gauges on the other hand work and look awesome.

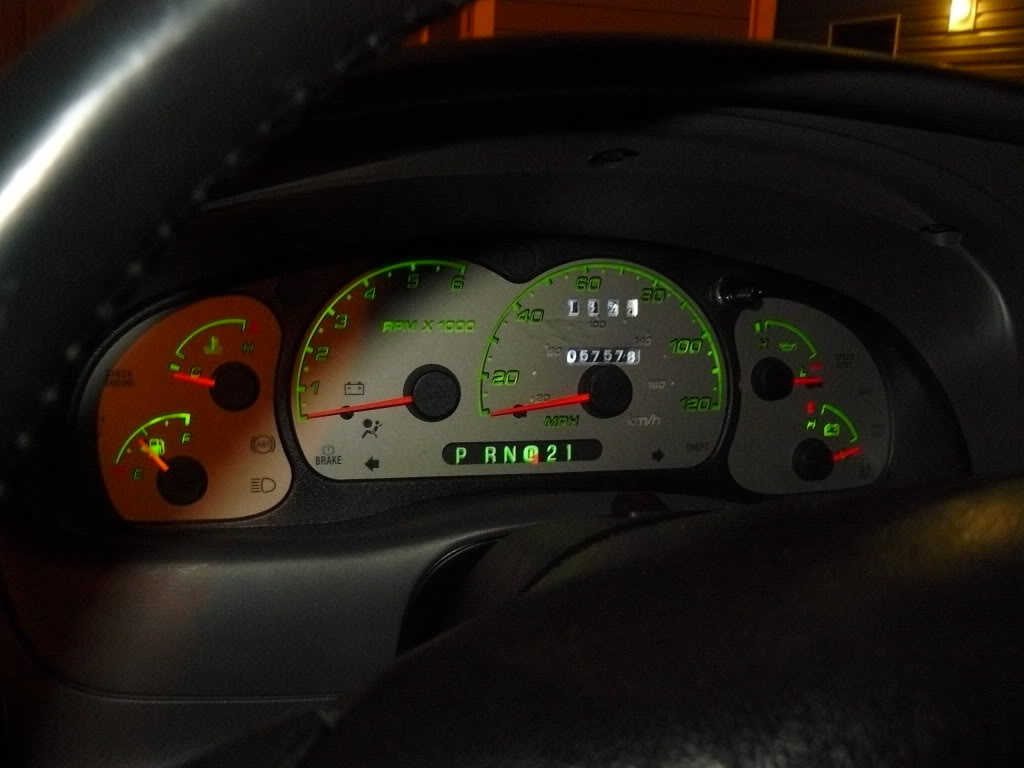

Name:  P1050224.jpg
