Took out my carpet

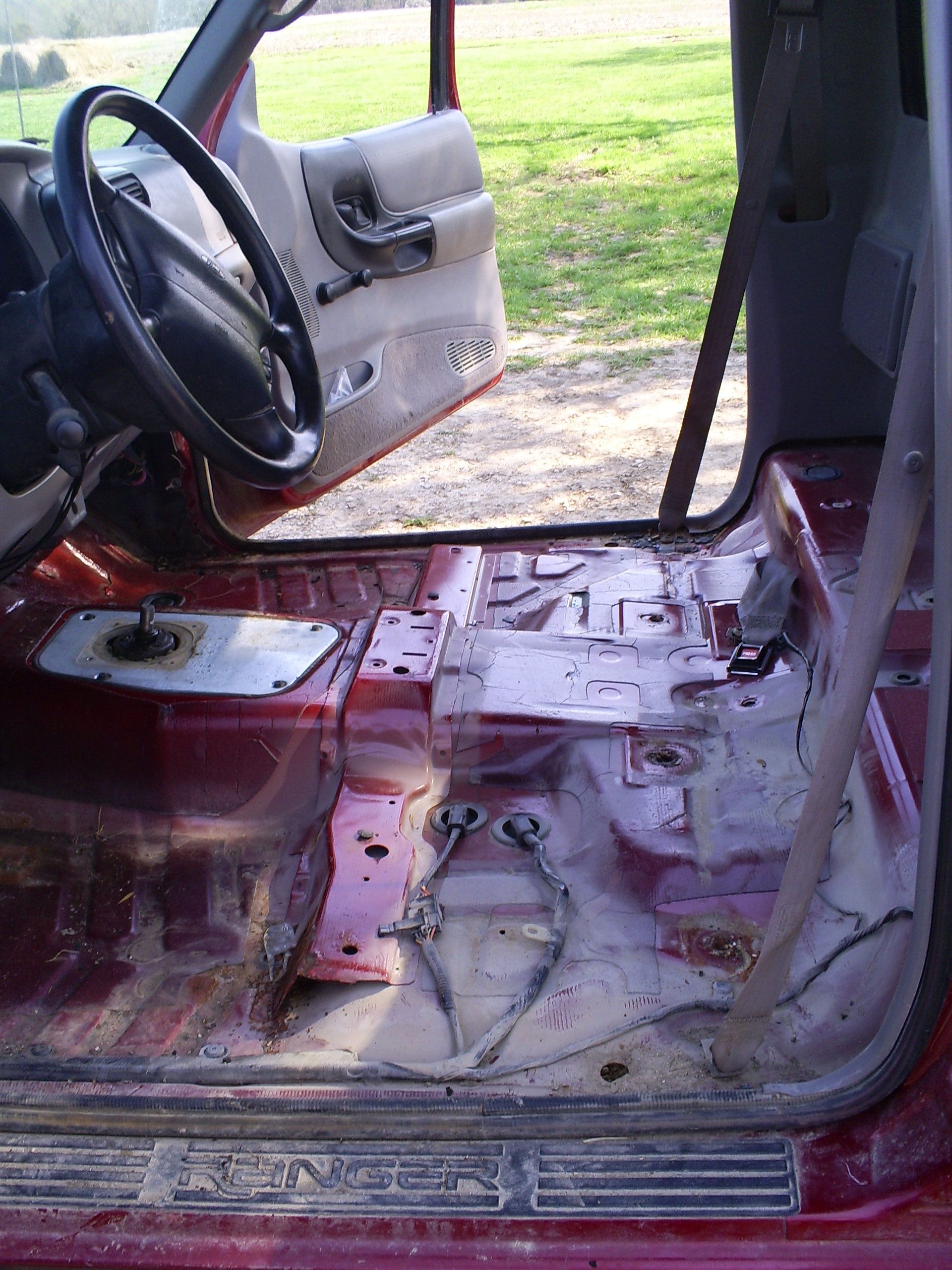

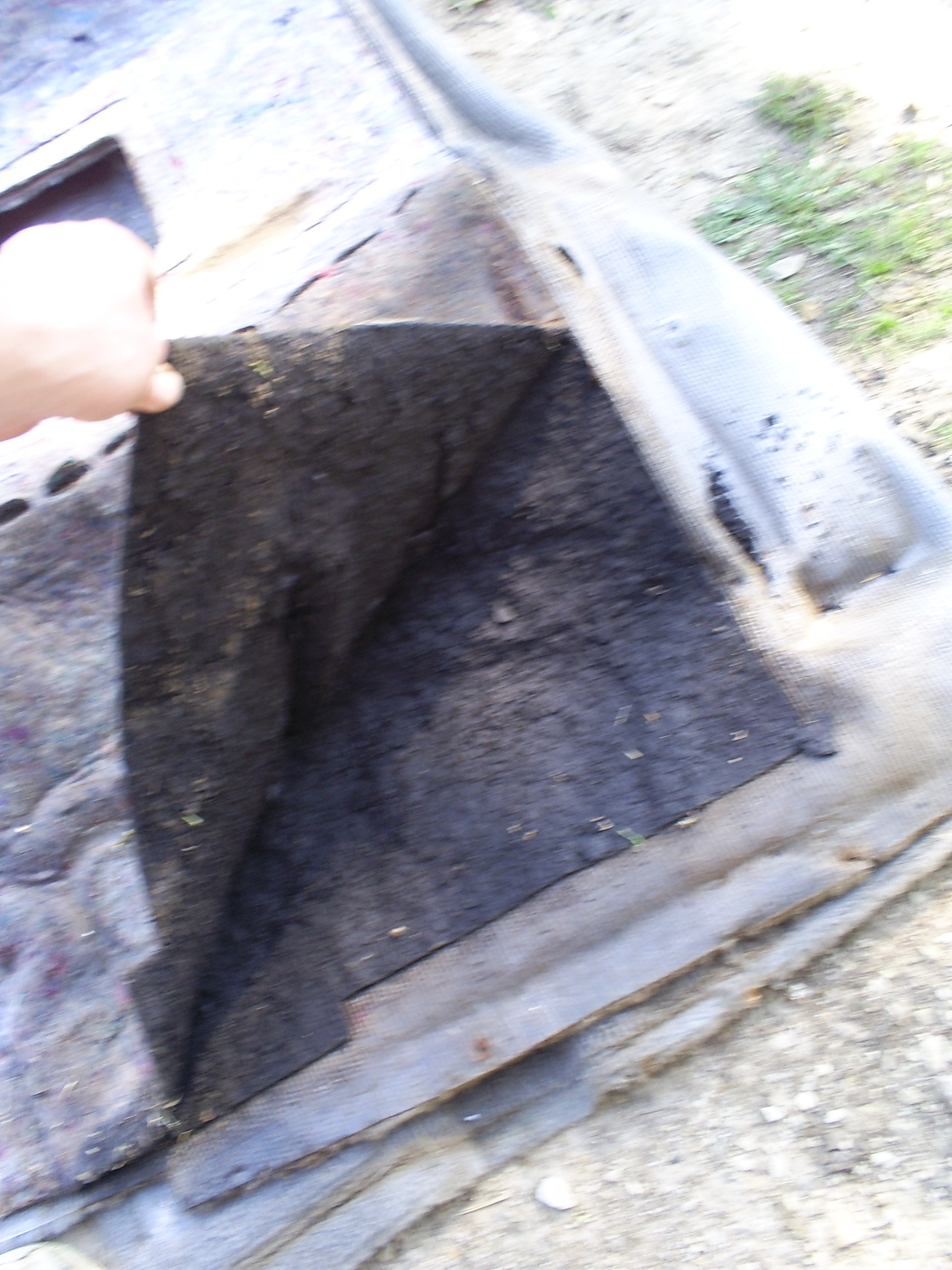

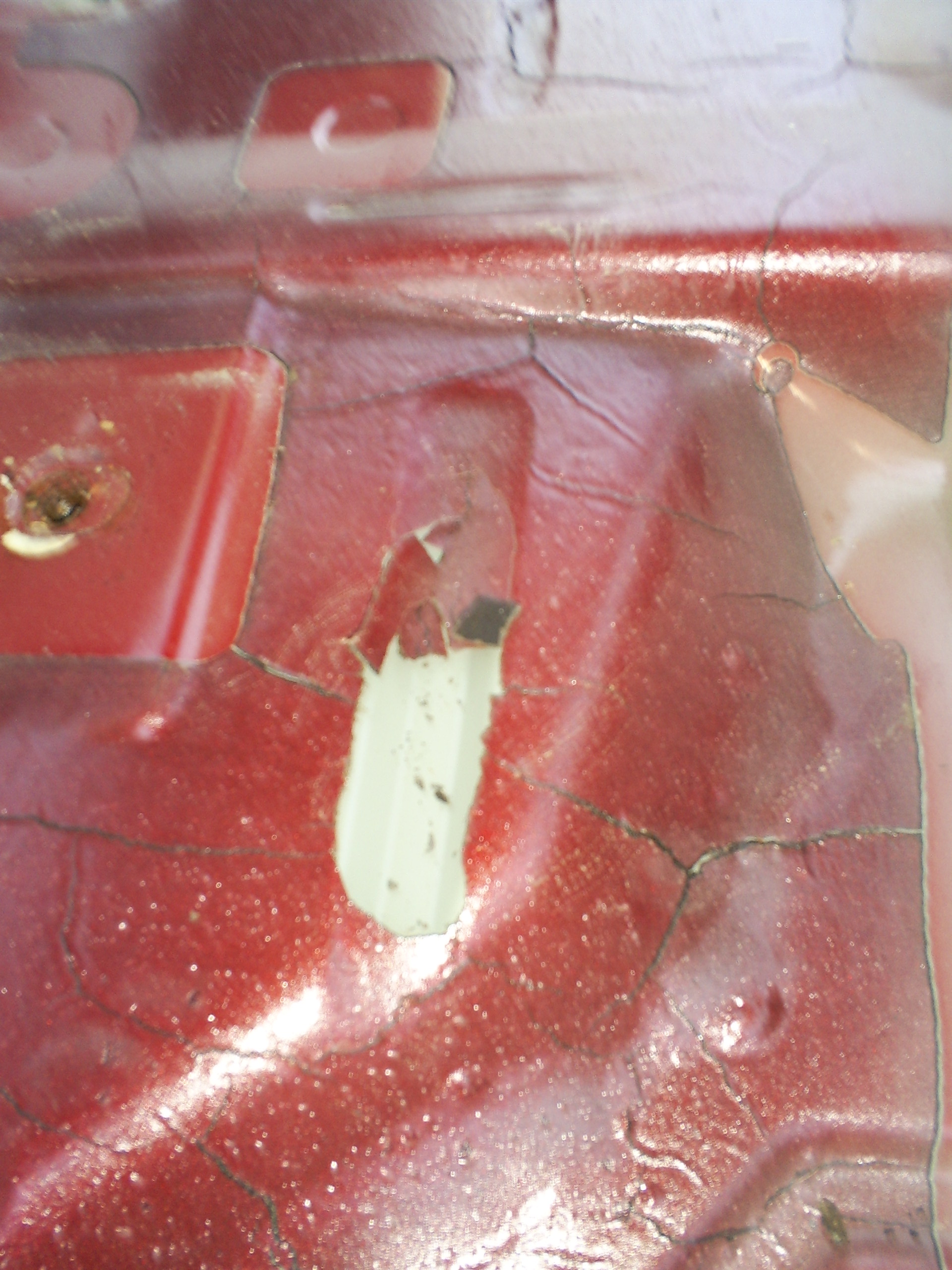

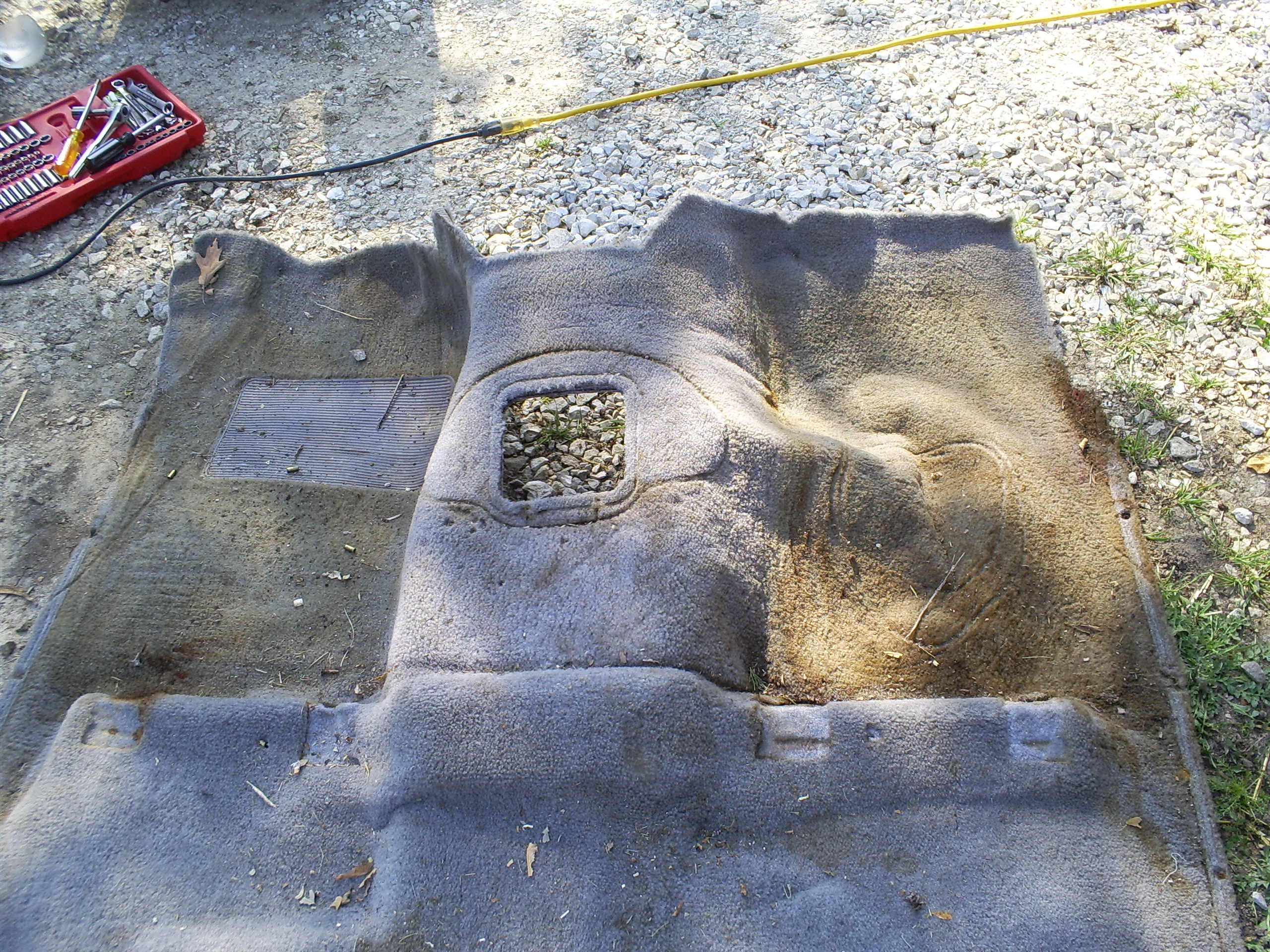

Well my carpet has been wet for some reason for a long time from just sitting in the drive way while im at school and it was turning color and stinking a little. So i decided it was time for it to come out. After having a few problems with rusty screws and bolts i got all of the stuff up off the carpet and tore it out. The padding under the carpet was black and smelt awful. And the other stuff that is stuck to the floor was wet and cracking. now i just have to figure out where the water is coming from.

Attached Thumbnails Took out my carpet-s5030167.jpg   Took out my carpet-s5030165.jpg   Took out my carpet-s5030166.jpg   Took out my carpet-s5030168.jpg
Reply
Old Apr 11, 2010
  #2
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)
Joined: May 2005
Posts: 21,721
Likes: 17
From: Boring, Oregon
Check your window seals, third brake light seal, heater core, door seals, etc. The third brake light seal is actually a pretty common failure. The stuf that's shipping is likely the stock sound deadener. Take a hammer to it, it'll split up in pieces.

You aughta just toss that carpet and jute in the garbage. Hit up LMCtruck.com or StockInteriors.com for a replacement once you find where the leak is coming from.

Reply
Old Apr 11, 2010
  #3
littlered's Avatar
Thread Starter
|
Member
iTrader: (2)
Joined: Sep 2008
Posts: 1,542
Likes: 2
From: Lewistown, Mo
i think that it is only coming from the passenger side since that is the only side that is wet and somewhere in the front but not sure. it will be atleast a few weeks before im back home to do anything to it. Some of the stuff i could just pic off with my fingers and some of it was tareing when i was blowing it out with the air hose so ill probably try to bust it all out. I dont think im going to put carpet back in it since its not a DD and sees quite a bit of dirt. I might do the famous ruberized interior :)

Reply
Old Apr 11, 2010
  #4
dbp02's Avatar
Member
Joined: Feb 2010
Posts: 147
Likes: 0
From: Pittsburgh
My entire floor under my carpet (well rubber pad in my case) is all wet. It's just because winter just got over. It will dry out after a few nice days.

Reply
Old Apr 11, 2010
  #5
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)
Joined: May 2005
Posts: 21,721
Likes: 17
From: Boring, Oregon
The jute under my vinyl floor took damn near two weeks to fully dry out from winter last year. The the unfortunate thing about vinyl......it doesn't allow the jute to breath.

Reply
Old Apr 11, 2010
  #6
karrbass4life's Avatar
Member
Joined: Nov 2004
Posts: 3,072
Likes: 2
From: Cincinnati, Ohio
Originally Posted by Fx4wannabe01
The jute under my vinyl floor took damn near two weeks to fully dry out from winter last year. The the unfortunate thing about vinyl......it doesn't allow the jute to breath.
And it get this certain smell. Ugh I hate what winter does to my truck.

Reply
Old Apr 15, 2010
  #7
littlered's Avatar
Thread Starter
|
Member
iTrader: (2)
Joined: Sep 2008
Posts: 1,542
Likes: 2
From: Lewistown, Mo
Got a question what are the black plastic things called that are held down by 4 screws that go across the bottom of the door that hold the carpet down? And where can i get some?

Reply
Old Apr 15, 2010
  #8
ES894x4's Avatar
Member
Joined: Jun 2007
Posts: 1,523
Likes: 1
From: Killafornia
dont forget to rubberize that **** y0

Reply
Old Apr 15, 2010
  #9
littlered's Avatar
Thread Starter
|
Member
iTrader: (2)
Joined: Sep 2008
Posts: 1,542
Likes: 2
From: Lewistown, Mo
Im really wanting to but it will be a ways off. But dont worry if i do i will post pics of it unlike some people around here.

Reply
Old Apr 16, 2010
  #10
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)
Joined: May 2005
Posts: 21,721
Likes: 17
From: Boring, Oregon
Originally Posted by littlered
Got a question what are the black plastic things called that are held down by 4 screws that go across the bottom of the door that hold the carpet down? And where can i get some?
Carpet hold-downs and/or door sills? lol. Junkyard is best bet.

Reply
Old Apr 17, 2010
  #11
cheese_man's Avatar
Member
iTrader: (1)
Joined: Nov 2009
Posts: 2,126
Likes: 6
From: arthur
check your front passenger side body mount rubber plug

water is probably seeping between the plug and body metal

i used white grease to seal every rubber plug i could find
( it also helps to keep moisture in the rubber and prevent it deteriorating )

Reply
Old Apr 17, 2010
  #12
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)
Joined: May 2005
Posts: 21,721
Likes: 17
From: Boring, Oregon
OR.....run a bead of silocone on the body mount plugs. Mine were leakers thanks to hardcore pressure washing. lol.

Reply
Old Apr 17, 2010
  #13
littlered's Avatar
Thread Starter
|
Member
iTrader: (2)
Joined: Sep 2008
Posts: 1,542
Likes: 2
From: Lewistown, Mo
Im thinking that might be what was leaking since it was where most of the water was but im not really sure yet at this point.

Reply
Old Apr 17, 2010
  #14
2001FORDRANGEREDGE's Avatar
Joined: Mar 2009
Posts: 86
Likes: 0
From: Ft. Carson, Co
i cant stand the rubber flooring in my standard cab, i might do the rhino lining thing in a few weeks. that would be kick ***

Reply
Old Apr 18, 2010
  #15
2001FORDRANGEREDGE's Avatar
Joined: Mar 2009
Posts: 86
Likes: 0
From: Ft. Carson, Co
actually, i pulled out the rubber flooring today, and i seem to have the same problem, it was soaked under the rubber on both sides though. ohh well rhino lining is coming next. that ota fix things lol

Reply
Old Apr 18, 2010
  #16
littlered's Avatar
Thread Starter
|
Member
iTrader: (2)
Joined: Sep 2008
Posts: 1,542
Likes: 2
From: Lewistown, Mo
YOU HAVE TO post pics when its done!!!

Reply
Old May 14, 2010
  #17
littlered's Avatar
Thread Starter
|
Member
iTrader: (2)
Joined: Sep 2008
Posts: 1,542
Likes: 2
From: Lewistown, Mo

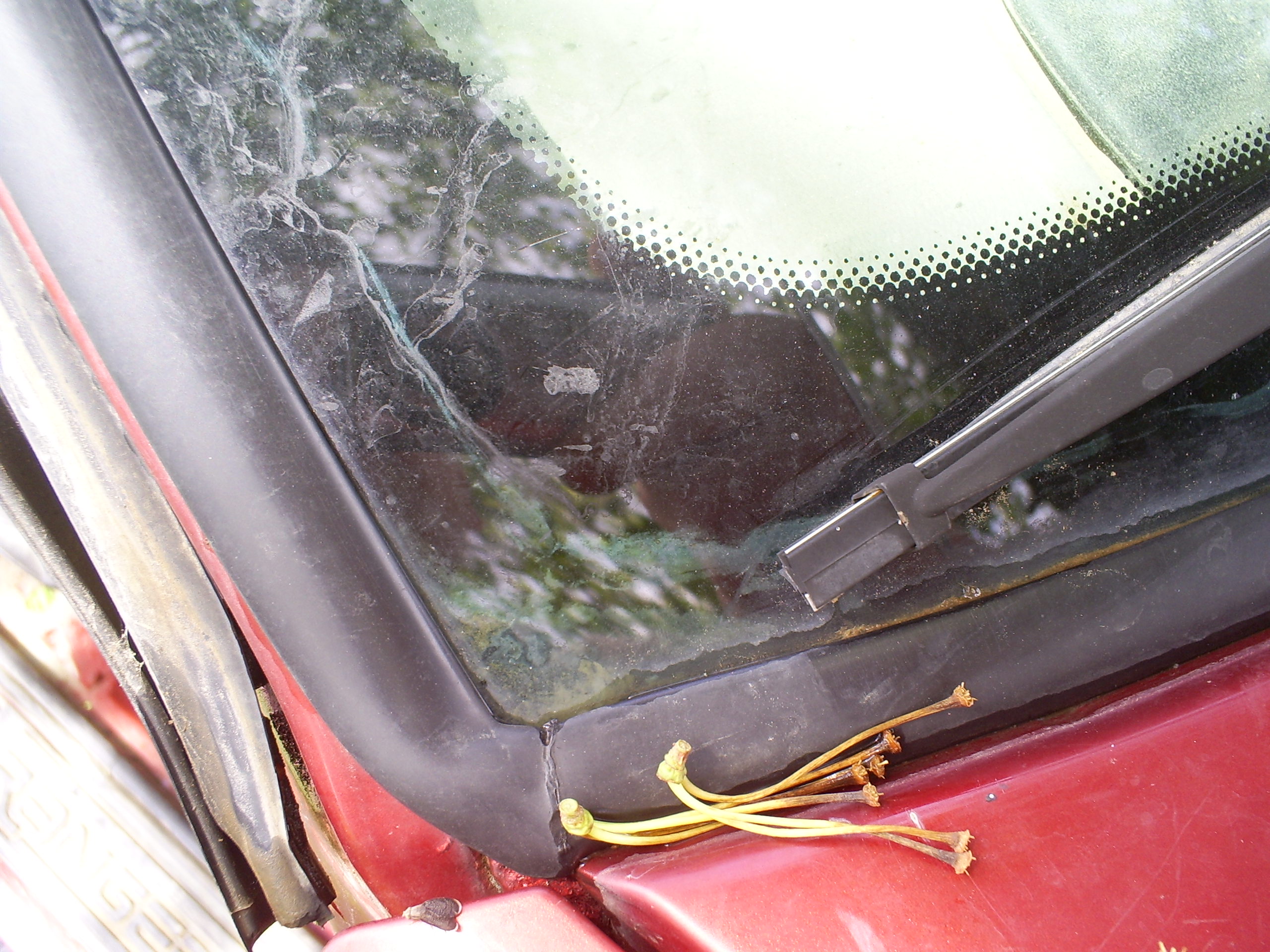

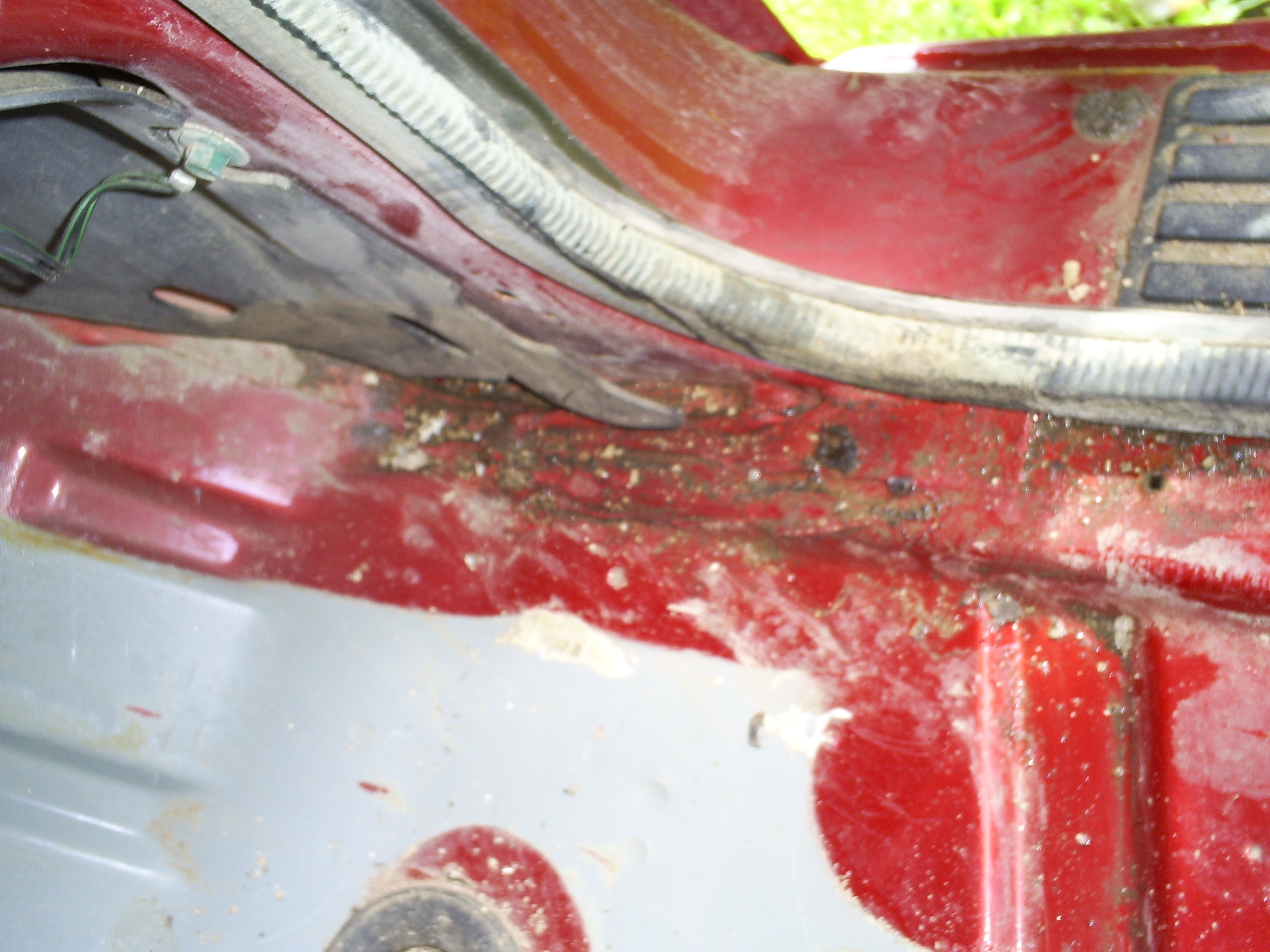

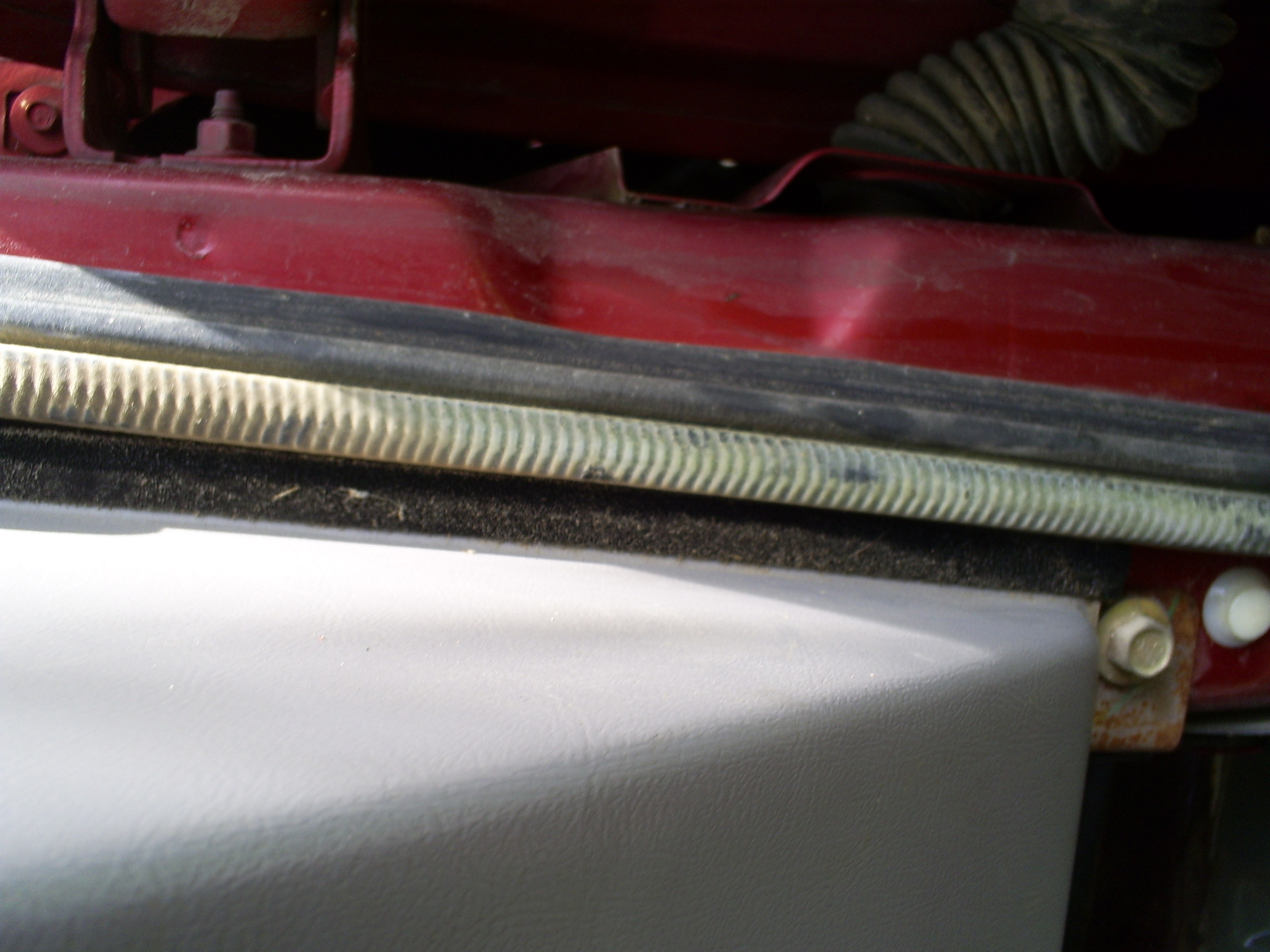

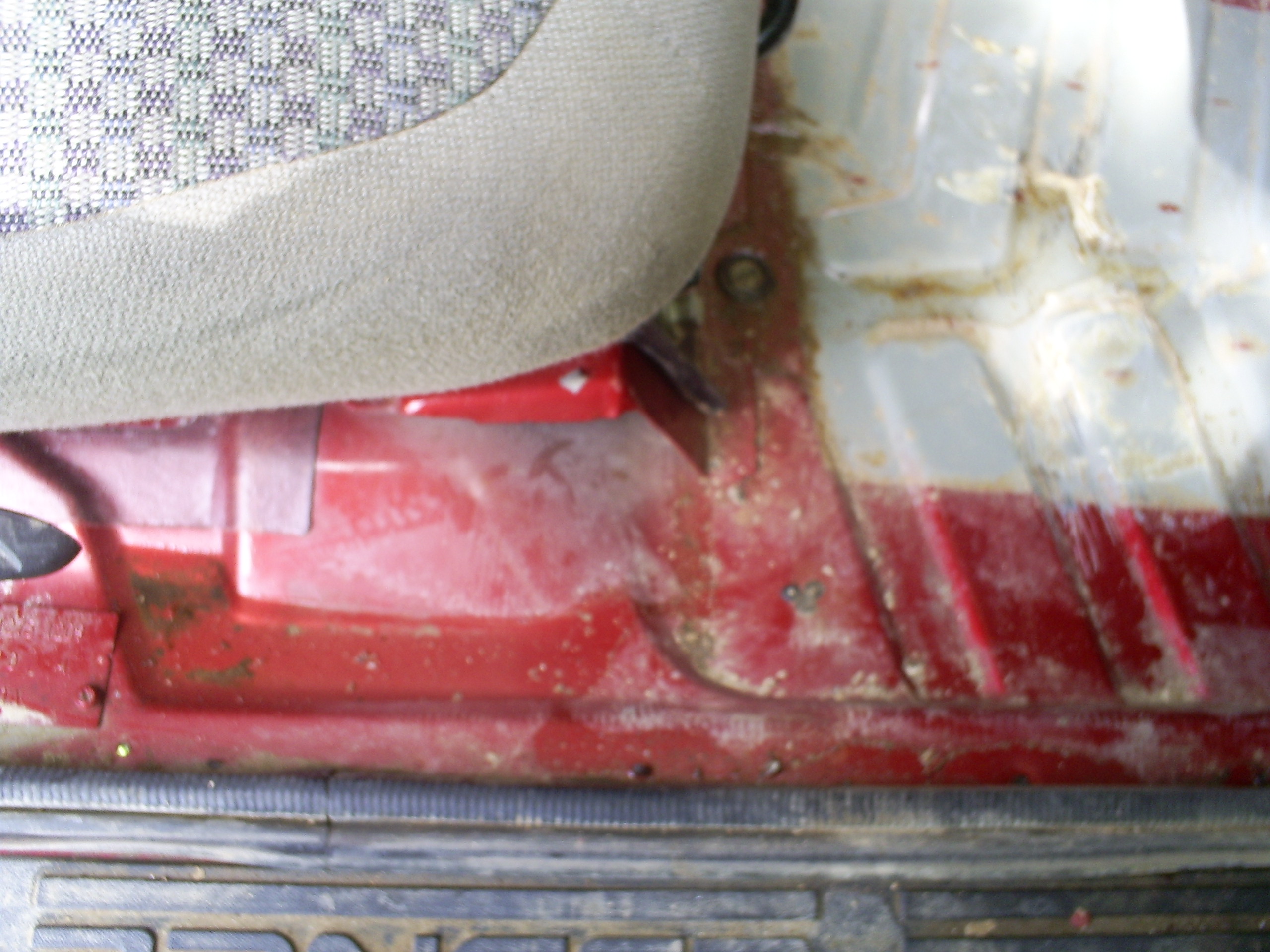

Well after it sitting out side in the rain for the last few days there is water in the cab again but i busted the sound reducer off the floor and it rained again and i think it is running from the corner of the window down the inside of the door jam and onto the floor. I dont know if you can see it in the pics but there is a water trail down the padding or what ever it is that goes down the door jam. There is also discoloration in the bottom corner of the window. Is there a way to fix this?

Attached Thumbnails Took out my carpet-s5030190.jpg   Took out my carpet-s5030191.jpg   Took out my carpet-s5030192.jpg   Took out my carpet-s5030193.jpg
Reply
Old May 14, 2010
  #18
Scrambler82's Avatar
Old Guy User…
iTrader: (12)
Joined: Jul 2009
Posts: 7,909
Likes: 78
From: SoCal
What does it smell like, antifreeze maybe… passenger side, heat on right side.
As FX4 Wannabe suggested, check out the heater just in case...

Reply
Old May 14, 2010
  #19
littlered's Avatar
Thread Starter
|
Member
iTrader: (2)
Joined: Sep 2008
Posts: 1,542
Likes: 2
From: Lewistown, Mo
nope definitely clear non-smelling liquid. and the truck has been setting except to move it from out by the barn back to the house to work on it.

Reply
Old May 14, 2010
  #20
99offroadrngr's Avatar
TOYOTA
iTrader: (37)
Joined: Jul 2007
Posts: 11,713
Likes: 10
From: Massachusetts
im almost positive you have some corrosion under the door seals on the angled uppper part of it
mine is like that too and i get the water in the same location. pull the seal out a bit on the angled part along the windshield and check for corrosion

Reply
Old May 15, 2010
  #21
littlered's Avatar
Thread Starter
|
Member
iTrader: (2)
Joined: Sep 2008
Posts: 1,542
Likes: 2
From: Lewistown, Mo
im not really sure where you are talking about. inside or outside of the truck?


Does anybody know where i can get the 1" solid grommet for the floor. when i ran my cb cables i took them out and i dont have them anymore.

Reply
Old May 17, 2010
  #22
Scrambler82's Avatar
Old Guy User…
iTrader: (12)
Joined: Jul 2009
Posts: 7,909
Likes: 78
From: SoCal
My ’88 had a leak by the lower corner of the windshield on the driver’s side, RUST, had to have a new windshield put in and checked it out.
Filled the area with Windshield sealant, put the trim back on and it stopped leaking.
Sold it about two years later and no leaks, The windshield lower edge can be a big problem.

Reply
Old May 18, 2010
  #23
littlered's Avatar
Thread Starter
|
Member
iTrader: (2)
Joined: Sep 2008
Posts: 1,542
Likes: 2
From: Lewistown, Mo
anybody know where i can get the rubber pluggs for the floor?

Reply
Old May 18, 2010
  #24
Melt's Avatar
Member
iTrader: (1)
Joined: Apr 2008
Posts: 3,392
Likes: 2
From: Denver, CO
another thread about bedliner on the interior?






































yes!!! 2 years later take that *****es!!!

Reply
Old May 19, 2010
  #25
cheese_man's Avatar
Member
iTrader: (1)
Joined: Nov 2009
Posts: 2,126
Likes: 6
From: arthur
dealership
