  #26
Old 04-24-2009
Demo1986's Avatar
Member
Thread Starter

Join Date: Feb 2009
Location: Long Beach, CA
Posts: 423
u guys have found placees to put switches that i wouldnt of thought of! i gotta go get me swithes that i like and small ones to put in the A-pillar or center console
Reply With Quote
  #27
Old 04-24-2009
sniper_101's Avatar
Member

Join Date: Jul 2005
Location: Sask, Canada
Posts: 1,902
I've got my engine switches in the sunglasses compartment of my OHC for when my 5.0 goes in.

Covert is the best.
Reply With Quote
  #28
Old 04-29-2009
2wdranger's Avatar
Member

Join Date: Mar 2008
Location: Omaha, NE
Posts: 123
Quote:
Originally Posted by htjunkie View Post
Here's mine

Why are they different colors? That would drive me nuts LOL
Reply With Quote
  #29
Old 04-29-2009
2wdranger's Avatar
Member

Join Date: Mar 2008
Location: Omaha, NE
Posts: 123
I always put switches in stealthy places because that way people cant see them, and my friends cant mess with them lol.
Reply With Quote
  #30
Old 04-29-2009
Darock's Avatar
Member

Join Date: Apr 2009
Location: Halifax, Canada
Posts: 38
When I had my old 5.0 stang I had my fog light switch hidden inside the ashtray. I worked pretty well and it was out of the way.
Reply With Quote
  #31
Old 04-29-2009
SouthTXFord's Avatar
Member

Join Date: Apr 2009
Location: San Antonio, TX
Posts: 30
I'm jealous of you guys that have the little pocket next to the airbag cut off switch...all I have is a gap where the ash tray used to be... :(
Reply With Quote
  #32
Old 04-29-2009
TheStig88's Avatar
Member
iTrader: (4)

Join Date: Aug 2008
Location: Columbia, Missouri
Posts: 2,120
in my first gen....there was a strip of plastic trim across the dash about knee level (the rest was metal)

i put my switches in a neat little row in between the cigarette lighter and the steering column.

bad idea

they were right at knee level and in the crash i was slammed forward and those switches cut my knee all to hell and i broke them clean off.....
Reply With Quote
  #33
Old 04-30-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Quote:
Originally Posted by SouthTXFord View Post
I'm jealous of you guys that have the little pocket next to the airbag cut off switch...all I have is a gap where the ash tray used to be... :(
What color is your interior? I can pick you up one and ship it to you. You just want the ash tray for that dash piece right?
Reply With Quote
  #34
Old 04-30-2009
Bumpncarstereo's Avatar
Member
iTrader: (3)

Join Date: Aug 2006
Location: btwn the Buff and the Roc
Posts: 1,302


mine, i have a few more that i need to put itn
Reply With Quote
  #35
Old 05-01-2009
Smakes's Avatar
Member
iTrader: (5)

Join Date: Nov 2008
Location: nowhere
Posts: 235
bumpincarstereo and lord of war...

ALPINE FTW!
Reply With Quote
  #36
Old 05-02-2009
platinum6316's Avatar
Member

Join Date: Jan 2009
Location: Scarborough, ON
Posts: 98
Here's where I put my switches:

Name:  Ranger-9.jpg
Views: 0
Size:  45.6 KB

There's space for 1 or 2 more there, so when I add more lights I can add more switches ...

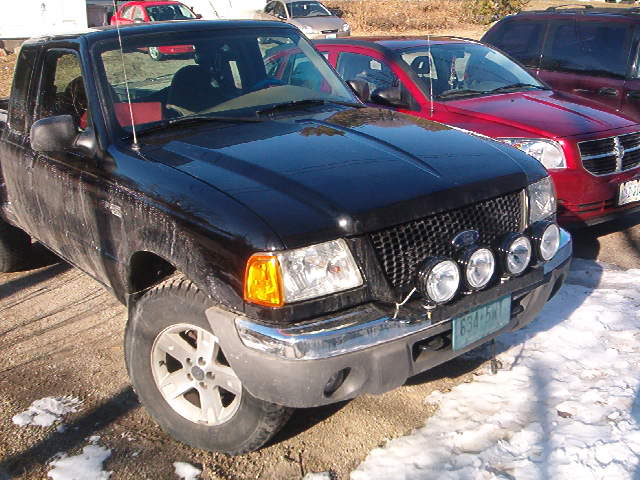

as if this wasn't enough:

Name:  Ranger-8.jpg
Views: 0
Size:  65.2 KB
Reply With Quote
  #37
Old 05-02-2009
Smakes's Avatar
Member
iTrader: (5)

Join Date: Nov 2008
Location: nowhere
Posts: 235
naaa 4 lights isnt too much .. if anything go jeep and mount them infront of the A pillar! and about 4 more on the roof for good measure
Reply With Quote
  #38
Old 05-04-2009
comunistico's Avatar
Member

Join Date: Nov 2008
Location: san jose, Costa Rica
Posts: 1,319
Name:  04052009135.jpg
Views: 0
Size:  129.4 KB
Name:  04052009133.jpg
Views: 0
Size:  116.9 KB
Name:  04052009134.jpg
Views: 0
Size:  124.3 KB
Name:  04052009132.jpg
Views: 0
Size:  66.7 KB

thats were u put my switches.. easier to turn all at once when someone plays cool and drives around with his High Lights on....
Reply With Quote
  #39
Old 05-04-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
I want your truck!!! Diesel 5-spd ranger with 4 real doors!
Reply With Quote
  #40
Old 05-18-2009
mcpink's Avatar
Member
iTrader: (1)

Join Date: Mar 2008
Location: Out There
Posts: 443
Quote:
Originally Posted by TrePaul86 View Post
Not only do I have the radio bezel modded for 2 OEM switches, I have 5 LED toggles on my A-Pillar

Factory location:


That looks really good! What'd you use to cut the second hole for the second fog switch?
Reply With Quote
  #41
Old 05-18-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Dremel and a lot of time... I wanted it to look as close to factory as possible... Dremel with cutting bit and the sander.
Reply With Quote
  #42
Old 05-19-2009
mcpink's Avatar
Member
iTrader: (1)

Join Date: Mar 2008
Location: Out There
Posts: 443
Well, it looks pretty darn factory to me. Even looks like you got the edges to turn in a little, just like the original fogs. Very nice job.
Reply With Quote
  #43
Old 05-10-2010
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
i know this is old but anyone else want to add to this?
Reply With Quote
  #44
Old 05-10-2010
stephen.g.fiddes's Avatar
Member
iTrader: (2)

Join Date: Mar 2010
Location: Tigard, OR/ Monmouth, OR
Posts: 847
I was about to order 5 mini-switches to put in the pocket right below my stereo before i wrecked my truck. I was gunna put a piece of plastic across the front and have the switches evenly spaced, and run out to a second relay box next to the P/S brake booster.
Reply With Quote
  #45
Old 05-10-2010
Jrevans2002's Avatar
Member

Join Date: Apr 2008
Location: Chicago, Ill
Posts: 560
I added fog lights to my XLT after the fact, I have that two bin catch all over the trans hump and opted to put my switch on that. I had to buy 15/16 wood drill bit for the size hole for the switch. Its almost the same type, blue led light tosses of a big shine on the floor.
Attached Thumbnails
where to put a switch-fog-light-switch..jpg

Last edited by Jrevans2002; 05-10-2010 at 07:27 PM.
Reply With Quote
  #46
Old 05-10-2010
btm757's Avatar
Member
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
That cb setup is awesome roberto
Reply With Quote
  #47
Old 05-24-2011
Member

Join Date: Sep 2010
Location: raleigh,nc
Posts: 22
i can offer you a switch and box that requires no drilling and you can use 4 sets of lights if your interested i have it installed in my ranger

Last edited by tman1345; 05-25-2011 at 10:45 PM.
Reply With Quote
  #48
Old 05-26-2011
darangerdanger's Avatar
Member
iTrader: (1)

Join Date: Aug 2010
Location: scappoose.oregon
Posts: 1,169

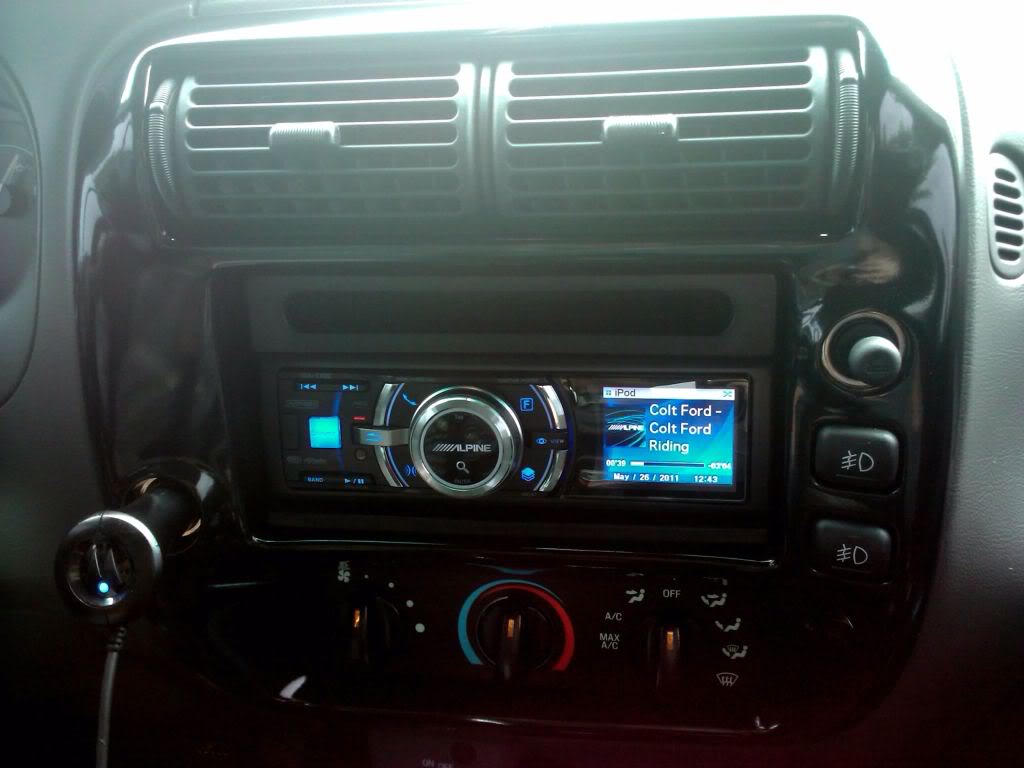

Current set up- oe fog switch running the Hellas, one for regular fogs
Name:  052611124407.jpg
Views: 0
Size:  63.9 KB
Name:  2011-05-26141221.jpg
Views: 0
Size:  45.1 KB

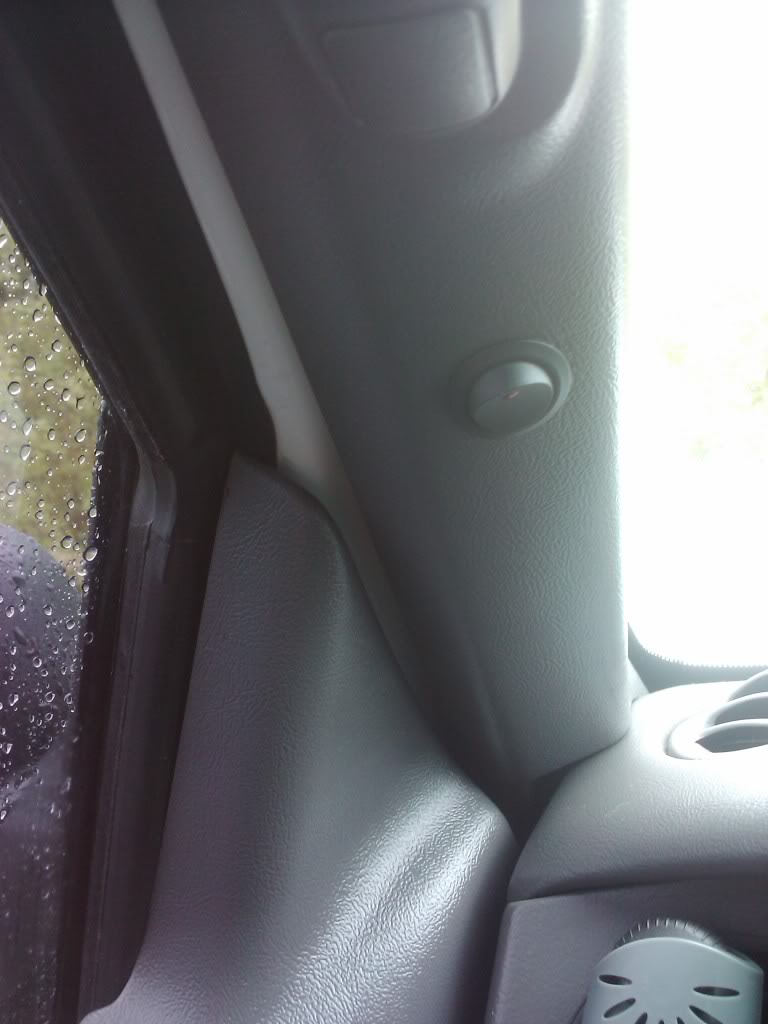

Old set up was just a toggle switch in the a-pillar(covering the hole with a dual gauge pod)
Name:  2011-05-26122837_Hillsboro_Oregon_US.jpg
Views: 0
Size:  68.3 KB

Last edited by darangerdanger; 05-26-2011 at 04:17 PM. Reason: add another pica
Reply With Quote
  #49
Old 05-26-2011
Member

Join Date: Jun 2010
Location: St Marys Ontario
Posts: 56

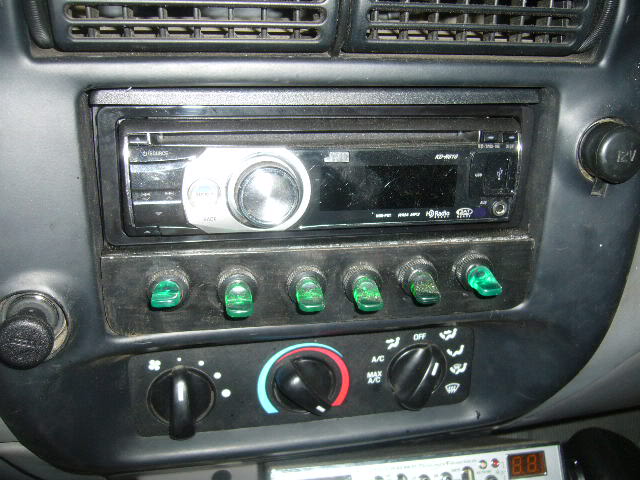

It will only work if you have an aftermarket radio but it works great and there is room for 6 switches like I have. easy to reach and looks decent when done right. I have heard you can get regular rocker switches in that gap also. I have had them in the pocket beside the airbag switch also but wasn't crazy about them if you use the switch alot.
Name:  P1050423.jpg
Views: 0
Size:  59.7 KB
Reply With Quote
  #50
Old 05-26-2011
Member

Join Date: Sep 2010
Location: raleigh,nc
Posts: 22
yea i bought this from auto zone and it works pretty well just wished i could have founf the one with the key fob switch instead

http://www.pilotautomotive.com/Produ...7297&PCID=1068
http://www.pilotautomotive.com/Produ...7298&PCID=1068
Reply With Quote
