CDA, Idaho guy with diesel ranger!

Hey guys,

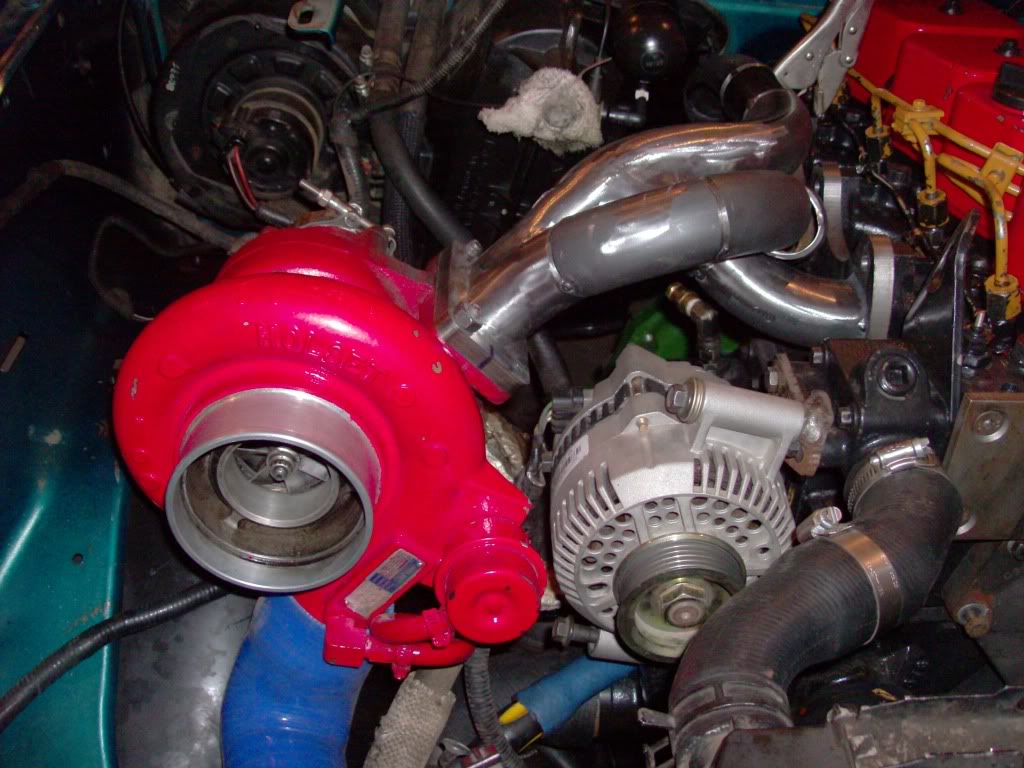

I swapped a cummins engine from an asphalt paver into my 93 ranger a little while ago. And I don't regret it one bit. You guys think a 4.0 will move one of these trucks around alright? I "down-graded" to a 3.9 liter 4 cylinder and now high twenties mpg are easily attainable. It's far from gutless too. Stock it had 325 fl-bs at 1400 rpm. Now it is FAR from stock. LOL. Anyway, here's some pics.

Name:  HPIM3833.jpg
Views: 22
Size:  141.7 KB
Name:  HPIM3941.jpg
Views: 24
Size:  143.8 KB

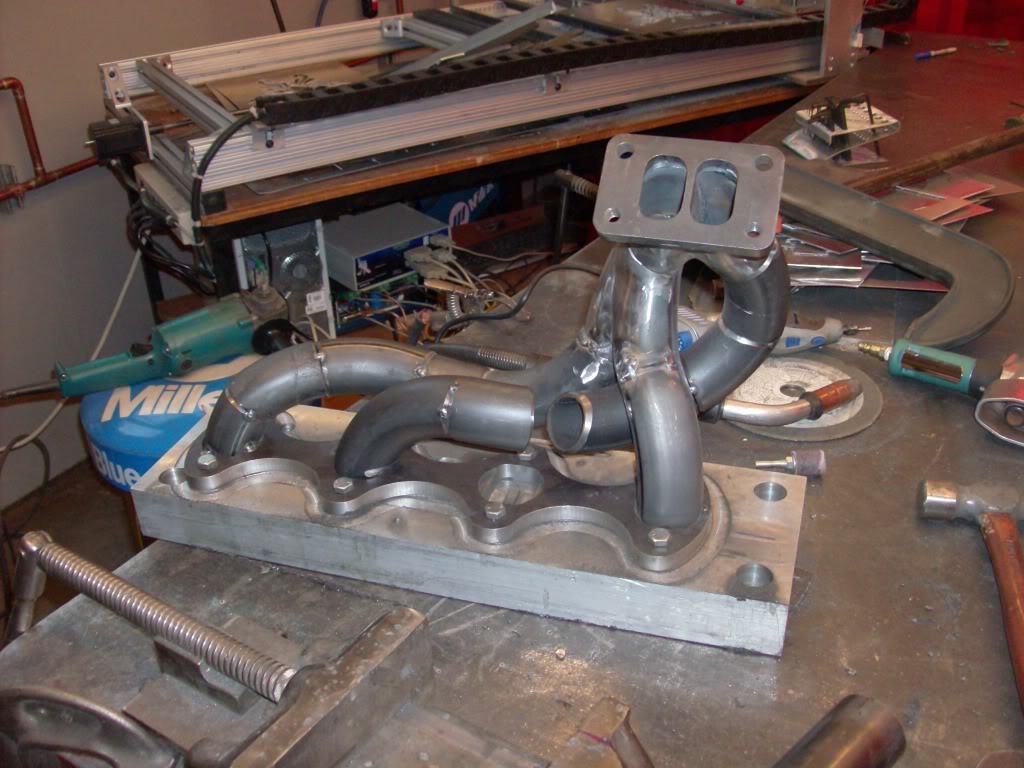

Name:  HPIM4096.jpg
Views: 23
Size:  132.4 KB

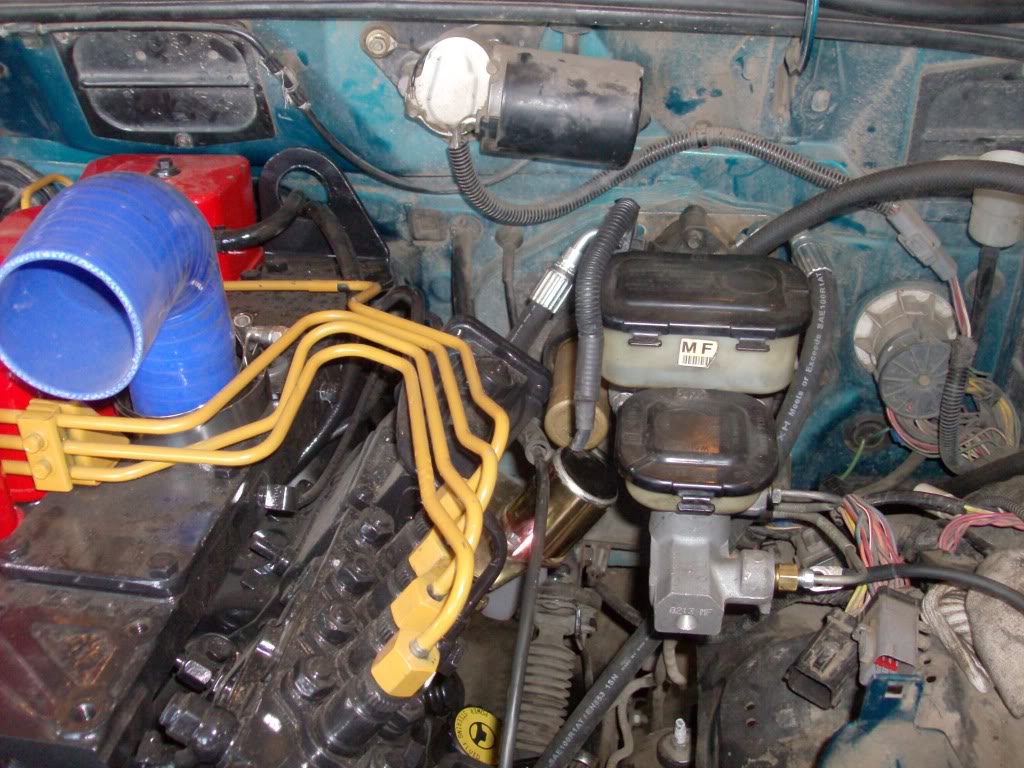

Name:  HPIM3932.jpg
Views: 23
Size:  163.4 KB
Name:  HPIM4098.jpg
Views: 30
Size:  137.1 KB

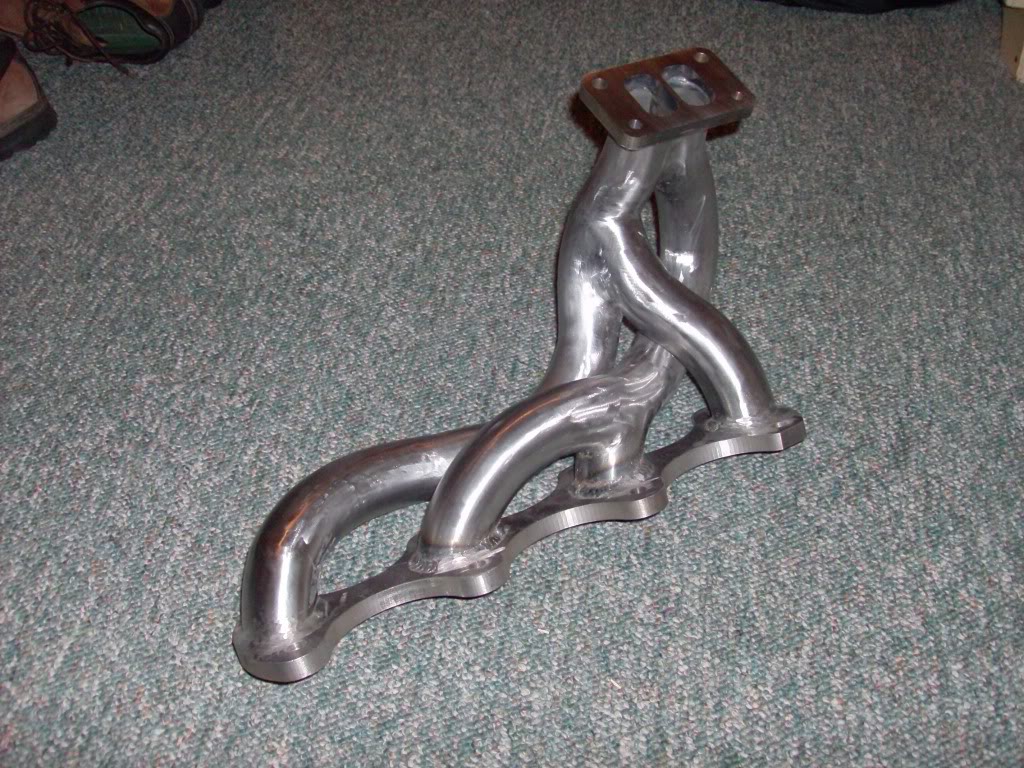

Name:  HPIM4101.jpg
Views: 27
Size:  223.9 KB
Reply With Quote
  #2
Old 04-10-2010
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Nice work! Very interesting swap... got any videos?
Reply With Quote
  #3
Old 04-10-2010
camodown's Avatar
Lost in Nowhere
iTrader: (3)

Join Date: Feb 2007
Location: Midland, TX
Posts: 5,029
interesting, welcome
Reply With Quote
  #4
Old 04-10-2010
TXRanger09's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: El Paso, Tx
Posts: 1,206
freaking awesome dude
Reply With Quote
  #5
Old 04-10-2010
Member

Join Date: Jun 2007
Location: Killafornia
Posts: 1,523
nice "downgrade"
Reply With Quote
  #6
Old 04-10-2010
btm757's Avatar
Member
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
Welcome and That Is SWEEET As hell.
Reply With Quote
  #7
Old 04-10-2010
TXRanger09's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: El Paso, Tx
Posts: 1,206
what you using for tranny / transfer case?
Reply With Quote
  #8
Old 04-10-2010
Member
Thread Starter

Join Date: Apr 2010
Location: Post Falls, ID
Posts: 9
Quote:
Originally Posted by FULLSCALE View Post
Nice work! Very interesting swap... got any videos?
Here are some videos from the first time I drove it, it wasn't running right.


Reply With Quote
  #9
Old 04-10-2010
Member
Thread Starter

Join Date: Apr 2010
Location: Post Falls, ID
Posts: 9
Quote:
Originally Posted by Spc_Austin View Post
what you using for tranny / transfer case?
I have a ZF5 and an NP205

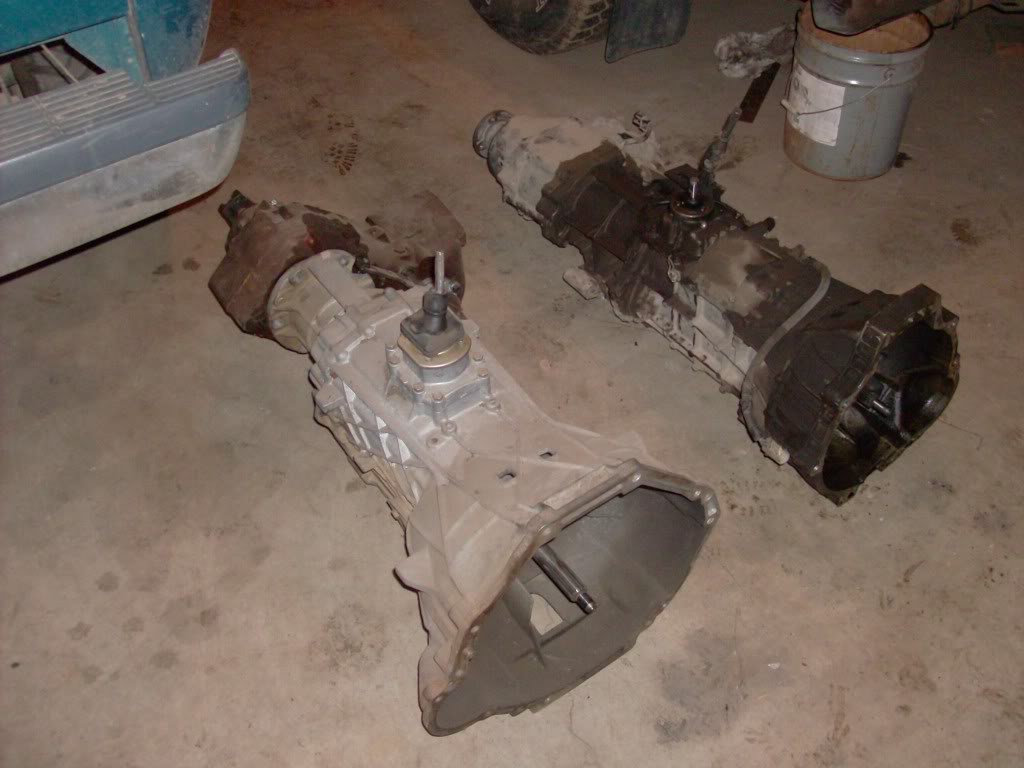

Here's the new and the old:
Name:  HPIM3863.jpg
Views: 19
Size:  92.8 KB

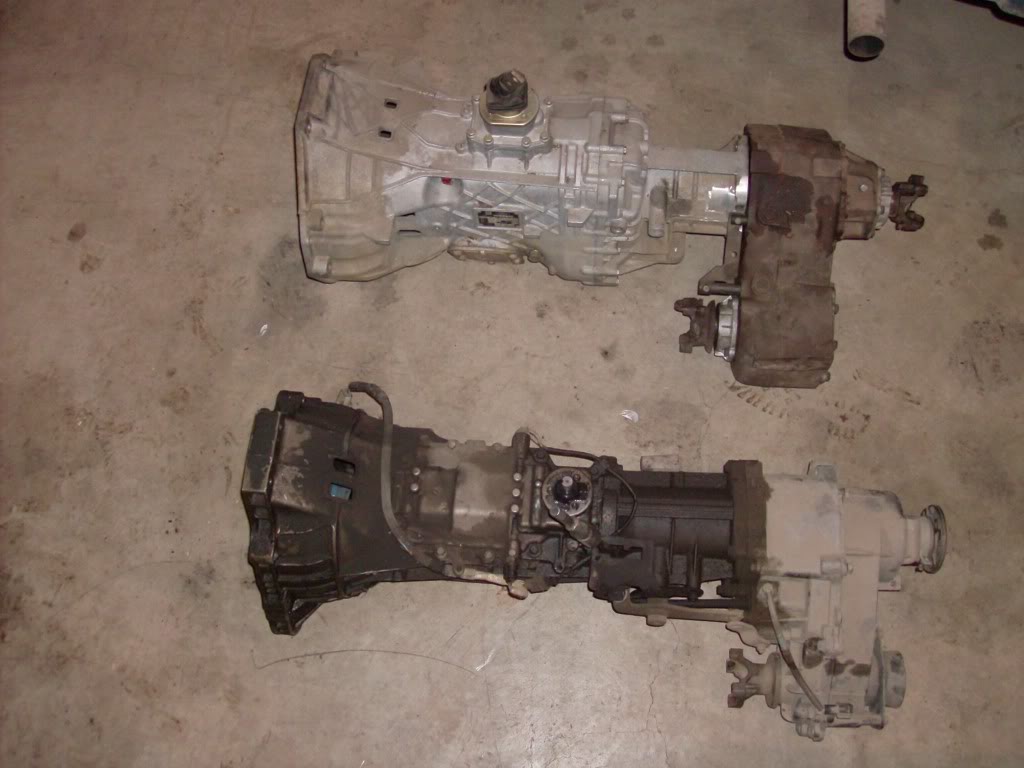

Name:  HPIM3866.jpg
Views: 85
Size:  96.8 KB

Took a bit of work but the ZF fit (snugly):
Name:  HPIM3903.jpg
Views: 19
Size:  141.3 KB

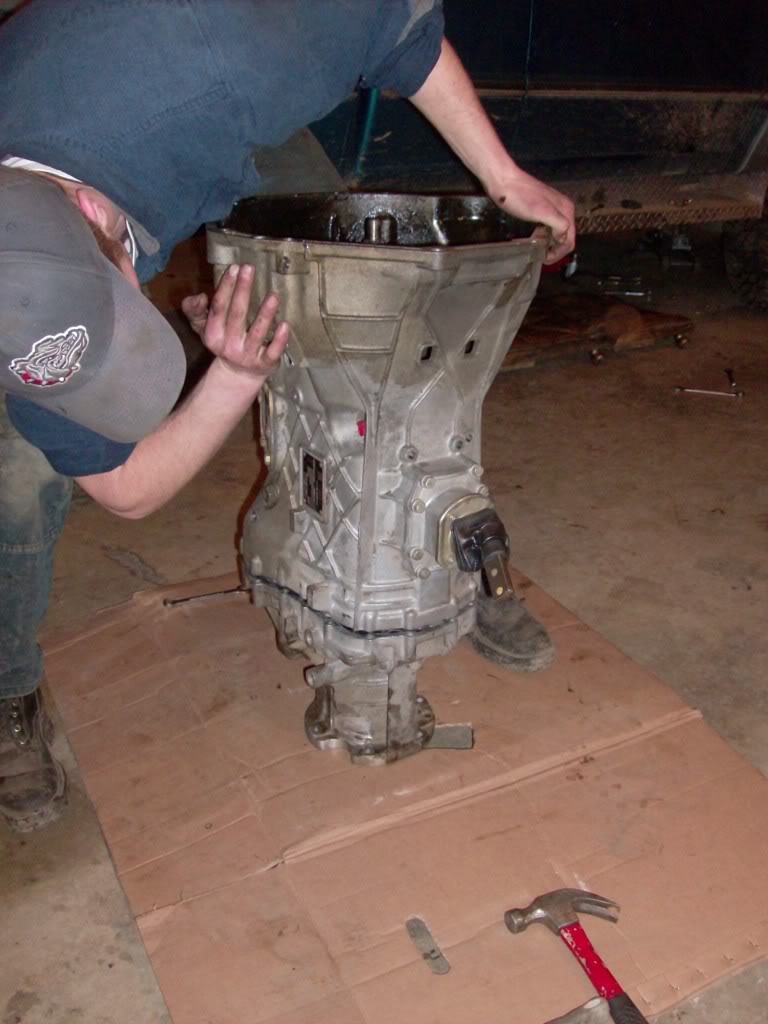

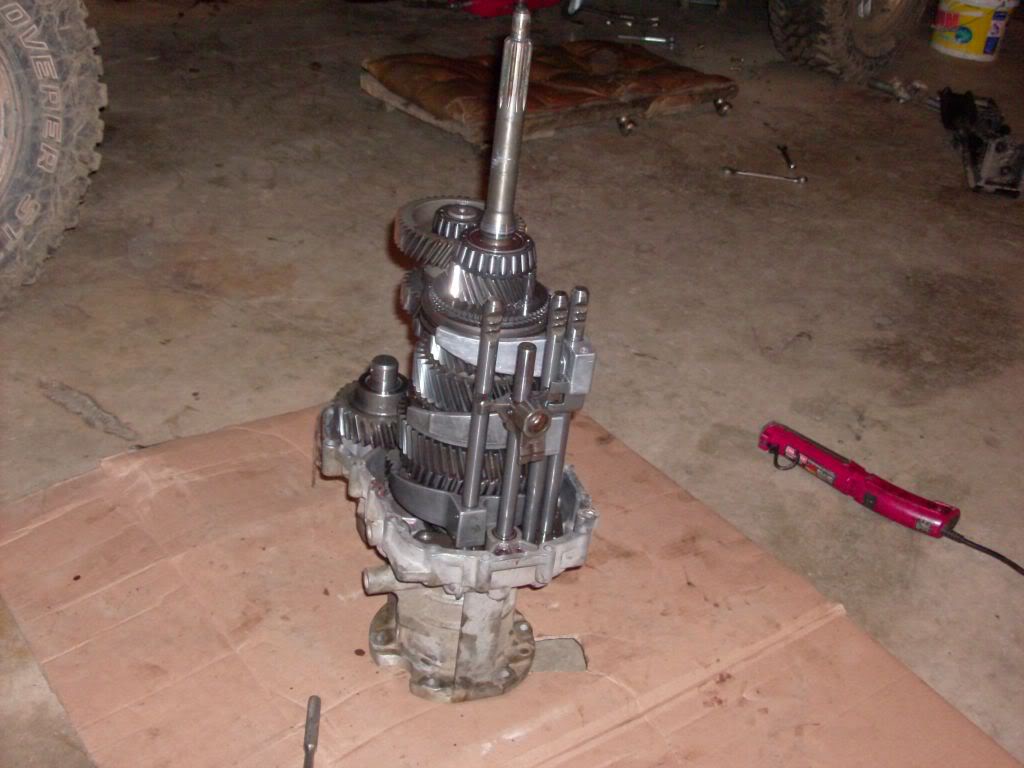

I have already busted the ZF once.
Name:  HPIM4177.jpg
Views: 20
Size:  82.1 KB
Name:  HPIM4186.jpg
Views: 19
Size:  97.1 KB
Name:  HPIM4194.jpg
Views: 20
Size:  75.4 KB

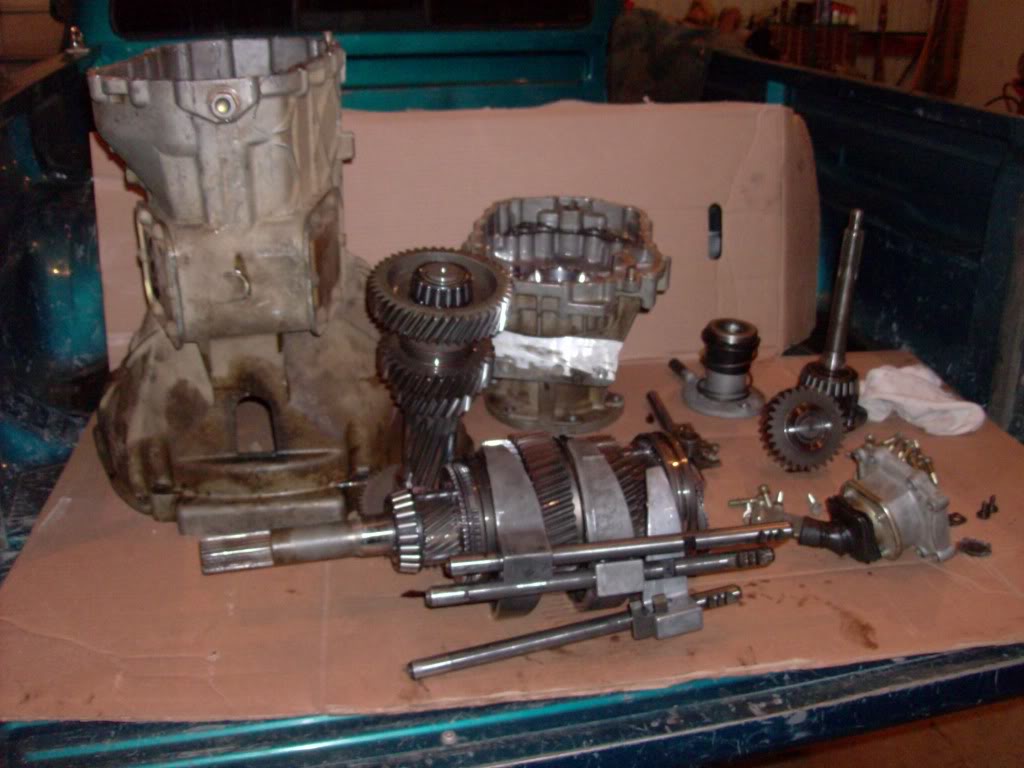

Name:  HPIM4219.jpg
Views: 20
Size:  101.1 KB
Reply With Quote
  #10
Old 04-10-2010
Member
Thread Starter

Join Date: Apr 2010
Location: Post Falls, ID
Posts: 9
More pics of the swap.
Here's the cummins beside some 4.0's:
Name:  HPIM3869.jpg
Views: 22
Size:  154.9 KB

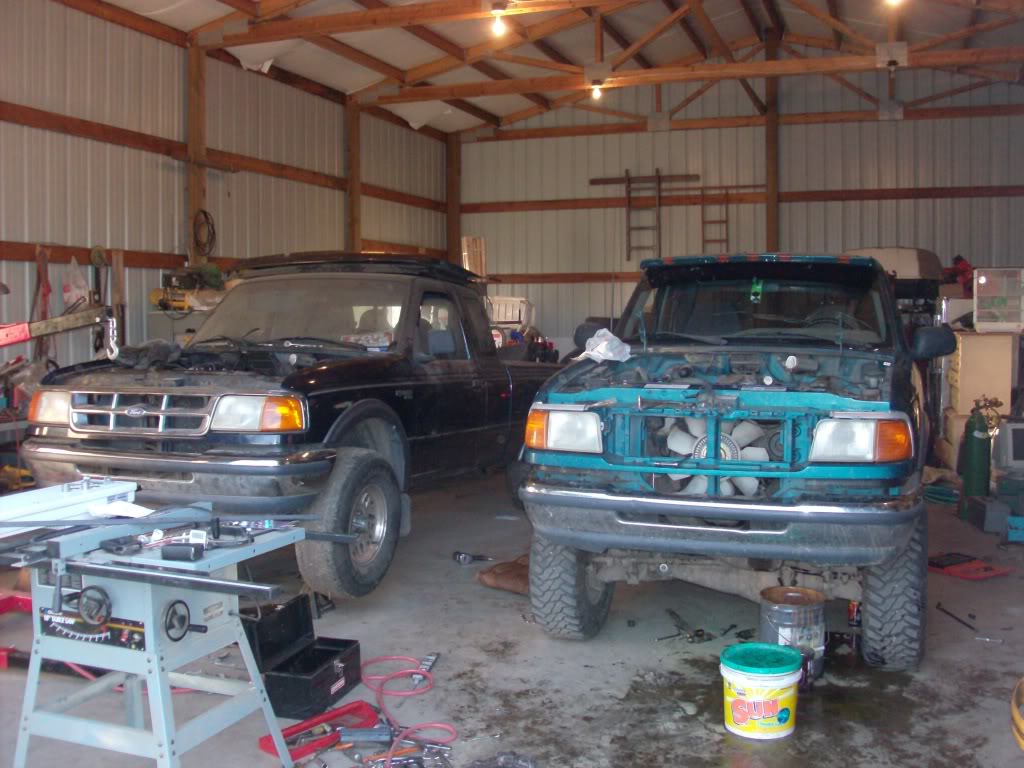

Blue ranger with blown up 4.0 gets the good 4.0 from the green ranger, which gets a "slightly" modified turbo diesel cummins:
Name:  HPIM3850.jpg
Views: 28
Size:  130.5 KB
Name:  HPIM3860.jpg
Views: 19
Size:  129.5 KB

Among other things the oil pan had to be fixed with a welder and grinder so as to clear the crossmember:
Name:  HPIM3904.jpg
Views: 26
Size:  130.1 KB

.020 oversize low compression marine pistons into the cummins:
Name:  HPIM3664.jpg
Views: 19
Size:  112.3 KB

Mustang aftercooler:

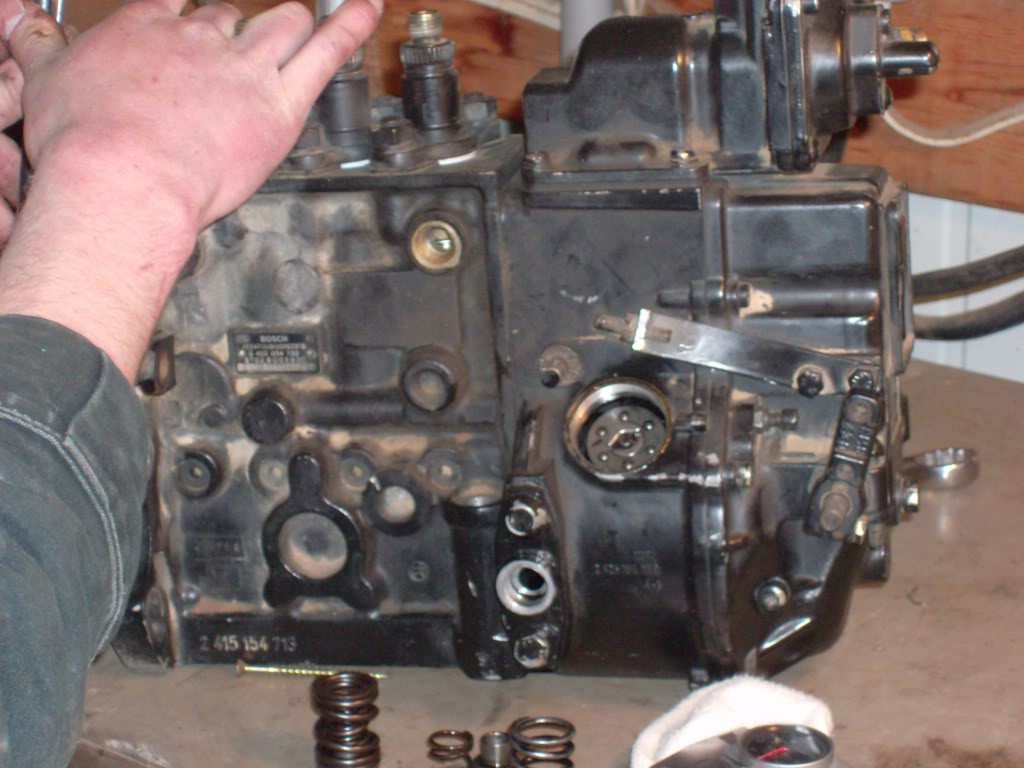

4000 rpm governor springs to replace the 2200 rpm ones:
Name:  HPIM3456.jpg
Views: 21
Size:  100.3 KB

Heavy duty valve springs:
Name:  HPIM3466.jpg
Views: 20
Size:  132.1 KB
Reply With Quote
  #11
Old 04-10-2010
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
OMG I want!!!!!!!!!!!!!
Reply With Quote
  #12
Old 04-10-2010
Tys 4x4 FTW's Avatar
RF Veteran
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575
sexy!!!
Reply With Quote
  #13
Old 04-10-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Welcome to the site!!!! Loooooooooooooooooove the 4BT Ranger swap!!! Awesome truck and it's the swap I wanna do someday. Congrat's....you're the first 4BT member!
Reply With Quote
  #14
Old 04-10-2010
bfr7990's Avatar
Member

Join Date: Apr 2010
Location: Western WA
Posts: 51
Haha ok, seriously man you are a badass. This is like the ultimate BADASS swap. Nice job, and nice rig
Reply With Quote
  #15
Old 04-10-2010
lumpy4000's Avatar
Member

Join Date: Aug 2009
Location: Orillia, Ontario
Posts: 379
sweet swap....
Reply With Quote
  #16
Old 04-11-2010
Member
Thread Starter

Join Date: Apr 2010
Location: Post Falls, ID
Posts: 9
Quote:
Originally Posted by Fx4wannabe01 View Post
Welcome to the site!!!! Loooooooooooooooooove the 4BT Ranger swap!!! Awesome truck and it's the swap I wanna do someday. Congrat's....you're the first 4BT member!
I think a lot more people would do likewise if they knew it was possible. Most people think diesels aren't worth a whole lot. I, uhm... beg to differ!!! I hope to help prove otherwise. So anyone with questions on it, interested in doing it, ASK!

Thanks all! Glad you like.
Reply With Quote
  #17
Old 04-11-2010
silverfox's Avatar
Member

Join Date: Jul 2008
Location: Taft, Ca
Posts: 1,040
look great man welcome to the site i would love love love to do this swap but gays *** california smog laws suck
Reply With Quote
  #18
Old 04-11-2010
Member
Thread Starter

Join Date: Apr 2010
Location: Post Falls, ID
Posts: 9
Quote:
Originally Posted by silverfox View Post
look great man welcome to the site i would love love love to do this swap but gays *** california smog laws suck
Hey don't give up that easy man!! I know for a fact versions of this engine were built to meet California emissions standards. Plus there are many who have somehow got around the emissions test folk. Often by getting it checked in a really small town.

When I registered and insured it, they asked what engine. I told them a diesel. They didn't know what to do. But they were cool with it. Wanted to know if it was hot-rodded? And at the time I was able to look them in the eye and say without a guilty conscience, "no." Getting more power out of this was as simple for me as grinding a plate. And adjusting some stuff. Now is that really hotrodding?
Reply With Quote
  #19
Old 04-11-2010
Machine090767's Avatar
RF Veteran

Join Date: May 2006
Location: Minnesota
Posts: 6,410
welcome to R-F, Chris!
Reply With Quote
  #20
Old 04-11-2010
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
nice man. welcome. i think you need to do a write up with an extensive amount of pics so we can sticky it.
Reply With Quote
  #21
Old 04-11-2010
btm757's Avatar
Member
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
I saw those videos on youtube a couple weeks ago and thought it was awesome.
Reply With Quote
  #22
Old 04-11-2010
Ace's Avatar
Ace Ace is offline
Member
iTrader: (4)

Join Date: Aug 2007
Location: Central, Illinois
Posts: 3,448
badass
Reply With Quote
  #23
Old 04-11-2010
filmont's Avatar
Member

Join Date: Dec 2008
Location: Bellbrook, OH
Posts: 205
Nice, now all I need to do is go towel off.
Reply With Quote
  #24
Old 04-11-2010
03crewcabranger's Avatar
Member

Join Date: Feb 2010
Location: Mty, Mx
Posts: 1,031
Effing awesome, man! Welcome to RF!
Reply With Quote
