Hand Throttle Mod

well since i unplugged my IAC cause i hate the way it drives with it plugged in (hanging RPM's) it idles around 400 RPM's when its cold since the IAC is what kicks it up. well i wanted a way to up the throttle with out having to sit in the truck when its cold. so i did this. it is also nice to have when u need to clutch brake and gas at the same time....like going up hills or rocks off road. and when i get my winch hooked up ill be able to kick the idle up and stand out side the truck. i can go all the to WOT. it also kinda acts as a cruise control. i fixed the shift boot since these pic's were taken. over all cost me about $15 bucks to do. what do u think?

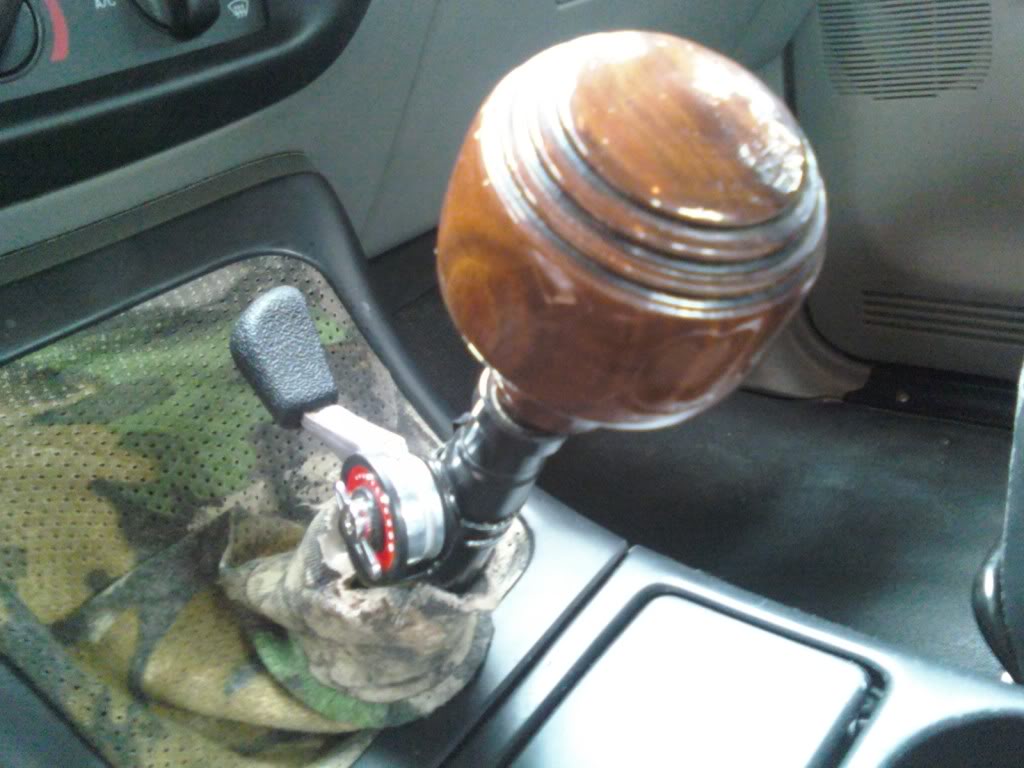

Name:  0419001342.jpg
Views: 24
Size:  88.4 KB

Name:  0419001342a.jpg
Views: 7
Size:  80.7 KB

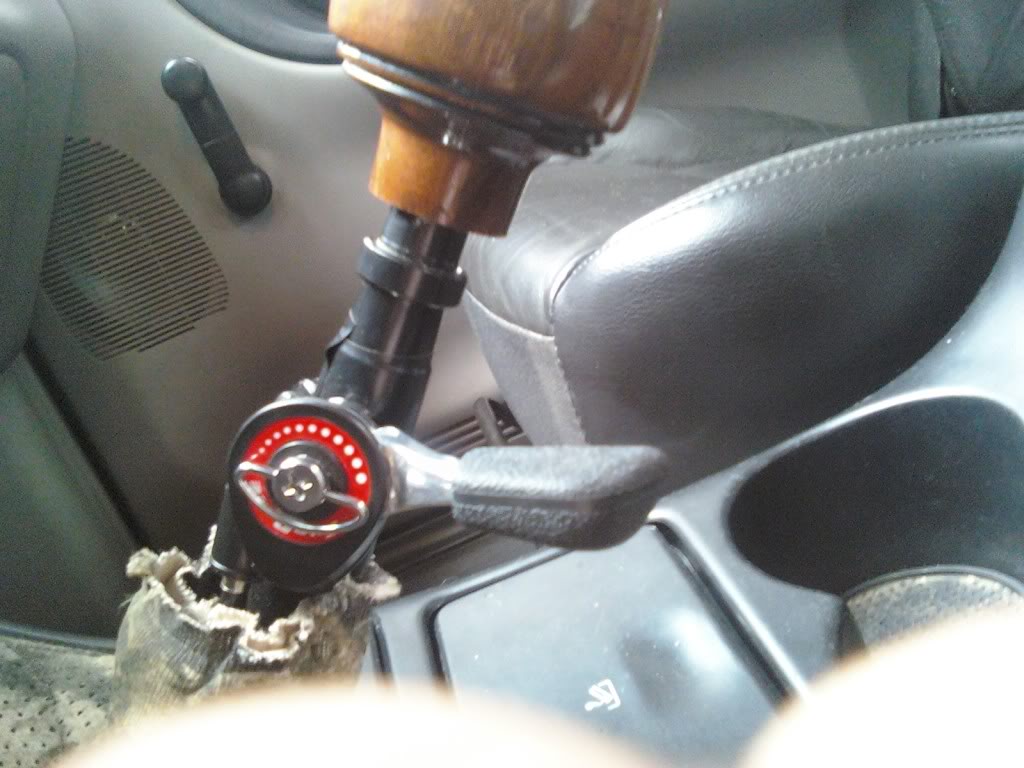

Name:  0419001342b.jpg
Views: 9
Size:  95.3 KB

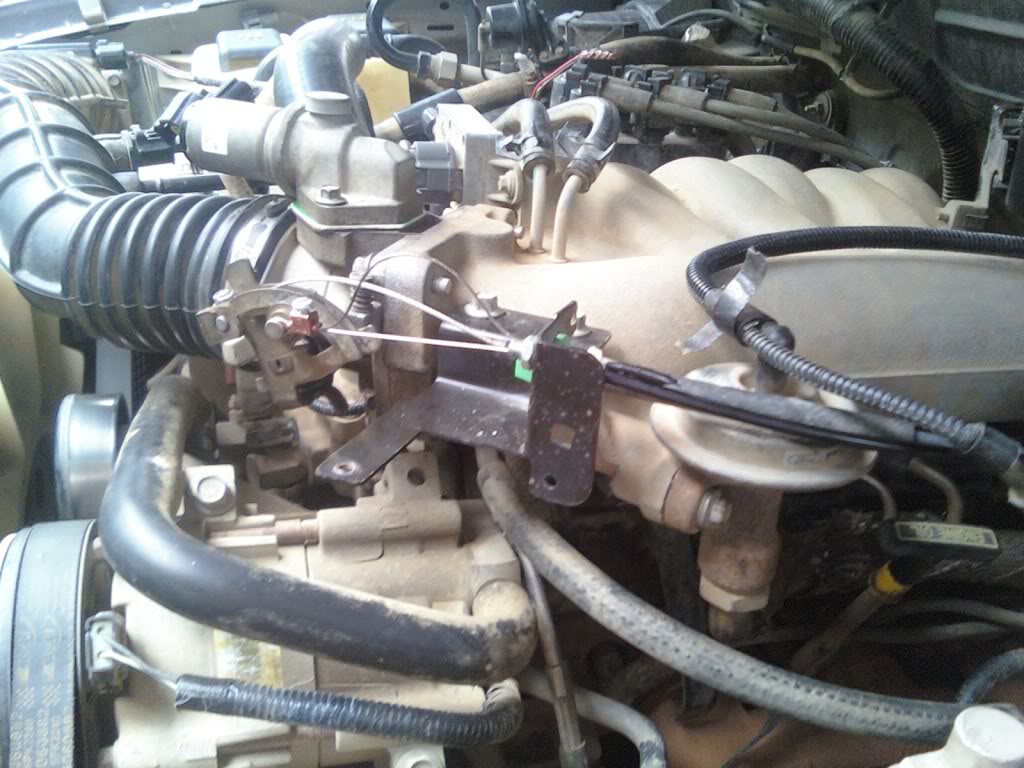

Name:  0419001343.jpg
Views: 6
Size:  127.5 KB

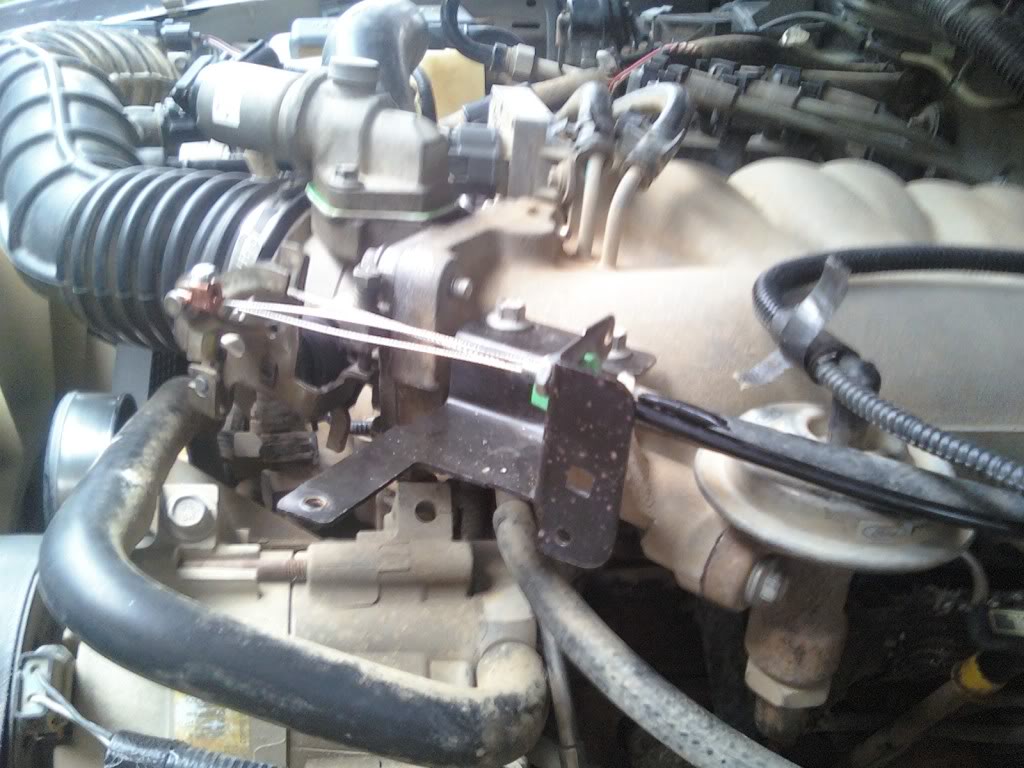

Name:  0419001343a.jpg
Views: 6
Size:  111.8 KB

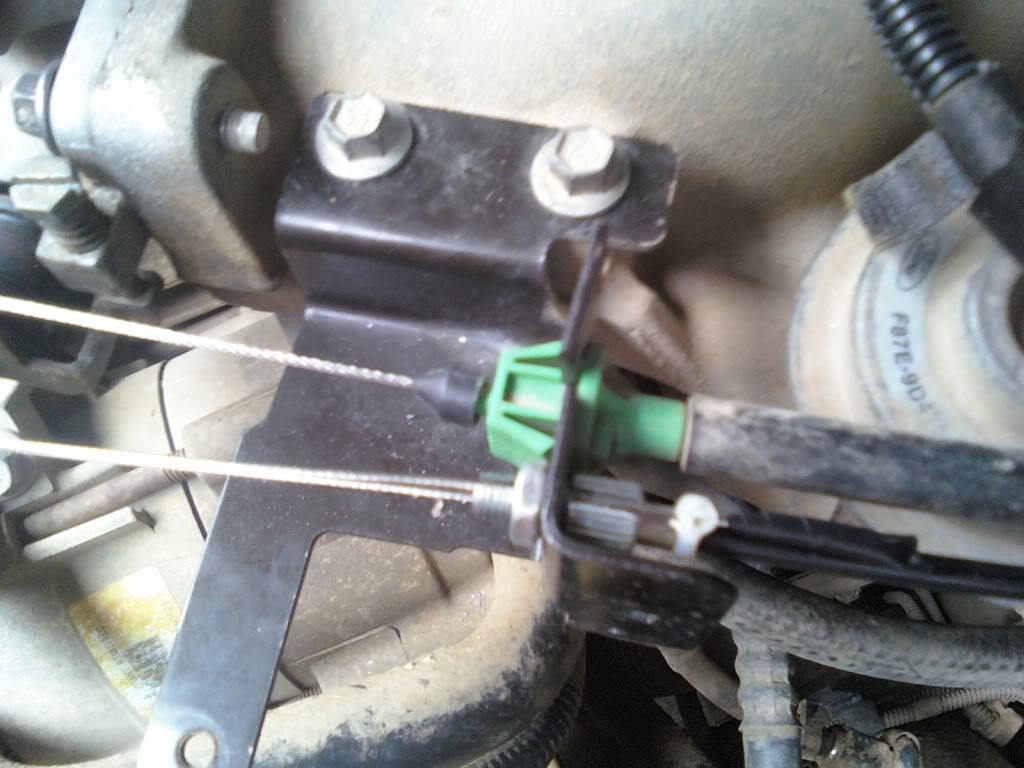

Name:  0419001343b.jpg
Views: 7
Size:  91.0 KB

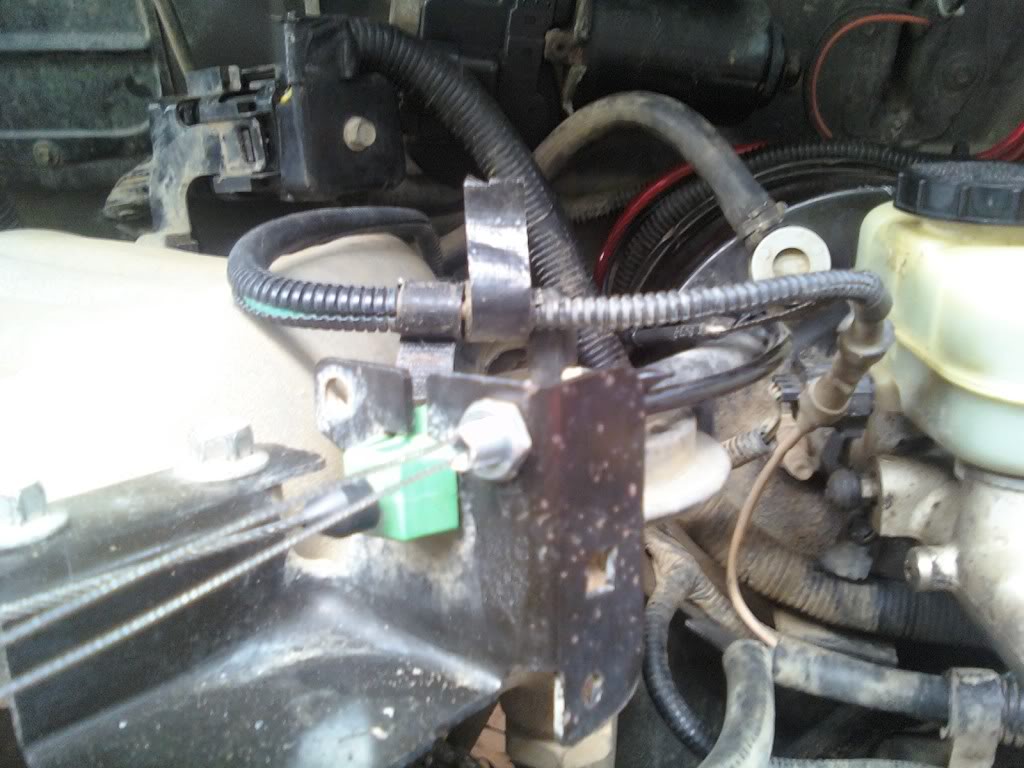

Name:  0419001343c.jpg
Views: 6
Size:  99.8 KB

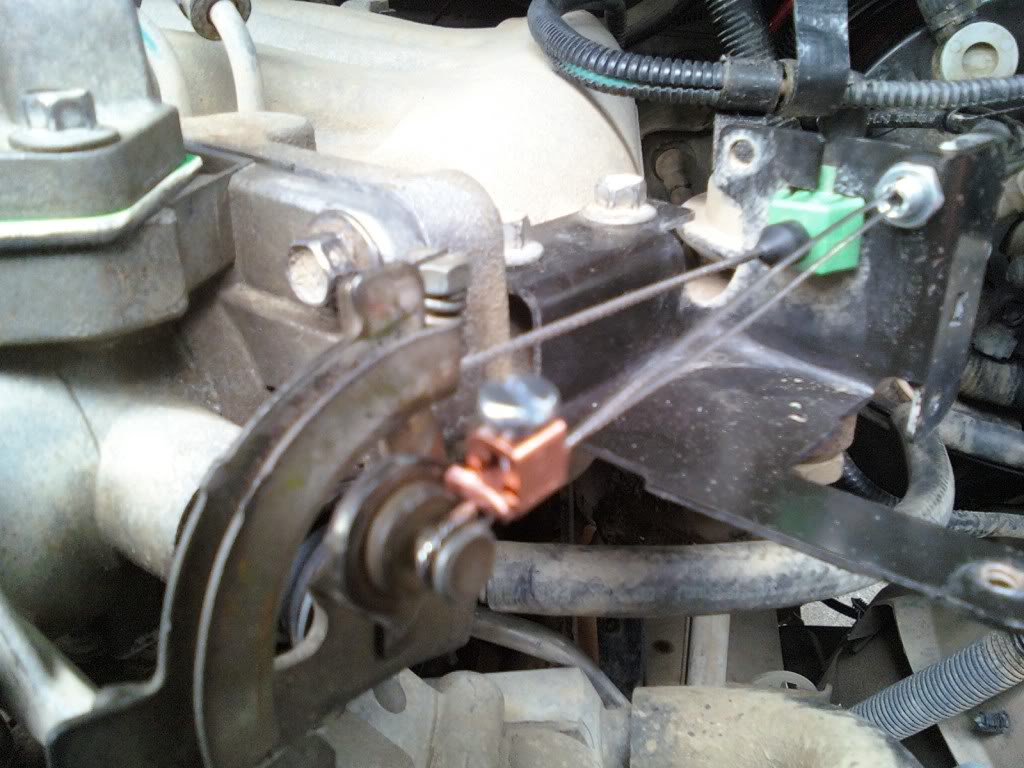

Name:  0419001344.jpg
Views: 7
Size:  111.1 KB

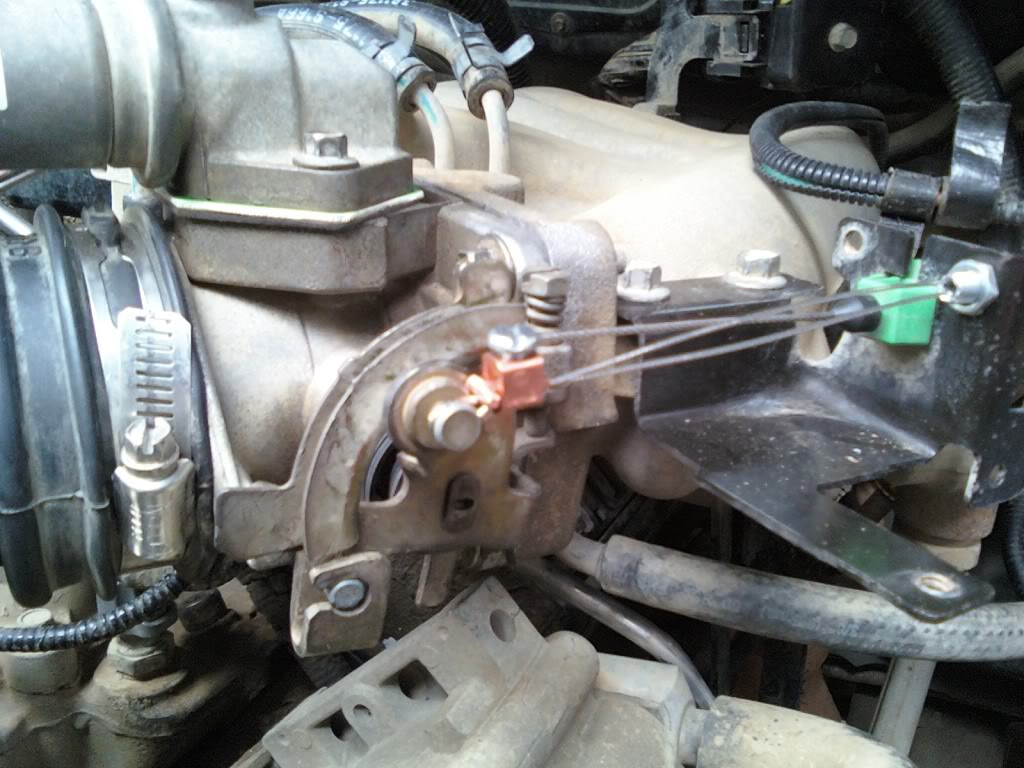

Name:  0419001344a.jpg
Views: 4
Size:  121.2 KB
Reply With Quote
  #2
Old 04-19-2010
t5cents's Avatar
Member
Thread Starter
iTrader: (6)

Join Date: Nov 2008
Location: Eureka, CA
Posts: 1,521
wow those pic's came out bad....****ty cell phone camera
Reply With Quote
  #3
Old 04-19-2010
EricRanger's Avatar
Member
iTrader: (2)

Join Date: Jan 2008
Location: Cary, IL
Posts: 801
thats kinda nice to have. would be great to idle up for winching out!
Reply With Quote
  #4
Old 04-19-2010
Rolldogg's Avatar
Member

Join Date: Jan 2006
Location: Ottawa, Ontario
Posts: 3,424
Quote:
Originally Posted by t5cents View Post
wow those pic's came out bad....****ty cell phone camera
LOL

They look good.

You don't need to over compensate. Not everyone has the cash to get the fancy cameras. At least you were smart enough to get the pics to work......I've seen some epic fails in here when it comes to posting pics....LOL

Crazy mod BTW!!
Reply With Quote
  #5
Old 04-19-2010
btm757's Avatar
Member
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
That is kinda awesome...


Now when you do the boat mod you already have the throttle set up
Reply With Quote
  #6
Old 04-19-2010
t5cents's Avatar
Member
Thread Starter
iTrader: (6)

Join Date: Nov 2008
Location: Eureka, CA
Posts: 1,521
^^^i lol'ed^^^.....ya i think im doing the boat mod right after i rubberize my interior..lol
Reply With Quote
  #7
Old 04-20-2010
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
If I was a manual I would have to have this.

Great mod!
Reply With Quote
  #8
Old 04-20-2010
t5cents's Avatar
Member
Thread Starter
iTrader: (6)

Join Date: Nov 2008
Location: Eureka, CA
Posts: 1,521
ya it is deff worth it...overall it was like $5 for the bicycle gear shifter, $4 for 6ft or derailer cable, and $5 for 5ft of derailer cable housing.
Reply With Quote
  #9
Old 04-20-2010
buckgnarly's Avatar
Member
iTrader: (11)

Join Date: Jan 2005
Location: West Topsham, VT
Posts: 1,709
Can't tell form the pic, but does your hand throttle move when on the gas pedal?
I used the beaded pull cord stuff on my TJ so that the hand throttle is only a "pull" and not "push" cable. Use it as the last 3 inches or so attached to the bike brake/shifter cable.
Not sure if that makes sense, but it only works when I pull the hand throttle.
Reply With Quote
  #10
Old 04-20-2010
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
hmm i might have to do this
Reply With Quote
  #11
Old 04-20-2010
t5cents's Avatar
Member
Thread Starter
iTrader: (6)

Join Date: Nov 2008
Location: Eureka, CA
Posts: 1,521
no the hand throttle doesnt move when i am on the gas, the cable under the hood just curves a little. the hand throttle is stiff so that way it stays where i put it...that way i can get out of the truck and it stays at the RPM i set it at...sometimes when im on the gas the cable in the hand throttle comes out a little because there is slack, the the lever doesnt move...
Reply With Quote
  #12
Old 04-20-2010
offroadn_redneck's Avatar
Member

Join Date: Feb 2009
Location: San Antonio, TX
Posts: 776
I might try this for cruise control. I dont have it and that looks like something i could use
Reply With Quote
  #13
Old 04-20-2010
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Just remember if you start going down a hill or something it will accelerate since its in the same position as if you were going straight. So its not really cruise control at all
Reply With Quote
  #14
Old 04-20-2010
offroadn_redneck's Avatar
Member

Join Date: Feb 2009
Location: San Antonio, TX
Posts: 776
Id probably just leave it set for 30 on the throttle position. Cuz thats normally what i try to keep it at when im driving on the highway
Reply With Quote
  #15
Old 04-21-2010
boomer27127's Avatar
Member

Join Date: May 2007
Location: washington
Posts: 398
that looks exactly like the rubicon express one I put on my jeep about a year ago. they are really nice to have when your new to wheeling with a stick like I was and get stuck on a hill lol!
Reply With Quote
  #16
Old 04-21-2010
Scrambler82's Avatar
Old Guy User… ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Quote:
Originally Posted by offroadn_redneck View Post
I might try this for cruise control. I dont have it and that looks like something i could use
Don’t do that man, it sound good but remember a cruise control will disengage when you hit the brake and this one will just keep pulling; not good.

As others have stated it is a good idea for trail work and winching.
Nice setup with the Bike Shifter Cable.
