HEYY!! In need of some ideas nd knowledge!! - Ranger-Forums - The Ultimate Ford Ranger Resource


New Ideas Have a new idea for your Ford Ranger? General discussion of new ideas for the Ford Ranger.

Reply

LinkBack Thread Tools Search this Thread
  #1
Old 01-09-2013
City_Southern's Avatar
Member
Thread Starter

Join Date: Jan 2013
Location: Naples, FL
Posts: 59
HEYY!! In need of some ideas nd knowledge!!

Hey Everyone!!

I'm lookin into doin some LED mods to my baby!! i've ordered the lights that i need nd know the general information of what i need to do!! but i still got some questions!!

I know from the research i've done that the needles don't always show up when you change the color of your cluster.. nd ive been told to just change my needles from red to clear but find $80 on some damn needles to be incredibly insane!! so i need some help!!

i know that you can shine i small LED where the needle is to light it up nd show.. nd that's what i was thinking about doing to my truck, but i don't quite know how cover the rest of the light so it doesn't interfere with the color!!

can i get some suggestions :D
thank ya'll
Reply With Quote
  #2
Old 01-09-2013
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
The way the needle is made won't allow you to "cover" part of it up. The needle and the housing piece are all orange plastic, with the cap piece painted black.

your best bet would be white needles. You can find them in Explorers and 99-03 Rangers.

Third option would also be White LED's. They'll just be a brighter version of what you have now, but make it look clean IMO.
Reply With Quote
  #3
Old 01-09-2013
City_Southern's Avatar
Member
Thread Starter

Join Date: Jan 2013
Location: Naples, FL
Posts: 59
thing is i want to ad blue LEDs..

would i have to add some space for white LEDs just for the needles??

cuz i really dont wanna have to buy new needles
Reply With Quote
  #4
Old 01-09-2013
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
-no needle older than 2004 will fit so don't listen to the previous post

-if you want to do blue LEDs, you'll have to remove the gauge cluster, remove the needles, and then remove the overlays and then sand the back of the overlays to remove the green factory paint. you'll need to then paint your overlays with glass paint, install the LEDs, and calibrate the speedometer. I don't know how it is to mod an 04+ cluster, ive only messed with 95-03 ones in terms of changing the color. I kept the factory green in my current truck but added white LEDs behind them so they'r brighter.
Reply With Quote
  #5
Old 01-09-2013
City_Southern's Avatar
Member
Thread Starter

Join Date: Jan 2013
Location: Naples, FL
Posts: 59
i just think spending over $70 on some CLEAR* needles is utter crap.. lol

i just want them to show up.. i just want to see my cluster needles nd with all the picture i see you really can't see the needles.. i just wanna what what people did ((without buying new needles)) to see the dang needle!!

but thank you guys for your help :D
Reply With Quote
  #6
Old 01-10-2013
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
there are some pictures in this old classified


https://www.ranger-forums.com/interi...aps-il-134520/
Reply With Quote
  #7
Old 01-10-2013
City_Southern's Avatar
Member
Thread Starter

Join Date: Jan 2013
Location: Naples, FL
Posts: 59
Quote:
Originally Posted by 99offroadrngr View Post
there are some pictures in this old classified


https://www.ranger-forums.com/interi...aps-il-134520/
heyy sweetheart!! thanks for the link!! it truly helps!!

ive been lookin all over for clear needles for 04+ but can't find anything!! i'm truly lookin for a clear needle with black hub/:
Reply With Quote
  #8
Old 01-10-2013
RLong31's Avatar
The Ban Hammer
iTrader: (5)

Join Date: Jul 2009
Location: Monrovia, IN
Posts: 2,629
I modded my 04 cluster with red LED's. I didn't mess with the needles because I wasn't willing to drop the coin for that. Big difference between 04+ is a digital odometer.

I think someone did some work with lights and needles... Maybe jp07 of whatever his name is. I just replaced my bulbs with red led's , sanded the back of the overlays and painted them red and filled the spaces with led strips to help make the light more even.

I think I have some pics posted of the after of mine, but I don't think I took any during. I bought a second cluster to experiment on also.
Reply With Quote
  #9
Old 01-10-2013
RLong31's Avatar
The Ban Hammer
iTrader: (5)

Join Date: Jul 2009
Location: Monrovia, IN
Posts: 2,629
https://www.ranger-forums.com/vehicl...-103093/page3/

In that link towards the bottom it shows my gauge cluster after led install.. Also linked to where I got the parts to do it. Lots of soldering BTW.
Reply With Quote
  #10
Old 01-10-2013
City_Southern's Avatar
Member
Thread Starter

Join Date: Jan 2013
Location: Naples, FL
Posts: 59
i PM'ed you sweetheart!! message me back whenever you get some time!! thankk you :D
Reply With Quote
  #11
Old 01-10-2013
2004xlmiller's Avatar
Member
iTrader: (5)

Join Date: Sep 2010
Location: Sac, CA
Posts: 1,601
City_southern reminds me of the southpark raisins episode..
Reply With Quote
  #12
Old 01-10-2013
City_Southern's Avatar
Member
Thread Starter

Join Date: Jan 2013
Location: Naples, FL
Posts: 59
ooo well that's cute -_-
Reply With Quote
  #13
Old 01-10-2013
2004xlmiller's Avatar
Member
iTrader: (5)

Join Date: Sep 2010
Location: Sac, CA
Posts: 1,601
just thought it was funny
Reply With Quote
  #14
Old 01-10-2013
City_Southern's Avatar
Member
Thread Starter

Join Date: Jan 2013
Location: Naples, FL
Posts: 59
it was hil-ler-ious!!! i died laughing!! -_- lol
Reply With Quote
  #15
Old 01-10-2013
2004xlmiller's Avatar
Member
iTrader: (5)

Join Date: Sep 2010
Location: Sac, CA
Posts: 1,601
fawkin butters...
Reply With Quote
  #16
Old 01-10-2013
City_Southern's Avatar
Member
Thread Starter

Join Date: Jan 2013
Location: Naples, FL
Posts: 59
you got jokes now!?!?

lmbo
Reply With Quote
  #17
Old 01-10-2013
2004xlmiller's Avatar
Member
iTrader: (5)

Join Date: Sep 2010
Location: Sac, CA
Posts: 1,601
as is tradition..
Reply With Quote
  #18
Old 01-10-2013
City_Southern's Avatar
Member
Thread Starter

Join Date: Jan 2013
Location: Naples, FL
Posts: 59
i may be a girl!!

but i'll still whoop *** :D lmfbo
Reply With Quote
  #19
Old 01-10-2013
2004xlmiller's Avatar
Member
iTrader: (5)

Join Date: Sep 2010
Location: Sac, CA
Posts: 1,601
youre not a south park fan are you..
Reply With Quote
  #20
Old 01-10-2013
City_Southern's Avatar
Member
Thread Starter

Join Date: Jan 2013
Location: Naples, FL
Posts: 59
on nd off..

i don't watch it like it's my religion!! lol
Reply With Quote
  #21
Old 01-10-2013
2004xlmiller's Avatar
Member
iTrader: (5)

Join Date: Sep 2010
Location: Sac, CA
Posts: 1,601
i dont either i just remember the funny ****.
Reply With Quote
  #22
Old 01-10-2013
City_Southern's Avatar
Member
Thread Starter

Join Date: Jan 2013
Location: Naples, FL
Posts: 59
my dome light at night!!
HEYY!! In need of some ideas nd knowledge!!-img_20130110_200535.jpg

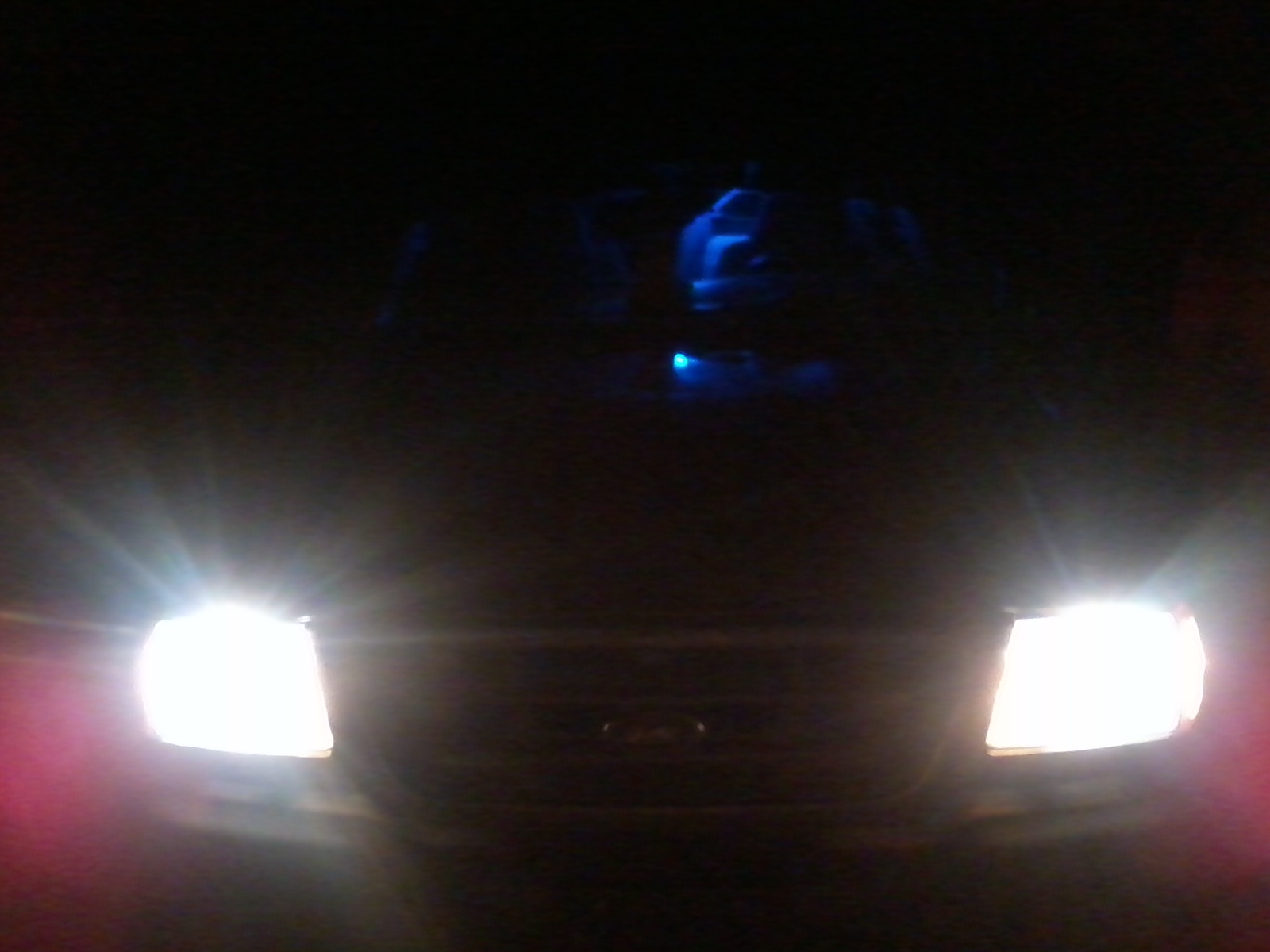

dome light from the front of the truck :D
HEYY!! In need of some ideas nd knowledge!!-img_20130110_202205.jpg

view from inside!!!
HEYY!! In need of some ideas nd knowledge!!-img_20130110_202300.jpg

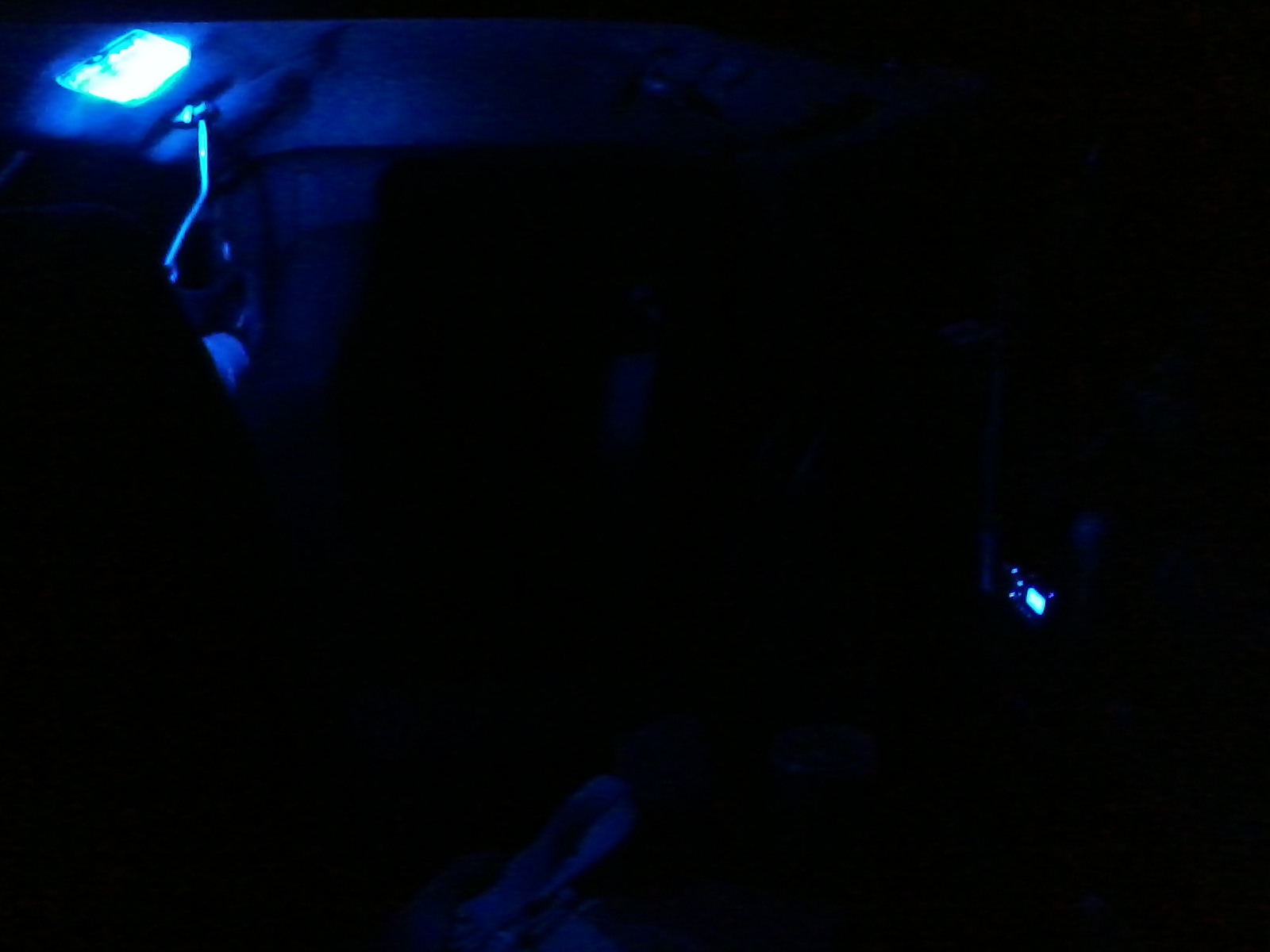

from my passenger side!! ((my stereo is blue too!!))
HEYY!! In need of some ideas nd knowledge!!-img_20130110_202509.jpg
Reply With Quote
  #23
Old 01-10-2013
City_Southern's Avatar
Member
Thread Starter

Join Date: Jan 2013
Location: Naples, FL
Posts: 59

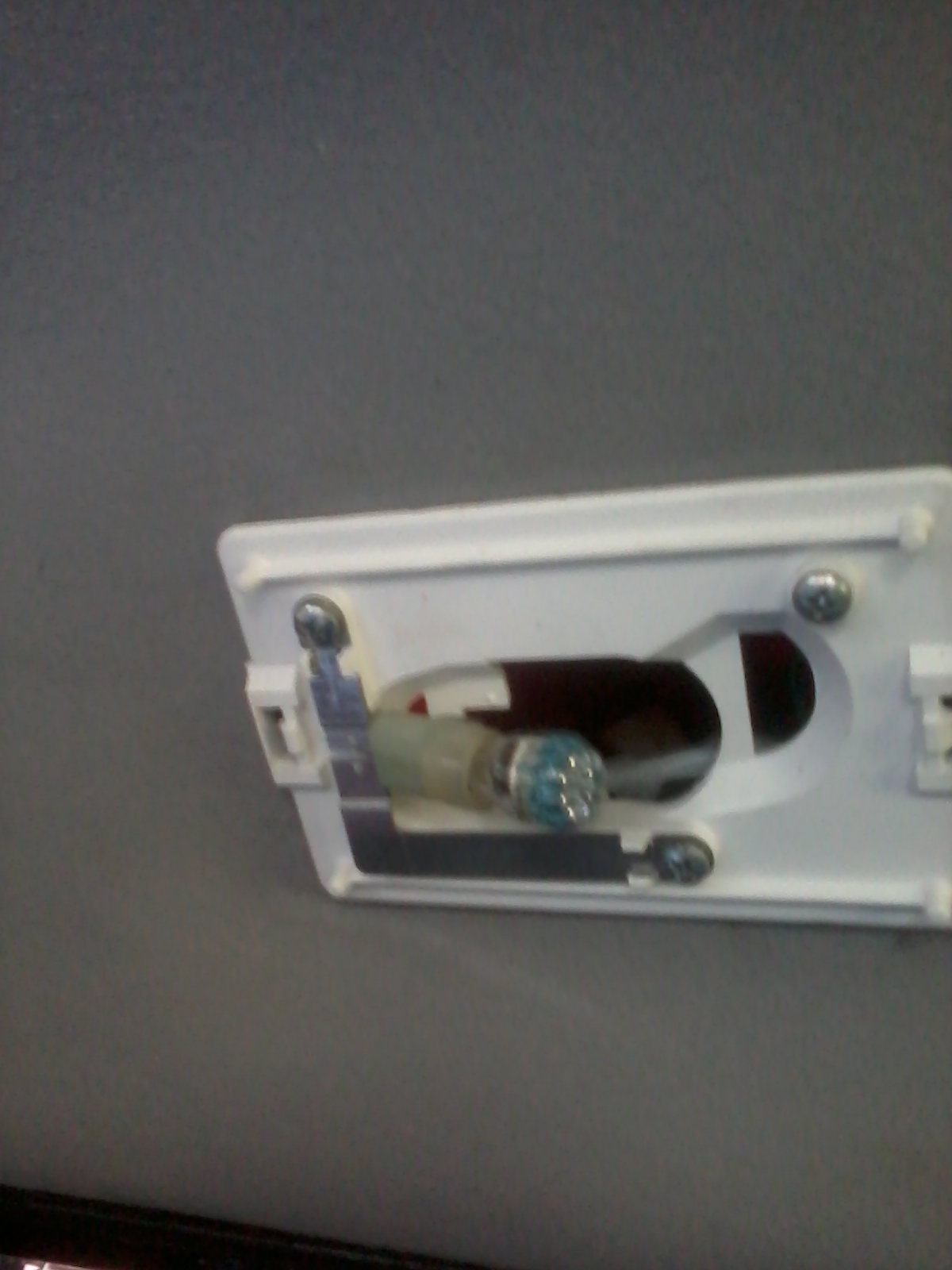

the bulb!!
HEYY!! In need of some ideas nd knowledge!!-img_20130110_162228.jpg

lit up!!
HEYY!! In need of some ideas nd knowledge!!-img_20130110_162236.jpg

nd installed :D
HEYY!! In need of some ideas nd knowledge!!-img_20130110_162252.jpg

i got my LEDs for my cluster too!! just waiting on my headlights nd taillights to come in to install those!! so a week or two!!

i feel like a kid at Christmas!!
Reply With Quote
  #24
Old 01-10-2013
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Not bad. do you have everything to swap the HVAC and other misc. lights to blue also?

You should look into an Overhead Console Mod.
Reply With Quote
  #25
Old 01-10-2013
City_Southern's Avatar
Member
Thread Starter

Join Date: Jan 2013
Location: Naples, FL
Posts: 59
no i just got leds i today im waiting on my headlights nd taillights to knock it all out in one weekend.. nd im still learning how to recalibrate this dang speedometer nd crap after.. but i'm shooting for aa couple weeks to have it all done by
Reply With Quote
