PS and opinion needed for Daylighter install location - Ranger-Forums - The Ultimate Ford Ranger Resource


New Ideas Have a new idea for your Ford Ranger? General discussion of new ideas for the Ford Ranger.

Reply

LinkBack Thread Tools Search this Thread
  #1
Old 06-13-2010
04_xlt_4.0_4x4's Avatar
Member
Thread Starter

Join Date: Feb 2009
Location: merced, ca
Posts: 1,154
Icon2 PS and opinion needed for Daylighter install location

hey guys so i just picked up some KC Daylighters and i dont know where to mount them. i know there are a few websites that sell light tabs but i want to try not to buy them. so i was thinking to mount them on my front bumper in the stock license plate holes. yea i know i would have to make the holes a little bigger but it would work. the holes are about 71/2 or 8 inches apart so they would fit but just wondering if you think they will be too close together. Whats your opinion and can someone photoshop them about in that place for me??? thanks guys

heres the pics i can get now...

Name:  IMG00047-20100126-1427.jpg
Views: 1
Size:  75.0 KB
Name:  IMG_0743.jpg
Views: 1
Size:  182.0 KB

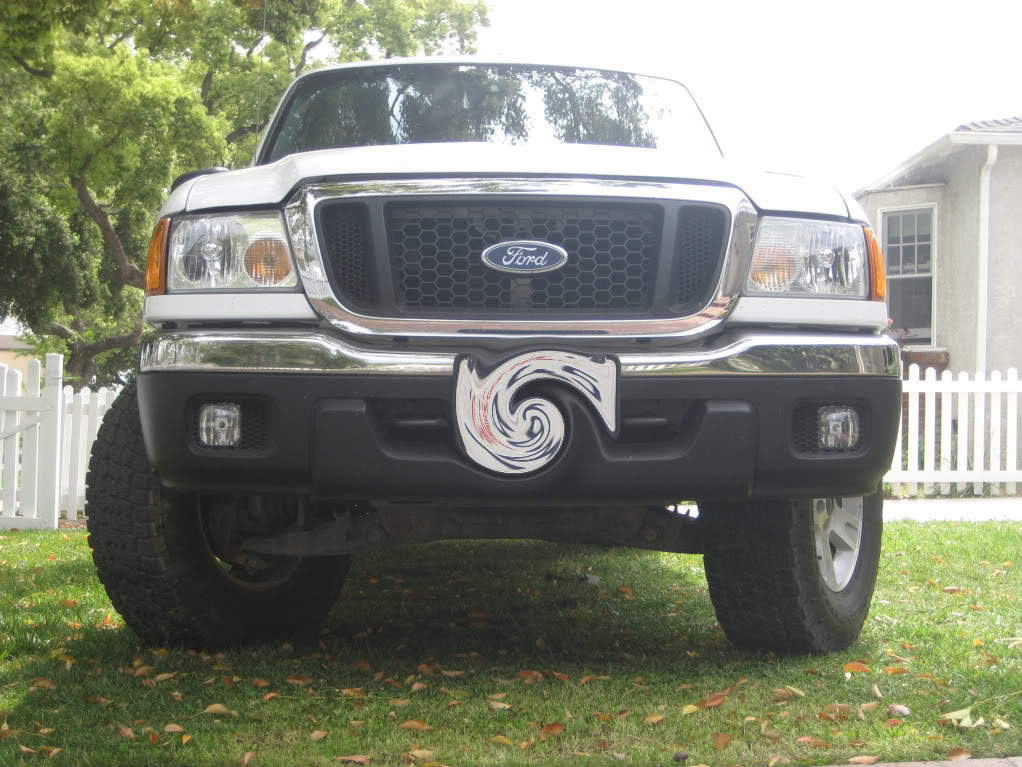

Name:  newfogs3-1.jpg
Views: 1
Size:  158.6 KB
Reply With Quote
  #2
Old 06-13-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
I'm not sure if the license plate holder holes will be strong enough. There's no bracing behind them
Reply With Quote
  #3
Old 06-13-2010
04_xlt_4.0_4x4's Avatar
Member
Thread Starter

Join Date: Feb 2009
Location: merced, ca
Posts: 1,154
well i guess its a lil unclear but the plastic holder is not gone and it would be a nut and bolt directly into the metal or the bumper not the plastic
Reply With Quote
  #4
Old 06-13-2010
04_xlt_4.0_4x4's Avatar
Member
Thread Starter

Join Date: Feb 2009
Location: merced, ca
Posts: 1,154
justin do your 500's get real hot like the 130watt daylighters??? if so how does your plastic g rill hold up
Reply With Quote
  #5
Old 06-13-2010
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,780
If they are long range lights then the closeness and the low mounting points will affect the overall pattern’ they won’t get a chance to work. Long Range lights like the high point or the higher the better.
If just for looks, then do it anyway you want but if you are mounting lights for purpose then higher is better.
Floods or Fogs like it low to the ground, Fogs more so than Floods.
IMHO… the lights should be mounted neat the top of bumper height minimum, top of the hood line would be better.
Maybe make up a Mounting Bar allowing for four lights to be mounted at the top edge of the bumper, two long range on the outside and two floods on the inside if needed.

Just me thinking out loud, good luck,
One thing, I know you didn’t ask but make sure to use the basic rule of wiring lights, two lights to a relay and gauge the wire correctly 120ga wire min for power (pin 30 and 87), also a fuse MUST be in the main power wire to pin 30 on the relay.

Luck
Reply With Quote
  #6
Old 06-13-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
My 500's don't get super hot, my grill has held up well against the heat of the lights.

I think you should make a mount like FX4Wannabe01's
Reply With Quote
  #7
Old 06-13-2010
04_xlt_4.0_4x4's Avatar
Member
Thread Starter

Join Date: Feb 2009
Location: merced, ca
Posts: 1,154
Quote:
Originally Posted by 01RangerEdge View Post
My 500's don't get super hot, my grill has held up well against the heat of the lights.

I think you should make a mount like FX4Wannabe01's
you have a pic of it?? im not familiar with that mount
Reply With Quote
  #8
Old 06-13-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
I don't have a pic but basically I took the grill off and drilled two holes through the plastic in front of the radiator.
Reply With Quote
  #9
Old 06-13-2010
04_xlt_4.0_4x4's Avatar
Member
Thread Starter

Join Date: Feb 2009
Location: merced, ca
Posts: 1,154
right kinda like you have behind the grill huh
Reply With Quote
  #10
Old 06-13-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Yea, its strong enough that on gravel roads they don't bounce around, and close enough to the grill that it doesn't limit the light output
Reply With Quote
  #11
Old 06-13-2010
03ranger's Avatar
Member

Join Date: Jul 2009
Location: Irwin, Pa
Posts: 519
get a piece of angle iron and drill two holes for where the license plate was then drill holes on top for the kc lights that all i did.
Reply With Quote
  #12
Old 06-13-2010
04_xlt_4.0_4x4's Avatar
Member
Thread Starter

Join Date: Feb 2009
Location: merced, ca
Posts: 1,154
Dan can you be alittle more spacific on what you did and hopw you did it exactually. like lenght location ect..
Reply With Quote
  #13
Old 06-13-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Reply With Quote
  #14
Old 06-13-2010
04_xlt_4.0_4x4's Avatar
Member
Thread Starter

Join Date: Feb 2009
Location: merced, ca
Posts: 1,154
justin id love to do that but i dont have the equient for it!!!! thats bad ***
Reply With Quote
  #15
Old 06-13-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
I bet if you asked nicely someone on here could make some for you
Reply With Quote
  #16
Old 06-13-2010
04_xlt_4.0_4x4's Avatar
Member
Thread Starter

Join Date: Feb 2009
Location: merced, ca
Posts: 1,154
Quote:
Originally Posted by 01RangerEdge View Post
I bet if you asked nicely someone on here could make some for you
im sure too but itll cost to make + shipping and take awhile.im a little impatient haha.
Reply With Quote
