SLP/Roush Thunderbolt Box w/ custom steel tube...no stock rubber junk! FIRST!!

Hey.


I've been throwing this idea around for a long time now. I've ran a K&N FIPK2, I've ran the Thunderbolt w/ stock tube, I've ran MAC. Noticed instant power improvement when i installed the thunderbolt box w/ paper filter and stock tube compaired to the FIPK w/ a new filter. When i put the MAC on, i noticed instant decrease in power and the mac also had a new filter on it.


So....

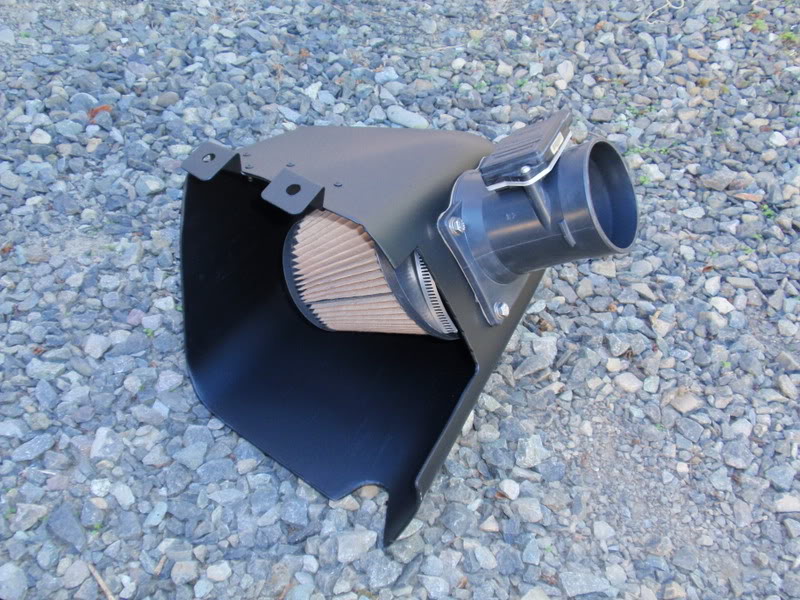

Why not combine the best of both worlds? Thunderbolt box w/ a solid tube??? Get rid of that ugly 'crushing' of the tube.


This idea can be used on 2.5, 3.0, 2.3, 4.0's....whatever the Thunderbolt box will fit...this'll work for. This is regarding a 4.0L SOHC.


Tried to cut and fit the K&N plastic tube.....destroyed the tube and it still didn't work with the funky angles that the 3" bodylift provided with the thunderbolt box & MAF and the location of the Throttle Body. So.....

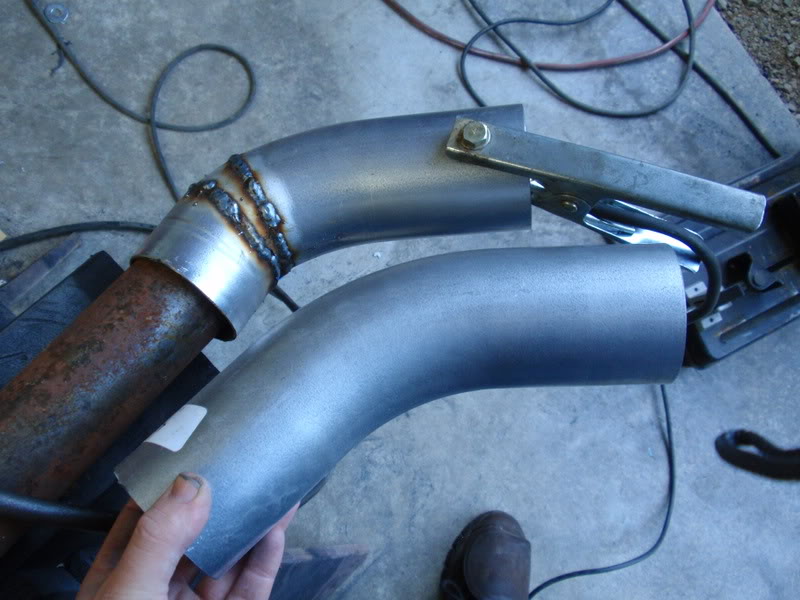

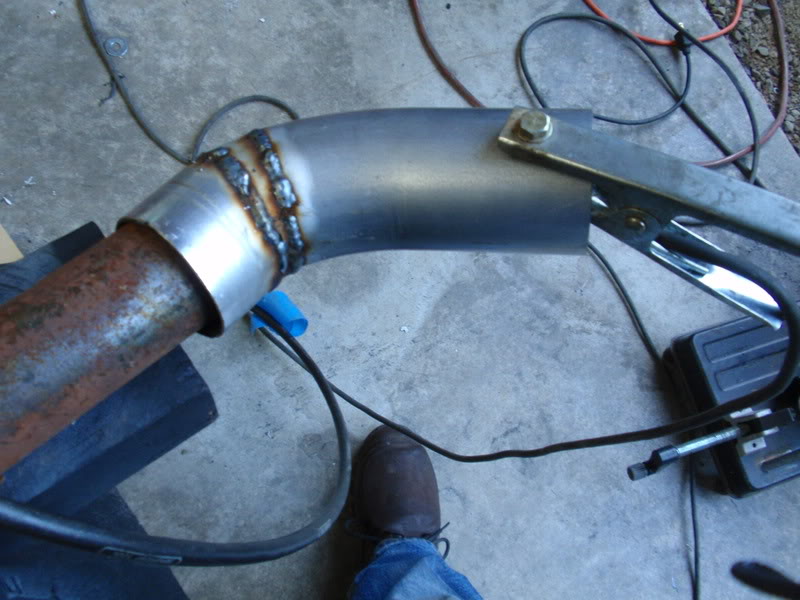

I went to the local intake/exhaust semi-truck warehouse(Air Flow Systems : http://www.airflo.com/ ) and picked up two 3" 45deg mandrell bends, and a 3ft stick of 3". Bend off the throttle body is more than 45, less than 90....so....i used a 45 and notched it to tighten the bend up to about *i'd guess* 65deg. Most of it being eye balling and comparing to the MAC tube. welded her up. kept checking and rechecking and regrinding to get the angle just right.

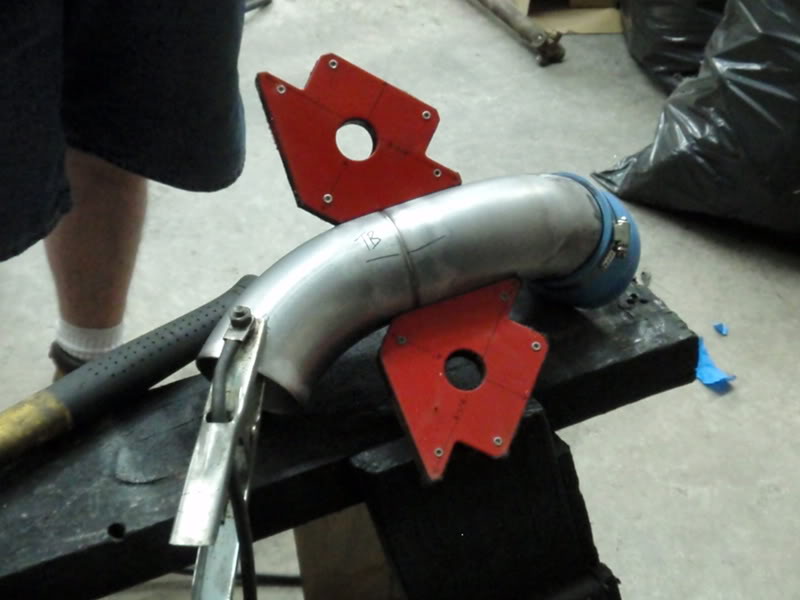

Now that the Thottle Body piece is done, time to mate it and the MAF together. This was the kinda difficult part....played around with little cuts of straight piece. Tried a straight piece coming off the MAF to an angled piece that matched another angle piece on the pipe already made(joining round to an oval is definaltey not doable).

After standing back...looking at it....i could just cut the straights off the extra 45 i have, and gues what....fit freaking perfect. After pieceing them all together, mocking/test fitting them into place....BAM! fits perfect. made my alignment marks. Welded her up, took 80grit flap disc to it to smooth it all out. Took the dremel to the welds and cut marks on the inside to clean it up....inside it's alsmost completely flat. After that took a 60g flap drill wheel to it....and that made the inside silky smooth.

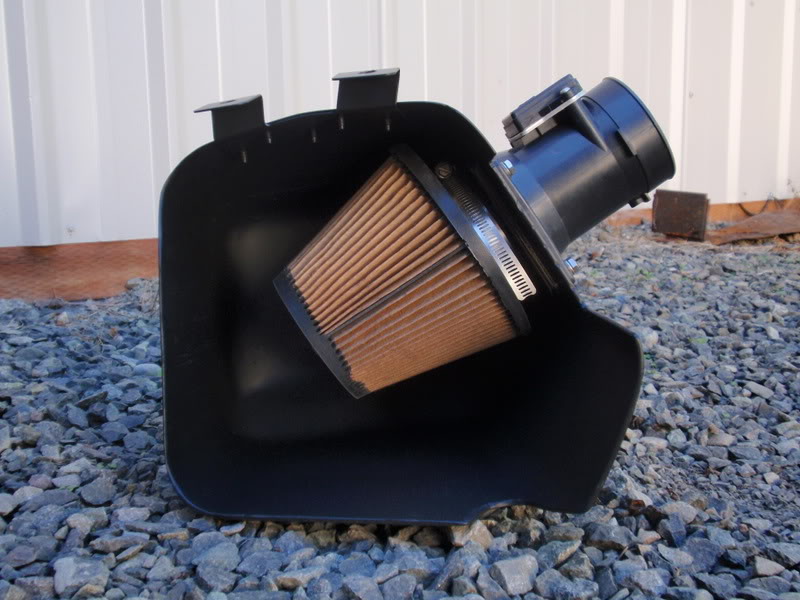

I will be ordering up a new filter for it. It'll be one of those new AEM Dryflow's and i'll be wrapping it for winter wheeling and winter weather. Drives awesome and is just GREAT in the cooling department(i have a scangauge). Still need to weld a 5/8" tube so that i can run that tube from the valve cover to the intake. Only problem still....is well...it's a steel tube, so it get really really hot. I plan to cure that with fiberglass header wrap or something similar. Even possibly ceramic coating. Any ideas?

On with the pics...

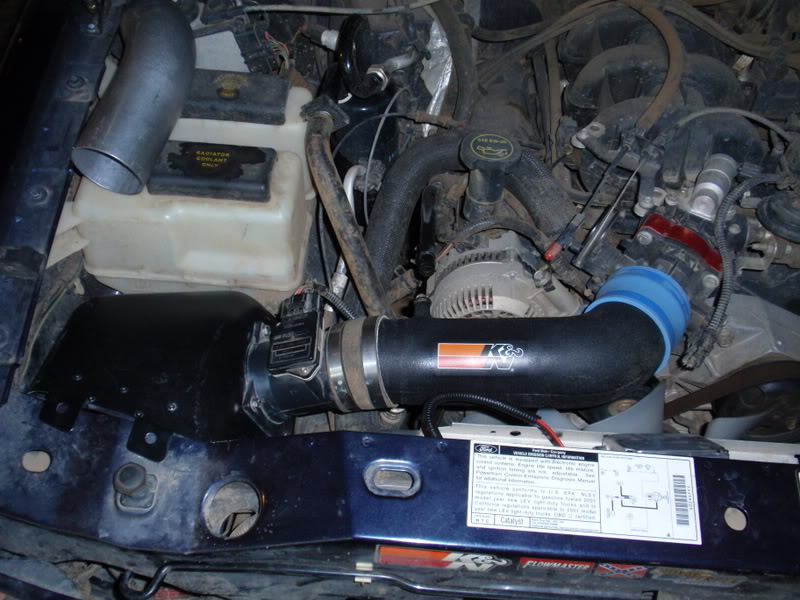

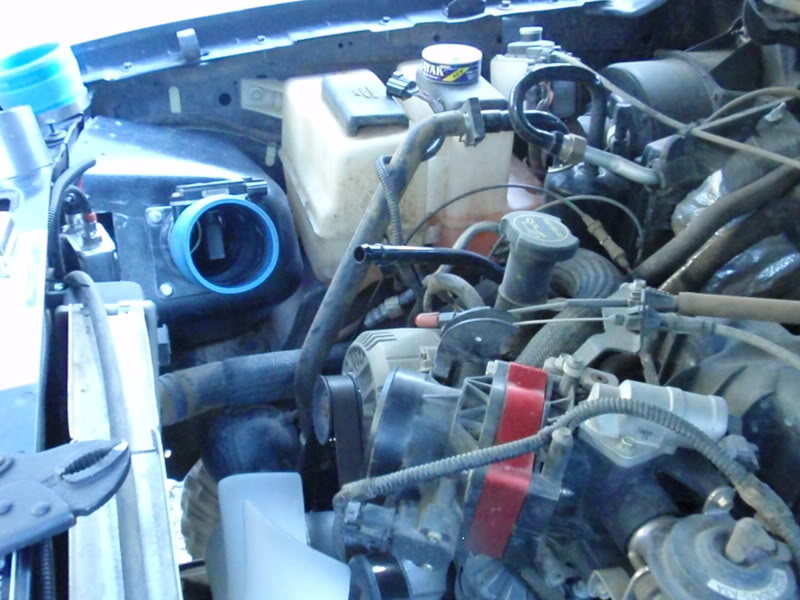

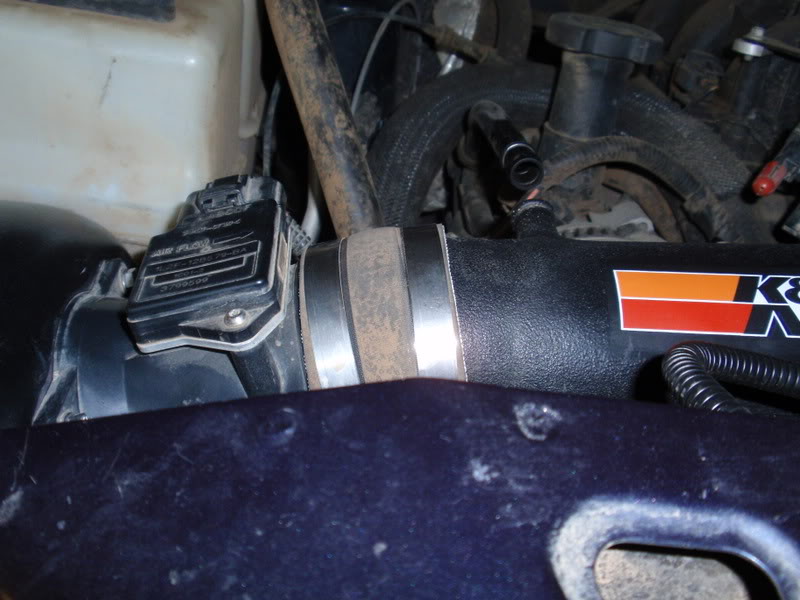

Notice funky angle at the MAF...
Name:  P9090295.jpg
Views: 42
Size:  101.0 KB

Name:  P9090296.jpg
Views: 44
Size:  79.0 KB


Name:  P9100324.jpg
Views: 42
Size:  86.2 KB

Name:  P9100325.jpg
Views: 41
Size:  83.9 KB

Name:  P9100329.jpg
Views: 43
Size:  93.3 KB

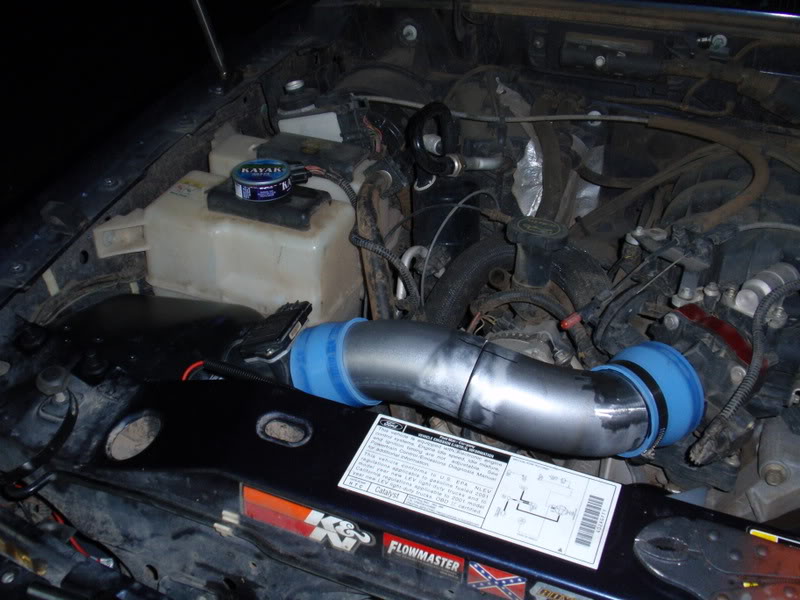

Name:  P9100332.jpg
Views: 44
Size:  88.1 KB

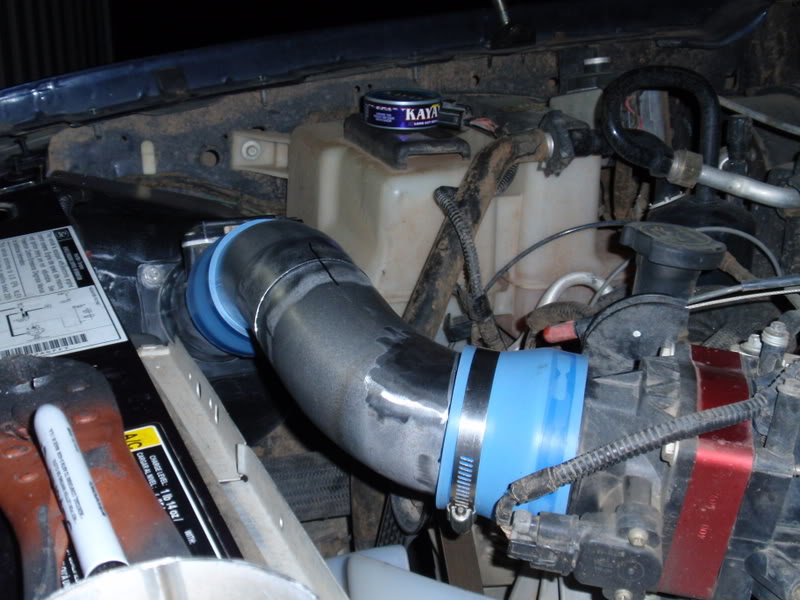

Name:  P9100338.jpg
Views: 44
Size:  88.3 KB

Name:  P9100344.jpg
Views: 41
Size:  55.5 KB

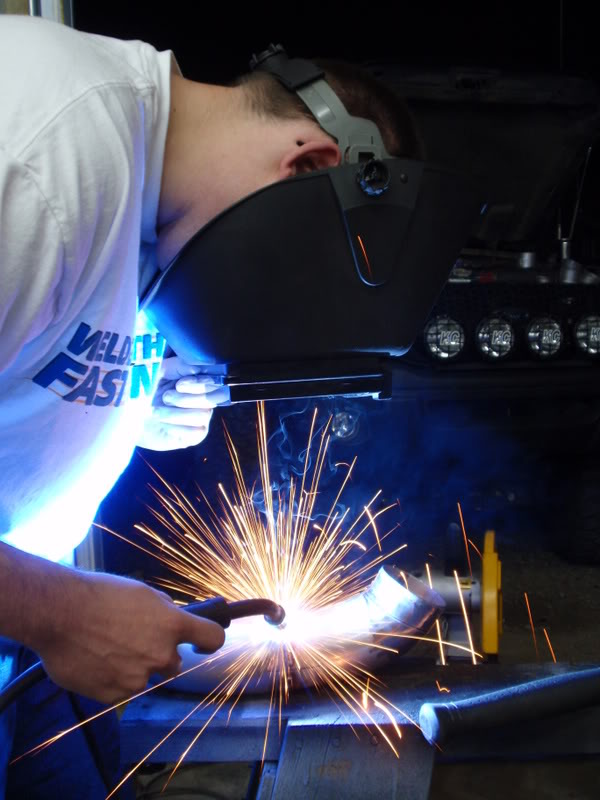

Name:  P9100361.jpg
Views: 43
Size:  80.4 KB

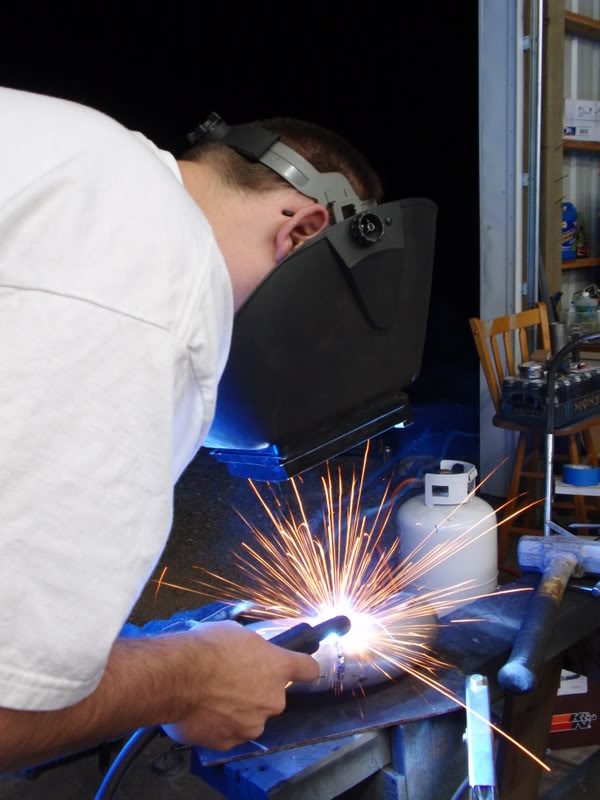

Name:  P9100362.jpg
Views: 42
Size:  73.6 KB

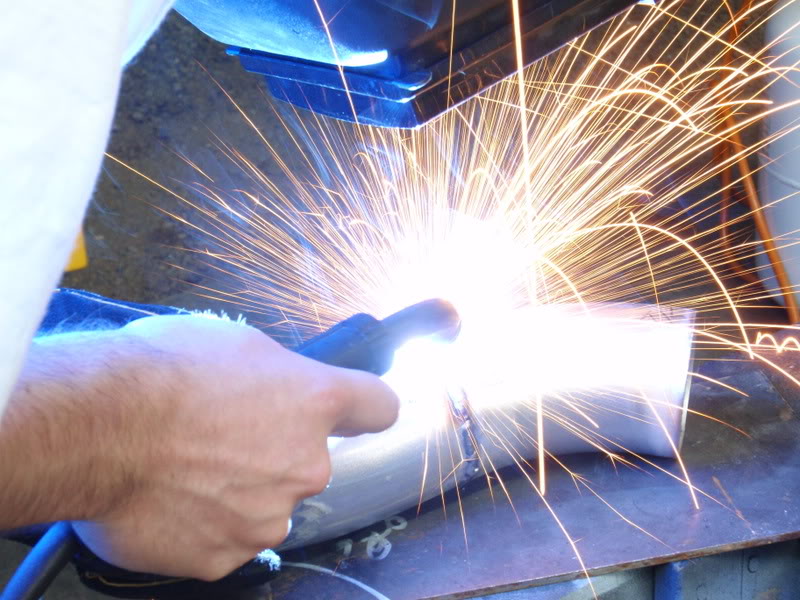

Name:  P9100363.jpg
Views: 44
Size:  114.4 KB

Name:  P9100366.jpg
Views: 42
Size:  84.0 KB

Name:  P9100375.jpg
Views: 43
Size:  65.0 KB

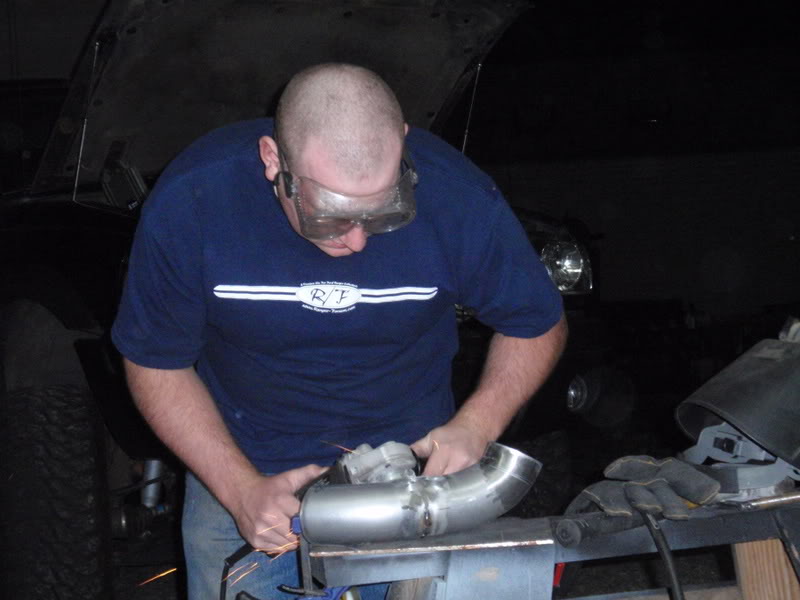

Name:  P9100378.jpg
Views: 44
Size:  58.5 KB

Name:  P9110380.jpg
Views: 43
Size:  133.9 KB

Name:  P9110381.jpg
Views: 41
Size:  93.7 KB

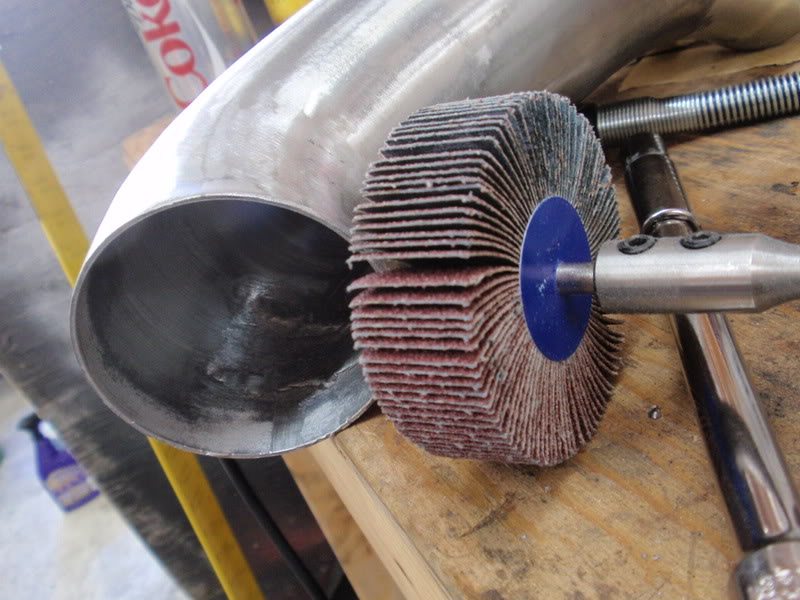

Name:  P9110384.jpg
Views: 41
Size:  92.0 KB

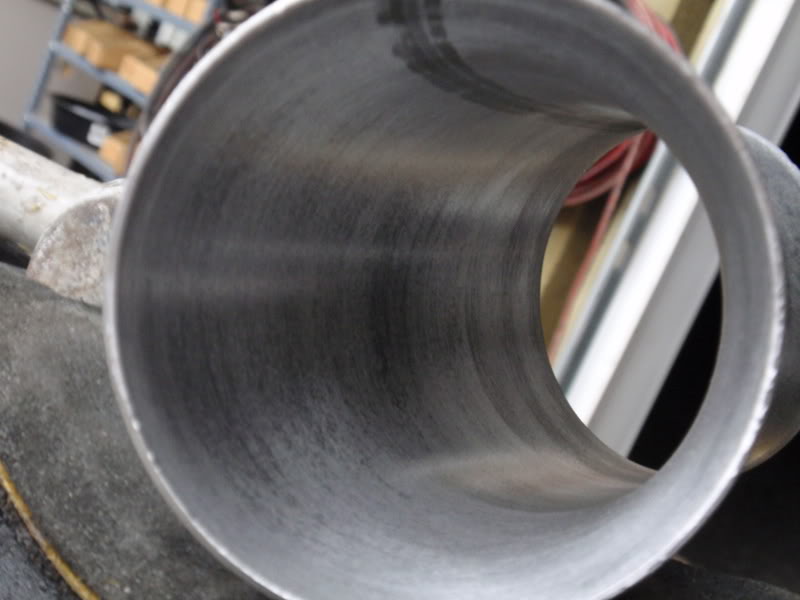

Name:  P9100343.jpg
Views: 43
Size:  51.6 KB

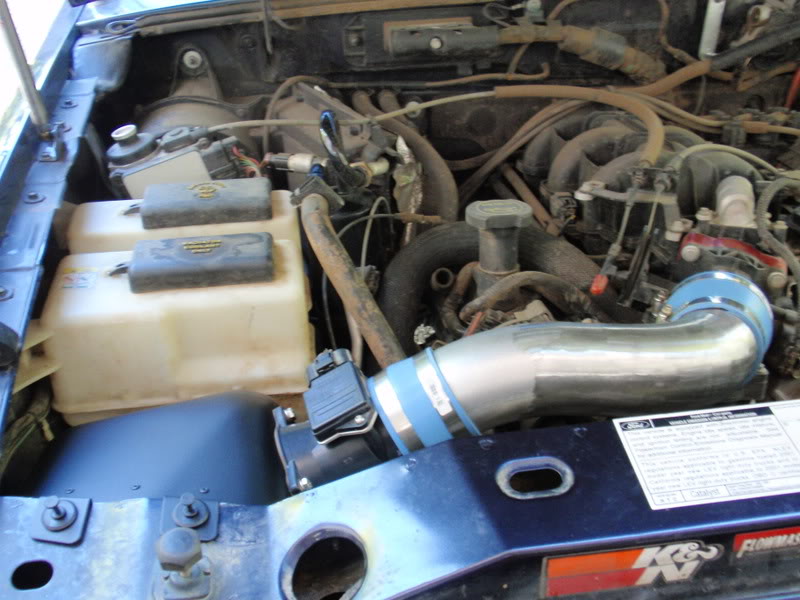

Name:  P9110391.jpg
Views: 42
Size:  91.8 KB

Name:  P9110394.jpg
Views: 41
Size:  114.3 KB
Reply With Quote
  #2
Old 09-13-2008
Silver's Avatar
Member

Join Date: Jun 2006
Location: edenton,nc
Posts: 2,708
nice work

like you i tried to us the k&n pipe i had but had the same problem
wish i had the fab skill to do that
Reply With Quote
  #3
Old 09-13-2008
Member

Join Date: Jul 2007
Location: annapolis, md
Posts: 351
nice jet motor, haha
Reply With Quote
  #4
Old 09-13-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
So where does the Tornado go?
Reply With Quote
  #5
Old 09-13-2008
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
looks good you should start selling those...
Reply With Quote
  #6
Old 09-13-2008
ringer4x4's Avatar
Member
iTrader: (3)

Join Date: Apr 2007
Location: upstate ny
Posts: 544
are the roush intakes available anymore? any luck with the throttle body spacer? couldn't get mine to work...raised idle WAY too high
Reply With Quote
  #7
Old 09-13-2008
Casper98's Avatar
Member
iTrader: (1)

Join Date: Jun 2007
Location: Gresham OR
Posts: 1,789
Looks really good shane what to make me one? lol
Reply With Quote
  #8
Old 09-13-2008
thesoundmaster's Avatar
Member

Join Date: Mar 2007
Location: Centennial CO
Posts: 5
How much for one of those??? I need more power for faster times at the track LOL


Oh, love the Kayak in every pic of the engine bay while work is being done.
Reply With Quote
  #9
Old 09-13-2008
RangerMuse's Avatar
Member

Join Date: Jul 2007
Location: Colorado
Posts: 1,727
Love the Kayak in the pictures and the fab work looks great nice job man
Reply With Quote
  #10
Old 09-13-2008
BurningRANGERtires's Avatar
Member

Join Date: Jun 2008
Location: North Sin City, NV
Posts: 312
so wait.. you havent done anything for the breath valve yet? why not do this?? (http://www.tgilmore.com/talon/catchcan.html)
Reply With Quote
  #11
Old 09-13-2008
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
love the jet engine in the backround.
Reply With Quote
  #12
Old 09-13-2008
Member

Join Date: Jul 2005
Location: College Station
Posts: 2,781
sweet!

now do a turbo..
Reply With Quote
  #13
Old 09-13-2008
02oregonedge+'s Avatar
Member
iTrader: (2)

Join Date: Apr 2008
Location: OR!
Posts: 1,086
Looks good Shane, where is breather valve going? New buzz cut?....
Reply With Quote
  #14
Old 09-13-2008
Mark98xlt's Avatar
Member

Join Date: Jun 2004
Location: Parma Ohio
Posts: 13
alright u make one for the 2.3 ill give u the grill.
Reply With Quote
  #15
Old 09-13-2008
Fx4wannabe01's Avatar
RF Veteran
Thread Starter
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Thanks ya'll...

pretty sure ya'lls are joking about the breather filter? I was thinking about just doing what my old chevy has....just breathers off the valve cover. But idk.

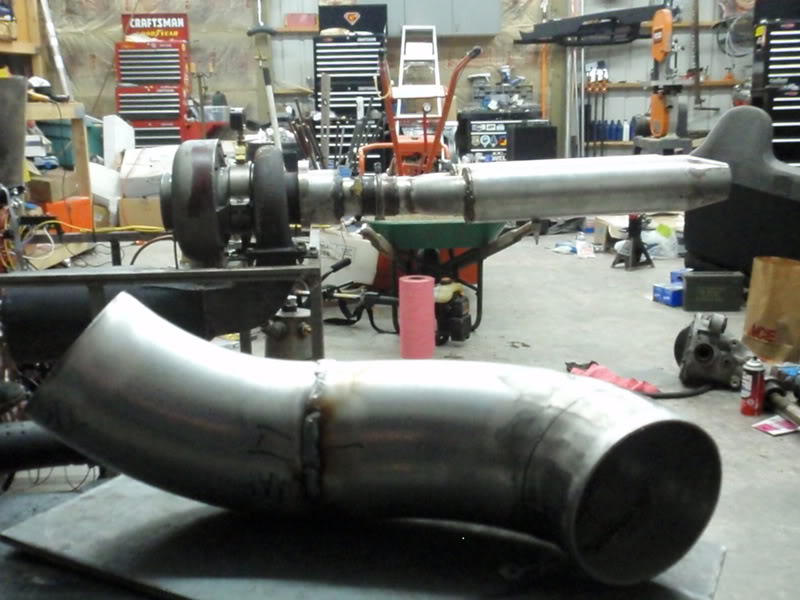

The newly AFTERBURNER'd Jet engine is my little brothers. It's his second he's built, he's on his 2nd or 3rd turbo in the pics. I should have a thread showing his stuff off....or make him make a thread! lol. There's vids on you tube. Search my user id 'fx4wannabe01' and you'll see the vids. This kids a genious. He's 19 and such a smart smart kid. I'm so proud of him. *cheesy moment there sorry. He fabbed everything himself. Afterburner has yet to be tested. Still working out the kinks from the recent 'incident' where the intake side twisted at the clamp.....lets just say major internal carnage and 8ft flames.





ok....back to my mod....

Results.

VERY noticable power gain even with the paper filter. At about 3500, she opens up really good.....next thing you know you're at 5500 and time to shift. I'd even say she's 'fast' again! It feels great, sounds great, and performs wonderfully. I'm seeing cooler incoming air now compared to the tbolt box and the stock tube via the scangaugeII. VERY good easy $30 mod. I think after everything, i'll have about $120 into this intake. (used 3.0L tbolt box $40, new aem dryflow $40, 2- 45* bends $30, clamps $8, and trying to find black couplers so i can sell my MAC intake.). Hell....Austin and I came up with a semi ram-air for his truck....more on that later....


Oh yea. Kayak. That's the normal chew can holder when working on the truck when the core support is full. lol.

Last edited by Fx4wannabe01; 09-13-2008 at 11:53 PM.
Reply With Quote
  #16
Old 09-13-2008
Fx4wannabe01's Avatar
RF Veteran
Thread Starter
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by 04blackedge View Post
So where does the Tornado go?
idk, ask knightmare.

Quote:
Originally Posted by 07SPORT View Post
looks good you should start selling those...
umm....no. lol. Way too many variables imo. But i think i have all the engines at my disposal, except the 01+ 2.3.

Quote:
Originally Posted by ringer4x4 View Post
are the roush intakes available anymore? any luck with the throttle body spacer? couldn't get mine to work...raised idle WAY too high
I only rock the TBspacer because i like the whistle. I recieved the best mileage with it and a bunch of other stuff....so why change something that's working' good. NO CLUE if the TBspacer adds anything whatsoever. Roush intakes are not avaliable anymore. Been out of production since '03?

Quote:
Originally Posted by Casper98 View Post
Looks really good shane what to make me one? lol
hmmm....might be able to make that happen...

Quote:
Originally Posted by 02oregonedge View Post
Looks good Shane, where is breather valve going? New buzz cut?....
Idk yet. Grant, the lil bro, knows how to tig, so i think i'll do a normal aftermarket intake style....5/8 pipe welded to the tube. Rubber hose between it and the plastic stock tube. Yea.....nobody at work recognized me. shaved the head and the face. lol.

Quote:
Originally Posted by Mark98xlt View Post
alright u make one for the 2.3 ill give u the grill.
Too bad I don't have a 2.3L at my disposal to mock up off of. If i did, i'd be all over that.
Reply With Quote
  #17
Old 09-13-2008
Mark98xlt's Avatar
Member

Join Date: Jun 2004
Location: Parma Ohio
Posts: 13
buy one and then you will have one it mock it off of..
Reply With Quote
  #18
Old 09-13-2008
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
I've had the ram-air idea in mind lol...






then i remember I had a 3.0L
Reply With Quote
  #19
Old 09-14-2008
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
Quote:
Originally Posted by 07SPORT View Post
I've had the ram-air idea in mind lol...






then i remember I had a 3.0L
lol
Reply With Quote
  #20
Old 10-02-2008
Step Over the Edge's Avatar
Member

Join Date: Dec 2007
Location: Albuquerque, NM
Posts: 324
Nice work Shane! Looks great!

I've been thinking about doing the same thing for my 3.0 but with silicon tubing to avoid the heat problem of the steel tube. It's not that expensive if you piece it together from the right places... I can powder coat that if you want and it'll look pretty.
Reply With Quote
  #21
Old 10-02-2008
Fx4wannabe01's Avatar
RF Veteran
Thread Starter
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
hmmm......i might have to take you up on that offer. Thinking about ceramic coating...like a graphite color. but idk.



Anyway....there should be an update tomorrow. I took the tube off after running it for a week. I forgot.....bare steel + wet/humid environment = rust. lol. So got that taken care of for now. Still need to put the steel tube back on tho....those 'exi chrome' paints take a long long long time to cure.

Update will be tomorrow.
Reply With Quote
  #22
Old 10-03-2008
Step Over the Edge's Avatar
Member

Join Date: Dec 2007
Location: Albuquerque, NM
Posts: 324
I dont have the stuff to do ceramic coatings, most of them are solvent based spray on liquids that have to cure in an oven at 750F degrees for an hour. I've read/heard with headers at least you can partially cure it at 500F for like 20 mins and put them on the engine and let the engine heat cure them for an hour (while running). It is good to 2000F degrees though lol. My oven cant accurately maintain temperatures that high. Most powder coatings are cured between 250F and 450F. If you can produce the heat it's not that expensive, $20 for the ceramic coating and $20 for the touch-up spray gun or an airbrush.

But what I think you'd like is a black chrome powder coat. I cant attach a picture since I'm at work but here's a link with a picture.

http://store.columbiacoatings.com/cg...ategory%3DMTPW

And here's a link of the ceramic stuff.

http://store.columbiacoatings.com/cg...on&parent=CRPW
Reply With Quote
  #23
Old 10-03-2008
graniteguy's Avatar
Member
iTrader: (3)

Join Date: Jul 2005
Location: Texas
Posts: 3,221
Thats nice work Shane. I know of several guys that took the stock air box and added a chrome tube to it. Its amazing how much mixing and matching you can do.
Reply With Quote
  #24
Old 10-03-2008
Fx4wannabe01's Avatar
RF Veteran
Thread Starter
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Black Chrome Powder Coat FTW!! OH MY, that is KILLLER!!! I might have to send you my exhaust tips too!


Thanks Wayne.
Reply With Quote
  #25
Old 10-03-2008
CBFranger's Avatar
Member

Join Date: May 2008
Location: Tampa Bay Area
Posts: 1,029
If I had that kind of fabrication skill It'd be turbo in a heart beat.
Reply With Quote
