sub snorkel

ok, so on my 07, the issue i had, was that when i took my truck for a swim, (pics of after, below) my air box filled with mud... i didn't hydro lock, thank god, but it did cause a little bit of concern... the issue was when the front end got wet, and splashing everywhere (the water level it's self wasn't up THAT high... anyways, what i want to do is fill in the hole that the intake into the box has now, behind the headlight, where the water was splashing into, and punch a hole of equal or greater size, through the side, and into the fender... this will do several things A) not allow hot air into the box, like a hole on the other side will, B) bring even colder air into the air box, as it will be sealed around the fender hole... C) not allow any water into the box, as the right fender has the inner fender around the wheel, so no splashing will get up there, and it's a long journey down to the bottom of the fender, and a much more indirect route for water to get into the airbox...

now, of course, i'm not going to be expecting this will work if i take my truck in hood deep water...

thoughts?







Reply With Quote
  #2
Old 02-07-2010
Rolldogg's Avatar
Member

Join Date: Jan 2006
Location: Ottawa, Ontario
Posts: 3,424
CLEAN THAT ENGINE BAY!!!! LOL
Reply With Quote
  #3
Old 02-07-2010
Lone_Ranger's Avatar
Member

Join Date: Oct 2009
Location: Fernridge, BC
Posts: 274
Got a buddy who did that with his Toy, seems to work fine for him but he doesn't go swimming with his either though. IIRC, most stock Suzuki Sami's route their intake this way as well (I believe my 88.5 did). Its gotta be better than coming in from behind the headlight for sure.

You'll probably get less airflow into the airbox but there'll be less chance of water splashing in. LR
Reply With Quote
  #4
Old 02-07-2010
--weezl--'s Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
oh it's clean now... that was in like sept-oct
Reply With Quote
  #5
Old 02-07-2010
Tys 4x4 FTW's Avatar
RF Veteran
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575
mine looked like that at one point.


and my airbox looked just like that. all i can suggest is go slower through the muddy water lol
Reply With Quote
  #6
Old 02-07-2010
--weezl--'s Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
Quote:
Originally Posted by Tys 4x4 FTW View Post
mine looked like that at one point.


and my airbox looked just like that. all i can suggest is go slower through the muddy water lol
i don't want to slow down though... the speed is what makes it so much fun! the guy at the 4x4 shop said i should get a cone filter and a water sock... which is a possibility... i might buy one of them and put my drop in, in it...

Quote:
Originally Posted by Lone_Ranger View Post
Got a buddy who did that with his Toy, seems to work fine for him but he doesn't go swimming with his either though. IIRC, most stock Suzuki Sami's route their intake this way as well (I believe my 88.5 did). Its gotta be better than coming in from behind the headlight for sure.

You'll probably get less airflow into the airbox but there'll be less chance of water splashing in. LR
i know all late (FI) fox body mustangs did it that way... the K&N CAI kit puts the filter in the fender, which is where i got the idea... why do you say there might be less air flow into the box? i'm also thinking about putting like 4" ABS for the duct between the box and fender
Reply With Quote
  #7
Old 02-07-2010
Tys 4x4 FTW's Avatar
RF Veteran
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575
my stang has a BBK FWI (fenderwell intake) and it works great. i had one on my grand prix too. i would recommend those to anyone. sucks htere isnt one made for our trucks. so make ya own!
Reply With Quote
  #8
Old 02-07-2010
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Buy a boat, or drive slow.
Reply With Quote
  #9
Old 02-07-2010
--weezl--'s Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
what do you think though? will it work well? i don't priticularly want to cut up my truck, to find out it doesn't work, and will make my rear diff blow and my tail lights burn out
Reply With Quote
  #10
Old 02-07-2010
Lone_Ranger's Avatar
Member

Join Date: Oct 2009
Location: Fernridge, BC
Posts: 274
Because, airflow through a fender (assuming your inner fender is properly in place, which I'm pretty sure it is) is less than being directly behind the headlight which is open to the forced air of driving down a highway. There's more than enough air in the fender to feed your engine, its just not a positive rush like being pointed out the front thats all.

3" ABS (or whatever size the intake hole on the box is) would be more than enough, I'd personally remove the fender and route the ABS back under the fender and dump it up under the cowl below the windshield and put a bit of a downturn on the pipe there, I think you'd essentially build yourself a pretty good snorkel at that point without it being obvious nor an eyesore. Snorkels look cool on buggies, they look pretty ghey on stockish trucks. LR
Reply With Quote
  #11
Old 02-07-2010
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
I'd make a snorkel and run it as high as you can inside of the engine bay where it will still get good air flow.

Have you extended your vent lines on the differentials? If not, you need to do that too.
Reply With Quote
  #12
Old 02-07-2010
effexfour's Avatar
Member
iTrader: (2)

Join Date: Mar 2009
Location: Edmonton, Alberta, Canada
Posts: 866
I Can't see any problems with doing that with the airbox, It should would work pretty well, especially if you made a tube rather than just a hole going out inside the fender or anywhere with clean and cold air. A cone filter with one of those covers would do the trick as well. By the look of it you should be investing in a full snorkel! haha, or a boat! I just installed one on my friends Land Cruiser, not that he needs it he just likes to pretend like he does! lol

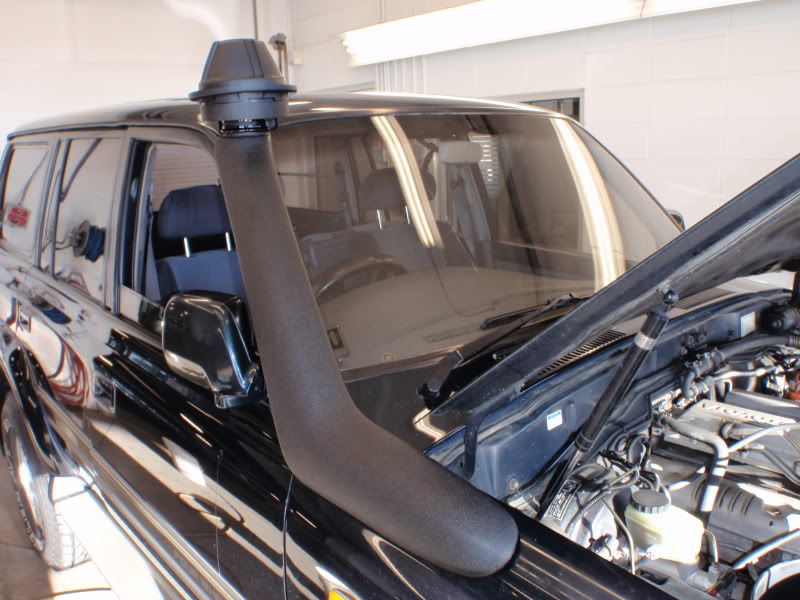

Name:  P1160071.jpg
Views: 23
Size:  108.7 KB
Reply With Quote
  #13
Old 02-07-2010
Lone_Ranger's Avatar
Member

Join Date: Oct 2009
Location: Fernridge, BC
Posts: 274
I don't have any pics of them, but with all of my previous Ranger I always just sealed a run of 3" hose or pipe to the airbox and ran it to the back passenger corner of the engine bay and installed a splash shield around it. I've literally had water wash over the roof of one of my Rangers in a creek (passing Jeep on 35s submerged me for a couple of seconds!) and it never sucked a drop in. There's a huge air bubble that gets trapped under your hood and it takes a bit for it to escape so the engine survives on that for a little bit.

The biggest disadvantage is that you're always sucking in hot air which is bad. If you're willing to drill a hole in the your inner fender than you mind as well complete it and run it up to your cowl. Its the cleanest one of the bunch and it doesn't leave a bunch of piping crowding everything under your hood. LR
Reply With Quote
  #14
Old 02-07-2010
--weezl--'s Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
Quote:
Originally Posted by Lone_Ranger View Post
Because, airflow through a fender (assuming your inner fender is properly in place, which I'm pretty sure it is) is less than being directly behind the headlight which is open to the forced air of driving down a highway. There's more than enough air in the fender to feed your engine, its just not a positive rush like being pointed out the front thats all.

3" ABS (or whatever size the intake hole on the box is) would be more than enough, I'd personally remove the fender and route the ABS back under the fender and dump it up under the cowl below the windshield and put a bit of a downturn on the pipe there, I think you'd essentially build yourself a pretty good snorkel at that point without it being obvious nor an eyesore. Snorkels look cool on buggies, they look pretty ghey on stockish trucks. LR
ahhh i'm pickin up what your putting down... just not functioning as a ram air anymore...

Quote:
Originally Posted by KLC View Post
I'd make a snorkel and run it as high as you can inside of the engine bay where it will still get good air flow.

Have you extended your vent lines on the differentials? If not, you need to do that too.
i have not, it is something on my list of "i'll get around to it" stuff

Quote:
Originally Posted by effexfour View Post
I Can't see any problems with doing that with the airbox, It should would work pretty well, especially if you made a tube rather than just a hole going out inside the fender or anywhere with clean and cold air. A cone filter with one of those covers would do the trick as well. By the look of it you should be investing in a full snorkel! haha, or a boat! I just installed one on my friends Land Cruiser, not that he needs it he just likes to pretend like he does! lol
the water it's self wasn't THAT deep, several of the times (in that same hole) it wasn't even to the bottom of the door... it would never have been above the DSG on my rockers, for sure...

Quote:
Originally Posted by Lone_Ranger View Post
I don't have any pics of them, but with all of my previous Ranger I always just sealed a run of 3" hose or pipe to the airbox and ran it to the back passenger corner of the engine bay and installed a splash shield around it. I've literally had water wash over the roof of one of my Rangers in a creek (passing Jeep on 35s submerged me for a couple of seconds!) and it never sucked a drop in. There's a huge air bubble that gets trapped under your hood and it takes a bit for it to escape so the engine survives on that for a little bit.

The biggest disadvantage is that you're always sucking in hot air which is bad. If you're willing to drill a hole in the your inner fender than you mind as well complete it and run it up to your cowl. Its the cleanest one of the bunch and it doesn't leave a bunch of piping crowding everything under your hood. LR
only reason i don't want to do that, is how everyone has been saying a snorkle will steal your power from you... the only other thing i might do then is something like put this...



in the stock hole, and then my new one, then buy one screw in plug, so i can run the airbox like stock, but if i am planning on getting wet, i can just move the plug from the snorkel duct to the headlight duct, and problem solved...
Reply With Quote
  #15
Old 02-07-2010
Lone_Ranger's Avatar
Member

Join Date: Oct 2009
Location: Fernridge, BC
Posts: 274
There's two things I can think about it: stock airbox (especially with splash guard removed) will net you the most HP, especially in the higher end of the RPM band. However, having a snorkel will kill your top end a bit BUT you will gain torque, especially right around the 2000 rpm mark (where the SOHC 4.0Ls kinda lack it). Its kinda the same trick used on the BMW 2002s back in the day to increase torque (long narrower tube to cause the intake air to be compressed a little, effectively charging it a tiny bit). Better for crawling and towing.

Realistically? I doubt you'll really notice a lot of difference except under heavy acceleration. Fuel mileage might change a little either way, don't exactly know how. However, this has got me thinking about doing a cowl snorkel on mine though, shouldn't be harder than dragging out the holesaw and gluing together some ABS pipe, and realigning a fender. LR
Reply With Quote
  #16
Old 02-07-2010
--weezl--'s Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
biggest problem is, i drive 85km a day commuting for work... plus when i go boarding... last wednesday, i put 400+ km on my rental, just go boarding, and i go boarding (albeit not always to the same hill) every set of days off i get... i've put about 12000km on my truck since i got it at the end of sept. so gas mileage is a big thing to me... 1mpg i notice, financially, in a month

so i'm thinking this dual intake system might be the best. See any issues with it?
Reply With Quote
  #17
Old 02-07-2010
pwrranger88's Avatar
Member
iTrader: (1)

Join Date: Dec 2008
Location: West Greenwich RI
Posts: 330
i ran the intake into the cowl on my 94 ranger and it had no effect on power or to the mpgs
Reply With Quote
  #18
Old 02-07-2010
--weezl--'s Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
Quote:
Originally Posted by pwrranger88 View Post
i ran the intake into the cowl on my 94 ranger and it had no effect on power or to the mpgs
hmmm, maybe i will give it a shot then...

i would love to do a snorkle like zabeard has... inside the fender to the pillar
Reply With Quote
  #19
Old 02-07-2010
pwrranger88's Avatar
Member
iTrader: (1)

Join Date: Dec 2008
Location: West Greenwich RI
Posts: 330
not mine but this is how mine was routed like this one
Ford Ranger Cowl Induction Snorkel
Reply With Quote
  #20
Old 02-07-2010
04_xlt_4.0_4x4's Avatar
Member

Join Date: Feb 2009
Location: merced, ca
Posts: 1,154
i had water like that in my air box just from driving through water run off in the road after the ca rain
Reply With Quote
  #21
Old 02-07-2010
--weezl--'s Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
it's damn cold here... so i'm thinking that the 2 choice snorkel is best, i need my heater to work properly
Reply With Quote
