ORW Trailing Arms

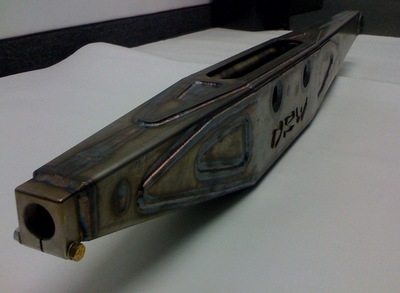

ORW has a NEW weld it yourself link. These trailing arms are 3-D CAD Designed and water jet cut. They are made from 1/8" 4130 plate so you can tig or mig weld the arms. We will also offer the service of tig or mig welding these arms together as an option. The length between the center of the forward mount to the center of the heim is 54". The shock mounting locations are on center and require 4" shock ends. The complete kit includes everything necessary to construct two lower link arms with 1.25' threaded sleeves single pinch bolt bungs for the rear.
PRICE: $795
They are available with options to run a 1" uniball and "tall" uniball cup or 1" uniball w/ anti-wobble stops.

Complete kits available for $1100 The kit will include large 1" mono-***** w/ tall cup, large 1.250 heims with jam nuts and all misalignment spacers

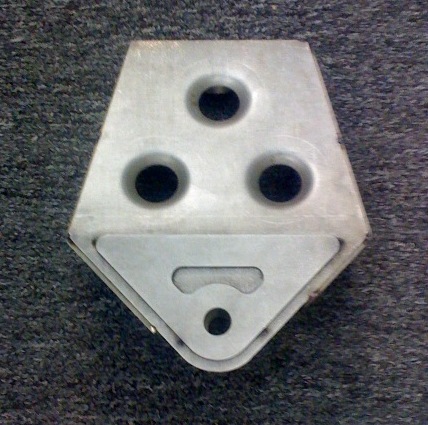

ORW's 4-link suspension pivots. All new weld on frame lower link pivots work with any C-Channel frame designs 5inches or taller or our boxed frame link pivot for any Toyota, mid-size/newer Chevy, Nissan etc. Designed to be use with a 3 or 4 link application. $99pair

ORW Trailing Arms-link2.jpgORW Trailing Arms-orw_ta_3.jpgORW Trailing Arms-link1.jpg
ORW Trailing Arms-phot1o.jpgORW Trailing Arms-pivot2.jpg
Reply With Quote
  #2
Old 11-05-2010
MikeDevo's Avatar
Member

Join Date: Jan 2009
Location: hatboro, PA
Posts: 489
does this fit my 2004 fx4 ranger?
Reply With Quote
  #3
Old 11-05-2010
fourliter dan's Avatar
Member

Join Date: Dec 2007
Location: Lebanon, OR
Posts: 2,229
those are more intended for prerunners that are 4 linked, so long awnser into a shot, no
Reply With Quote
  #4
Old 11-08-2010
MikeDevo's Avatar
Member

Join Date: Jan 2009
Location: hatboro, PA
Posts: 489
BUMMer...
Reply With Quote
  #5
Old 11-11-2010
BANNED
Thread Starter
iTrader: (1)

Join Date: Jul 2009
Location: San Diego, CA
Posts: 165
Quote:
Originally Posted by MikeDevo View Post
does this fit my 2004 fx4 ranger?
Are you kidding These will work on any mid-size or full size truck to set up a 3-link or 4-link suspension set up.
Reply With Quote
  #6
Old 11-11-2010
fourliter dan's Avatar
Member

Join Date: Dec 2007
Location: Lebanon, OR
Posts: 2,229
yes with a 3 or 4 link set up... this is why i said short awnser no. yeah he could easily rack up 10grand and link the rear of his truck and they would be great. however.,. in stock form it would effectivly be pointless.

not baggin on product by any means man
