87 Ranger engine rebuild

Well i bought this truck for $550 engine ran like crap but it has a great body and good 5-speed. Anyway on to the pic's

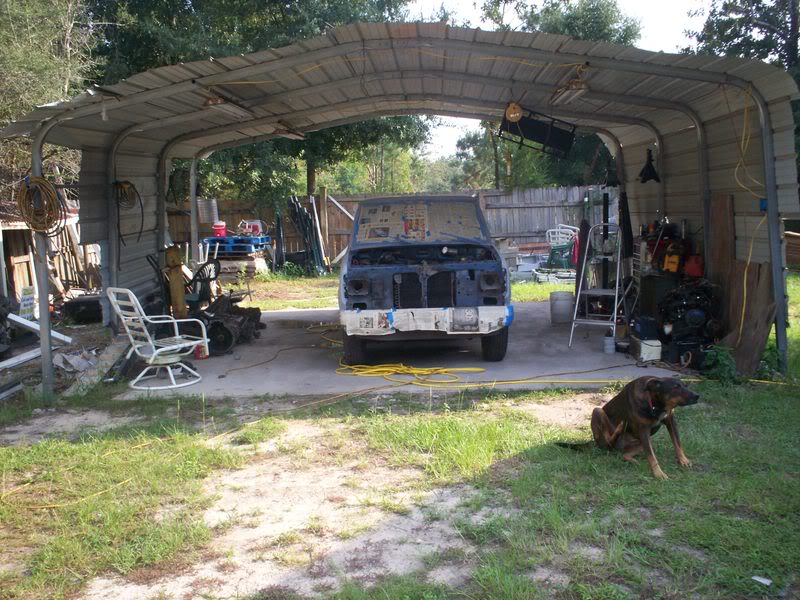

The shop where it all comes together.
Name:  100_2890-1.jpg
Views: 362
Size:  121.0 KB

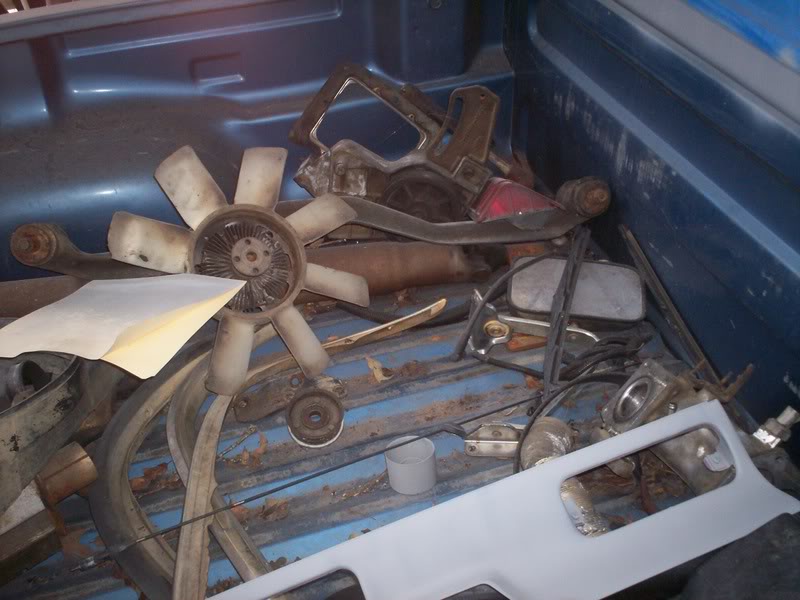

Random crap in the bed
Name:  100_2889-1.jpg
Views: 364
Size:  74.7 KB

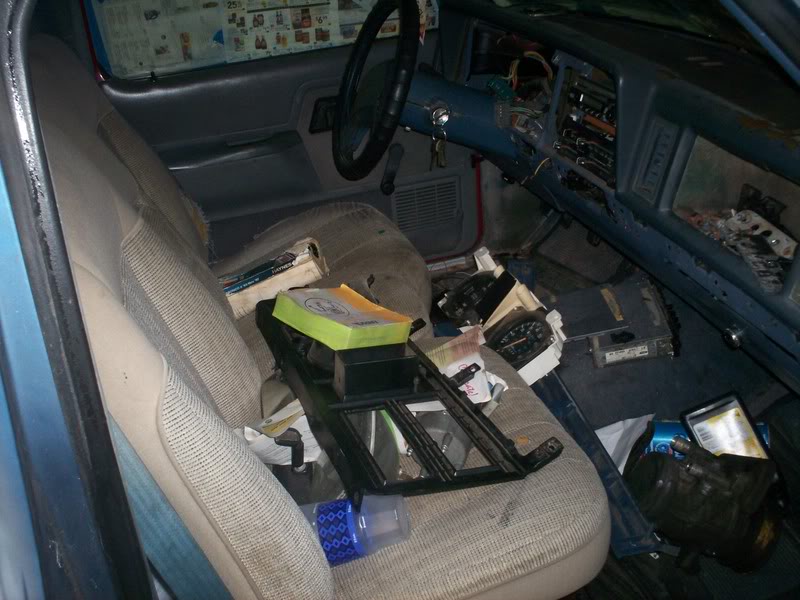

The inside (don't worry it will all come together )
Name:  100_2888-1.jpg
Views: 363
Size:  84.4 KB

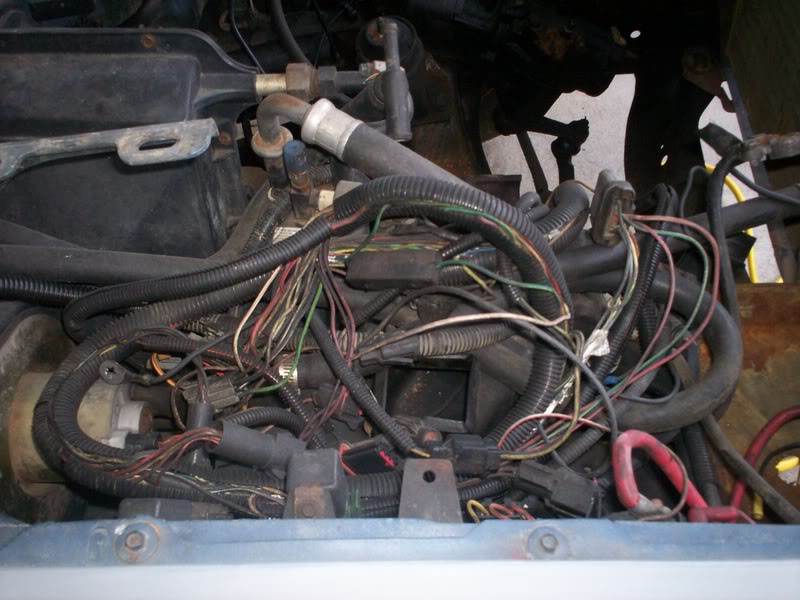

Wiring mess...
Name:  100_2887-1.jpg
Views: 362
Size:  85.8 KB

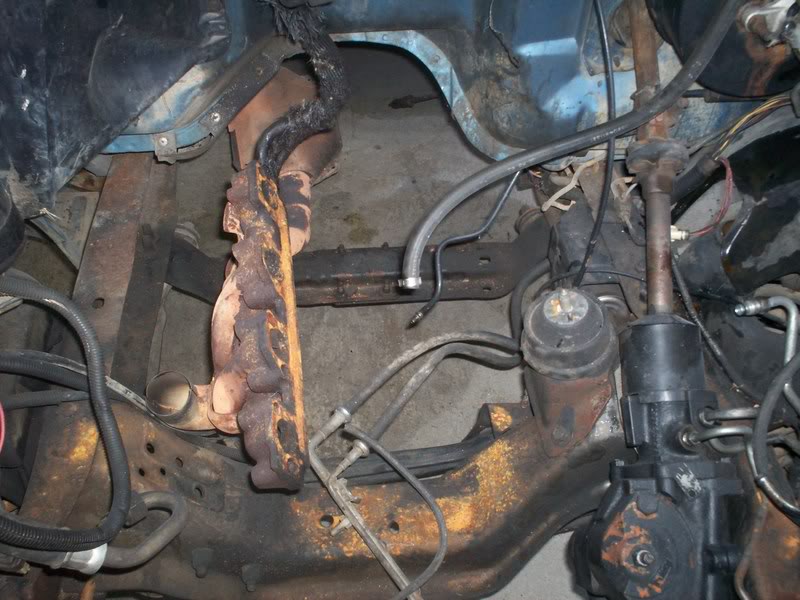

Wtf who stole my engine!?!?!
Name:  100_2886-1.jpg
Views: 362
Size:  92.0 KB

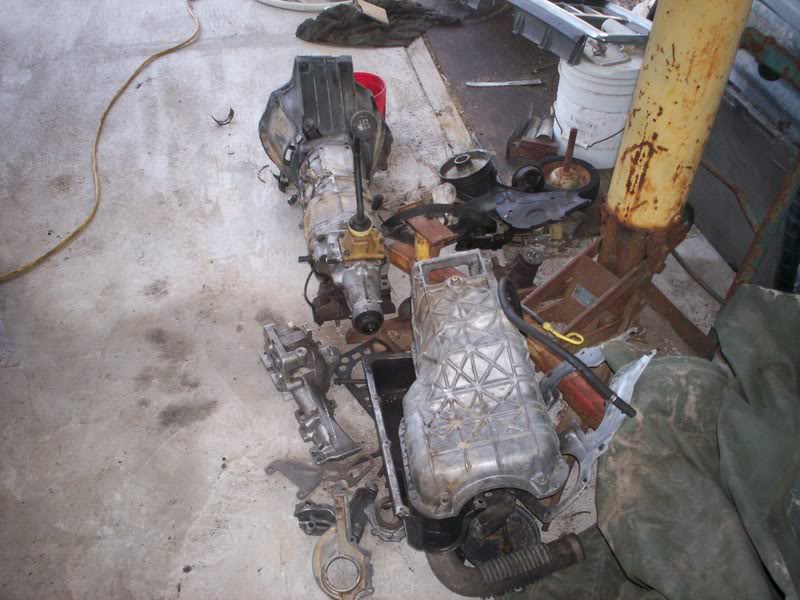

More parts
Name:  100_2885-1.jpg
Views: 362
Size:  87.3 KB

Hood all primed and almost ready for paint
Name:  100_2884-1.jpg
Views: 361
Size:  62.1 KB

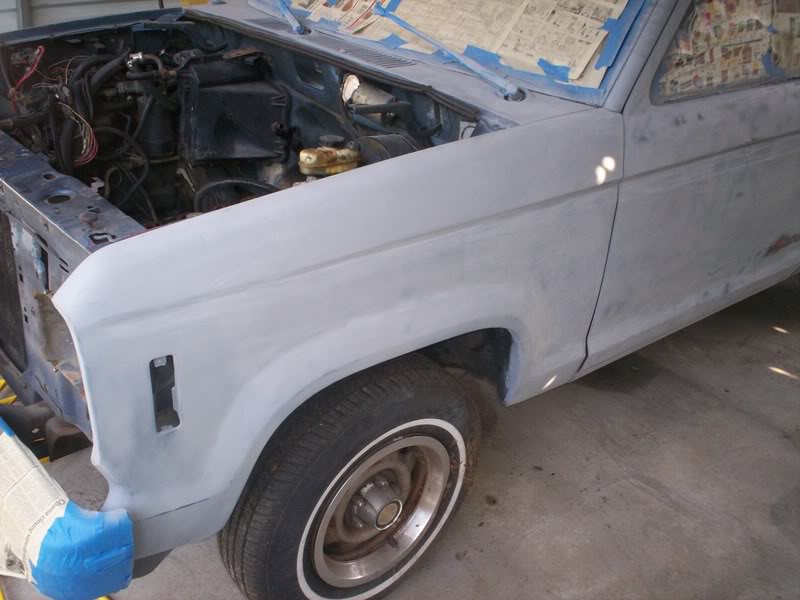

More primer sanded and ready for paint
Name:  100_2883-1.jpg
Views: 362
Size:  69.1 KB

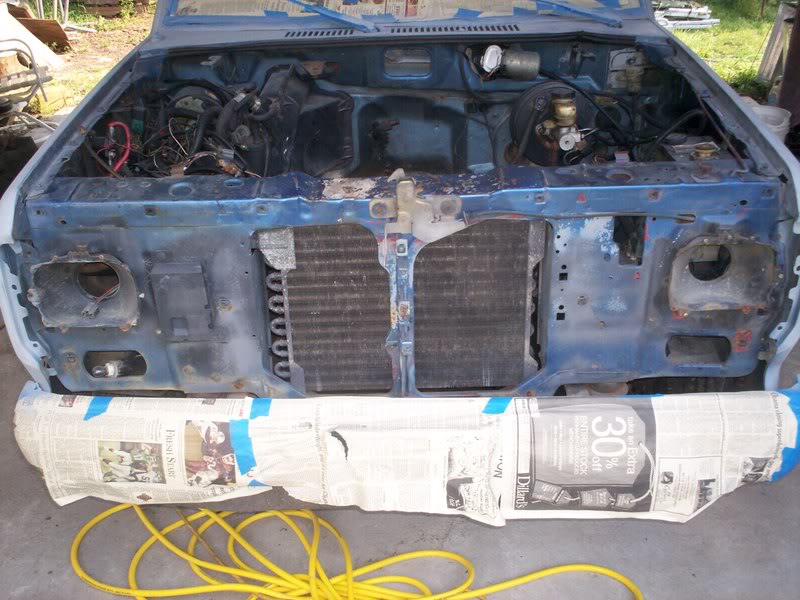

The front end
Name:  100_2882-1.jpg
Views: 358
Size:  94.9 KB

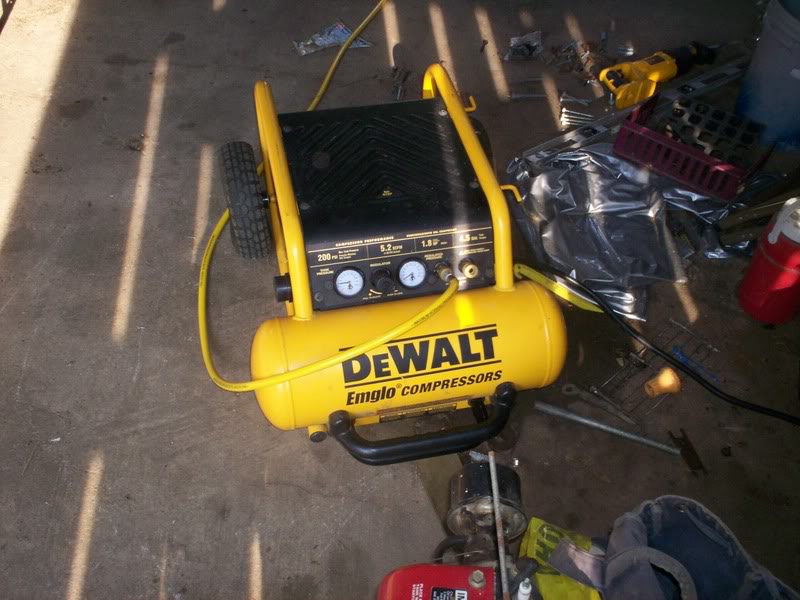

And the best tool of them all!
Name:  100_2891-1.jpg
Views: 360
Size:  82.9 KB
I will post more as the truck gets finished.

Last edited by 87xlt; 08-31-2008 at 04:47 PM.
Reply With Quote
  #2
Old 08-30-2008
Ray_Welder's Avatar
Member

Join Date: Jan 2008
Location: Zephyrhills, FLorida
Posts: 1,037
Damn, giant pictures, Smaller next time? Its makes me sick scrolling through them. Looks like a big project! Cant wait to see it come together.
Reply With Quote
  #3
Old 08-30-2008
87xlt's Avatar
Member
Thread Starter

Join Date: Jun 2008
Location: In my truck!
Posts: 875
Damn sorry about that im about to run but i will resize them later.
Reply With Quote
  #4
Old 08-30-2008
Jimmeh's Avatar
Member
iTrader: (1)

Join Date: Dec 2007
Location: Columbia Falls, MT
Posts: 3,224
What engine?

Dewalt is not the best tool of them all. Not a big fan of those compressors.

Looks like it will be a fun project, though.
Reply With Quote
  #5
Old 08-31-2008
87xlt's Avatar
Member
Thread Starter

Join Date: Jun 2008
Location: In my truck!
Posts: 875
Quote:
Originally Posted by Jimmeh View Post
What engine?

Dewalt is not the best tool of them all. Not a big fan of those compressors.

Looks like it will be a fun project, though.
The engine is just the 2.3 it had shattered rings on the #2 piston (it was ran with no air cleaner had sand all over the rings....)We have had that compressor for about 3 years and have had no problems.
Reply With Quote
  #6
Old 09-07-2008
Member

Join Date: Jun 2007
Location: Killafornia
Posts: 1,523
Quote:
Originally Posted by Jimmeh View Post
Dewalt is not the best tool of them all. Not a big fan of those compressors.
Its a shame emglo got bought out like that. Looks like its gonna be a sick build
Reply With Quote
  #7
Old 09-09-2008
87xlt's Avatar
Member
Thread Starter

Join Date: Jun 2008
Location: In my truck!
Posts: 875
Well some good news the block is done..... at the machine shop that is lol. I am going to pick it up tomorrow. Time to start putting everything back together.
Reply With Quote
  #8
Old 09-15-2008
87xlt's Avatar
Member
Thread Starter

Join Date: Jun 2008
Location: In my truck!
Posts: 875

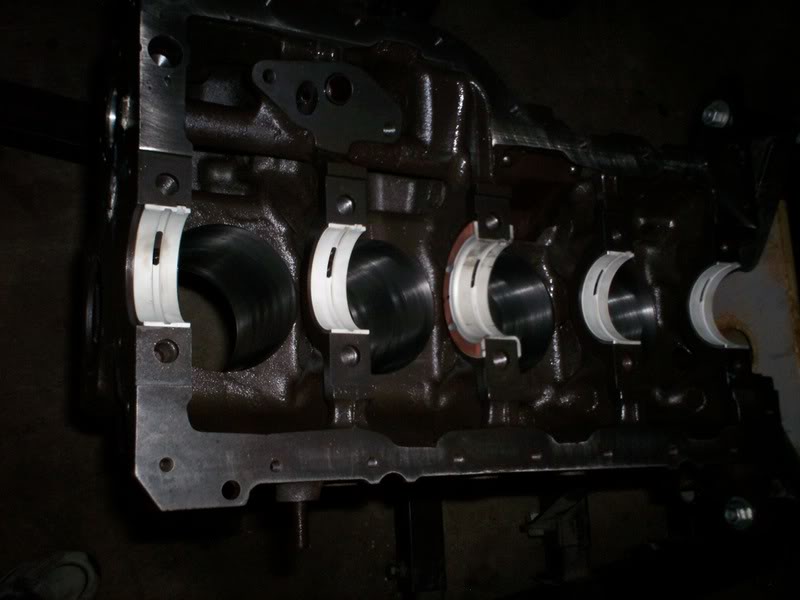

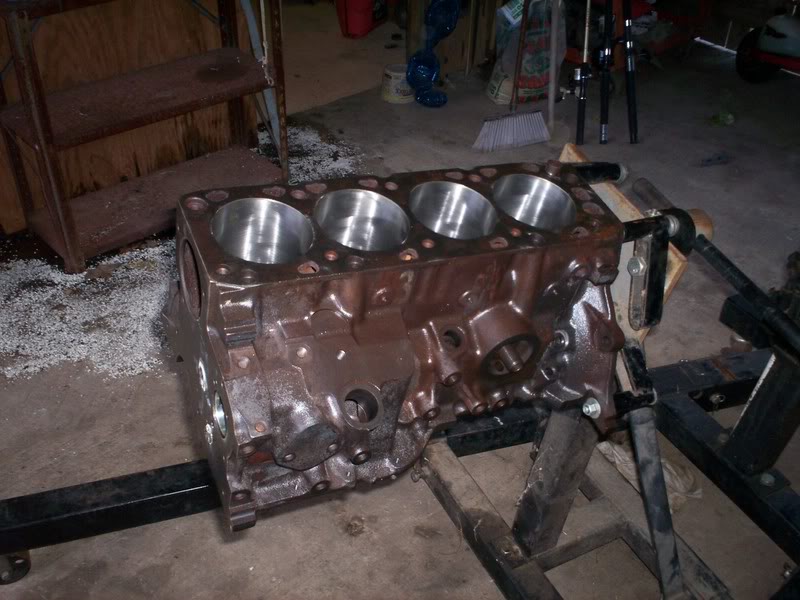

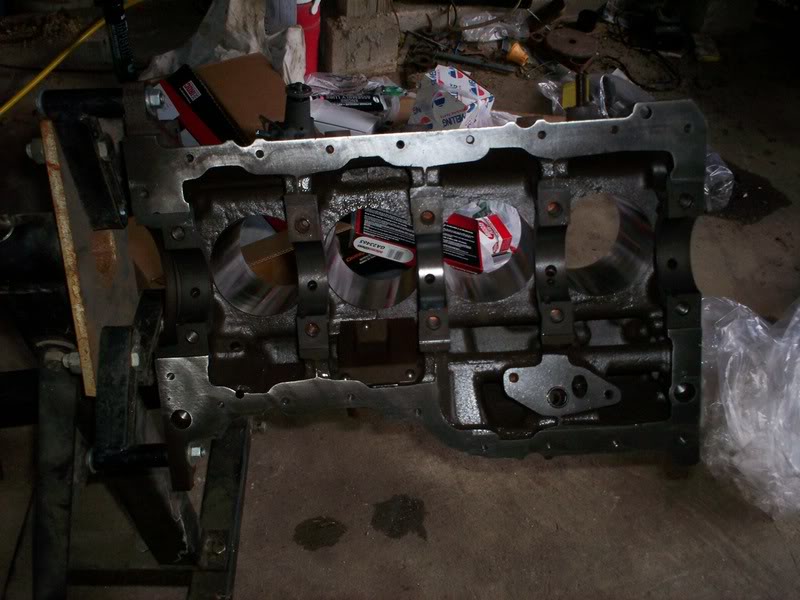

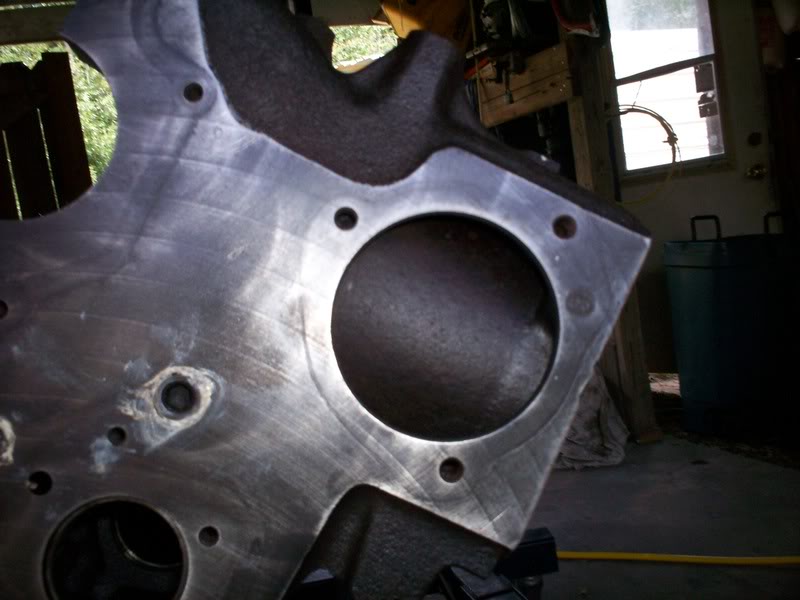

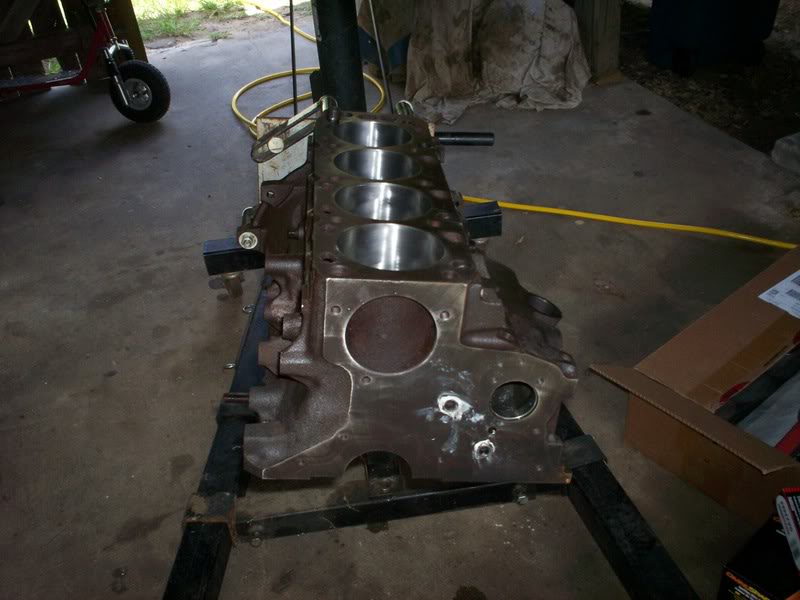

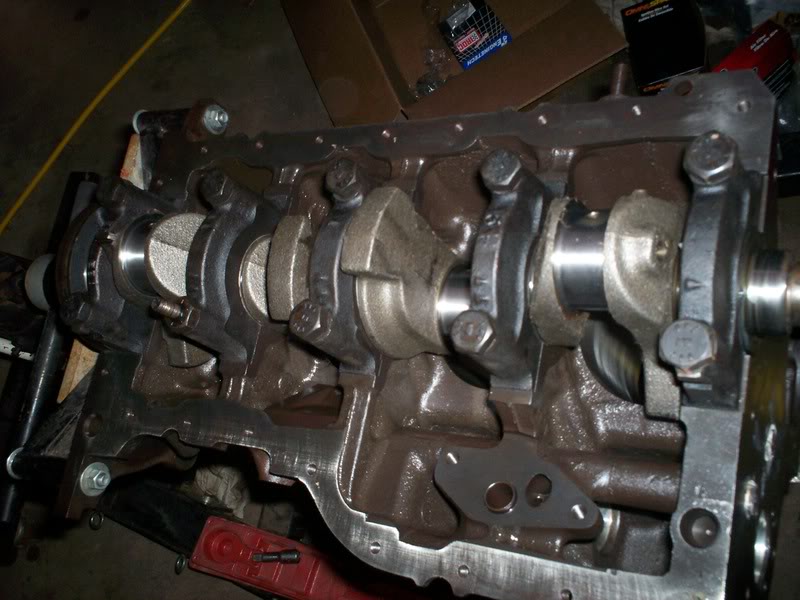

Well i got the block crank and head back from the machine shop the other day. The crank is installd i hope to have the pistons installed by tommorow night. Here are a few pic's.

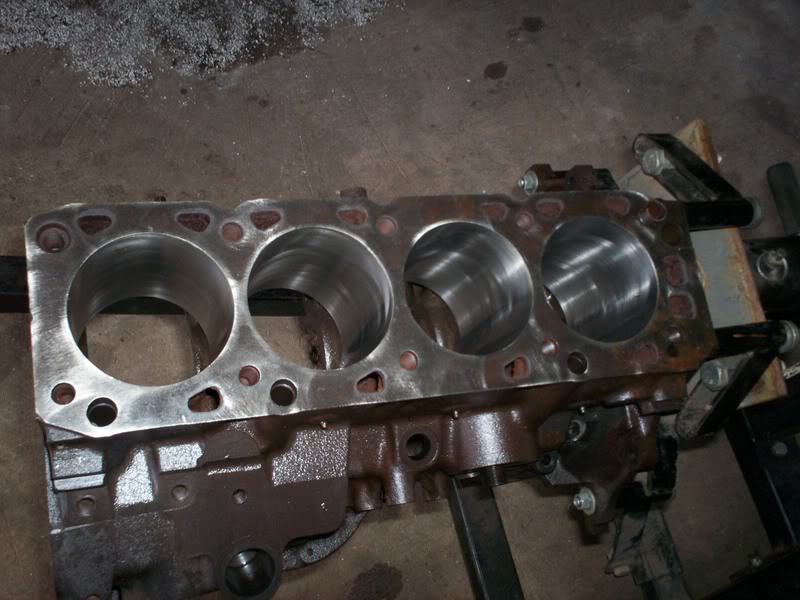

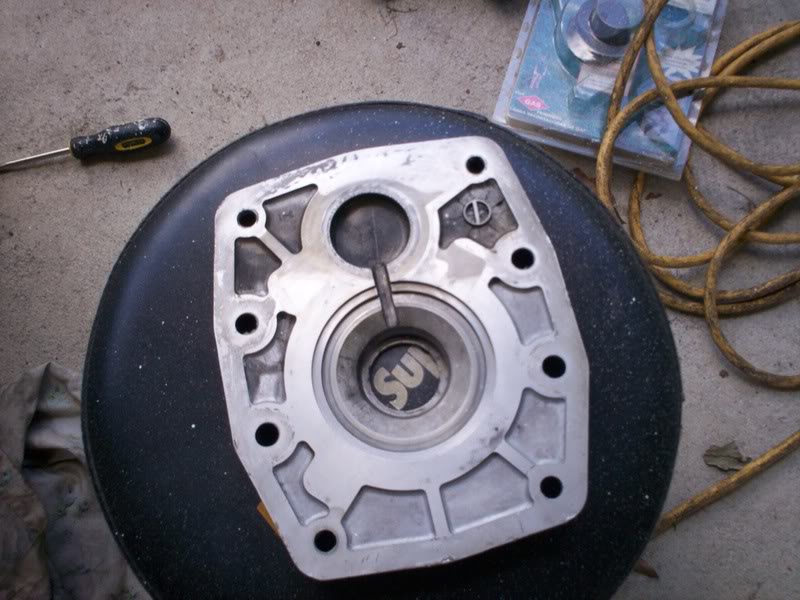

Name:  100_2898.jpg
Views: 355
Size:  66.4 KB

Name:  100_2899.jpg
Views: 359
Size:  85.1 KB

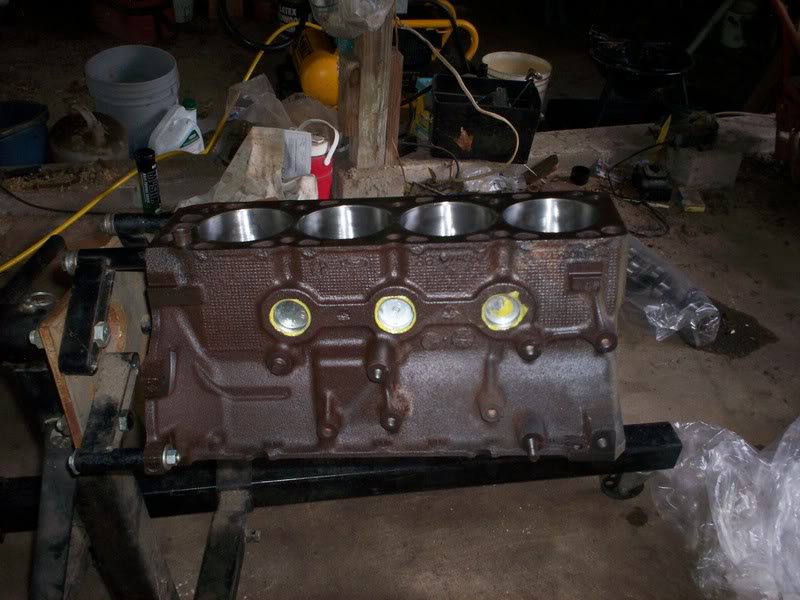

Name:  100_2900.jpg
Views: 358
Size:  80.5 KB

Name:  100_2901.jpg
Views: 350
Size:  83.9 KB

Name:  100_2902.jpg
Views: 350
Size:  80.0 KB

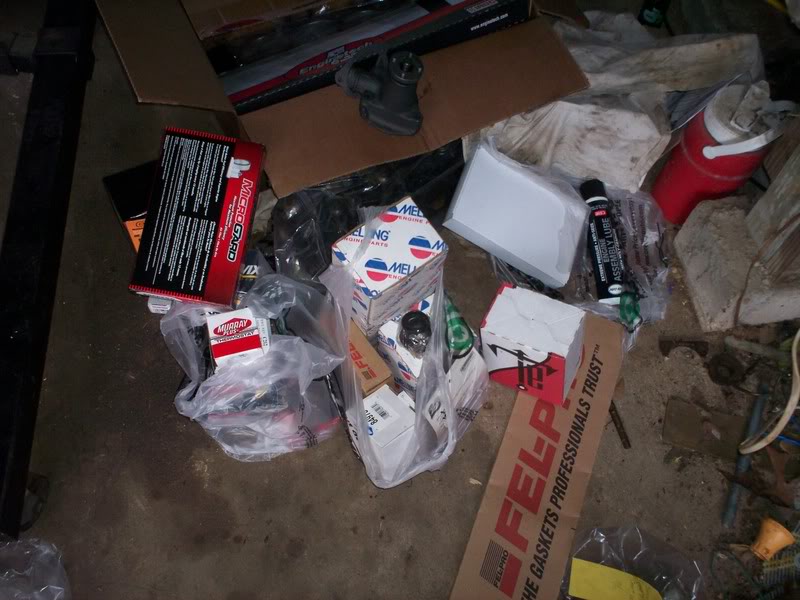

Name:  100_2903.jpg
Views: 351
Size:  83.0 KB

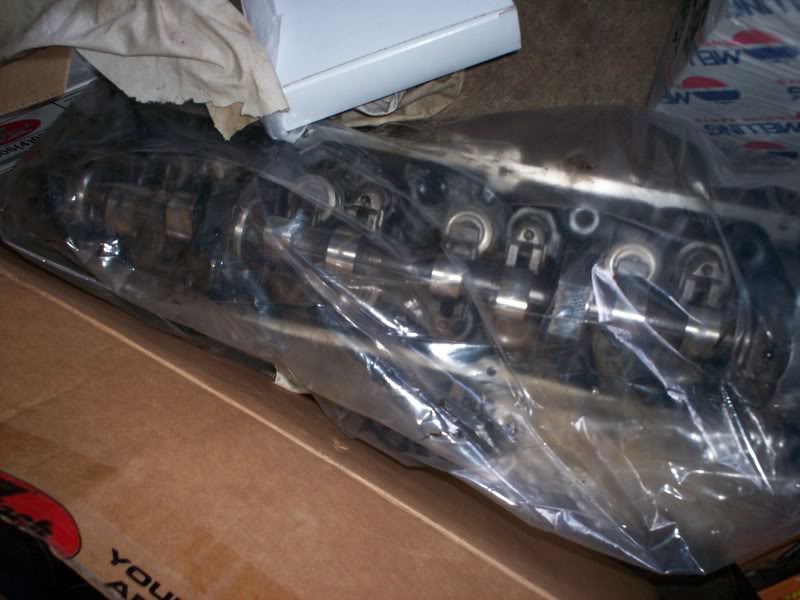

Name:  100_2904.jpg
Views: 349
Size:  66.8 KB
.30 over pistons.
Name:  100_2905.jpg
Views: 351
Size:  73.3 KB

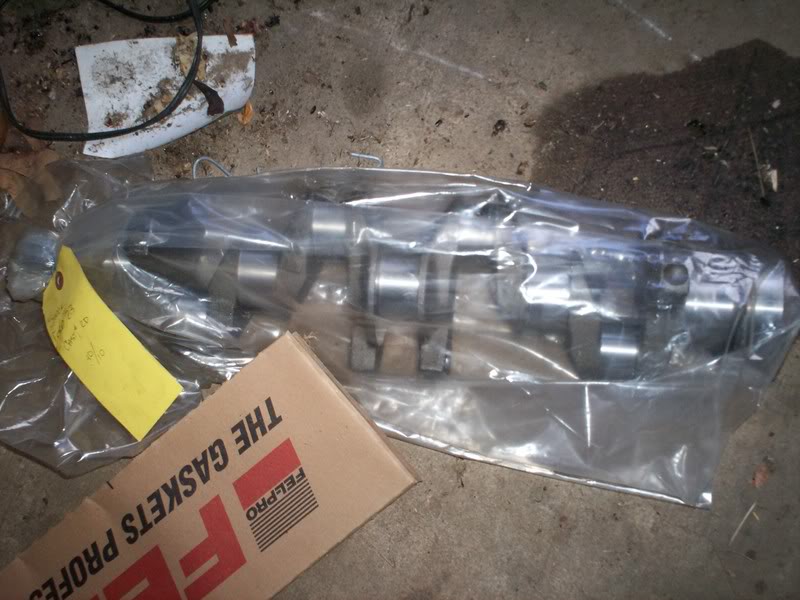

One hella clean crank :P
Name:  100_2907.jpg
Views: 351

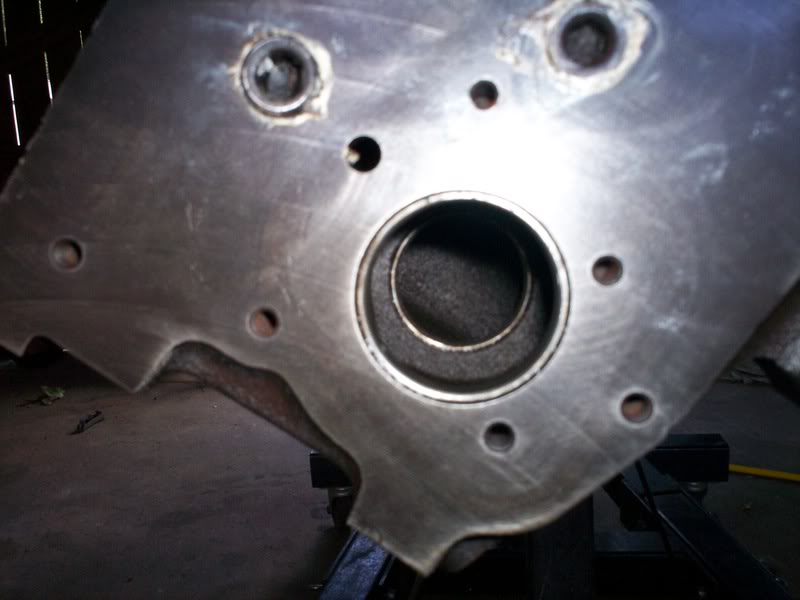

Size:  81.1 KB

Name:  100_2908.jpg
Views: 349
Size:  46.7 KB

Name:  100_2909.jpg
Views: 349
Size:  58.7 KB

Name:  100_2910.jpg
Views: 352
Size:  100.9 KB

Name:  100_2912.jpg
Views: 349
Size:  84.5 KB

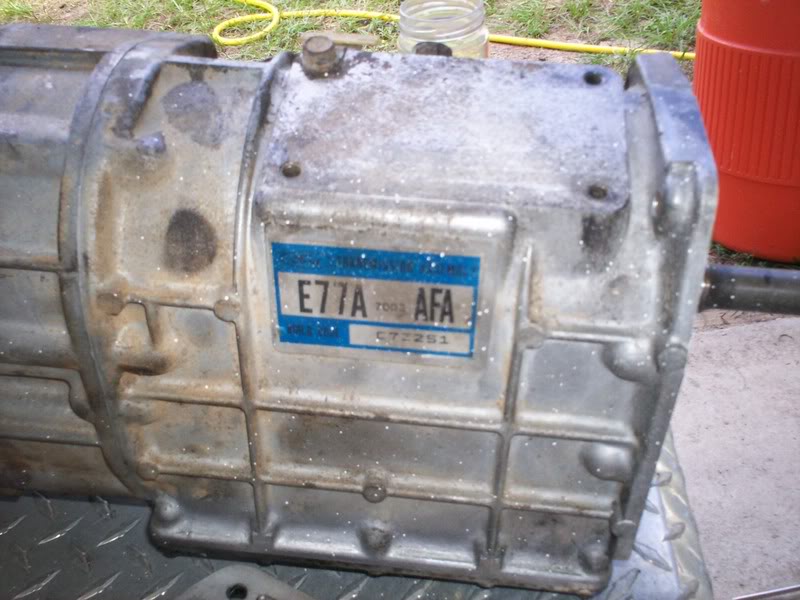

Name:  100_2913.jpg
Views: 350
Size:  79.9 KB

Name:  100_2915.jpg
Views: 350
Size:  51.2 KB

Name:  100_2920.jpg
Views: 352
Size:  50.3 KB

Name:  100_2921.jpg
Views: 352
Size:  82.5 KB

Name:  100_2922-1.jpg
Views: 349
Size:  77.5 KB

Name:  100_2923-1.jpg
Views: 352
Size:  80.5 KB

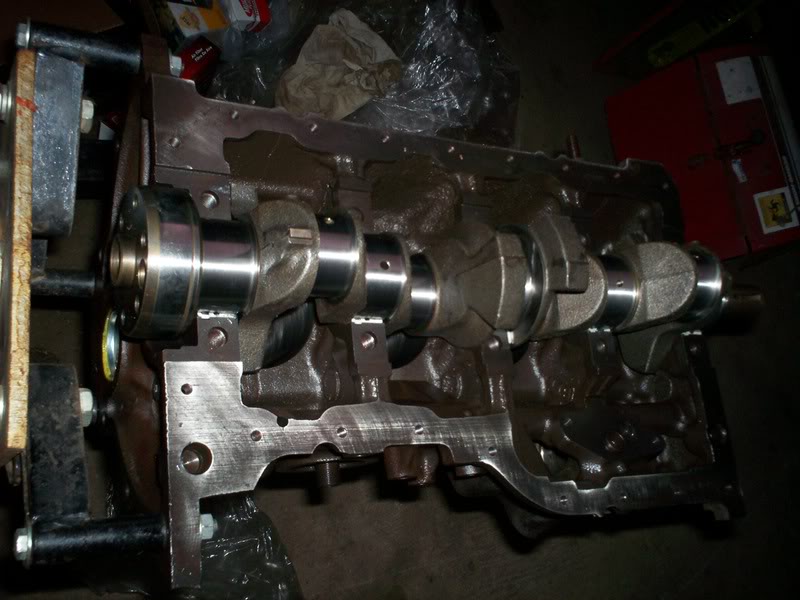

Name:  100_2922.jpg
Views: 346
Size:  77.5 KB

Name:  100_2923.jpg
Views: 349
Size:  80.5 KB
Reply With Quote
  #9
Old 09-16-2008
92rangerstx's Avatar
Member

Join Date: Sep 2008
Location: Rose Hill VA
Posts: 19
Good start on a project I have a 84 I am getting ready to drop a 351 in. But a really good start on your project.
Reply With Quote
  #10
Old 09-16-2008
87xlt's Avatar
Member
Thread Starter

Join Date: Jun 2008
Location: In my truck!
Posts: 875
Quote:
Originally Posted by 92rangerstx View Post
Good start on a project I have a 84 I am getting ready to drop a 351 in. But a really good start on your project.
Thanks man you are going to beef up the frame right? That 5.8 is going to twist the hell out of it if you dont!

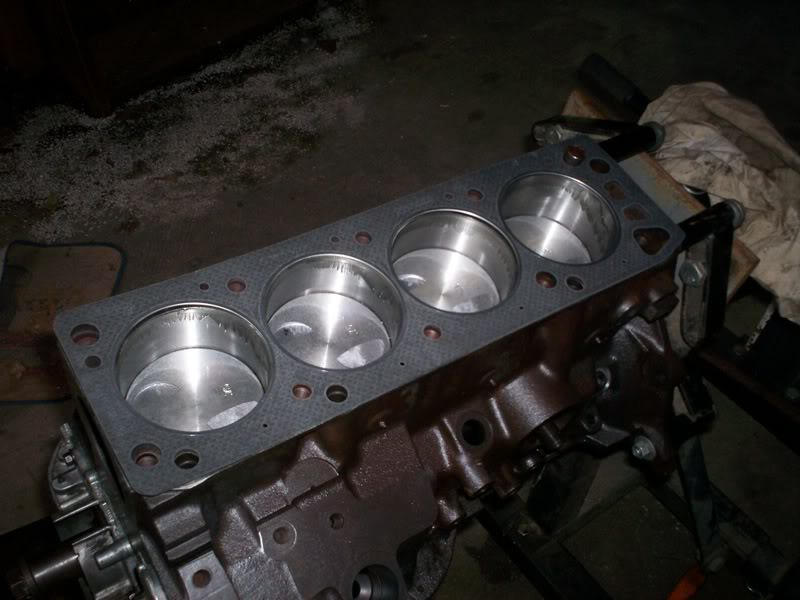

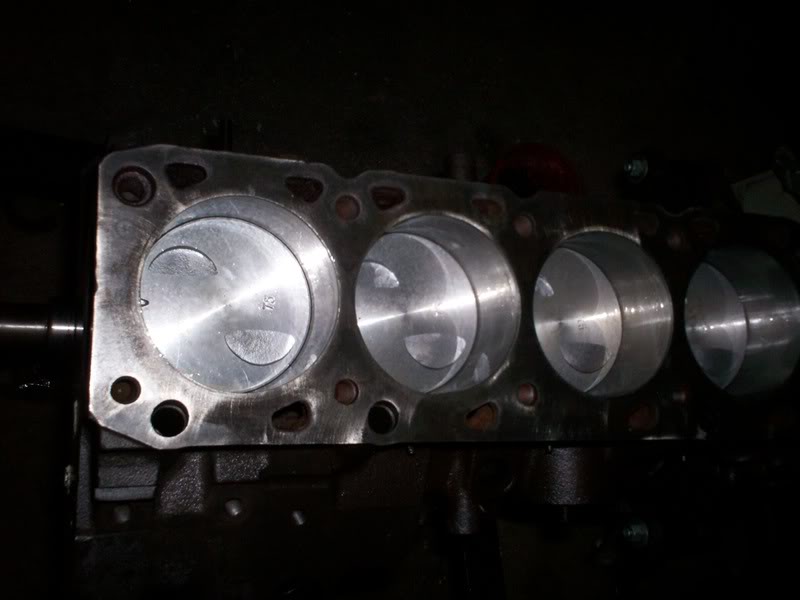

Anyhow the pistons are in .

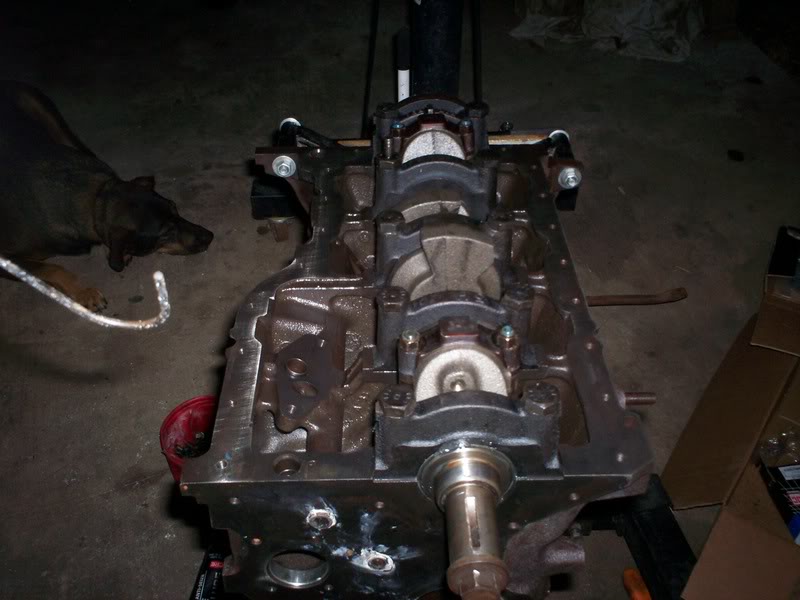

Name:  100_2924.jpg
Views: 353
Size:  87.5 KB

Name:  100_2925.jpg
Views: 353
Size:  66.2 KB

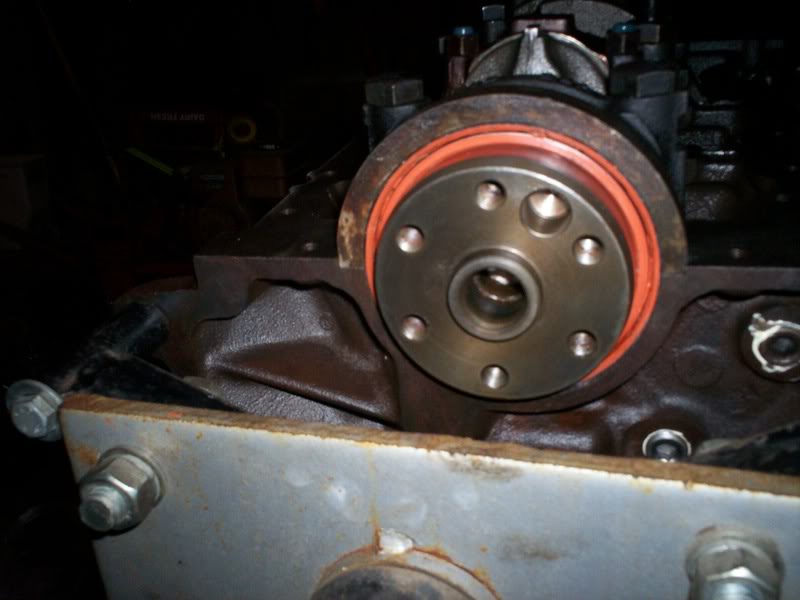

Name:  100_2926.jpg
Views: 350
Size:  53.1 KB

Name:  100_2927.jpg
Views: 351
Size:  45.4 KB

Name:  100_2928.jpg
Views: 348
Size:  55.6 KB
Reply With Quote
  #11
Old 09-16-2008
mhughes165's Avatar
Member

Join Date: Jun 2008
Location: Browns Mills, NJ
Posts: 194
the frame will be fine with a 351, unless he manages a PERFECT launch with no wheel spin......even then itll be fine
Reply With Quote
  #12
Old 09-27-2008
87xlt's Avatar
Member
Thread Starter

Join Date: Jun 2008
Location: In my truck!
Posts: 875

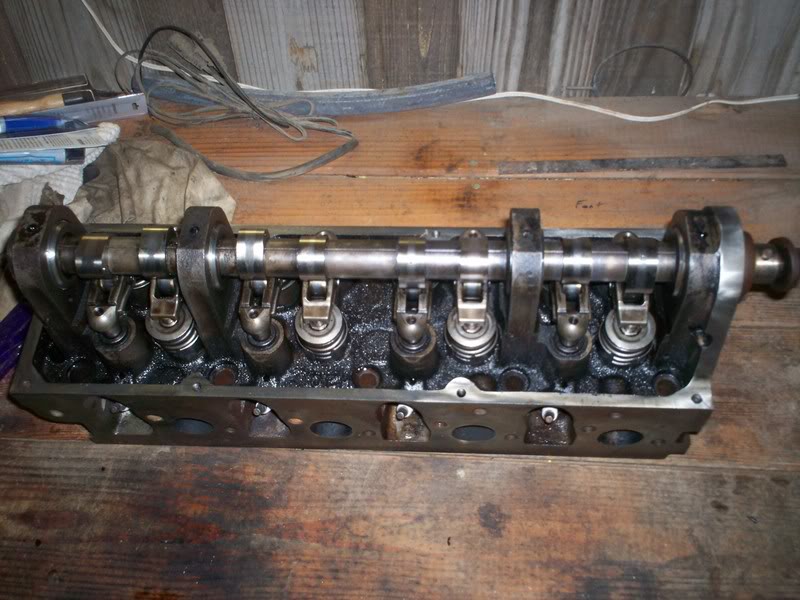

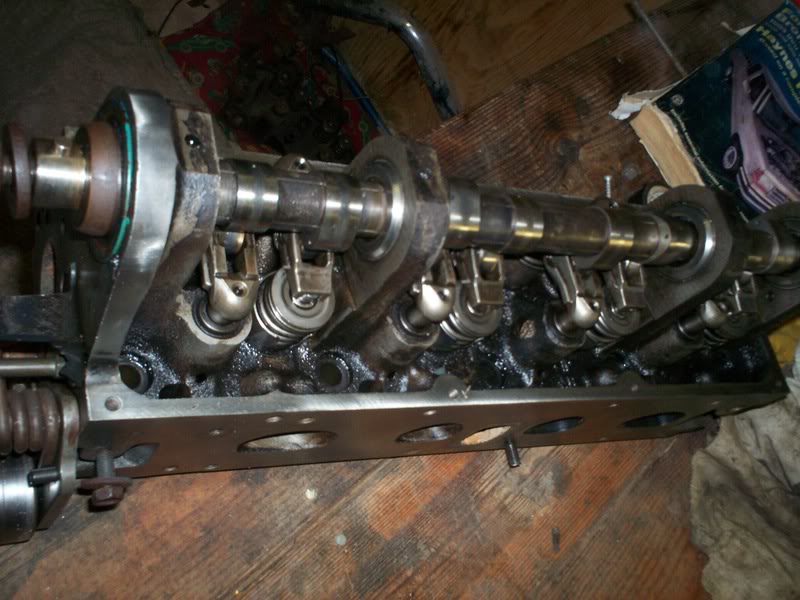

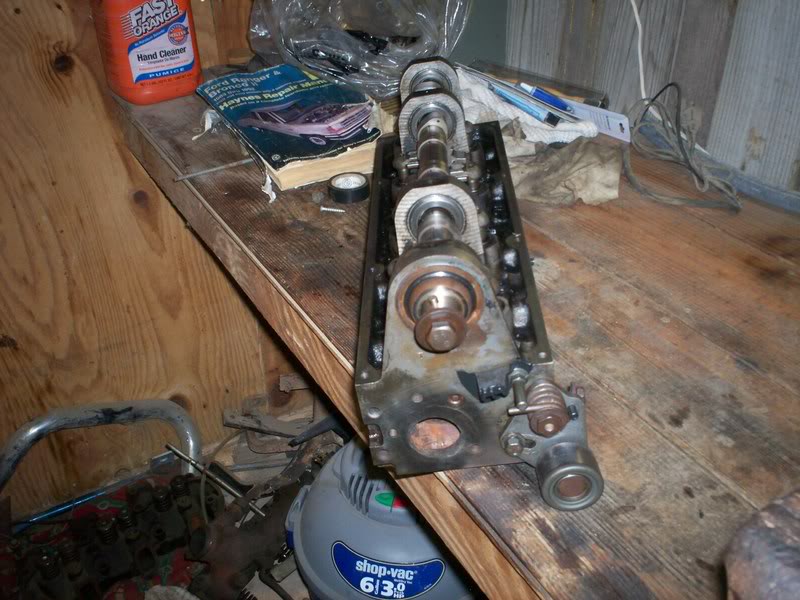

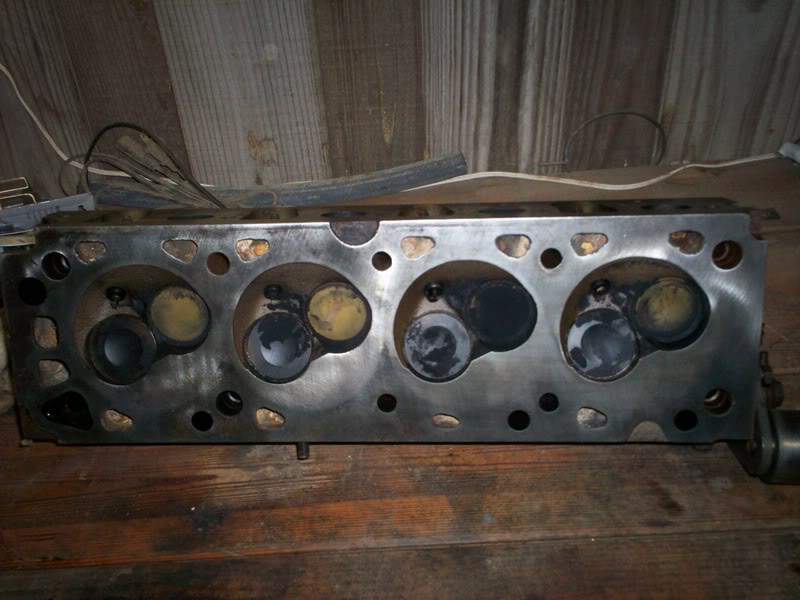

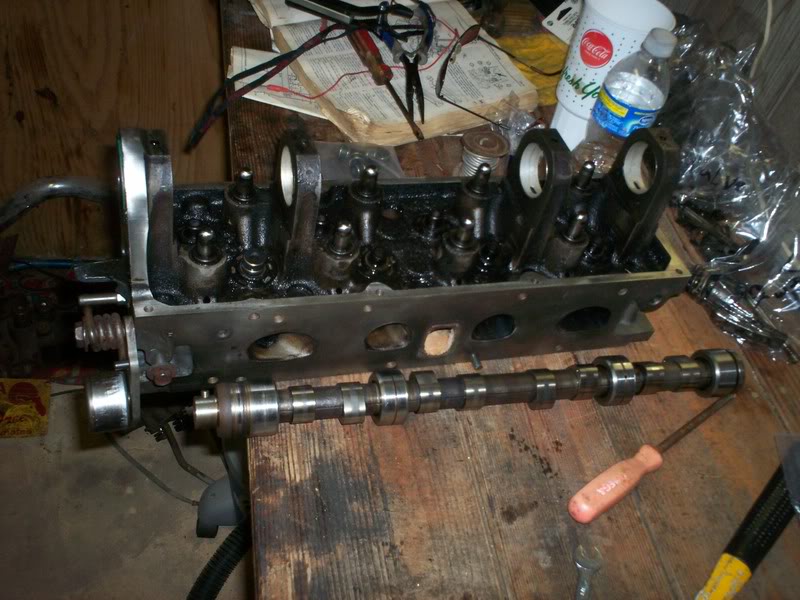

Well a little update got the head torn down and the nasty *** valves removed.

Name:  100_2950.jpg
Views: 352
Size:  91.1 KB

Name:  100_2951.jpg
Views: 349
Size:  85.8 KB

Name:  100_2952.jpg
Views: 350
Size:  93.3 KB

Name:  100_2953.jpg
Views: 354
Size:  72.8 KB

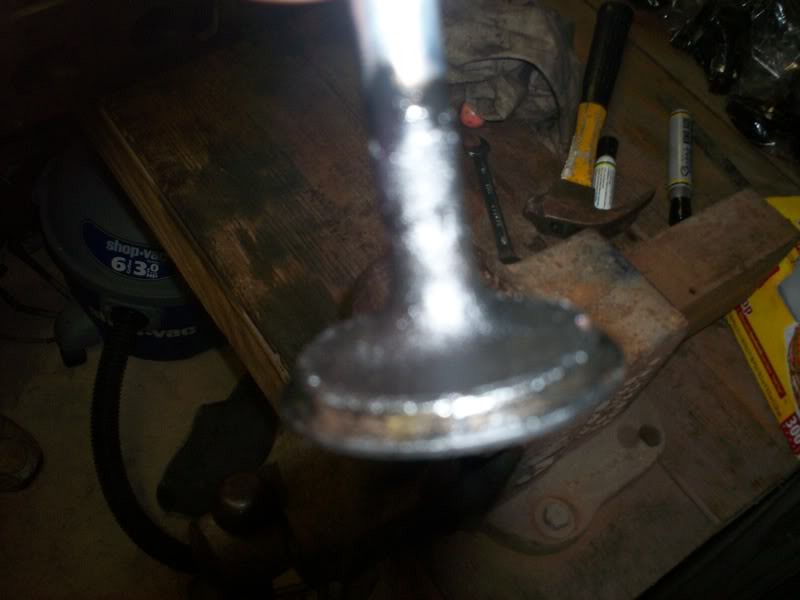

See i meant NASTY!
Name:  100_2954.jpg
Views: 349
Size:  42.3 KB

Name:  100_2955.jpg
Views: 354
Size:  93.6 KB

Name:  100_2956.jpg

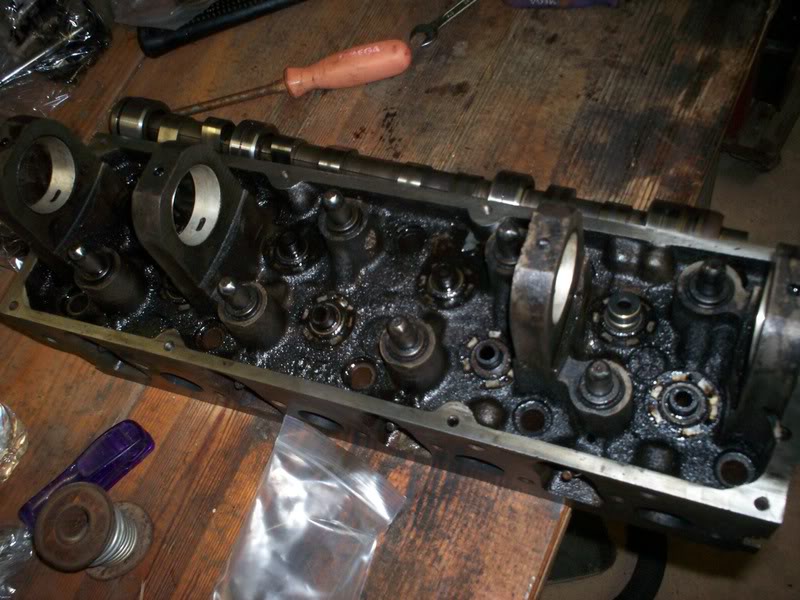

Views: 351
Size:  95.0 KB

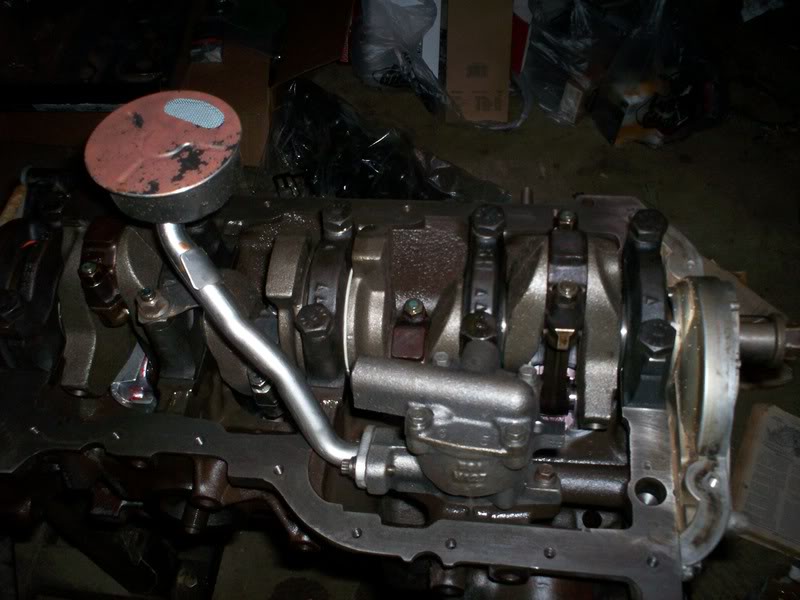

Name:  100_2929.jpg
Views: 352
Size:  70.8 KB

Name:  100_2931.jpg
Views: 348
Size:  71.0 KB

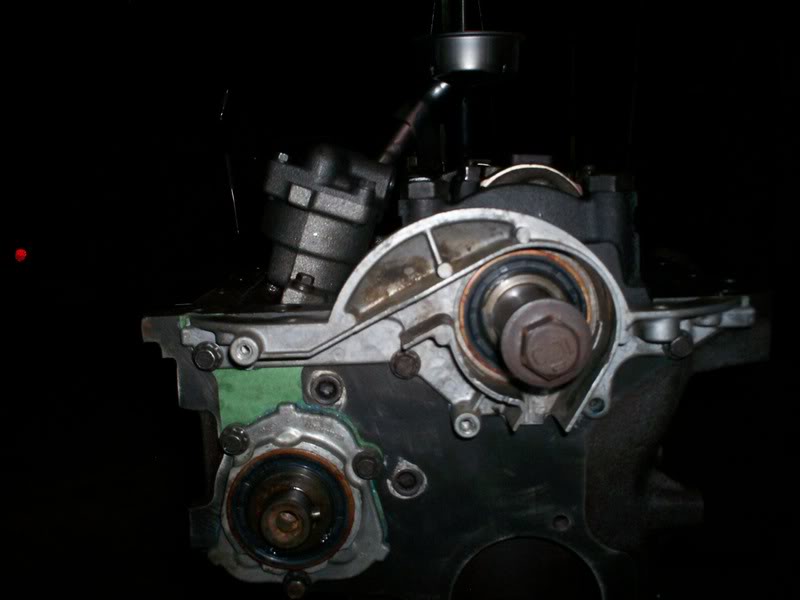

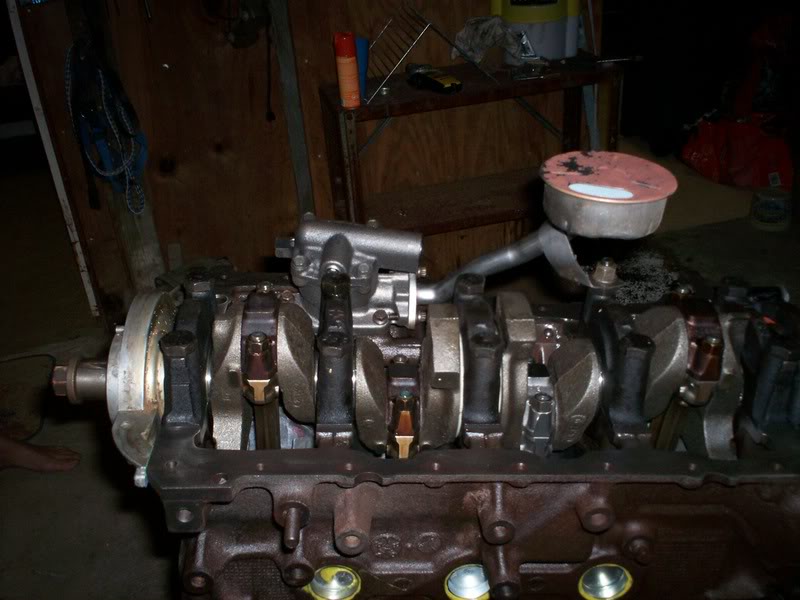

Name:  100_2930.jpg
Views: 349
Size:  44.5 KB

Name:  100_2932.jpg
Views: 347
Size:  51.1 KB

Name:  100_2933.jpg
Views: 348
Size:  66.3 KB

Name:  100_2934.jpg
Views: 348
Size:  60.8 KB

Name:  100_2936.jpg
Views: 347
Size:  65.4 KB

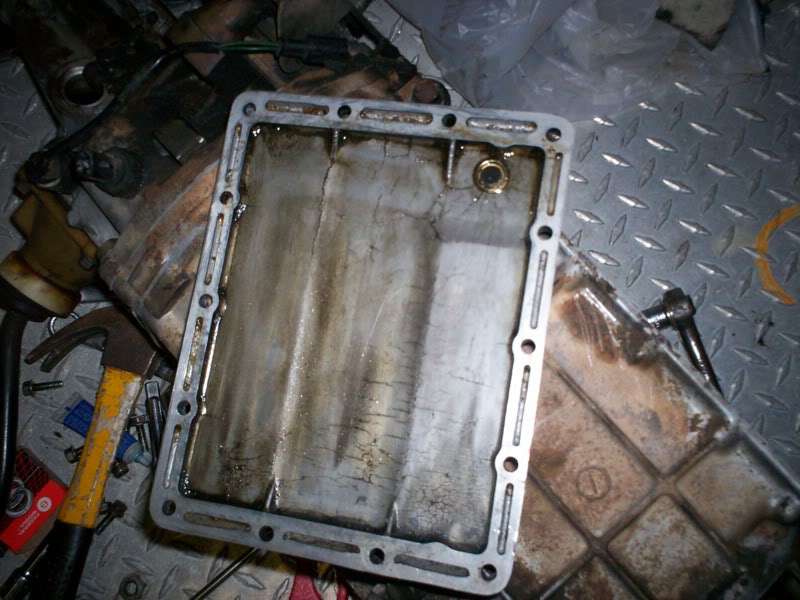

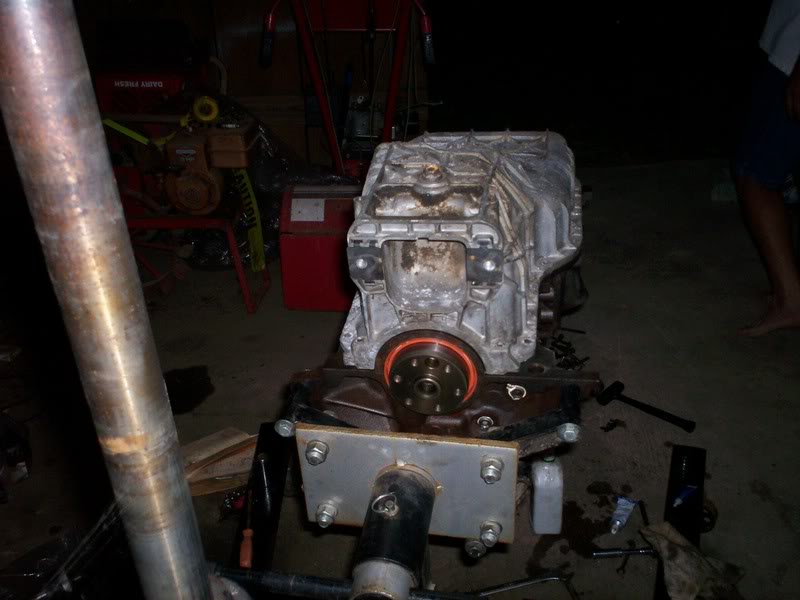

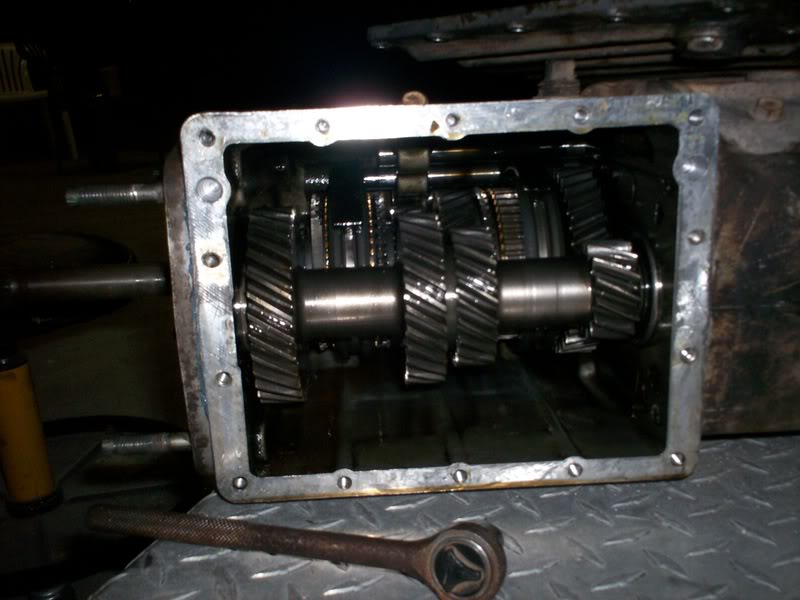

Ford wanted$45 for the gasket for the lower pan for my 5-speed.
Name:  100_2937.jpg
Views: 348
Size:  84.4 KB

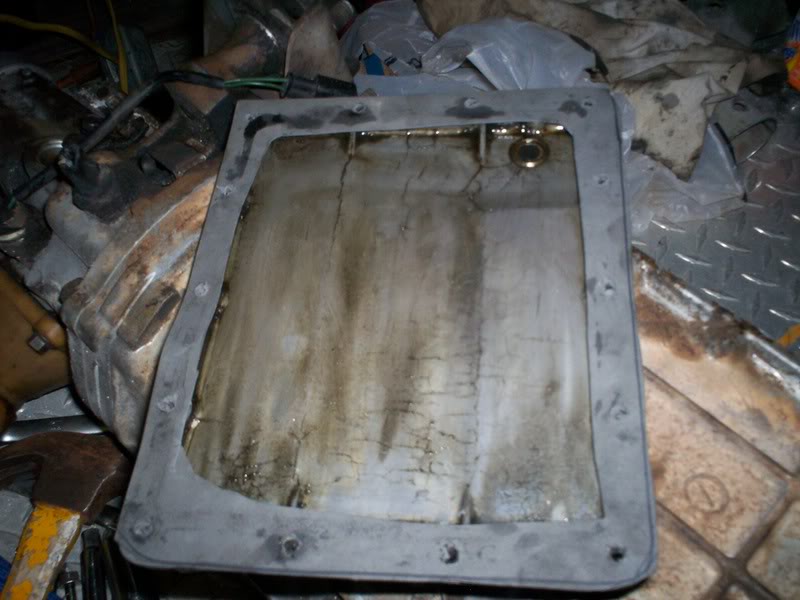

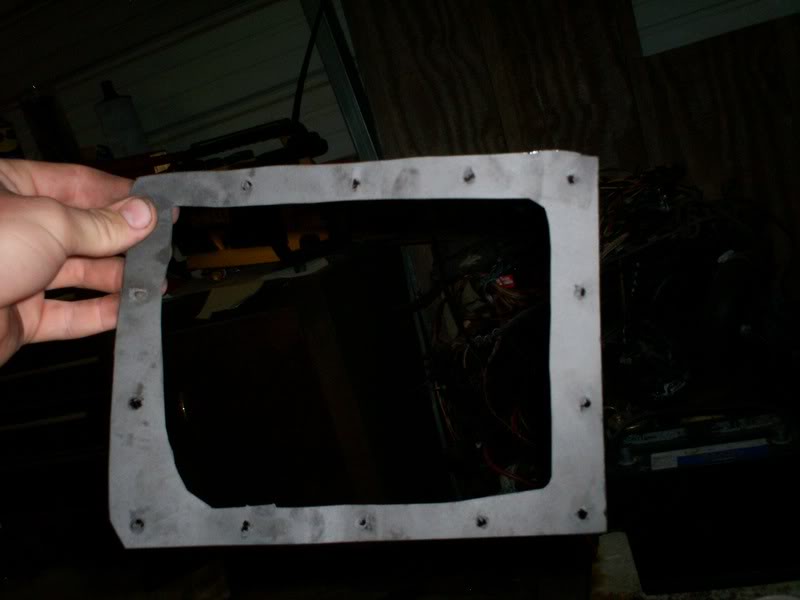

I said F that and made my own
Name:  100_2939.jpg
Views: 348
Size:  35.2 KB

Name:  100_2938.jpg
Views: 347
Size:  67.1 KB

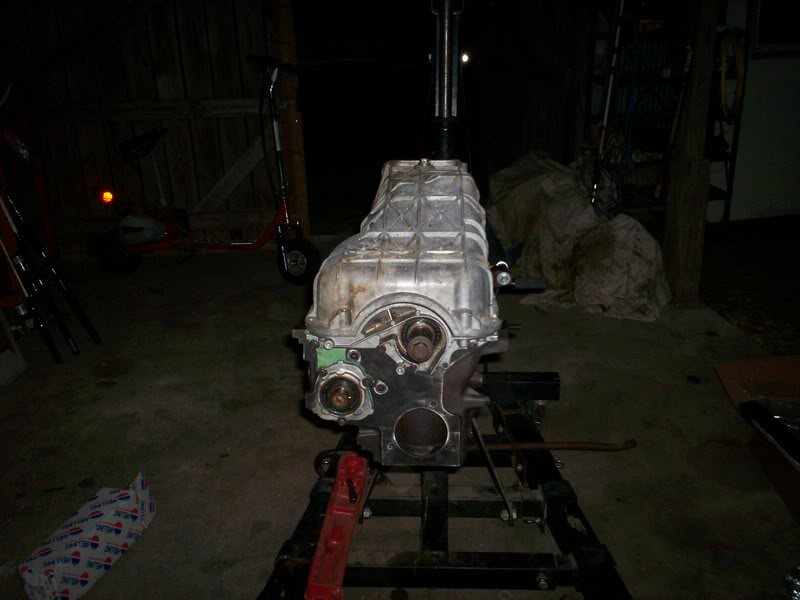

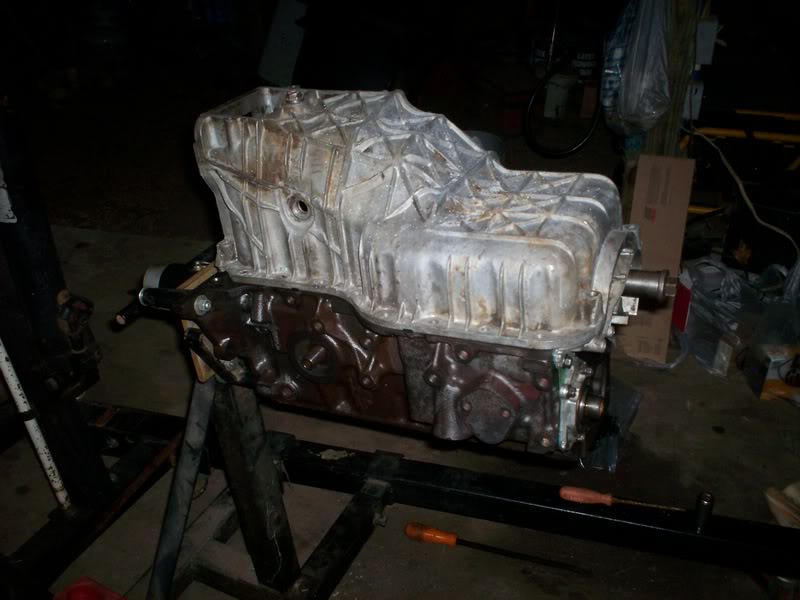

Well the bottom end is done :) once the head is rebuilt the engine will be ready to go back in. Right now im waiting on ohc bearings :(.
Reply With Quote
  #13
Old 09-27-2008
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
looks good but trim that gasket to fit a little better..
Reply With Quote
  #14
Old 09-27-2008
87xlt's Avatar
Member
Thread Starter

Join Date: Jun 2008
Location: In my truck!
Posts: 875
Quote:
Originally Posted by Redneckstone View Post
looks good but trim that gasket to fit a little better..
Already did i just dont have any after pictures of that.
Reply With Quote
  #15
Old 10-03-2008
87xlt's Avatar
Member
Thread Starter

Join Date: Jun 2008
Location: In my truck!
Posts: 875

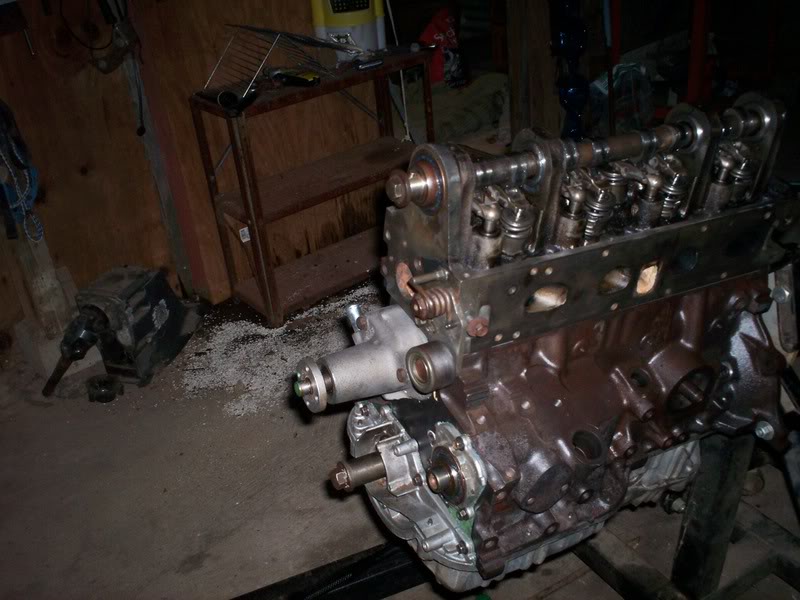

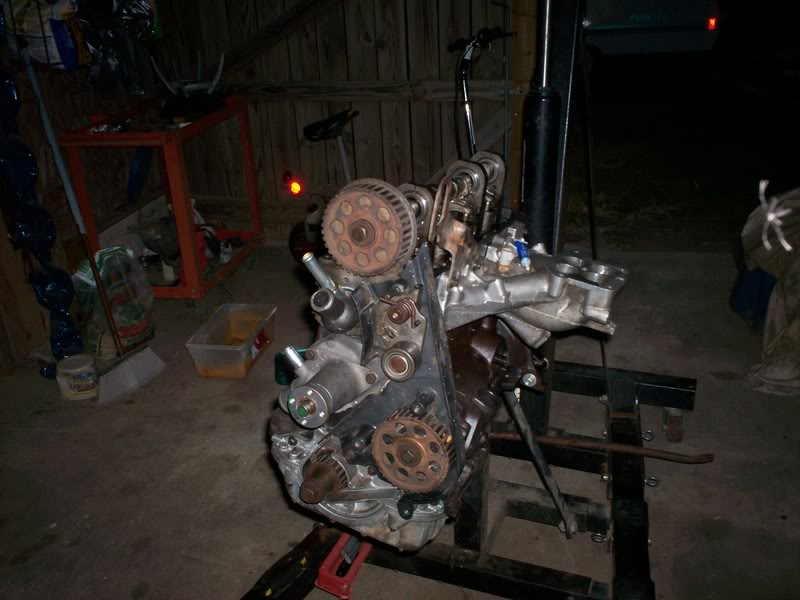

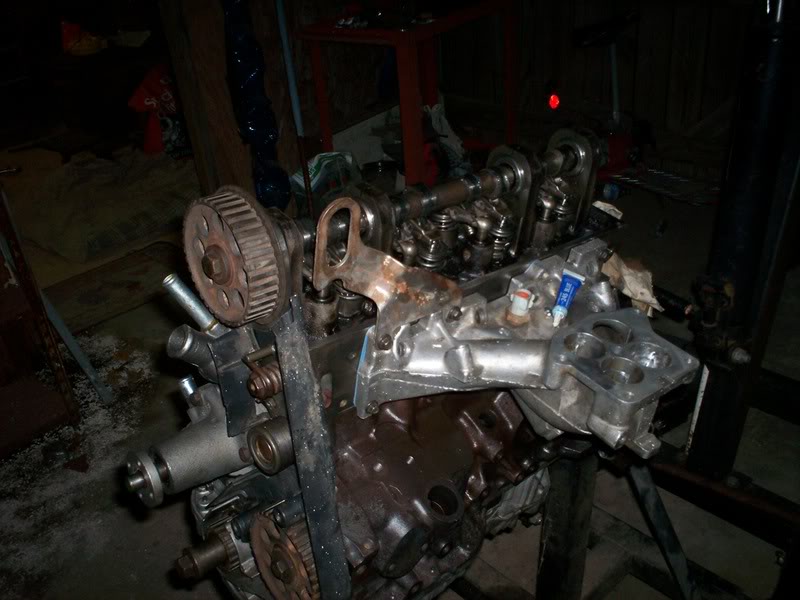

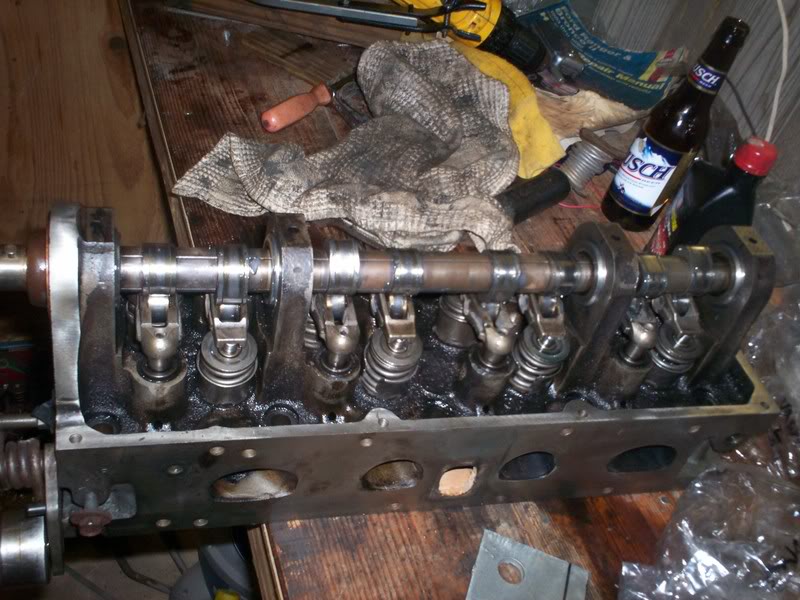

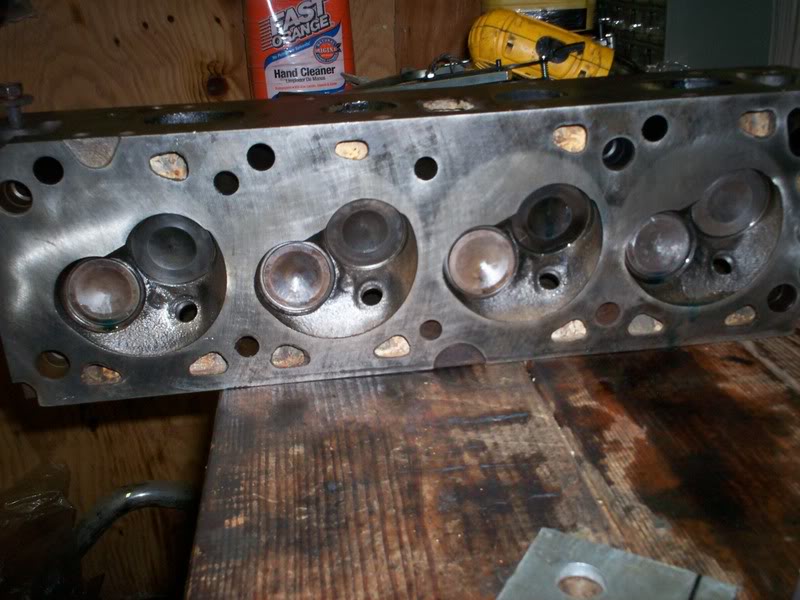

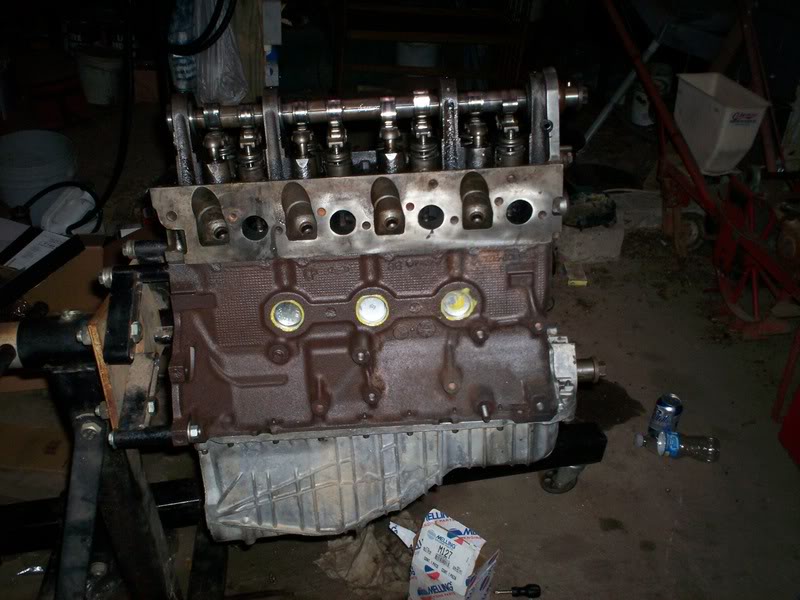

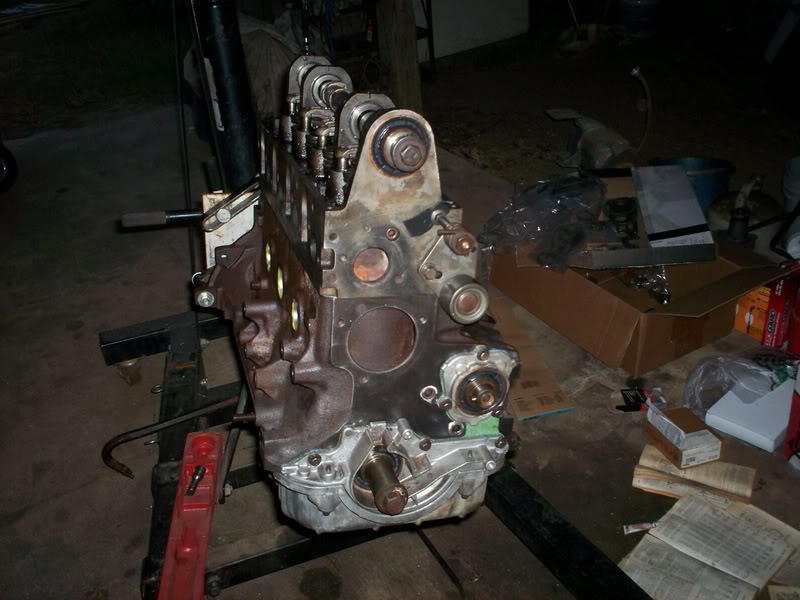

Well some more progress and pic's the head is back together and on the block. All timing gears are installed and lower intake. Now i need paint for the valve cover ford blue .

Name:  100_2975.jpg
Views: 348
Size:  99.4 KB

Name:  100_2976.jpg
Views: 347
Size:  83.6 KB

Name:  100_2977.jpg
Views: 346
Size:  70.2 KB

Name:  100_2978.jpg
Views: 384
Size:  77.2 KB

Name:  100_2979.jpg
Views: 346
Size:  83.3 KB

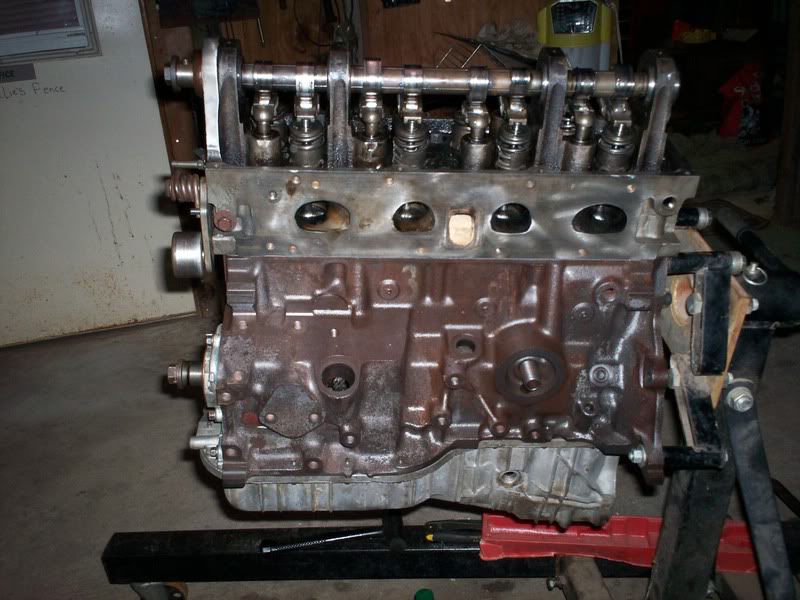

Name:  100_2980.jpg
Views: 349
Size:  89.8 KB

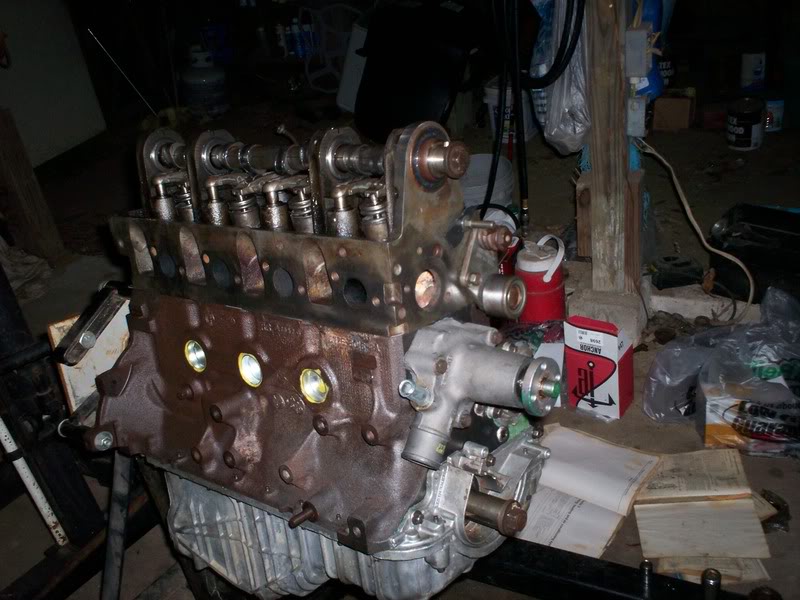

Name:  100_2981.jpg
Views: 348
Size:  89.8 KB

Name:  100_2982.jpg
Views: 348
Size:  80.6 KB

Name:  100_2983.jpg
Views: 349
Size:  71.3 KB

Name:  100_2984.jpg
Views: 347
Size:  74.4 KB

It wont be long now!
Reply With Quote
  #16
Old 10-04-2008
87xlt's Avatar
Member
Thread Starter

Join Date: Jun 2008
Location: In my truck!
Posts: 875
Cost so far for all this ****...

Grind Crank $80.00
Bore block .30 over $54.00
Press piston pin's in $24.00
Clean block install aux cam bearing's and freeze plugs $70.00
Clean head $15.00
Total for machine work 278.52

Now for the parts....
1 Connecting rod 34.90
Fel-pro Valve stem seal all 8 of them 17.99
Front 5-speed tranny seal 13.49
Tail end seal for 2wd tranny 12.99
Aux cam bearing set 16.99
Oil pan gasket 19.07
Thermostat 5.99
Oxy sensor 40.00
Dist cap 8.00
Dist Rotor 5.00
Water pump 22.99
Passenger motor mount 39.99
Spark plug wire set 15.99
Spark plugs 6.76
Oil filter 5.29
Air filter 5.29
Intake manifold gaskets 6.99
Power st pressure switch 24.99
Timing belt 6.99
Water outlet 20.00
Piston ring compressor 13.99
Oil pump 35.99
oil pump screen 33.99
Head bolt set 35.99
Engine asy lube 5.29
All of this for a grand total of..... $763.57
Reply With Quote
  #17
Old 10-07-2008
87xlt's Avatar
Member
Thread Starter

Join Date: Jun 2008
Location: In my truck!
Posts: 875

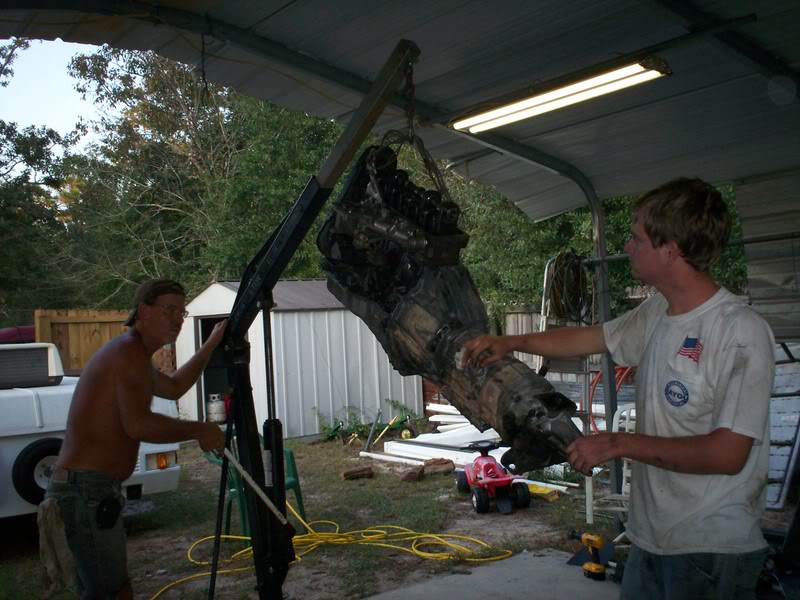

Well the engine is back in the truck and it ran for the first time tonight! Damn im so glad to hear that little 2.3 fire up :).

Im in the white shirt the person w/o a shirt is my dad without his help none of this would be possible.

Name:  100_2990.jpg
Views: 342
Size:  96.1 KB

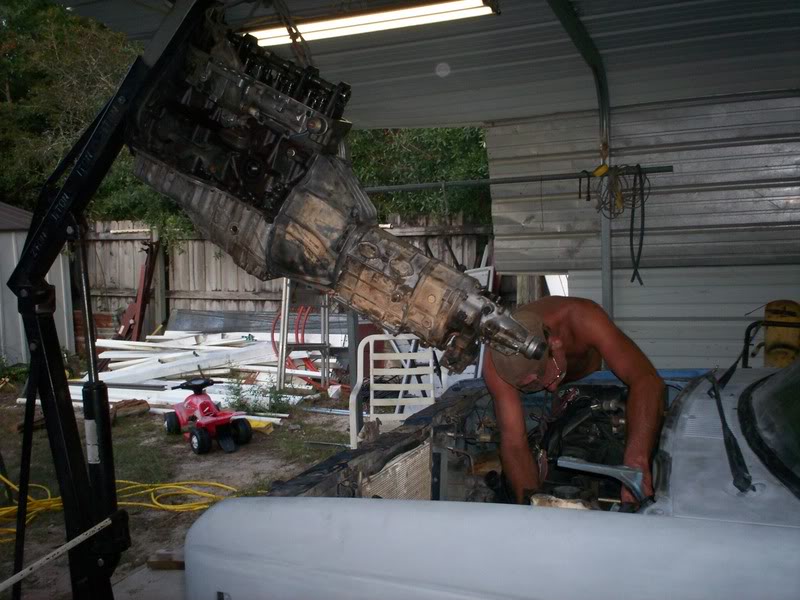

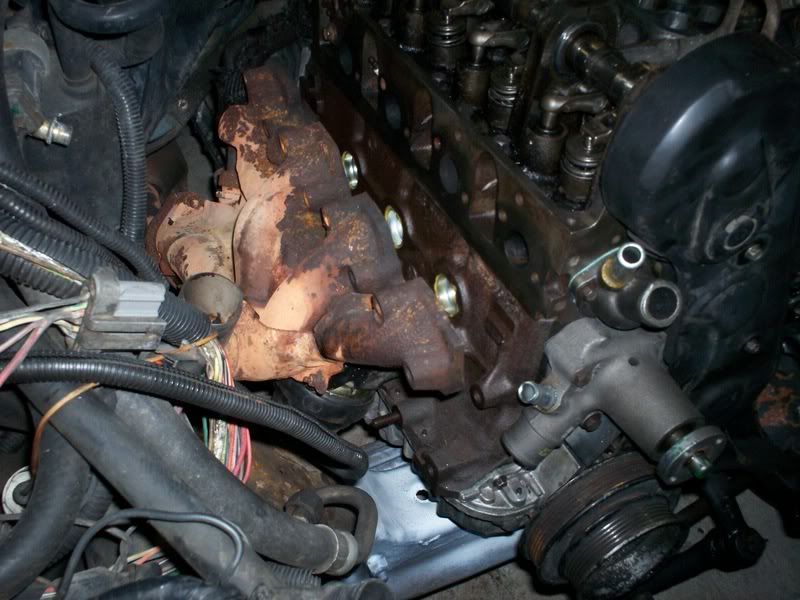

Almost there..
Name:  100_2991.jpg
Views: 346
Size:  93.9 KB

:)
Name:  100_2992.jpg
Views: 348
Size:  100.0 KB

Name:  100_2993.jpg
Views: 346
Size:  84.8 KB

Name:  100_2994.jpg
Views: 416
Size:  92.0 KB
Reply With Quote
  #18
Old 10-14-2008
87xlt's Avatar
Member
Thread Starter

Join Date: Jun 2008
Location: In my truck!
Posts: 875

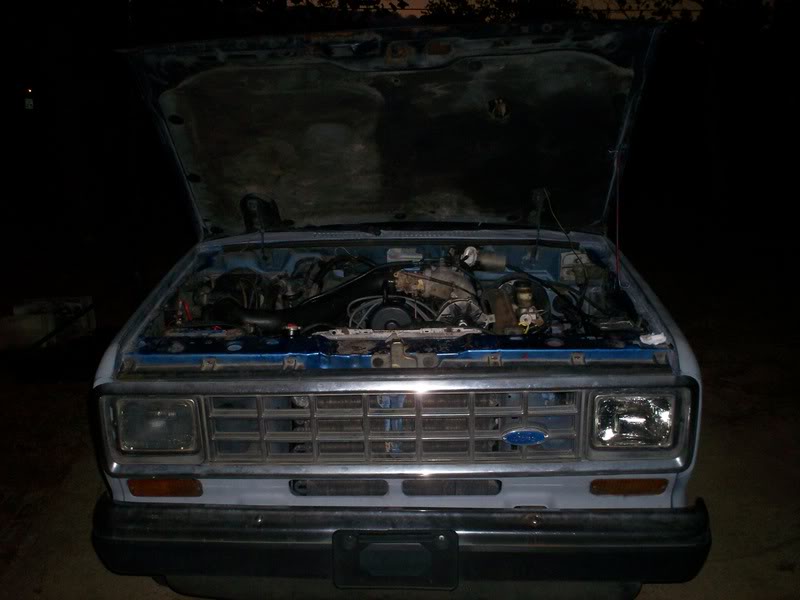

Well the Ranger broke 100 miles today and all is well :).

Name:  100_2995.jpg
Views: 374
Size:  96.8 KB

Name:  100_2996.jpg
Views: 345
Size:  56.8 KB

Name:  100_2997.jpg
Views: 351
Size:  98.8 KB

Name:  100_2998.jpg
Views: 346
Size:  54.2 KB

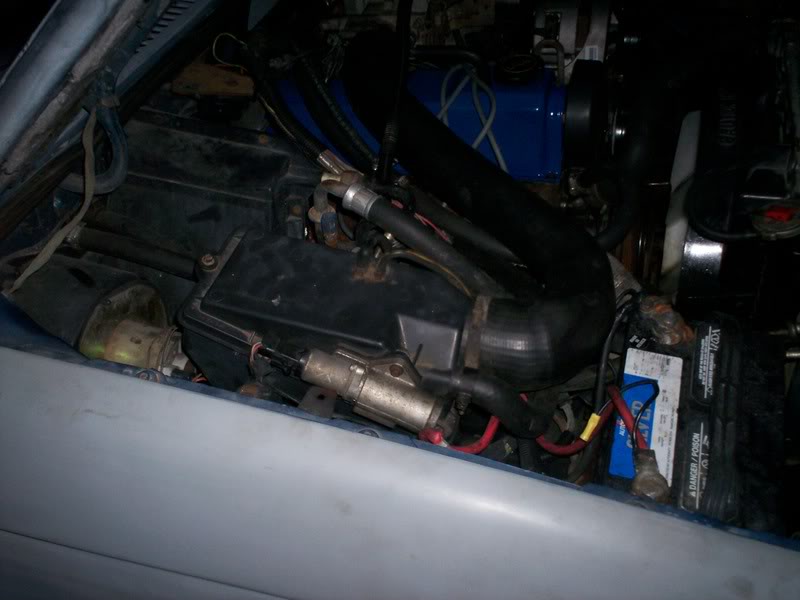

I am going to paint the truck midnight blue. It will be a kickass ride when im done!
Reply With Quote
  #19
Old 10-14-2008
dangerranger93's Avatar
Member

Join Date: Apr 2008
Location: NOVA
Posts: 468
wow i love that body style
Reply With Quote
  #20
Old 10-14-2008
TheStig88's Avatar
Member
iTrader: (4)

Join Date: Aug 2008
Location: Columbia, Missouri
Posts: 2,120
better than ****
Reply With Quote
  #21
Old 10-14-2008
dangerranger93's Avatar
Member

Join Date: Apr 2008
Location: NOVA
Posts: 468
yeah!!
Reply With Quote
  #22
Old 10-15-2008
87xlt's Avatar
Member
Thread Starter

Join Date: Jun 2008
Location: In my truck!
Posts: 875
Haha would you guys be talking about the truck or the av?
Reply With Quote
  #23
Old 10-15-2008
04BlackFX4's Avatar
Member

Join Date: Jun 2006
Location: Maine
Posts: 1,159
I think the truck, or both LOL, whered you get the av? And great work man, nice job.
Reply With Quote
  #24
Old 10-15-2008
87xlt's Avatar
Member
Thread Starter

Join Date: Jun 2008
Location: In my truck!
Posts: 875
Quote:
Originally Posted by 04BlackFX4 View Post
I think the truck, or both LOL, whered you get the av? And great work man, nice job.
I came around the av just messing around in google image search. Thanks the truck is still doing great now i just need to save up and fix the A/C.
Reply With Quote
  #25
Old 10-16-2008
Member

Join Date: Dec 2006
Location: Lehi, Utah
Posts: 731
All the engine work and you didn't do a 2.3T swap?
Reply With Quote
Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
96 Ranger w/ 2.3 needs more power! Engine rebuild or swap? godzilla13 SOHC - 2.3L & 2.5L Lima Engines 1 07-06-2014 10:44 PM
rebuild engine vs used engine schooney New Ideas 22 03-11-2011 06:15 PM
Advice on an engine rebuild Gearhead61 General Technical & Electrical 4 12-17-2007 09:18 PM
Nagging Engine Problems / Rebuild 94greenmachine Project Logs 8 08-25-2007 08:58 PM
Engine Rebuild, Or Swap? spec_ops57 General Ford Ranger Discussion 8 03-06-2006 03:51 PM


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -6. The time now is 10:57 AM.


We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
