93 FW Ranger

well ive posted my truck on other sites so i guess ill post here too. its a 93 extended cab 4x4. swapped out the 3.0l for a 94 4.0l. front end is a 78 hp d44 fw converted to 8 lug, 5.13 gears and a welded carrier, and james duff radius arms. rear is a ff 14bolt w/ disc brakes, and a welded carrier. shortened the wb to 118" running 38.5x15x15 boggers. bobbed and dovetailed the bed and narrowed the nose with a 03 fiberglass hood and grille. its still under construction

Name:  IMG_2563.jpg
Views: 148
Size:  115.5 KB

Name:  93ranger001.jpg
Views: 103
Size:  102.1 KB

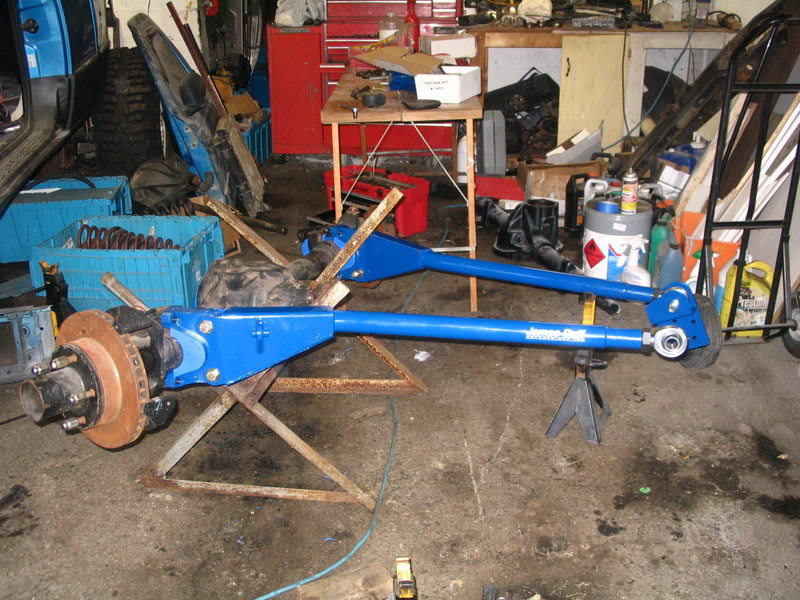

Name:  Matts114.jpg
Views: 72
Size:  132.5 KB
here's the duff arms

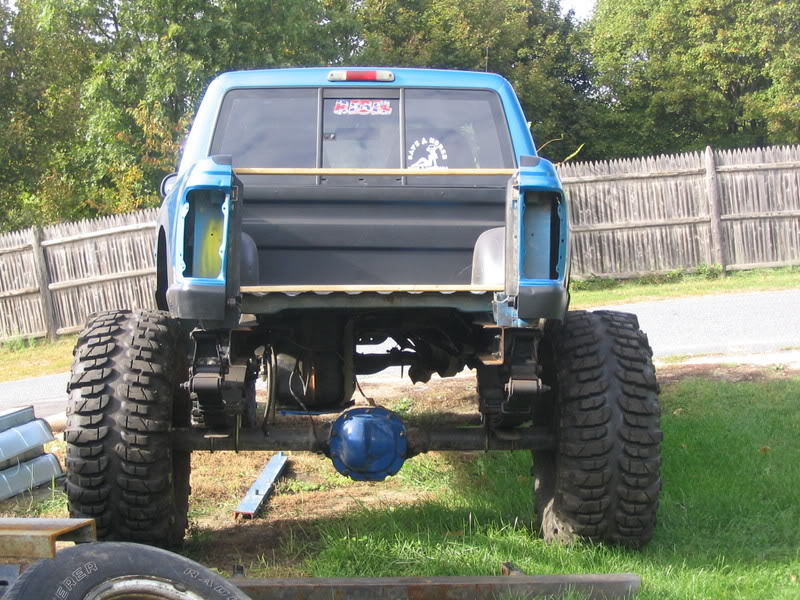

Name:  93ranger040.jpg
Views: 105
Size:  142.3 KB
heres the dovetailed bed

still have a lot to do but hoping to finish up for late spring early summer. ill get some more recent pictures up soon but its not getting much done to it til i get some heat in my garage.
Reply With Quote
  #2
Old 12-30-2007
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
That's looking very, very good. I like it. I'm using the same axle in mine, but 4.56 and an open for now. Some kind of locker later. I won't be going over 35's though since it's my DD.
Reply With Quote
  #3
Old 12-30-2007
Cody_288's Avatar
Member

Join Date: Oct 2005
Location: Oil City, PA, Pittsfield, PA
Posts: 511
BADASS!
Reply With Quote
  #4
Old 12-31-2007
4LO 4.0's Avatar
Member
iTrader: (5)

Join Date: Jun 2007
Location: Grovetown, Ga
Posts: 650
Very nice rig!!
Reply With Quote
  #5
Old 01-05-2008
Member
Thread Starter

Join Date: Dec 2007
Location: Fitchburg,MA
Posts: 110

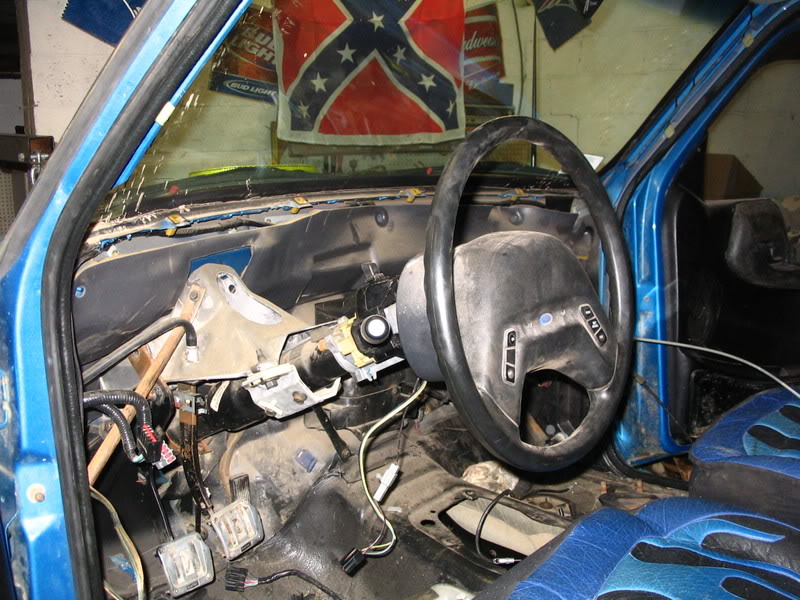

ripped the dash out today. started thinking about what to do for a new dash.

Name:  IMG_2966.jpg
Views: 71
Size:  123.3 KB
Name:  IMG_2967.jpg
Views: 70
Size:  88.1 KB

suppose to be in the 40's tomorrow so im gonna try to get some more stuff done. more pics soon
Reply With Quote
  #6
Old 01-05-2008
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Beautiful! Gonna be a sweet trail rig! Any pictures from the side with the bed on?
Reply With Quote
  #7
Old 01-20-2008
Member
Thread Starter

Join Date: Dec 2007
Location: Fitchburg,MA
Posts: 110
well last week i had some good weather so me and my buddy chris managed to get the tranny out of my parts truck and into the big truck.

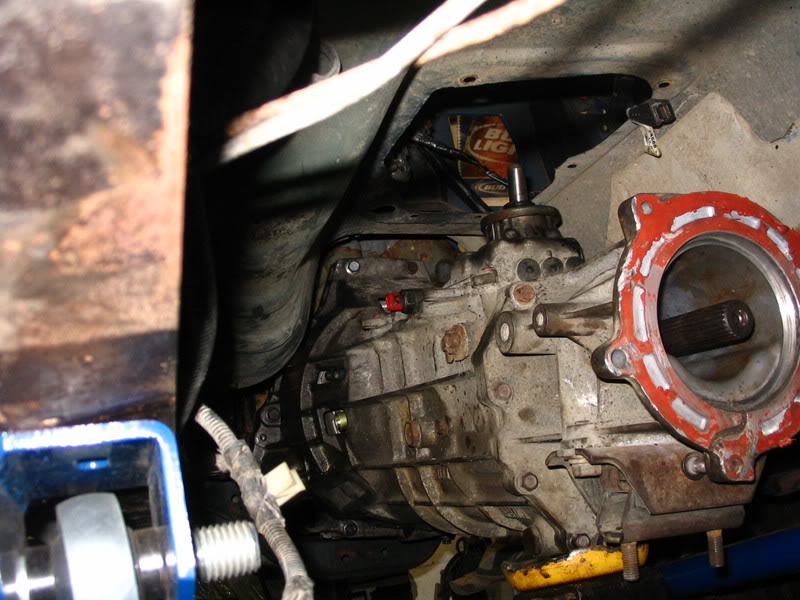

Name:  93ranger027.jpg
Views: 72
Size:  91.9 KB

right now the tranny and transfercase are in and the tranny x-member is in.

worked on the motor wiring harness and got the radiator in.
trying to get this thing running asap so i can get it out of the garage on its own power this spring.

heres a couple random pics from awhile ago in the build up

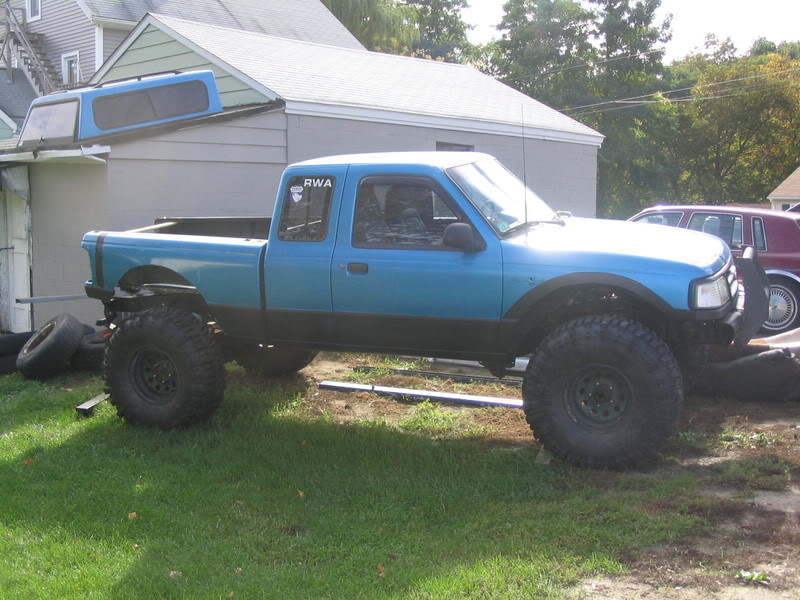

Name:  93ranger044.jpg
Views: 141
Size:  103.6 KB
Name:  mattsrandom046.jpg
Views: 71
Size:  74.5 KB

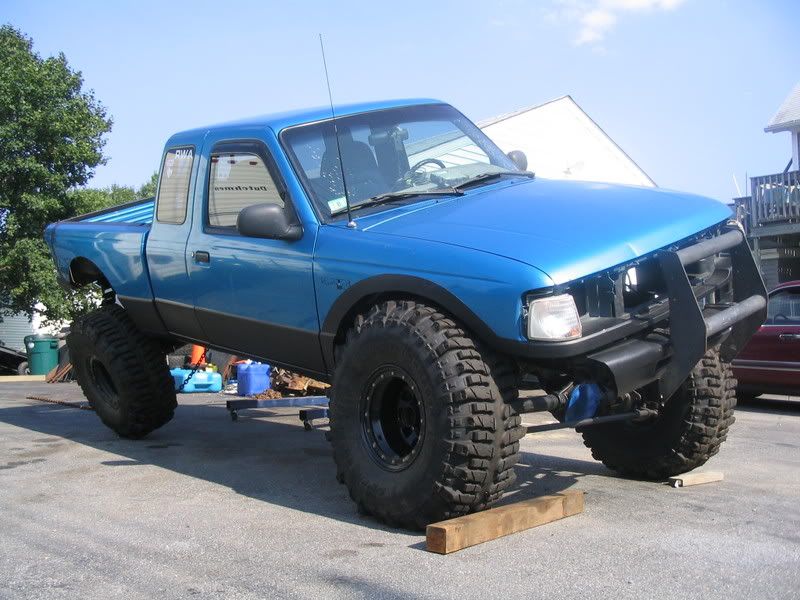

Name:  mattsrandom047.jpg
Views: 72
Size:  97.6 KB
Reply With Quote
  #8
Old 01-21-2008
WowMike2001's Avatar
Member

Join Date: Oct 2007
Location: Stevenson, WA
Posts: 2,583
I love that truck :-) lol
Reply With Quote
  #9
Old 01-21-2008
Member

Join Date: Jun 2005
Location: Riverview, Fl
Posts: 1,340
Truck looks good.
Reply With Quote
  #10
Old 01-23-2008
Legion's Avatar
Member

Join Date: Mar 2007
Location: Austin, TX
Posts: 288
i've been following this truck since about the time i got a ranger. i love the stance.

its a tank.
Reply With Quote
  #11
Old 01-23-2008
Member
Thread Starter

Join Date: Dec 2007
Location: Fitchburg,MA
Posts: 110
yea its starting to come along. i havent really had a lot of time this past year to get stuff done like i planned, just little bits and pieces here and there. im really going at it this winter though to try and have it out for spring time.
Reply With Quote
  #12
Old 02-08-2008
Member
Thread Starter

Join Date: Dec 2007
Location: Fitchburg,MA
Posts: 110
picked up a new toy today and got to bobbing the bed.
Name:  93ranger031.jpg
Views: 69
Size:  63.6 KB

Name:  93ranger030.jpg
Views: 72
Size:  75.6 KB

Name:  93ranger032.jpg
Views: 74
Size:  66.7 KB

Name:  93ranger033.jpg
Views: 70
Size:  79.5 KB

Name:  93ranger036.jpg
Views: 100
Size:  97.0 KB
took 10" out of the front and ran out of cutoff wheels. still gotta take about another 6-8" out of the back and dovetail the bed.
Reply With Quote
  #13
Old 02-09-2008
WowMike2001's Avatar
Member

Join Date: Oct 2007
Location: Stevenson, WA
Posts: 2,583
Hell yeah, new Sawzall! I love mine! :-D I've been breaking my own Dremel and Sawzall out alot more often to do little things.. they are jsut so handy to have around...!
Reply With Quote
  #14
Old 02-10-2008
RageRanger's Avatar
Member

Join Date: Jan 2007
Location: Westfield, Mass
Posts: 434
I love that truck.. its like mines big brother!! when are we gona see this thing on the streets in MA!
Reply With Quote
  #15
Old 02-11-2008
Member
Thread Starter

Join Date: Dec 2007
Location: Fitchburg,MA
Posts: 110
streets?! thats a good one. the closest this thing will see to the street is my driveway. in no way shape of form is this thing MA street legal. strictly trailer queen.
Reply With Quote
  #16
Old 02-11-2008
Rooks's Avatar
Member
iTrader: (7)

Join Date: Sep 2006
Location: Minneapolis, MN
Posts: 1,867
Quote:
Originally Posted by RWARanger View Post
took 10" out of the front and ran out of cutoff wheels. still gotta take about another 6-8" out of the back and dovetail the bed.
Any specific reason why you wanted to shorten the wheelbase 10"? Seems like that's all a bob in front of the fenders would do.

Just curious is all. What type of wheelbase length are you looking for? Around 105"?
Reply With Quote
  #17
Old 02-11-2008
Member
Thread Starter

Join Date: Dec 2007
Location: Fitchburg,MA
Posts: 110
if you look at the first picture at the top you can see how far the rear axle is moved forward. its at around 118" wb.
i moved the front axle forward about 2" so the wb was to much for some of the tight trails we have aroound here not to mention the break over angle sucked since im tring to keep it as low as i can.
Reply With Quote
  #18
Old 02-11-2008
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
gonna be a nice looking trail beast.....glad to see you went with coils upfront...
Reply With Quote
  #19
Old 02-11-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Looks good matt! Coming along nicely...
Reply With Quote
  #20
Old 02-11-2008
Member
Thread Starter

Join Date: Dec 2007
Location: Fitchburg,MA
Posts: 110
thanks guys. as for coils in the front. i dont know why anyone would want leafs in the front. its not any harder to run coils, they flex better, have a better aproach angle, and they ride so much nicer.
Reply With Quote
  #21
Old 02-11-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Lookin' awesome man!!
Reply With Quote
  #22
Old 02-11-2008
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
Quote:
Originally Posted by RWARanger View Post
thanks guys. as for coils in the front. i dont know why anyone would want leafs in the front. its not any harder to run coils, they flex better, have a better aproach angle, and they ride so much nicer.
finally someone gets it
Reply With Quote
  #23
Old 02-21-2008
Member
Thread Starter

Join Date: Dec 2007
Location: Fitchburg,MA
Posts: 110
well been working nights the past few weeks and got some work done to the truck. double bobbed the bed and dovetailed in not quite done yet. ordered steering from ballistic fabrication just got it today, along with rear spring hangers and u-bolt plates ill get some pics up tomorrow.
been pretty cold the past couple days so havent done much and expecting 8-10" of snow tomorrow afternoon. hopefully it warms up next week so i can get the rear axle bolted up and get the truck back on its own weight.

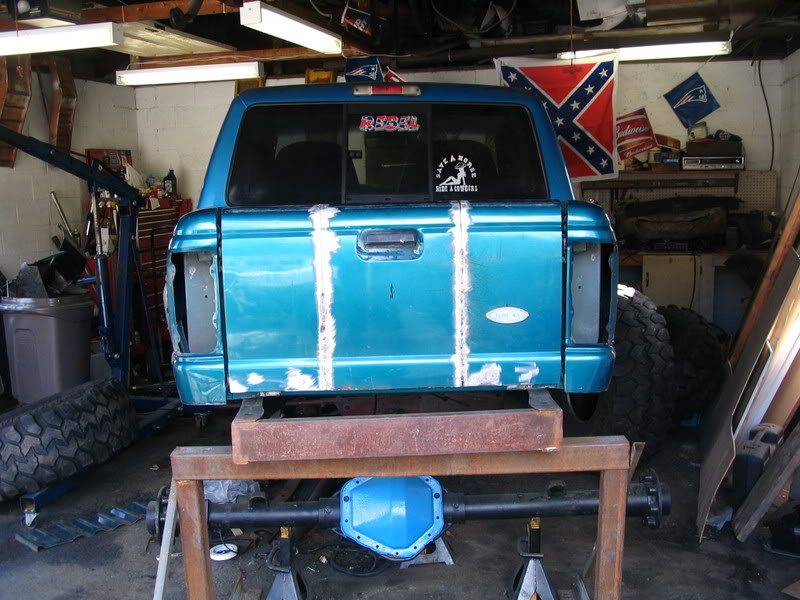

Name:  IMG_3054.jpg
Views: 69
Size:  97.2 KB

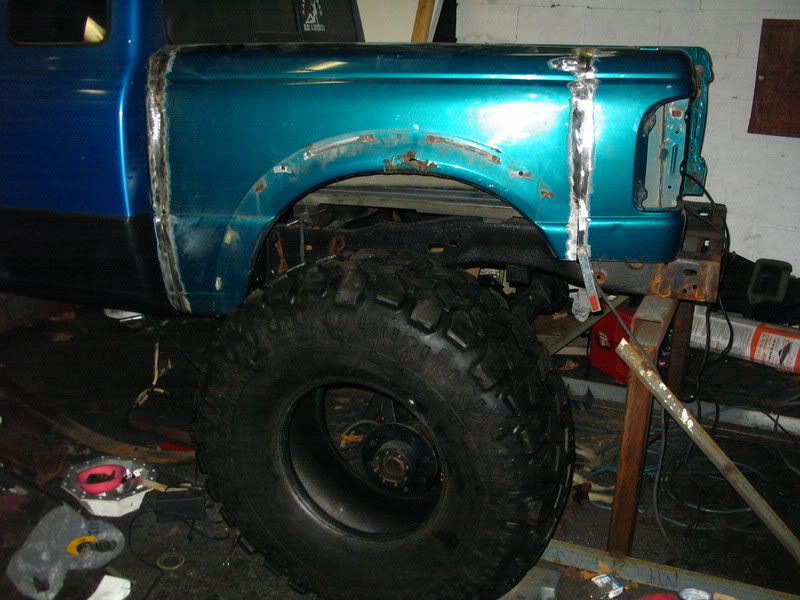

Name:  IMG_3048.jpg
Views: 69
Size:  82.0 KB
Reply With Quote
  #24
Old 02-22-2008
Member

Join Date: Jun 2005
Posts: 148
Looks killer dude! I think you're gonna have problems with a welded D44 on 39's, but other than that you should be good to go.

Are you planning on shaving the 14bolt for clearance? I love the strength of a 14bolt, but I can never get past that massive diff.
Reply With Quote
  #25
Old 02-22-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
very nice! you have some body skills.

how do you like that ballistic fabrication steering? you get the 1 ton TREs? Mine just came in wednesday... talk about BEEF. I cant wait to get mine hooked up. they forgot the tube ends though. should be shipping that out shortly.

i love the bed. not sure about it being shorter but the bob looks awesome
