Icon14 96 Single Cab, Long Bed 5.0

Alright everyone, i guess it's time i start my project log on here.
To get you all started.. truck is a 96 Ranger, Single Cab, Long Bed, Carb'd 5.0 swapped in by previous owner.
I bought the truck july 4th-ish for 300$, running and in what i thought was pretty damn good shape. ( not bad for 300, either way. )

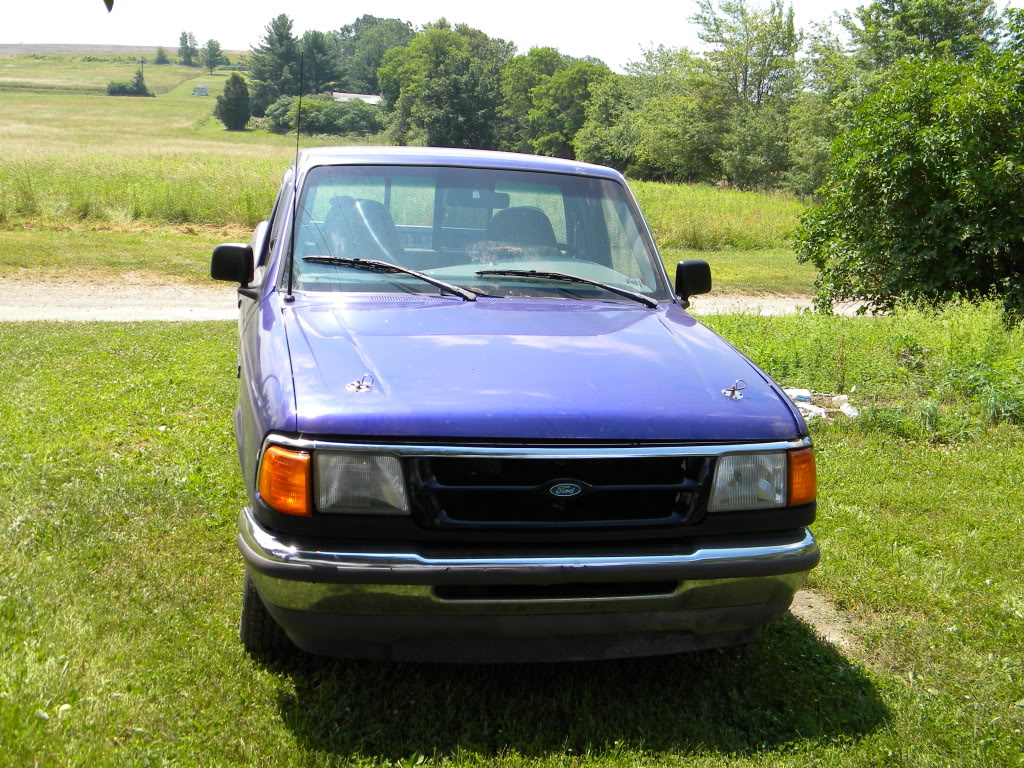

Here's a few pics from when i got it:
Name:  DSCN0554.jpg
Views: 15
Size:  296.0 KB

Name:  DSCN0563.jpg
Views: 7
Size:  290.3 KB

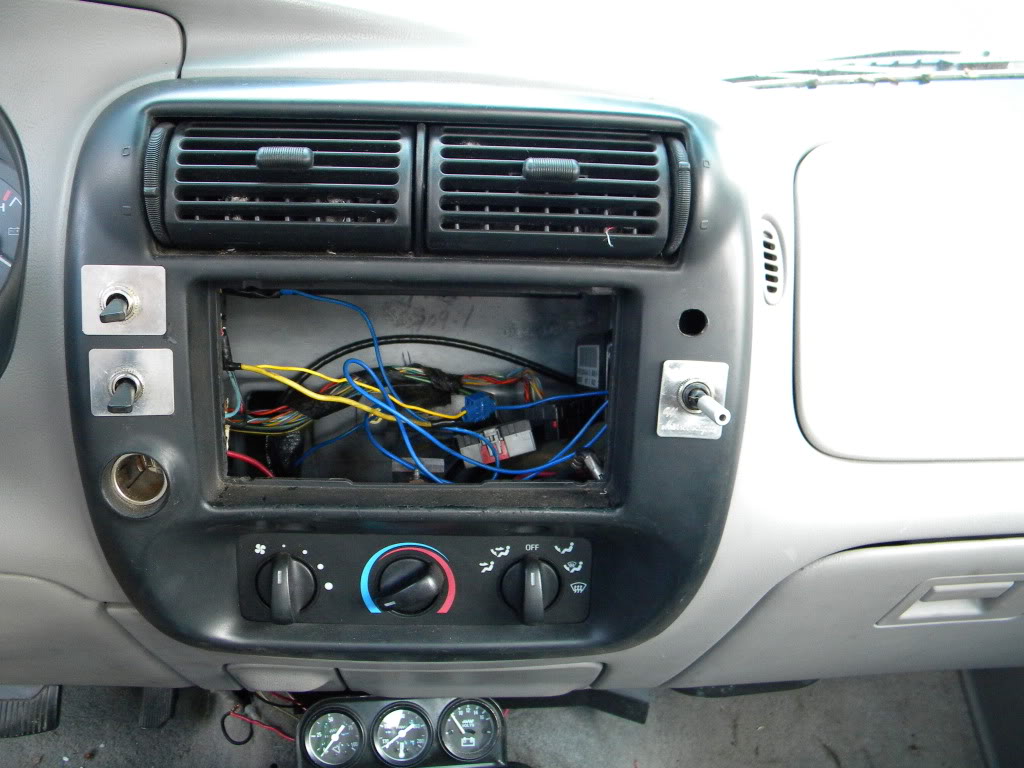

So the next day i started tearing into the truck.. i knew wiring was going to be an issue when i got it. the stock stereo was removed, and there were holes drilled all through the stereo bezel with multiple switches in there. All of the switches were wired together, ( 1 powered another, and that one powered another, which powers the alternator and then another one for the Electric fans ) So i just cut them all out, and ran a new single switch. Much nicer Here's a before pic. I'll add a picture of my wiring after it's all complete.
Name:  DSCN0577.jpg
Views: 10
Size:  152.7 KB

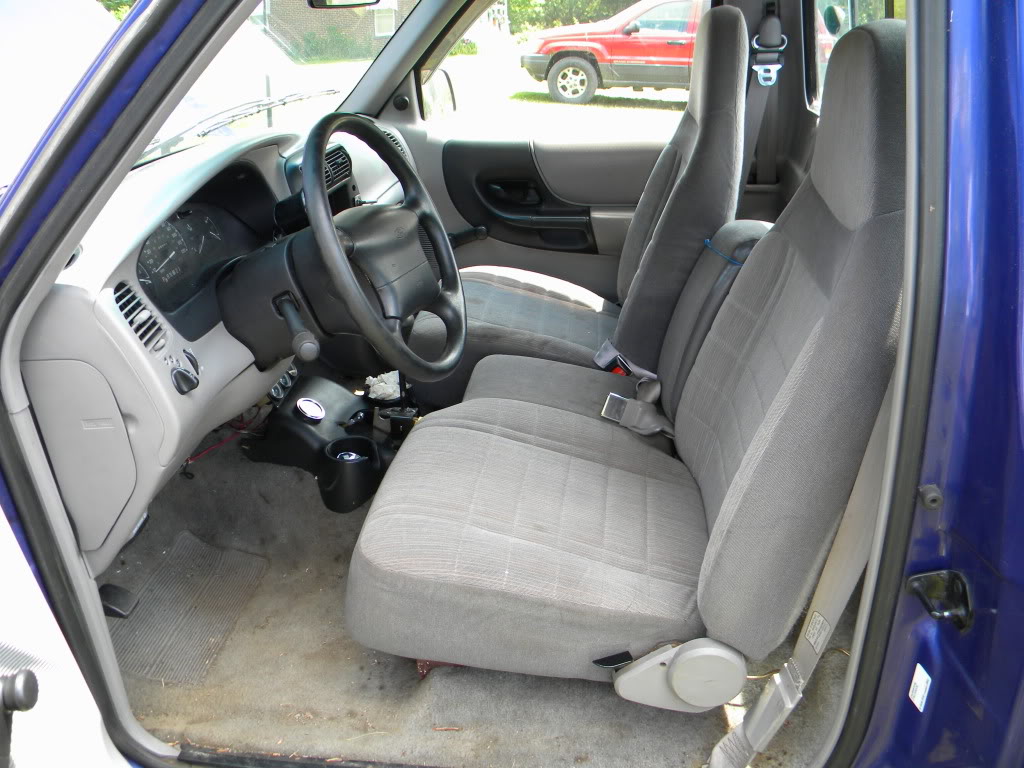

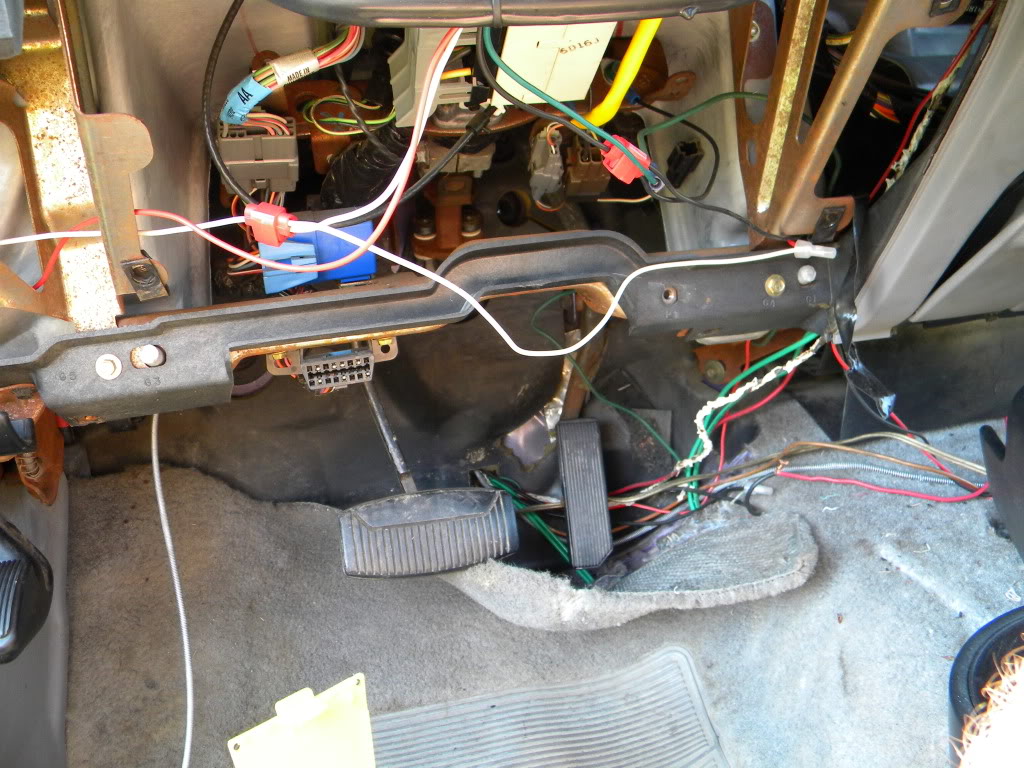

So i fixed my switch issue there, and decided to pull the seats and whatnot to clean the interior.
Name:  DSCN0573.jpg
Views: 21
Size:  172.6 KB
Name:  DSCN0587.jpg
Views: 10
Size:  209.9 KB
So i pulled the seats and swept the floor... the seats haven't been back in since. I cut the 20 sect. off the drivers side seat, and will remove the center console part when i get the chance, planning to add a full length expo center console at some point!
Seats out:
Name:  DSCN0586.jpg
Views: 7
Size:  193.8 KB
So while this was apart, i figure " what the hell, i might as well pull the dash and re-do all the wiring in there, i know how the rest of it was... "
Well boy am i glad i decided to do that!

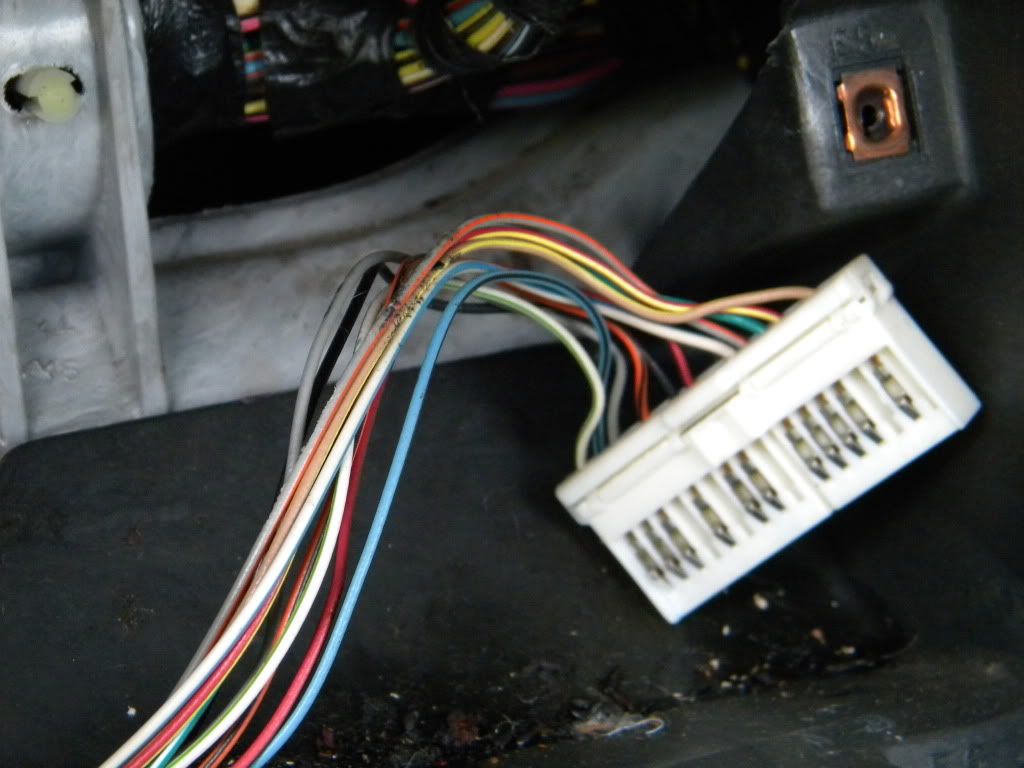

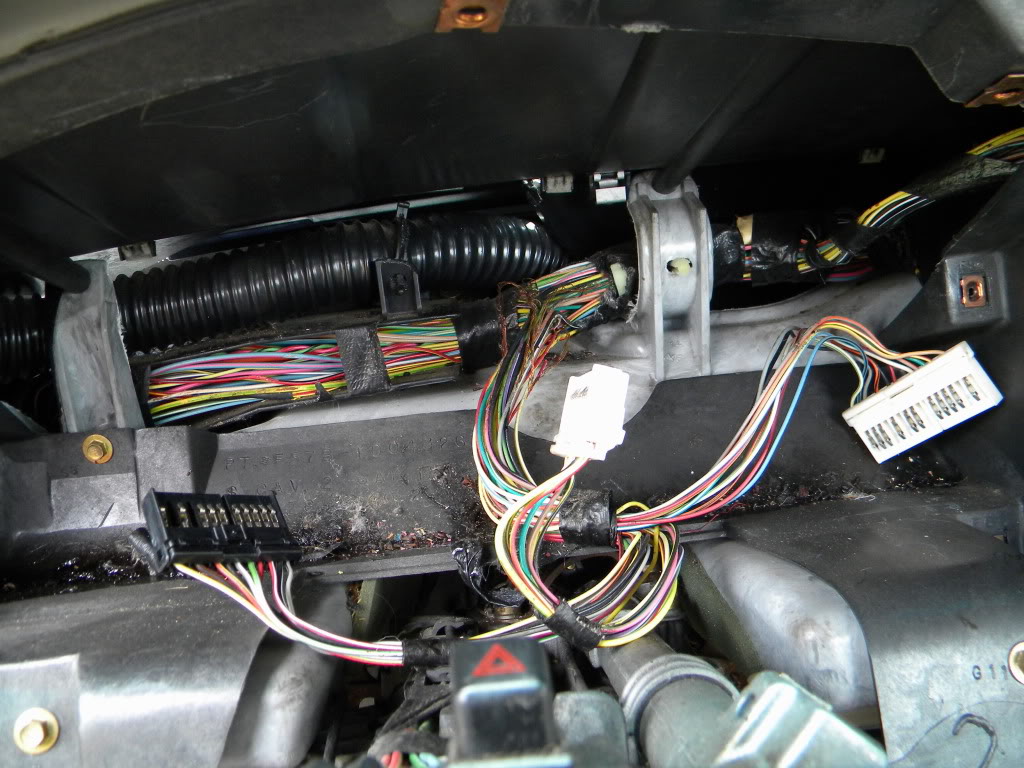

Here's a few pics of the wiring..
Name:  DSCN0597.jpg
Views: 7
Size:  123.8 KB
Name:  DSCN0598.jpg
Views: 8
Size:  126.0 KB
Name:  DSCN0599.jpg
Views: 8
Size:  185.8 KB
So the wiring to the gauge cluster is screwed..
Took the harness to work, and a good buddy of mine ( dave ) lent me the supplies to repair the harness. Everything turned out great on that part.
So while i have the dash out, i decide i'm going to paint all of the dash ( man am i kicking myself in the *** for this now! ) i painted a few pieces with a satin aluminum paint that krylon makes... turns out awesome, but i hate the grain in the plastic! ( i can fix that, right? Hahaha ) So i start sanding... hours and hours later i ended up with a half decent looking glove box.. So the project of the interior smoothing begins.. I'm still working on sanding all of the interior panels, and am priming them when i get the chance. So far have like 90% of the main dash sanded and ready for primer, have the glove box primed and wet sanded, door handle bezels are primed and sanded, dash bezel is being worked on, but should be ready for paint soon, 1 door panel sanded ( don't sand these! they just get really fuzzy... and are going to be a huge pain in the *** to work with!!! ) And some other misc **** done, like the vents and what not.

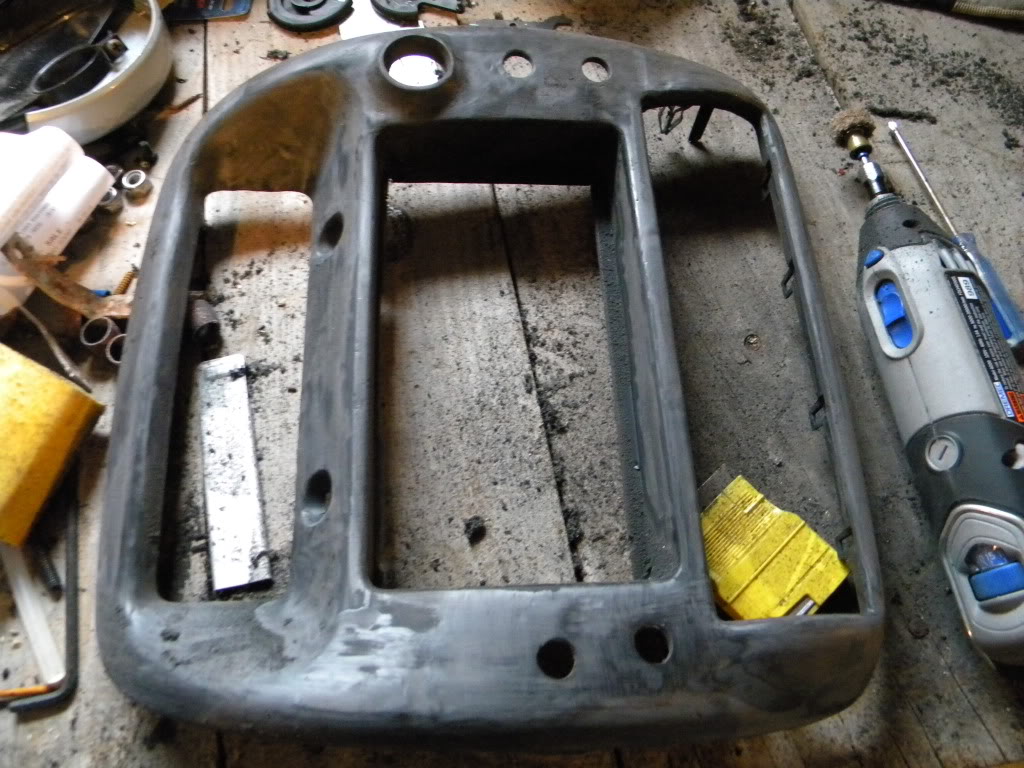

Removing that stupid rubber coating:
Name:  DSCN0630.jpg
Views: 7
Size:  186.2 KB
So somewhere in the middle of all of that... i decided to start sourcing things to paint the truck. My uncle ended up selling me that paint, he bought it for his 85 chevy 1500 before he sold it, and has sat for a year or so in a heated garage. 35$ for a gallon of acrylic enamel ( stage coach black ) a quart of Porsche Red, a quart of body filler, all the hardner and fish eye reducer and all that ****. Couldn't beat it.. even if i repaint in 2 years down the road.
So talking to a good friend of mine at a local auto parts store... he says he'll paint the truck! SICK only a hundred bucks. So i load the truck up: Good ole dodge hauled her for 50 miles to the guys house..
Name:  IMAG0075.jpg
Views: 6
Size:  137.5 KB
Name:  IMAG0077.jpg
Views: 9
Size:  118.8 KB
I took the fenders down before hand
So while the truck is at the shop, i decided i'm going to shave the door locks, emblems, the antenna and tailgate handle.
Shaving the emblems

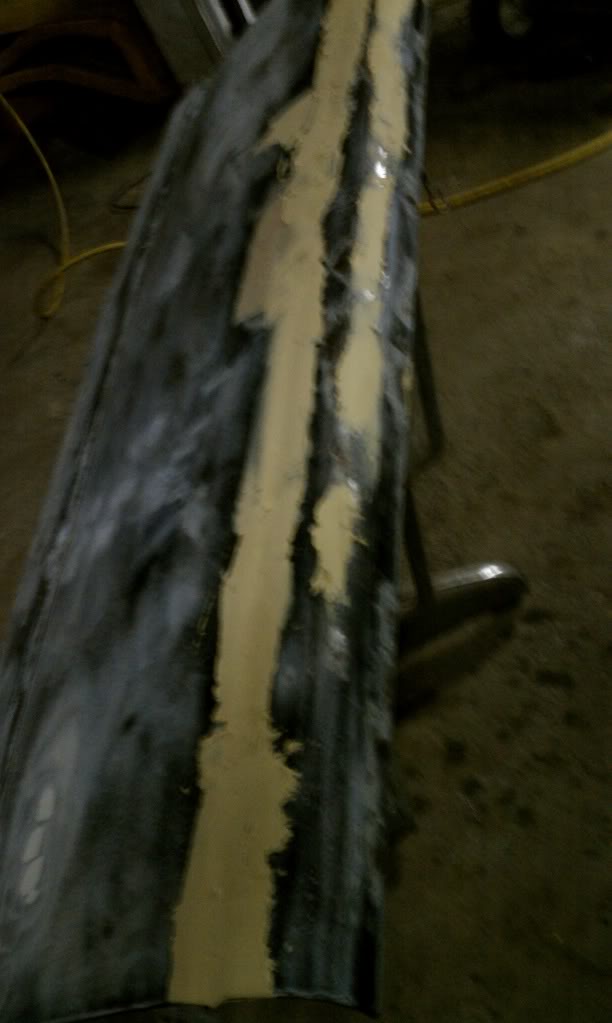

Shaving the tailgate

Name:  IMAG0145.jpg
Views: 8
Size:  47.3 KB
Shaving the antenna:
Name:  IMAG0128.jpg
Views: 6
Size:  56.9 KB
Name:  IMAG0130.jpg
Views: 12
Size:  85.6 KB
I know, not the prettiest weld ever.. but it's strong as hell!
To be continued in the next post... I'm Tired of typing! Haha
Reply With Quote
  #2
Old 11-08-2010
Member

Join Date: Jun 2007
Location: Killafornia
Posts: 1,523
looking good cant wait to see it back from paint
Reply With Quote
  #3
Old 11-08-2010
Awilliams357m's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Oct 2010
Location: Morrisdale, PA
Posts: 76
Well... long story about it coming back from paint..
I'll write the whole story in my next post, but it's no longer at the garage getting painted.. the guy couldn't afford to have me use the garage ( i ended up doing all of the work to it so far! ) So i brought it home, and have been pulling panels and painting them in the basement.. ( i know.. not the ideal way to paint.. but you make due with what you have to do, i guess... )
Reply With Quote
  #4
Old 11-28-2010
<TX>TORKiT's Avatar
Member
iTrader: (1)

Join Date: Jun 2010
Location: Dallas, TX
Posts: 1,551
Good job on the truck, have you made any more progress? I am waiting to see how the interior pieces turned out after paint. Good call shaving the tailgate, I am doing the same thing to my tailgate handle right now too.
Reply With Quote
  #5
Old 11-28-2010
Awilliams357m's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Oct 2010
Location: Morrisdale, PA
Posts: 76
Thanks torkit!
Yes! Plenty of progress, just being slow to update. Haha.
Interior pieces are turning out very nice, actually. Just got a little over half of it in primer right now, but it's looking good! everything is baby's *** smooth! Haha.
Reply With Quote
  #6
Old 11-28-2010
bigandrw's Avatar
Member
iTrader: (7)

Join Date: Jun 2010
Location: Houston, Texas
Posts: 1,407
looking good andy. cant wait to see the machine running smooth
Reply With Quote
  #7
Old 11-28-2010
Ranger_Guy15's Avatar
Member

Join Date: Apr 2007
Location: MN
Posts: 2,827
Looks good. You should post up some pics of that f150.
