99ranger4x4s SAS thread

78 F150 HP D44 (failed... shoulda gone 77)
-Full Spool
-5.13s
-Mile Marker hubs
-Stock 30 spline inners and 19 outers

Yoda box
-$203 worth of **** from PSC - nevermind... $300
-All Pro Pitman arm

Waggy Springs
-Stock waggy shackles

Lots of 3/8" plate
some smaller DOM tubing
some 1.5"x.250" DOM tubing

9"
-5.13s
-31 spline
-locker - undecided
-brake setup - undecided



i wont be able to have any pics of the during process since i'm doing it in school. but i'll have after pics in about 3 weeks.. i'm hacking all the stuff off hopefully by Friday.


this will just be the bare minimum.. i have access to TIG and MIG welders, along with tubing benders, a verticle mill, lathe, drill press and some other fun stuff so i'm taking the opportunity and getting the hardest part out of the way then i will slowly build it up from there as more money rolls in. i will only be putting the front axle in for now as i ran out of money so i cant get all the stuff to get the 9" under my truck right away.. which also means no 4wd :(

Last edited by 99ranger4x4; 09-05-2008 at 12:53 AM.
Reply With Quote
  #2
Old 09-02-2008
camodown's Avatar
Lost in Nowhere
iTrader: (3)

Join Date: Feb 2007
Location: Midland, TX
Posts: 5,029
SAS build up thread with no pics

Reply With Quote
  #3
Old 09-02-2008
Seahawk's Avatar
Member

Join Date: Mar 2008
Location: Sheboygan County, WI
Posts: 376
come on!!
lol
Reply With Quote
  #4
Old 09-02-2008
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
the axle and steering box are at school. do you want a pic of the waggy springs?

its against school policy. but im gonna try and take some because my grand father wants to see what im doing :D
Reply With Quote
  #5
Old 09-02-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
3/8" plate is hack material... 1/4" is fine
Reply With Quote
  #6
Old 09-02-2008
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
since you jumped in, about where in your build thread is the size/types of fittings for the p/s hoses? i went to like 20 skipped to ~30 and went to like 68.. and didn't see anything?


i still need
-PS hoses
-Shocks
-steering stabilizer

before i can really drive it.. the p.s hoses at a minimum


and Zach, the 3/8" is for the spring perches, i'll probably make the spring hangers out of 1/4"

Last edited by 99ranger4x4; 09-03-2008 at 12:00 AM.
Reply With Quote
  #7
Old 09-03-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
this thread here talks about how to setup your power steering lines. I would assume the 4.0 OHV is similar.

https://www.ranger-forums.com/forum2...ad.php?t=70000

I thought you were going to plate the frame with 3/8", my bad.
Reply With Quote
  #8
Old 09-03-2008
gumby's Avatar
Member
iTrader: (1)

Join Date: Nov 2005
Location: indy
Posts: 1,581
Quote:
Originally Posted by 99ranger4x4 View Post
its against school policy.
musta changed the rules. i got all kinda of pics from my projects in chassis fab and street rod
Reply With Quote
  #9
Old 09-04-2008
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
hmm.. i'll ask
i know we couldn't have them in ASM


i'm still working on getting my tubing welds signed off. its an eerie feeling watching your truck get torn down to a point of no return
Reply With Quote
  #10
Old 09-04-2008
gumby's Avatar
Member
iTrader: (1)

Join Date: Nov 2005
Location: indy
Posts: 1,581
Quote:
Originally Posted by 99ranger4x4 View Post
hmm.. i'll ask
i know we couldn't have them in ASM
thats cause there aint nuthin to take pics of in ASM...
Reply With Quote
  #11
Old 09-04-2008
Member

Join Date: Jun 2005
Posts: 148
Buy a cheap Detroit off of Ebay for the rear axle and buy a Lockright or Aussie locker for the front, much better than a spool.
Reply With Quote
  #12
Old 09-04-2008
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by gumby View Post
thats cause there aint nuthin to take pics of in ASM...
haha, bull ****.

around christmas we were in night class. we started taking the hangers out of every class room and we made a giant tree lookin pyramid thing hanging from the celing.. it was cheap entertainment to get us through hell lol
Reply With Quote
  #13
Old 09-04-2008
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by zainyD View Post
Buy a cheap Detroit off of Ebay for the rear axle and buy a Lockright or Aussie locker for the front, much better than a spool.

i got
f/r gears
front spool
front install kit
9" housing and 3rd member
28 spline axle shafts
31 spline axle shafts
disc brake backing plates
calipers


for 600.. so the spool will work for now. besides, my last setup was basically spooled because the aussie was setup wrong.
Thanks Gildo


oh yea, carnage report from the front end

the Ring and pinion still look good, as well as the Aussie locker if anyone wants them..

the pinion nut came loose and drove the teeth into the carrier when i went in reverse... the inner CV joint on the pass. side completely spins inside itself, so all that is stripped out, and i twisted the inner splines that go in the diff on the driver side CV shaft

both wheel bearings are shot, thats the second driver one that i've destroyed

all the ball joints i JUST replaced 4 months ago, they're gone already...


i think thats all i have to report right now.



if anyone wants any thing let me know, im gonna take the CV shafts into advance and have them swapped out under warranty and sell them for a super low price.. brand new

the wheels are sold
RCD has a waiting list lol
manual hubs, i have 3 i need to sell, ones still in the box
the aussie locker is also up for sale

i dont think theres much more worth selling
Reply With Quote
  #14
Old 09-04-2008
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Is anything wrong with the locker?
Reply With Quote
  #15
Old 09-04-2008
Member

Join Date: Jun 2004
Location: PUEBLO, CO
Posts: 3,753
Quote:
Originally Posted by 99ranger4x4 View Post
Thanks Gildo
Reply With Quote
  #16
Old 09-05-2008
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
first change of design.

i'm building new shackes out of 1/4" plate and they are going to be mounted through the frame rails, this will give me more adjustibility on where i want to put the leaves, before i had very few options


and there's gonna be a 2x4x.250 cross member up front, which im going to put a front receiver into and just build a simple stinger/boner bar off that... so i have some sort of bumper lol
Reply With Quote
  #17
Old 09-05-2008
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
oh yea, and for anyone doubting this.. for i have got really into talking about other projects..


i cut off the stock cross member this after noon, so im past the point of no return. and my buddy started cleaning up the frame, we'll have a bare clean frame tomorrow or monday depending when i get done with my ****..




i'll take pics tomorrow morning and post em up after work.
^^ PICS! is everyone happy now?
Reply With Quote
  #18
Old 09-05-2008
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Hell yeah.
Reply With Quote
  #19
Old 09-05-2008
Hayn Time
Unregistered User

Posts: n/a
U sure u wanna run a spool up front? Sounds like you're on your way...good deal. Take some pics if you can. BTW, I still don't own, nor do I think I ever will, a digital camera, so no worries on the pics. Spools can be a pain in the **** because:

They have very poor road manners

In order to get decent steering response from them u need to run ram steering

I've seen two guys bust their systems on the trail (in deep mud) and talk about a mess+pain in the rear to fix. No ram steering for me unless it's a rock rig

Anyway, good luck to ya on the project
Reply With Quote
  #20
Old 09-06-2008
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
i dont WANT to run a spool up front but i have been for the past 2 years basically. i want a selectible locker, but i dont have the money for it right now

like i said, i got it for a good price and i needed a new carrier anyways.. as for road manners, thats what the manual hubs i just got are for.
Reply With Quote
  #21
Old 09-08-2008
Member
iTrader: (1)

Join Date: Mar 2005
Location: Acworth, GA
Posts: 2,099
From someone who actually runs a spool, not who knows someones buddy who's cousin ran one back in the day.

They work. They're cheap. If you need them to unlock, hop out and unlock the hub. Hydro assist is recomended, but when your on the gas and turning, no matter what kind of locker is in the front, it will be just as "hard" to turn as a spool.
Reply With Quote
  #22
Old 09-09-2008
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
thats how i feel.. just didn't exactly know how to say it. when i get the money... if i still want it i'll buy a selectable locker but the spool will do for now.

the truck wont be driven in 4wd on the street.. i made it through the winter in Wyoming with 2wd and like i said before, the aussie was basically a spool so my passengers got very good at hopping out and unlocking a hub then locking it back in and i've got accustomed to dealing with the lack of steering ability

Last edited by 99ranger4x4; 09-09-2008 at 12:37 AM.
Reply With Quote
  #23
Old 09-09-2008
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198

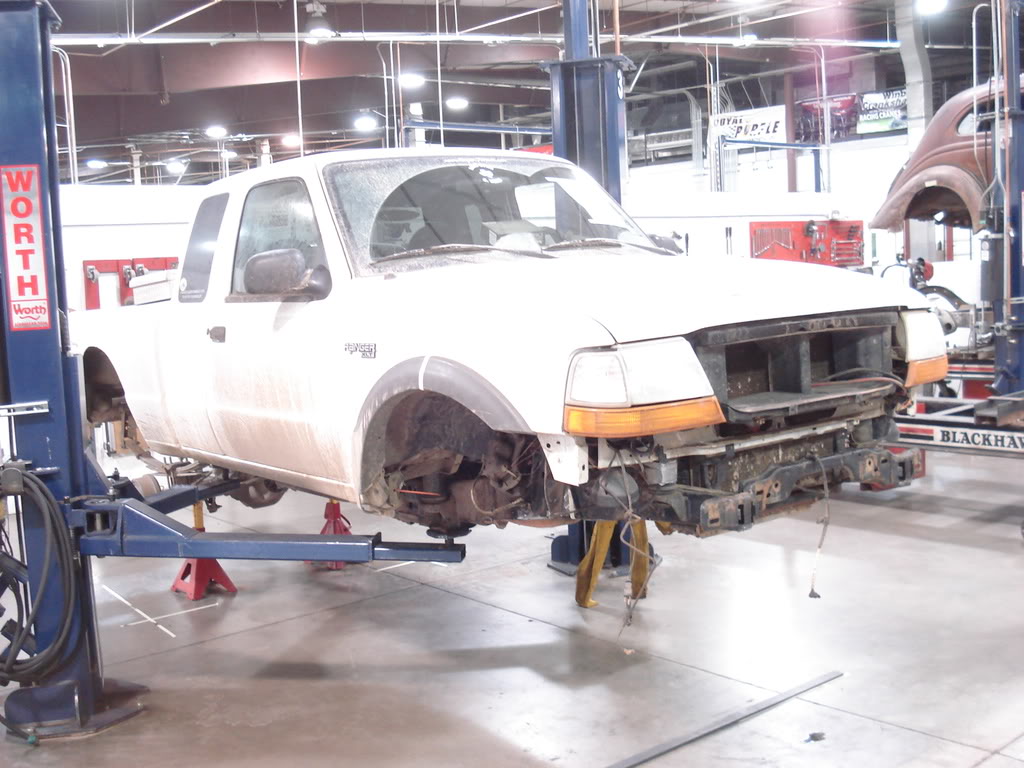

Name:  DSC04883.jpg
Views: 57
Size:  126.7 KB
Name:  DSC04877.jpg
Views: 58
Size:  115.7 KB
Name:  DSC04890.jpg
Views: 57
Size:  143.2 KB
Name:  DSC04887.jpg
Views: 57
Size:  91.3 KB
Name:  DSC04882.jpg
Views: 55
Size:  124.2 KB
Reply With Quote
  #24
Old 09-09-2008
Member

Join Date: Jun 2004
Location: PUEBLO, CO
Posts: 3,753
dude, you ended up getting the d44 with the cast on cs? I would have given you mine for like 75 bucks If I knew you were doing that...
Reply With Quote
  #25
Old 09-09-2008
99ranger4x4's Avatar
RF Veteran
Thread Starter
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
yea i screwed myself there

who woulda thought they would have made the wedges part of the ****ing tube.. *shrugs*

hell i was at the JY picking up the yoda steering shaft and saw a 77? F150 with the weld on wedges i wish i had waited..
Reply With Quote
