AD' ranger 1996 splash, building from button to top

Hello,

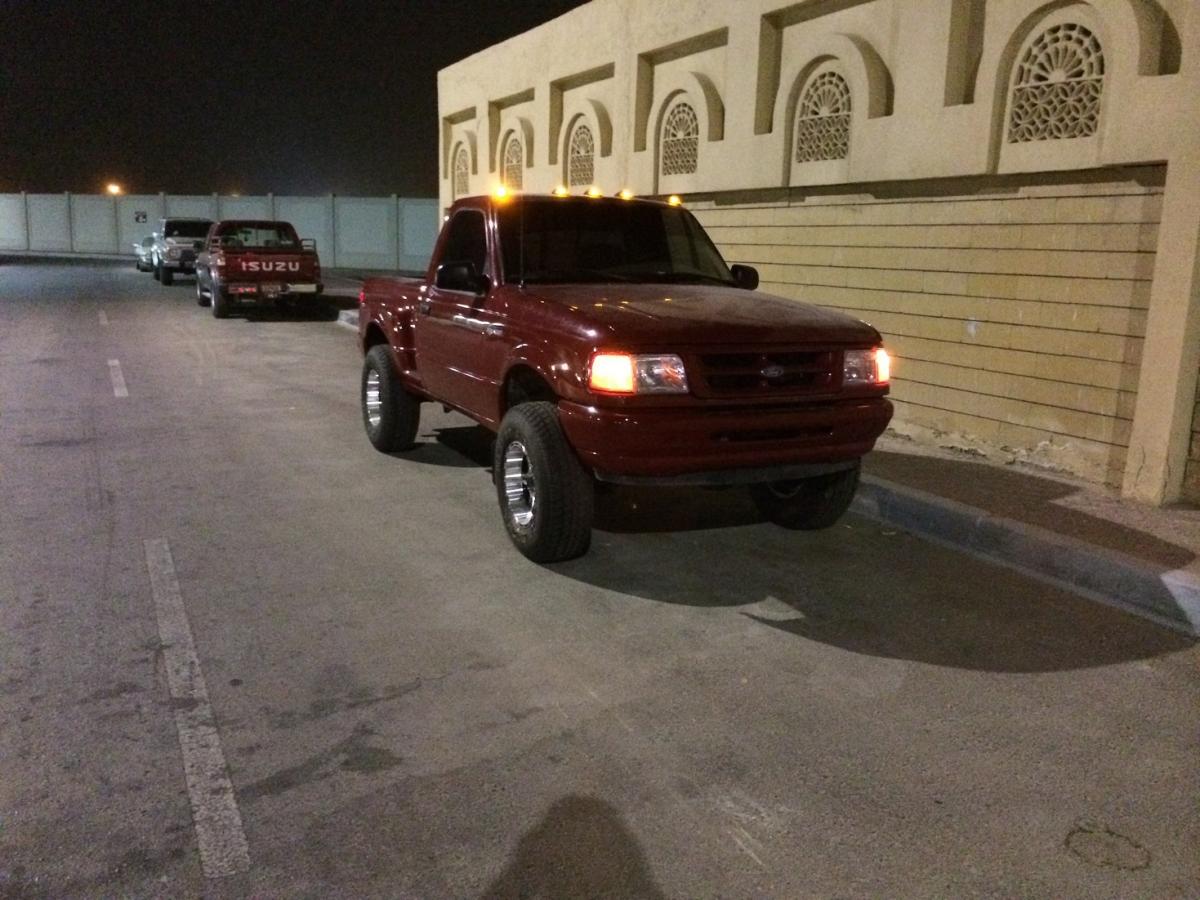

I got a 1996 4x4 ranger splash that is owned by brother since 1996. its nice a car, with great suspension. I am planing to modifies for offroad purposes.

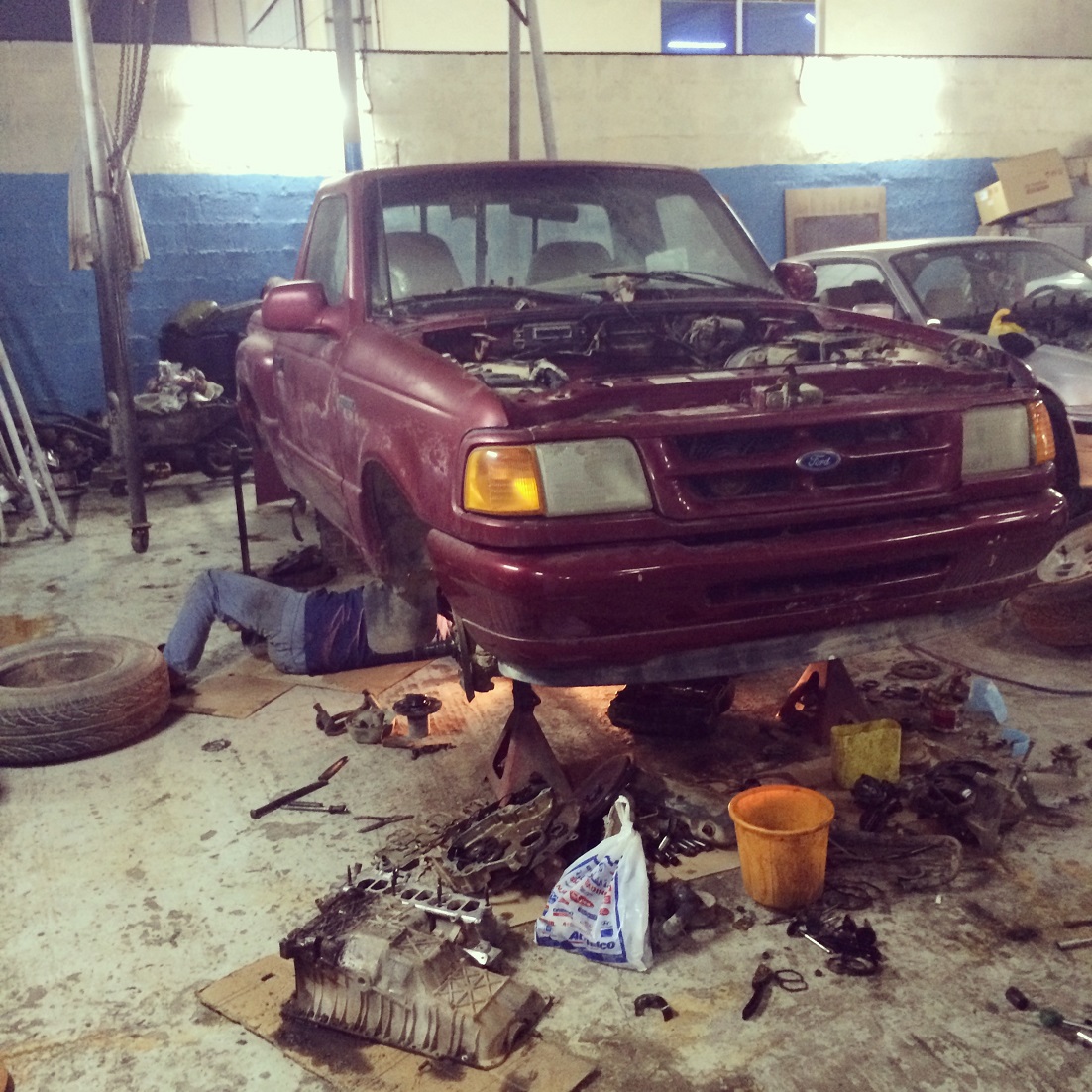

i started to build from buttom to top,
- Total polyethylene bushing
- Bearing and seals from TIMKEN all diff and trans.
- Rancho Shocks, around with steering damper.
- Re-building the brake system with new seals, hardware and brake pad, shew.
- 1.5" block lifts.

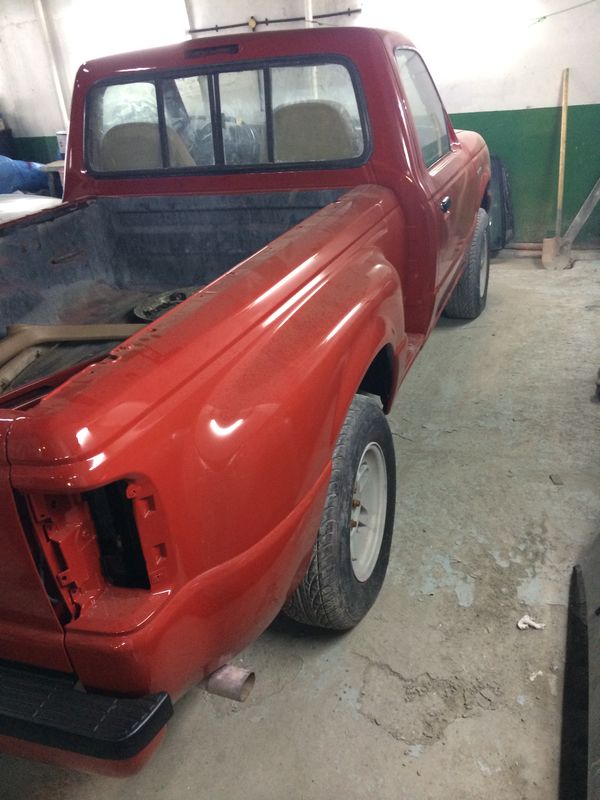

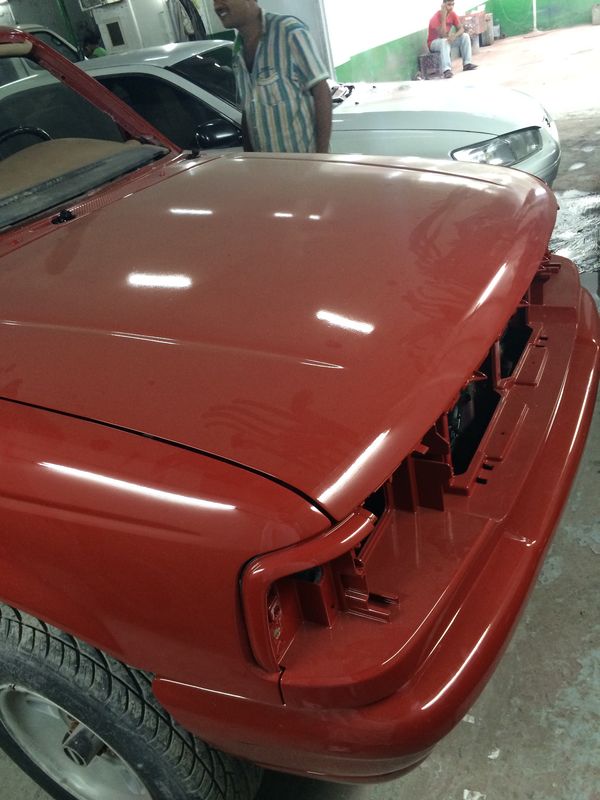

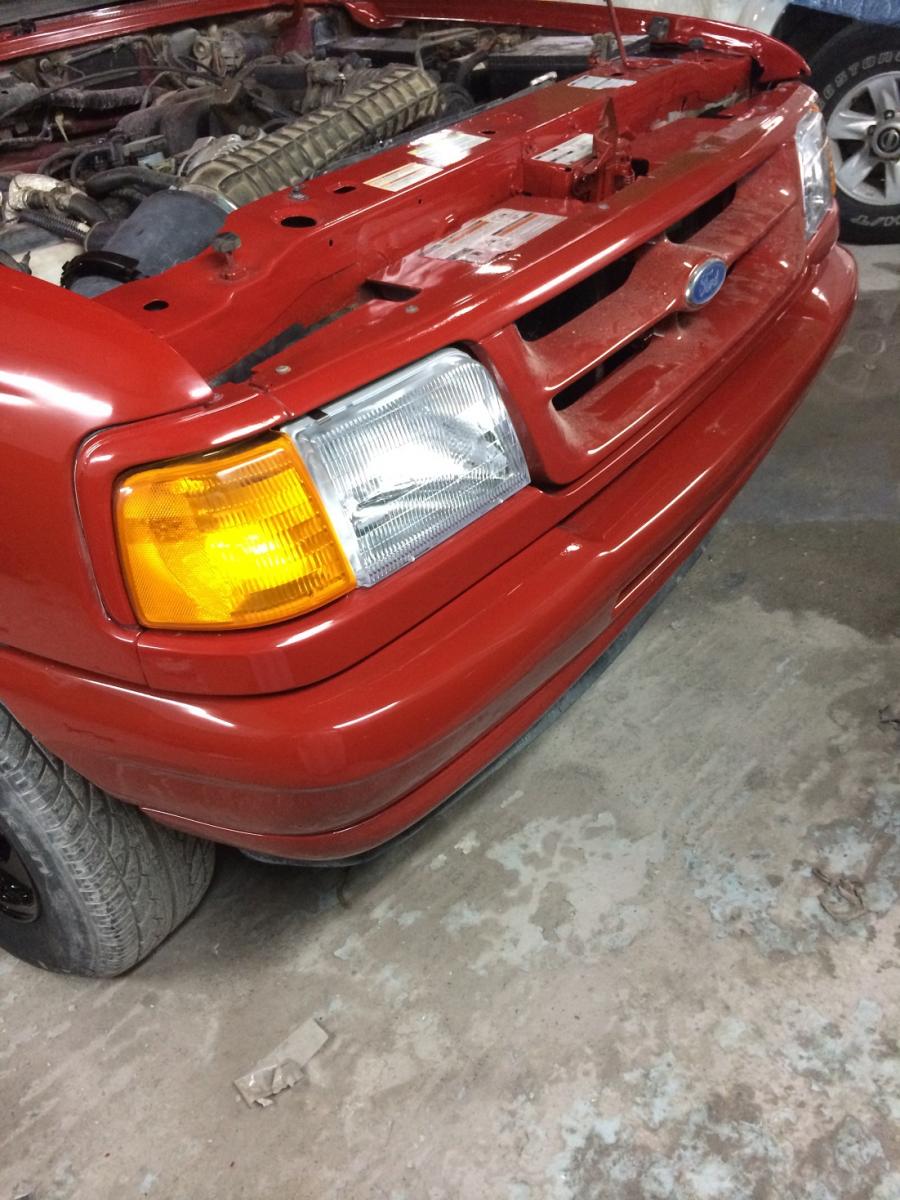

- Fresh Red salsa.

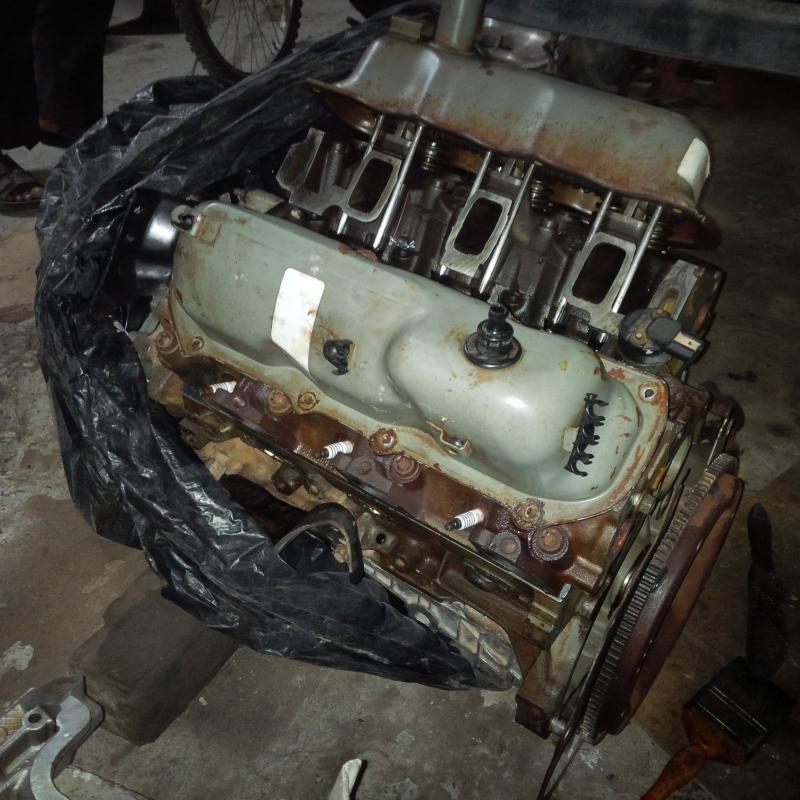

Fresh full engine rebuild with 0.40" piston from DJI kit Rockauto cost's 375 usd, Quality of the kit was A+ according to the Mechanic.

Kit Details
More Information for DNJ ENGINE COMPONENTS EK423M






























Still Breaking in the engine.


Still works in progress, The above jobs required to register the car again.


Attached Thumbnails
AD' ranger 1996 splash, building from button to top-i_de060459a41.jpg   AD' ranger 1996 splash, building from button to top-i_de060459a42.jpg   AD' ranger 1996 splash, building from button to top-i_11e7ba7eb21.jpg   AD' ranger 1996 splash, building from button to top-i_a14ea762ab2.jpg   AD' ranger 1996 splash, building from button to top-i_a14ea762ab3.jpg

AD' ranger 1996 splash, building from button to top-i_a14ea762ab4.jpg   AD' ranger 1996 splash, building from button to top-i_a14ea762ab5.jpg   AD' ranger 1996 splash, building from button to top-i_a14ea762ab6.jpg   AD' ranger 1996 splash, building from button to top-i_9bc351dc0a7.jpg   AD' ranger 1996 splash, building from button to top-i_d24fbfeb888.jpg

AD' ranger 1996 splash, building from button to top-i_d24fbfeb889.jpg
Reply With Quote
  #2
Old 09-06-2014
Member
Thread Starter

Join Date: Feb 2014
Location: Abu Dhabi
Posts: 17
Still waiting to finish 2000km and recheck the engine. After checking i will install this

https://www.ranger-forums.com/4-0l-o...v-4-0l-143169/

And Tune
Reply With Quote
  #3
Old 09-08-2014
Wingman108's Avatar
Member

Join Date: Jun 2011
Location: Burlington, MA
Posts: 382
Nice truck. Paint job looks good.
