Big Red Mods-on-a-budget

Here are some pictures of what I've done so far to the truck

Cleaning the interior


Putting it all back together


Massive Sub-Box



Kenwood Control head/ 3X 12V plug


12V Power strip



Garmin Nuvi 1350T and HTX-252 Ham radio


Yaesu FT-857 Ham Radio


Before and After the T-Bar Crank




Comet 2m/70cm band Ham Antenna


Color matched Throttle Body Cover


New Battery Terminals
Reply With Quote
  #2
Old 03-26-2010
stephen.g.fiddes's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Mar 2010
Location: Tigard, OR/ Monmouth, OR
Posts: 847
Finally was able to do another mod. Got the Toolbox installed, and the CB Antenna mounted, and coax run. (Thanks Trevor for picking up the box for me!)







Sorry these were blurry, i was retarded and forgot to take pictures while it was daylight out lol...







The antenna mount... All the parts ran me a total of $22. Not bad.







Reply With Quote
  #3
Old 03-26-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Holy cow...I totally forgot you joined up!
Reply With Quote
  #4
Old 03-26-2010
stephen.g.fiddes's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Mar 2010
Location: Tigard, OR/ Monmouth, OR
Posts: 847
oh, yeah... thanks shane for finding the box on CL lol
Reply With Quote
  #5
Old 03-27-2010
ShadowRanger08's Avatar
Member
iTrader: (3)

Join Date: Jan 2008
Location: Ontario, Canada
Posts: 1,694
looks good, nice truck!
Reply With Quote
  #6
Old 03-27-2010
stephen.g.fiddes's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Mar 2010
Location: Tigard, OR/ Monmouth, OR
Posts: 847
Thanks a bunch! I work hard on it lol
Reply With Quote
  #7
Old 03-28-2010
stephen.g.fiddes's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Mar 2010
Location: Tigard, OR/ Monmouth, OR
Posts: 847
Yet again, shane did some awesome work finding me something on CL (i must just suck at using it, cause i check for DAYS and nothing comes up...)

I finally got the CB mounted. I got a Cobra 29 WX NW ST and it is an AWESOME radio. Gotta fix the coax lead to it, but other than that its in and working.





Picking up a PA speaker for it tuesday so I can yell stuff at people lol.
Reply With Quote
  #8
Old 03-28-2010
Lord Of War's Avatar
Member
iTrader: (2)

Join Date: Jan 2006
Location: Thornton, Colorado
Posts: 4,599
Thats a real legit setup.
Reply With Quote
  #9
Old 03-28-2010
stephen.g.fiddes's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Mar 2010
Location: Tigard, OR/ Monmouth, OR
Posts: 847
Thanks! Got the idea from shane and trevor. It looks nice and clean, and the only damage to the headliner is 2 holes, instead of cutaway stuff like ive seen some people do. It needs some minor fine-tuning but itll work for now.
Reply With Quote
  #10
Old 03-28-2010
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
nice man i went to radio shack looking for a power strip and they didnt have anything close
Reply With Quote
  #11
Old 03-28-2010
stephen.g.fiddes's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Mar 2010
Location: Tigard, OR/ Monmouth, OR
Posts: 847
naw, the best i can direct you is a hobby shop. Ham radio outlet on hwy 99 in Tigard has them, but IDK if you could get them there unless you have a ham license. I would try a hobby shop or online... lemme see if I can find a link
Reply With Quote
  #12
Old 03-28-2010
stephen.g.fiddes's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Mar 2010
Location: Tigard, OR/ Monmouth, OR
Posts: 847
Here is a link to the place that distributes it... I got it off a picture lol. they may have a dealer info there. I have the 45 Amp one.

Powerwerx: Online Shopping for Anderson Power Products including Powerpoles, Wire & Cable, Adapter Cables, Powerpole Power Splitters, West Mountain Radio RIGrunner & more

Hope that helps!
Reply With Quote
  #13
Old 03-29-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
blingin'! I'm jealous of your nitewatch and weatherband options!!


As far as I know, Mine is about the only one with a huge *** hole. lol....remember, that hole was only there due to the OHC that was going to go there. lol. Trevor's is just two studs hanging down from his roof.

What I forgot about is suggesting to move it a little farther back on the cieling compared to mine. The nuts get in the way of the visors on mine because I have mine mounted so far foward. But it's still functional and I'll have to get my girl to mod my visor for clearence for me. haha.

Looks great! BTW....whenever I get money, There'll be a peak and tuned 70w 29ltd black chrome for sale....blue LED's! I'll be upgrading to the bluetooth/weather/backlighting 29.
Reply With Quote
  #14
Old 03-29-2010
stephen.g.fiddes's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Mar 2010
Location: Tigard, OR/ Monmouth, OR
Posts: 847
HOLY ****!!!! 70W??? dude, thats more than my ham puts out on the 2M band (itll do 100W on some other bands tho) i'm not going to bother tuning mine, 4W will get out quite a ways on a good antenna, and there is no point in jacking the power if you cant talk with someone that has less power cause they are too far away lol.
Reply With Quote
  #15
Old 03-29-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
It swings to 70. that's not a constant of course! lol. I like my radio...it's a badass. Yet there's others out there that whoop my *** too! lol.
Reply With Quote
  #16
Old 03-29-2010
stephen.g.fiddes's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Mar 2010
Location: Tigard, OR/ Monmouth, OR
Posts: 847
I cant wait till tuesday when I get to actually test it out. I'm gunna fix my screwy wiring job on the coax before i go so I dont fry the TX out of it.
Reply With Quote
  #17
Old 03-29-2010
stephen.g.fiddes's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Mar 2010
Location: Tigard, OR/ Monmouth, OR
Posts: 847
oh, and BTW, the back of the radio is about 4" from the front of the headliner... and about 2mm off center, so the passenger visor is slightly blocked in... lol Its hardly noticeable, but I may mod the bracket so i can center it... new screw holes is NOT an option... those were a B1tch to drill, and find with the screws lol
Reply With Quote
  #18
Old 03-29-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
My front(or is the the back?) of the radio is approx 1.5" or 2" from the end of the headliner.
Reply With Quote
  #19
Old 03-29-2010
stephen.g.fiddes's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Mar 2010
Location: Tigard, OR/ Monmouth, OR
Posts: 847
yours looks cleaner because of that too... but, for doing a blind drill, from the drivers seat, it was pretty damn good. 2mm off center, but otherwise straight, and still looking fairly clean. no one will notice that 2mm tho... cause its only noticeable from 2 ft back directly center of the vehicle... where no one sits lol... I do need to get some longer screws in there eventually... IDK how many teeth i have through right now, but it could be on the edge... we'll see if it falls out saturday when i go trail driving... lol
Reply With Quote
  #20
Old 03-29-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
HAHA....that's actually the only spot I've not reverted to nutserts! Mine stays fine. Of course, I'm running 6 screws and am now considering adding 2 more to prevent pivotege. lol.
Reply With Quote
  #21
Old 03-29-2010
stephen.g.fiddes's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Mar 2010
Location: Tigard, OR/ Monmouth, OR
Posts: 847
I just dont know how much thread is actually in the hole... i have 1.5" screws, and that sucked up A LOT of space between the headliner and the cross member, just to get it to take. After it went in a bit, I backed it out some to releive stress on the headliner, and make it so I could actually press the radio up to the holes... it was a hard, tight fit.


...lol
Reply With Quote
  #22
Old 03-30-2010
stephen.g.fiddes's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Mar 2010
Location: Tigard, OR/ Monmouth, OR
Posts: 847
AAAANNNNNDDDDDD (DeJaVu.... lol)

anyways, I got the PA speaker installed today... in the pouring down rain... and when I got a small break in the rain, I painted the metal behind the grill black, so I could remove the plastic crap. needs a better paint job but itll do for now till i have a sunny dry day to re-paint it and the grill.

Thanks for helpin with the hookup shane!
Reply With Quote
  #23
Old 03-30-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
g-unit, son.


lol.


Did the speaker wire reach?
Reply With Quote
  #24
Old 03-30-2010
Toms994x4's Avatar
Member
iTrader: (4)

Join Date: Jul 2009
Location: Sanford, NC
Posts: 1,300
Shane, I cut the hole out in my headliner bigger than yours.

BTW, I already have the Cobra 29 w/ bluetooth.

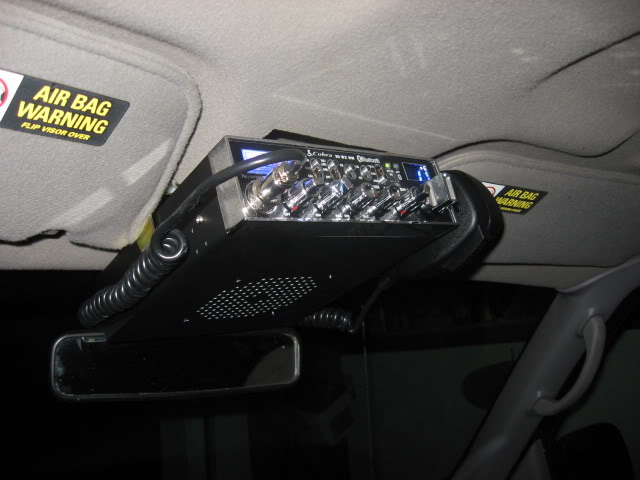

Name:  IMG_3521.jpg
Views: 3
Size:  47.6 KB

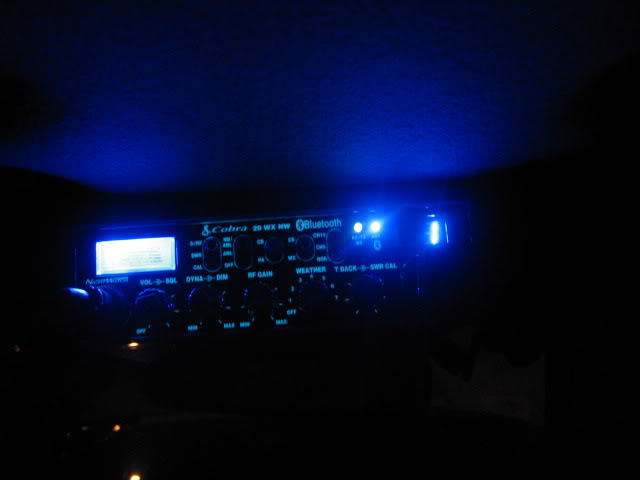

Name:  IMG_3518.jpg
Views: 2
Size:  21.6 KB
Reply With Quote
  #25
Old 03-30-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
STFU Tom! I told you you've got MY radio....the one I want....bluetooth, weather, and backlighting. I hat u. lol.


What's the technical name of that? 29 wx nw bt?
