CTF's single cab 1450 build

I have been working on this thing for a couple months now and figured it was time to start a thread to document the progress. This is a truck I am building for myself to have fun in and possibly race at some point. I picked the truck up for $400 and went to work. The current plans are 6-8" over equal length beams up front with 2.5"x12" Radflo coil-overs, fully caged front bumper to rear bumper with 1.75" DOM, 33" Toyo MT's, prolly stay leafed in the rear till winter time then it will get 3 linked. The truck currently has a 2.3l but I plan to swap in a 4.0 ohv with a c4 trans equipped with a full manual valve body and art carr shifter.

here is the truck when I picked it up
Name:  S5300504.jpg
Views: 117
Size:  154.6 KB
Name:  S5300506.jpg
Views: 96
Size:  125.6 KB
Reply With Quote
  #2
Old 06-16-2010
ChopTechFab's Avatar
Member
Thread Starter

Join Date: Jul 2009
Location: Albany, OR
Posts: 31

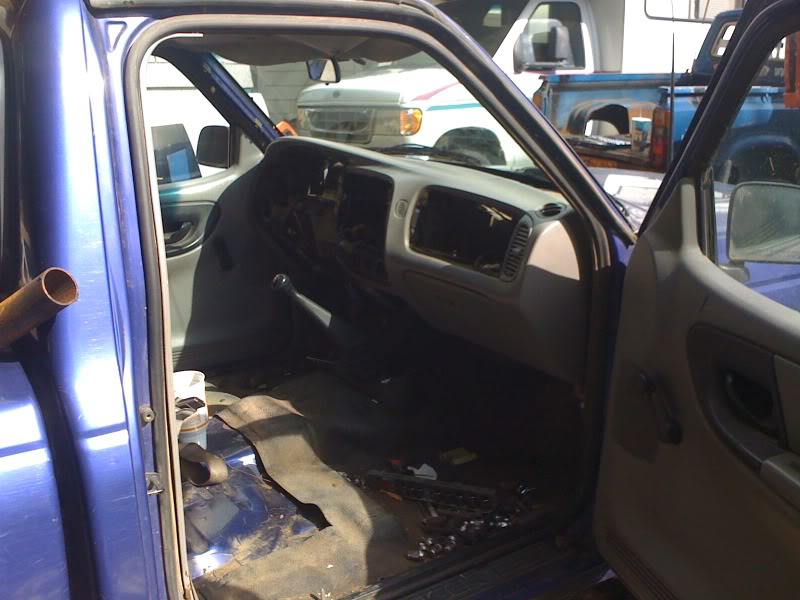

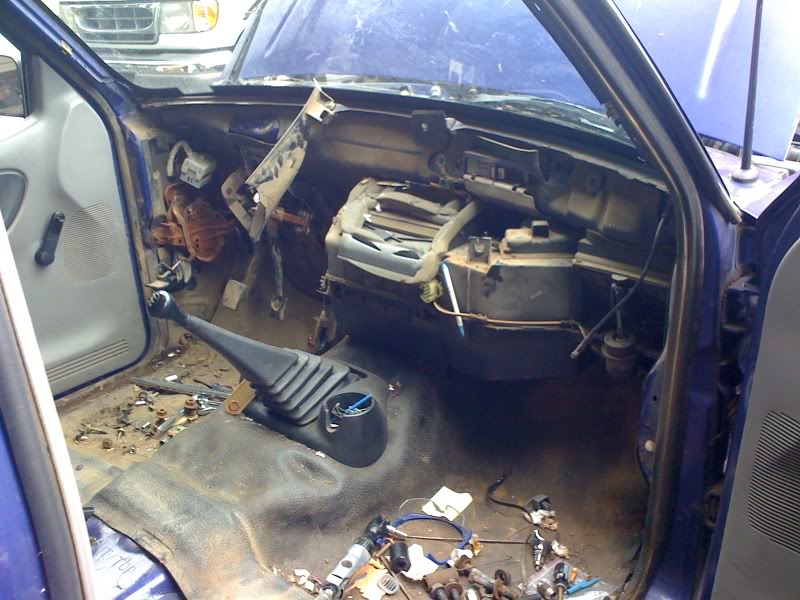

first thing I did was start tearing it down and getting the interior stripped for the cage.

Name:  IMG_0170.jpg
Views: 106
Size:  74.0 KB
Name:  IMG_0173.jpg
Views: 136
Size:  97.7 KB
Name:  IMG_0174.jpg
Views: 97
Size:  50.6 KB
Name:  IMG_0171.jpg
Views: 94
Size:  129.0 KB

then I started figuring out how I wanted the cage using bend-tech
Name:  IMG_0179.jpg
Views: 90
Size:  30.1 KB

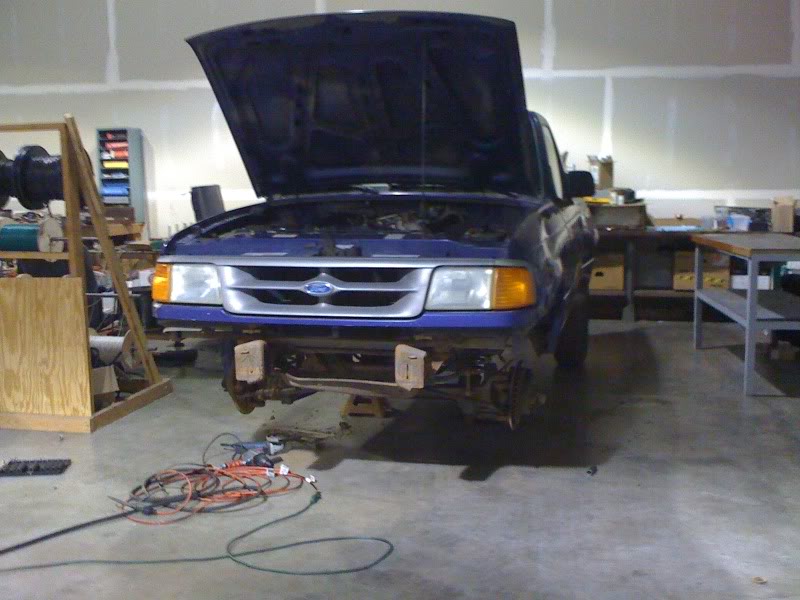

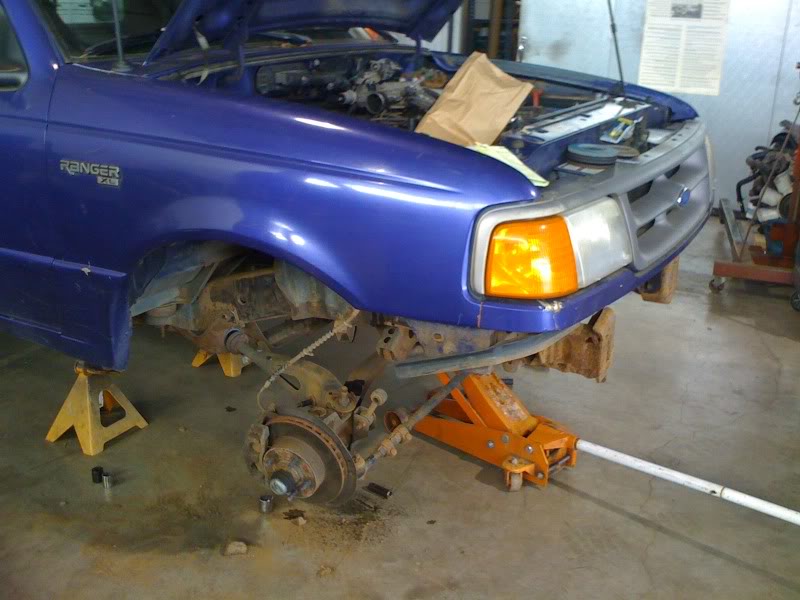

got her pulled in the shop and started tearing everything else down
Name:  IMG_0183.jpg
Views: 91
Size:  67.6 KB
Name:  IMG_0187.jpg
Views: 95
Size:  70.1 KB
Name:  IMG_0185.jpg
Views: 93
Size:  74.2 KB

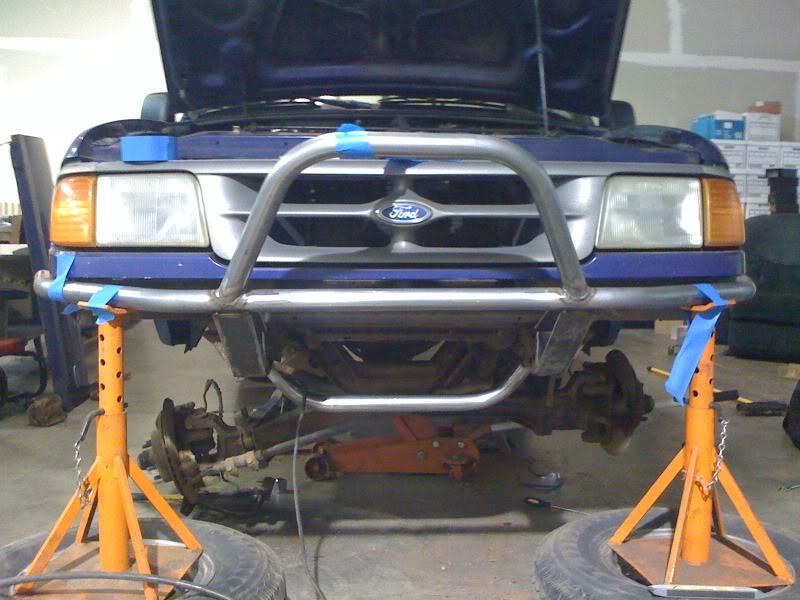

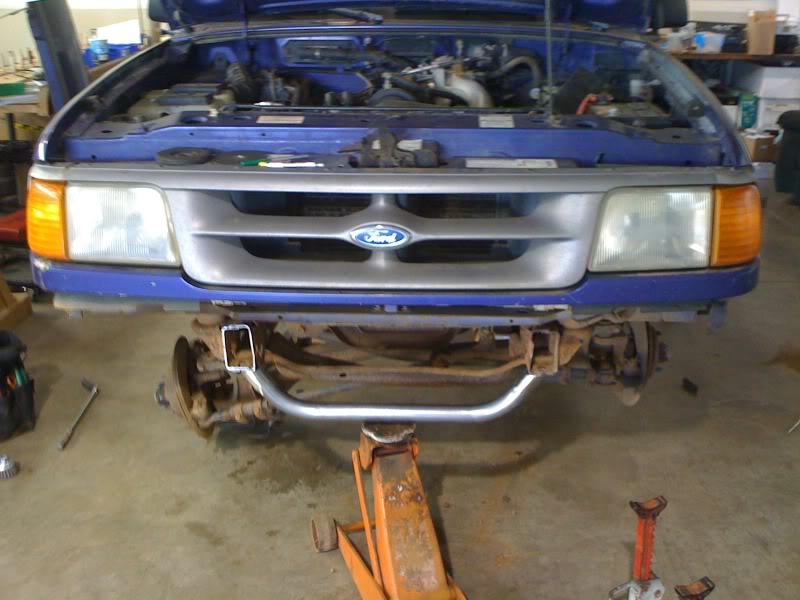

then I got started on the front bumper as I already had it designed and tubing here waiting to build it.
Name:  IMG_0195.jpg
Views: 92
Size:  71.1 KB
Name:  IMG_0207.jpg
Views: 89
Size:  88.2 KB
Name:  IMG_0206.jpg
Views: 88
Size:  68.4 KB
Reply With Quote
  #3
Old 06-16-2010
ChopTechFab's Avatar
Member
Thread Starter

Join Date: Jul 2009
Location: Albany, OR
Posts: 31
built some boxed mounts for the bumper
Name:  IMG_0230.jpg
Views: 92
Size:  90.8 KB

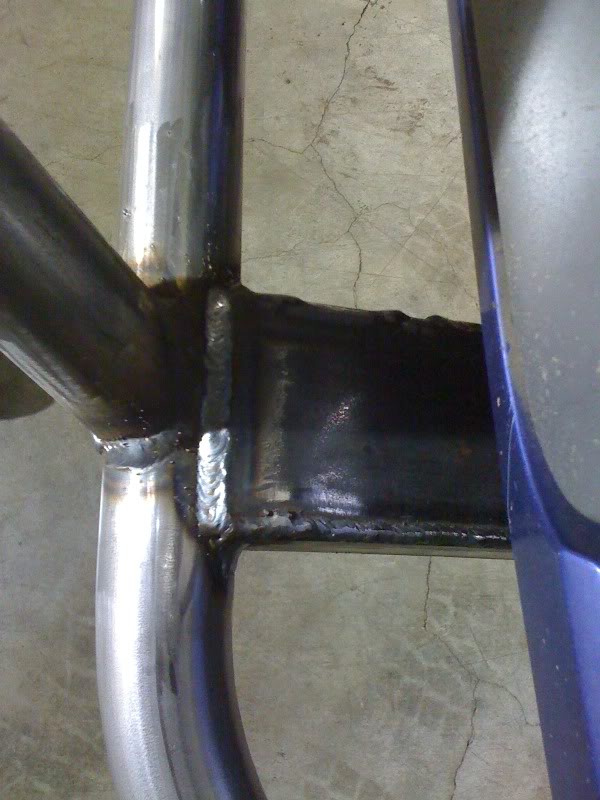

got it welded on to the truck
Name:  IMG_0233.jpg
Views: 88
Size:  71.2 KB
Name:  IMG_0229.jpg
Views: 89
Size:  79.5 KB

put some tubes up front as gussets and something to mount the skid plate to
Name:  IMG_0239.jpg
Views: 87
Size:  62.3 KB
Reply With Quote
  #4
Old 06-16-2010
ford rules's Avatar
Member

Join Date: Aug 2008
Location: pinckney,MI
Posts: 391
Looks good when you build the cage could you please take a lot of pics as im going to cage my truck this summer hopefully and i like the bendtech design you have so far also pics of how it ties into the frame would be nice. Are you going to put the factory dash back in or fab your own?
Reply With Quote
  #5
Old 06-16-2010
Shaklakan's Avatar
Member

Join Date: Jan 2008
Location: La Habra CA
Posts: 1,100
Sweet build man im going to be racing next season in 1450. Guess ill see you out there!
Reply With Quote
  #6
Old 06-16-2010
ChopTechFab's Avatar
Member
Thread Starter

Join Date: Jul 2009
Location: Albany, OR
Posts: 31
Quote:
Originally Posted by ford rules View Post
Looks good when you build the cage could you please take a lot of pics as im going to cage my truck this summer hopefully and i like the bendtech design you have so far also pics of how it ties into the frame would be nice. Are you going to put the factory dash back in or fab your own?
cage is build just trying to get it all posted up... I have tons of pics to get in order then they will be posted... thanks for checking it out guys!
Reply With Quote
  #7
Old 06-16-2010
ChopTechFab's Avatar
Member
Thread Starter

Join Date: Jul 2009
Location: Albany, OR
Posts: 31
Moar pics!

Suspension time!
I built all my brackets out of cardboard first
Name:  IMG_0213.jpg
Views: 92
Size:  59.0 KB

Then cut them from 3/16" cold rolled steel
Name:  IMG_0217.jpg
Views: 91
Size:  68.1 KB

punched some holes in them and welded them up
Name:  IMG_0245.jpg
Views: 94
Size:  77.5 KB

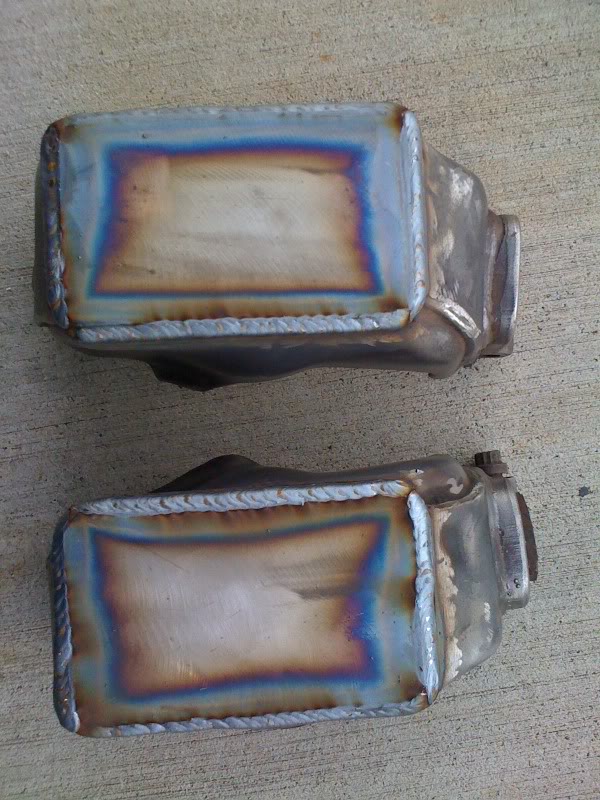

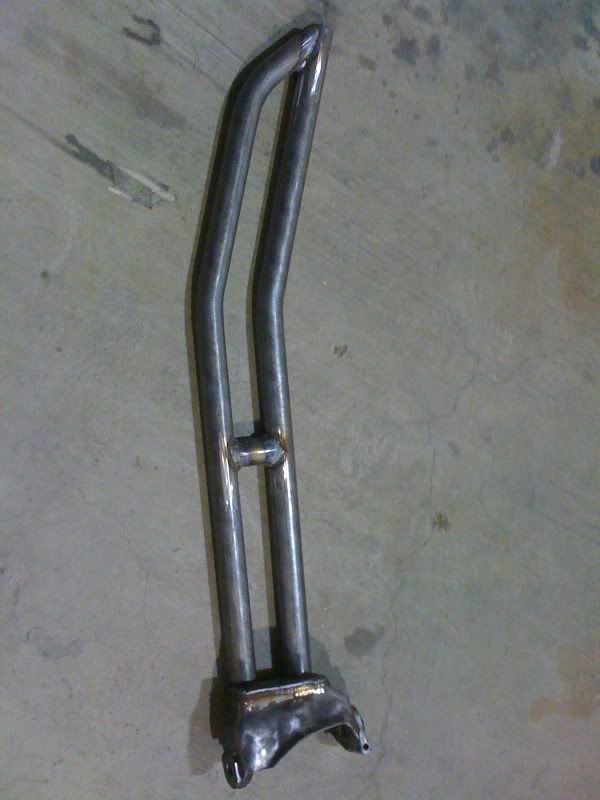

capped off my D35 beam ends and bent some tubes up for the beams (1 3/4" USA DOM)
Name:  IMG_0240.jpg
Views: 89
Size:  114.0 KB
Name:  IMG_0241.jpg
Views: 88
Size:  65.8 KB
Name:  IMG_0243.jpg
Views: 88
Size:  55.7 KB

and whipped up some radius arms as well
Name:  IMG_0265.jpg
Views: 87
Size:  74.0 KB

the beams about ready for some plating
Name:  IMG_0275.jpg
Views: 90
Size:  70.6 KB

heims, tube adapters and mis-alignments showed up from ruff stuff
Name:  IMG_0276.jpg
Views: 87
Size:  75.9 KB

mocked everything up and got the radius arms tacked to the beams and caster set (j-beam setup)
Name:  IMG_0287.jpg
Views: 124
Size:  62.6 KB
Name:  IMG_0311.jpg
Views: 213
Size:  57.7 KB

cycled it to check clearances
Name:  IMG_0292.jpg
Views: 87
Size:  55.9 KB
Name:  IMG_0297.jpg
Views: 88
Size:  74.5 KB

pulled everything back off to plate beams and get brackets welded to frame
Name:  IMG_0320.jpg
Views: 89
Size:  67.5 KB
Reply With Quote
  #8
Old 06-16-2010
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
You do some great work. That thing is beast!
Reply With Quote
  #9
Old 06-16-2010
ChopTechFab's Avatar
Member
Thread Starter

Join Date: Jul 2009
Location: Albany, OR
Posts: 31

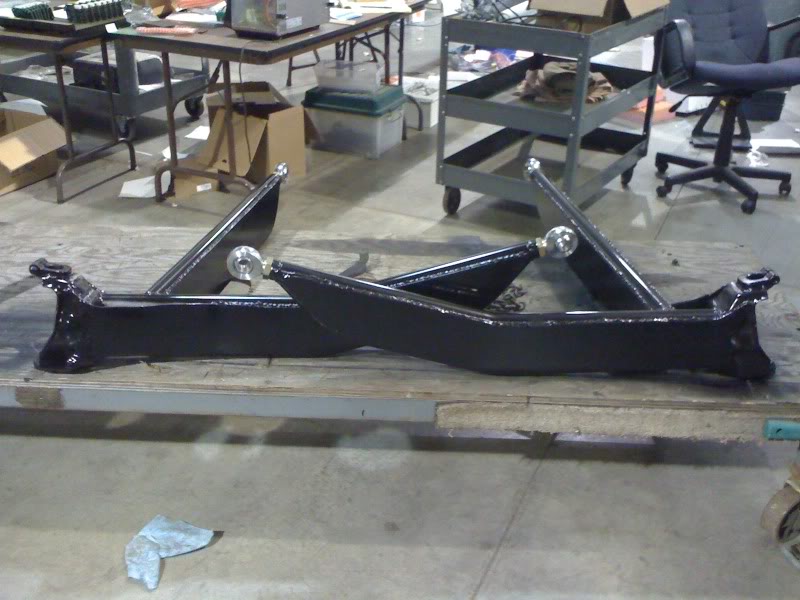

got the beams all plated and painted
Name:  IMG_0321.jpg
Views: 128
Size:  76.0 KB
Name:  IMG_0330.jpg
Views: 91
Size:  88.4 KB

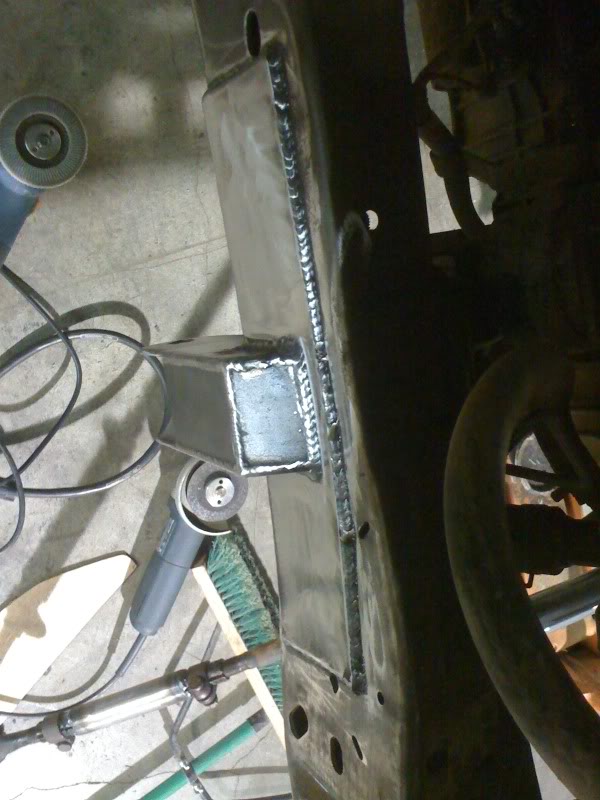

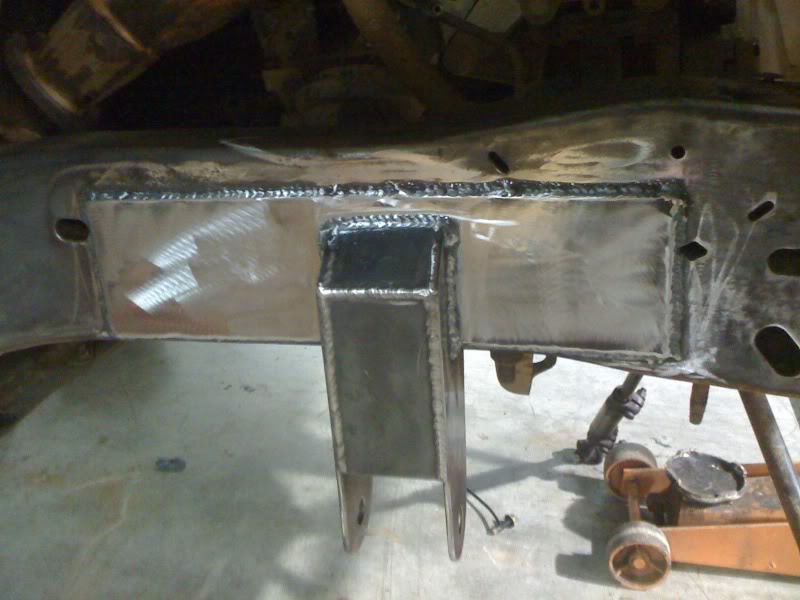

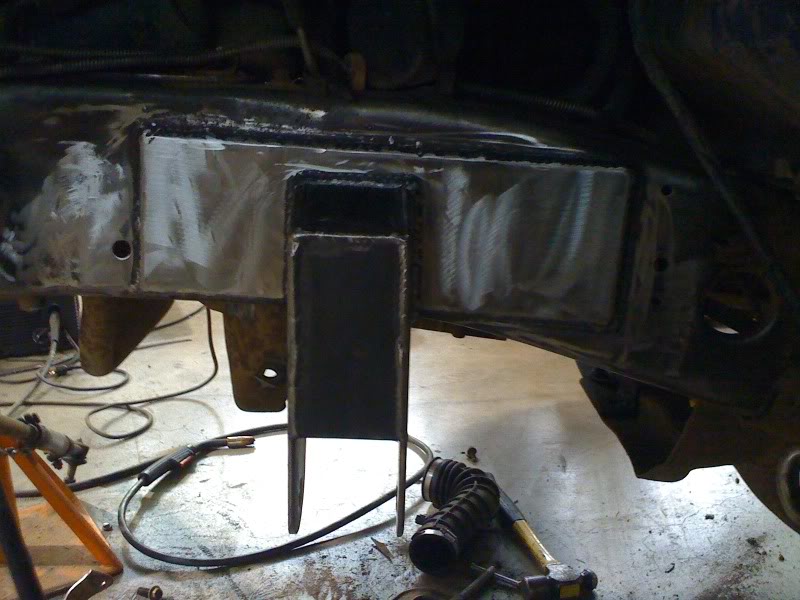

plated the frame with 3/16" cold rolled plate and welded the beam pivots on
Name:  IMG_0323.jpg
Views: 90
Size:  52.8 KB
Name:  IMG_0324.jpg
Views: 90
Size:  59.8 KB
Name:  IMG_0325.jpg
Views: 91
Size:  72.6 KB
Name:  IMG_0329.jpg
Views: 87
Size:  77.7 KB

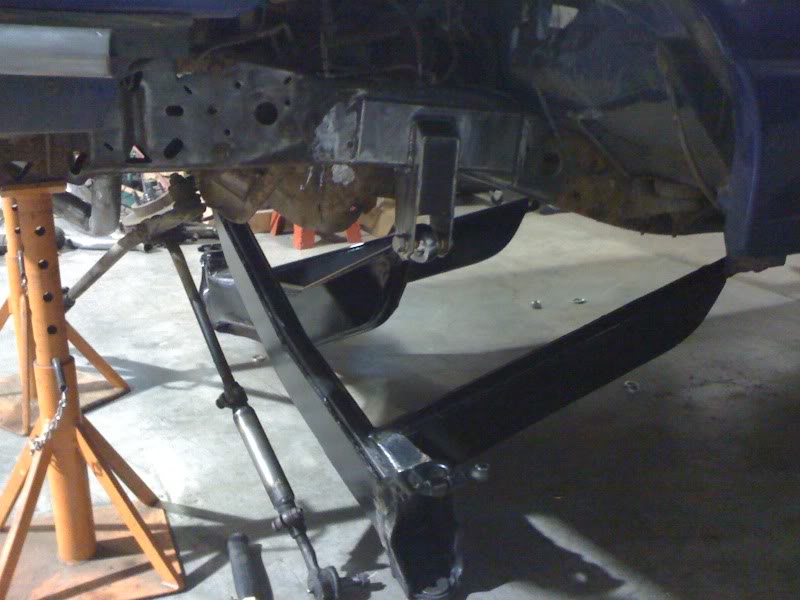

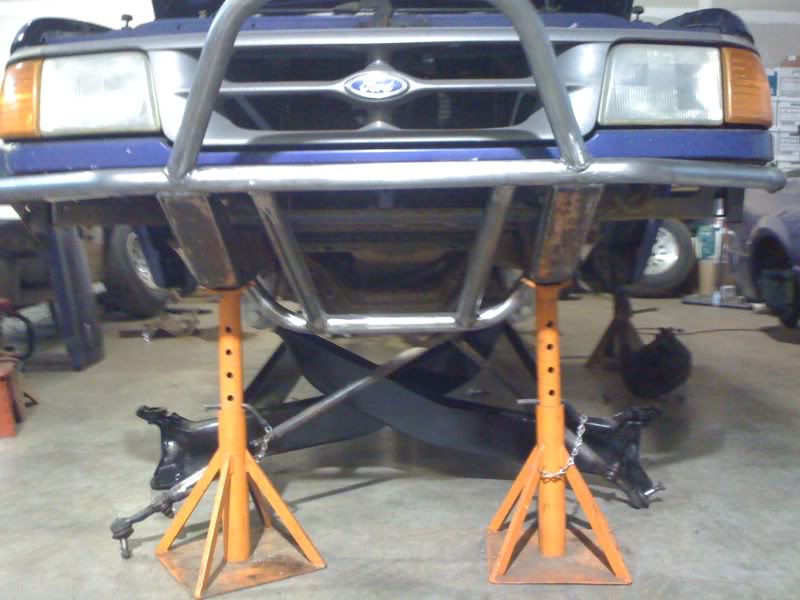

got everything bolted back up
Name:  IMG_0333.jpg
Views: 88
Size:  70.6 KB
Name:  IMG_0335.jpg
Views: 88
Size:  64.7 KB

picked up a set of Radflo 2.5"x12" coil-overs
Name:  IMG_0318.jpg
Views: 90
Size:  61.5 KB

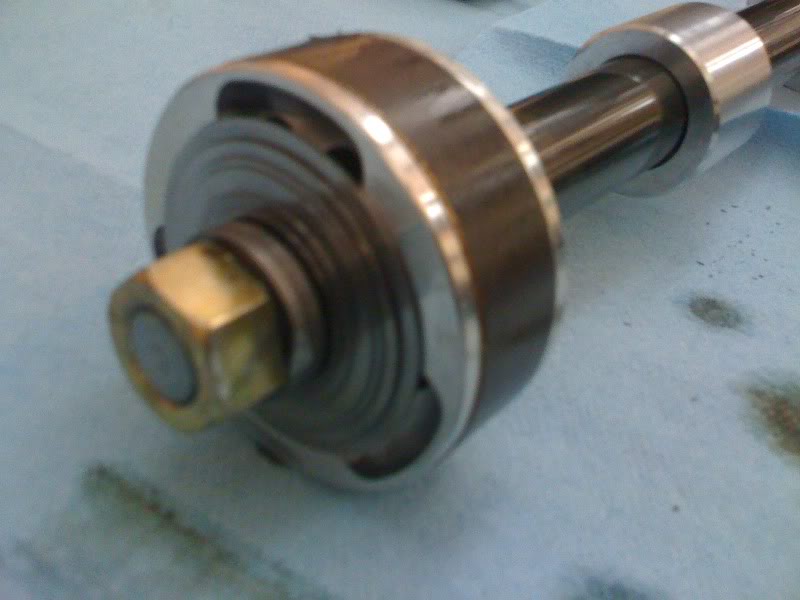

tore the shocks down to fix a leaky seal and replace oil
Name:  IMG_0438.jpg
Views: 88
Size:  57.0 KB
Name:  IMG_0439.jpg
Views: 89
Size:  45.2 KB

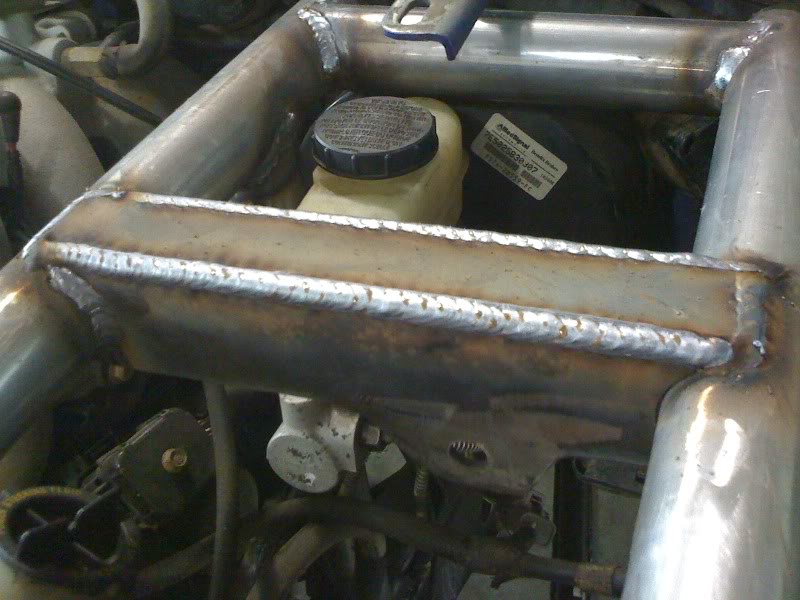

then I got started on the engine cage/shock mounts
Name:  IMG_0439.jpg
Views: 89
Size:  45.2 KB
Name:  IMG_0384.jpg
Views: 151
Size:  71.5 KB
Name:  IMG_0393.jpg
Views: 118
Size:  79.6 KB
Name:  IMG_0394.jpg
Views: 91
Size:  73.1 KB

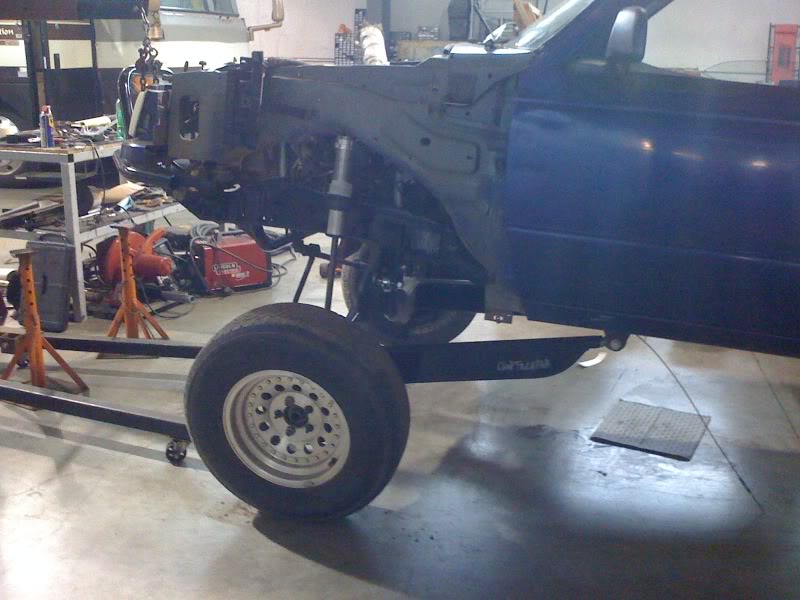

got the shocks bolted up and cycled the suspension. (17.5" travel bumped and strapped)
Name:  IMG_0403.jpg
Views: 87
Size:  68.0 KB
Name:  IMG_0402.jpg
Views: 90
Size:  71.6 KB
Name:  IMG_0405.jpg
Views: 87
Size:  76.0 KB
Name:  IMG_0404.jpg
Views: 89
Size:  81.6 KB
Attached Images
File Type: jpg IMG_0439.jpg (45.2 KB, 13 views)
Reply With Quote
  #10
Old 06-16-2010
ChopTechFab's Avatar
Member
Thread Starter

Join Date: Jul 2009
Location: Albany, OR
Posts: 31
Quote:
Originally Posted by seed60 View Post
You do some great work. That thing is beast!
thanks man I appreciate the kind words... it should be a fun truck when finished
Reply With Quote
  #11
Old 06-16-2010
dixie_boysles's Avatar
Member
iTrader: (1)

Join Date: Jul 2006
Location: NC
Posts: 3,778
HOLY CRAP BATMAN!! What a build!
Reply With Quote
  #12
Old 06-16-2010
atrocity's Avatar
Member

Join Date: Dec 2009
Location: 954Fl
Posts: 547
damn those are some nice welds
Reply With Quote
  #13
Old 06-16-2010
ChopTechFab's Avatar
Member
Thread Starter

Join Date: Jul 2009
Location: Albany, OR
Posts: 31
thanks guys

got the radius arm pivots painted, drilled and bolted up
Name:  IMG_0389.jpg
Views: 91
Size:  59.7 KB
Name:  IMG_0392.jpg
Views: 88
Size:  56.1 KB

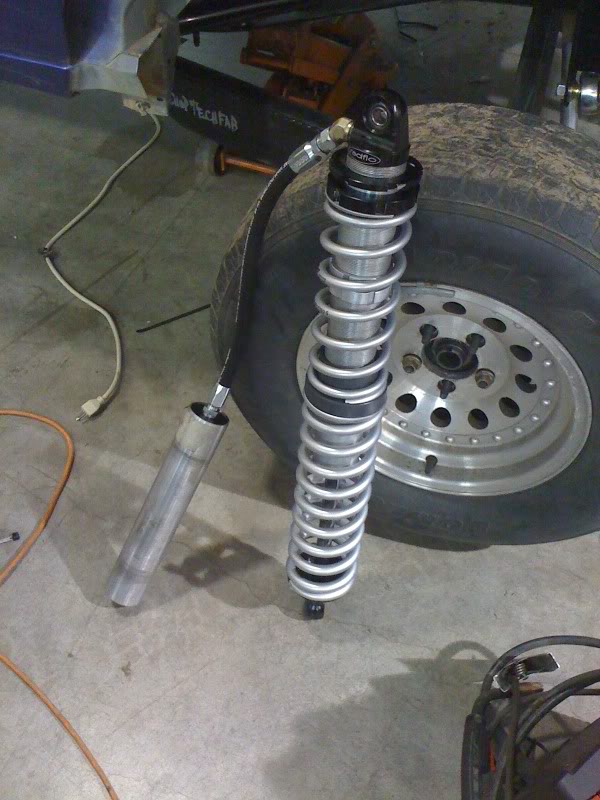

got my eibach springs and put them on my shocks
Name:  IMG_0451.jpg
Views: 89
Size:  83.7 KB
Name:  IMG_0452.jpg
Views: 88
Size:  73.5 KB

also got limit straps, resi mounts and some cromo tabs for the straps
Name:  IMG_0458.jpg
Views: 87
Size:  80.2 KB

mounted the coil-overs up
Name:  IMG_0456.jpg
Views: 89
Size:  57.2 KB

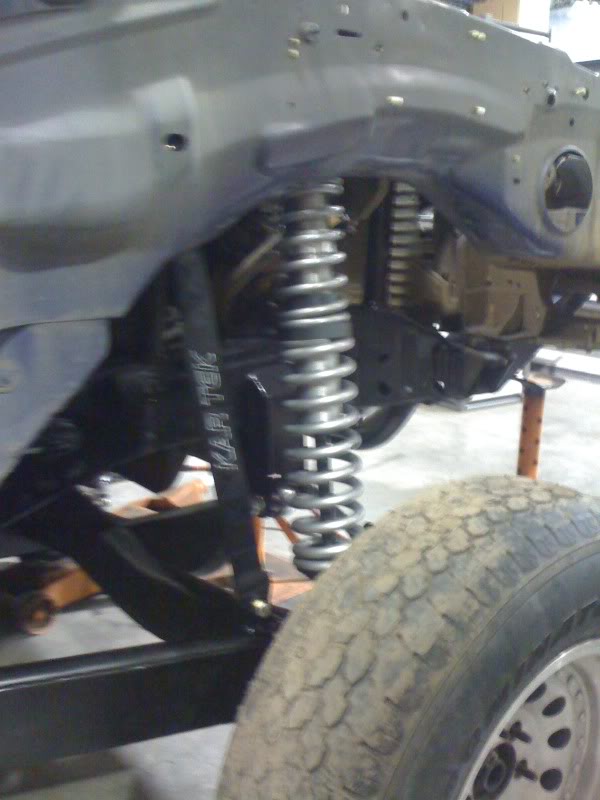

got the straps mounted too
Name:  IMG_0463.jpg
Views: 91
Size:  53.1 KB
Reply With Quote
  #14
Old 06-16-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
You've done a lot of work for only 5 hours lol
Reply With Quote
  #15
Old 06-16-2010
Shaklakan's Avatar
Member

Join Date: Jan 2008
Location: La Habra CA
Posts: 1,100
Why the 12" coilovers on equal length beams? I would have at least gone with a 14" way more travel you could have pulled. Also will you be running crossover steering?
Reply With Quote
  #16
Old 06-16-2010
ChopTechFab's Avatar
Member
Thread Starter

Join Date: Jul 2009
Location: Albany, OR
Posts: 31
Quote:
Originally Posted by Shaklakan View Post
Why the 12" coilovers on equal length beams? I would have at least gone with a 14" way more travel you could have pulled. Also will you be running crossover steering?
for one I got a good deal on the 12's and Radflo shocks have a slightly larger body than king, SAW etc. so if I would have went with a 14 I would have been much more limited on bump travel. as of now I am about 50% bump/droop travel which is where I wanted to be. it is strapped at 17.5" travel which should be plenty. and yes the truck will be running crossover steering soon.
Reply With Quote
  #17
Old 06-16-2010
elementsenjoi's Avatar
Member
iTrader: (2)

Join Date: Aug 2007
Location: 352 Florida
Posts: 1,301
Looks sick! You seem to do great work.
Reply With Quote
  #18
Old 06-16-2010
ChopTechFab's Avatar
Member
Thread Starter

Join Date: Jul 2009
Location: Albany, OR
Posts: 31
Quote:
Originally Posted by elementsenjoi View Post
Looks sick! You seem to do great work.
thank you! I do my best
Reply With Quote
  #19
Old 06-16-2010
fourliter dan's Avatar
Member

Join Date: Dec 2007
Location: Lebanon, OR
Posts: 2,229
damn good build man, im looking forward to this one! oh wow your like 10 min a way form me. i may have to come see this in person!
Reply With Quote
  #20
Old 06-16-2010
ChopTechFab's Avatar
Member
Thread Starter

Join Date: Jul 2009
Location: Albany, OR
Posts: 31
Quote:
Originally Posted by fourliter dan View Post
damn good build man, im looking forward to this one! oh wow your like 10 min a way form me. i may have to come see this in person!
haha ya you are close by. ya come check it out sometime man....
Reply With Quote
  #21
Old 06-16-2010
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
Nice build and beautiful welds!
Reply With Quote
  #22
Old 06-16-2010
ChopTechFab's Avatar
Member
Thread Starter

Join Date: Jul 2009
Location: Albany, OR
Posts: 31
Quote:
Originally Posted by RazorsEDGE View Post
Nice build and beautiful welds!
thank you!
Reply With Quote
  #23
Old 06-16-2010
comunistico's Avatar
Member

Join Date: Nov 2008
Location: san jose, Costa Rica
Posts: 1,319
wow men love it! great build i wana see this thing done and jumping!
Reply With Quote
  #24
Old 06-17-2010
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
wow this is so sweet!
Reply With Quote
  #25
Old 06-17-2010
sullys_ranger's Avatar
Member

Join Date: Mar 2006
Location: NewLexington, Ohio
Posts: 3,615
MOAR!
Reply With Quote
