Mazda 1996/1999Ranger XLT conversion

This is what the truck looked like when I first bought it , 2 years ago , the box and fenders developed major rust and it was cheaper to by a parts truck


These are some pictures of the 1999 XLT donner truck. These are the parts used on the Mazda , front clip (hood is aluminum), the complete box , the carpet , some interior panels ,the drive shaft ,the exhaust system , the rad and shroud, the A/C compressor,and finally the alternator

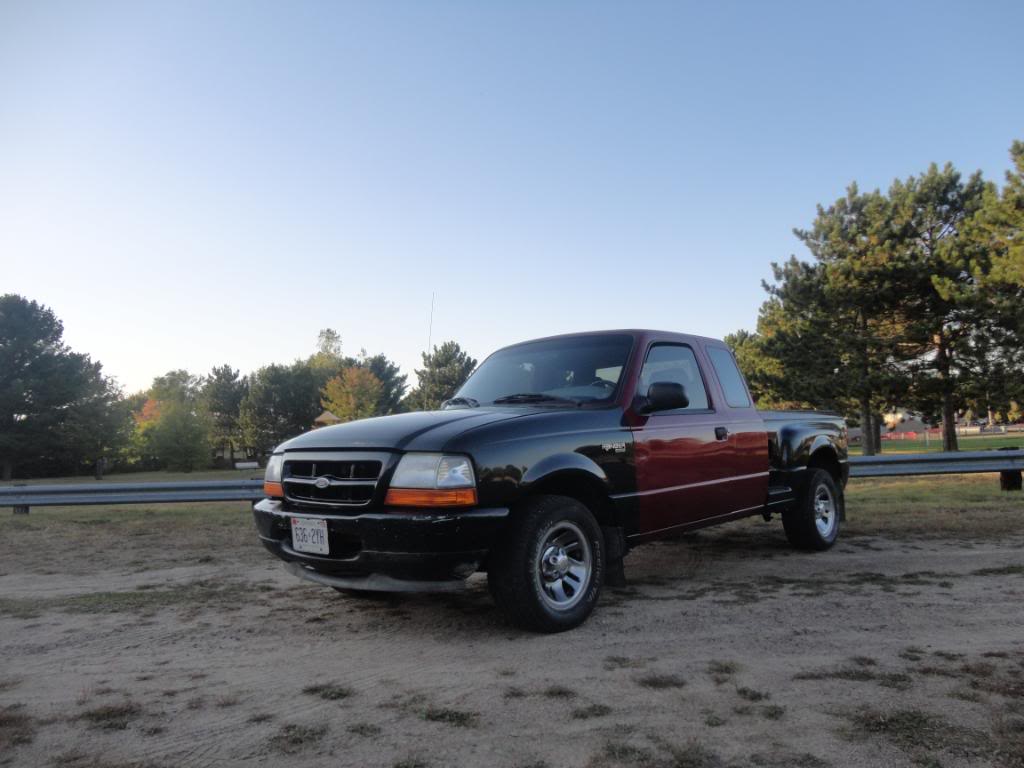

This is the truck as it looks now. Other changes not shown are , Ranger power mirrors , power door locks , Explorer center console and upper information center,and a custom Stereo install






The seats are from a Mustang , they are Recaro's , I need seats with excellent back support , these do the job perfectly . They do need to be recovered as they are starting to show their age


After blowing the hanger bearing on the truck , the 2 piece shaft was toast , so I took the 3" aluminum one piece drive shaft and installed it . there were some clearance issues but nothing a hydrolic ram couldn't take care of.


The Mazda carpet was done , couldn't get it clean ,plus when it got damp it smelled like the farm , so I rep[lace the carpet with the one from the XLT, the sill guards were toast as well , so I trimmed the XLT ones to fit /


My Father made this new metal box to attach the hood latch to use the Ranger hood


I ended up getting a fuel door of a straight side box
Attached Thumbnails
Mazda 1996/1999Ranger XLT conversion-dsc04247-1.jpg   Mazda 1996/1999Ranger XLT conversion-dsc04250-1.jpg   Mazda 1996/1999Ranger XLT conversion-dsc04251-1.jpg   Mazda 1996/1999Ranger XLT conversion-dsc04254-1.jpg   Mazda 1996/1999Ranger XLT conversion-dsc04253-1.jpg

Mazda 1996/1999Ranger XLT conversion-dsc04256-1.jpg   Mazda 1996/1999Ranger XLT conversion-dsc04255-1.jpg   Mazda 1996/1999Ranger XLT conversion-truck2.jpg   Mazda 1996/1999Ranger XLT conversion-100media_imag0033-1.jpg   Mazda 1996/1999Ranger XLT conversion-100media_imag0032.jpg

Mazda 1996/1999Ranger XLT conversion-100media_imag0030.jpg
Reply With Quote
  #2
Old 10-02-2011
Member
Thread Starter

Join Date: Apr 2011
Location: Ontario , Canada
Posts: 48
Reserved for stereo write up and pictures
Reply With Quote
  #3
Old 10-02-2011
Member

Join Date: Feb 2010
Location: Cocoa, FL
Posts: 555
Nice. I for some reason always like Mazda Beds.
Reply With Quote
  #4
Old 03-17-2012
Member
Thread Starter

Join Date: Apr 2011
Location: Ontario , Canada
Posts: 48
This was last summer when I did the 1999 XLT

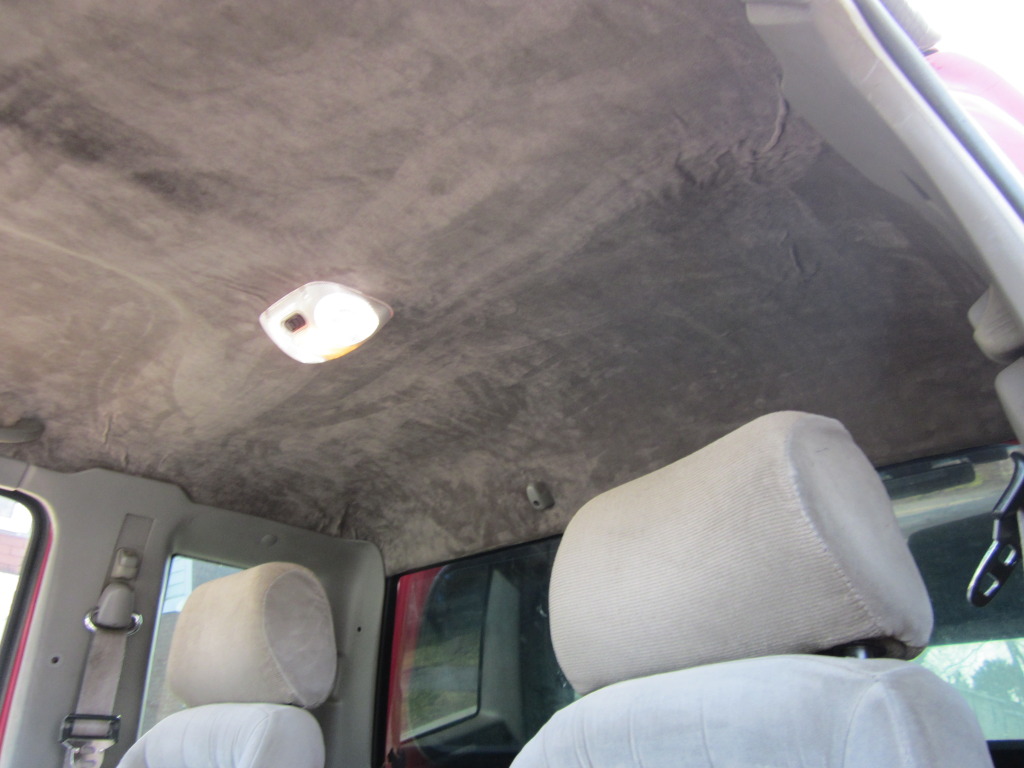

Update time , With the nice weather we are having I have started to work on the truck once again. Today I replace the latches on the cap I got a couple of weeks ago , it now locks . I also installed the headliner I covered with faux suede 2 weeks ago . This is the first headliner I have done so excuse the wrinkles .

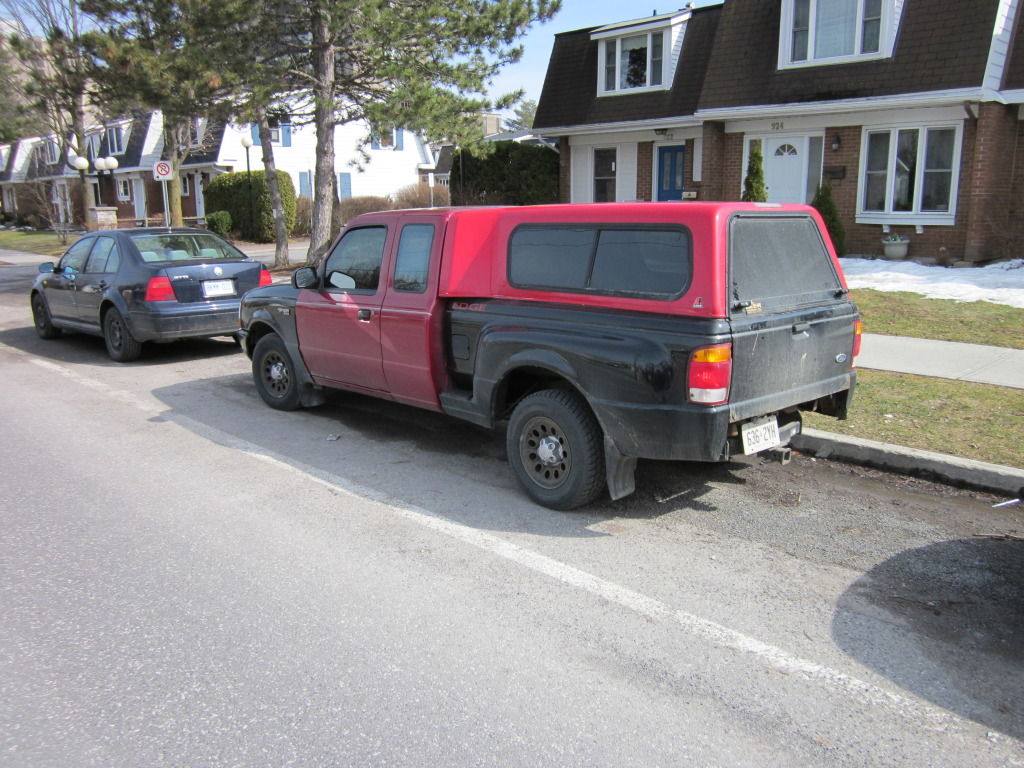

This is the cap I got , yes it needs paint but then so does the truck

there will be more added in the coming weeks .
Attached Thumbnails
Mazda 1996/1999Ranger XLT conversion-dsc04247-1.jpg   Mazda 1996/1999Ranger XLT conversion-003-2.jpg   Mazda 1996/1999Ranger XLT conversion-006-2.jpg
Reply With Quote
  #5
Old 04-29-2012
Member
Thread Starter

Join Date: Apr 2011
Location: Ontario , Canada
Posts: 48

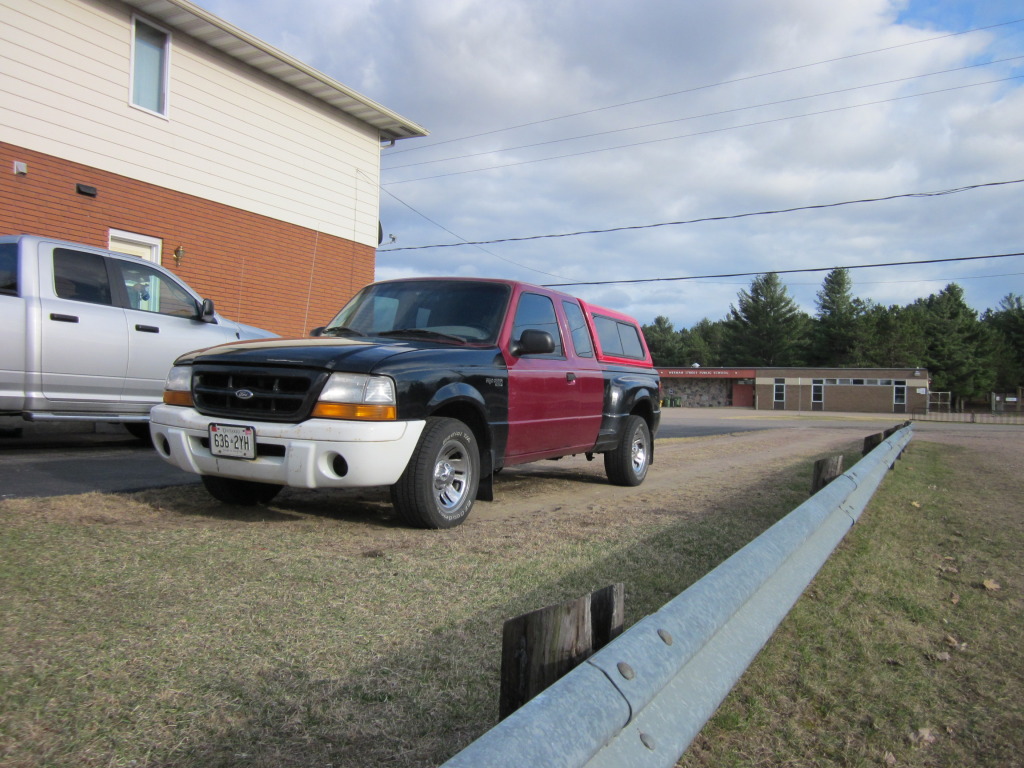

A few more changes have happened to the truck ,
Attached Thumbnails
Mazda 1996/1999Ranger XLT conversion-013.jpg
Reply With Quote
  #6
Old 04-29-2012
Member
Thread Starter

Join Date: Apr 2011
Location: Ontario , Canada
Posts: 48
I had a little trouble last week , the truck died , the engine was running ,just no go , this is why
Attached Thumbnails
Mazda 1996/1999Ranger XLT conversion-019.jpg   Mazda 1996/1999Ranger XLT conversion-017.jpg
Reply With Quote
  #7
Old 05-10-2012
Member
Thread Starter

Join Date: Apr 2011
Location: Ontario , Canada
Posts: 48
I was finally about to get the rims I wanted for the truck , I have 1 1/2 inch spacers on the front wheels , just waiting to get spacers for the rear .



Attached Thumbnails
Mazda 1996/1999Ranger XLT conversion-041.jpg   Mazda 1996/1999Ranger XLT conversion-044.jpg
Reply With Quote
  #8
Old 05-14-2012
99DangerRanger's Avatar
Level III Supporter

Join Date: Mar 2011
Location: New Creek, WV
Posts: 441
Lower it?
Reply With Quote
  #9
Old 05-14-2012
Member
Thread Starter

Join Date: Apr 2011
Location: Ontario , Canada
Posts: 48
Quote:
Originally Posted by 99DangerRanger View Post
Lower it?
In the works , gathering all the parts I need first , then it is getting a static 3/4 drop
Reply With Quote
  #10
Old 05-14-2012
Lord Of War's Avatar
Member
iTrader: (2)

Join Date: Jan 2006
Location: Thornton, Colorado
Posts: 4,599
It needs paint really bad.... no more mods just paint.

Those wheels are sweet though.
Reply With Quote
  #11
Old 05-14-2012
99DangerRanger's Avatar
Level III Supporter

Join Date: Mar 2011
Location: New Creek, WV
Posts: 441
I agree. Is it going to be red still? Or one of the various other colors?
Reply With Quote
  #12
Old 05-15-2012
Member
Thread Starter

Join Date: Apr 2011
Location: Ontario , Canada
Posts: 48
Quote:
Originally Posted by Lord Of War View Post
It needs paint really bad.... no more mods just paint.

Those wheels are sweet though.
Yes it needs paint , that takes cash I dont have right now . I am hoping to get it painted in early fall . As for colour not sure yet , I have a couple of ideas , one is painting it the same red as the cab but with more metallic in the paint
Reply With Quote
  #13
Old 07-31-2013
Member
Thread Starter

Join Date: Apr 2011
Location: Ontario , Canada
Posts: 48

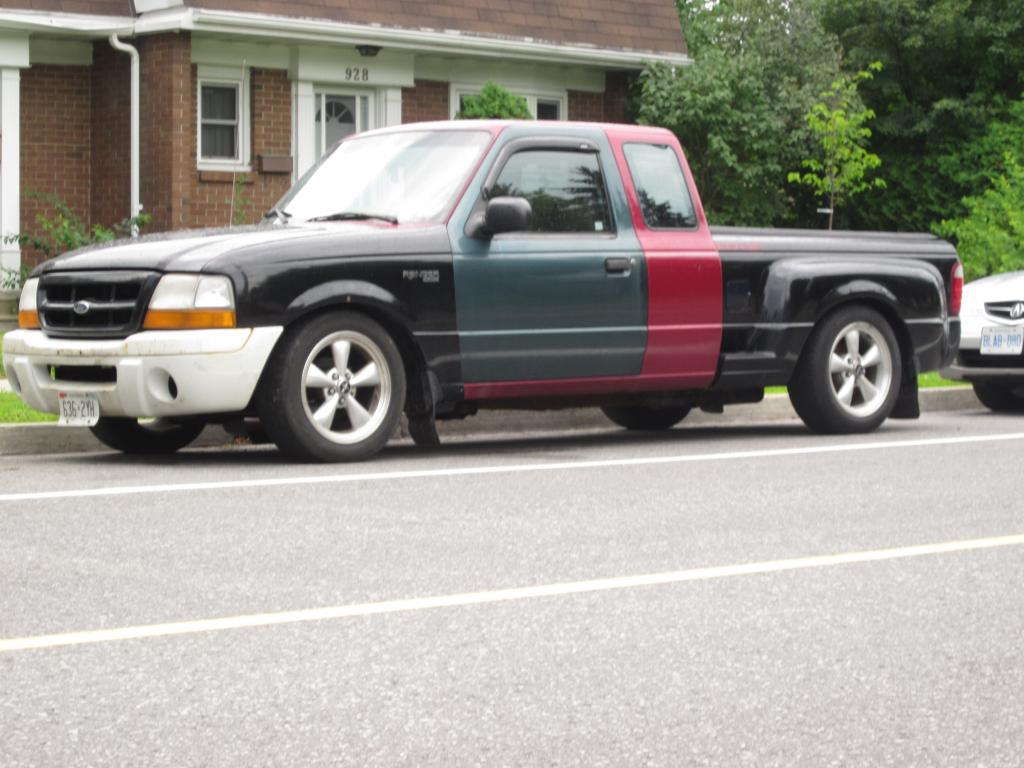

I finally got the truck lowered . I used DJM lowering components and BellTech shocks .

Attached Thumbnails
Mazda 1996/1999Ranger XLT conversion-014.jpg
Reply With Quote
  #14
Old 07-31-2013
The S-10 Killer's Avatar
Member

Join Date: Aug 2008
Location: BR, LA
Posts: 646
thoughts on trying to plasti-dip it to see what colors you would want?
Reply With Quote
  #15
Old 07-31-2013
Member
Thread Starter

Join Date: Apr 2011
Location: Ontario , Canada
Posts: 48
Quote:
Originally Posted by The S-10 Killer View Post
thoughts on trying to plasti-dip it to see what colors you would want?
I am hoping to do something similar to this

Attached Thumbnails
Mazda 1996/1999Ranger XLT conversion-paintjob.jpg
Reply With Quote
