  #26
Old 05-18-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
very nice~! i bet its like a whole new truck driving that around.
Reply With Quote
  #27
Old 05-18-2008
lifted97ranger's Avatar
Member

Join Date: Nov 2005
Location: Charlestown, IN
Posts: 1
good job!

I can't wait to do my swap!
Reply With Quote
  #28
Old 05-18-2008
k.blakeley's Avatar
Member

Join Date: Apr 2007
Location: East Texas
Posts: 2,823

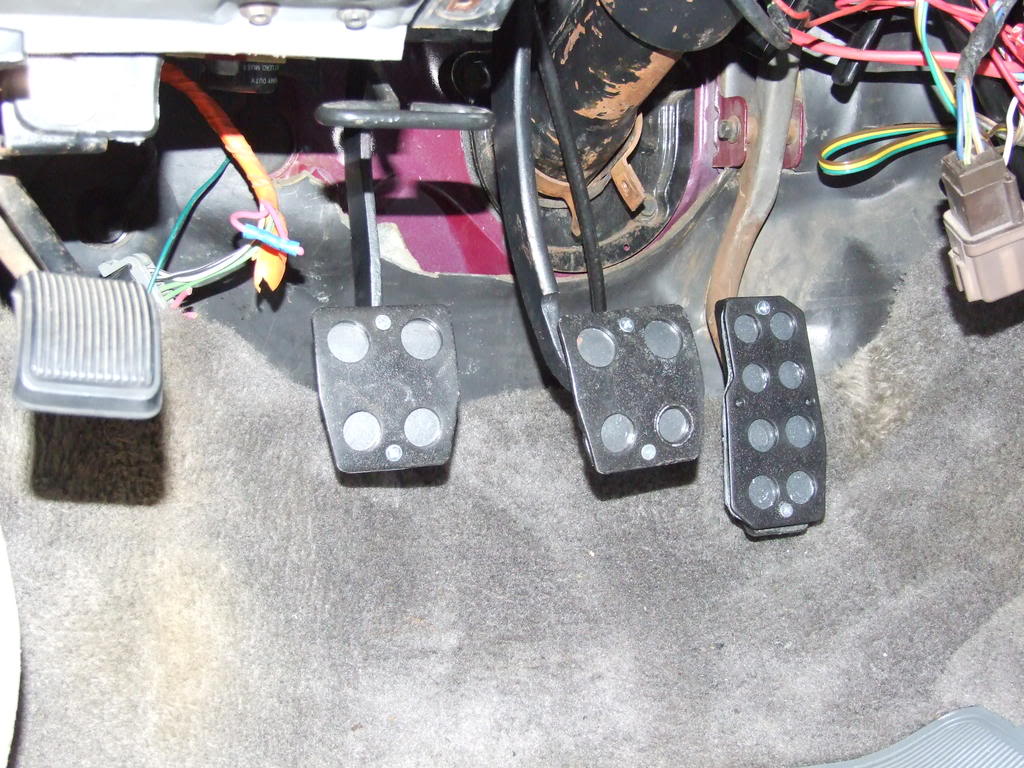

Name:  4-27-08019.jpg
Views: 25
Size:  149.0 KB


What is that handle above the clutch? My 1990 got it and I have no idea what it does.
Reply With Quote
  #29
Old 05-18-2008
5speedin2.3's Avatar
Member

Join Date: May 2005
Location: Livonia, Mi
Posts: 12
very nice, make sure you go 500 miles without abusing it so it can break in properly.
Reply With Quote
  #30
Old 05-18-2008
mazda98's Avatar
Member

Join Date: Nov 2005
Location: dalton,ga.
Posts: 550
looks great,i bet you will enjoy it
Reply With Quote
  #31
Old 05-18-2008
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
That handle is for the fuse panel
Reply With Quote
  #32
Old 08-09-2008
Foxracin's Avatar
Member

Join Date: Oct 2005
Location: Mount Holly, NC
Posts: 42
Hey bud I got a question for you. Did you use the mustang clutch pedal or the ranger pedal and just adapted stuff on the mustang pedal. I couldnt figure it out in you post. You wouldnt happen to have a picture of the whole pedal assembly before you put it back in do you? Did you have to reinforce the firewall at the adjuster?

Im going to change over to a cable set up on mine. Im about tired of the hydraulic bs/
Reply With Quote
  #33
Old 08-13-2008
My91Ranger's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Apr 2007
Location: Roseville, Michigan
Posts: 2,252
haha sweet someone actually looked at this thread!

I used a ranger pedal assembly so that it bolted right onto the brake master cylinder with no troubles. I also had a mustang clutch assembly from the junkyard that I hacked apart and used as a guide as to how the quadrant had to be set up relative to the pedal. I made a shaft for the quadrant and pedal that went through the brake pedal, the brake pedal pivots around the clutch pedal. I also updated the quadrant to a billet aluminum one and got rid of the self adjusting stock plastic quadrant. The worst part was having to cut a hole in the firewall to mount the cable adjuster. That part was terrible, was far from easy, alot of hacking and fitting done to it, and if I had to do this again I would do it with a hydraulic set up. As far as reinforcing the firewall, I had to weld on a 1/4" plate for the adjuster to fit into as well as mount it on an angle, but that runs into alot of fitment issues with the wiper motor.
Reply With Quote
  #34
Old 08-13-2008
greygooseranger's Avatar
Member

Join Date: Apr 2006
Location: SE Michigan
Posts: 3,293
So how do you like it?
Reply With Quote
  #35
Old 08-13-2008
My91Ranger's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Apr 2007
Location: Roseville, Michigan
Posts: 2,252
Now that I have everything working properly, the clutch pedal throw adjusted and have it full disengaging its amazing! So much better than that POS AOD, I have alot more control over the truck than I do before. I would have never been able to get around the dunes with the AOD in the truck. And one of the best parts about the swap, is i'm getting 4 mpg more than before!
Reply With Quote
  #36
Old 08-13-2008
greygooseranger's Avatar
Member

Join Date: Apr 2006
Location: SE Michigan
Posts: 3,293
I am glad you are enjoying it, and 4mpg increase is amazing!

I miss my stick shift ranger. I know what you mean about control too, I loved towing with a stick. It was so much easier than letting the auto do its preprogrammed BS.
Reply With Quote
  #37
Old 11-20-2014
Member

Join Date: Jun 2012
Location: durham,nc
Posts: 17
What year mustang did you get the pedals off of
Reply With Quote
