  #26
Old 10-14-2008
RangerMuse's Avatar
Member

Join Date: Jul 2007
Location: Colorado
Posts: 1,727
How did I not see this thread sooner. Rob the truck is amazing I almost want to go out and buy a gen2 just so I can tear it down and start fresh. For what you have put into the truck man I would have to say it is honestly one of my favorites on the site. Very clean and well done man
Reply With Quote
  #27
Old 11-30-2008
Melt's Avatar
Member
iTrader: (1)

Join Date: Apr 2008
Location: Denver, CO
Posts: 3,392
just found this thread today, your truck looks SCHWEET ... props to all the hard work
Reply With Quote
  #28
Old 11-30-2008
My91Ranger's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Apr 2007
Location: Roseville, Michigan
Posts: 2,252
Thanks guys! Should be even better by summer, working on a couple of things for it, and just ordered some more parts!
Reply With Quote
  #29
Old 11-30-2008
mossyoak03's Avatar
Member
iTrader: (1)

Join Date: Oct 2006
Location: Virginia Beach, VA
Posts: 193
damn man nice work
Reply With Quote
  #30
Old 11-30-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
nice truck, i had no idea you had so much hiding in there.

as for the 'built not bought'

if i ever sell my truck a sticker is going on it that says 'bought not built'
Reply With Quote
  #31
Old 11-30-2008
john93rangerstx's Avatar
Member

Join Date: Mar 2008
Location: WARWICK RI
Posts: 895
nice truck keep up the good work
Reply With Quote
  #32
Old 11-30-2008
deathbypsi's Avatar
Member

Join Date: Feb 2007
Location: Temperance Mi
Posts: 676
Very nice truck Rob! I never knew till now you were 2wd!
Reply With Quote
  #33
Old 11-30-2008
Jimmeh's Avatar
Member
iTrader: (1)

Join Date: Dec 2007
Location: Columbia Falls, MT
Posts: 3,224
My favorite Gen 2 ever. You've inspired me.
Reply With Quote
  #34
Old 11-30-2008
My91Ranger's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Apr 2007
Location: Roseville, Michigan
Posts: 2,252
Quote:
Originally Posted by deathbypsi View Post
Very nice truck Rob! I never knew till now you were 2wd!
Haha yea. No regular person on the street has a clue. They see lifted and assume 4wd, but i'm 2wd and proud of it. No plans on changing.

Quote:
Originally Posted by Jimmeh View Post
My favorite Gen 2 ever. You've inspired me.
Thanks! I definitely love the Gen II's.
Reply With Quote
  #35
Old 11-30-2008
Cooke15's Avatar
Member

Join Date: Nov 2007
Location: Port Coquitlam, BC
Posts: 1,490
Amazing stuff dude. 10/10
Reply With Quote
  #36
Old 01-10-2009
mafo93's Avatar
Member

Join Date: Sep 2008
Location: stavanger, norway
Posts: 42
awesome

awesome work man
Reply With Quote
  #37
Old 01-10-2009
0RangerEdge2's Avatar
Member
iTrader: (2)

Join Date: Jun 2005
Location: Ohio
Posts: 2,593
See in person and it's that much more amazing. But what amazes me the most is that Rob fits in the truck!
Reply With Quote
  #38
Old 01-12-2009
My91Ranger's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Apr 2007
Location: Roseville, Michigan
Posts: 2,252
Quote:
Originally Posted by 0RangerEdge2 View Post
See in person and it's that much more amazing. But what amazes me the most is that Rob fits in the truck!
Haha yea its better than my old regular cab, that's for sure. But I definitely cannot fit in the newer trucks, no head room at all!
Reply With Quote
  #39
Old 01-12-2009
0RangerEdge2's Avatar
Member
iTrader: (2)

Join Date: Jun 2005
Location: Ohio
Posts: 2,593
I barely fit in mine and you're another 3-4" taller than me! So are you coming to the meet or not?
Reply With Quote
  #40
Old 01-12-2009
My91Ranger's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Apr 2007
Location: Roseville, Michigan
Posts: 2,252
Yea i'll be there I just don't know if i'll have my tran ready to go in.
Reply With Quote
  #41
Old 02-12-2009

Join Date: Feb 2009
Location: Addison,NY
Posts: 0
New to this site
I got a 90 like it.Very nice job! Bet it turns heads in your town.
Where can I get parts for mine ? need an engine harness for 2.9 auto
Reply With Quote
  #42
Old 02-14-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
No idea how I missed this thread, but your truck is awesome. You've certainly put a ton of work into it.
Reply With Quote
  #43
Old 02-14-2009
crazymikey's Avatar
Member
iTrader: (2)

Join Date: Nov 2008
Location: your mom
Posts: 4,008
x2.

Great looking truck and well put together. 5 stars.
Reply With Quote
  #44
Old 02-15-2009
boborone's Avatar
Member

Join Date: Feb 2009
Location: Grand Prairie, Tx
Posts: 51
Nice man, very nice. Yours and Shane's (Fx4wannabe01) are favorite trucks on here.

That's a project I've wanted to do for a long time, put a 302 in a ole ranger. My bud had a bb in a late 90's and had lots frame problems, it didn't like the torque the engine put out. For some reason I can't stand the look of the 80's f series. But on a ranger, I love it. That was one thing they were sorely missing, more power.

I'll end up doing that or a turbo 2.3 eventually in one.

Last edited by boborone; 02-15-2009 at 09:55 AM.
Reply With Quote
  #45
Old 02-17-2009
Iron ZooLoo's Avatar
Member

Join Date: Sep 2008
Location: The Iron Zoo
Posts: 166
Quote:
Originally Posted by My91Ranger View Post
Haha yea its better than my old regular cab, that's for sure. But I definitely cannot fit in the newer trucks, no head room at all!
How tall is ya?
Reply With Quote
  #46
Old 02-17-2009
My91Ranger's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Apr 2007
Location: Roseville, Michigan
Posts: 2,252
6 Foot 7 Inches.
Reply With Quote
  #47
Old 08-03-2009
My91Ranger's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Apr 2007
Location: Roseville, Michigan
Posts: 2,252
Alright, I decided to revive my old thread rather than make a new one. Wanted to show off the work i've done over the past couple of months. I'm very happy with where the truck is at now.

My truck has ate more transmission than I care to remember so I decided to start building my own. Nothing to tough, just rebuilding a couple of T5's with some upgrades. Also replaced my clutch with a Spec Stage II after I burned mine up in the mud at the Mounds.

Clutch
Name:  4-27-09020.jpg
Views: 8
Size:  159.1 KB

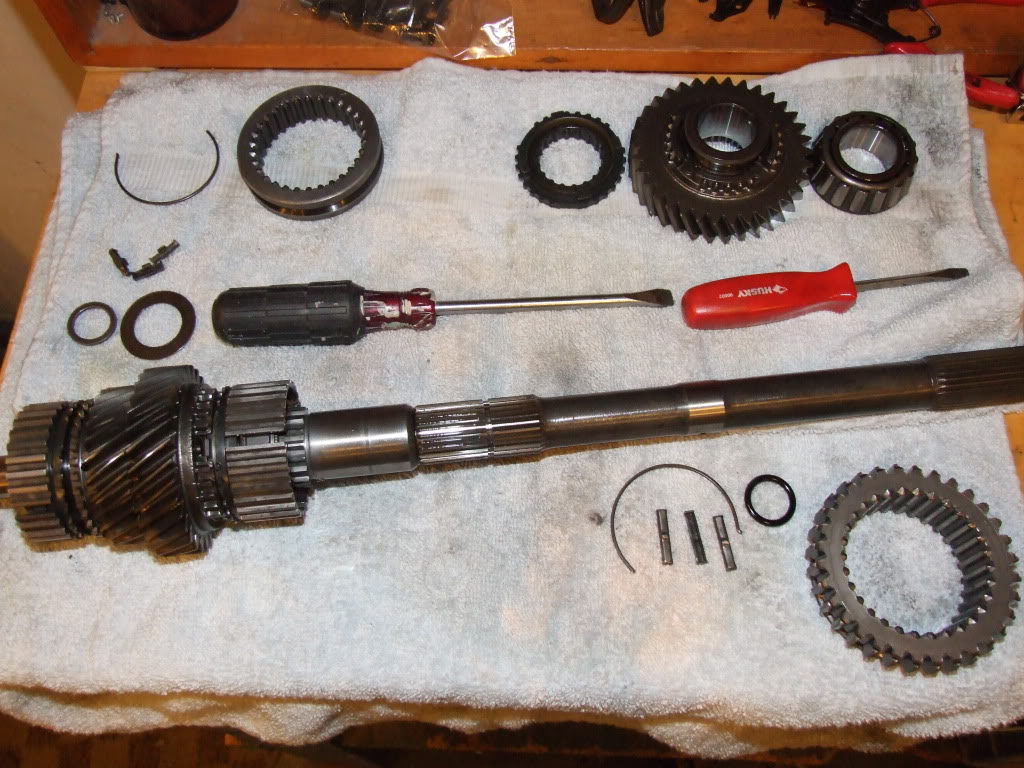

Trans Teardown
Name:  1-20-09022.jpg
Views: 7
Size:  180.3 KB
Name:  1-20-09034.jpg
Views: 7
Size:  133.6 KB
Name:  1-20-09031.jpg
Views: 7
Size:  134.0 KB
So far that trans is doing great, been in the truck 6 months now with no problems!

Over the winter I put in a F303 cam. With the 1.7 Roller Rockers i have .544 lift! So the motor woke up a little bit. Great High end power now, and a really grumbly idle. I also had to put on a set of Trick Flow Valve Springs to hold the lift because I was getting wicked valve float at 5400 RPMs. Now the motor revs up to 6500 and is making good power all the way through.
Name:  1-20-09055.jpg
Views: 7
Size:  166.0 KB
Name:  1-20-09057.jpg
Views: 7
Size:  165.9 KB

One of the biggest problems i've had with this truck from the start is the wiring, so I decided to start over. I picked up an engine harness from a 92 mustang and went to town. Rewired everything and after some small issues everything ran great! Motor is much smoother and better gas mileage. The old harness didn't even have the HEGO Sensors hooked up.

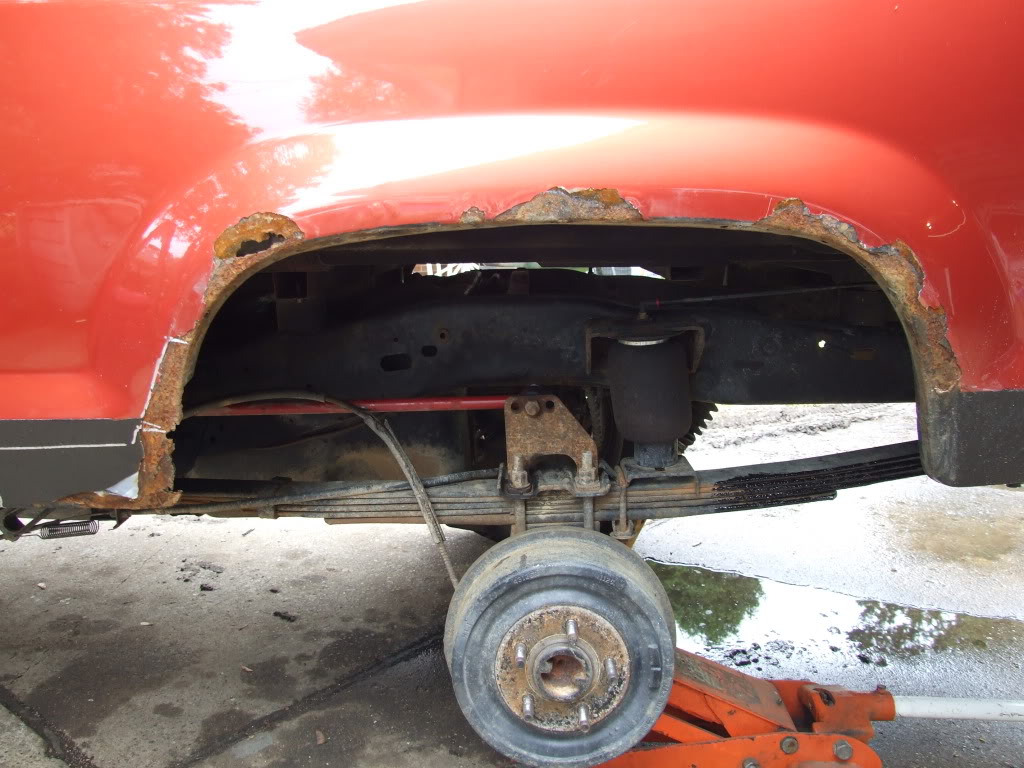

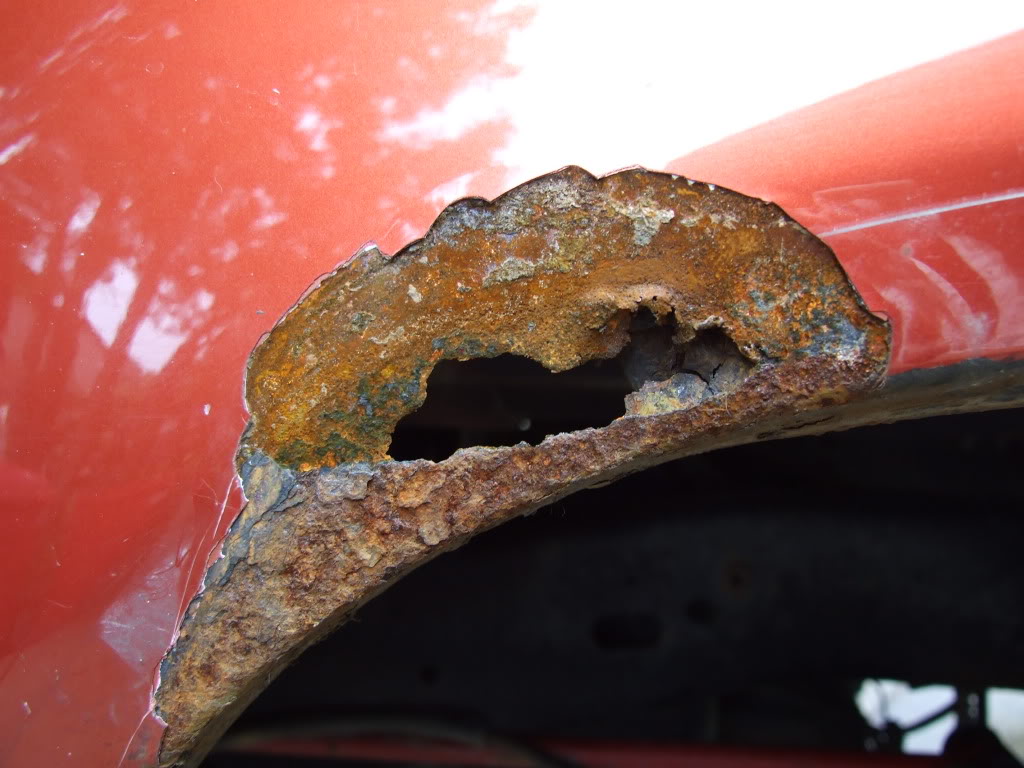

This year i've had to do alot of cancer treatment on the truck. Tons of rust spots, many through the metal, so I welded in a couple of patch panels.
Name:  6-18-09001.jpg
Views: 8
Size:  144.3 KB
Name:  6-18-09004.jpg
Views: 7
Size:  127.6 KB
Name:  6-18-09010.jpg
Views: 7
Size:  78.8 KB
Name:  6-18-09011.jpg
Views: 8
Size:  114.5 KB

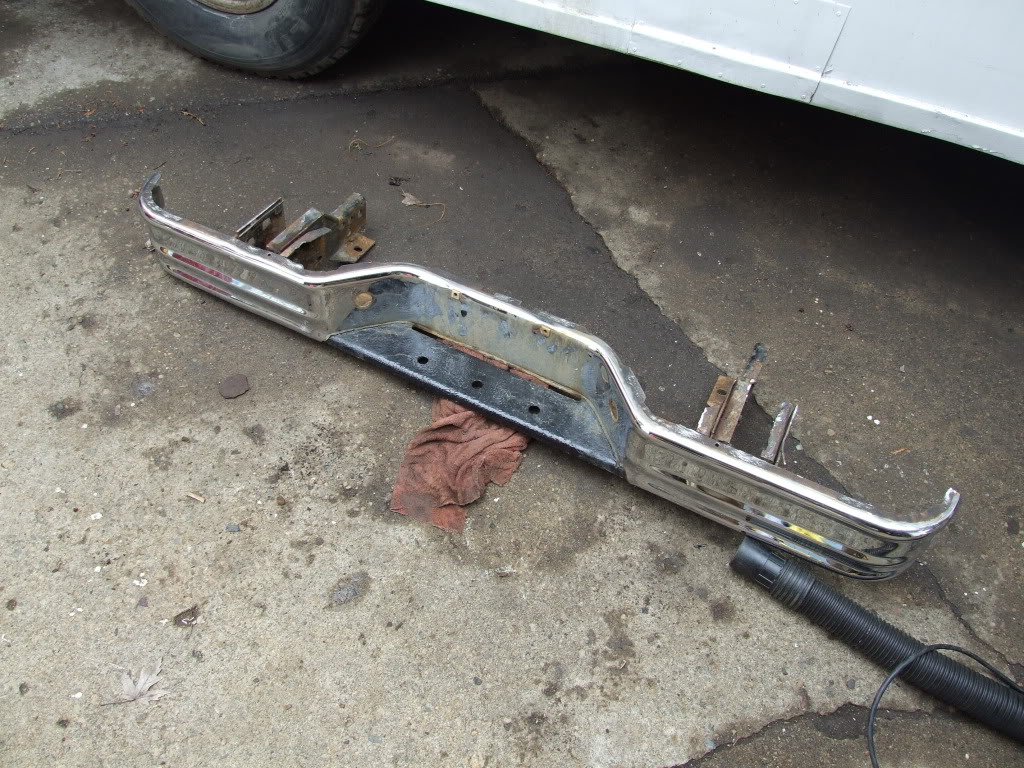

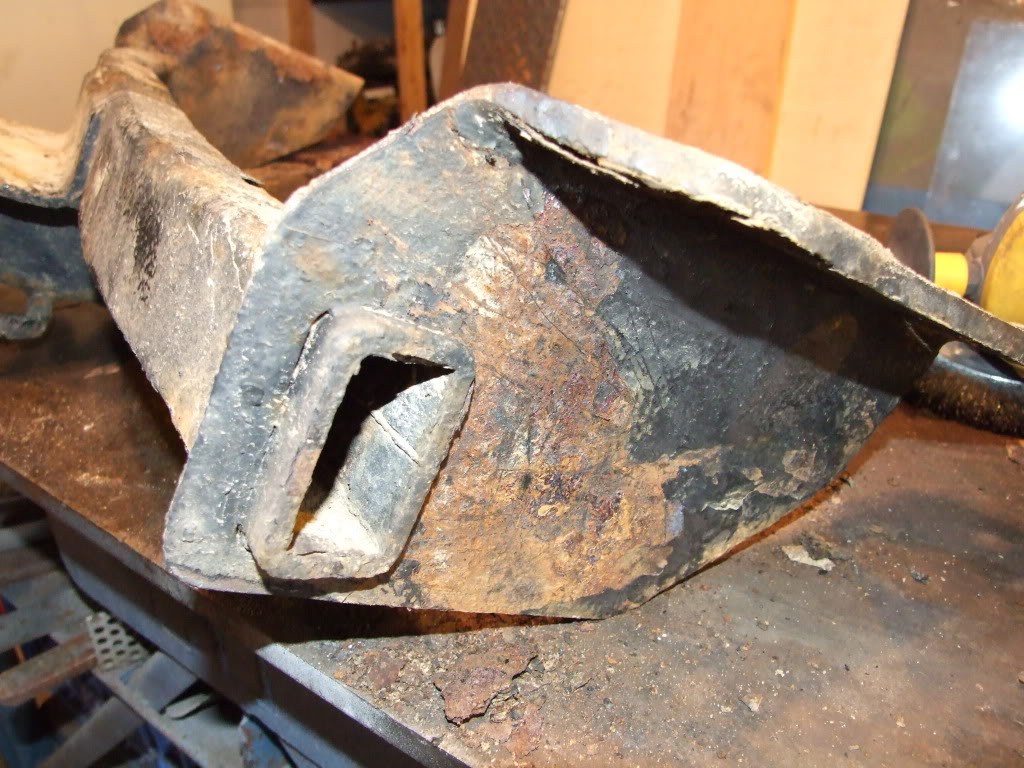

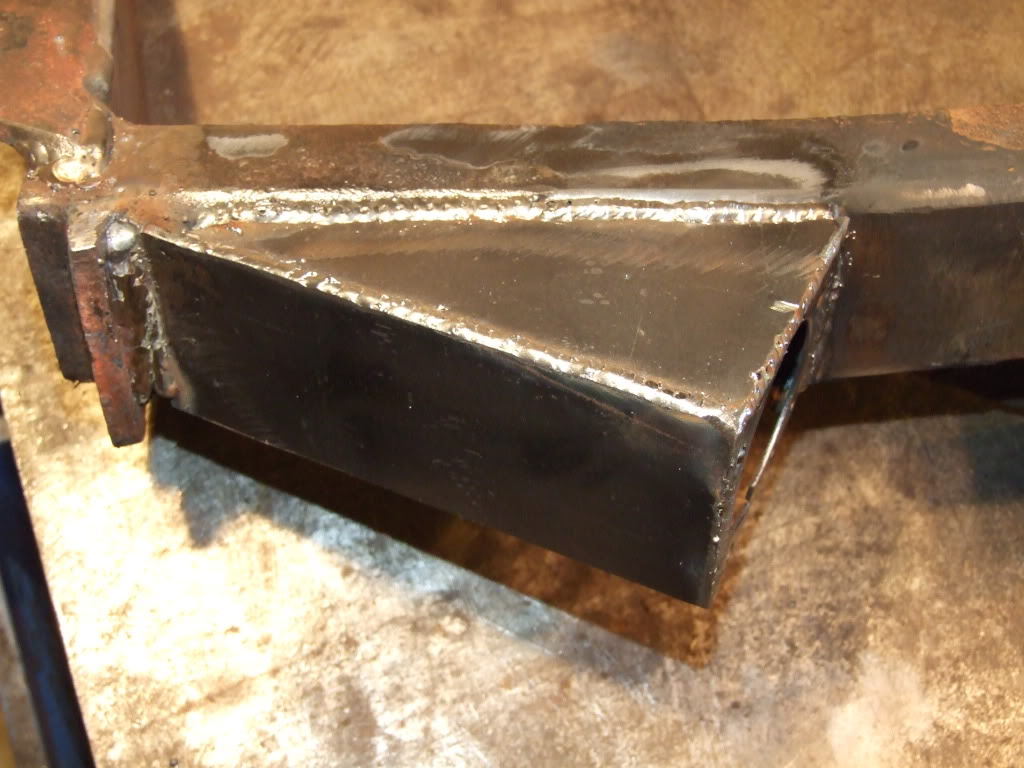

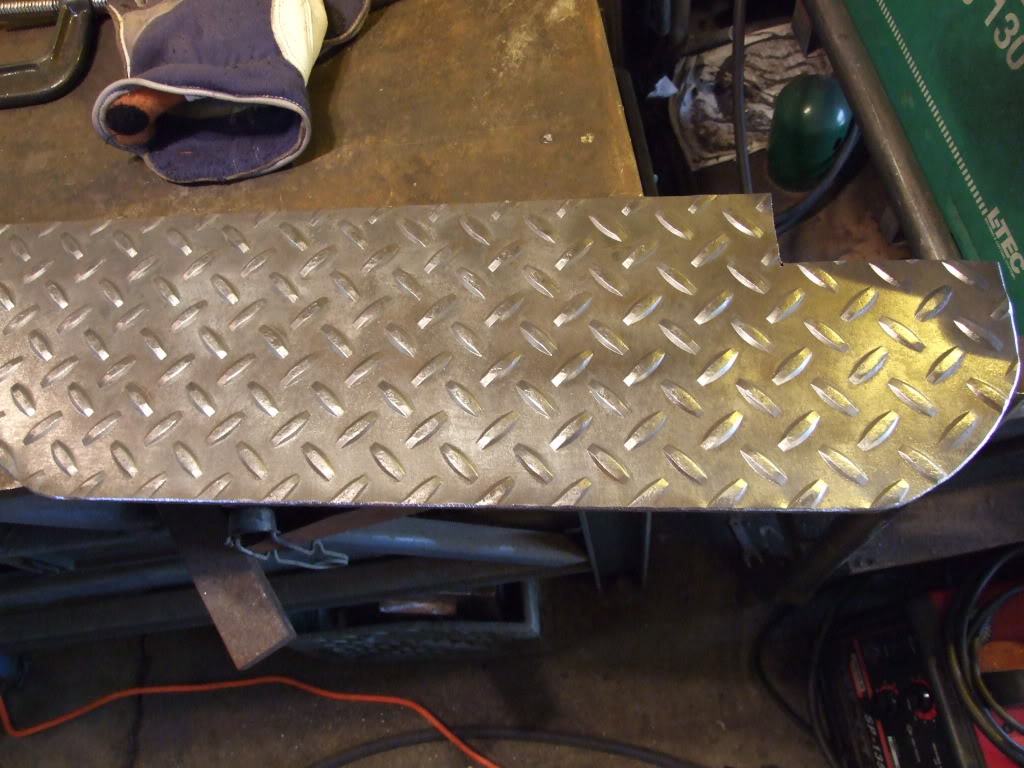

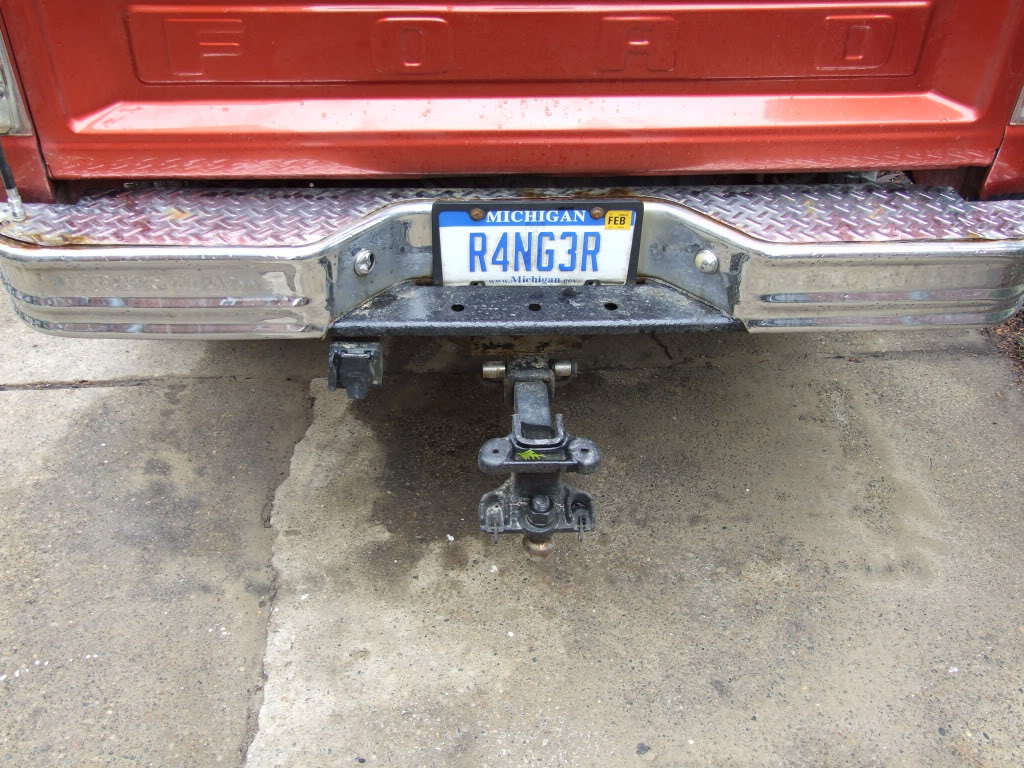

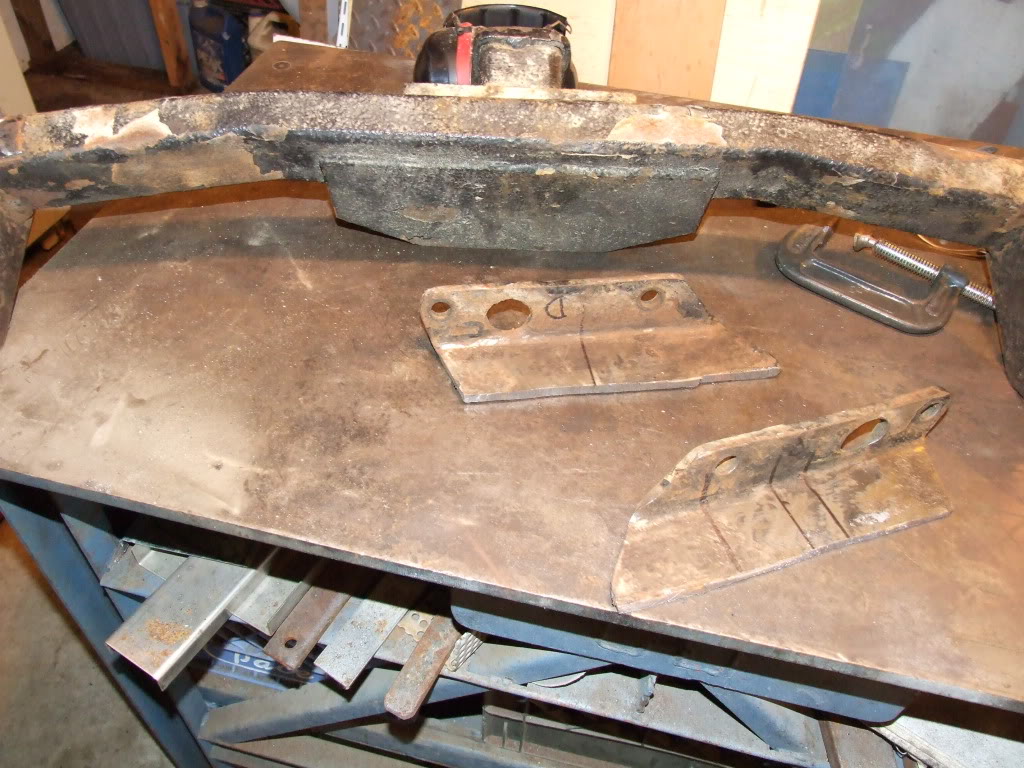

My rear bumper also rusted through, so I used a piece of 1/4 inch diamond plate and made a new top for at. At the same time I raised my trailer hitch 2 inches to help compensate for the body lift.
Name:  3-23-09016.jpg
Views: 7
Size:  214.4 KB
Name:  3-23-09020.jpg
Views: 7
Size:  108.2 KB
Name:  3-23-09026.jpg
Views: 7
Size:  176.2 KB
Name:  3-23-09055.jpg
Views: 7
Size:  227.5 KB
Name:  3-23-09059.jpg
Views: 7
Size:  145.1 KB
Name:  3-23-09063.jpg
Views: 7
Size:  138.2 KB
Name:  3-23-09034.jpg
Views: 7
Size:  174.1 KB
Name:  3-23-09041.jpg
Views: 7
Size:  170.8 KB
Name:  3-23-09086.jpg
Views: 7
Size:  117.4 KB
Name:  3-23-09098.jpg
Views: 7
Size:  320.7 KB

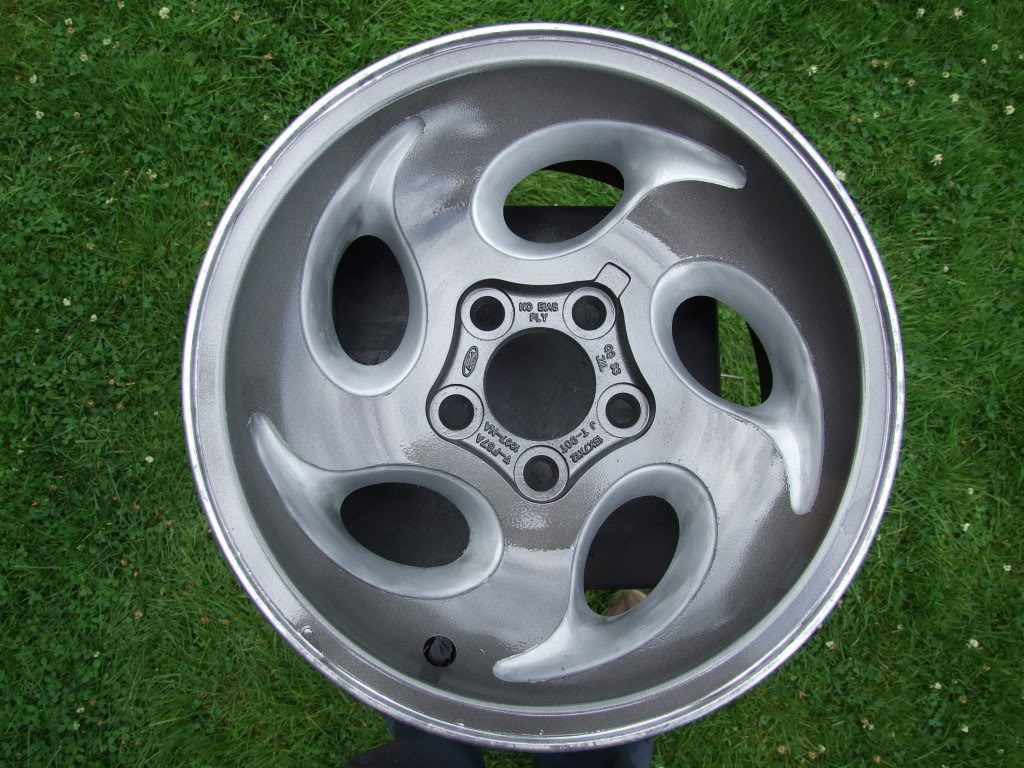

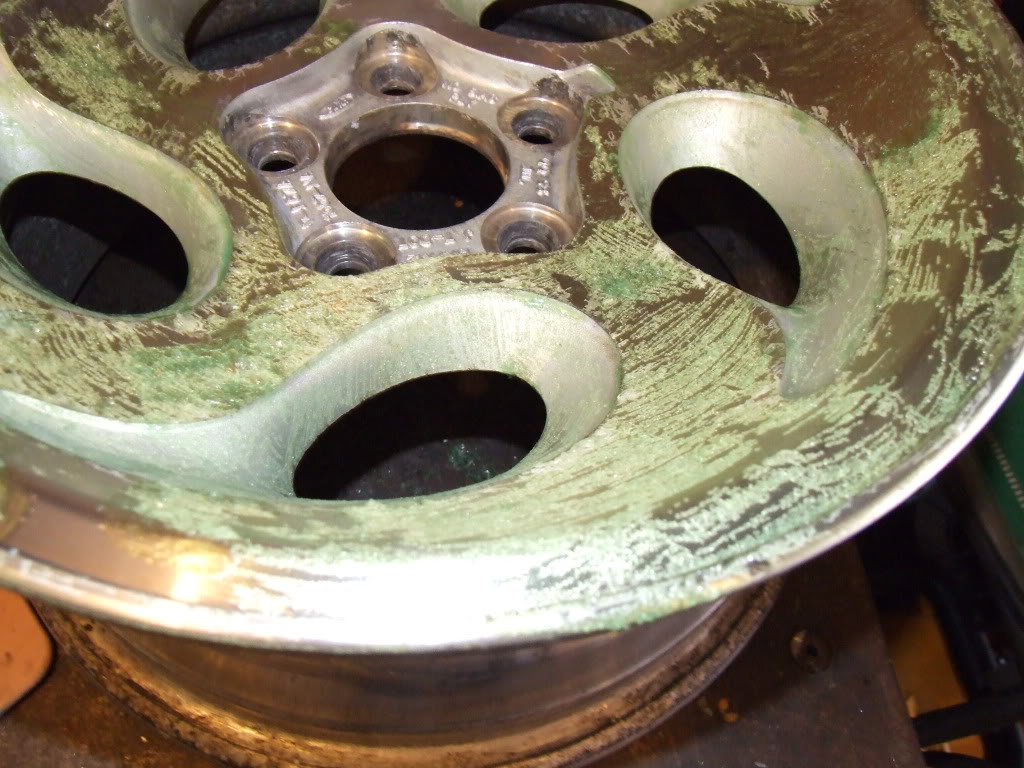

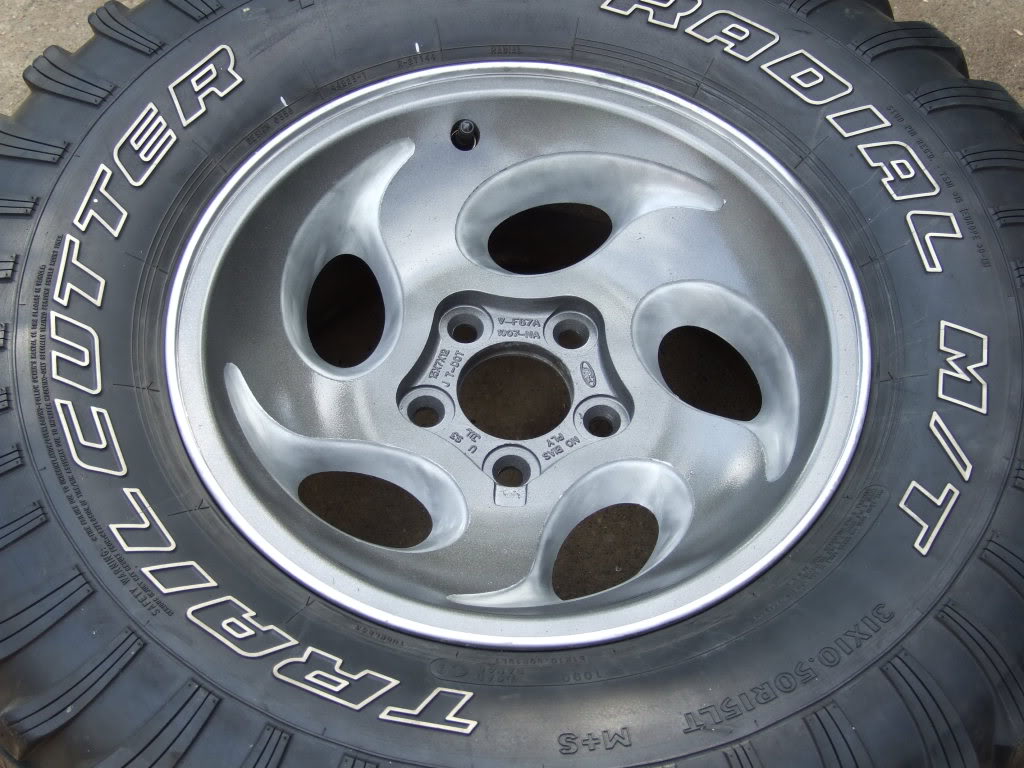

I took my set of stock explorer aluminum rims that I use in the winter, and striped off the clear coated, smoothed out the oxidation marks, and painted them using Duplicolor. I love how they came out.
Name:  7-05-09006.jpg
Views: 7
Size:  109.7 KB
Name:  7-05-09010.jpg
Views: 7
Size:  150.8 KB
Name:  7-05-09018.jpg
Views: 7
Size:  199.5 KB
Name:  7-15-09016.jpg
Views: 8
Size:  137.0 KB
Name:  7-15-09001.jpg
Views: 7
Size:  244.0 KB

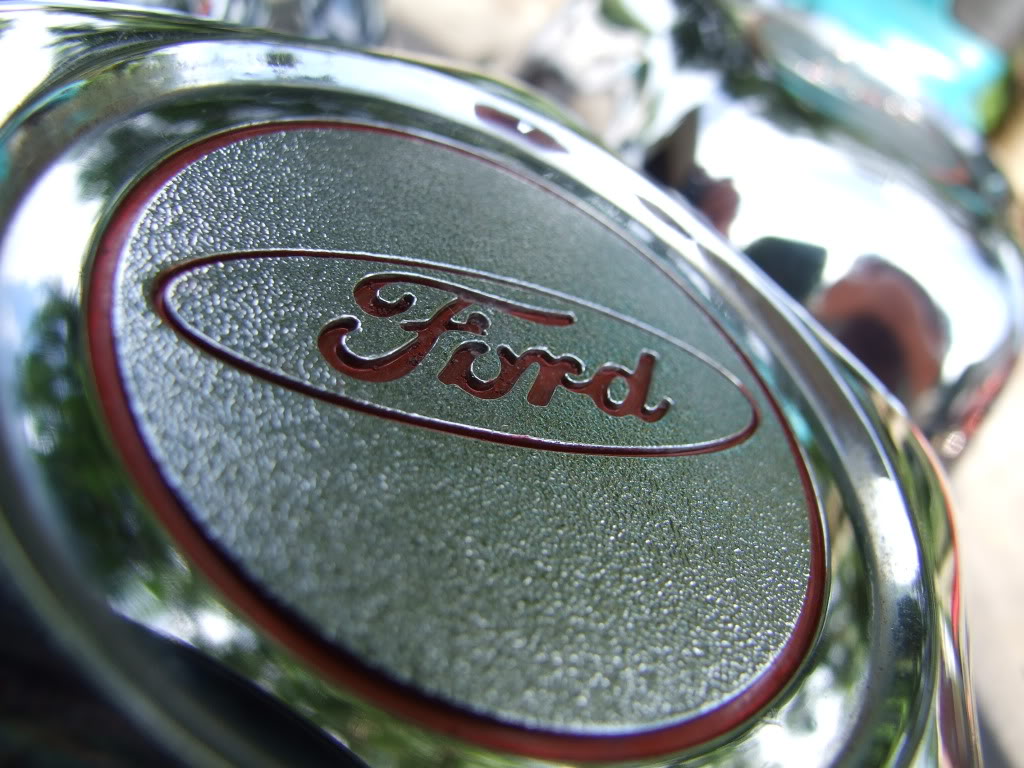

Name:  7-15-09014.jpg
Views: 7
Size:  148.8 KB
Name:  7-15-09007.jpg
Views: 7
Size:  259.5 KB

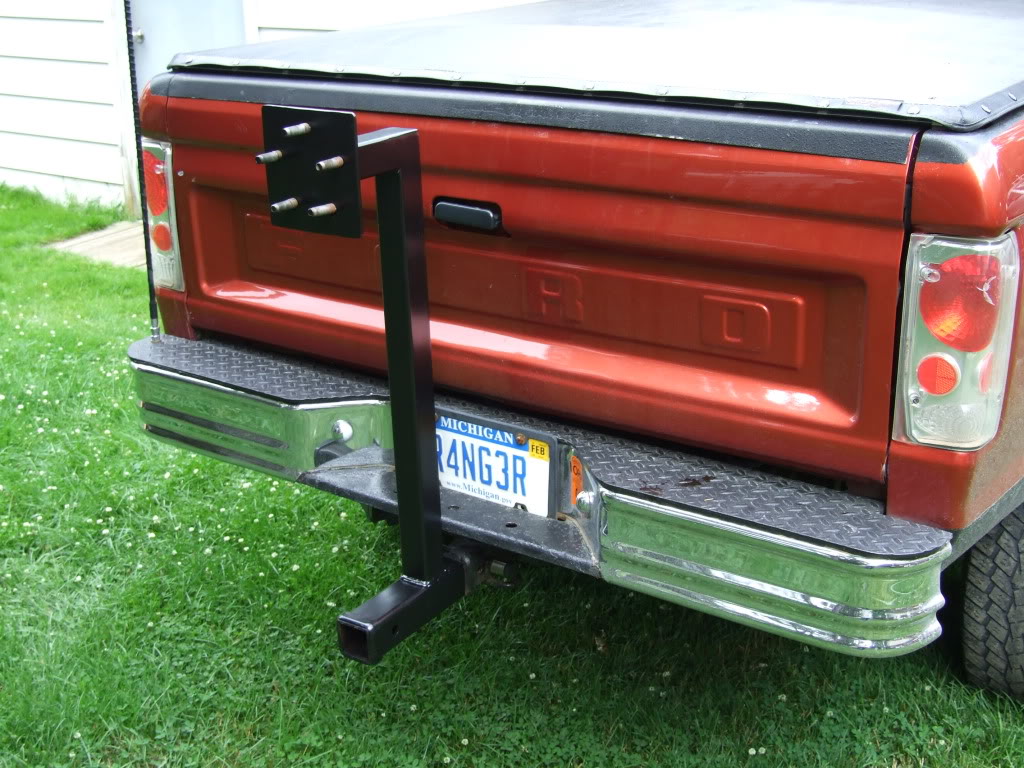

I also have another thread for the Tire Carrier that I built to use when I go camping. This way the bed is clear of a spare tire and I can still tow a small trailer.
Name:  7-05-09001.jpg
Views: 7
Size:  140.6 KB
Name:  7-05-09011.jpg
Views: 7
Size:  256.5 KB
Name:  7-05-09016.jpg
Views: 7
Size:  178.1 KB
Name:  7-05-09027.jpg
Views: 7
Size:  220.2 KB

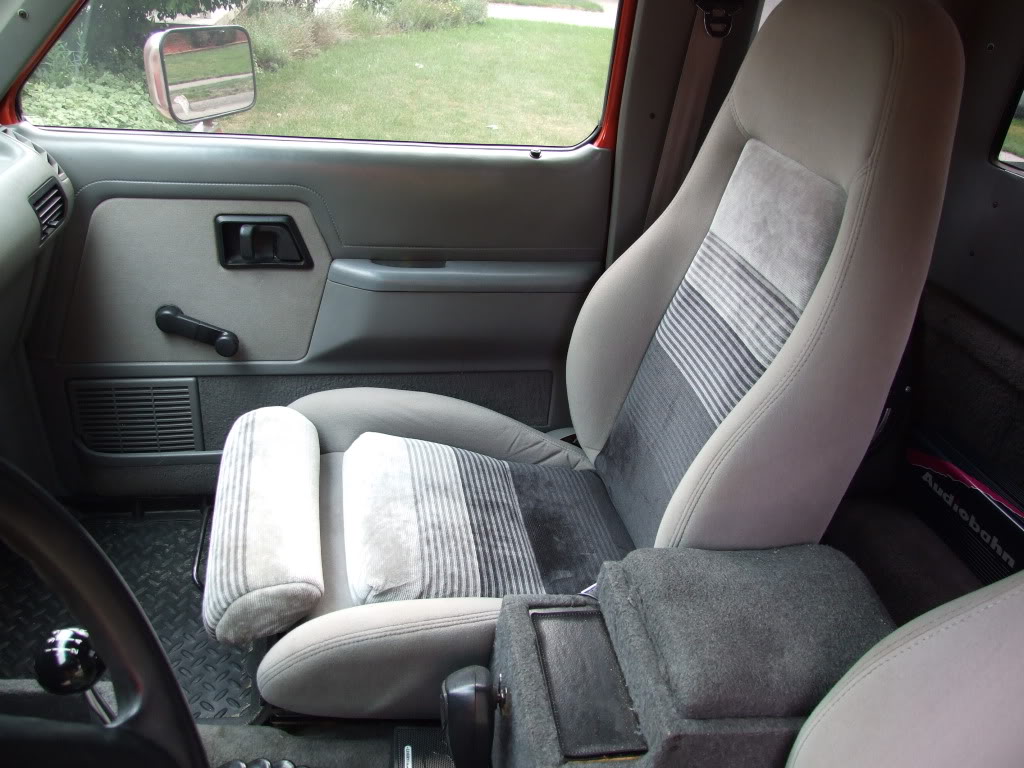

I recently found my dreams seat at the junkyard. I had been looking for them for months! Finally found some in good enough condition. Afters lots of cleaning and shampoo-ing they look great! They are much more comfortable than my worn out seats, and the lumbar and bolster feature are nice.
Name:  8-3-09106.jpg
Views: 7
Size:  142.0 KB
Name:  8-3-09108.jpg
Views: 8
Size:  171.5 KB
Name:  8-3-09110.jpg
Views: 7
Size:  133.8 KB

I had alot of trouble with some Summit aftermarket gauges always giving me false reading and being very unreliable so I finally replaced all of my gauges with Autometer Phantoms. They look amazing and work perfectly. I had to try a couple different types of 194 Led's until I found some good ones that were bright enough and internally regulated.
Name:  8-3-09096.jpg
Views: 8
Size:  100.5 KB

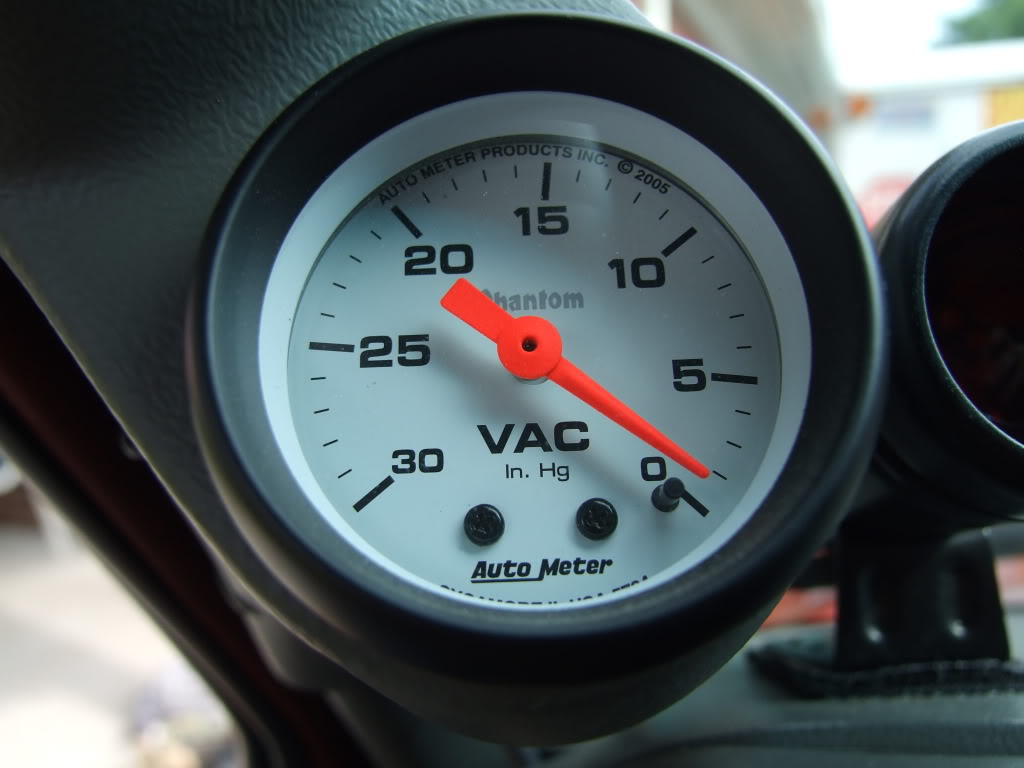

Name:  8-3-09099.jpg
Views: 7
Size:  77.0 KB

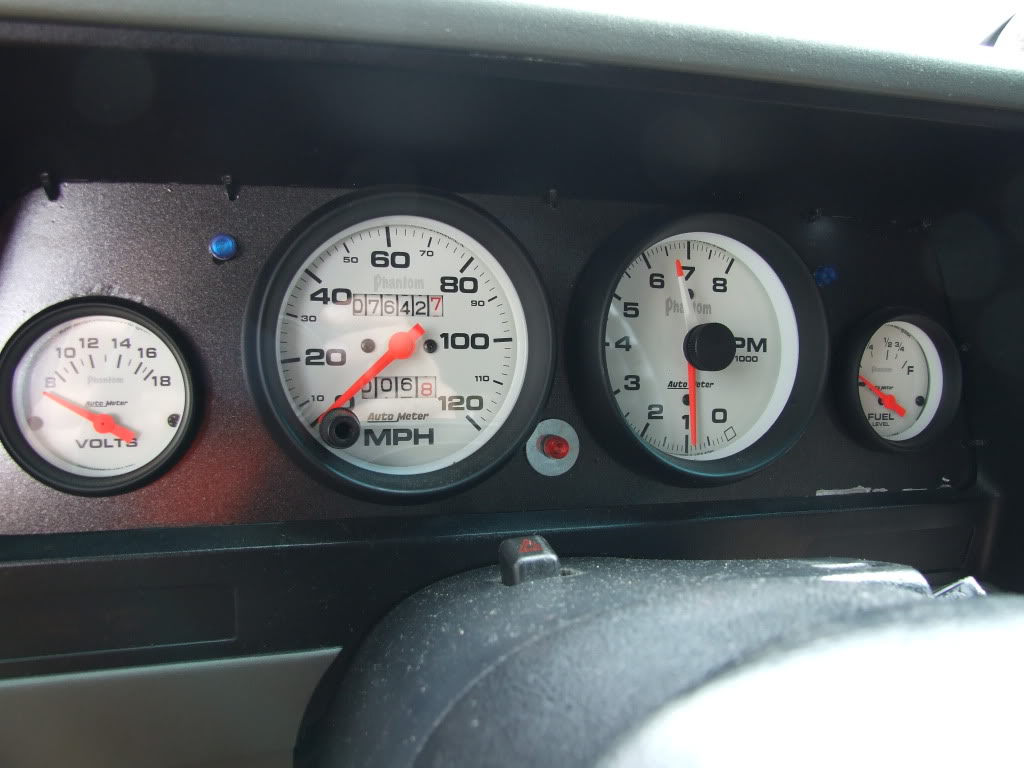

Name:  8-3-09101.jpg
Views: 8
Size:  98.8 KB

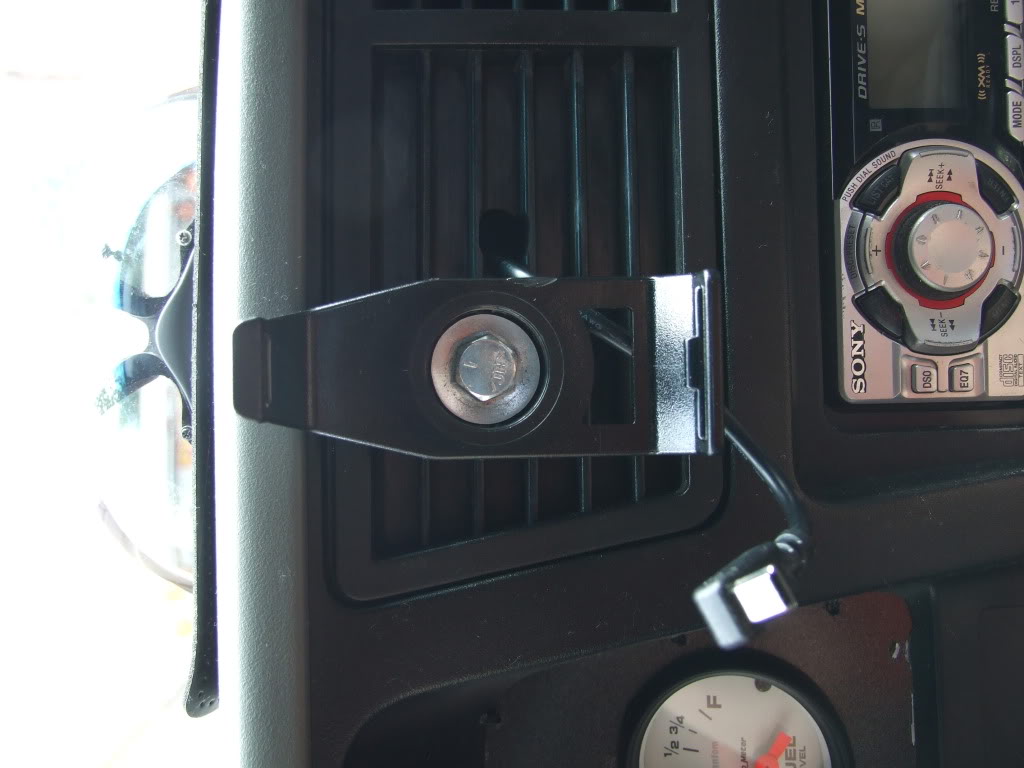

I also bought a nice Garmin Nuvi GPS for the truck, and hardwired it into my fuse panel, and made a permanent mount in the dash.
Name:  8-3-09104.jpg
Views: 7
Size:  95.9 KB
Name:  8-3-09103.jpg
Views: 7
Size:  107.4 KB

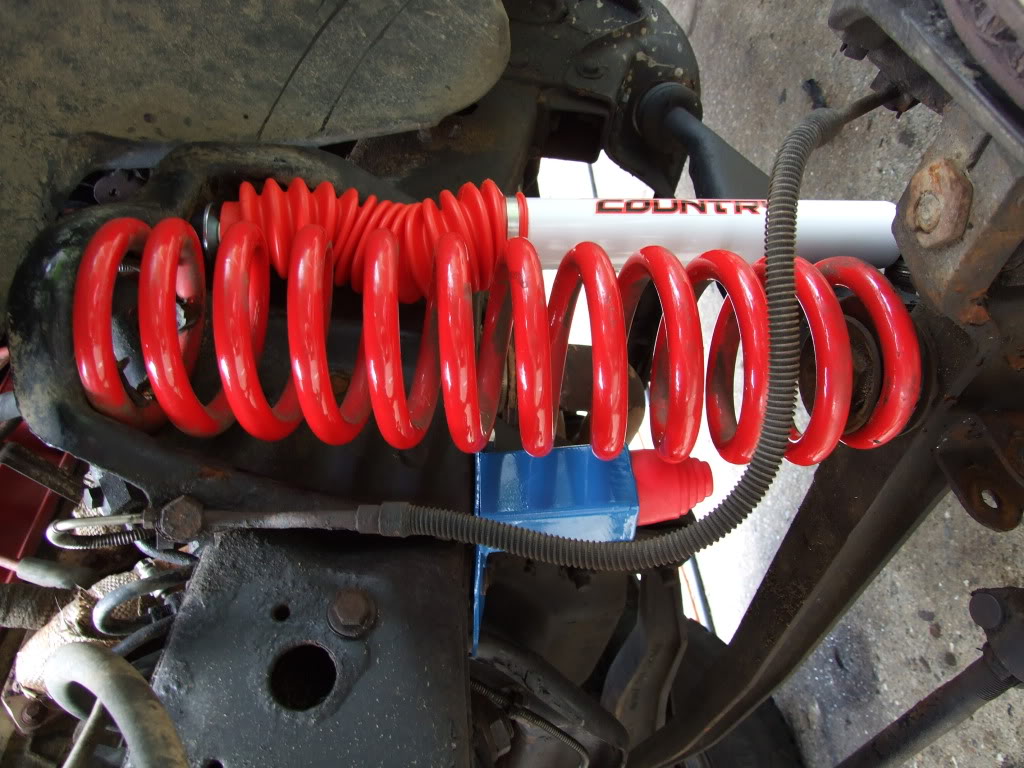

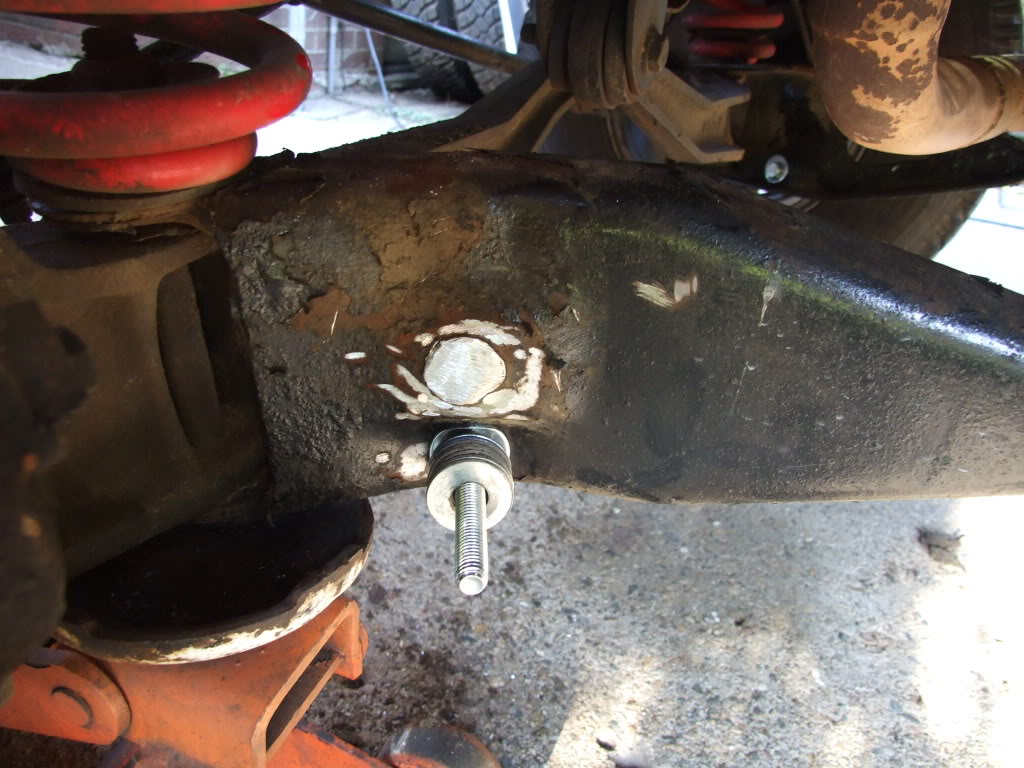

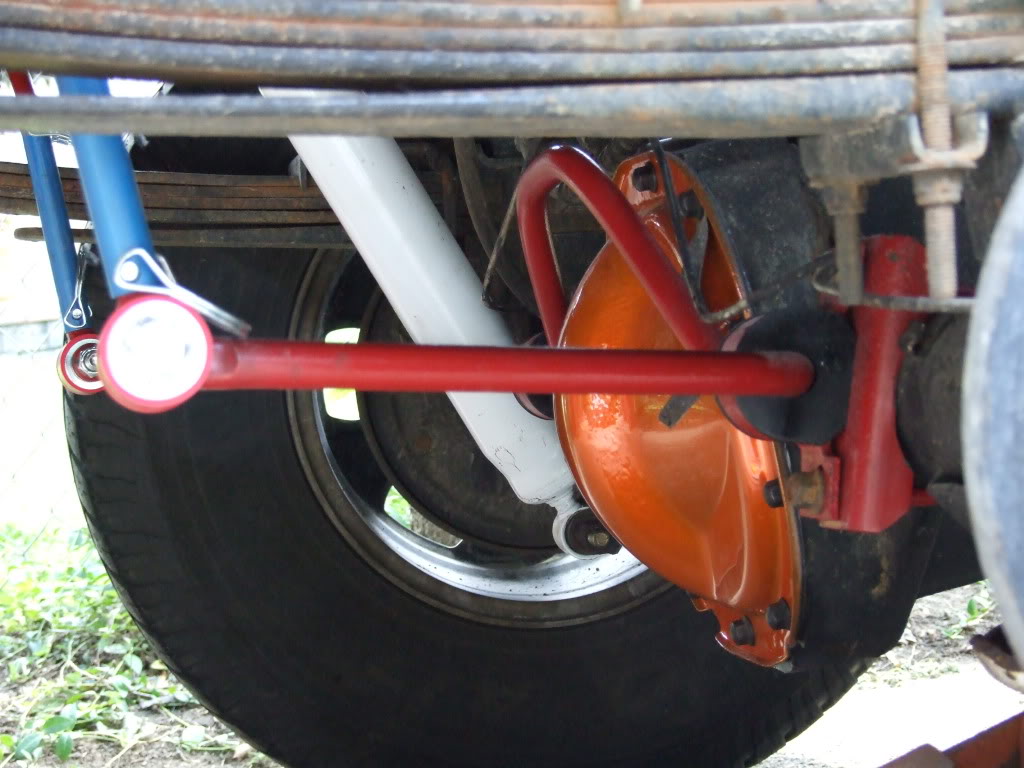

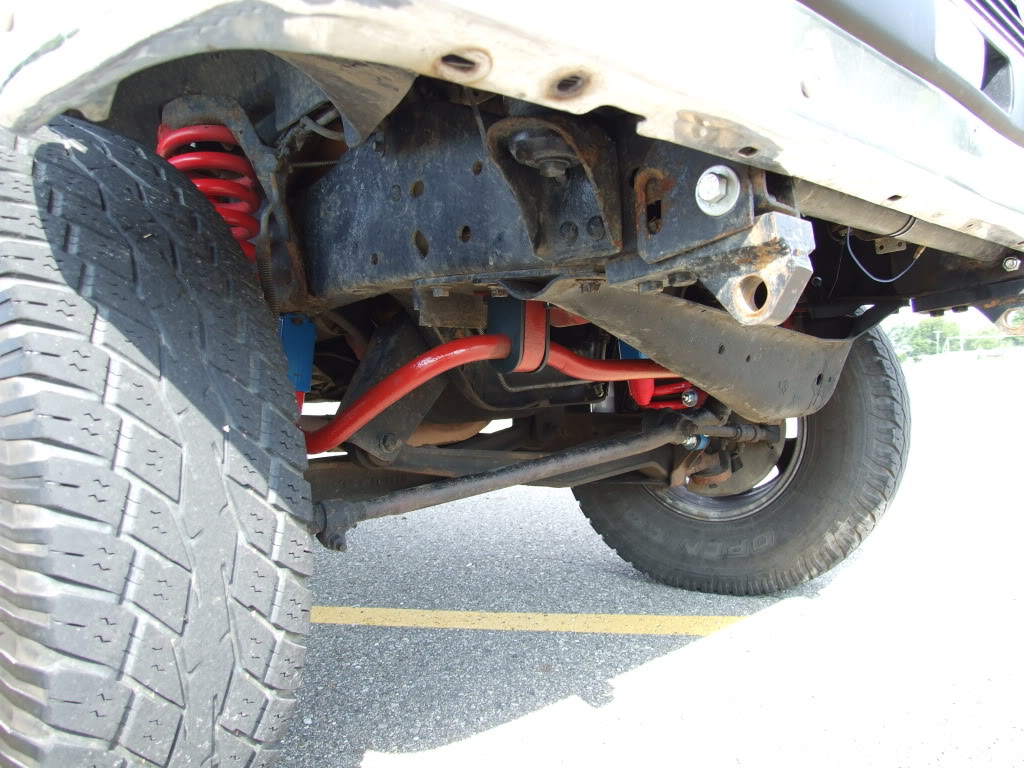

This past weekend I finished a bunch of suspension work. I had been wanting to add a Bronco II sway bar in the rear for a long time and finally found one at a local pick and pull. I decided to mount it behind the axle instead of in front. I also made some extensions for the sway bar to compensate for the lift, as well as make some quick disconnects. On top of the sway bar, the front sway bar got new bushing, a fresh coat of paint, and quick disconnects. I added new Rough Country Shocks all the way around, and installed a taller shock in the front to help with the travel. I also made up some bump stops for the front so I quit destroying my fenders at the dunes. Top that all off with a nicely powdercoated diff cover thanks to Toreador4x4.
Name:  8-3-09003.jpg
Views: 7
Size:  178.7 KB
Name:  8-3-09009.jpg
Views: 8
Size:  111.3 KB
Name:  8-3-09018.jpg
Views: 7
Size:  185.3 KB
Name:  8-3-09026.jpg
Views: 7
Size:  254.5 KB
Name:  8-3-09030.jpg
Views: 7
Size:  131.6 KB
Name:  8-3-09020.jpg
Views: 7
Size:  86.7 KB
Name:  8-3-09093-1.jpg
Views: 7
Size:  161.2 KB
Name:  8-3-09038.jpg
Views: 7
Size:  145.0 KB
Name:  8-3-09058.jpg
Views: 7
Size:  153.1 KB
Name:  8-3-09064.jpg
Views: 7
Size:  115.0 KB
Name:  8-3-09070.jpg
Views: 7
Size:  104.7 KB

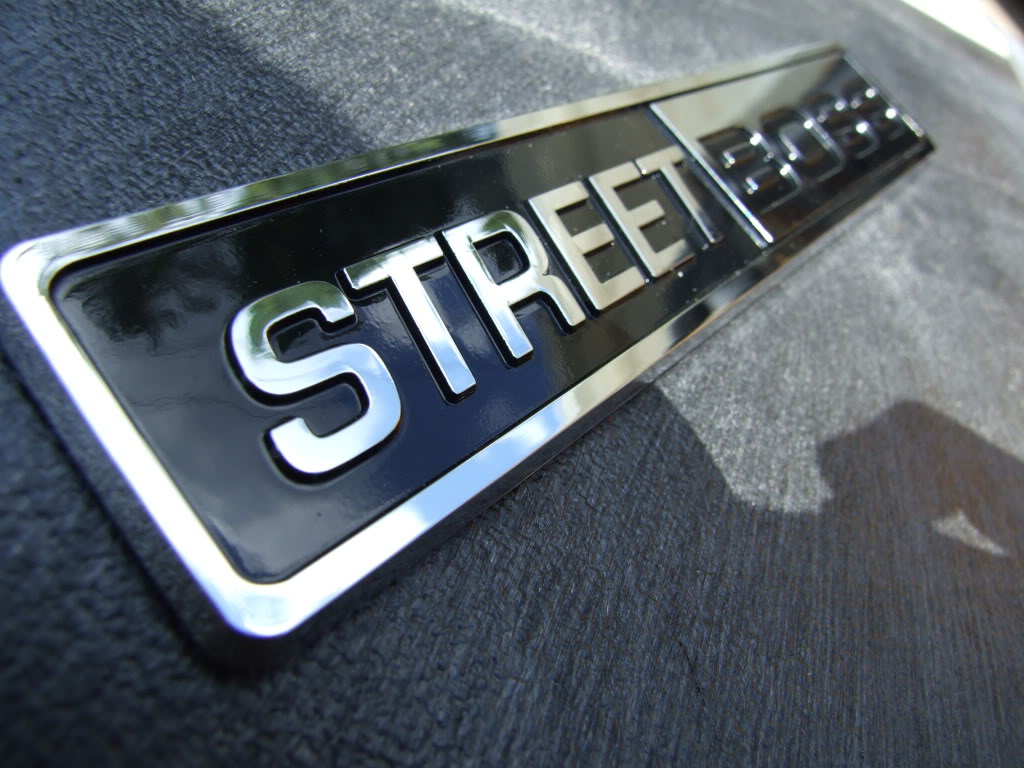

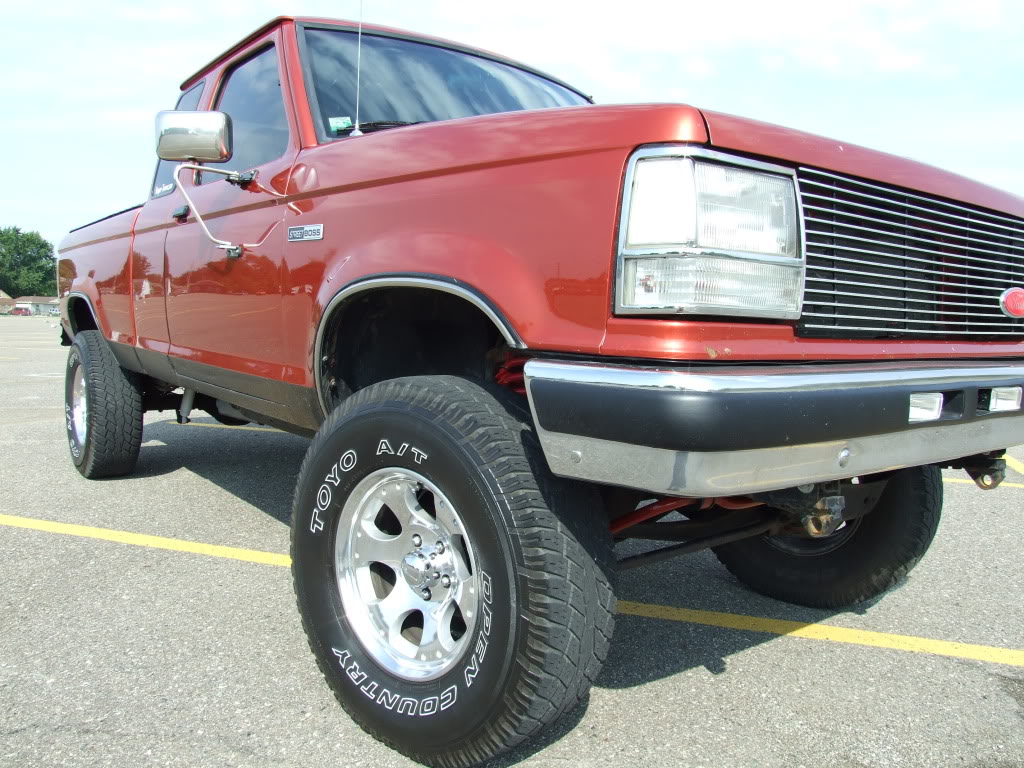

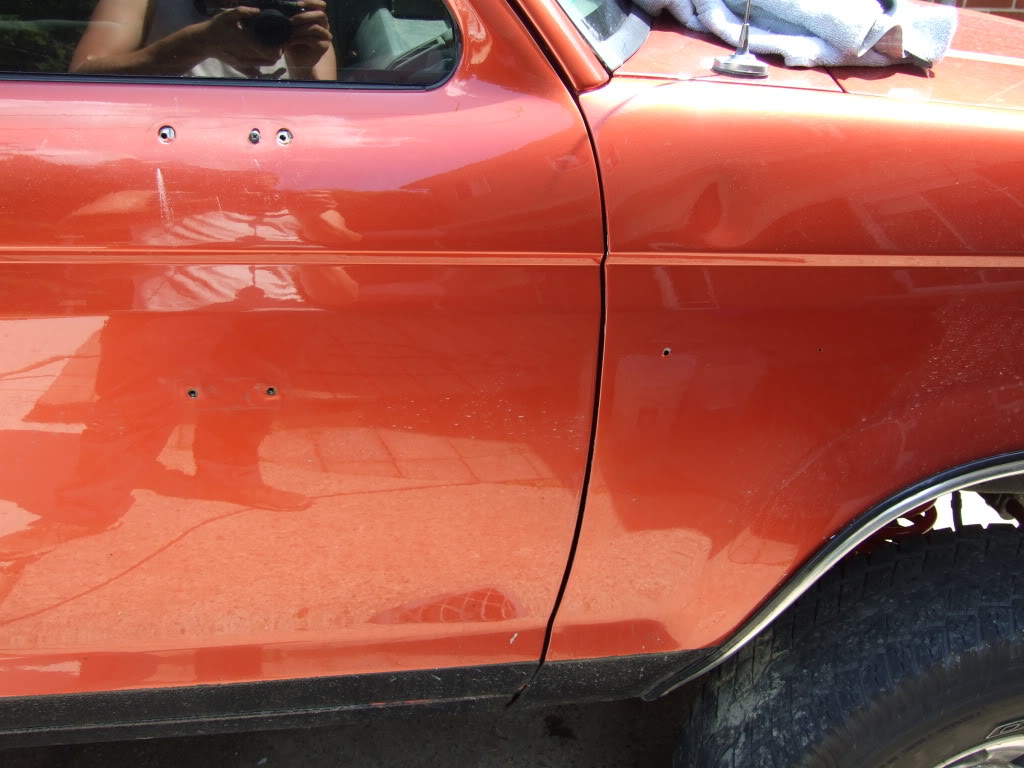

Yesterday I three step buffed the entire truck to finish things off and added a nice new emblem to the truck.
Name:  8-3-09072.jpg
Views: 8
Size:  107.7 KB
Name:  8-3-09078.jpg
Views: 7
Size:  132.8 KB

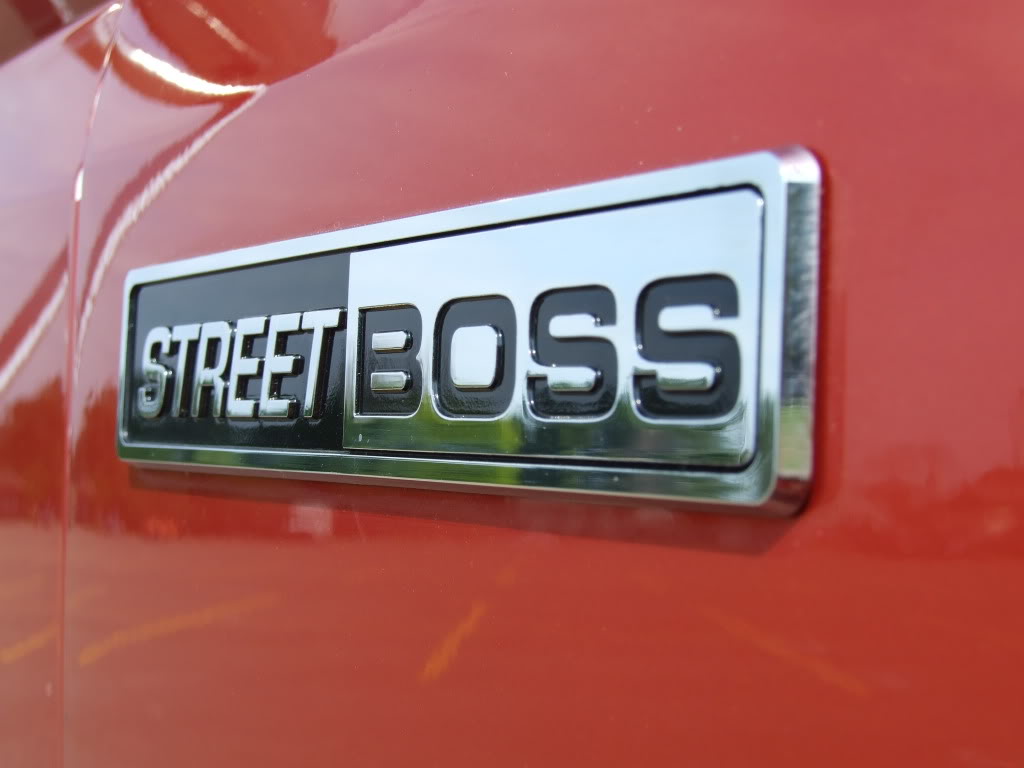

Name:  8-3-09090.jpg
Views: 7
Size:  69.9 KB

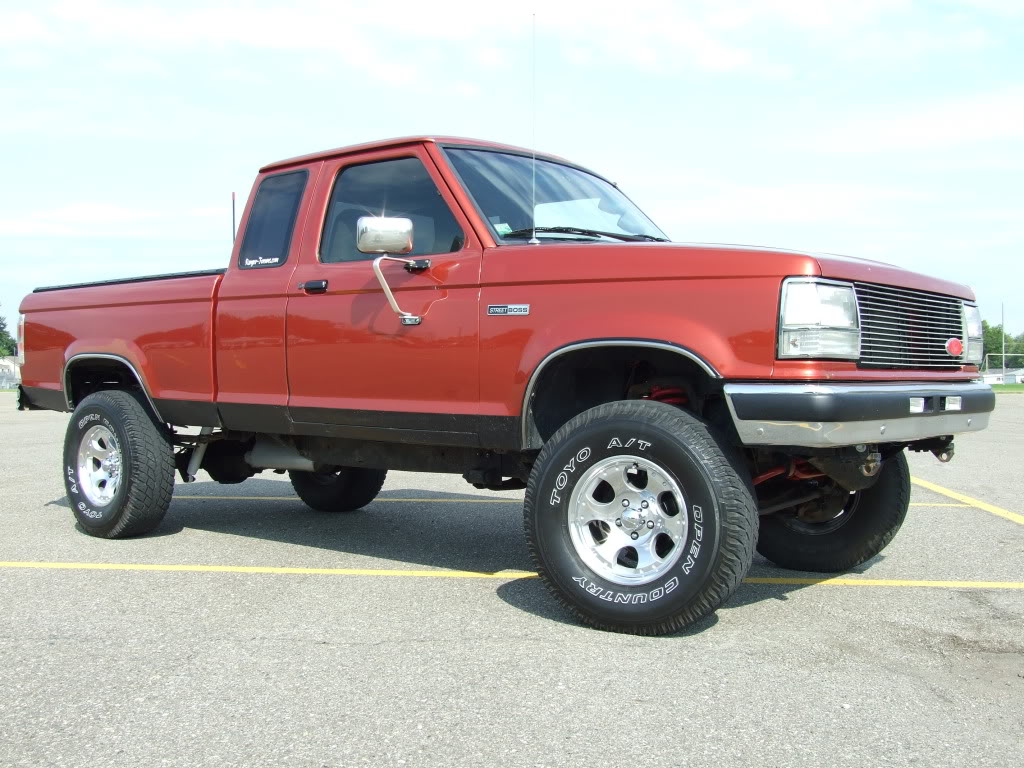

Name:  8-3-09084.jpg
Views: 7
Size:  169.4 KB
Name:  8-3-09088.jpg
Views: 7
Size:  193.7 KB
Name:  8-3-09087.jpg
Views: 7
Size:  189.5 KB
Reply With Quote
  #48
Old 08-03-2009
mossyoak03's Avatar
Member
iTrader: (1)

Join Date: Oct 2006
Location: Virginia Beach, VA
Posts: 193
damn i hate you. sell it to me for cheap please
Reply With Quote
  #49
Old 08-03-2009
camodown's Avatar
Lost in Nowhere
iTrader: (3)

Join Date: Feb 2007
Location: Midland, TX
Posts: 5,029
you are doing a great job on that truck
Reply With Quote
  #50
Old 08-03-2009
My91Ranger's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Apr 2007
Location: Roseville, Michigan
Posts: 2,252
Thanks guys!
Reply With Quote
