SAS 1 of 3

Starting my SAS on my 87 Bronco 2. Then I'm doing my free 2wd 98 Ranger. I got free rear 4.10s from work. And I picked up a 74 Bronco D44 with 4.10s and radius arms for $200. 33x10.50-15 BFG M/Ts with 95% tread for $220. Should have the brakes converted to disc by next week. Still need coils. Ordered DOM and heims to make steering and trac bar. Need batterys for camera so I can get pics. And we're doing my roommates S10 with the waggy D44s from my old 93 SAS Ranger whenever he gets gears.
Reply With Quote
  #2
Old 12-29-2009
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
sounds like you got a lot of work ahead of you!
Reply With Quote
  #3
Old 12-29-2009
Off-roadranger04's Avatar
Member
iTrader: (2)

Join Date: Nov 2008
Location: Newark, Delaware
Posts: 1,751
good luck man!!
Reply With Quote
  #4
Old 01-01-2010
USMCFords's Avatar
Member
Thread Starter

Join Date: Jan 2008
Location: Crystal River, FL
Posts: 212
All axles are cleaned up, taken apart, sandblasted, and painted. My EB D44 is waiting on disc brakes. The Waggy D44 and AMC 20 are waiting on new brakes and 4.88s.Sandblasted and painted radius arms metallic dark siver. Ordered 7* 14 piece bushing set too. Might go get 4" EB lift springs tomorrow.
Reply With Quote
  #5
Old 01-03-2010
USMCFords's Avatar
Member
Thread Starter

Join Date: Jan 2008
Location: Crystal River, FL
Posts: 212
Picked up both disc brake knuckles, calipers, 4" coil springs, hubs/rotors, 1 caliper bracket(still need one bad), and a dropped radius arm crossmember mount. All for $100. Just need spindles and passenger caliper bracket. Axle is cleaned, blasted, painted, and put together up to the knuckles.
Reply With Quote
  #6
Old 01-09-2010
USMCFords's Avatar
Member
Thread Starter

Join Date: Jan 2008
Location: Crystal River, FL
Posts: 212
Got my spindles and caliper brackets on the way. Got free Alcoas off of a 96 F150, and free aluminum DeeZee brushguard. About to start on the patch panels for the quarter. Hopefully paint it tomorrow. I'm going with Massey Ferguson Metallic Grey.

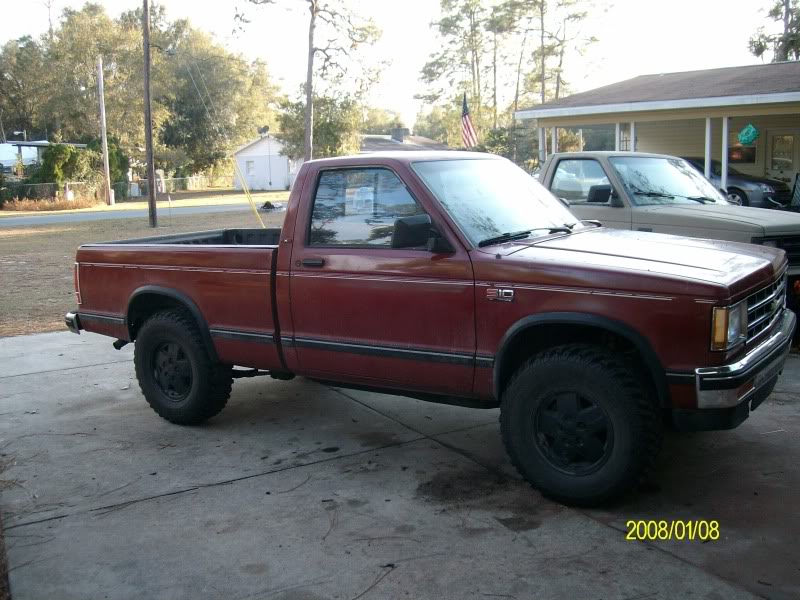

The trucks.

Name:  SANY0355.jpg
Views: 3
Size:  137.2 KB
Name:  SANY0357.jpg
Views: 3
Size:  114.7 KB

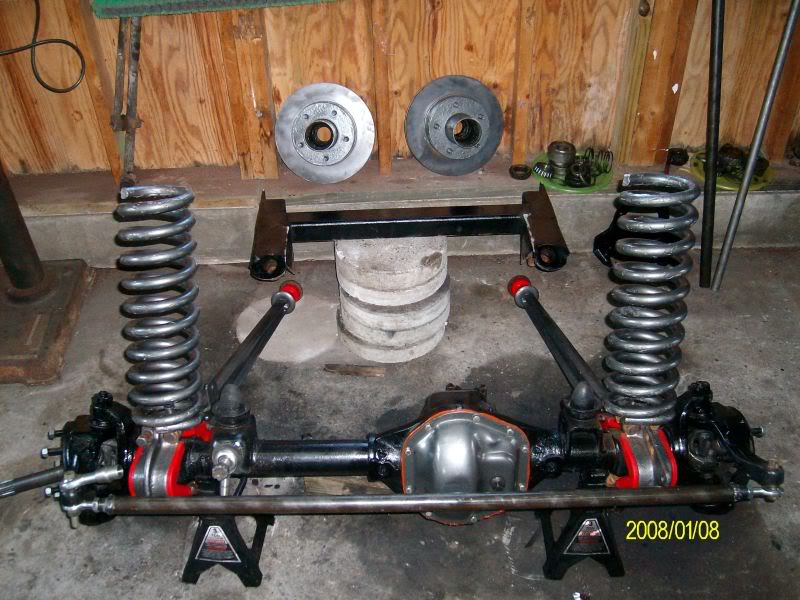

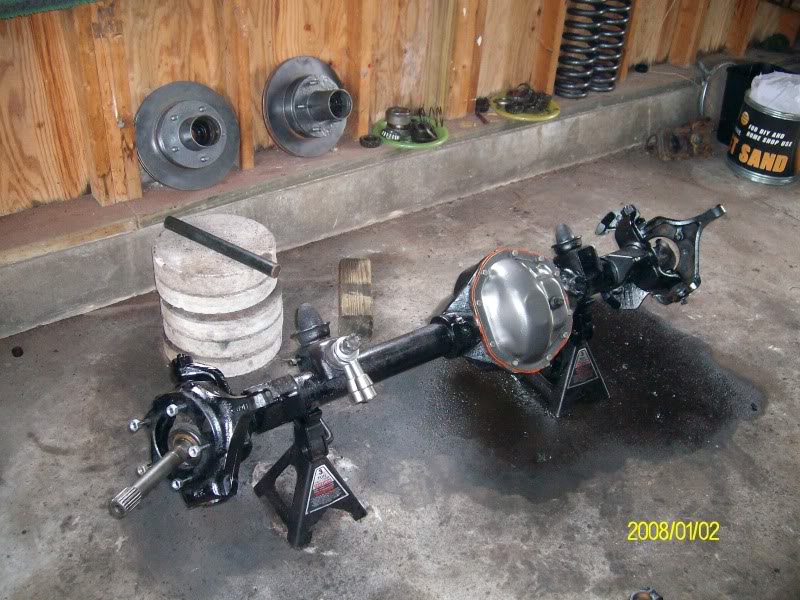

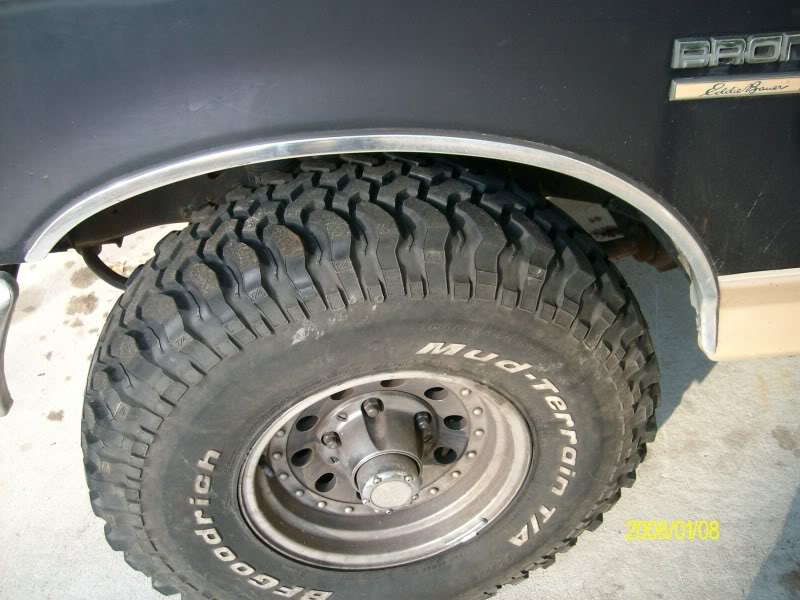

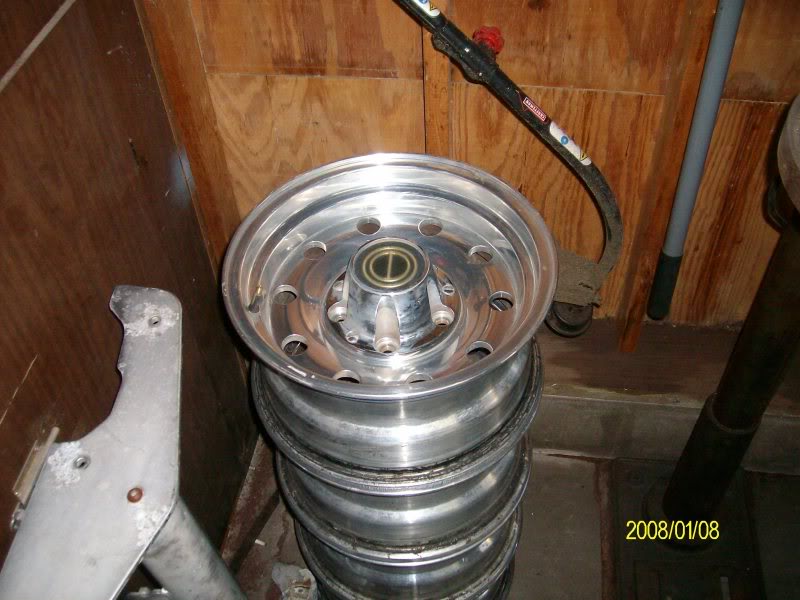

The B2 front suspension, wheels and tire setup

Name:  SANY0352.jpg
Views: 3
Size:  108.0 KB
Name:  SANY0353.jpg
Views: 3
Size:  87.7 KB
Name:  SANY0354.jpg
Views: 2
Size:  100.6 KB
Name:  SANY0349.jpg
Views: 3
Size:  126.6 KB

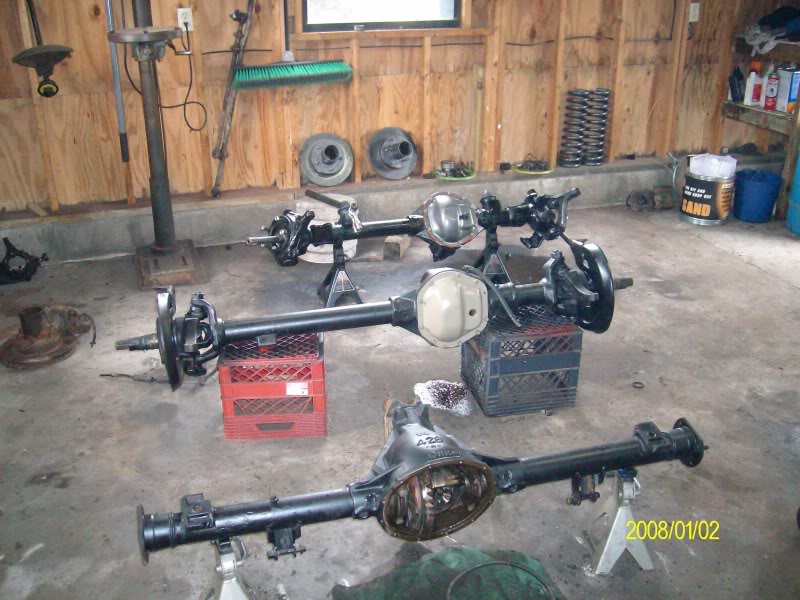

The S10 axles

Name:  SANY0360.jpg
Views: 3
Size:  101.3 KB
Name:  SANY0350.jpg
Views: 3
Size:  113.5 KB
Reply With Quote
  #7
Old 01-09-2010
BurningRANGERtires's Avatar
Member

Join Date: Jun 2008
Location: North Sin City, NV
Posts: 312
youre crazy.
Reply With Quote
  #8
Old 01-09-2010
USMCFords's Avatar
Member
Thread Starter

Join Date: Jan 2008
Location: Crystal River, FL
Posts: 212
Quote:
Originally Posted by BurningRANGERtires View Post
youre crazy.

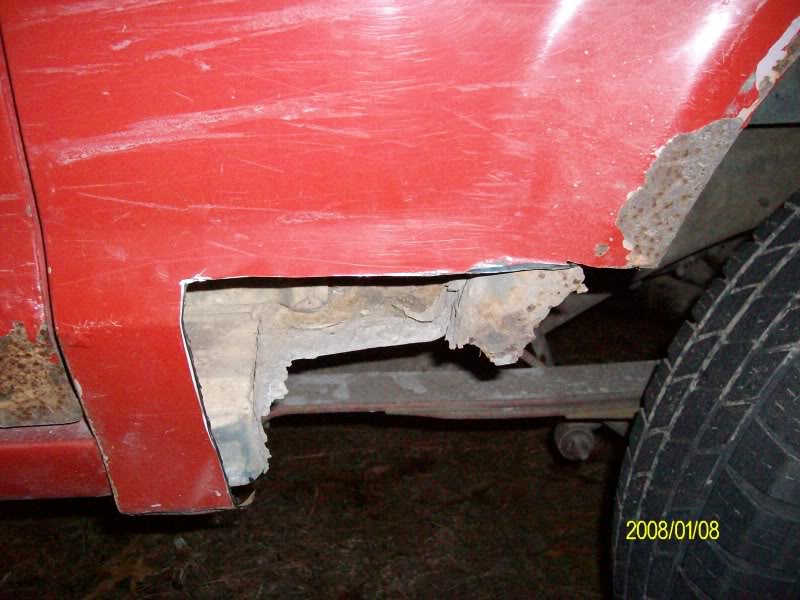

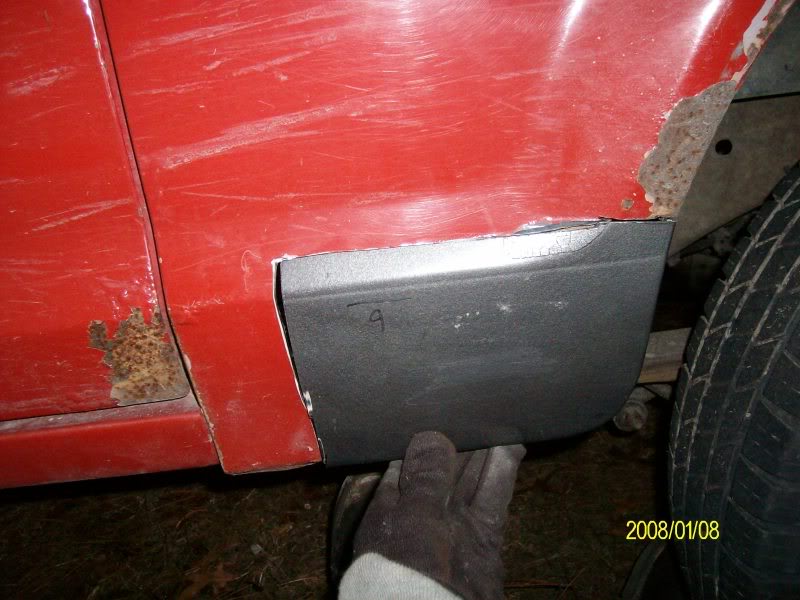

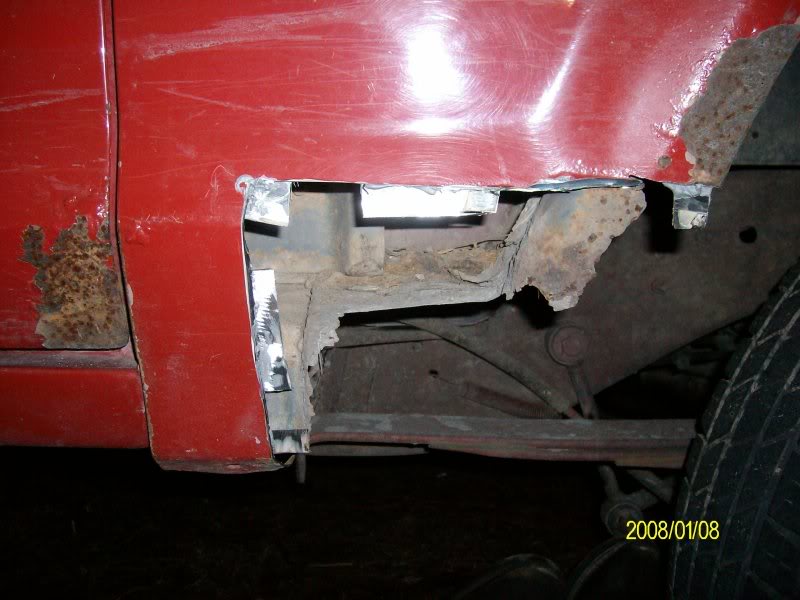

Yea I know. Anywho, it got dark so this is all I got done. Pretty much self explanitory. This is my first attempt ever at any type of body work so I figured I'd practice on my trail truck. Got the panels free at work off a Ranger.

Name:  SANY0361.jpg
Views: 3
Size:  89.5 KB
Name:  SANY0362.jpg
Views: 4
Size:  101.4 KB
Name:  SANY0363.jpg
Views: 3
Size:  71.7 KB
Name:  SANY0364.jpg
Views: 5
Size:  85.6 KB
Name:  SANY0366.jpg
Views: 4
Size:  78.3 KB

And the other side I need to start on. Might pull into the shop and finish it tonight so I can bondo and paint tomorrow.

Name:  SANY0365.jpg
Views: 4
Size:  78.0 KB
Reply With Quote
  #9
Old 01-09-2010
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
nice start...lots of axles..
Reply With Quote
  #10
Old 01-09-2010
USMCFords's Avatar
Member
Thread Starter

Join Date: Jan 2008
Location: Crystal River, FL
Posts: 212
Not to mention the 14 bolt and 3/4 ton D44 behind the shop
Reply With Quote
  #11
Old 01-09-2010
USMCFords's Avatar
Member
Thread Starter

Join Date: Jan 2008
Location: Crystal River, FL
Posts: 212
Bronco 2------------------------------------------Basically Free
Axle, radius arms, coils, crossmember, disc brake conversion-$400
Steering and trac bar--------------------------------------$150
33-10.5 BFG M/Ts-----------------------------------------$220
4.10 rear gears--------------------------------------------Free
15x8 Polished Alcoas---------------------------------------Free
Brushguard------------------------------------------------Free
Patch panels----------------------------------------------Free
Spray paint, bondo, etc.------------------------------------$50

So about $820 in the whole project so far.
Reply With Quote
  #12
Old 01-09-2010
USMCFords's Avatar
Member
Thread Starter

Join Date: Jan 2008
Location: Crystal River, FL
Posts: 212

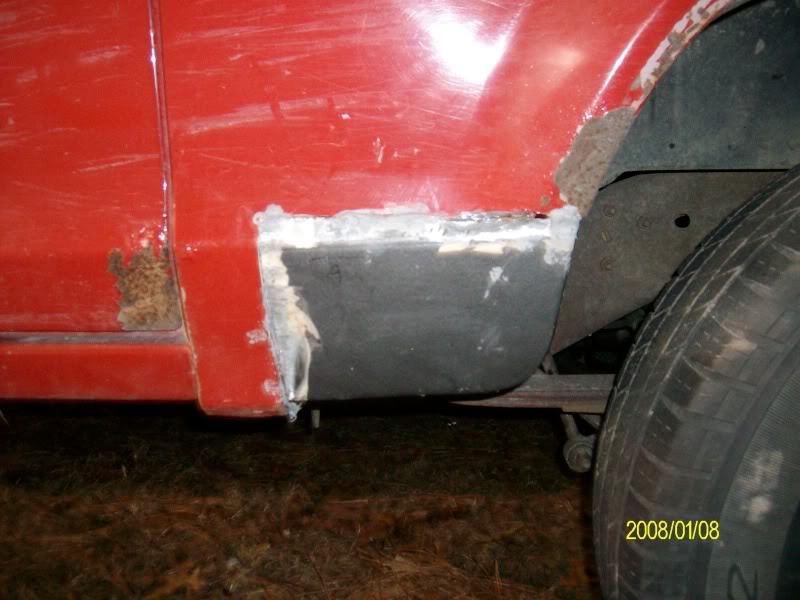

Name:  SANY0367.jpg
Views: 3
Size:  79.4 KB
Reply With Quote
  #13
Old 01-09-2010
USMCFords's Avatar
Member
Thread Starter

Join Date: Jan 2008
Location: Crystal River, FL
Posts: 212

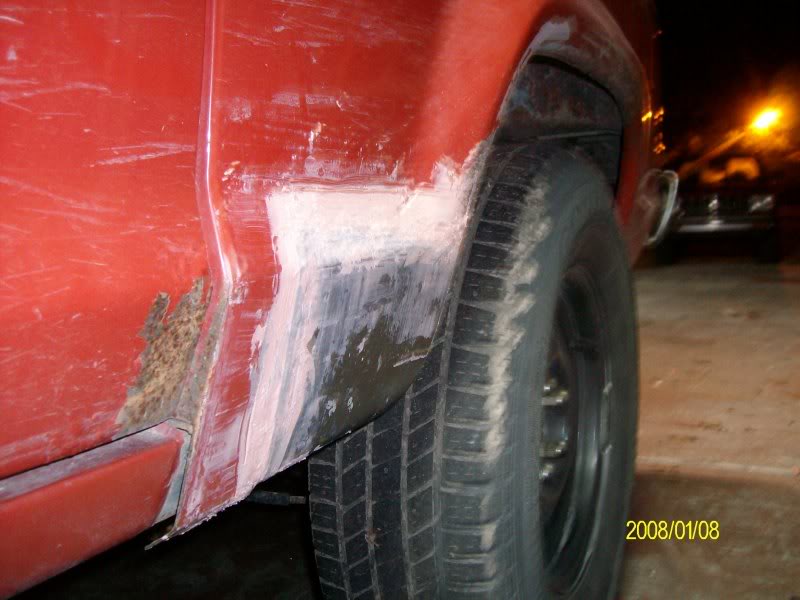

First coat of bondo.

Name:  SANY0373.jpg
Views: 4
Size:  76.6 KB
Name:  SANY0372.jpg
Views: 3
Size:  66.6 KB

Painted steering
Name:  SANY0369.jpg
Views: 4
Size:  106.7 KB

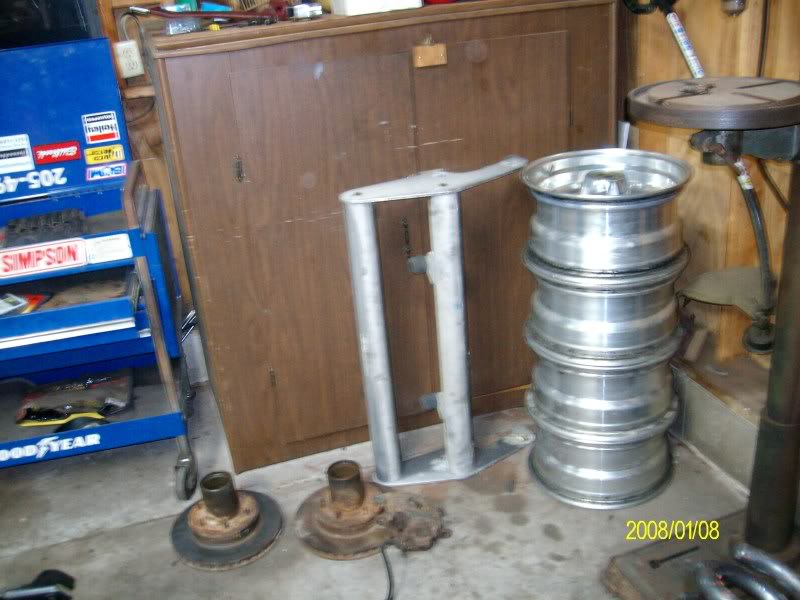

Brush guard
Name:  SANY0370.jpg
Views: 2
Size:  83.8 KB
Reply With Quote
  #14
Old 01-10-2010
USMCFords's Avatar
Member
Thread Starter

Join Date: Jan 2008
Location: Crystal River, FL
Posts: 212

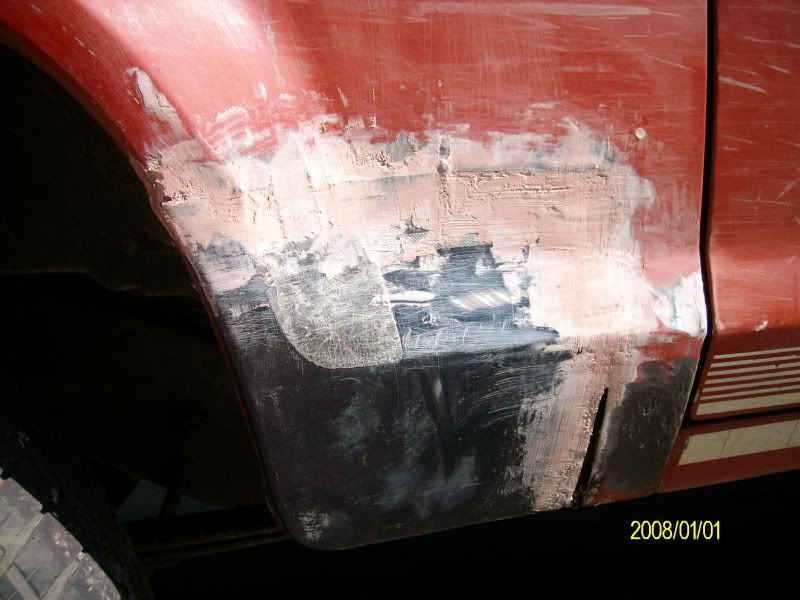

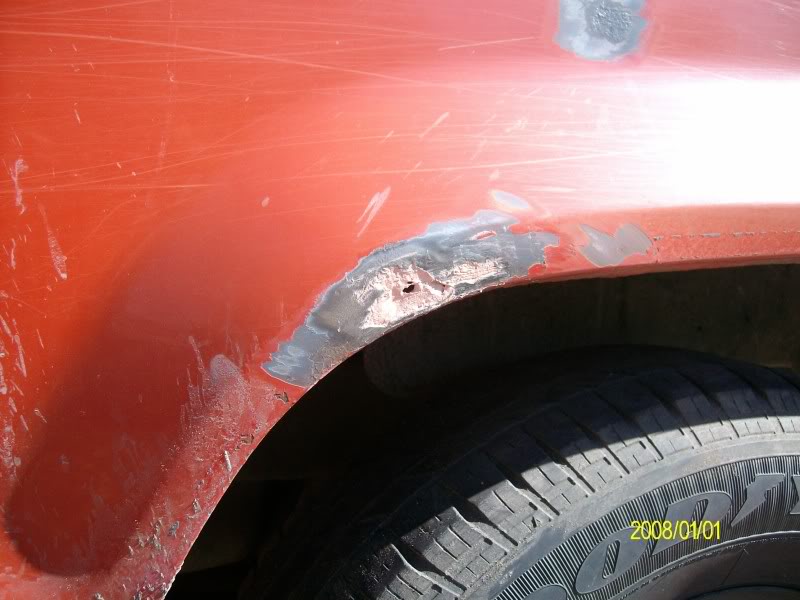

My right side panel was too small. **** happens.Ended up welding that one in


Name:  SANY0375.jpg
Views: 4
Size:  89.8 KB
Name:  SANY0376.jpg
Views: 4
Size:  113.3 KB
Name:  SANY0377.jpg
Views: 3
Size:  75.5 KB

Name:  SANY0378.jpg
Views: 4
Size:  94.1 KB
Name:  SANY0379.jpg
Views: 3
Size:  78.0 KB

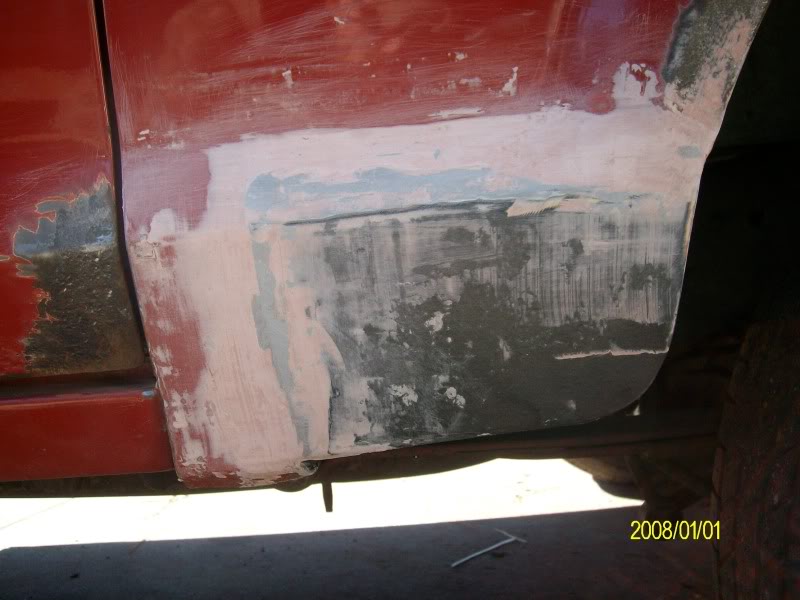

Finished side

Name:  SANY0383.jpg
Views: 3
Size:  76.3 KB
Reply With Quote
  #15
Old 01-14-2010
USMCFords's Avatar
Member
Thread Starter

Join Date: Jan 2008
Location: Crystal River, FL
Posts: 212

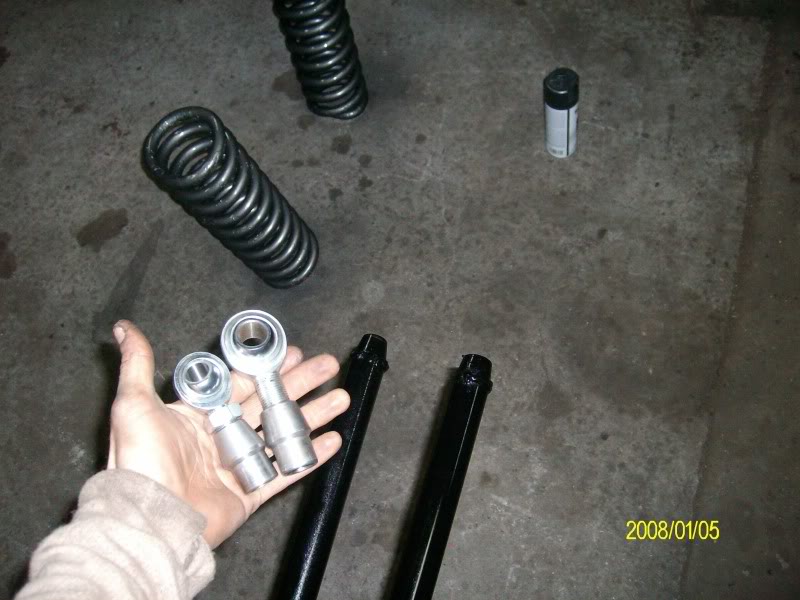

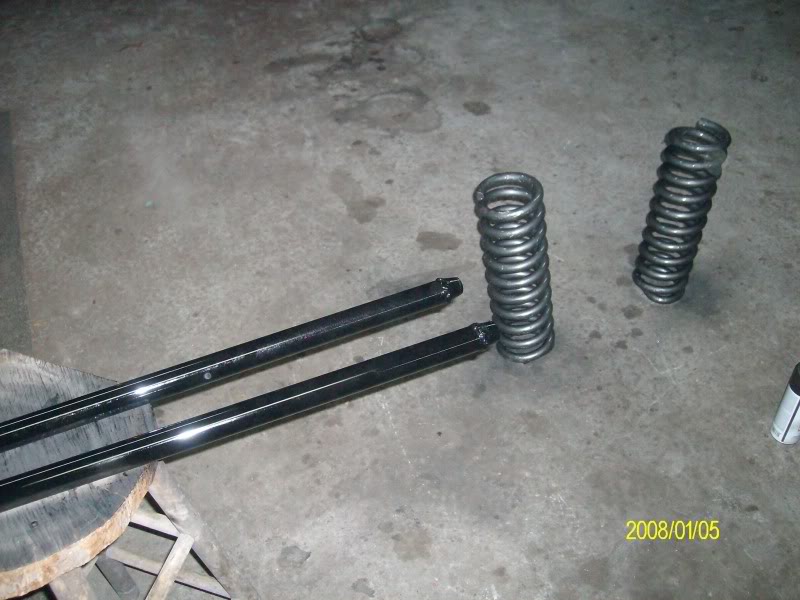

Got the rest of my steering and trac bar stuff. Sold the Alcoas and another Bronco I had the tires on, so now I need tires and wheels again. Got the steering and trac bar done, now I just need to put it in and measure and cut and weld. Truck is getting paint this weekend.

Name:  SANY0390.jpg
Views: 4
Size:  65.4 KB
Name:  SANY0388.jpg
Views: 3
Size:  87.2 KB
Name:  SANY0387.jpg
Views: 3
Size:  87.9 KB.
Reply With Quote
  #16
Old 01-15-2010
USMCFords's Avatar
Member
Thread Starter

Join Date: Jan 2008
Location: Crystal River, FL
Posts: 212

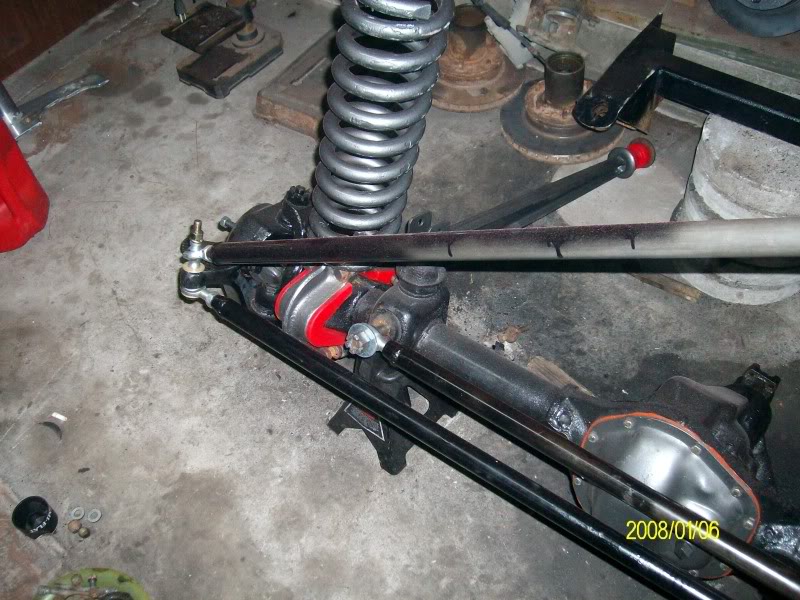

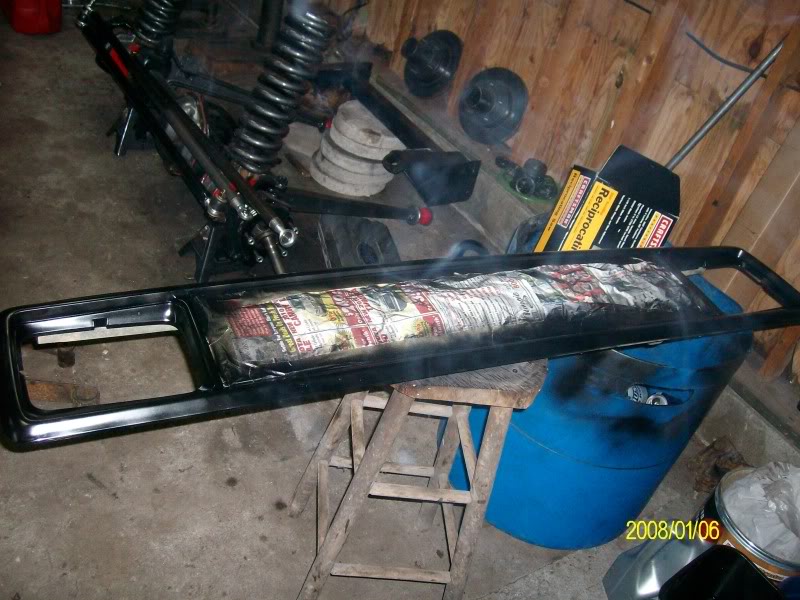

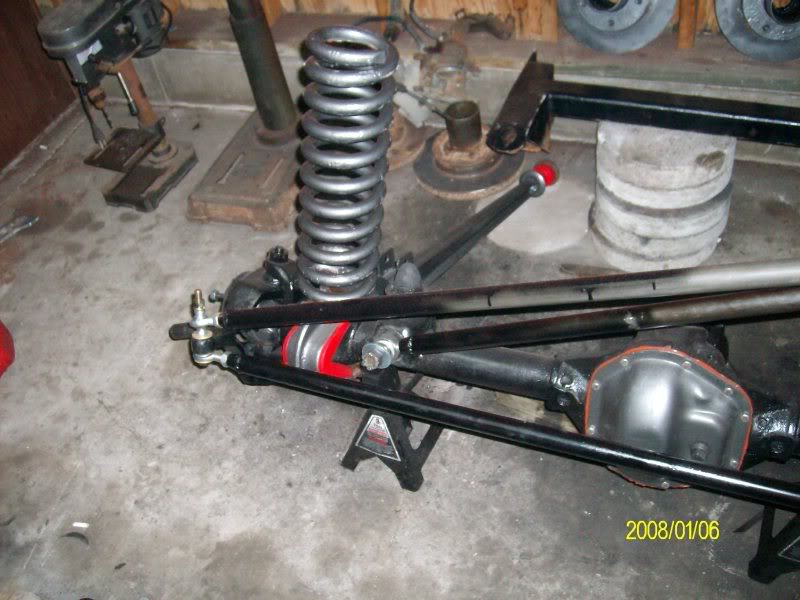

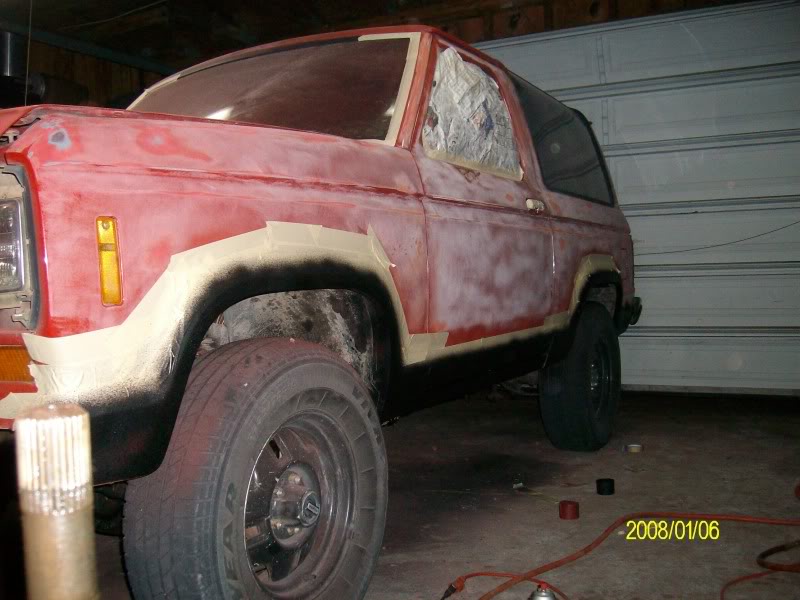

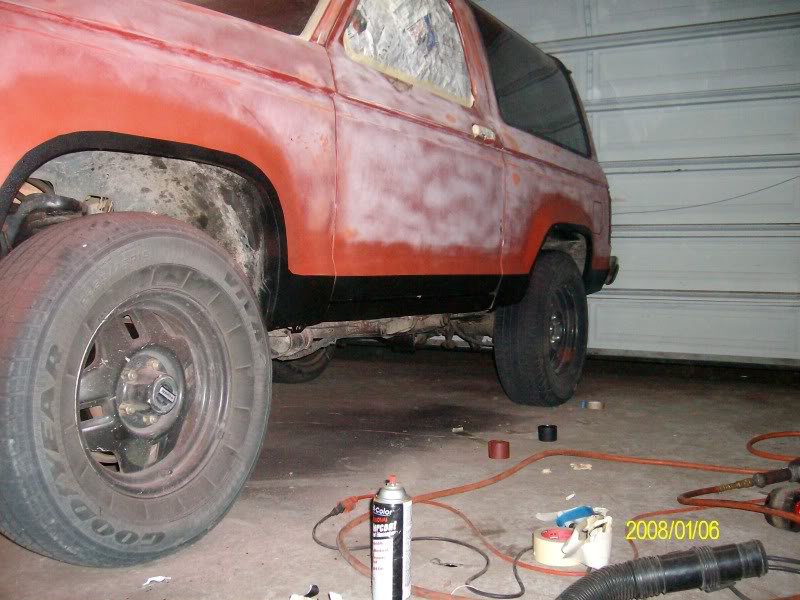

I'm painting tomorrow. Half done sanding. Thinking of duralining the rocker, so I did it real quick to see how it looks. I think I'll keep it. Steerings as far along as I can get without putting it under the truck.

Name:  SANY0396.jpg
Views: 3
Size:  126.7 KB
Name:  SANY0397.jpg
Views: 2
Size:  89.1 KB
Name:  SANY0391.jpg
Views: 7
Size:  88.0 KB
Name:  SANY0392.jpg
Views: 3
Size:  88.1 KB
Name:  SANY0393.jpg
Views: 3
Size:  112.4 KB
Name:  SANY0395.jpg
Views: 2
Size:  84.3 KB
Name:  SANY0394.jpg
Views: 3
Size:  83.0 KB
Name:  SANY0400.jpg
Views: 3
Size:  96.8 KB
Reply With Quote
  #17
Old 01-16-2010
rstangboi's Avatar
Member

Join Date: Jan 2008
Location: Davis, Ca
Posts: 2,583
uh....so your using bondo to patch the filler piece in?

edit, nvr mind....didnt read enough.

nice lookin axle though
Reply With Quote
  #18
Old 01-16-2010
USMCFords's Avatar
Member
Thread Starter

Join Date: Jan 2008
Location: Crystal River, FL
Posts: 212

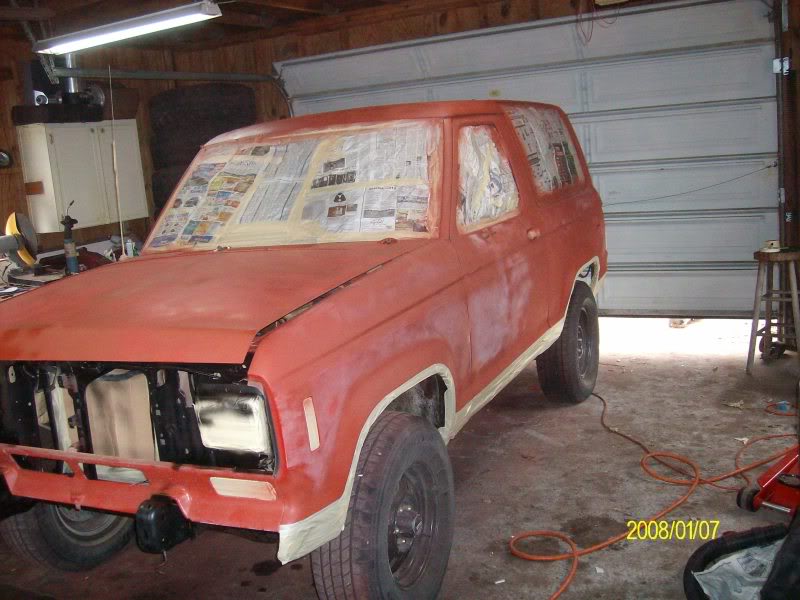

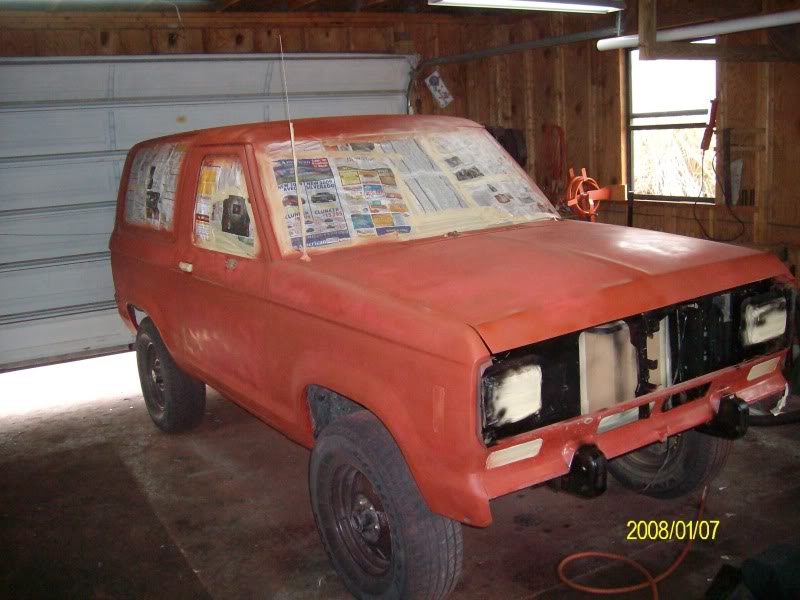

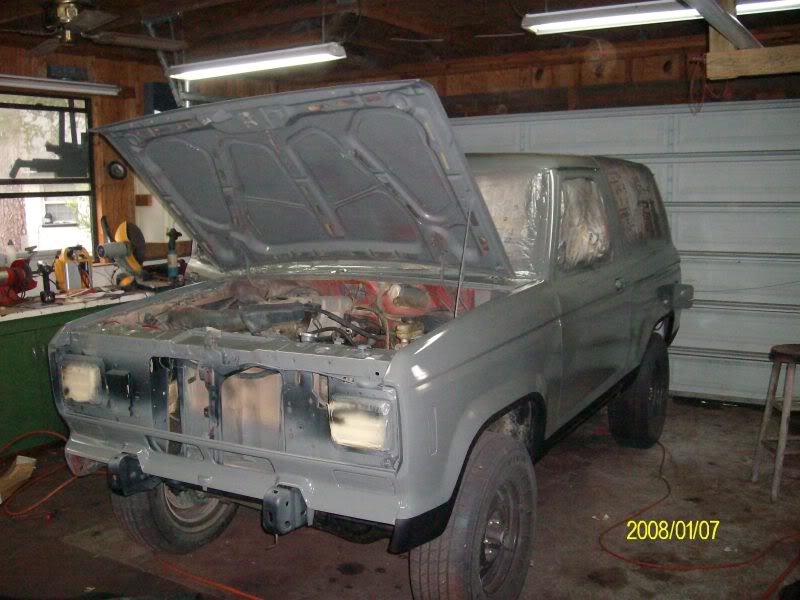

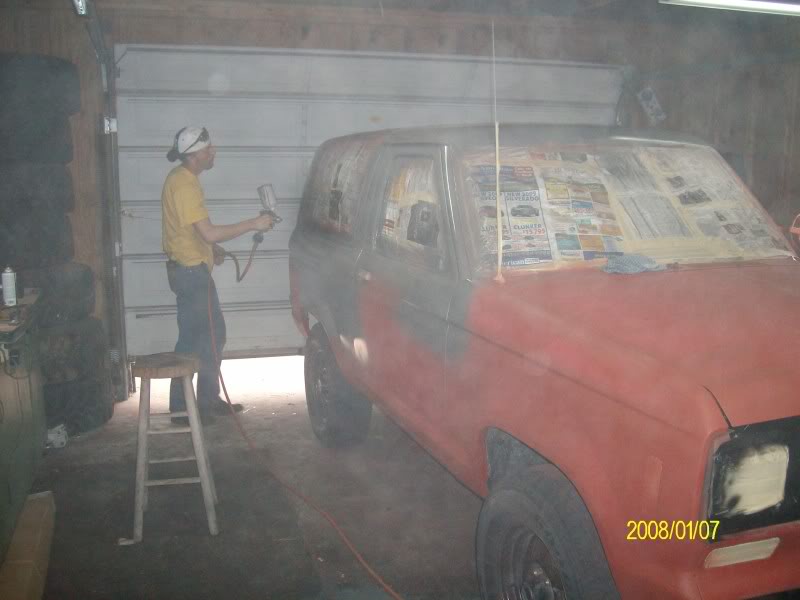

Truck is painted. Waiting for it to dry
Reply With Quote
  #19
Old 01-16-2010
USMCFords's Avatar
Member
Thread Starter

Join Date: Jan 2008
Location: Crystal River, FL
Posts: 212

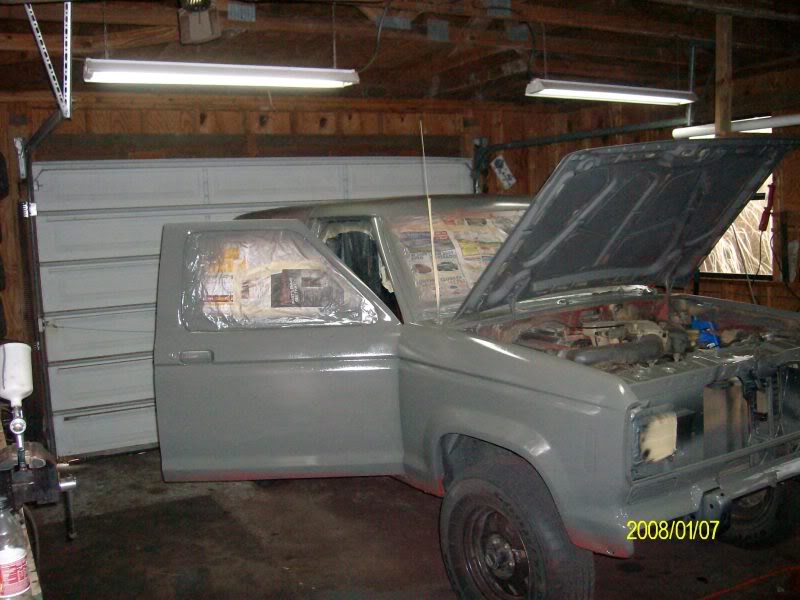

Name:  SANY0401.jpg
Views: 3
Size:  87.4 KB
Name:  SANY0402.jpg
Views: 3
Size:  90.9 KB
Name:  SANY0403.jpg
Views: 3
Size:  58.9 KB
Name:  SANY0406.jpg
Views: 6
Size:  86.7 KB
Name:  SANY0407.jpg
Views: 4
Size:  84.5 KB
Reply With Quote
  #20
Old 01-16-2010
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Nice progress man! Are you bed lining the bottom of the cab on the b2?
Reply With Quote
  #21
Old 01-16-2010
anthonyalaan's Avatar
Member

Join Date: Jan 2010
Location: San Diego, CA
Posts: 42
You must've REALLY enjoyed painting didn't you?
Reply With Quote
  #22
Old 01-16-2010
USMCFords's Avatar
Member
Thread Starter

Join Date: Jan 2008
Location: Crystal River, FL
Posts: 212
Quote:
Originally Posted by TrePaul86 View Post
Nice progress man! Are you bed lining the bottom of the cab on the b2?
Yea It looks better in person. Oh and that wasn't me painting.
Reply With Quote
  #23
Old 01-16-2010
USMCFords's Avatar
Member
Thread Starter

Join Date: Jan 2008
Location: Crystal River, FL
Posts: 212

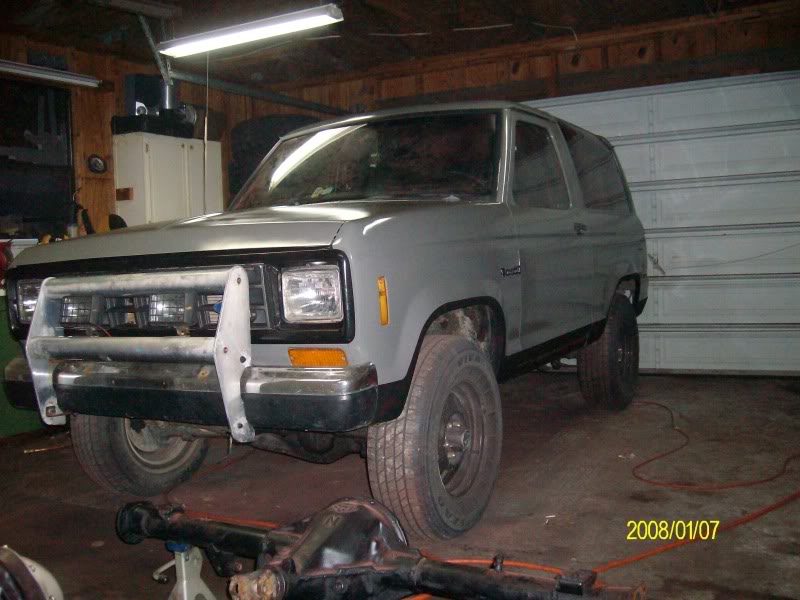

Name:  SANY0408.jpg
Views: 3
Size:  90.3 KB
Reply With Quote
  #24
Old 01-16-2010
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
It's comin along man!
Reply With Quote
  #25
Old 01-16-2010
87xlt's Avatar
Member

Join Date: Jun 2008
Location: In my truck!
Posts: 875
Fuckin SEXY!
