Sas Ranger Build

Blew my tranny monday night towing a sfa zr2 5 miles out of the woods so i figured after 3 automatic transmissions it was time for a 5 speed. While the truck is down im might as well do the 03 front end swap some paint and a manual tcase i have lying around. Any more suggestions while its apart?

some pictures to start with

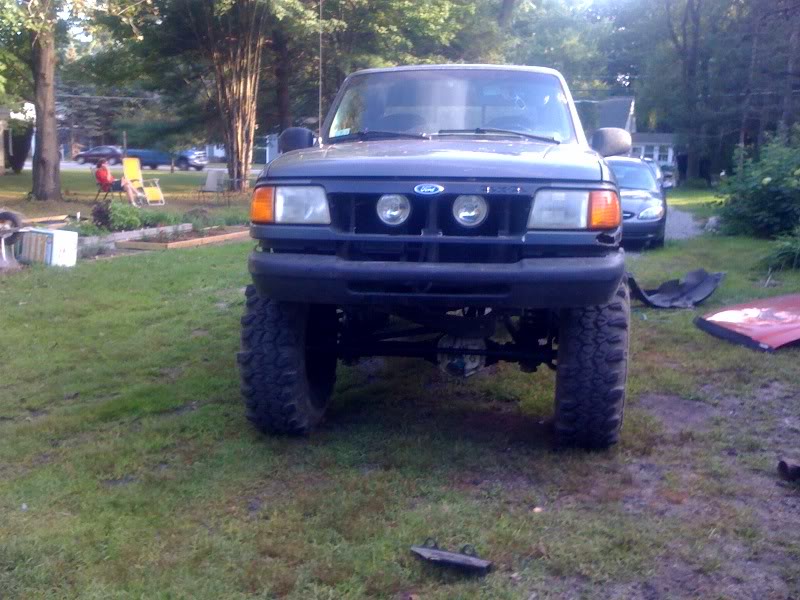

Name:  truck2.jpg
Views: 5
Size:  96.0 KB

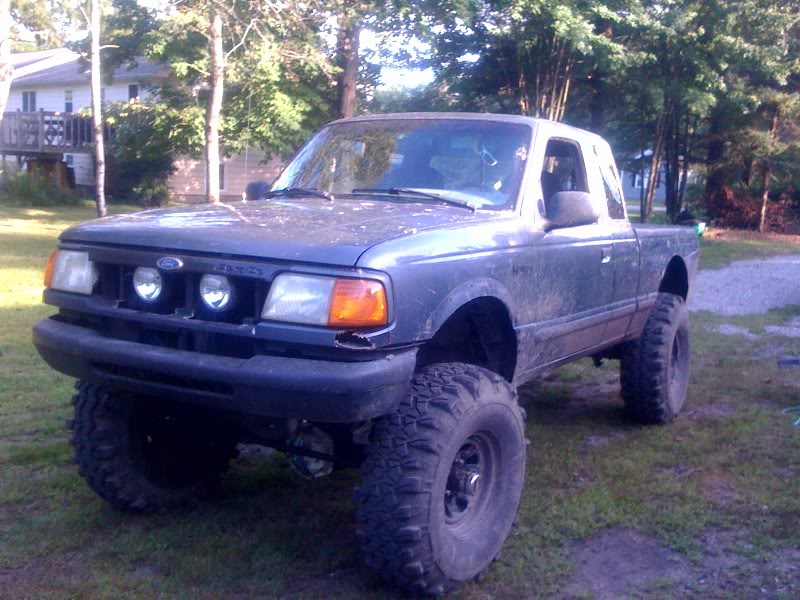

Name:  truck1.jpg
Views: 6
Size:  113.2 KB

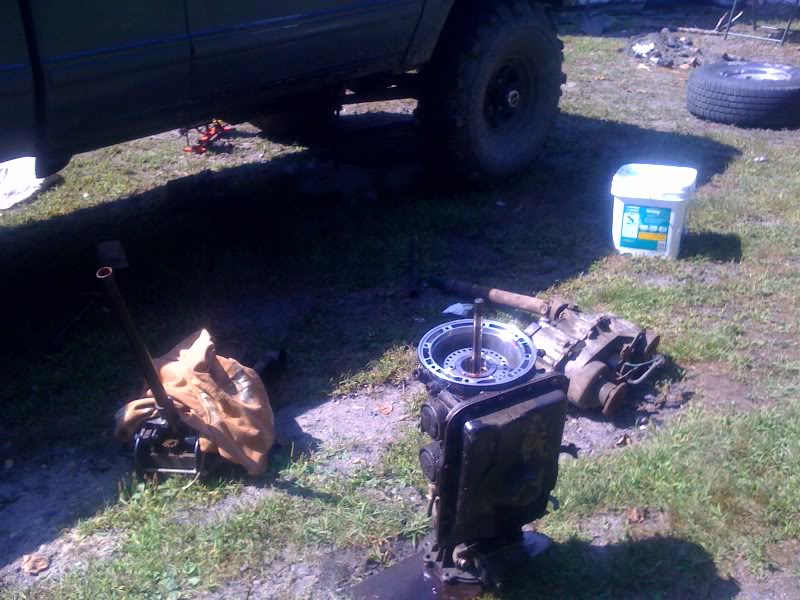

Name:  trannyout.jpg
Views: 4
Size:  105.8 KB

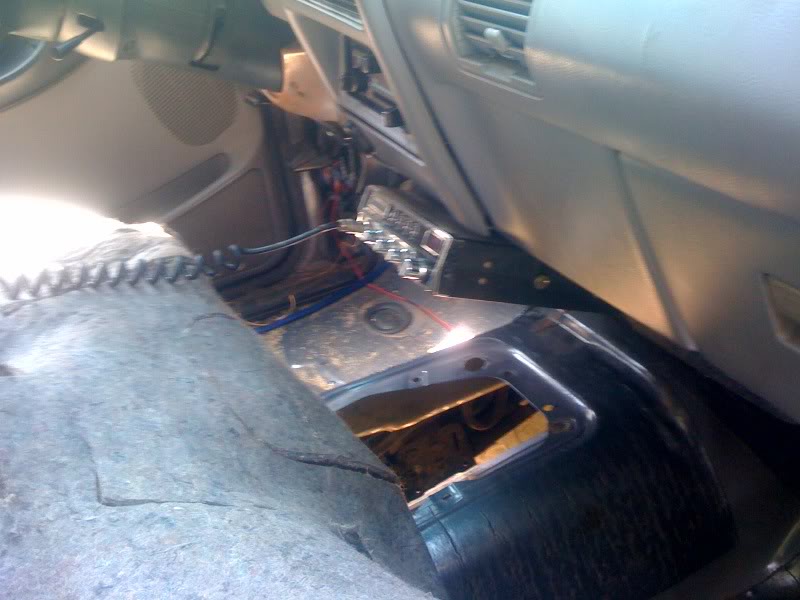

Name:  floor.jpg
Views: 5
Size:  63.0 KB

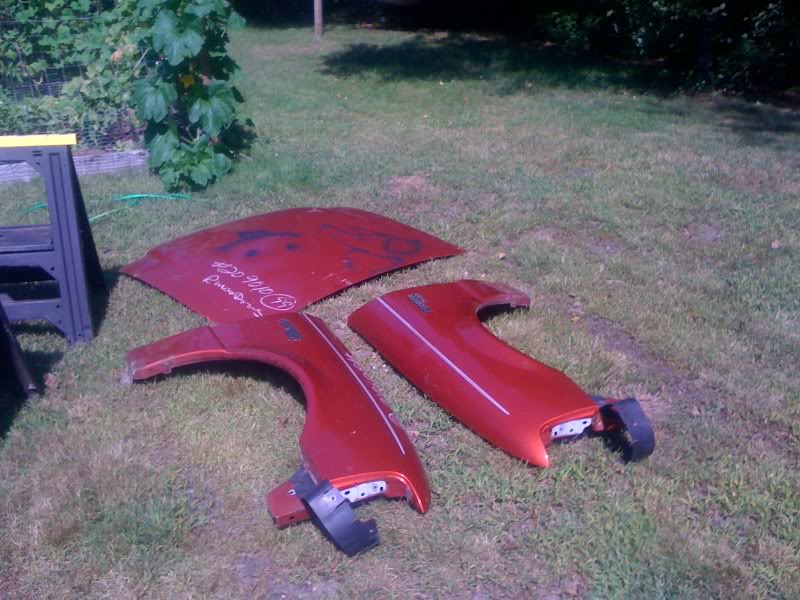

Name:  fenders.jpg
Views: 5
Size:  115.8 KB
Reply With Quote
  #2
Old 09-03-2009
shadow905's Avatar
Member
iTrader: (10)

Join Date: May 2006
Location: Boerne, TX
Posts: 1,997
kool. what tranny you goin with?
Reply With Quote
  #3
Old 09-03-2009
Member
Thread Starter

Join Date: Jan 2009
Location: ma
Posts: 51
going with the 5 speed off the back of a 94 4.0 ohv m50d or something like that
Reply With Quote
  #4
Old 09-03-2009
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
what axles and other specs you planning on going with?
Reply With Quote
  #5
Old 09-03-2009
shadow905's Avatar
Member
iTrader: (10)

Join Date: May 2006
Location: Boerne, TX
Posts: 1,997
Quote:
Originally Posted by HighRollerII View Post
what axles and other specs you planning on going with?

it looks like its already sas'd
Reply With Quote
  #6
Old 09-03-2009
Member
Thread Starter

Join Date: Jan 2009
Location: ma
Posts: 51
yea the sas is done haha hp 44 with extended arms 3inch eb lift coils, and 4.88s and stock 8.8 with 4.88 in the rear with 63 chevys
Reply With Quote
  #7
Old 09-03-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
whats the front axle from?
Reply With Quote
  #8
Old 09-03-2009
Member
Thread Starter

Join Date: Jan 2009
Location: ma
Posts: 51
came out of 78 f150
Reply With Quote
  #9
Old 09-03-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
looks so.. narrow compared to mine.

must be the offset of the wheels.
Reply With Quote
  #10
Old 09-03-2009
USMCFords's Avatar
Member

Join Date: Jan 2008
Location: Crystal River, FL
Posts: 212
Quote:
Originally Posted by 99ranger4x4 View Post
looks so.. narrow compared to mine.

must be the offset of the wheels.
Looks like it was shortened.
Reply With Quote
  #11
Old 09-03-2009
Member
Thread Starter

Join Date: Jan 2009
Location: ma
Posts: 51
yup cut the tube 6 inches and axle shaft cut down
Reply With Quote
  #12
Old 09-03-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
that would explain it
Reply With Quote
  #13
Old 09-03-2009
shadow905's Avatar
Member
iTrader: (10)

Join Date: May 2006
Location: Boerne, TX
Posts: 1,997
i like it. whats it measure in comparison to the 8.8?
Reply With Quote
  #14
Old 09-03-2009
Member
Thread Starter

Join Date: Jan 2009
Location: ma
Posts: 51
its about 3 31/2 inches wider than the 8.8 so not really noticable
Reply With Quote
  #15
Old 09-03-2009
mlw20lu's Avatar
Member
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
should be a fun projcet truck.
Reply With Quote
  #16
Old 09-03-2009
chainfire's Avatar
Member
iTrader: (1)

Join Date: Oct 2007
Location: Mission B.C.
Posts: 3,126
IMO pick something better than a 5 speed from a ranger. They arent much better than the auto, and your going to be replacing slaves like no tomorrow with that amount of abuse.
Reply With Quote
  #17
Old 09-03-2009
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
yeah I was gona call BS on the HP 78 D44..but now you say its been chopped down so makes sense. should be nice with the front end swap. nice truck!
Reply With Quote
  #18
Old 09-04-2009
Member
Thread Starter

Join Date: Jan 2009
Location: ma
Posts: 51
well my plan is to run the slave for now the swap it over to cable actuated its a different feel and much stiffer but i wont have to worry about the slave blowing up all the time
Reply With Quote
  #19
Old 10-12-2009
Member
Thread Starter

Join Date: Jan 2009
Location: ma
Posts: 51

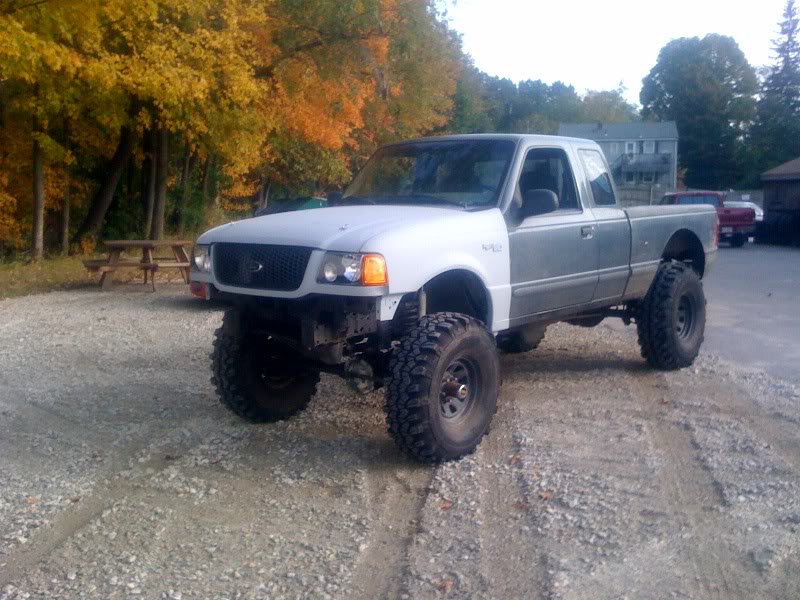

so new front end is on love the look made me love the ranger again

Name:  frontend.jpg
Views: 4
Size:  104.1 KB
Reply With Quote
  #20
Old 10-12-2009
Metro55's Avatar
Member

Join Date: Apr 2009
Location: Winnipeg
Posts: 938
lookin wicked man!
Reply With Quote
  #21
Old 10-12-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Looks real good! Do I see hood lock pins?
Reply With Quote
  #22
Old 10-12-2009
sullys_ranger's Avatar
Member

Join Date: Mar 2006
Location: NewLexington, Ohio
Posts: 3,615
sick dude! much better. any wheelin pics??
Reply With Quote
  #23
Old 10-12-2009
camodown's Avatar
Lost in Nowhere
iTrader: (3)

Join Date: Feb 2007
Location: Midland, TX
Posts: 5,029
hell yeah, coming along
Reply With Quote
  #24
Old 10-12-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Sweetness! You gonna have to cut the front fenders at all?
Reply With Quote
  #25
Old 10-12-2009
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
looks great with the new front end!
Reply With Quote
