Vista's Lowered 98

Figure Id post something about the daily. Ive went to the darkside.

Picked up a 98 standard cab back in January for well...free.
Light Denim Blue, 2wd, Auto with 4.10 7.5

I drove it for a couple months to figure out everything it needed. The list grew daily, but it was a good little truck for my 100 mile commute.

The truck was rough to say the least. Needed new rotors, drums, power-steering pump, belt, idler pulley, belt tensioner, new ujoints(never seen ujoints so bad).... and basically everything that has to do with the suspension. Lower ball joints were shot, uppers were close..

So the decision was made...if I have to replace all the suspension anyways, why not lower it in the process.

So I picked up a DJM 4/5 for a decent price. Ended up lowering it about 4/6. Put a C notch on the rear and its a now its a whole different truck.

This winter Ill probably tackle the body work.


Right after its first bath and getting a new power-steering pump. Couldnt stand the whine anymore.


Got some new shoes for the old girl. 215/75/15


Then I started the drop. Got the front back together and back on the ground

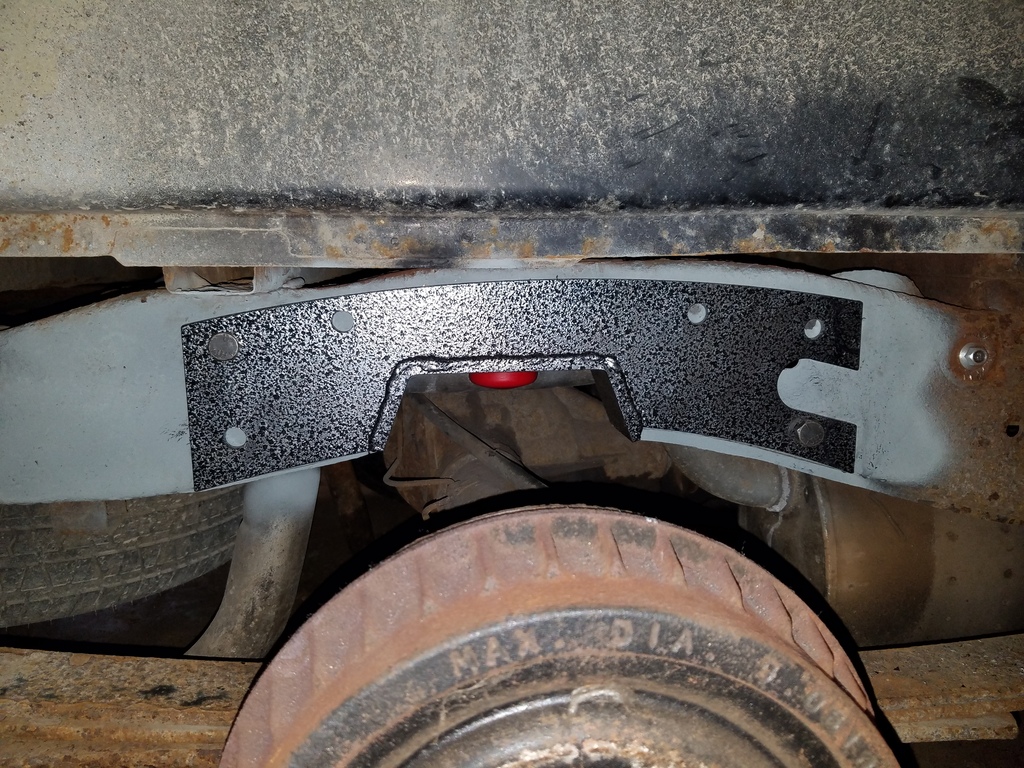

Had a hell of a time doing the flip kit. Just didnt have enough clearance between the frame and the spring to get the axle over top. Didnt feel like messing with the leaf springs, so i picked a notch kit.


So I cut the notch out. Then cleaned up the frame some while I was in there. I couldnt get the upper shock mount undone either. Rust hit it hard. So I replaced that at the same time.




Finally got it all set back down and dropped.

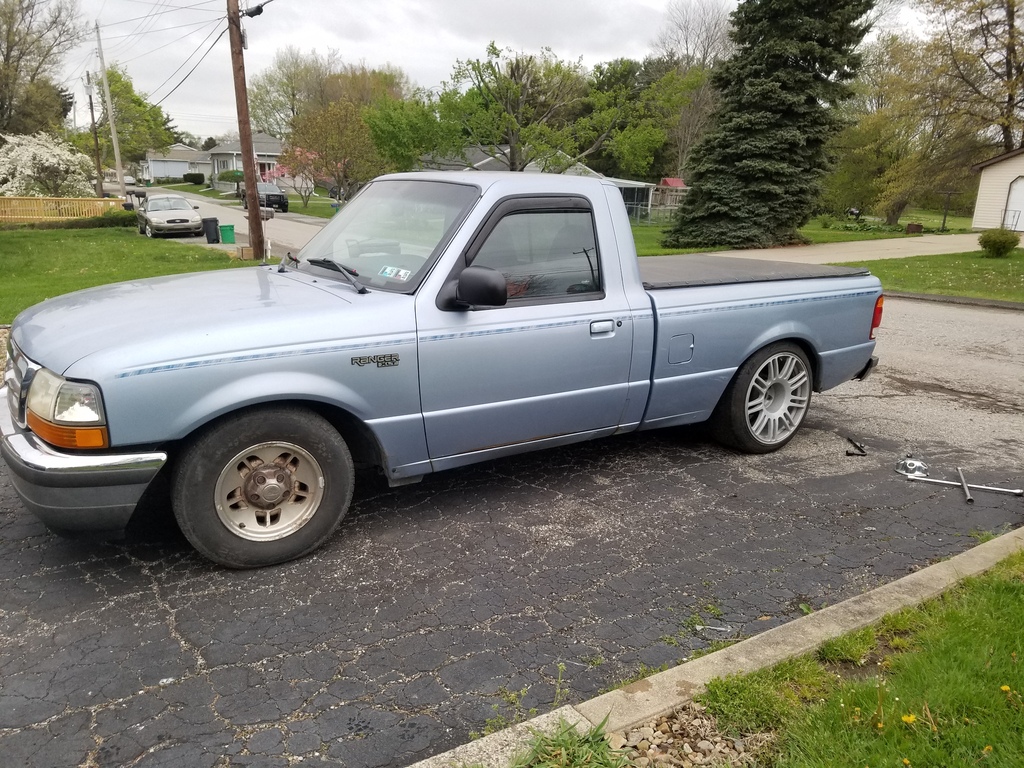

Now I bought 15 inch tires for this but didnt have the wheels yet. Was originally going to just buy some 15x8 steelies. But I had a couple Mickey Thompson Classic IIs sitting around and figured maybe ill try it. So mounted up a tire to see.



First drive up to my buddies house and I started eyeballing his wheels on his cressida. Its down for engine swap and such so he let me try a wheel on... needless to say I might be running these this summer i can get the front to fit. Nothing like rocking some wheels worth more than the truck.

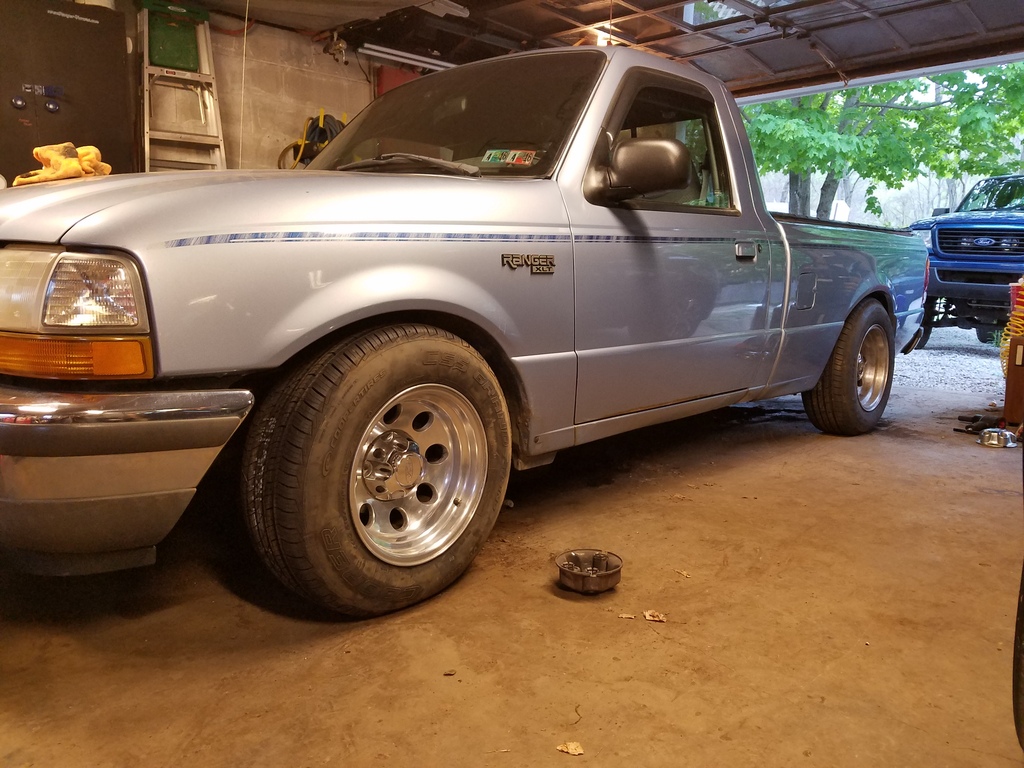

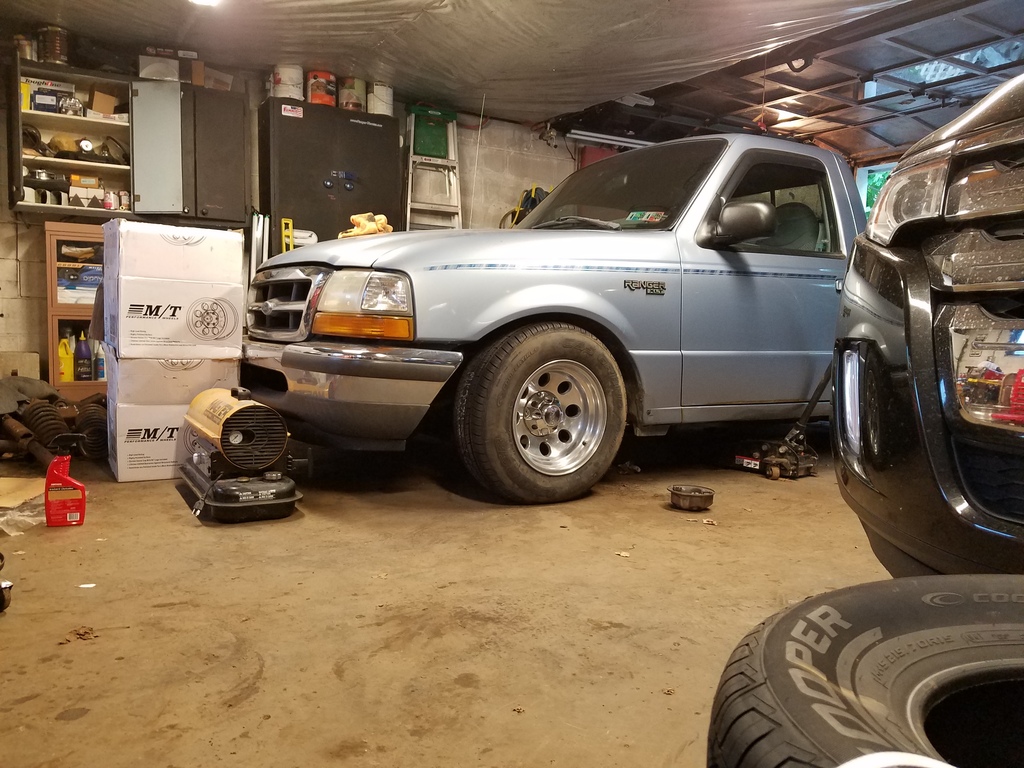

How she sits right now...


Attached Thumbnails
Vista's Lowered 98-20160402_142732_zpsk7ymiguv.jpg   Vista's Lowered 98-20160408_120759_zpsnspgmfdb.jpg   Vista's Lowered 98-20160424_163400_zps9mywdyqy.jpg   Vista's Lowered 98-20160424_163450_zps136y7kib.jpg   Vista's Lowered 98-20160426_162912_zpsgw9ziklq.jpg

Vista's Lowered 98-20160430_160946_zpsyoasqs1d.jpg   Vista's Lowered 98-20160428_174950_zpseur0ojn7.jpg   Vista's Lowered 98-20160429_182118_zps9paxypjl.jpg   Vista's Lowered 98-20160427_202612_zps47v12so5.jpg   Vista's Lowered 98-20160427_202452_zpsuz9mdlh5.jpg

Vista's Lowered 98-20160502_194759_zps0pju0chi.jpg   Vista's Lowered 98-20160503_195347_zpswgmcweef.jpg   Vista's Lowered 98-20160503_195449_zpsrrpmzhym.jpg   Vista's Lowered 98-cameringo_20160503_195607_zps2fgdniad.jpg
Reply With Quote
  #2
Old 05-05-2016
EaOutlaw's Avatar
Member

Join Date: Apr 2016
Location: Lake Worth
Posts: 644
That is a nice truck for the price. Your work makes it look even better " well done "
Does the notch kit just get bolted in? or was there some welding involved we didn't see?

How about those mud flaps, if you still have them would you want to sell them and the mounting hardware?
If so how much would you want for them shipped to 33467?
Reply With Quote
  #3
Old 05-05-2016
vista4.0's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Jan 2009
Location: Beaver Falls, PA
Posts: 2,824
Quote:
Originally Posted by EaOutlaw View Post
That is a nice truck for the price. Your work makes it look even better " well done "
Does the notch kit just get bolted in? or was there some welding involved we didn't see?

How about those mud flaps, if you still have them would you want to sell them and the mounting hardware?
If so how much would you want for them shipped to 33467?
Thanks, the notch kit is just a bolt in kit.

Yeah, I will sell them if ya want them. I wouldnt be looking for much. Pretty much enough for shipping and maybe a couple bucks in my pocket. I however have to get 3 of the brackets off still.
Reply With Quote
  #4
Old 05-05-2016
EaOutlaw's Avatar
Member

Join Date: Apr 2016
Location: Lake Worth
Posts: 644
I have all the brackets and plastic push clips that go through the fenders and quarter panel I just do not have any other fasteners or whatever is necessary to install them

When ever you get a chance Pm me with the price you want and how you want the payment. I could do Pay Pal or Chase Quick Pay or mail a check once it clears then send out the parts.

Thanks for considering selling them to me.
Reply With Quote
  #5
Old 05-09-2016
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Looking good! Always wanted to lower one for a dd.
Reply With Quote
  #6
Old 05-09-2016
vista4.0's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Jan 2009
Location: Beaver Falls, PA
Posts: 2,824
Quote:
Originally Posted by seed60 View Post
Looking good! Always wanted to lower one for a dd.
Thanks man, that's the plan once I get all the bugs worked out. It will go back to daily duty.
