Bodylift install pics

Finally had a full day plus tomorrow till 3 off work so I got at it with the bodylift. Had a bit of help from friends to move the bed around and check the engine bay but besides that I was alone. NEVER DO A BL ALONE!!! OMG sooo long! Especially when it's your first one...

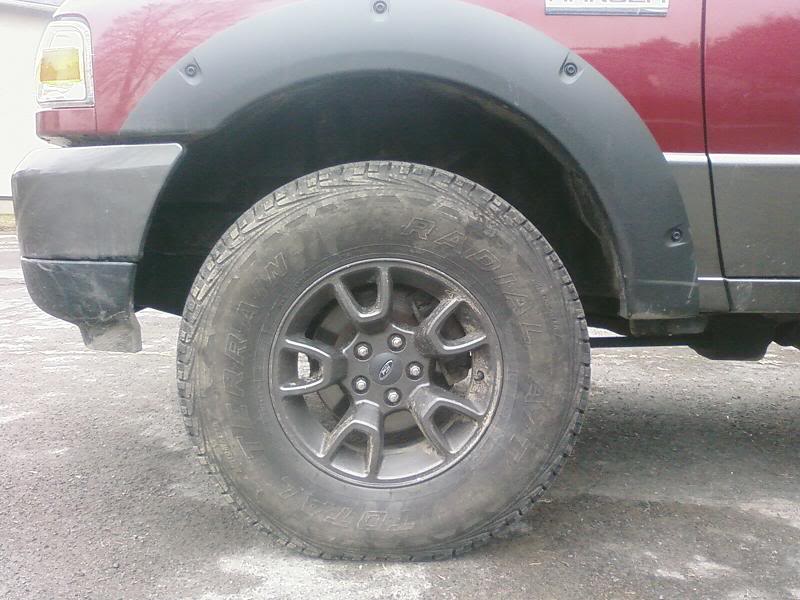

This is how she sat before

Name:  BodyLift001.jpg
Views: 0
Size:  83.5 KB
Name:  BodyLift002.jpg
Views: 0
Size:  89.1 KB
Name:  BodyLift003.jpg
Views: 0
Size:  70.8 KB
Name:  BodyLift004.jpg
Views: 0
Size:  69.3 KB

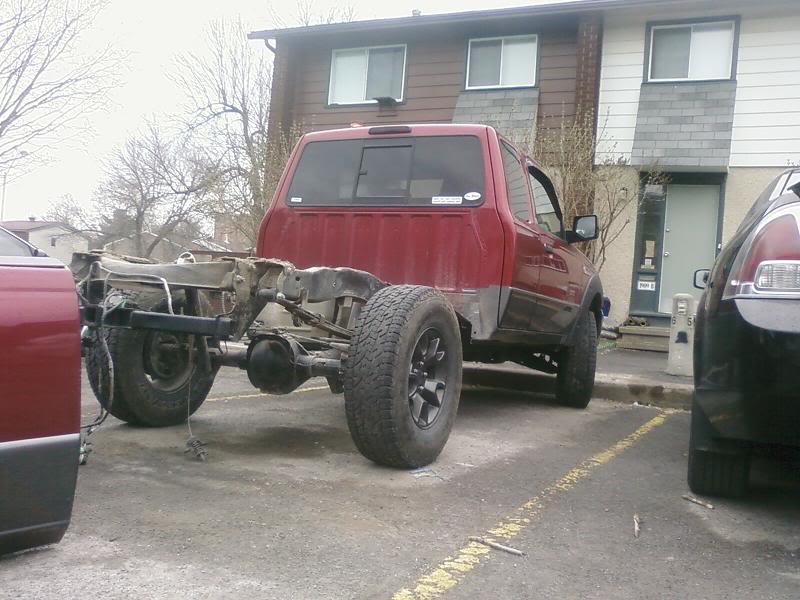

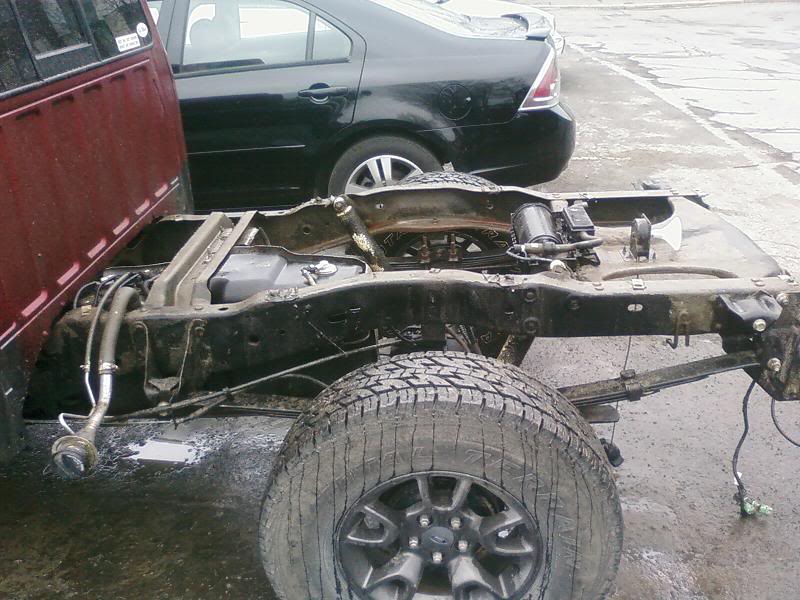

During the tear down, 10am

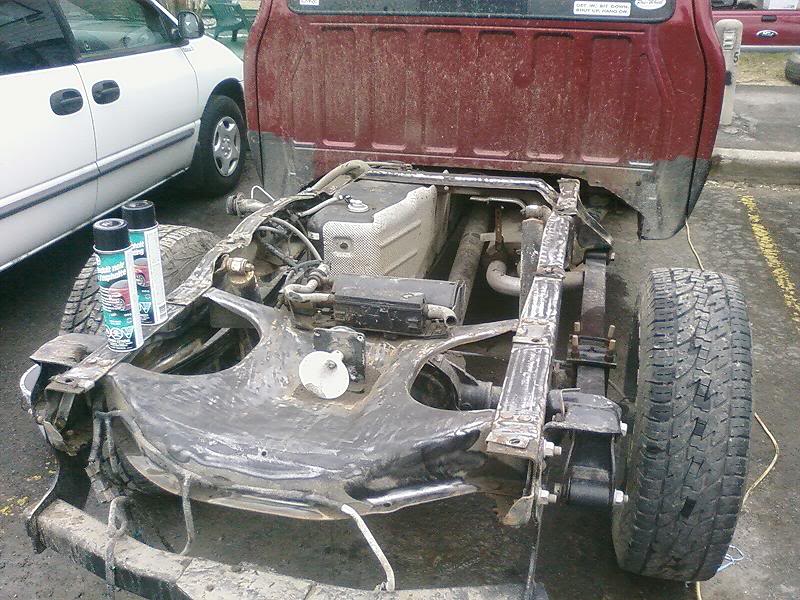

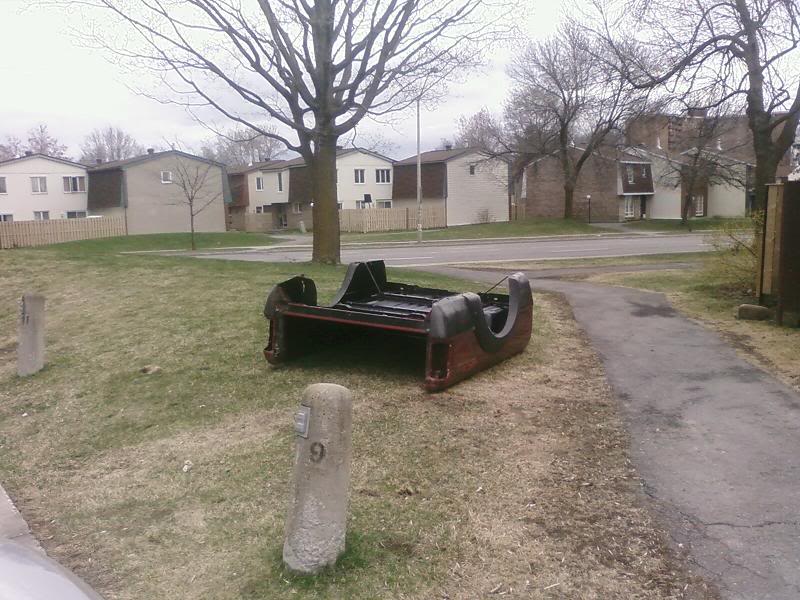

Decided to bedline the frame and underside of the bed as it was pretty much all undone. Also took the tails I got from Lazler off and put the stockers back in. They don't match my color combo at all

Name:  BodyLift005.jpg
Views: 0
Size:  79.4 KB
Name:  BodyLift006.jpg
Views: 0
Size:  81.9 KB

Name:  BodyLift008.jpg
Views: 0
Size:  72.7 KB
Name:  BodyLift009.jpg
Views: 0
Size:  75.7 KB
Name:  BodyLift010.jpg
Views: 0
Size:  84.9 KB
Name:  BodyLift011.jpg
Views: 0
Size:  81.8 KB
Name:  BodyLift012.jpg
Views: 0
Size:  86.7 KB
Name:  BodyLift014.jpg
Views: 0
Size:  112.1 KB
Name:  BodyLift015.jpg
Views: 0
Size:  82.1 KB
Name:  BodyLift016.jpg
Views: 0
Size:  94.0 KB
Name:  BodyLift017.jpg
Views: 0
Size:  85.9 KB

Then started helping my roomate out to put his flowmaster on, screwed around a bit and next thing you know it's 6pm, gotta love unhooking wires when the sun is about to go down...

Don't have pics of how she sits now, at 4:30am, because I got really pissed off and only have a cell phone. But here it goes, also alone at this point...

11PM - Cab is lifted, now time to hook everything up.

11:15PM - Notice that my rad is jammed at the pass lower mount.

11:30PM - Only way to unjam it is by dropping the truck.

12:15AM - All 3" blocks are out. Cab is back to stock. Rad is free. Bring it back up.

12:45AM - Cab is lifted... again. Start tightening the bolts.. ALL inside cab make the bushing spin with about 1/2" left to go, stupid locktite, yes, I torched them don't worry

1:15AM - WTF, my steering extension doesnt fit... Not long enough...

1:30AM - After a quick search online, I decide to bring the cab back to stock and deal with it at another time.

2:15AM - Cab is back to stock.... again.... with the exeption of the driver rear, bushing won't stop being gay, so I leave it for now. My arms are sore, back is sore, I'm cold as hell and getting tired.

2:20AM - Go to install steering back together, well would you look at that! I can extend it by just pulling on the bastard!

3:10AM - Yup, cab is lifted again. Now trying to find a way to jam the bushing so it doesnt spin, having someone to hold it would help here.

3:30AM - Nothing is working, f*ck it.

4:00AM - Just finished about 4 smokes, wishing it would finish itself, decide to call it a night and hook everything up tomorrow..

4:30AM - Finally relaxing inside.

4:31AM - Here I am, posting away instead of sleeping. Trying to multitask uploading pics, copy/pasting IMG tags and writing all of this.

4:48AM - Goodnight
Reply With Quote
  #2
Old 04-06-2010
acemavrick's Avatar
Member
iTrader: (2)

Join Date: Feb 2009
Location: ky
Posts: 663
damn my tails get around!!
Reply With Quote
  #3
Old 04-06-2010
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Looks good so far. Hope you didn't have any issues with your landlord! Mine would have **** if I did that when I lived in London!
Reply With Quote
  #4
Old 04-06-2010
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Haha! I did the same thing with the radiator, that sucked. It goes much faster the second time your lifting it though lol. I had the same problem with the bushing, ended up just cutting the bolt head off lol
Reply With Quote
  #5
Old 04-06-2010
Seb_L's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2009
Location: Ottawa, Ontario
Posts: 1,071
What do you mean cutting the bolt head off? I was thinking of drilling out the bushing, and putting a nut like the front ones.

Finally go the steering extension on, now just trying to get the rad done.
Reply With Quote
  #6
Old 04-06-2010
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Oh I thought you were talking about the front bushing. Try more heat on the cab bolts, I didn't have a problem with them spinning.
Reply With Quote
  #7
Old 04-06-2010
Seb_L's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2009
Location: Ottawa, Ontario
Posts: 1,071
I've got heat, but the bushings are melting on the sides. Nothing big just little bubbles here and there.

Got everything done but the trans cooler, need to find self taping bolts, tighten down the cab bolts, and adjust the bumpers/hitch + gap guards.


Name:  BodyLift0022.jpg
Views: 0
Size:  69.7 KB
Reply With Quote
  #8
Old 04-06-2010
99greenranger's Avatar
Member

Join Date: Mar 2010
Location: Garden City, MI
Posts: 126
looking good! hopefully you have a little better luck getting it put back together.

btw did you win when you rolled up the rim on that timmy's cup?
Reply With Quote
  #9
Old 04-06-2010
MothMan999's Avatar
Member
iTrader: (3)

Join Date: Mar 2009
Location: Chantilly, VA
Posts: 858
Looks good! Get back to work.
Reply With Quote
  #10
Old 04-06-2010
Seb_L's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2009
Location: Ottawa, Ontario
Posts: 1,071
No we both lost haha

Making new thread as well but I need help.

Truck wont start, it cranks, but wont start. I unhook the clips that hold the auto gear selector, so it has alot of slack. I'm sure I got all the grounds I unhooked (did they have to be exactly how they were before cause I turned some around for better reach. Do you guys know anything that could have happened, I work in 1h so I need this bad boy to run!
Reply With Quote
  #11
Old 04-06-2010
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
I would put money on it being the inertia switch. Its in the passanger side kick panel
Reply With Quote
  #12
Old 04-06-2010
Seb_L's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2009
Location: Ottawa, Ontario
Posts: 1,071
As per the other thread, thank you! Now just gotten tighten the bastard bolts haha
Reply With Quote
  #13
Old 04-06-2010
Billy4x4's Avatar
Member

Join Date: Mar 2008
Location: Kawartha Lakes
Posts: 626
looks pretty good from over here... glad you were able to work out the kinks...

i guess now you'll be after some new wheels/tires or whats the plan??
Reply With Quote
  #14
Old 04-06-2010
Seb_L's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2009
Location: Ottawa, Ontario
Posts: 1,071
Buying them next week hopefully
Reply With Quote
  #15
Old 04-06-2010
Lazler's Avatar
Senior Member
iTrader: (18)

Join Date: Dec 2008
Location: Brantford, Ontario
Posts: 5,526
Quote:
Originally Posted by acemavrick View Post
damn my tails get around!!
Those were howells lol.. Yours are in Alabama eh

BL looks great Seb!
Reply With Quote
  #16
Old 04-06-2010
Seb_L's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2009
Location: Ottawa, Ontario
Posts: 1,071
Thanks Chris!

Rear bumper is going on next. Then Canadian Tire to get a socket for the front bumper, mine isnt long enough. Still gotta fix my shifter cable. It's acting up. New thread again! lol
Reply With Quote
  #17
Old 04-06-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
HAHAHAHA!! Seb....that timeline had me laughing pretty good! lo.
Reply With Quote
  #18
Old 04-06-2010
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
What are the wheel/tire plans?
Reply With Quote
  #19
Old 04-06-2010
sullys_ranger's Avatar
Member

Join Date: Mar 2006
Location: NewLexington, Ohio
Posts: 3,615
Looks good bro!!! They are sooo frustration when you dont know whats going on lol
Reply With Quote
  #20
Old 04-06-2010
Seb_L's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2009
Location: Ottawa, Ontario
Posts: 1,071
15x10 Steelies, 33x12.5 or 13.5 LTB's
Reply With Quote
  #21
Old 04-09-2010
Seb_L's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2009
Location: Ottawa, Ontario
Posts: 1,071

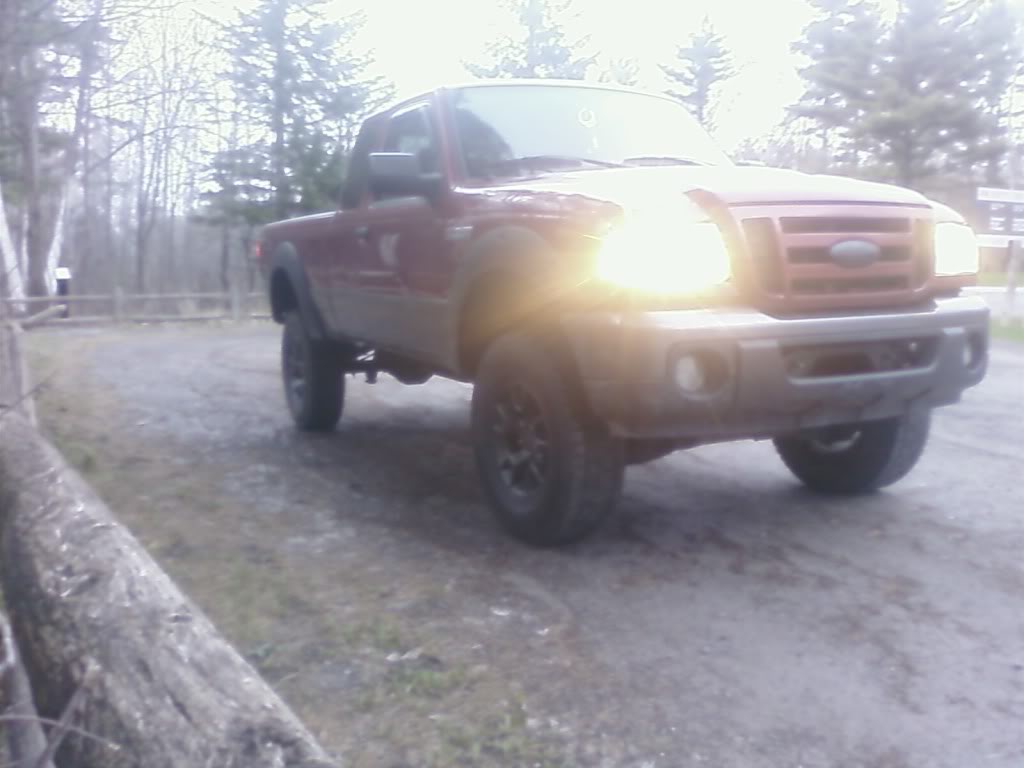

Here are a few pics, front bumper bracket needs a bit of adjustment, and rear bumper needs to go back on

Name:  BodyLift002.jpg
Views: 0
Size:  65.2 KB
Name:  BodyLift003.jpg
Views: 0
Size:  47.1 KB
Name:  BodyLift004.jpg
Views: 0
Size:  33.4 KB
Name:  BodyLift001.jpg
Views: 0
Size:  78.2 KB
Reply With Quote
  #22
Old 04-11-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Truk Leuks Gud! I suggest getting TrePaul's TPC bumper brackets!! Sooooo much nicer than the ones PA gives ya!
Reply With Quote
  #23
Old 04-11-2010
Seb_L's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2009
Location: Ottawa, Ontario
Posts: 1,071

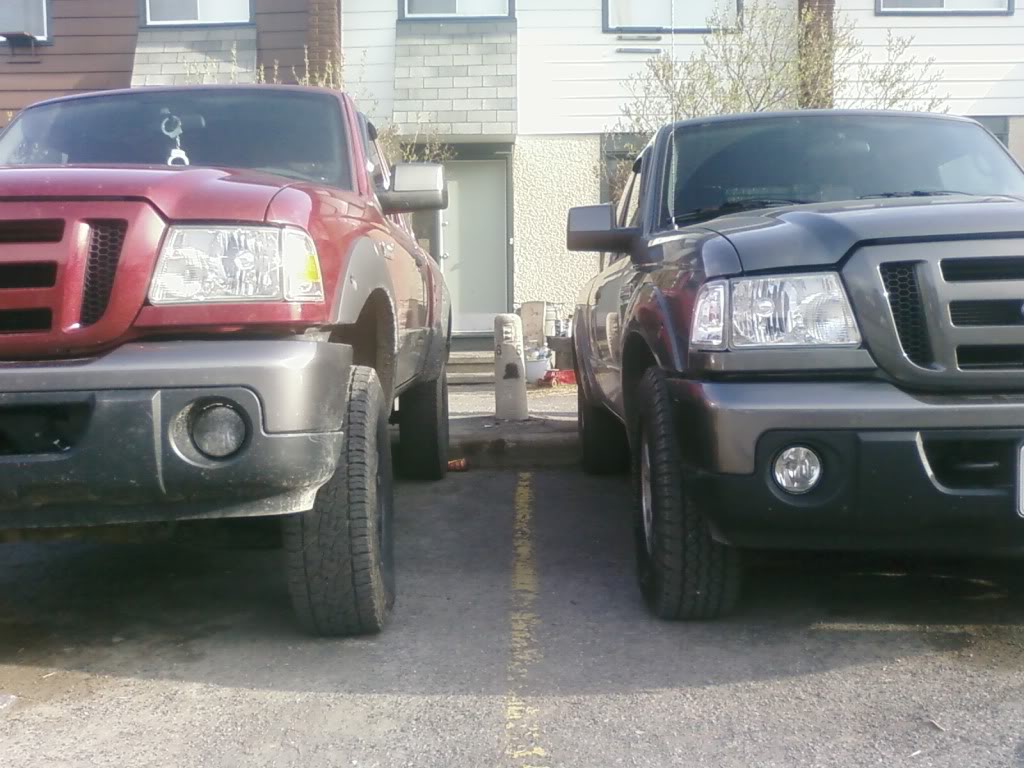

Next to a stock FX4

Name:  001-1.jpg
Views: 0
Size:  131.0 KB
Name:  002-1.jpg
Views: 0
Size:  121.5 KB
Name:  003-1.jpg
Views: 0
Size:  117.4 KB

Quote:
Originally Posted by Fx4wannabe01 View Post
Truk Leuks Gud! I suggest getting TrePaul's TPC bumper brackets!! Sooooo much nicer than the ones PA gives ya!
Ya I have been considering those
Reply With Quote
  #24
Old 04-11-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
holysh!t....is your brand new bumper brackets already bent all to hell? lol.
Reply With Quote
  #25
Old 04-11-2010
Seb_L's Avatar
Member
Thread Starter
iTrader: (1)

Join Date: Jun 2009
Location: Ottawa, Ontario
Posts: 1,071
No haha whe I put it on the bumper stuck out like 1" too far. So I banged it with a hammer but it turned out worst lmao. I'll put it back to how it was for now lol
Reply With Quote
