CB/OHC/Bezal

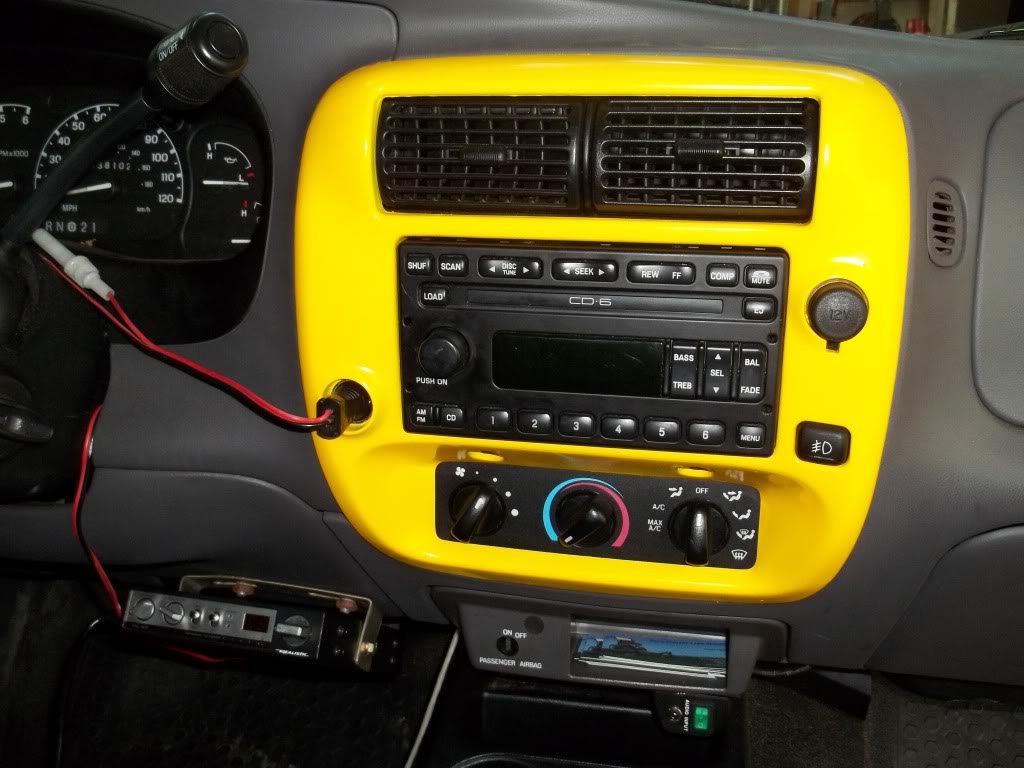

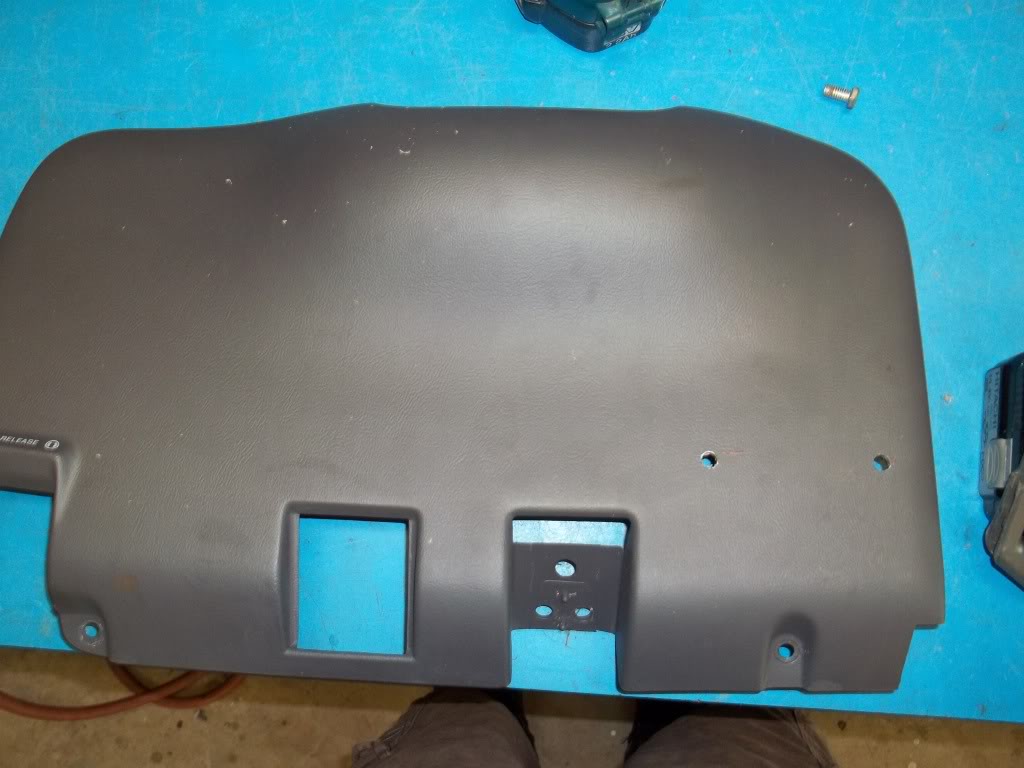

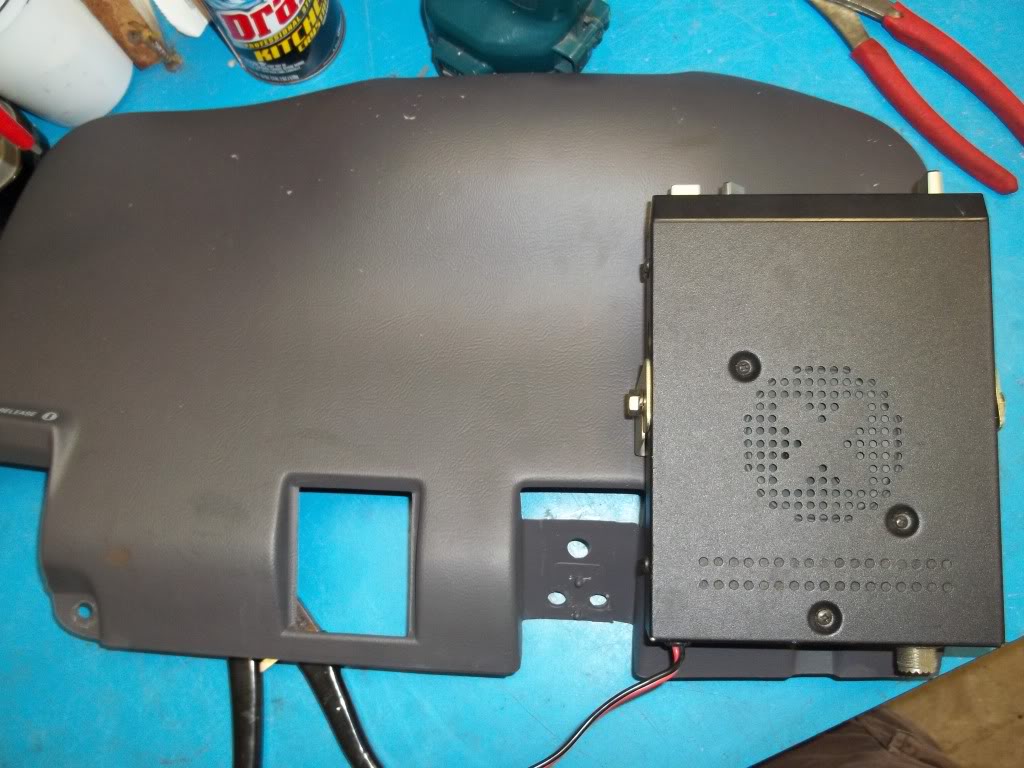

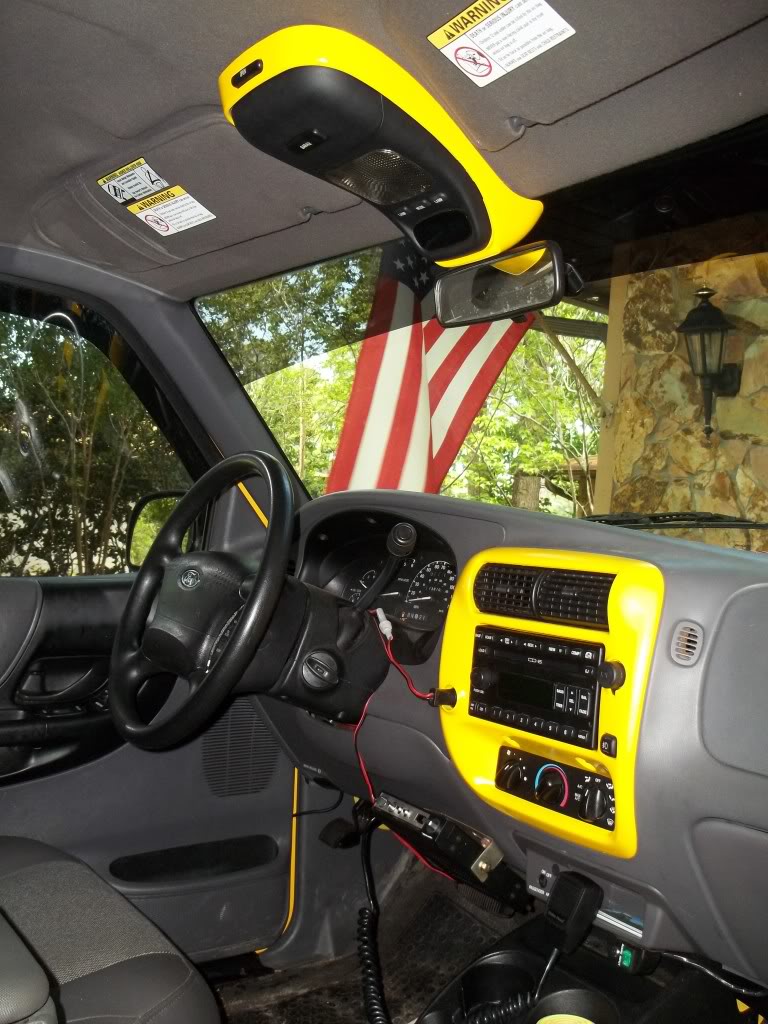

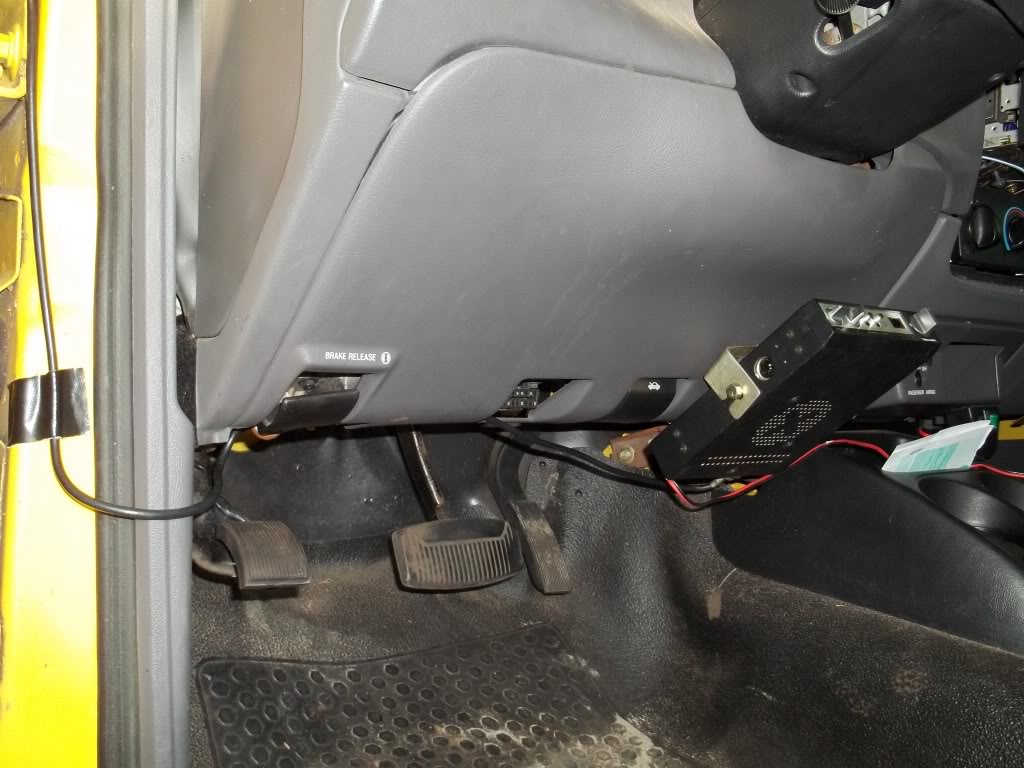

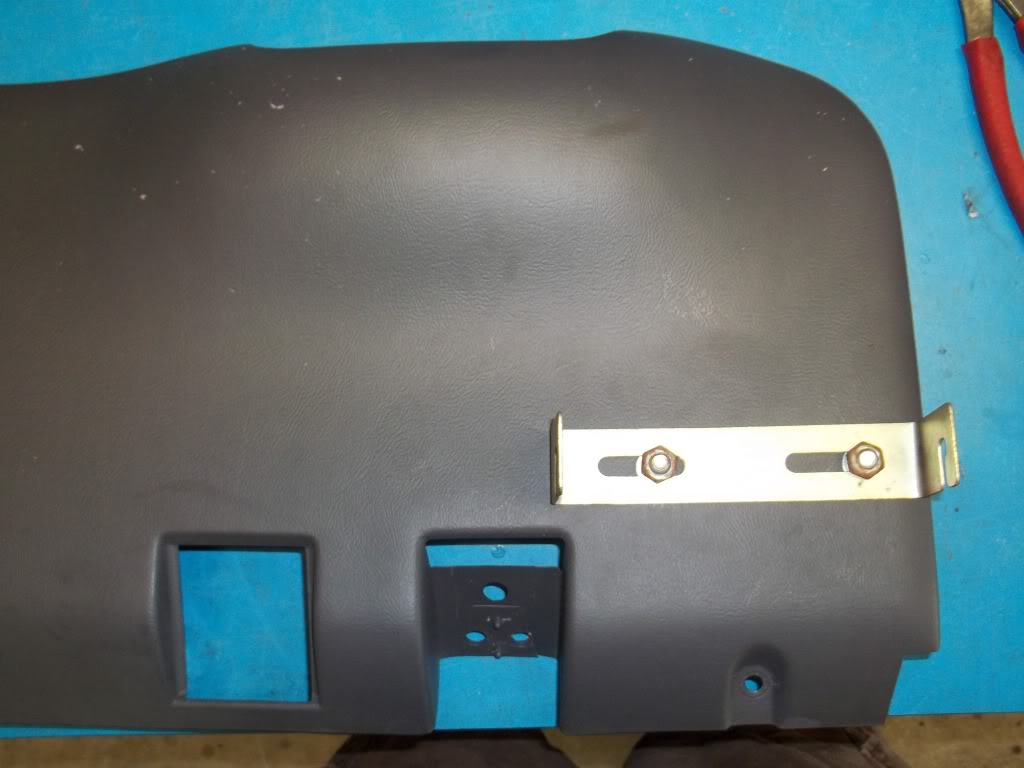

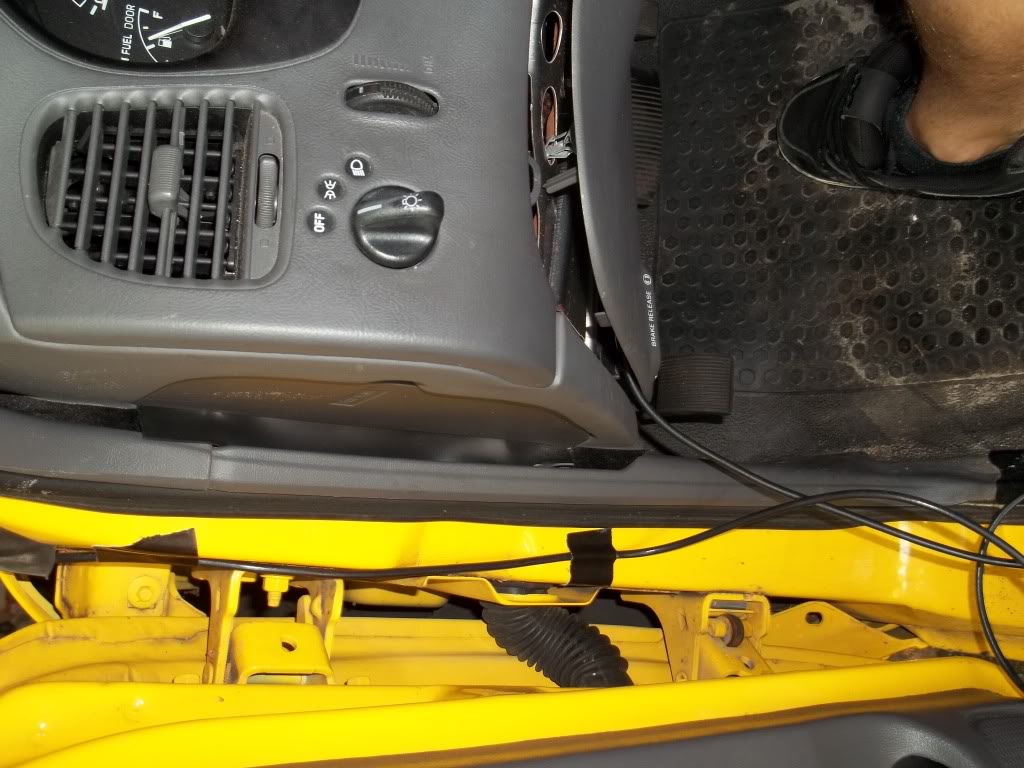

Finally got some pics of my cb i got from my uncle, the OHC i got from Drew(05RangerEdge)(thanks again man!) that i painted yellow, and my bezal i pulled off and painted yellow to match the ohc. ohc was kinda difficult to install cus the bracket got bent or something becuase it wasnt going on the ohc anymore so we impervised and put a small piece of wood in the headliner and driled threw the ohc holes in the garage door compartment and held the back up like that and the front had a cut up lisense plate bent around the front lip of the headliner and screwed to the ohc. cb is just bolted threw the panel below the steerign wheel and love it there. got my antenna wire going down the door-seal and then all tucked into the kick panel and out the rear to reach the cb. i didnt push my radio in the bezal all the way so if i have to remove it i dont scratch it :D

Name:  a06951de.jpg
Views: 3
Size:  83.8 KB
Name:  4c901811.jpg
Views: 3
Size:  69.8 KB
Name:  10282ca1.jpg
Views: 4
Size:  114.1 KB
Name:  7fe72be9.jpg
Views: 6
Size:  123.2 KB
Name:  b87011b2.jpg
Views: 3
Size:  119.4 KB
Name:  564cdf58.jpg
Views: 3
Size:  216.0 KB

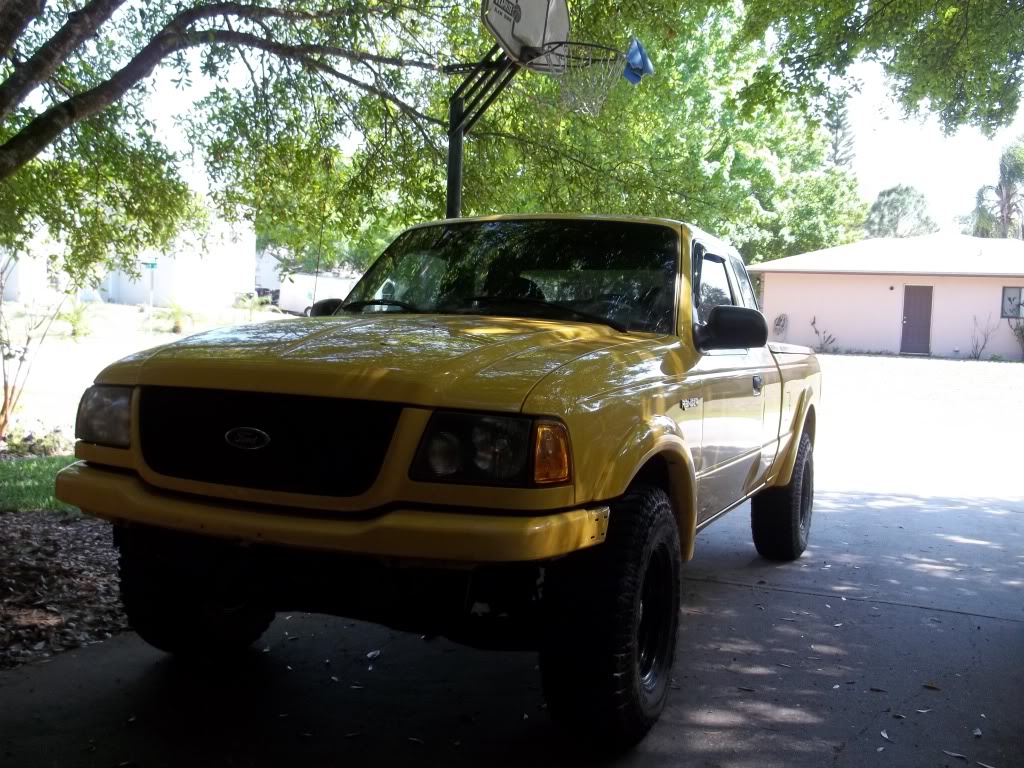

Also my lower valence is back on :)
Name:  f6f388f9.jpg
Views: 3
Size:  183.7 KB

Name:  76542999.jpg
Views: 3
Size:  104.8 KB
Name:  42b314f8.jpg
Views: 2
Size:  140.7 KB
Reply With Quote
  #2
Old 03-29-2011
hurley's Avatar
Member
iTrader: (3)

Join Date: Dec 2010
Location: West Belmar NJ
Posts: 1,488
Looks good. How did you go about painting your bezel? Any prep work or did you just rattle can it?
Reply With Quote
  #3
Old 03-29-2011
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
nice wiring job lol
Reply With Quote
  #4
Old 03-29-2011
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
I have a CB like that in the garage that my dad used to have, that thing is old! I think its black, still seems to work though
Reply With Quote
  #5
Old 03-29-2011
SteelDirigible's Avatar
Member
iTrader: (4)

Join Date: May 2010
Location: Lexington, KY
Posts: 3,666
Quote:
Originally Posted by 99offroadrngr View Post
nice wiring job lol
x2 can you rewire my speakers for me?
Reply With Quote
  #6
Old 03-29-2011
01DangerRanger's Avatar
Member
Thread Starter

Join Date: Oct 2010
Location: Melbourne, Florida
Posts: 983
Quote:
Originally Posted by hurley View Post
Looks good. How did you go about painting your bezel? Any prep work or did you just rattle can it?
thanks! just pull it off and get the rubber coating off of it so just us a can of break cleaner and it will peal right off but also need to kinda scrape at it
Quote:
Originally Posted by 99offroadrngr View Post
nice wiring job lol
i dont really care about it that much, but someone is gunna wire it behind at the next florida meet
Quote:
Originally Posted by 04blackedge View Post
I have a CB like that in the garage that my dad ui sed to have, that thing is old! I think its black, still seems to work though
ya it is old but still works great!
Reply With Quote
  #7
Old 03-29-2011
RedComet6342's Avatar
Member
iTrader: (2)

Join Date: Sep 2009
Location: NC
Posts: 241
Nice paint job, cool cb also, ive never been a big fan of magnet mounts, never had much luck, ive always liked the 102inch whip antennas
Reply With Quote
  #8
Old 03-29-2011
wyldechild's Avatar
Member

Join Date: Jun 2007
Location: Denver, Colorado
Posts: 1,952
Reminds me of when I hooked up my first CB in my Bronco 8 years or so ago. Sloppy wiring job, and magnetic mounted antenna. Then after a few days I realized I could do better. LOL

Seriously though, that wiring would drive me insane. You need to take care of it. Wire it straight to your battery. Send those wires through the firewall and hide them up underneath the dash somehow. Then buy a mount and a firestick.
Reply With Quote
  #9
Old 03-30-2011
01DangerRanger's Avatar
Member
Thread Starter

Join Date: Oct 2010
Location: Melbourne, Florida
Posts: 983
Quote:
Originally Posted by RedComet6342 View Post
Nice paint job, cool cb also, ive never been a big fan of magnet mounts, never had much luck, ive always liked the 102inch whip antennas
thanks man! ya it was free so hey haha i wanted a big whip but cant bet free
Quote:
Originally Posted by wyldechild View Post
Reminds me of when I hooked up my first CB in my Bronco 8 years or so ago. Sloppy wiring job, and magnetic mounted antenna. Then after a few days I realized I could do better. LOL

Seriously though, that wiring would drive me insane. You need to take care of it. Wire it straight to your battery. Send those wires through the firewall and hide them up underneath the dash somehow. Then buy a mount and a firestick.
ya i will probably clean it up eventually, i havent actually gotten to drive around with it hooked up like it is not beacuse my bettery crapped out and i didnt get one till last night.
Reply With Quote
  #10
Old 03-30-2011
99ranger_4x4's Avatar
Member

Join Date: Jun 2010
Location: Tampa, FL
Posts: 150
Looks great pat
Reply With Quote
  #11
Old 03-31-2011
FMD's Avatar
FMD FMD is offline
Member
iTrader: (1)

Join Date: Aug 2005
Location: Amherst NY
Posts: 3,811
I hate to be the kill joy here, but I personally would find a better place to put the CB.

If your in an accident, and you happen to slide forward in your seat that CB is REALLY going to hurt your knee...

Nice job on the bezel though =)
Reply With Quote
  #12
Old 04-04-2011
MOTOunplugged's Avatar
Member
iTrader: (1)

Join Date: Mar 2008
Location: Covington, Georgia
Posts: 759
hide those wires man!! haha, otherwise it looks good!
Reply With Quote
  #13
Old 04-04-2011
01DangerRanger's Avatar
Member
Thread Starter

Join Date: Oct 2010
Location: Melbourne, Florida
Posts: 983
Quote:
Originally Posted by FMD View Post
I hate to be the kill joy here, but I personally would find a better place to put the CB.

If your in an accident, and you happen to slide forward in your seat that CB is REALLY going to hurt your knee...

Nice job on the bezel though =)
its acutally not near my knee and its out of thway so i dont hav to woryy bout that. thanks man!
Quote:
Originally Posted by MOTOunplugged View Post
hide those wires man!! haha, otherwise it looks good!
i will i will haha thanks!!
