Icon9 Dune run= Broken Ranger

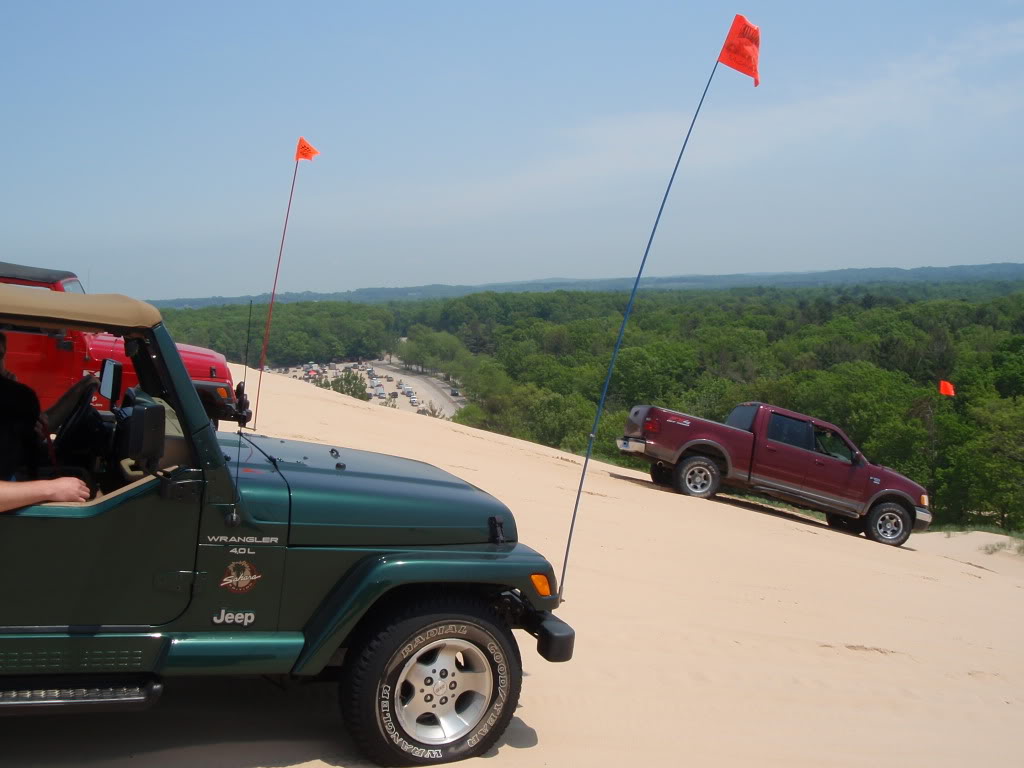

A couple buddies and myself took a last minute planned trip up to the dunes for a few hours today. One of them (Steve) just got himself a jeep, its a 2000 safari edition (the green one) The red jeep is my buddy Brian's jeep, it was his first trip to the dunes.

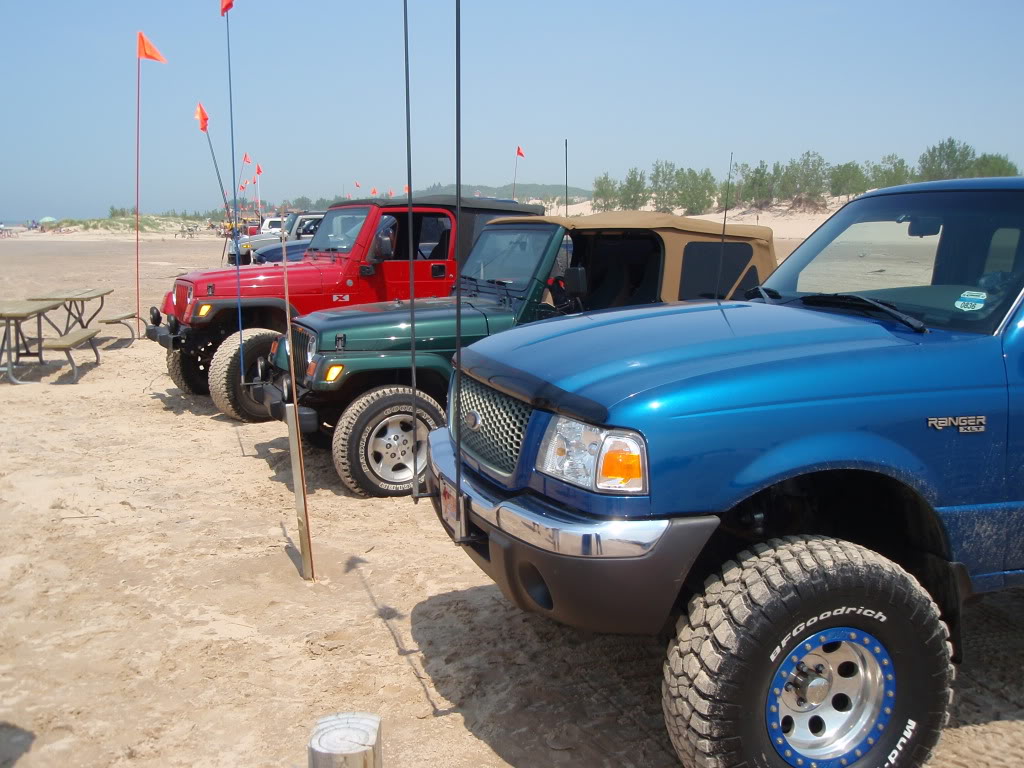

Name:  P6040862.jpg
Views: 1
Size:  147.2 KB
Name:  P6040861.jpg
Views: 2
Size:  85.8 KB

a little vid of test hill
http://www.youtube.com/watch?v=LL4jUaQASyU

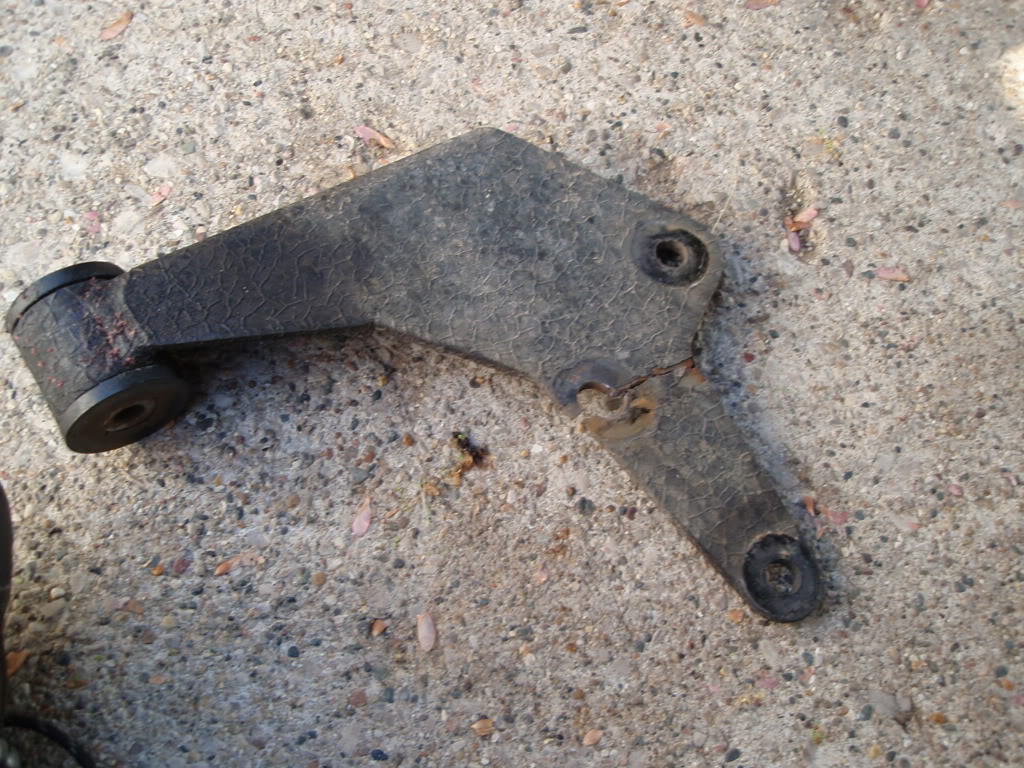

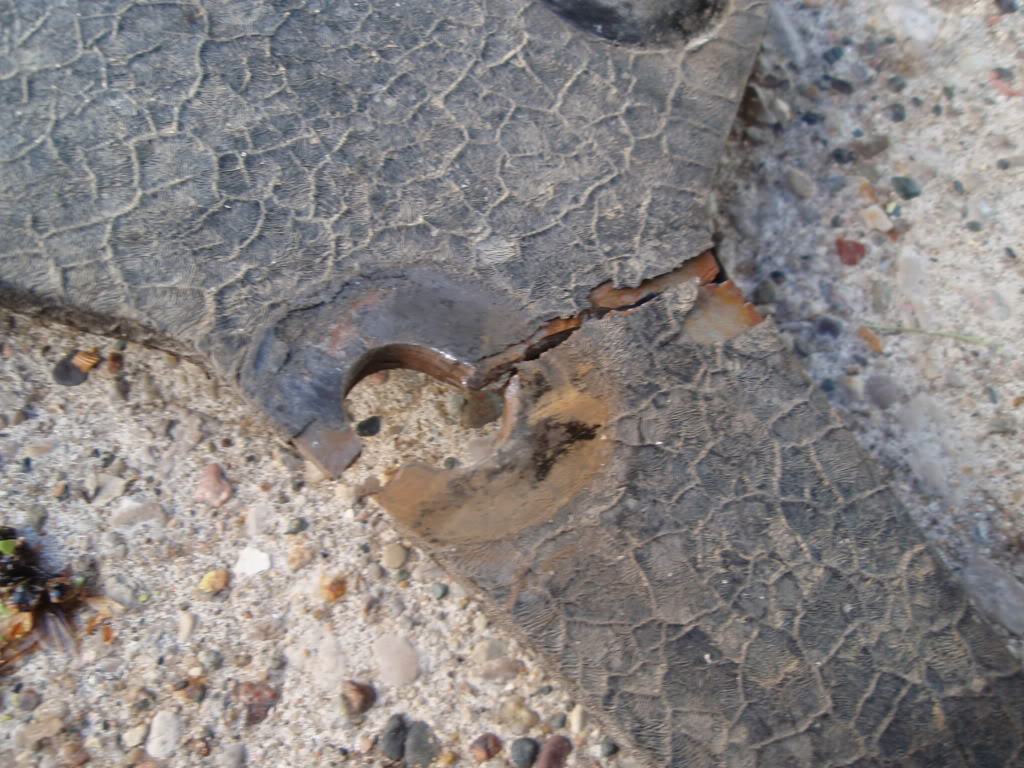

All was well with the world until after I climbed a few hills. I was locked in 4 low pulling a steep hill when I heard a pop and then some grinding immediately following that. I thought for sure I blew the front diff because thats where the sound was coming from. I limped out of the dunes in 2wd and drove home to investigate the problem. Turns out the diff wasnt broken which made me happy, the RCD diff support bracket that was part of my lift broke and it was allowing the diff to twist down until the pinion hit the cross member making the grinding noise I was hearing.

Name:  P6040866.jpg
Views: 3
Size:  205.4 KB
Name:  P6040867.jpg
Views: 2
Size:  163.5 KB

http://www.youtube.com/watch?v=ZKaRFH0MTEU

So luckily it wasnt a big deal but it cut my dune playing short but oh well, gotta pay to play! Steve broke in his new jeep and Brian is no longer a Silver Lake virgin so all want lost. Weather was awesome too BTW.

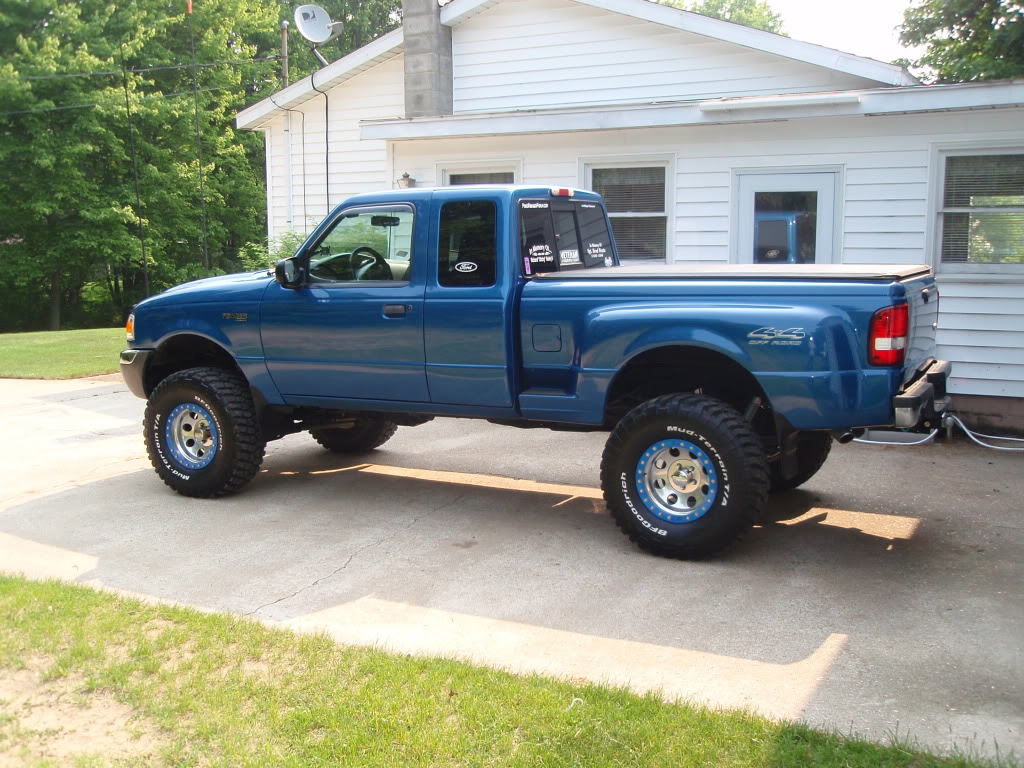

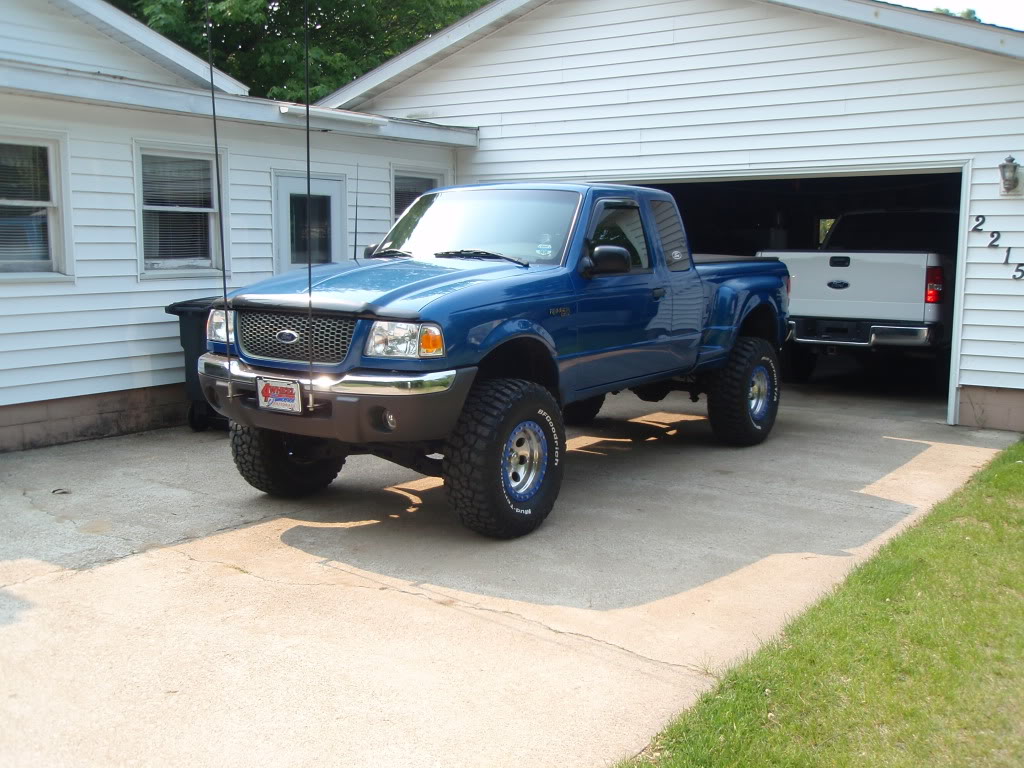

and for the hell of it, a couple pics of my ranger because its clean.

Name:  P6040860.jpg
Views: 1
Size:  260.2 KB
Name:  P6040859.jpg
Views: 2
Size:  194.0 KB
Name:  P6040858.jpg
Views: 4
Size:  152.8 KB
Reply With Quote
  #2
Old 06-04-2011
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
i saw the title and was like, Broken ranger? No way! but that isn't too bad, gonna buy a new one? or get out the welder?
Also, how'd you get a Dealer plate?
Reply With Quote
  #3
Old 06-04-2011
01_ranger_4x4's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Mar 2009
Location: Muskegon, Michigan
Posts: 3,585
Quote:
Originally Posted by StxDangerRanger View Post
i saw the title and was like, Broken ranger? No way! but that isn't too bad, gonna buy a new one? or get out the welder?
Also, how'd you get a Dealer plate?
no ill weld it up and gusset it a bit more. i know this is an issue with the RCD lifts, im surprised mine lasted this long actually. and about the plate, if i told you i would have to kill you. lol
Reply With Quote
  #4
Old 06-04-2011
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
Quote:
Originally Posted by 01_ranger_4x4 View Post
no ill weld it up and gusset it a bit more. i know this is an issue with the RCD lifts, im surprised mine lasted this long actually. and about the plate, if i told you i would have to kill you. lol
That ain't too bad then, good to know. i plan on lifting the next truck i get will have to look out for that.
as far as the plate goes. I'll take that chance. I'm on the other side of the state from you, so i've got a two hour head start.
Reply With Quote
  #5
Old 06-04-2011
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
I love your truck! It is so sharp!
Reply With Quote
  #6
Old 06-04-2011
Fink132's Avatar
Member

Join Date: Feb 2011
Location: Alberta
Posts: 758
Wow that looks like it would be a lot of fun!
Nice truck too!
Reply With Quote
  #7
Old 06-04-2011
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Yeah, i'm pretty sure TrePaul had the same problem with his front diff mount thing that you broke. We gusseted like crazy and made mad welds and it was all good. Then he SAS his truck. lul....truck lewks gud!
Reply With Quote
  #8
Old 06-04-2011
xp1ik99's Avatar
Member
iTrader: (5)

Join Date: Feb 2006
Location: Lexington Park, MD
Posts: 3,230
Looking good as usual.
Reply With Quote
  #9
Old 06-05-2011
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
Yup I'm familiar with that grinding noise as well lol. Looks nice man!
Reply With Quote
  #10
Old 06-05-2011
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
ya couldn't wait for us..... see if you would have waited. all would have been good in the world and sh*t. now your truck is broke. bring on the zombies.
Reply With Quote
  #11
Old 06-05-2011
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,780
You know the fix but there are posts about the same thing, check them out.
My SL Kit came reinforced.
Reply With Quote
  #12
Old 06-05-2011
hurley's Avatar
Member
iTrader: (3)

Join Date: Dec 2010
Location: West Belmar NJ
Posts: 1,488
dude those blue bead locks are sick!
Reply With Quote
  #13
Old 06-05-2011
Masteratarms93's Avatar
Member
iTrader: (8)

Join Date: Mar 2010
Location: Goose Creek SC
Posts: 4,685
Truck looks great as always Pat.

The vid made me lol: LIKE A BOSS
Reply With Quote
  #14
Old 06-05-2011
01_ranger_4x4's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Mar 2009
Location: Muskegon, Michigan
Posts: 3,585
Quote:
Originally Posted by Trigger01 View Post
I love your truck! It is so sharp!
Thanks Mike!

Quote:
Originally Posted by Fink132 View Post
Wow that looks like it would be a lot of fun!
Nice truck too!
thanks! its a blast up there

Quote:
Originally Posted by Dangerranger01 View Post
Yeah, i'm pretty sure TrePaul had the same problem with his front diff mount thing that you broke. We gusseted like crazy and made mad welds and it was all good. Then he SAS his truck. lul....truck lewks gud!
yeah i remember he had this issue and i was trying to find his post about it yesterday. i do hope to SAS this truck when i have the cash so i dont have to deal with this anymore.

Quote:
Originally Posted by xp1ik99 View Post
Looking good as usual.
thanks man!

Quote:
Originally Posted by RazorsEDGE View Post
Yup I'm familiar with that grinding noise as well lol. Looks nice man!
lol yeah, def not a good. thanks!

Quote:
Originally Posted by morris View Post
ya couldn't wait for us..... see if you would have waited. all would have been good in the world and sh*t. now your truck is broke. bring on the zombies.
ha ha those damn zombies. it will be fixed before the ranger meet (if i can make it up)

Quote:
Originally Posted by Scrambler82 View Post
You know the fix but there are posts about the same thing, check them out.
My SL Kit came reinforced.
yeah, i remember seeing posts about it before. ill do some more searching today

Quote:
Originally Posted by hurley View Post
dude those blue bead locks are sick!
thanks man!

Quote:
Originally Posted by Masteratarms93 View Post
Truck looks great as always Pat.

The vid made me lol: LIKE A BOSS
thanks!
Reply With Quote
  #15
Old 06-07-2011
01_ranger_4x4's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Mar 2009
Location: Muskegon, Michigan
Posts: 3,585

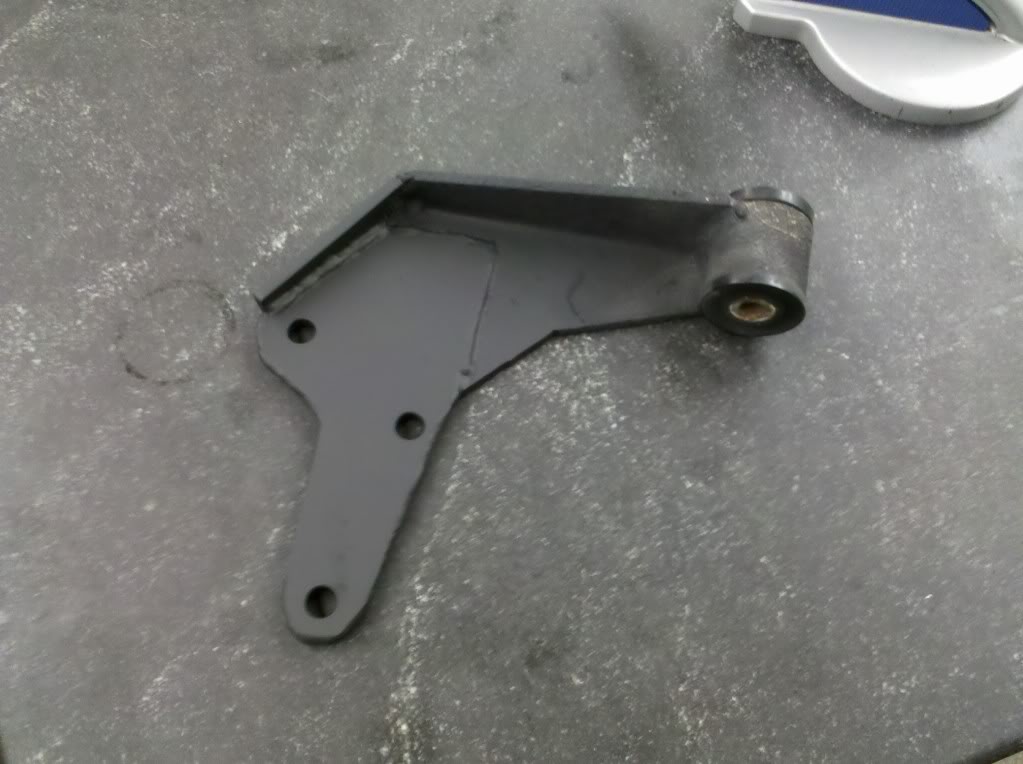

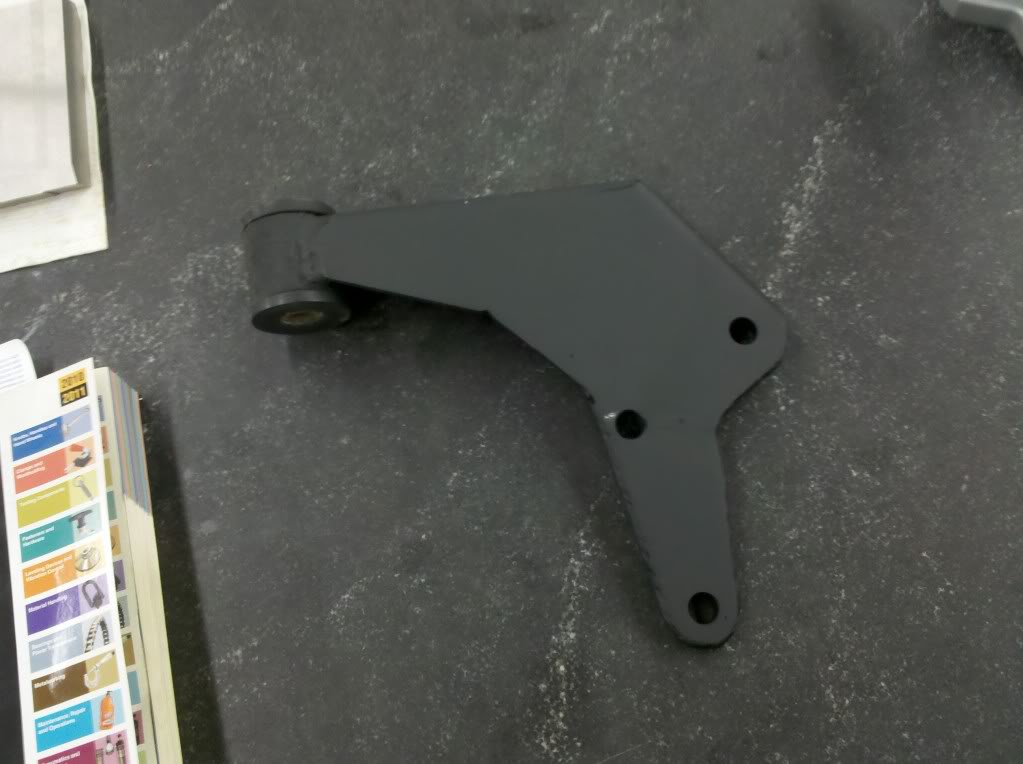

UPDATE!! Hey look, its fixed!

Name:  IMG_20110607_120330.jpg
Views: 4
Size:  72.9 KB
Name:  IMG_20110607_120309.jpg
Views: 1
Size:  81.2 KB

i plated the front side of it with 3/16" steel, edge welded and plug welded the plate as well as re-welded the break in the original piece. this should make it about 1 and 3/4 times stronger than it was before. (fingers crossed
Reply With Quote
  #16
Old 06-07-2011
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Yeah, that bracket sucks!!

Glad to see you got it fixed up.
Reply With Quote
  #17
Old 06-07-2011
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
It broke? when? lol.
looks brand new.
Reply With Quote
  #18
Old 06-07-2011
01_ranger_4x4's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Mar 2009
Location: Muskegon, Michigan
Posts: 3,585
Quote:
Originally Posted by seed60 View Post
Yeah, that bracket sucks!!

Glad to see you got it fixed up.
i take it youve had the same issue. i knew my time would come eventually. how did you fix it?

Quote:
Originally Posted by StxDangerRanger View Post
It broke? when? lol.
looks brand new.
lol thanks
Reply With Quote
  #19
Old 06-07-2011
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Quote:
Originally Posted by 01_ranger_4x4 View Post
i take it youve had the same issue. i knew my time would come eventually. how did you fix it?

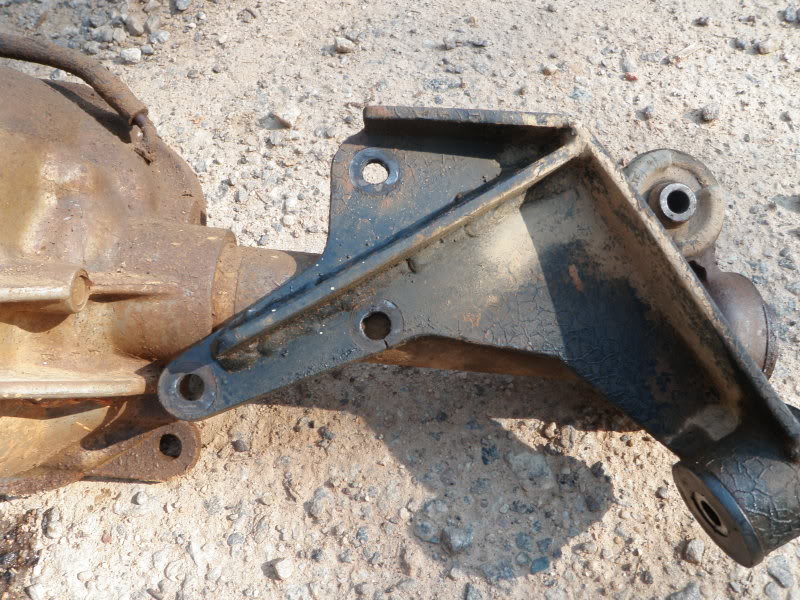

I already gusseted it but it still cracked at that bolt hole. I just scabbed it the same way you did. Hopefully it holds up.

Name:  P5150715.jpg
Views: 2
Size:  141.7 KB
Reply With Quote
  #20
Old 06-07-2011
01_ranger_4x4's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Mar 2009
Location: Muskegon, Michigan
Posts: 3,585
Quote:
Originally Posted by seed60 View Post
I already gusseted it but it still cracked at that bolt hole. I just scabbed it the same way you did. Hopefully it holds up.


yeah that hole is the big issue. i wanted to add a web along that side to add more material by that hole but it looked like it would interfere under the truck. i hope this works.
Reply With Quote
  #21
Old 06-07-2011
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
damn hard to believe you broke your truck. last june you were taking it slow from what i saw, which i wish i did lol. that piece doesnt even look like it was broken after the repair haha
Reply With Quote
  #22
Old 06-07-2011
01_ranger_4x4's Avatar
Member
Thread Starter
iTrader: (4)

Join Date: Mar 2009
Location: Muskegon, Michigan
Posts: 3,585
Quote:
Originally Posted by 99offroadrngr View Post
damn hard to believe you broke your truck. last june you were taking it slow from what i saw, which i wish i did lol. that piece doesnt even look like it was broken after the repair haha
yeah i dont beat on her too bad but im not afraid to put the hammer down sometimes. Im sure a repeated combination of 4 low+ full throttle+ sand hill is what = broken stuff. lol i do however like to keep all four wheels on the sand though, ill let you guys jump your trucks while i record it. lol
Reply With Quote
  #23
Old 06-07-2011
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Looks real good! Hope it holds better!
Reply With Quote
  #24
Old 06-07-2011
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Quote:
Originally Posted by 01_ranger_4x4 View Post
yeah i dont beat on her too bad but im not afraid to put the hammer down sometimes. Im sure a repeated combination of 4 low+ full throttle+ sand hill is what = broken stuff. lol i do however like to keep all four wheels on the sand though, ill let you guys jump your trucks while i record it. lol
hey now, i did that by accident haha my skidplate didn't like me after that though, completely pushed it upwards
Reply With Quote
