Icon12 Finally Pre- Keyed

So today I took the ranger to ford, they threw in the 07 keys that I got from the wrecker.
Lemme know what you think. FYI, these are not fully cranked. I gained 2 " so far. Im pretty sure they new keys yeilded me 1.25" of lift in front compared to the 08 keys and the mechanic only cranked about .75" i guess. Maybe i can get another inch out of it.

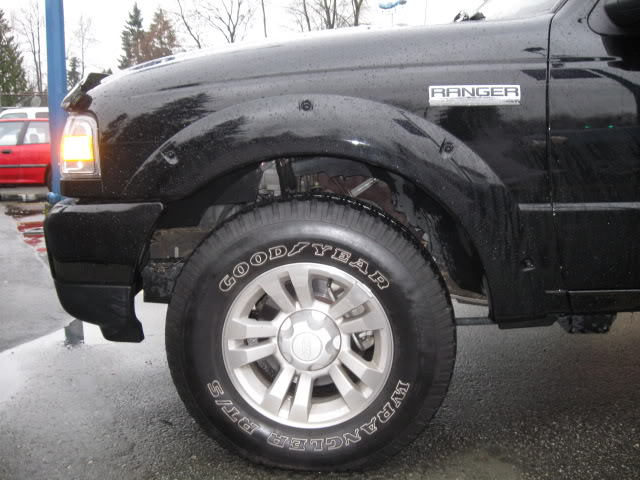

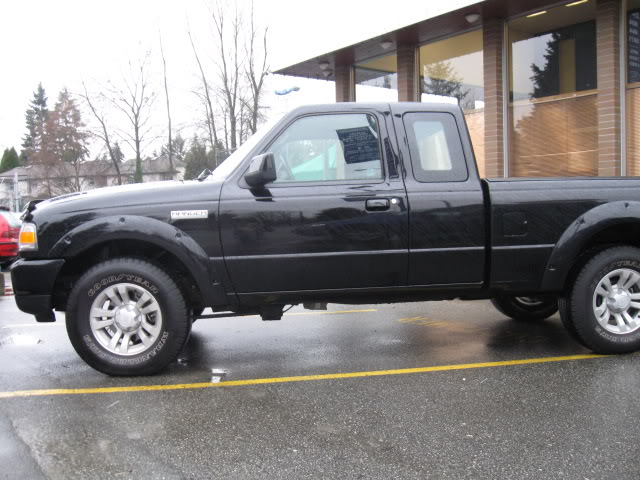

Before:
Name:  001.jpg
Views: 4
Size:  70.8 KB
Name:  002.jpg
Views: 2
Size:  76.7 KB

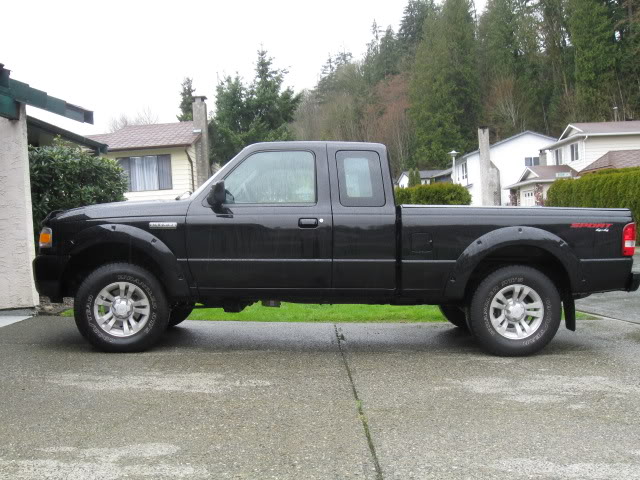

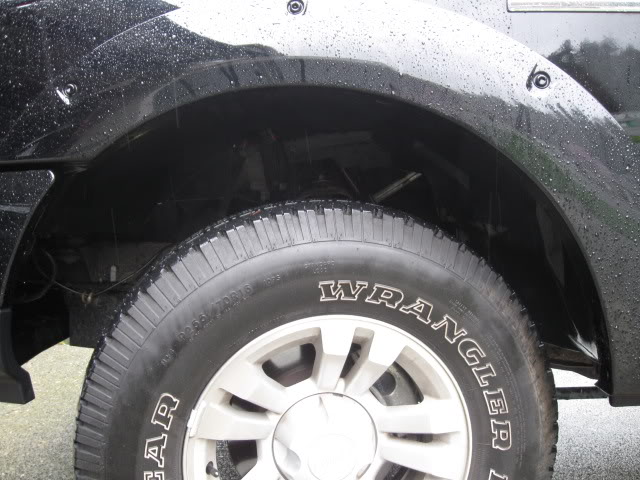

After:
Name:  003-1.jpg
Views: 2
Size:  71.3 KB
Name:  004.jpg
Views: 2
Size:  82.5 KB
Reply With Quote
  #2
Old 03-11-2010
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
Looks good. Now all you need to do is get you a set of stock 4x4 07-under blocks for the rear or some shackles.
Reply With Quote
  #3
Old 03-11-2010
Member

Join Date: Jun 2007
Location: Killafornia
Posts: 1,523
^ dissagree it sits perfect
Reply With Quote
  #4
Old 03-11-2010
Hanon's Avatar
Member
Thread Starter

Join Date: Oct 2009
Location: Port Coquitlam
Posts: 50
Thanks for the imput. I might try and go 1 more inch. Body lift goes on next month with 33s.
When my budget is stable im putting on AAL, and shackles and some bigger shocks
Reply With Quote
  #5
Old 03-11-2010
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
you brought your parts to the dealer? did they charge much or give you any issues with the install?
Reply With Quote
  #6
Old 03-11-2010
Hillyard's Avatar
Member
iTrader: (8)

Join Date: Jul 2007
Location: Evansville, Indiana
Posts: 1,018
Holy cow that made a huge difference! Looks great. Now it's time to get some slightly bigger tires. I wouldn't suggest anything too large if it's your daily driver.
Reply With Quote
  #7
Old 03-11-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
I'm confused, so 07 had bigger torsion keys?
Reply With Quote
  #8
Old 03-11-2010
Hillyard's Avatar
Member
iTrader: (8)

Join Date: Jul 2007
Location: Evansville, Indiana
Posts: 1,018
Quote:
Originally Posted by 01RangerEdge View Post
I'm confused, so 07 had bigger torsion keys?
08s got a different torsion prekey to make it sit lower. The pre-key is why the 07s sat much higher from the factory; everything else was the same. The 08 4x4s sit more like the 93-94 4x4sRangers.
Reply With Quote
  #9
Old 03-11-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Quote:
Originally Posted by Hillyard View Post
08s got a different torsion prekey to make it sit lower. The pre-key is why the 07s sat much higher from the factory; everything else was the same. The 08 4x4s sit more like the 93-94 4x4sRangers.
So the 07's are the only year with those keys?
Reply With Quote
  #10
Old 03-11-2010
Hanon's Avatar
Member
Thread Starter

Join Date: Oct 2009
Location: Port Coquitlam
Posts: 50
Quote:
Originally Posted by morris View Post
you brought your parts to the dealer? did they charge much or give you any issues with the install?
They charged me half an hours labour. They also told me to get an allignment but I said no because i plan on cranking it 1 more inch, then i will get the allignment done.

No i could have used 98 - 07 torsion adjusters. After 07 the keys were re indexed ( I have no idea why, but i was pissed that i was screwed out of ride height!)
Reply With Quote
  #11
Old 03-11-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
gotcha
Reply With Quote
  #12
Old 03-12-2010
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
half hour labour's not too bad.
Reply With Quote
  #13
Old 03-12-2010
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
nice! glad I own an 07.

but I have the F-Bars so mine looks like the 08s now :-(
Reply With Quote
  #14
Old 03-12-2010
Hillyard's Avatar
Member
iTrader: (8)

Join Date: Jul 2007
Location: Evansville, Indiana
Posts: 1,018
Quote:
Originally Posted by GrafixGuy View Post
nice! glad I own an 07.

but I have the F-Bars so mine looks like the 08s now :-(
Hehe ya ours do....Just imagine how mine looks with all the 4x4 drivetrain weight and the f-bars....
Reply With Quote
  #15
Old 03-12-2010
Billy4x4's Avatar
Member

Join Date: Mar 2008
Location: Kawartha Lakes
Posts: 626
hey looks great... very noticeable difference huh!

personally i would go just a little bit higher, and then track down some "preblocks" to bring the rear up to match the front.. body lift, wheels, 33s and call it a day!!
Reply With Quote
  #16
Old 03-12-2010
Hanon's Avatar
Member
Thread Starter

Join Date: Oct 2009
Location: Port Coquitlam
Posts: 50
Quote:
Originally Posted by Billy4x420 View Post
hey looks great... very noticeable difference huh!

personally i would go just a little bit higher, and then track down some "preblocks" to bring the rear up to match the front.. body lift, wheels, 33s and call it a day!!
AMEN to that.

And does anyone know if the 07 keys are F bars? are f bars less stiff?
Reply With Quote
  #17
Old 03-12-2010
karrbass4life's Avatar
Member

Join Date: Nov 2004
Location: Cincinnati, Ohio
Posts: 3,072
Quote:
Originally Posted by Hanon View Post
AMEN to that.

And does anyone know if the 07 keys are F bars? are f bars less stiff?
I think they are one of the weakest torsion bars that were used. I could be wrong.
Reply With Quote
  #18
Old 03-12-2010
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
correct.

F bars are the softest.

#1 Bars are the stiffest bars you can get. usually on the FX4 packages and LIIs
Reply With Quote
  #19
Old 03-13-2010
Sixt9coug's Avatar
Member
iTrader: (7)

Join Date: May 2006
Location: Norwalk, CA
Posts: 1,034
looks good! it will settle a bit over the next few days. It will probably drop another 1/2 of an inch so be prepared for that. Get the alignment when you can, and I strongly suggest getting the camber bolts. It's a new truck man, why half *** it and possibly let the tires wear funny?
Reply With Quote
  #20
Old 03-13-2010
Billy4x4's Avatar
Member

Join Date: Mar 2008
Location: Kawartha Lakes
Posts: 626
Quote:
Originally Posted by Sixt9coug View Post
looks good! it will settle a bit over the next few days. It will probably drop another 1/2 of an inch so be prepared for that. Get the alignment when you can, and I strongly suggest getting the camber bolts. It's a new truck man, why half *** it and possibly let the tires wear funny?
I gained 2" from the prekeys and a moderate crank and ive been driving it for over six months now and it hasnt sagged at all on me...
Reply With Quote
  #21
Old 03-13-2010
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
Quote:
Originally Posted by Sixt9coug View Post
It's a new truck man, why half *** it and possibly let the tires wear funny?
100% agree. I want to make my truck last
Reply With Quote
  #22
Old 03-13-2010
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Looks good!
Reply With Quote
  #23
Old 03-15-2010
NightmareFX4's Avatar
Member

Join Date: Mar 2010
Location: Woodlawn, Ont.
Posts: 19
Looks real good, that's what I'm after to. Daniel what torsion bars do you have in your 08 Sport? Asking because my 2010 FX4 has #1's and was curious if I would need the 07 prekey. Or are the #1 bars with 2010 FX4 keys good to go?
Reply With Quote
  #24
Old 03-15-2010
Hanon's Avatar
Member
Thread Starter

Join Date: Oct 2009
Location: Port Coquitlam
Posts: 50
Quote:
Originally Posted by NightmareFX4 View Post
Looks real good, that's what I'm after to. Daniel what torsion bars do you have in your 08 Sport? Asking because my 2010 FX4 has #1's and was curious if I would need the 07 prekey. Or are the #1 bars with 2010 FX4 keys good to go?
Im not sure what bars i have. Uncrankable ones lol. Whtever bars come in a 08 sport 4x4.
My advice to you is to try and crank your fx4 bars first. I know the fx4 bars #1 bars are stronger but they might have been re indexed. Try and crank first, if it doesnt work you will need to pre key
Reply With Quote
  #25
Old 03-15-2010
NightmareFX4's Avatar
Member

Join Date: Mar 2010
Location: Woodlawn, Ont.
Posts: 19
Had you cranked your bars before the 07 prekeys? And ya got nothing out of them? really?

I will be trying the bar crank first for sure. Anyone else crank a 2010 FX4 yet? Or will I be the first?
Reply With Quote
