GF got me PIAA's 4 XMAS - Custom light bar & mount pics

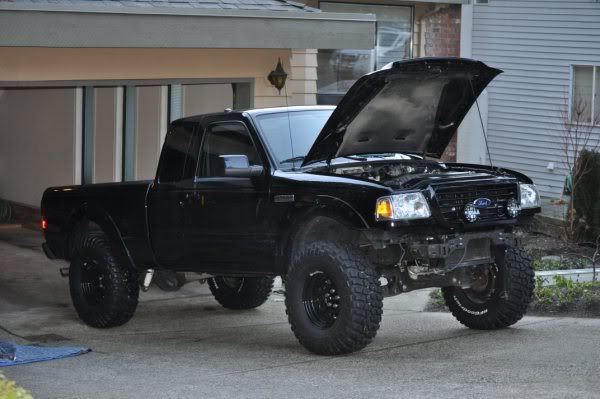

Yet again my girlfriend gets me an awesome present. Set of PIAA series 540 extreme white driving lights. Was trying to figure out how to mount them and decided to just give it a shot at fabbing up a light bar. Turned out really well for me. What do you guys think. Will have more photos of fabbing proccess later.. missing alot of steps in these pics. Bumper is also back on now..just didnt get any pics of it

Name:  DSC_0118.jpg
Views: 2
Size:  49.9 KB

Name:  DSC_0057.jpg
Views: 3
Size:  41.0 KB

Name:  DSC_0079.jpg
Views: 3
Size:  42.5 KB

Name:  DSC_0062.jpg
Views: 2
Size:  43.8 KB

Name:  21874_225778802043_502517043_307753.jpg
Views: 3
Size:  40.2 KB

Name:  DSC_0124.jpg
Views: 2
Size:  19.7 KB

Name:  DSC_0123.jpg
Views: 2
Size:  10.8 KB

Name:  DSC_0146.jpg
Views: 2
Size:  43.3 KB

Name:  DSC_0141.jpg
Views: 2
Size:  43.9 KB

Name:  DSC_0148.jpg
Views: 2
Size:  50.5 KB

Name:  DSC_0154.jpg
Views: 2
Size:  39.3 KB

Name:  DSC_0157.jpg
Views: 3
Size:  38.2 KB

Kelseys Escape

Name:  21874_225778732043_502517043_307752.jpg
Views: 3
Size:  47.1 KB
Reply With Quote
  #2
Old 12-28-2009
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
nice work, her Escape looks nice too.

now we need pics of the lights in use :-)
Reply With Quote
  #3
Old 12-28-2009
Ranger_Guy15's Avatar
Member

Join Date: Apr 2007
Location: MN
Posts: 2,827
Nice! Truck looks good!
Reply With Quote
  #4
Old 12-28-2009
stevev88's Avatar
Member
Thread Starter

Join Date: Sep 2009
Location: north van, BC
Posts: 220
Quote:
Originally Posted by GrafixGuy View Post
nice work, her Escape looks nice too.

now we need pics of the lights in use :-)
Still havnt wired into cab yet. Was having some troubles today with that. Any suggestion on where and how to get into cab?
Reply With Quote
  #5
Old 12-28-2009
Lazler's Avatar
Senior Member
iTrader: (18)

Join Date: Dec 2008
Location: Brantford, Ontario
Posts: 5,526
use a gromet on the firewall near the drivers door
Reply With Quote
  #6
Old 12-28-2009
The S-10 Killer's Avatar
Member

Join Date: Aug 2008
Location: BR, LA
Posts: 646
there should be a grommet like two inches above the brake pedal i used that one for my lights
Reply With Quote
  #7
Old 12-28-2009
BLK02's Avatar
Member
iTrader: (2)

Join Date: Dec 2007
Location: BC
Posts: 1,350
i used the same hole as my hood release for my lights and inverter, plenty of room there. Looks good btw
Reply With Quote
  #8
Old 12-28-2009
Robin Hood's Avatar
Member
iTrader: (2)

Join Date: Aug 2008
Location: AZ
Posts: 789
right under the brake booster is where i wired for my hellas. its a bit of a squeeze.

Truck looks great! Nice escape too, I like that body style.
Reply With Quote
  #9
Old 12-28-2009
dixie_boysles's Avatar
Member
iTrader: (1)

Join Date: Jul 2006
Location: NC
Posts: 3,778
She really does love you! first tint, now lights...she's a keeper, you better marry her before someone grabs her up...lol

Last edited by dixie_boysles; 12-28-2009 at 12:02 PM.
Reply With Quote
  #10
Old 12-28-2009
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
Get 2 more, looks great. You can snake in the wire with the harness also...
