For the haters!!!!!

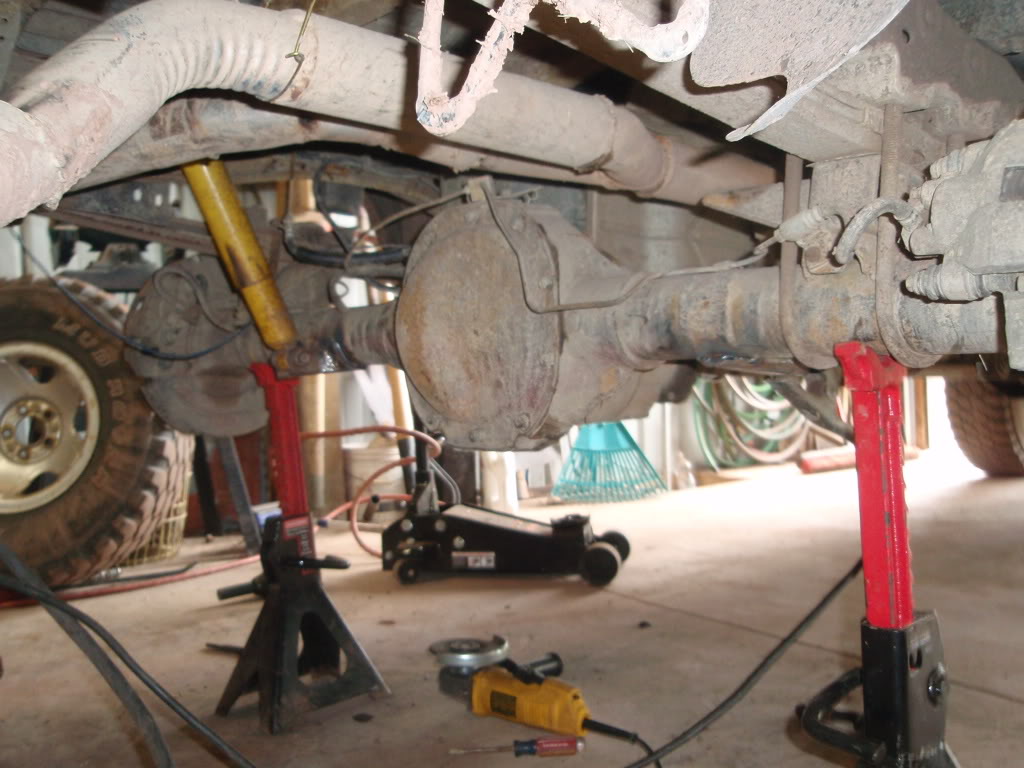

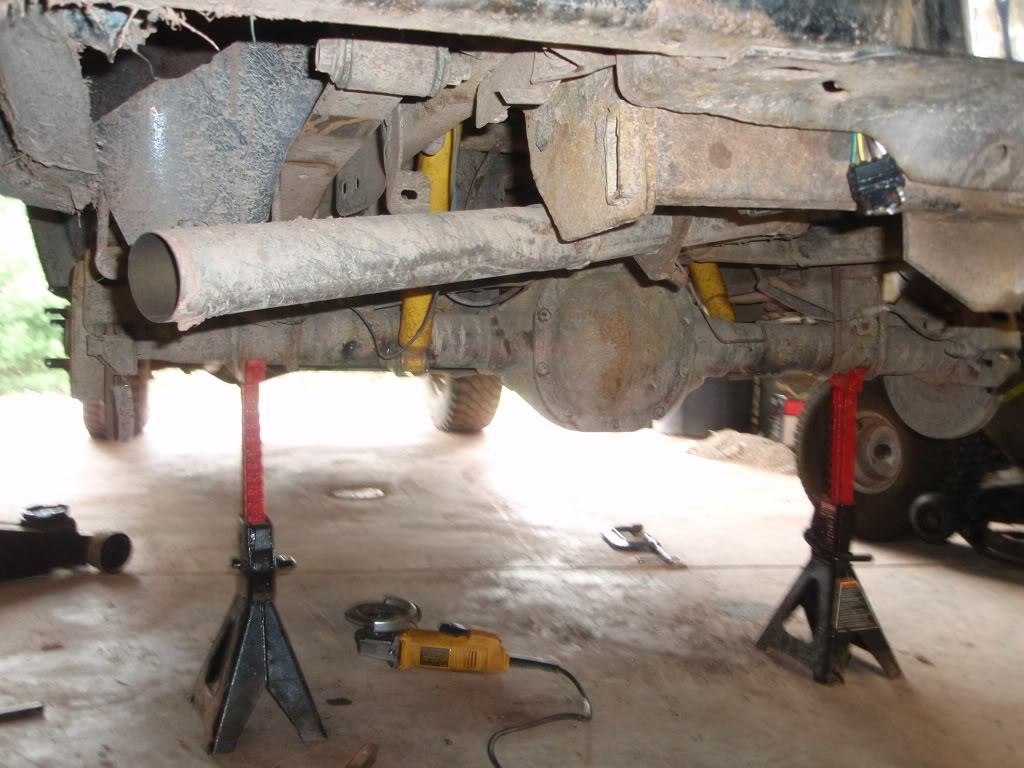

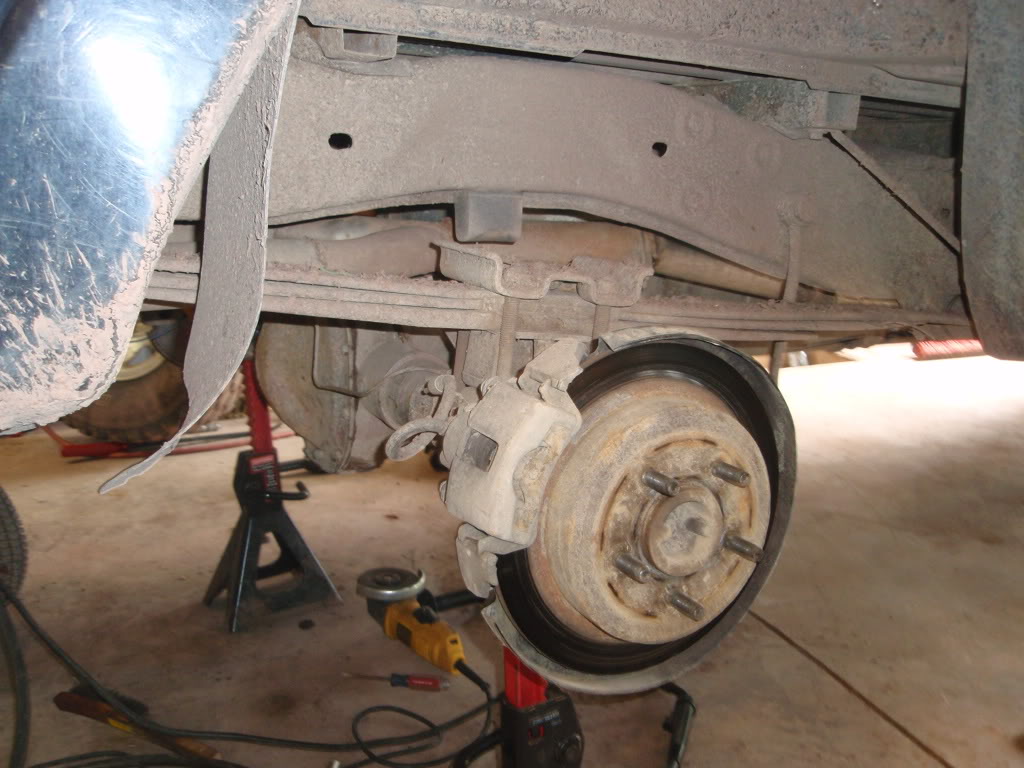

So I heard a while ago that there was a rumor that i really didn't have an explorer axle in my truck. well today i got my shock tabs welding on and i finally got some pictures.

Also Justin has been begging for these pictures for a while too.


Name:  P5030009.jpg
Views: 2
Size:  123.5 KB

Name:  P5030010.jpg
Views: 2
Size:  117.5 KB

Name:  P5030011.jpg
Views: 2
Size:  120.3 KB

Name:  P5030012.jpg
Views: 1
Size:  123.5 KB
Reply With Quote
  #2
Old 05-04-2009
Lord Of War's Avatar
Member
iTrader: (2)

Join Date: Jan 2006
Location: Thornton, Colorado
Posts: 4,599
You should be slapped in the phucking teeth for working on your truck when its so dirty.
Reply With Quote
  #3
Old 05-04-2009
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011

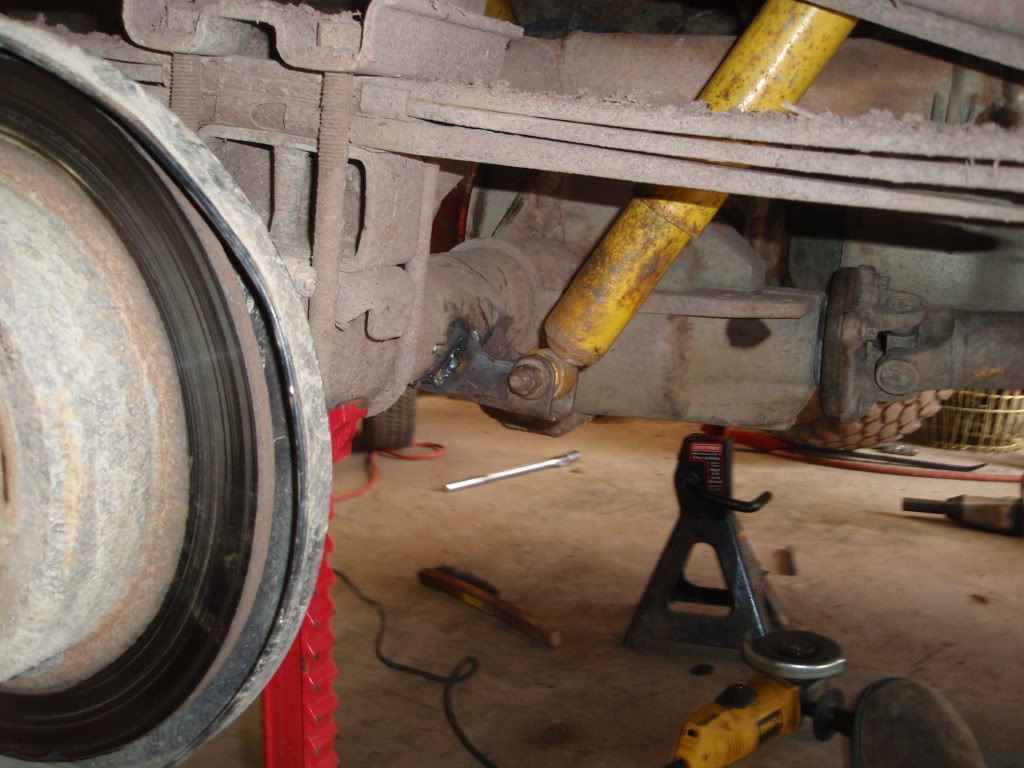

those are some ugly welds dude. did even finish welding it up...
Reply With Quote
  #4
Old 05-04-2009
Downey's Avatar
RF Veteran
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
Quote:
Originally Posted by Lord Of War View Post
You should be slapped in the phucking teeth for working on your truck when its so dirty.
My truck gets cleaned then dirty really quick, it spends most of its life on my logging road.

Quote:
Originally Posted by Dangerranger01 View Post
those are some ugly welds dude. did even finish welding it up...
The one is ugly but its strong
Reply With Quote
  #5
Old 05-04-2009
rstangboi's Avatar
Member

Join Date: Jan 2008
Location: Davis, Ca
Posts: 2,583
Quote:
Originally Posted by Dangerranger01 View Post
those are some ugly welds dude. did even finish welding it up...
x2.....im not sayin im a good welder, just agreeing
Reply With Quote
  #6
Old 05-04-2009
Lord Of War's Avatar
Member
iTrader: (2)

Join Date: Jan 2006
Location: Thornton, Colorado
Posts: 4,599
Well they should hold up.
Reply With Quote
  #7
Old 05-04-2009
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Quote:
Originally Posted by Downey View Post



The one is ugly but its strong
How do you know it's strong?
Reply With Quote
  #8
Old 05-04-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
^^x2! no way to tell it's strong by just looking at it!


I told you those shock tabs need to be 45 degrees on the axle...not 90 degrees. You just lost travel and improper shock valving. Unless you plan on running stock length shocks with 3" of lift in the back.
Reply With Quote
  #9
Old 05-04-2009
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
I think it calls for some destructive testing!!!!!

And plus one for what Shane said. Clocking the shock brackets messes up your usable travel.
Reply With Quote
  #10
Old 05-04-2009
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
I'm gonna go ahead and say with the area he's welding around, it wasn't cleaned before it was welded. Dirty base metal, poor penetration, porosity and lack of fusion... All things I see happening on those tabs. Grind them off, do it again, but do it right with the right angles and make sure it's clean.
Reply With Quote
  #11
Old 05-04-2009
03bamaGT's Avatar
Member

Join Date: Aug 2006
Location: B'ham, AL
Posts: 1,752
Quote:
Originally Posted by TrePaul86 View Post
I'm gonna go ahead and say with the area he's welding around, it wasn't cleaned before it was welded. Dirty base metal, poor penetration, porosity and lack of fusion... All things I see happening on those tabs. Grind them off, do it again, but do it right with the right angles and make sure it's clean.
x2...just cause I am lazy right now.
Reply With Quote
  #12
Old 05-04-2009
Downey's Avatar
RF Veteran
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
Quote:
Originally Posted by Fx4wannabe01 View Post
^^x2! no way to tell it's strong by just looking at it!


I told you those shock tabs need to be 45 degrees on the axle...not 90 degrees. You just lost travel and improper shock valving. Unless you plan on running stock length shocks with 3" of lift in the back.
I could see the color change in the metal for good penetration. The tabs are like that so when i get the exploder leaf springs in there my shocks will be long enough.
Reply With Quote
  #13
Old 05-04-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
color change in base metal is merely heat. take a grinder to steel and you'll see it change colors. that means nothing.

Exactly what trevor said.....doesn't look like proper cleaning of both pieces of metal: the base and the bracket. Whatever. It's just shocks anyway...don't need to be too strong to stay together.
Reply With Quote
  #14
Old 05-04-2009
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
Clocked shock tabs FTW! I've had mine clocked for almost 2 years now. I know Griggs did it to his truck too. No lost travel here, and Griggs never complained either. I'm running the stock shocks out back, don't know what Griggs did though.
Reply With Quote
  #15
Old 05-04-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by Fx4wannabe01 View Post
^^x2! no way to tell it's strong by just looking at it!


I told you those shock tabs need to be 45 degrees on the axle...not 90 degrees. You just lost travel and improper shock valving. Unless you plan on running stock length shocks with 3" of lift in the back.
what the HELL are you talking about?
losing shock valving due to where the tab is? are you on crack? it has nothing to do with the internals..

and what 45 are you talking about? i think the one your talking about would be 135 if you wanna be more **** about it.. where the stock tabs were right? yea, lower right not upper right -- looking at the axle from the side. you know what happens when they hang under the axle? yep, they get caught on **** and bend.

he didn't lose travel, the shock is the same length, he may have lost up travel but not down.. and still then his shackles are probably stock so he wont get the full amount anyways.


and yes, you can look at a weld as minor as that and get a very good idea.. you can see if it hasn't penetrated at all, andddd it looks like its all just gobbed up.

Quote:
Originally Posted by RazorsEDGE View Post
Clocked shock tabs FTW! I've had mine clocked for almost 2 years now. I know Griggs did it to his truck too. No lost travel here, and Griggs never complained either. I'm running the stock shocks out back, don't know what Griggs did though.
mine are in the same place, but i need to lower them back down. i dont have much up in the back after i took out the 2" blocks, which i had in after the 6" ones


damn.. i had 6" blocks and it rode level(with a ton of metal in the back).. then the 2" blocks had it level... now i have no blocks and it rides level.

Last edited by 99ranger4x4; 05-04-2009 at 08:21 AM.
Reply With Quote
  #16
Old 05-04-2009
Downey's Avatar
RF Veteran
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
well i just drove it 100 miles to college and the shocks are fine.
Reply With Quote
  #17
Old 05-04-2009
brianjwilson's Avatar
Member

Join Date: Nov 2006
Location: Hillsboro, Oregon
Posts: 3,650
Quote:
Originally Posted by 99ranger4x4 View Post

he didn't lose travel, the shock is the same length, he may have lost up travel but not down..
Got that part backwards.
Reply With Quote
  #18
Old 05-04-2009
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
have you checked your pinion angle? and are the spring perches welded on?
Reply With Quote
  #19
Old 05-04-2009
freddie's Avatar
Member
iTrader: (9)

Join Date: Apr 2007
Location: OH
Posts: 2,463
Quote:
Originally Posted by brianjwilson View Post
Got that part backwards.
No he didn't...

"Up travel"...referring to the travel of the axle upwards, was lost. Because now the shock is X-amount closer to being completely compressed.

"Down travel" ....referring of the travel of the axle downwards was increased, the axle could go farther downward without maxing out the shock, assuming there aren't other mechanical limitations (which there are).
Reply With Quote
  #20
Old 05-04-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by brianjwilson View Post
Got that part backwards.
how so?
the shock tabs from the factory are lower than that..
Reply With Quote
  #21
Old 05-04-2009
The S-10 Killer's Avatar
Member

Join Date: Aug 2008
Location: BR, LA
Posts: 646
you have flat leaves like me! haha im gonna get some explorer leaves someday...
Reply With Quote
  #22
Old 05-04-2009
Downey's Avatar
RF Veteran
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
Quote:
Originally Posted by Toreador4x4 View Post
have you checked your pinion angle? and are the spring perches welded on?
Yeah why the would i drive it with out them welded and the pinion angle is correct. I set it up the way you told me too


Quote:
Originally Posted by freddie View Post
No he didn't...

"Up travel"...referring to the travel of the axle upwards, was lost. Because now the shock is X-amount closer to being completely compressed.

"Down travel" ....referring of the travel of the axle downwards was increased, the axle could go farther downward without maxing out the shock, assuming there aren't other mechanical limitations (which there are).
Matt is right i lost up travel

Quote:
Originally Posted by The S-10 Killer View Post
you have flat leaves like me! haha im gonna get some explorer leaves someday...

Thats the plan thats my my tabs are rotated up so one i get them the shocks will be like stock
Reply With Quote
  #23
Old 05-04-2009
Downey's Avatar
RF Veteran
Thread Starter
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
Quote:
Originally Posted by RazorsEDGE View Post
Clocked shock tabs FTW! I've had mine clocked for almost 2 years now. I know Griggs did it to his truck too. No lost travel here, and Griggs never complained either. I'm running the stock shocks out back, don't know what Griggs did though.
yeah i did what you and stone told me to do.
Reply With Quote
  #24
Old 05-04-2009
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
I know nothing about welding, but I dont see how anyone can comment on the strength of the welds just by these pictures...

And Downey, Im sure that if you did what Beard and RazorsEdge told you to do, you did it right!
Reply With Quote
  #25
Old 05-04-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by 08XLT4x4 View Post
I know nothing about welding, but I dont see how anyone can comment on the strength of the welds just by these pictures...

And Downey, Im sure that if you did what Beard and RazorsEdge told you to do, you did it right!
you can see it gobbed up and not tied into the axle that well.. maybe we could get a better picture?
Reply With Quote
