Hey Beard..

You asked about this before.. I sorta appropriated photos..

Those plates I put on my frame..


I finally came around to doing this soo..




I have to put the cross brace in and gusset the bloody hell out of it but.. I don't think I'll snap this setup. I'm VERY disappointed in how weak the Competition Eng. Panhard setup was. It didn't last long at all.

Cheers.
Reply With Quote
  #2
Old 10-11-2008
Ray_Welder's Avatar
Member

Join Date: Jan 2008
Location: Zephyrhills, FLorida
Posts: 1,037
Are those red things straightening the leaves to lower the truck?
Reply With Quote
  #3
Old 10-11-2008
Dustin S's Avatar
Member

Join Date: Nov 2007
Location: trenton,GA
Posts: 724
Quote:
Originally Posted by Ray_Welder View Post
Are those red things straightening the leaves to lower the truck?
No, that's a set of lakewood traction bars.
Reply With Quote
  #4
Old 10-11-2008
D.
Unregistered User

Posts: n/a
Quote:
Originally Posted by Ray_Welder View Post
Are those red things straightening the leaves to lower the truck?
As Dustin stated, those are Lakewood Traction bars.

If your engine has enough torque, when the gas is mashed, the leaf springs ' Wrap ' or ' Distort '. due to the axle twisting from the forces being applied to it.

What those ' bars ' do is take the energy and focus it by not allowing the springs to wrap up and ' bounce ' the tires off the ground.
Reply With Quote
  #5
Old 10-12-2008
D.
Unregistered User

Posts: n/a

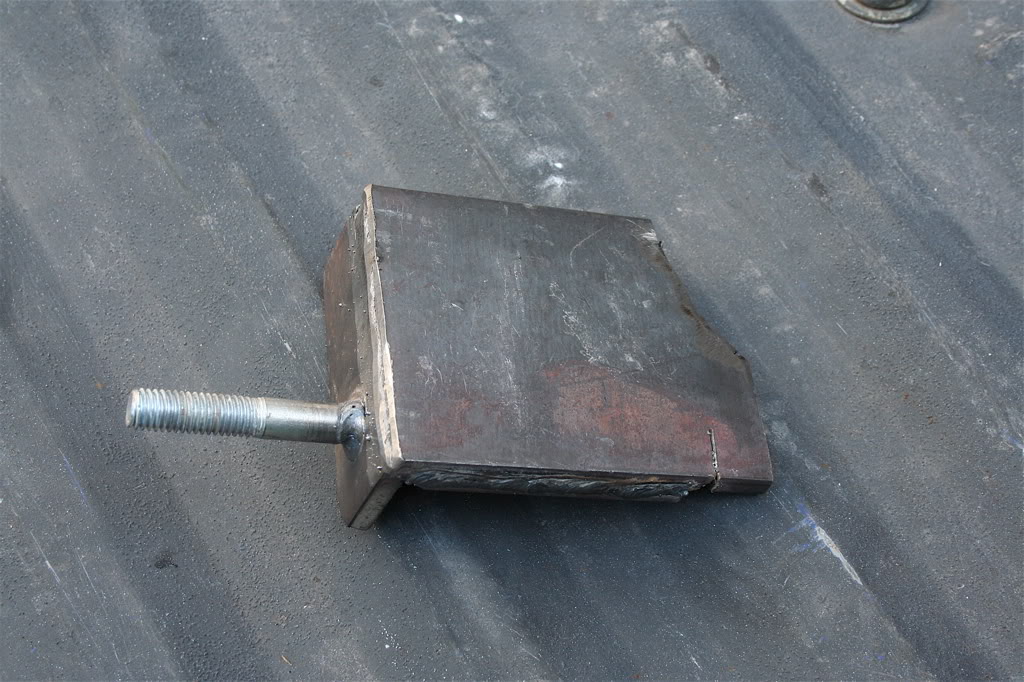

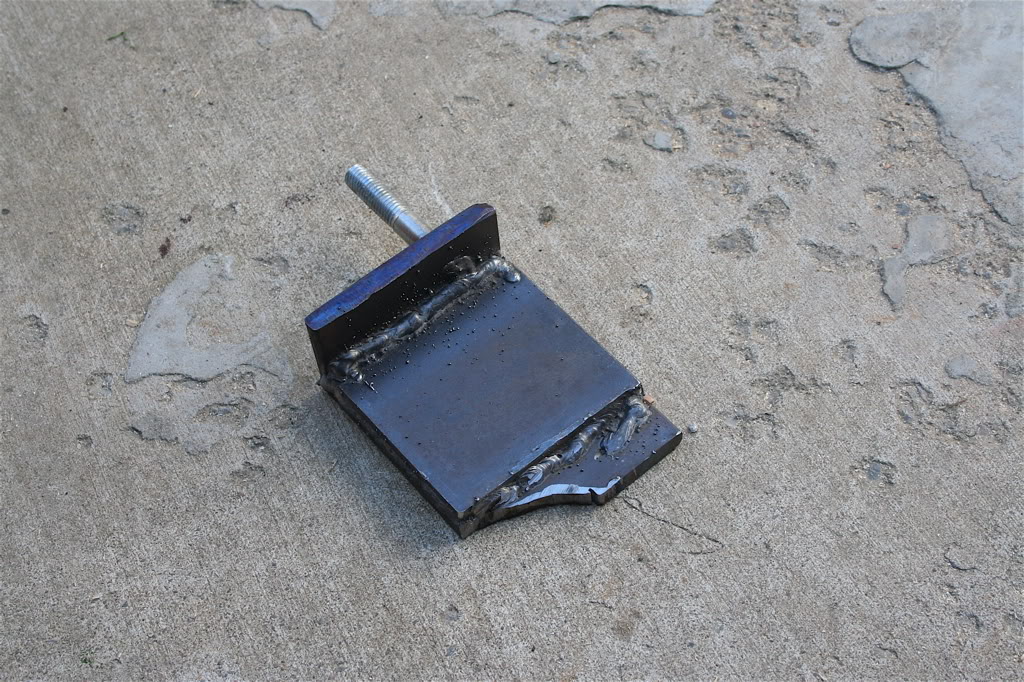

Tab/mount I made for the other side. I ran out of mig wire and used the stick with 6013. I should have went and bought more wire LOL!. Its 3/8ths plate steel, Its stronger then I will ever need. The bar being 0.190 thickness though.. Its the weak point in all of it ( as I found out when it folded under pressure ). The new Bar.. I filled it, its not hallow so its bending ability is muted a bit.

Name:  tab1.jpg
Views: 4
Size:  152.8 KB

Name:  tab2.jpg
Views: 5
Size:  235.9 KB

I'm still hunting down the rest of the pics with the bar fabrication..
Reply With Quote
  #6
Old 10-12-2008
Member

Join Date: Jun 2007
Location: Killafornia
Posts: 1,523
Quote:
Originally Posted by Ray_Welder View Post
Are those red things straightening the leaves to lower the truck?
i lol'd
Reply With Quote
  #7
Old 10-12-2008
Ray_Welder's Avatar
Member

Join Date: Jan 2008
Location: Zephyrhills, FLorida
Posts: 1,037
Quote:
Originally Posted by ES894x4 View Post
i lol'd
Haha thanks.
I feel silly now.
I was just like wtf could those be for? I've never seen them before.
Reply With Quote
  #8
Old 10-12-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
D, you should Z that bar and move the mount up to the frame, i bet that bracket bends/twists the frame.
Reply With Quote
  #9
Old 10-12-2008
D.
Unregistered User

Posts: n/a
Quote:
Originally Posted by zabeard View Post
D, you should Z that bar and move the mount up to the frame, i bet that bracket bends/twists the frame.
I have a crossbar to stabalize it that runs to the back of the bar mounting bracket and the other frame rail as well as a crossbar between the 2 ( triangulated ). I'll have full on pics when its all cleaned up and tested. I'm hoping for a light drizzle of rain later in the week.. they just laid down some new s-turns here in an industrial park and I have a fresh set of RSA's out back to burn

Last edited by D.; 10-12-2008 at 07:29 PM.
Reply With Quote
  #10
Old 10-13-2008
Member

Join Date: Jan 2005
Location: North GA
Posts: 590
I must be smokin the crack rock... though you put in IRS, maybe that was someone else...
Reply With Quote
  #11
Old 10-13-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Quote:
Originally Posted by stRanger View Post
I must be smokin the crack rock... though you put in IRS, maybe that was someone else...
That was NicksterSVT
Reply With Quote
  #12
Old 10-13-2008
Member

Join Date: Jan 2005
Location: North GA
Posts: 590
ahhh yes that's right!
