Horn install on my buddys PSD

Took me about 8hrs... DAMN RAIN! Cuz I didn't have a shop to work in this time.. Driveway FTW!

All air line is 1/2in OD except to the gauge which is 1/4in OD

Maybe someone can gauge what size tank he has, we can't figure it out. No markings except max pressure of 150psi. I'm guessing it's around 6-8gal.. The tank is right between his tank and transfer case on the drivers side of the truck.

Sounds identical to mine, because mainly, they're the same horns as me!... Enjoy! (These pics are also posted in another thread as well)

Also, it's all powered by a ViAir 380c compressor and 110/145psi pressure switch mounted sideways on the frame rail. I put it somewhat close to the exhaust to keep it dry (exhaust pipe temp will help keep water away from the comp). Past couple days it's rained hard and so far, comp has stayed dry and cool!

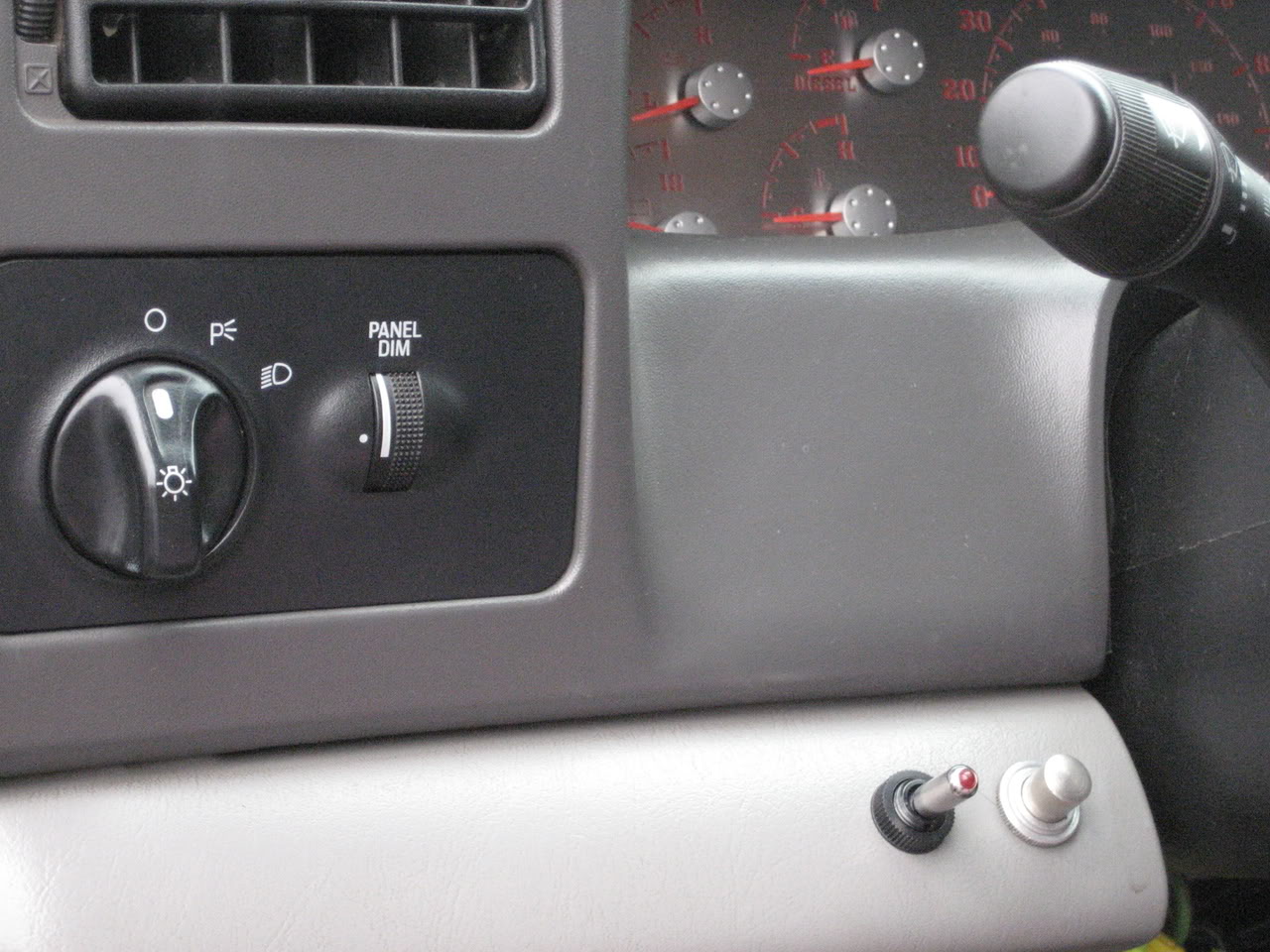

Horn button and Compressor switch:
