Icon10 Manual T-case shift boot & bezel

Justin (Toreador4x4) and I worked on making the bezel and boot work for my manual transfer case finally. He did most of the work, but I kind of came up with the idea. I helped where I could.

Underneath the diamond plate, there is weatherstripping that seals around the hole in the inspection plate so there won't be heat or noise coming up any longer. Also, it looks relatively close to factory with where we cut the RCM cover / cubby hole.

Around the diamond plate we put black door edge molding to hide the sharp edges. The plate itself is held down with 4 stainless sheet metal screws. The boot is held to the diamond plate with 10 6-32 nuts and bolts, also stainless steel.

Anyhow on with the pictures, I know Justin has more before final assembly, but I'll let him post those.

Oh and I believe I may or may not be the first one to do a manual transfer case swap that has the boot secured AND can shift into 4 Lo.

Name:  Shifter1.jpg
Views: 242
Size:  109.4 KB

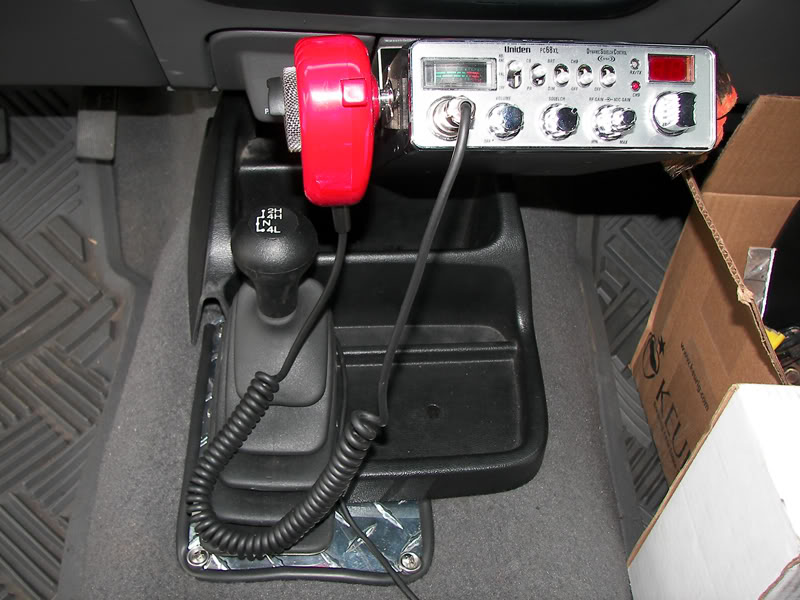

Name:  Shifter2.jpg
Views: 138
Size:  91.1 KB
Reply With Quote
  #2
Old 06-03-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Looks great man, really nice work.
Reply With Quote
  #3
Old 06-03-2009
0RangerEdge2's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jun 2005
Location: Ohio
Posts: 2,593
Quote:
Originally Posted by 04blackedge View Post
Looks great man, really nice work.
Thanks. I'm happy with the way it turned out. It's so much quieter now and looks much better.
Reply With Quote
  #4
Old 06-03-2009
freddie's Avatar
Member
iTrader: (9)

Join Date: Apr 2007
Location: OH
Posts: 2,463
Very nice work Tyler!
Reply With Quote
  #5
Old 06-03-2009
0RangerEdge2's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jun 2005
Location: Ohio
Posts: 2,593
Quote:
Originally Posted by freddie View Post
Very nice work Tyler!
Thanks, but don't give all the credit to me, Justin did most of the work.
Reply With Quote
  #6
Old 06-03-2009
freddie's Avatar
Member
iTrader: (9)

Join Date: Apr 2007
Location: OH
Posts: 2,463
Nice work Tyler and Justin! Lol

Your truck is really beginning to look pretty damn sharp!
Reply With Quote
  #7
Old 06-03-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
What did you do for an extension because of the body lift?

Got any pics of it?
Reply With Quote
  #8
Old 06-03-2009
Mark98xlt's Avatar
Member

Join Date: Jun 2004
Location: Parma Ohio
Posts: 13
looks good, ever considered doing some fiberglass work around it?
Reply With Quote
  #9
Old 06-03-2009
0RangerEdge2's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jun 2005
Location: Ohio
Posts: 2,593
Quote:
Originally Posted by seed60 View Post
What did you do for an extension because of the body lift?

Got any pics of it?
We welded in a piece of round stock that was 3" longer and also bent the shifter back about 10 to 15 degrees. I just realized I don't have any pictures of it. Had I been thinking about it, I could've snapped some when the boot and everything was off yesterday. I might be able to get a picture from underneath the truck.

Quote:
Originally Posted by Mark98xlt View Post
looks good, ever considered doing some fiberglass work around it?
Nah. For the holes you see, I'm going to cut out diamond plate to fit it then probably secure it somehow. Me and fiberglass just don't get along.
Reply With Quote
  #10
Old 06-03-2009
xp1ik99's Avatar
Member
iTrader: (5)

Join Date: Feb 2006
Location: Lexington Park, MD
Posts: 3,230
i finished mine the other day with a boot thats screwed to the floor and have 4 LOW sorry, missed it by a day or two.....looks good though
Reply With Quote
  #11
Old 06-03-2009
RangerNDog's Avatar
Member
iTrader: (10)

Join Date: Aug 2008
Location: Harrisonburg, VA
Posts: 1,958
Looks good.
Reply With Quote
  #12
Old 06-03-2009
vista4.0's Avatar
Member
iTrader: (3)

Join Date: Jan 2009
Location: Beaver Falls, PA
Posts: 2,824
looks damn good!
Reply With Quote
  #13
Old 06-03-2009
herm59's Avatar
Member

Join Date: Jun 2008
Location: Toms River, NJ
Posts: 1,694
That looks real sharp. Came out real good guys.
Reply With Quote
  #14
Old 06-03-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
What's the deal with being able/not being able to shift into 4lo?

Does it become a problem when you have a bodylift?
Reply With Quote
  #15
Old 06-03-2009
xp1ik99's Avatar
Member
iTrader: (5)

Join Date: Feb 2006
Location: Lexington Park, MD
Posts: 3,230
no its just that its a long throw into 4LO and i guess if you have an actual boot it makes it harder, i have no problems what so ever, i would guess the body lift would make it that much harder though
Reply With Quote
  #16
Old 06-03-2009
silverstreak4x4's Avatar
Member

Join Date: Aug 2008
Location: Brighton, Michigan
Posts: 979
Thats awesome I want a Manual TC sooooo bad
Reply With Quote
  #17
Old 06-03-2009
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
Looks good man. I have my boot and bezel all secured and I can shift into 4LO.
Reply With Quote
  #18
Old 06-03-2009
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
Good work guys. Its nice and clean!
Reply With Quote
  #19
Old 06-03-2009
casfz1's Avatar
Member

Join Date: Aug 2005
Location: southgate, mi
Posts: 1,989
Looks good. I am glad that console worked out for you.
Reply With Quote
  #20
Old 06-03-2009
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
Quote:
Originally Posted by xp1ik99 View Post
no its just that its a long throw into 4LO and i guess if you have an actual boot it makes it harder, i have no problems what so ever, i would guess the body lift would make it that much harder though
Did you post pics of your bezel and boot? post some up i want to see them

Quote:
Originally Posted by RazorsEDGE View Post
Looks good man. I have my boot and bezel all secured and I can shift into 4LO.
you dont count because you are a 5-Speed, the 5-speed guys got it easy when it comes to the boot for the manual t-case, it is more difficult for auto guys and especially with an RCM to cover up
Reply With Quote
  #21
Old 06-03-2009
xp1ik99's Avatar
Member
iTrader: (5)

Join Date: Feb 2006
Location: Lexington Park, MD
Posts: 3,230
there is a thread i made with the boot, dont have a new main shifter part yet and still looking for a bezel, the boot is all bolted down and works perfectly, just looking for some metal and get it attached somehow, unfortunetly i slept my life away today
Reply With Quote
  #22
Old 06-03-2009
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
Name:  DSC00892.jpg
Views: 49
Size:  147.9 KB
Name:  DSC00893.jpg
Views: 52
Size:  126.0 KB
Name:  DSC00894.jpg
Views: 51
Size:  146.0 KB

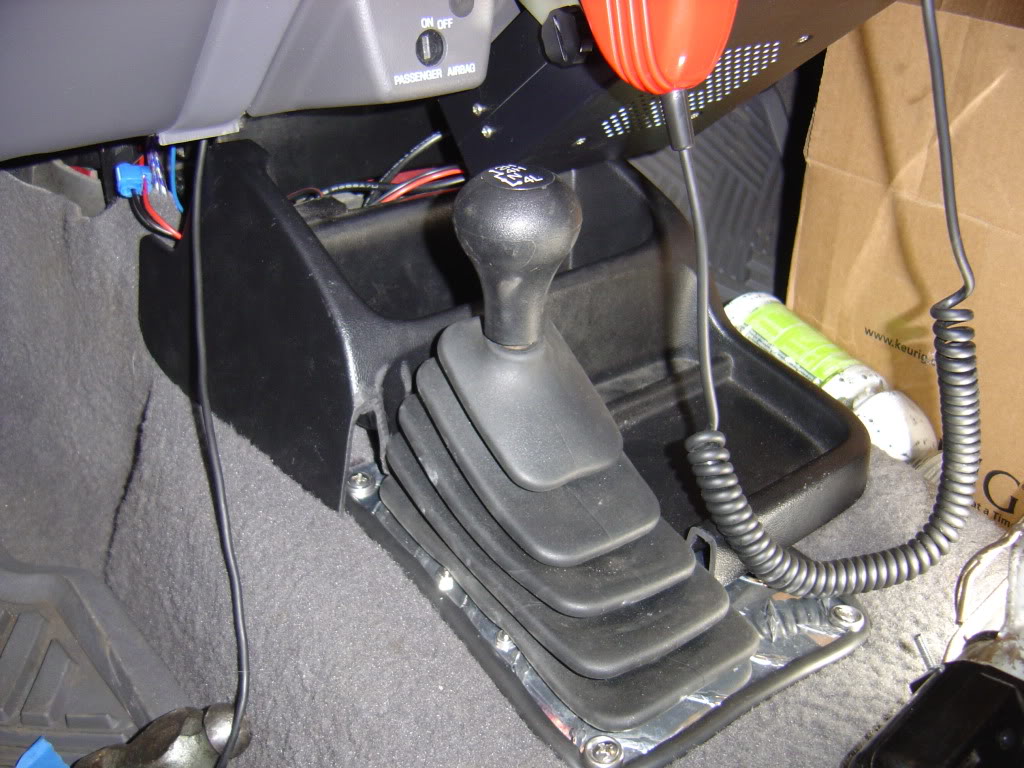

Name:  DSC00895.jpg
Views: 48
Size:  150.4 KB
Reply With Quote
  #23
Old 06-03-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Justin, ya done good.
Reply With Quote
  #24
Old 06-03-2009
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
on a side note, i garbage picked the diamond plate from my work. It was on a display for the "new redesigned 2004 f-150" and it had a dvd player with a commercial that played and pieces of the frame and tow hooks bolted down to it
Reply With Quote
  #25
Old 06-03-2009
xp1ik99's Avatar
Member
iTrader: (5)

Join Date: Feb 2006
Location: Lexington Park, MD
Posts: 3,230
where did you get the shifter from?? my linkage has just a skinny piece of metal sticking through and i cant think of anything to go over it to extend for the **** and everything
Reply With Quote
