My Jeep project - 1980 CJ-5 with a SBC 305, SM420, & Dana300

Here's a little project I started 3 weeks ago. It's come along quite nicely. I'll be putting the body back on today and starting the wiring!

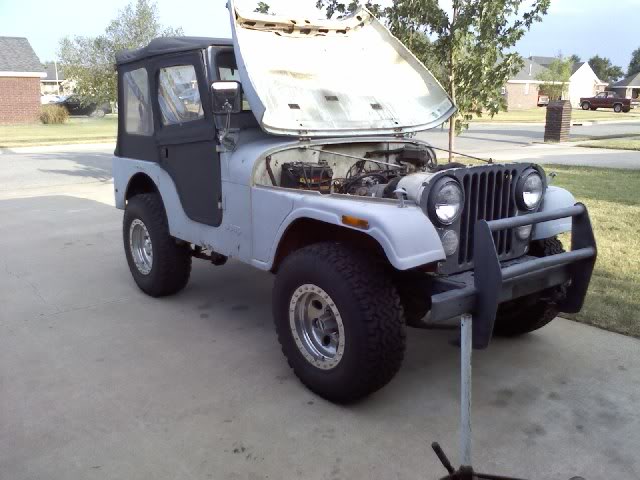

As Delivered: Chevy 4-banger (Iron Duke), Ford 4-speed, Dana 300 T-case. All stock, lots of bondo and primer and grease.
Name:  676A0071.jpg
Views: 50
Size:  52.6 KB

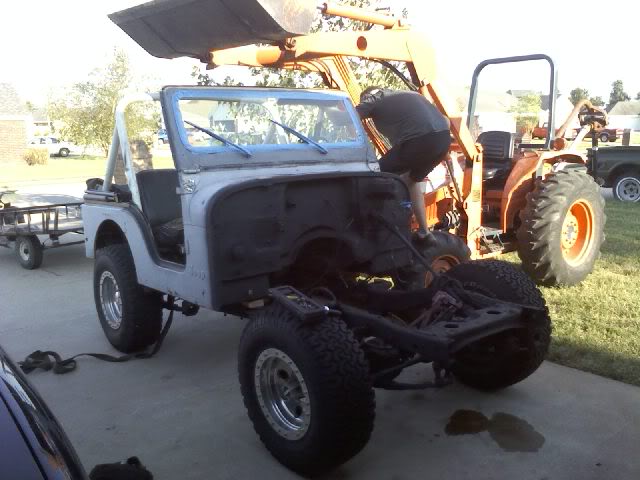

Motor out, firewall cleaned up. What to do when you don't have a lift? USE A TRACTOR!
Name:  676A0100.jpg
Views: 43
Size:  51.5 KB

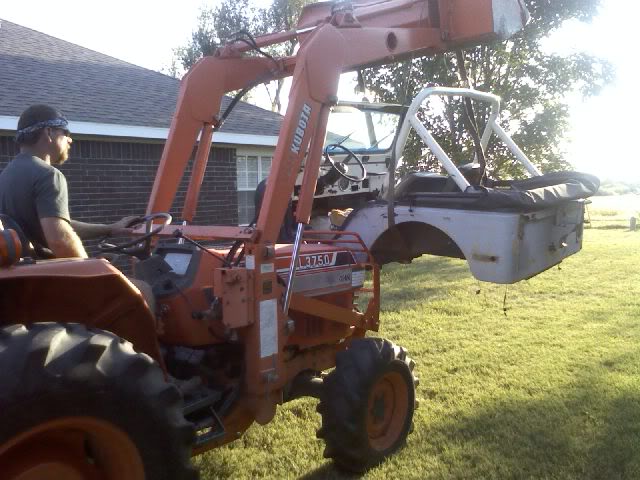

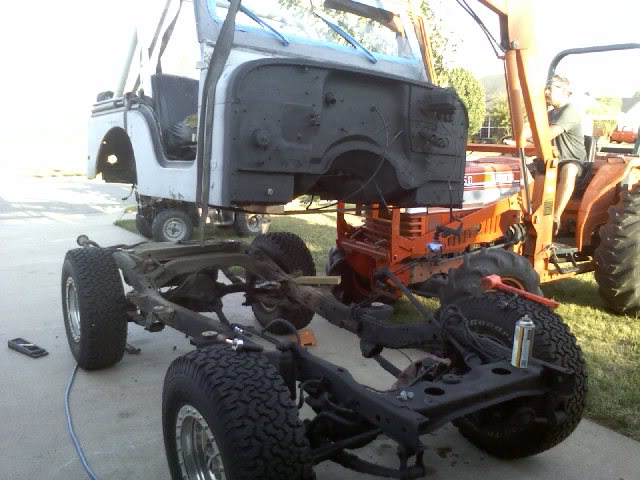

This body was surprisingly easy to remove! Speedo cable, clutch master, fuel sending wire, steering arm, brake lines, and 11 bolts and it was off!
Name:  676A0104.jpg
Views: 36
Size:  56.0 KB

At about this point, some neighbors came by and asked us what the hell we were doing
Name:  676A0108.jpg
Views: 37
Size:  62.6 KB

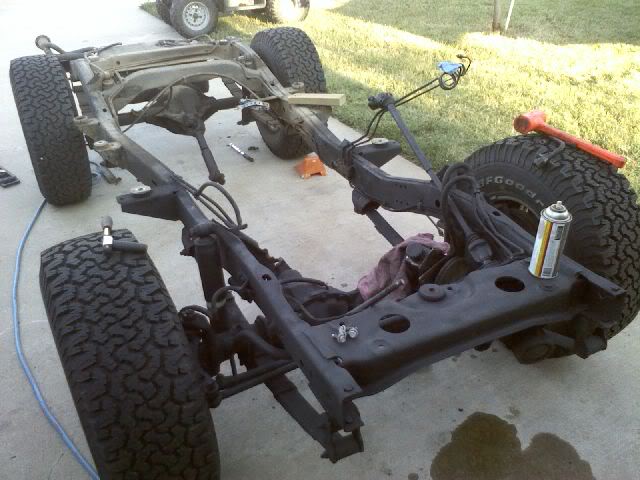

Looks like a really big skateboard, doesn't it?
Name:  676A0107.jpg
Views: 36
Size:  56.1 KB

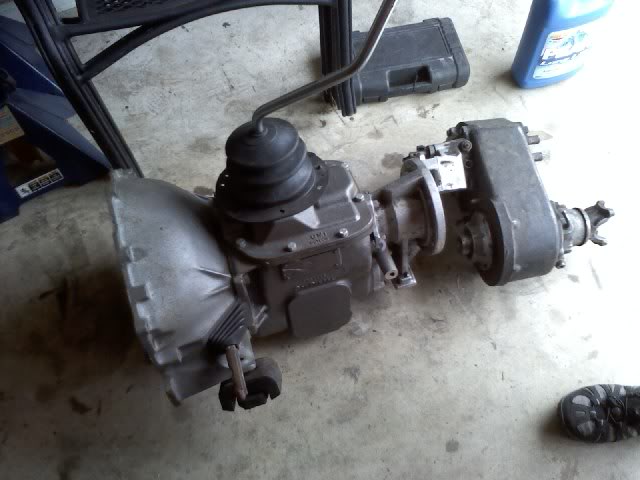

Next day I picked up a freshly rebuilt SM420 and Dana 300. This Trans is bullet proof. Look under any tow-truck and you'll see a Muncie 420 or 465.
Name:  676A0076.jpg
Views: 134
Size:  42.3 KB

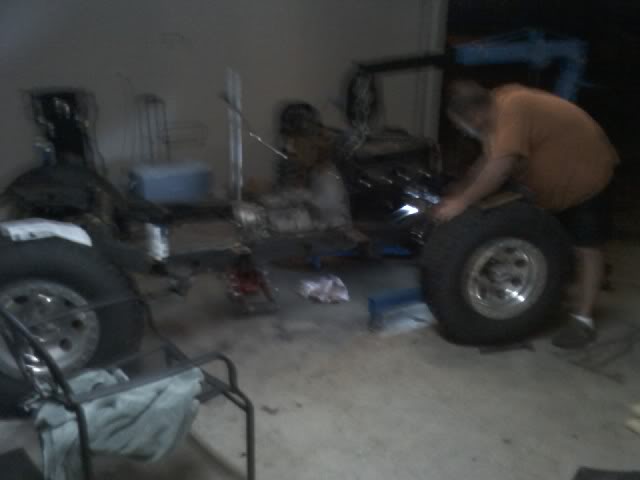

Evening of day two, got the motor (SBC 305) and trans/t-case mocked up to locate the new motor mounts.
Name:  676A0125.jpg
Views: 33
Size:  21.4 KB

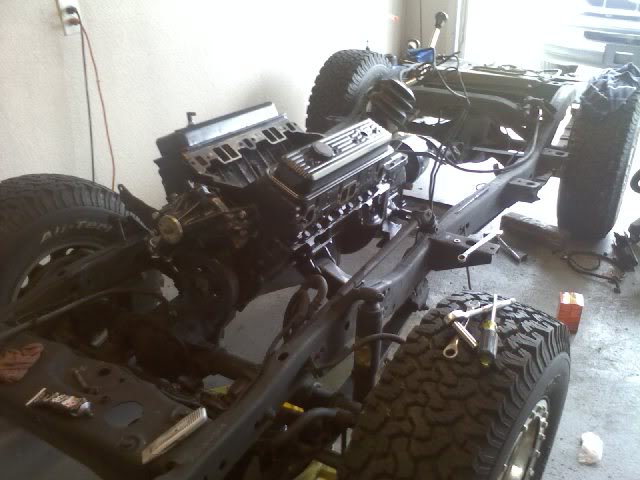

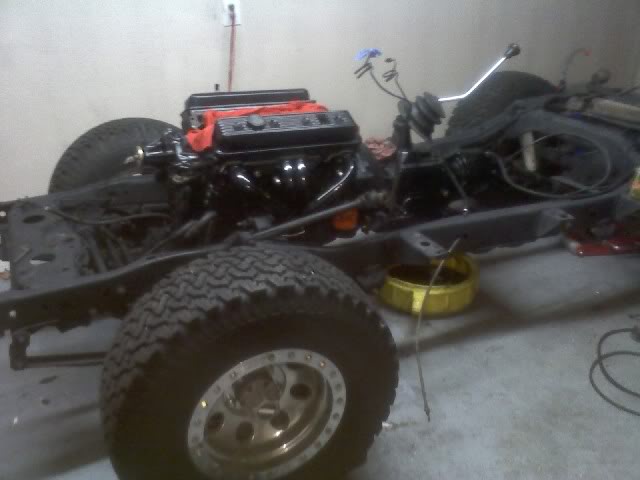

Bare block/heads, trans, t-case bolted to new motor mounts.
Name:  676A0136.jpg
Views: 42
Size:  46.9 KB

Name:  676A0140.jpg
Views: 38
Size:  31.1 KB

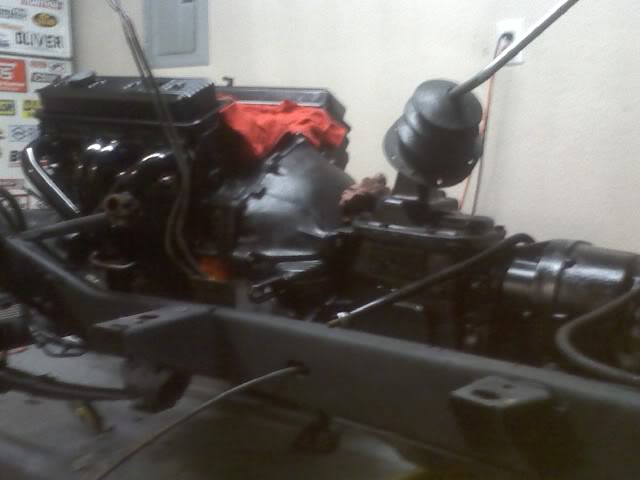

Name:  676A0145.jpg
Views: 32
Size:  30.7 KB

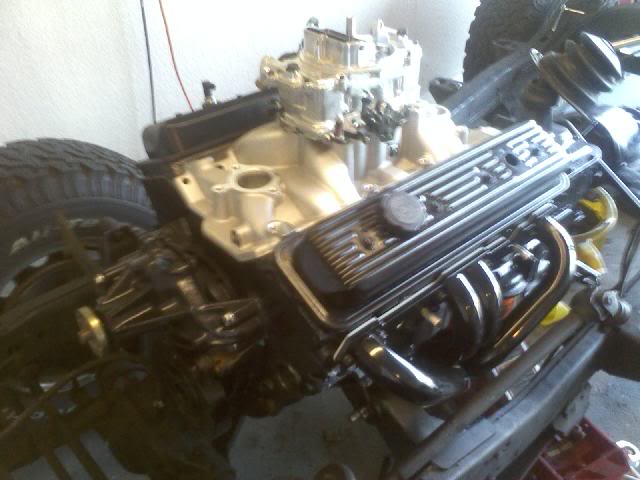

Got the intake, carb, and some other goodies from the big brown Santa.
Name:  676A0146.jpg
Views: 36
Size:  43.0 KB

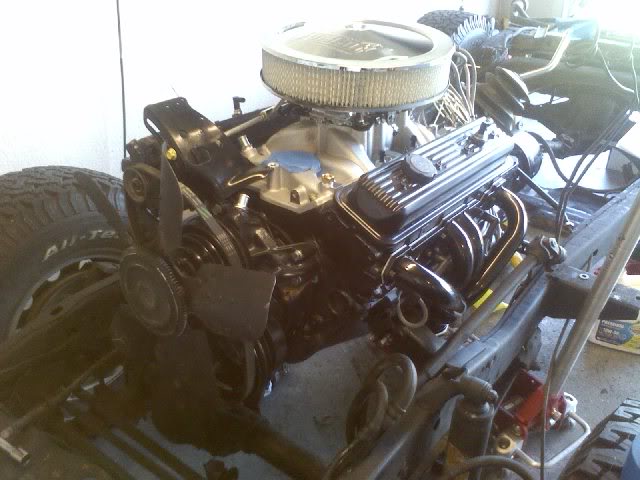

The motor is turn-key ready, minus a radiator, some coolant hoses, and of course a body. The power steering pump got bolted up right after this pic.
Name:  676A0150.jpg
Views: 28
Size:  52.4 KB

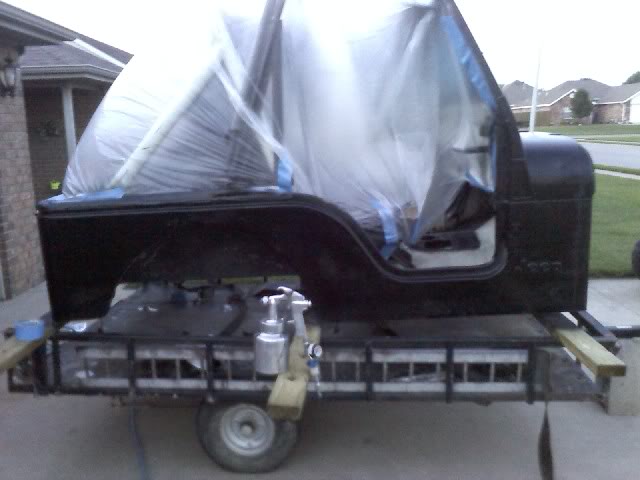

Stripped the body down, sanded to 600 grit, bondo, primer, more primer, then a light coat of Jet Black. It's dried for two days now, so it's time to sand, shoot another coat, sand, then clear!
Name:  676A0151.jpg
Views: 28
Size:  36.8 KB

COMMENTS or IDEAS ARE APPRECIATED. INSULTS ARE TOO.

Last edited by Needforspeed3685; 09-17-2010 at 06:53 PM.
Reply With Quote
  #2
Old 09-17-2010
sullys_ranger's Avatar
Member

Join Date: Mar 2006
Location: NewLexington, Ohio
Posts: 3,615
dude! coming along nicely!
Reply With Quote
  #3
Old 09-17-2010
rolsmojave3's Avatar
Level III Supporter

Join Date: Jun 2006
Location: Wisconsin
Posts: 2,852
Looks good...My buddy is into jeeps...I wish he would go that far into his and do it right.
Reply With Quote
  #4
Old 09-17-2010
Terrible One's Avatar
Member

Join Date: May 2010
Location: suwanee, GA
Posts: 72
Man that's awesome! What are the plans for the suspension?
Reply With Quote
  #5
Old 09-17-2010
cheese_man's Avatar
Member
iTrader: (1)

Join Date: Nov 2009
Location: arthur
Posts: 2,100
2 points of encouragement

1 / install 1986 cj front and rear axles they are the wide track axles

2 / recommend you do the shackle reversal kit , the difference in ride quality is night and day

check the distributor to firewall clearance , a lot of people have made errors on setting up the engine in the frame without checking that clearance 1st.

and should use a 4 core radiator , using the factory 3 core just does not cut it regards to heat dissipation .

you will need to have more heavier duty drive shafts made

the factory driveshafts are like spaghetti to that tranny and engine combo
Reply With Quote
  #6
Old 09-17-2010
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
looks like a great project build!
Reply With Quote
  #7
Old 09-17-2010
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
Quote:
Originally Posted by Terrible One View Post
Man that's awesome! What are the plans for the suspension?
With over 5 g's invested to this point, I'm sticking with stock leafs and some Bilstein shocks. The axles and driveshafts will be swapped before going wheeling. A 2" body lift and new urethane bushings are going on to provide clearance for the distributor.
My main goal is to turn the key and hear it run. If I can finish this in 3 1/2 weeks I'll declare my own record. Other builds I have followed on the Jeep forums took 6 months to a year to complete. It's been *****-to-the-wall ever since it pulled in my driveway!
Reply With Quote
  #8
Old 09-17-2010
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
So far the "bought" list looks something like this, off the top of my head:
Jeep
Trans/t-case
Advance Adapter for trans to t-case
clutch, pressure plate
intake, carb, and filter kit
Block hugger headers
power steering pump
alternator
accessory brackets (special, cause it's V-belt with a serpentine to the alternator...totally trick!)
motor mounts
body lift and bushings
radiator (4-core aluminum)
bucket seats
heater core
lots of hardware and other odds and ends
hoses
Fuel pump
fuel lines
spark plugs
plug wires
distributor, cap, and rotor
and of course oil, gear oil, radiator fluid, and paint

The only thing I had laying around was the motor itself!

And the "custom fabbed" list is surprisingly short!
Clutch slave mount bracket
Transmission mount
Skid plates
Reply With Quote
  #9
Old 09-17-2010
cheese_man's Avatar
Member
iTrader: (1)

Join Date: Nov 2009
Location: arthur
Posts: 2,100
you might want to look at this inside heater system instead

a lot of jeepers scrap the factory setup and switch over to this bad boy

easy to install and setup , plus alot more heat output than the factory setup

you will need to run new and better piping to the defrost duct than the old factory paper tubing
Reply With Quote
  #10
Old 09-18-2010
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
Update!

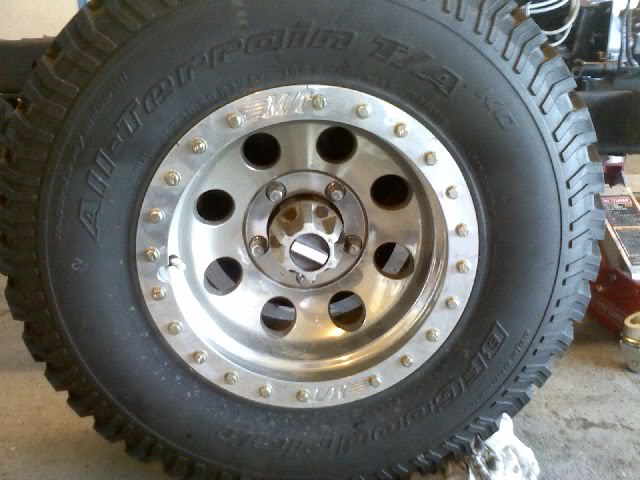

Name:  676A0155.jpg
Views: 28
Size:  48.8 KB

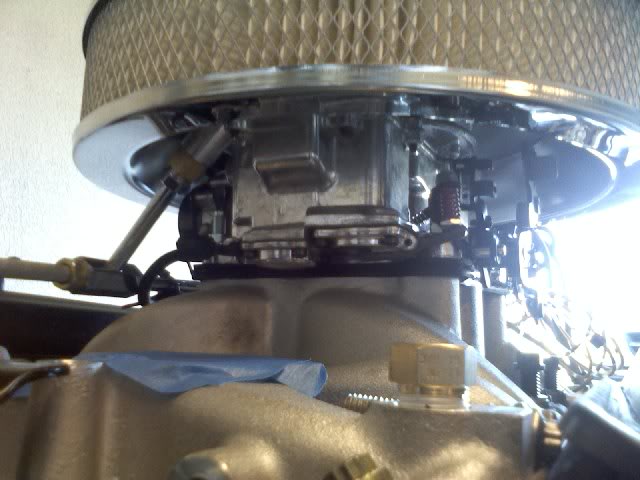

Nice carb!
Name:  676A0154.jpg
Views: 27
Size:  44.5 KB

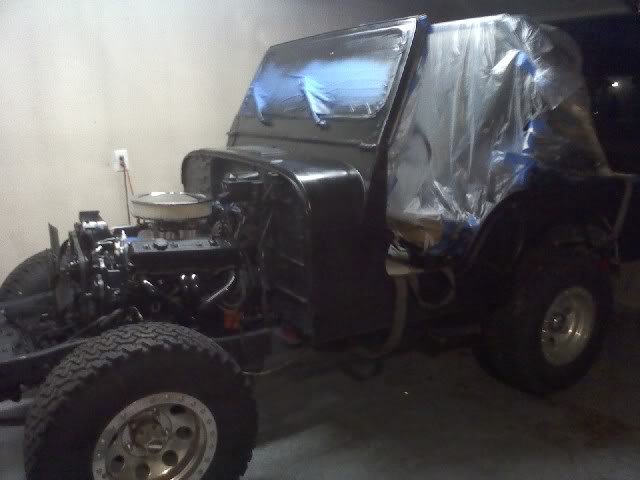

And finally, the body is ON!
Name:  676A0157.jpg
Views: 28
Size:  32.8 KB

No clearance issues. A good two inches between the cap and firewall...
Reply With Quote
  #11
Old 09-18-2010
cheese_man's Avatar
Member
iTrader: (1)

Join Date: Nov 2009
Location: arthur
Posts: 2,100
where is the vacuum brake booster

and i forgot the heater linky , i will post the link later
Reply With Quote
  #12
Old 09-18-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Great work so far.

Is this a weekend wheeler or DD?
Reply With Quote
  #13
Old 09-18-2010
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
i like where this one is going for sure
Reply With Quote
  #14
Old 09-18-2010
cheese_man's Avatar
Member
iTrader: (1)

Join Date: Nov 2009
Location: arthur
Posts: 2,100
Reply With Quote
  #15
Old 09-19-2010
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
Quote:
Originally Posted by cheese_man View Post
where is the vacuum brake booster

and i forgot the heater linky , i will post the link later
Welcome to 1980, No vacuum brake booster back then!

I think after the Ranger swap, I may be obsessed with putting V8s into small rides. Next up? A 302 in my lawn mower! LOL

Last edited by Needforspeed3685; 09-19-2010 at 04:16 PM.
Reply With Quote
  #16
Old 09-19-2010
btm757's Avatar
Member
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
Holy hell. This thing looks sweet man. Good work
Reply With Quote
  #17
Old 09-19-2010
Member

Join Date: Jun 2007
Location: Killafornia
Posts: 1,523
your not messing around with this project. itll be back together before we know it haha
Reply With Quote
  #18
Old 09-22-2010
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
The Jeep is DONE! Got the body, front end, and top back on yesterday. Motor ran on the second turn.

Crappy cell phone video, but it works.



Reply With Quote
  #19
Old 09-22-2010
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836

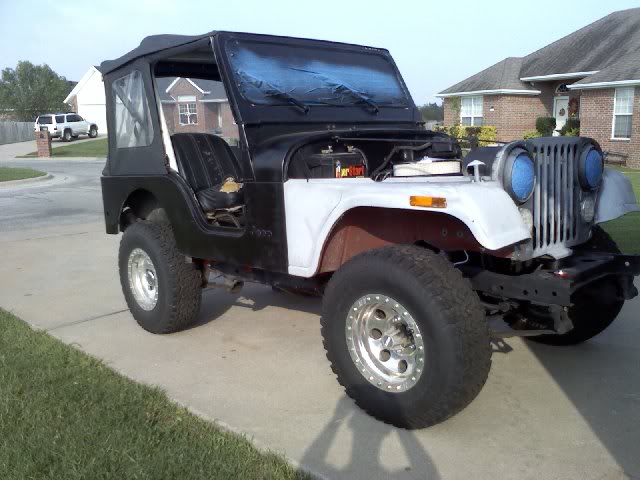

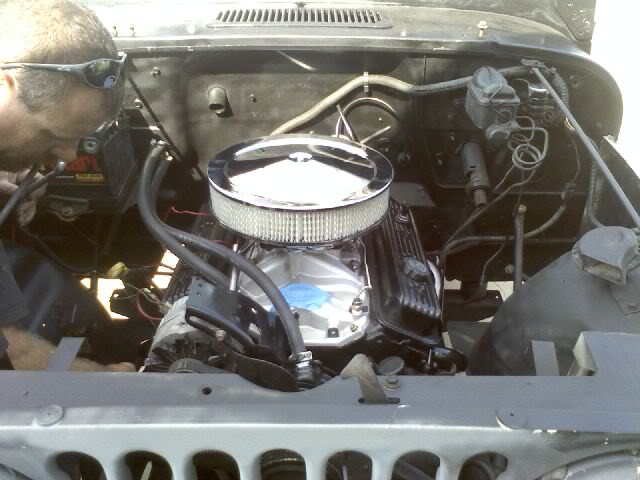

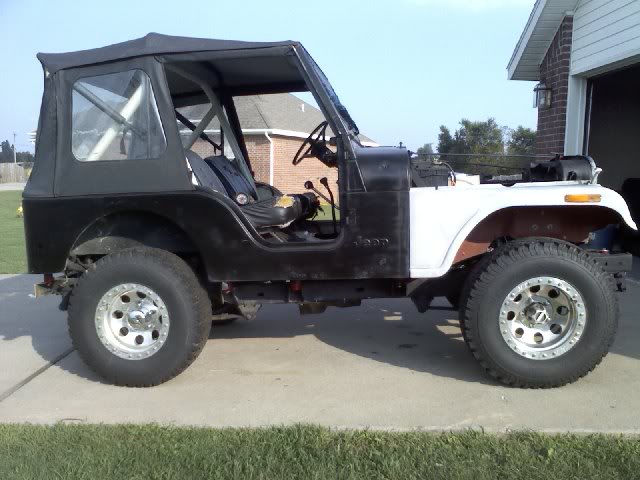

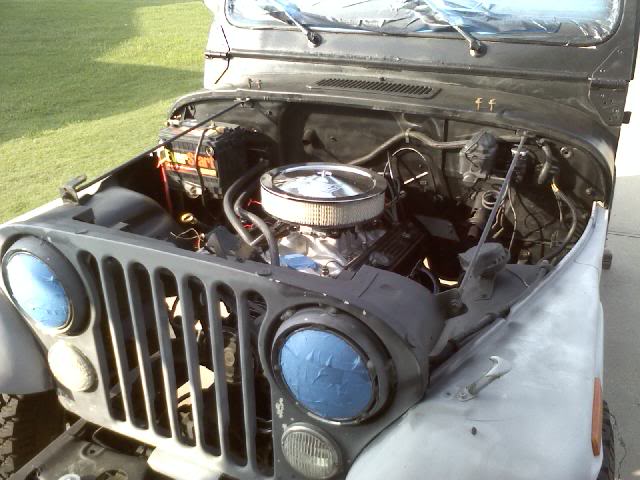

Still needs a couple coats of paint, but I decided to go ahead and put the front end on to check clearance for the steering arm. I might just get the whole body Rhino Lined, inside and out. First thing is some exhaust though....those open shorty headers are LOUD!!!

Name:  676A0162.jpg
Views: 32
Size:  49.4 KB

Name:  676A0171.jpg
Views: 27
Size:  54.8 KB

Name:  676A0170.jpg
Views: 28
Size:  53.2 KB

Name:  676A0169.jpg
Views: 29
Size:  51.4 KB

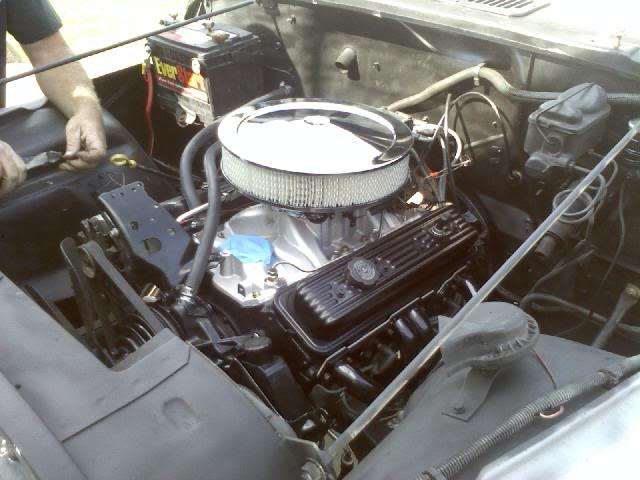

Name:  676A0164.jpg
Views: 45
Size:  45.9 KB
Reply With Quote
  #20
Old 09-22-2010
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
Radiator should be here today or tomorrow. Then it's down to a water neck, thermostat, some hoses, and a few little picky things I want to do like an Optima Red top, Flax-a-Lite fan, chrome battery hold-down, chrome valve covers, and an MSD billet distributor.
Reply With Quote
  #21
Old 09-22-2010
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
wow looking great! bet ya cant wait to drive it
