My New Dana 44

I thought this was pretty funny..

this is a FW HP D44 from a 76 f150 ive got 78 f250 outers so ill have 8 lug and the dual pistons and all that good stuff..

well i went ahead and customifed the axle to my likings and i needed to get the carrier out and it wouldnt come out for the life of me..so i used my southern ways and got it..out..
Name:  housing.jpg
Views: 0
Size:  102.0 KB


a tree, ratchet strap, and an 8' 2x4

pics are kinda crappy came from my iphone

enjoy!

Name:  photo-2.jpg
Views: 0
Size:  104.2 KB

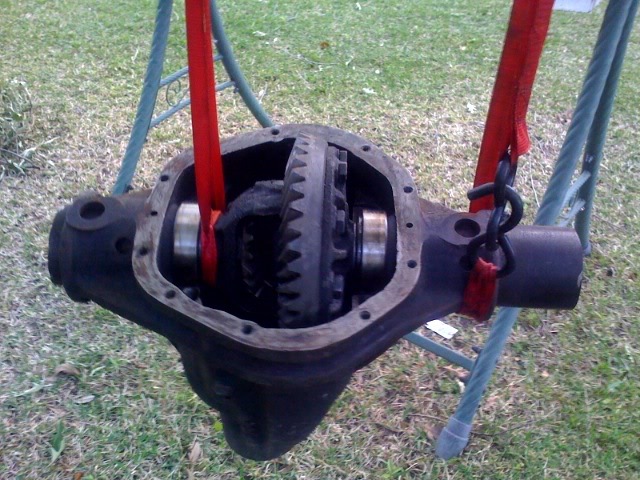

Name:  photo-1.jpg
Views: 0
Size:  114.9 KB
Name:  photo2.jpg
Views: 0
Size:  99.9 KB

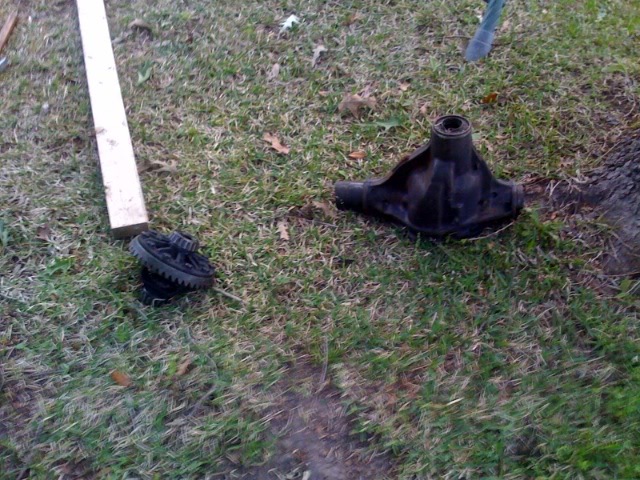

Name:  photo.jpg
Views: 0
Size:  130.4 KB
Reply With Quote
  #2
Old 04-15-2008
swamper06's Avatar
Member

Join Date: May 2007
Location: McAdoo, PA
Posts: 735
Its like a pinata (sp)
Reply With Quote
  #3
Old 04-15-2008
EdGe_wannabe's Avatar
Member

Join Date: Nov 2004
Location: Richmond Hill, Georgia
Posts: 4,306
LMAO!

Brenton
Reply With Quote
  #4
Old 04-15-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
niiiiiceeee
Reply With Quote
  #5
Old 04-15-2008
HighRollerII's Avatar
RF Veteran
Thread Starter
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
i couldnt get it to move for the LIFE of me..being so small i couldnt pry the whole thing just moved..


hey brenton see in the last pic the tire all the way on the right..

thats your bald 34 tsl from WAY WAY WAY back im saving it for you
Reply With Quote
  #6
Old 04-15-2008
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
Ha ha! And I thought I was a redneck mechanic, lol.

Nice. Looks like fun. How hard was it to get the axle tubes out? Or was that already done?
Reply With Quote
  #7
Old 04-15-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
that is why they make a tool called a housing expander/stretcher. LOL
Reply With Quote
  #8
Old 04-15-2008
HighRollerII's Avatar
RF Veteran
Thread Starter
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
Quote:
Originally Posted by n3elz View Post
Ha ha! And I thought I was a redneck mechanic, lol.

Nice. Looks like fun. How hard was it to get the axle tubes out? Or was that already done?

i cut it out..im taking the housing to get em out tomorrow at work..

today i took the piece the knuckle goes into..i dont know the offical word but the outer c flange thingy..

but this axle had radius arms i think its the same as you have..

i cut it close to the weld on the bandsaw then saw where the piece seperated from the caster thingy..

heated it up took it to the press and came out like pie..

im going to mill and drill the knuckles when i get back from LA in two weeks..then im done on that axle for a while..i gotta find the material to retube it but ive got another project in the way of this one i gotta take care of
Reply With Quote
  #9
Old 04-15-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by zabeard View Post
that is why they make a tool called a housing expander/stretcher. LOL
i had heard about that, then someone else gave me a "wtf?" look..

i'll probably need to invest in one of those
Reply With Quote
  #10
Old 04-15-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
i heard you dont have to have them. i did both my 60 and 44 without one. i heard its mainly on dana stuff.
Reply With Quote
  #11
Old 04-15-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
well the way it was described to me. it would only work in a Dana axle, the tool goes into those holes on either side of the housing, i just cant see how it spreads that much of the axle.
Reply With Quote
  #12
Old 04-15-2008
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
You don't have to spread it much unless someone put the diff in with a large sledgehammer, lol.

It would be hard to get out without a spreader when there's no axletubes though. In fact, mine was hard to remove the first time when I originally took it apart -- even with the tubes to stand on and pry.
Reply With Quote
  #13
Old 04-15-2008
01Blueedge's Avatar
Member

Join Date: Jun 2005
Location: Lexington SC
Posts: 535
so when are you gonna do the SAS and what are you gonna use for a rear axle?
Reply With Quote
  #14
Old 04-15-2008
HighRollerII's Avatar
RF Veteran
Thread Starter
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
oh well i got mine out..took a second to figure it out but I got it..will be handful of months before it goes back in

ive got a sterling 10.25 out of an 03 superduty
Reply With Quote
  #15
Old 04-15-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
what was wrong with the tubes that were on there?
Reply With Quote
  #16
Old 04-15-2008
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,501
Now thats what I call improvising.
Reply With Quote
  #17
Old 04-15-2008
HighRollerII's Avatar
RF Veteran
Thread Starter
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
Quote:
Originally Posted by 99ranger4x4 View Post
what was wrong with the tubes that were on there?


it had the set up for radius arms and wasn't the right drop
Reply With Quote
  #18
Old 04-15-2008
gatorblue92's Avatar
RF Veteran

Join Date: Jun 2004
Location: Delaware
Posts: 8,238
ha ha nice
Reply With Quote
  #19
Old 04-15-2008
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
That's some pretty redneck stuff right there.
Reply With Quote
  #20
Old 04-16-2008
Roach2004's Avatar
RF Veteran
iTrader: (3)

Join Date: May 2005
Location: Houston, TX
Posts: 8,320
Thats how we do stuff down south!
Reply With Quote
  #21
Old 04-16-2008
RF Veteran

Join Date: May 2005
Location: College Station, TX
Posts: 5,782
The case spreaders aren't necessary... and they're very expensive too! Most only need to spread the case a couple thousandths of an inch, but that can still be quite a lot of force! I'd rather save my $300+ unless I was going into business setting gears.
Reply With Quote
  #22
Old 04-16-2008
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
I used leather gloves to get my gears out of my 44. I kep feeding leather gloves into the gears and kept turning the pinion. It sucks the gloves in and forces the ring gear and carrier out of the housing.
Reply With Quote
  #23
Old 04-16-2008
rangererv's Avatar
Member

Join Date: Mar 2005
Location: Dearborn Michigan
Posts: 4,376
nice way of doing it. have fun rebuilding it. its expensive
Reply With Quote
  #24
Old 04-16-2008
HighRollerII's Avatar
RF Veteran
Thread Starter
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
Quote:
Originally Posted by rangererv View Post
nice way of doing it. have fun rebuilding it. its expensive


haha i know man..i did my explorer axle and was crazy..this build is going to be even more! but i got the axle for nothing and got some 8 lug outers for nothing also so im good so far
Reply With Quote
  #25
Old 04-16-2008
INT3RC3PTOR's Avatar
Veteran Status Achieved
iTrader: (4)

Join Date: Jul 2005
Location: Minnesooooota
Posts: 8,203
word.. you win the redneck engineer award
