Icon10 My Tacoma ARB Bumper On

Picked up my New ARB bumper(off a tacoma) last night from yfzman450. Wasn't planning on getting it on so soon, but things worked out. My friend Derek(same guy that built my rear bumper)did most of the work. He's the expert welder.
We had to cut apart the brackets that came with the bumper and fab up some stuff and cut a couple of holes in the frame. It's not completely done, but...
On with the pictures!

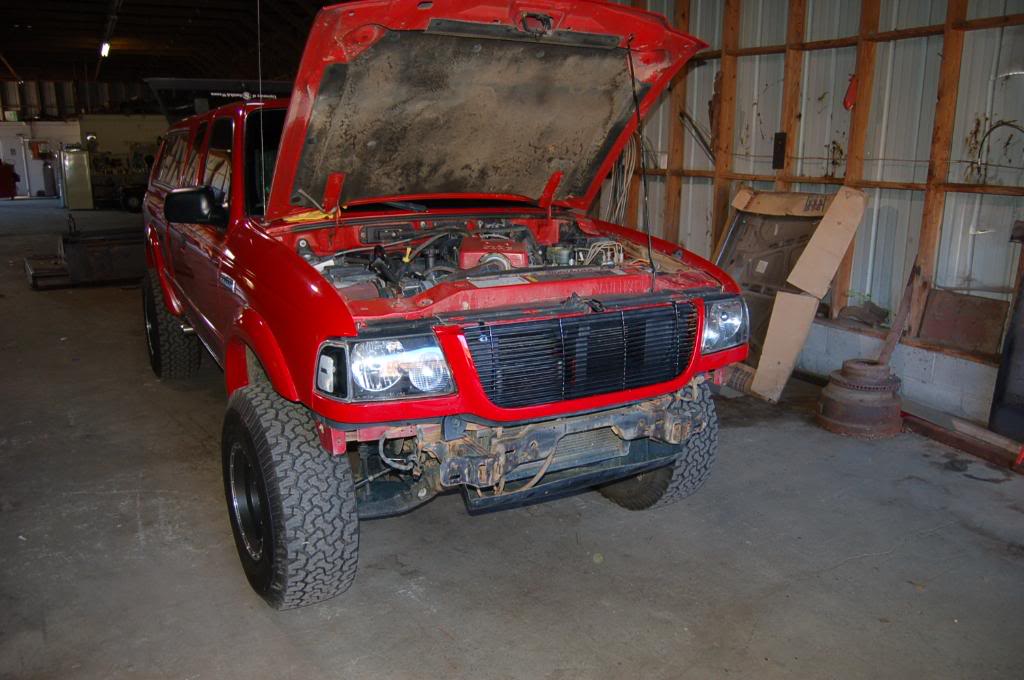

Bumperless truck:
Name:  DSC_0001-14.jpg
Views: 57
Size:  118.4 KB
Brackets that came on the bumper:
DSC_0002-16.jpg?t=1225853536
DSC_0003-14.jpg?t=1225853562

Front of bumper:
DSC_0004-15.jpg?t=1225853592

Derek thinking
DSC_0005-14.jpg?t=1225853616

It look like it would interfere with the headlights, but it doesn't at all.
DSC_0008-6.jpg?t=1225853653

Top hole is the hole that was made with a torch cutter:
DSC_0009-9.jpg?t=1225853693
DSC_0019-2.jpg?t=1225853961

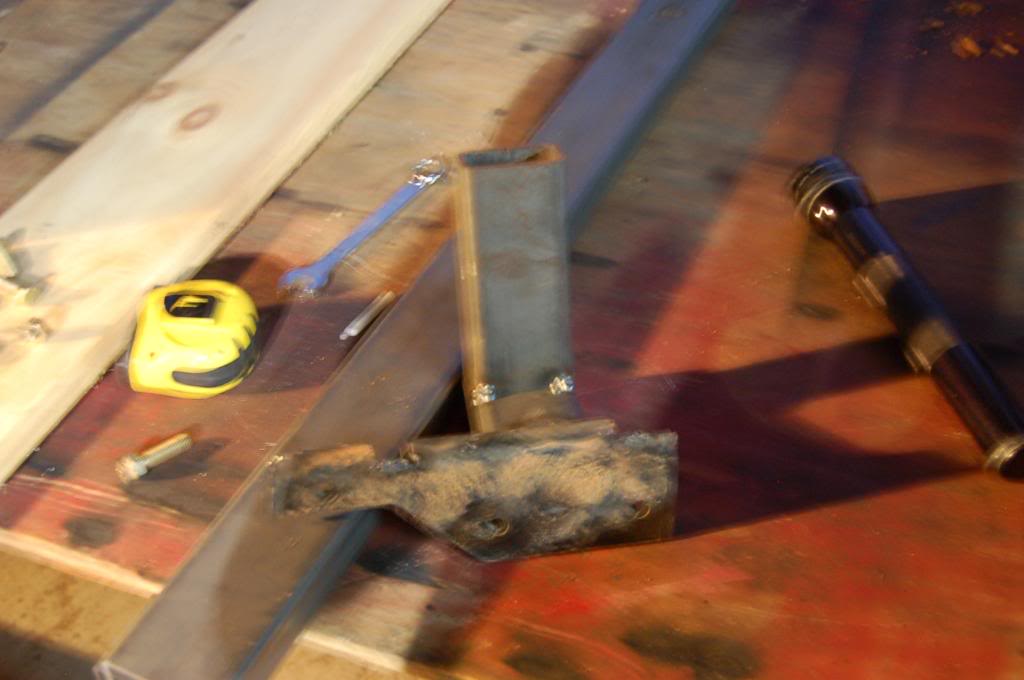

Crappy picture of the bracket in it's mock up state(only tack welded):
Name:  DSC_0011-10.jpg
Views: 36
Size:  84.2 KB

Brackets all welded up before paint.
DSC_0017-8.jpg?t=1225853894

What was left over from the brackets that came with the bumper:
DSC_0018-7.jpg?t=1225853923

Painted brackets all finished and mounted to the bumper:
DSC_0021-3.jpg?t=1225854006
DSC_0022-5.jpg?t=1225854029
DSC_0023-3.jpg?t=1225854060
DSC_0024-3.jpg?t=1225854080

The end was capped with a thick piece of gusset with two nuts welded to the underside of it for mounting:
DSC_0026-7.jpg?t=1225854094

The pictures you've all been waiting for, the bumper mounted:
DSC_0029-2.jpg?t=1225854240
DSC_0030-5.jpg?t=1225854251
DSC_0031-4.jpg?t=1225854297
DSC_0032-1.jpg?t=1225854313

Sorry that's all I've got for now. Took about 3.5 hrs. Over the next couple of weeks we will be mounting two more braces vertically to the bumper to keep it from moving. We will also be welding some metal under the headlights to hide the frame and close the gap. I also have plans to paint the frame and all that's exposed black.


Soon to come will be some type of fog lights(something else we have to make brackets for). Also hopefully a set of KC's and eventually down the road a winch.


Let me know what you think. I think it looks darn good for coming off of a Tacoma and going onto a Ranger.
Enjoy!

Last edited by Trigger01; 11-04-2008 at 09:36 PM.
Reply With Quote
  #2
Old 11-04-2008
htjunkie's Avatar
Member

Join Date: Apr 2007
Location: The Lone Star State
Posts: 1,286
Damn, looks bad A$$ on there!!!!
Reply With Quote
  #3
Old 11-04-2008
korey89's Avatar
Member
iTrader: (2)

Join Date: Mar 2008
Location: South, FL
Posts: 4,672
I don't like it. It looks too big and the gaps are all too big. Maybe if you painted under the grill shell black and put a fresh coat on the bumper too the gaps wouldn't stand out so much. But if you have it for function and actually use it I guess that's all that matters.
Reply With Quote
  #4
Old 11-04-2008
whippersnapper02's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2006
Location: Earth, Milky Way Galaxy
Posts: 7,415
Looks good. Get some rubber or something to fill in the gap.
Reply With Quote
  #5
Old 11-04-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Quote:
Originally Posted by korey89 View Post
I don't like it. It looks too big and the gaps are all too big. Maybe if you painted under the grill shell black and put a fresh coat on the bumper too the gaps wouldn't stand out so much. But if you have it for function and actually use it I guess that's all that matters.
I agree
Reply With Quote
  #6
Old 11-04-2008
Trigger01's Avatar
RF Veteran
Thread Starter
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Quote:
Over the next couple of weeks we will be mounting two more braces vertically to the bumper to keep it from moving. We will also be welding some metal under the headlights to hide the frame.
^
Reply With Quote
  #7
Old 11-04-2008
Member

Join Date: Jul 2005
Location: College Station
Posts: 2,781
looks mean.. I like!
Reply With Quote
  #8
Old 11-04-2008
Jimmeh's Avatar
Member
iTrader: (1)

Join Date: Dec 2007
Location: Columbia Falls, MT
Posts: 3,224
I like it other then that gap. I wonder if there is a way to take the bumper cap off the old bumper and some how get it to work with the bumper you got to cover that up. That, or even getting some straight metal that comes from the top of the bumper up welded on to cover that up.

I was actually looking at your other thread earlier because I was hoping to see progress pics.

I like it :)
Reply With Quote
  #9
Old 11-04-2008
Trigger01's Avatar
RF Veteran
Thread Starter
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Quote:
That, or even getting some straight metal that comes from the top of the bumper up welded on to cover that up.
That's the plan, but this was all we had time to do tonight.
Reply With Quote
  #10
Old 11-04-2008
Jimmeh's Avatar
Member
iTrader: (1)

Join Date: Dec 2007
Location: Columbia Falls, MT
Posts: 3,224
Quote:
Originally Posted by Trigger01 View Post
That's the plan, but this was all we had time to do tonight.
Yup, just read it after I posted. LOL!

It looks awesome, dude.

ONLY other thing I gotta say is it sticks out a little too far for my liking. Other then that though, I got nothing else bad to say.

I think I might get one from an XJ and see what I can do with it for my truck. Gotta talk to the ARB dealer.
Reply With Quote
  #11
Old 11-04-2008
Ranger_Guy15's Avatar
Member

Join Date: Apr 2007
Location: MN
Posts: 2,827
I like it. That thing is huge!
Reply With Quote
  #12
Old 11-04-2008
Ace's Avatar
Ace Ace is offline
Member
iTrader: (4)

Join Date: Aug 2007
Location: Central, Illinois
Posts: 3,448
I'll keep my opinion to myself until its completely finished.
Reply With Quote
  #13
Old 11-04-2008
XeRo's Avatar
Join Date: Feb 2008
Location: Here, Now...Ohio
Posts: 0
Why not just move the bumper up another few inches? I can see you got a bit of up room to play with.
Reply With Quote
  #14
Old 11-04-2008
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
I would trim the top of the bumper then redo the brackets to suck the bumper up higher.
Reply With Quote
  #15
Old 11-04-2008
GrafixGuy's Avatar
RF Veteran
iTrader: (3)

Join Date: Jan 2005
Location: Montgomery, AL
Posts: 8,703
IDK I miss your old bumper :-(
Reply With Quote
  #16
Old 11-04-2008
Sea-Bass's Avatar
Member
iTrader: (1)

Join Date: Jul 2008
Location: Georgia
Posts: 1,059
I like the look, but you need to cut a section out of the top of the bumper so the bottom of the grill will be hidden and the outer top sides of the bumper will fit flush with the piece bellow the headlights. Here is some pics that may help you with ideas.

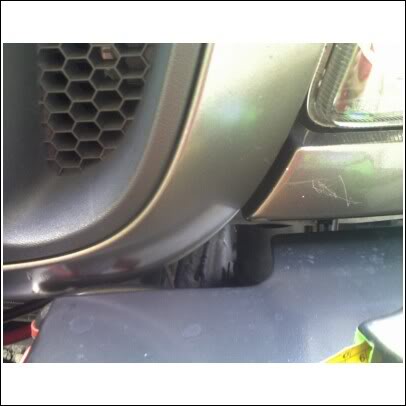

notch it for the grill and raise it up some...
Name:  3-2.jpg
Views: 30
Size:  20.3 KB

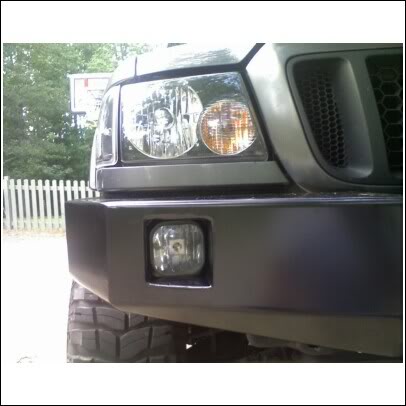

so it sits flush/closer(Less gap) with the piece bellow the headlight...
