New BEEFY x-members installed!!!

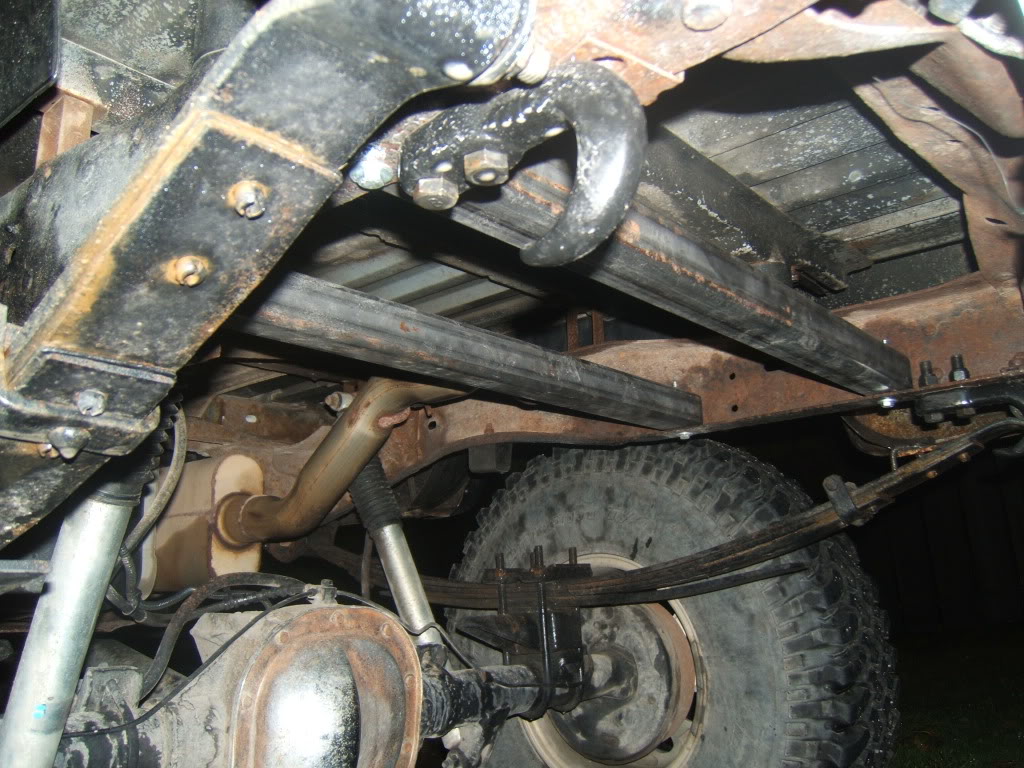

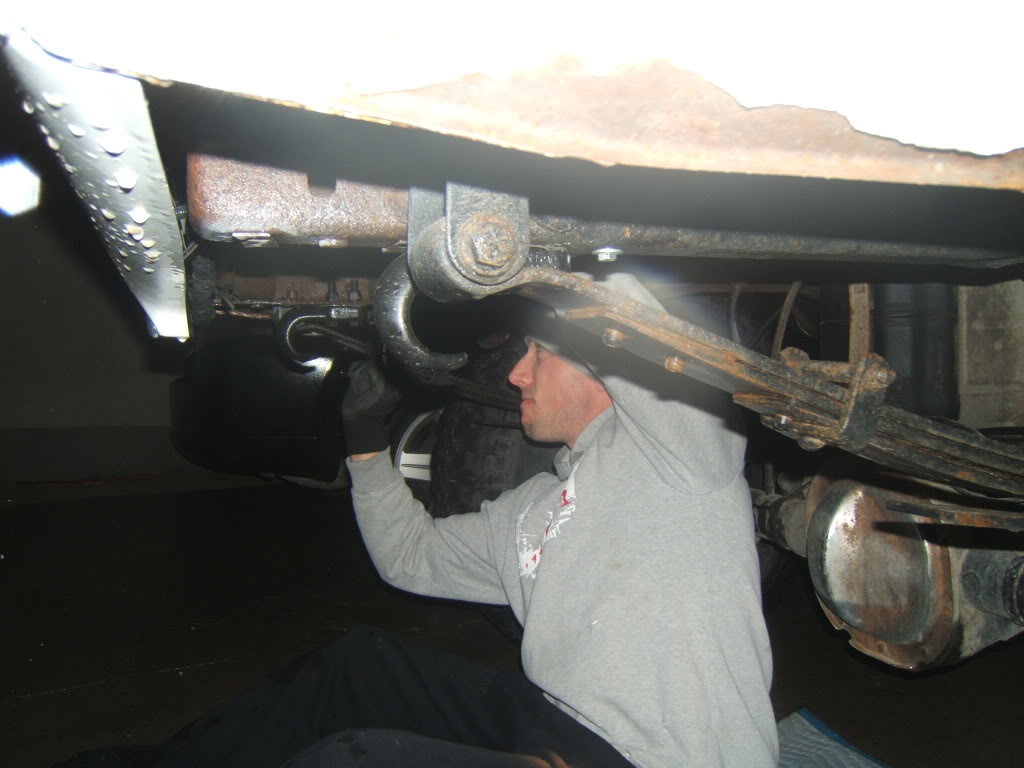

Well after installing my tow hooks.. I was kind of worried about the frame tweaking if I were to be yanked out.. or to pull someone else out.. so I beefed it up a bit... 2 x-members.. 2x2 1/4" steal tubing..should be good and rigid back there now.. got some action pics of my installing them too haha (cold out and snowing a bit)

Name:  2009_1014Image0012.jpg
Views: 1
Size:  167.1 KB

Name:  2009_1014Image0011.jpg
Views: 1
Size:  79.3 KB

Name:  2009_1014Image0010.jpg
Views: 1
Size:  127.8 KB
Reply With Quote
  #2
Old 10-14-2009
rudy2k7's Avatar
Member

Join Date: Sep 2009
Location: Killen, AL
Posts: 50
nice cheap fix huh?
Reply With Quote
  #3
Old 10-14-2009
Metro55's Avatar
Member
Thread Starter

Join Date: Apr 2009
Location: Winnipeg
Posts: 938
$10 for material from a friend is cheap enough.. haha
Reply With Quote
  #4
Old 10-14-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
looks good but you need to tie it together better. more than 1 bolt per side
Reply With Quote
  #5
Old 10-14-2009
rudy2k7's Avatar
Member

Join Date: Sep 2009
Location: Killen, AL
Posts: 50
not bad that stuff is goin for like $3.00 a ft ropund here
Reply With Quote
  #6
Old 10-14-2009
Metro55's Avatar
Member
Thread Starter

Join Date: Apr 2009
Location: Winnipeg
Posts: 938
Quote:
Originally Posted by zabeard View Post
looks good but you need to tie it together better. more than 1 bolt per side
this was a temp fix.. within the day lol... I'm probably going to weld it to the frame when I get a chance... there was only room for one bolt per side soo...
Reply With Quote
  #7
Old 10-14-2009
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
try welding a piece between each, with only one bolt the frame can still twist.
Reply With Quote
  #8
Old 10-14-2009
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
i would make one that is held on with the bolts from the hooks from side to side
Reply With Quote
  #9
Old 10-14-2009
brianjwilson's Avatar
Member

Join Date: Nov 2006
Location: Hillsboro, Oregon
Posts: 3,650
Quote:
Originally Posted by zabeard View Post
try welding a piece between each, with only one bolt the frame can still twist.
x 2

There is really nothing increasing the strength that way if you pull hard on one of the frame rails. Tie them together with a couple of pieces.
Reply With Quote
  #10
Old 10-14-2009
Metro55's Avatar
Member
Thread Starter

Join Date: Apr 2009
Location: Winnipeg
Posts: 938
I see what you're saying.. ya.. I'll get another couple pieces and wedge them between each x-member and weld them...
Reply With Quote
  #11
Old 10-15-2009
Off-roadranger04's Avatar
Member
iTrader: (2)

Join Date: Nov 2008
Location: Newark, Delaware
Posts: 1,751
try tieing them together by making a X shape... and is it snowing??? lol
Reply With Quote
  #12
Old 10-15-2009
Metro55's Avatar
Member
Thread Starter

Join Date: Apr 2009
Location: Winnipeg
Posts: 938
dub post

Last edited by Metro55; 10-15-2009 at 04:05 PM.
Reply With Quote
  #13
Old 10-15-2009
Metro55's Avatar
Member
Thread Starter

Join Date: Apr 2009
Location: Winnipeg
Posts: 938
I'll be making a "K" between the two when I get my hands on some more material and a welder...and YES, it was snowing while I was installing
